Tennant i-mop XL Plus parts list and diagrams
Tap any part on Tennant's i-mop XL Plus drawings to see its number, price and quantity. Every line from the parts manuals for the white first-generation model and the Teal V2025 model is here, crossed to Tennant's current numbers, including the parts that only come as part of an assembly. Pick your model under Your machine.
Online manuals: Operator
Complete list: every line of the parts list in Tennant i-mop XL plus Parts Manuals 9020954 Rev. 03 (07-2024, white model) and 9030074 Rev. 00 (05-2025, Teal V2025 model), 737 printed part lines, with the parts numbered on its drawings. Checked .
New to your i-mop XL Plus? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Cleaning path
- 18.1 in (460 mm)
- Run time
- 60 minutes (brochure: up to 70 minutes)
- Solution tank
- 1.05 gal (4 L)
- Weight
- 49.6 lb (22.5 kg) with batteries (brochure, with battery and water: 58.9 lb (26.7 kg))
Maintenance and wear parts for the i-mop XL Plus
Tennant's recommended spare parts for the white i-mop XL Plus: brushes, pads, squeegee blades and other parts that wear. The Teal V2025 model's list is in the Teal groups below.
Brush, Med, Blu, 9.0 [Xl Qty 2] (Standard - Medium Duty Daily Scrubbing)
$278.40/EABrush, Soft, Lt Blu, 9.0 [Xl Qty 2] (Option - Soft Light Duty Cleaning)
$250.60/EABrush, Hard, Red, 9.0 [Xl Qty 2] (Option - Heavy Duty Deep Cleaning & Grout)
$312.30/EA- No photo yet
Brush, Med, Blu, 9.0 [Xl W/grn Lock Qty 2] (Option - Medium Duty Daily Scrubbing)
$99.80/EA - No photo yet
Brush, Med, Blu, 9.0 [Xl W/red Lock Qty 2] (Option - Medium Duty Daily Scrubbing)
$99.80/EA - No photo yet
Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing)
$99.80/EA Pad, Driver, 9.2 [Xl Qty2]
$295.40/EAPad, Red, 8.5 [Xl Qty 10 Pads] (Cleaning)
$302.80/EA- No photo yet
Pad, Wht, 8.5 [Xl Qty 10 Pads] (Buffing)
$275.20/EA - No photo yet
Pad, Green, 8.5 [Xl Qty 10 Pads] (Scrubbing)
$366.40/EA - No photo yet
Pad, Blu, 8.5 [Xl Qty 10 Pads] (Scrubbing)
$333.10/EA - No photo yet
Pad, Blk, 8.5 [Xl Qty 10 Pads] (Light Stripping)
$403.10/EA
Source: Tennant i-mop XL plus Parts Manuals 9020954 Rev. 03 (07-2024, white model) and 9030074 Rev. 00 (05-2025, Teal V2025 model), page 5. SES ref PF-C46L-JHEM
Your machine
How to tell which you have
- White model: model number 1251236 or 9020942, S/N 330000 and later.
- Teal model (V2025): model number 1273254, S/N 360000 and later.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant i-mop XL Plus Recommended spare parts
Recommended spare parts from Tennant's parts list. Manual page 5.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | TN4036141Replaces Tennant 1232627 | Qty on machine: 1 | Blade, Sqge, Front, 22.4 [Xl] (Standard - Red Linatex)Fits 1 of 2 versionsWhite model | $56.90/EA | ||
| – | TN4036142Replaces Tennant 1232629 | Qty on machine: 1 | Blade, Sqge, Rear, 24.0 [Xl Lina] (Std - Red Linatex)Fits 1 of 2 versionsWhite model | $56.90/EA | ||
| – | TN4036125Replaces Tennant 1232519 | Qty on machine: 1 | Coupling, WaterFits 1 of 2 versionsWhite model | $80.20/EA | ||
| – | TN8005824Replaces Tennant 1232100 | Qty on machine: 1 | Battery Kit [I-Mop Left & Right]Fits 1 of 2 versionsWhite model | $1,210.30/EA | ||
| – | TN4031828Replaces Tennant 1252648 | Qty on machine: 1 | Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws)Fits 1 of 2 versionsWhite model | $69.20/EA | ||
| – | TN4222609Replaces Tennant 1232673 | Qty on machine: 3 | Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys)Fits 1 of 2 versionsWhite model | $118.60/EA | ||
| – | TN4031492Replaces Tennant 1251765 | Qty on machine: 1 | Float Asm, Ball [xl & xxl plus imop]Fits 1 of 2 versionsWhite model | $72.70/EA | ||
| – | TN4222595Replaces Tennant 1232587 | Qty on machine: 1 | Hose Assy, StretchFits 1 of 2 versionsWhite model | $76.10/EA | ||
| – | TN4036128Replaces Tennant 1232578 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl Qty 2] (Standard - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsWhite model | $278.40/EA | ||
| – | TN4222618Replaces Tennant 1232698 | Qty on machine: 1 | Transport Kit, Caster, RhFits 1 of 2 versionsWhite model | $79.80/EA | ||
| – | TN4222620Replaces Tennant 1232700 | Qty on machine: 1 | Transport Kit, Caster, LhFits 1 of 2 versionsWhite model | $79.80/EA | ||
| – | TN4036129Replaces Tennant 1232579 | Qty on machine: 1 | Motor, Brush, RhFits 1 of 2 versionsWhite model | $577.60/EA | ||
| – | TN4033387Replaces Tennant 1237790 | Qty on machine: 1 | Knob Kit, Housing, Top [Xxl]Fits 1 of 2 versionsWhite model | $65.80/EA | ||
| – | TN4036134Replaces Tennant 1232607 | Qty on machine: 1 | Brush, Hard, Red, 9.0 [Xl Qty 2] (Option - Heavy Duty Deep Cleaning & Grout)Fits 1 of 2 versionsWhite model | $312.30/EA | ||
| – | TN4036136Replaces Tennant 1232613 | Qty on machine: 1 | Pad, Driver, 9.2 [Xl Qty2]Fits 1 of 2 versionsWhite model | $295.40/EA | ||
| – | TN4036135Replaces Tennant 1232608 | Qty on machine: 1 | Brush, Soft, Lt Blu, 9.0 [Xl Qty 2] (Option - Soft Light Duty Cleaning)Fits 1 of 2 versionsWhite model | $250.60/EA | ||
| – | TN4222604Replaces Tennant 1232635 | Qty on machine: 1 | Blade, Sqge, Rear, 24.0 [Xl Ure] (Option)Fits 1 of 2 versionsWhite model | $68.28/EA | ||
| – | TN4033015Replaces Tennant 1234346 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Qty 10 Pads] (Cleaning)Fits 1 of 2 versionsWhite model | $302.80/EA | ||
| – | TN4222597Replaces Tennant 1232590 | Qty on machine: 1 | Hinge Assy, LeverFits 1 of 2 versionsWhite model | $125.00/EA | ||
| – | TN4036130Replaces Tennant 1232582 | Qty on machine: 1 | Motor, Brush, LhFits 1 of 2 versionsWhite model | $577.60/EA | ||
| – | TN4032166Replaces Tennant 1255493 | Qty on machine: 1 | Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373)Complete assembly. Fits 1 of 2 versionsWhite model | $407.40/EA | ||
| – | TN4034369Replaces Tennant 1246375 | Qty on machine: 1 | Gasket Set, Motor, Vacuum [Xl & Xxl]Part of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsWhite model | $46.70/EA | ||
| – | TN4033017Replaces Tennant 1234348 | Qty on machine: 1 | Pad, Green, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsWhite model | $366.40/EA | ||
| – | TN8004703Replaces Tennant 1255495 | Qty on machine: 1 | Circuitboard Kit, Contrl [Imop] (Includes Decal & Button)Fits 1 of 2 versionsWhite model | $293.90/EA | ||
| – | TN4209960Replaces Tennant 1250527 | Qty on machine: 1 | Charger, Bat (Plus Model 3pin)Fits 1 of 2 versionsWhite model | $671.20/EA | ||
| – | TN4036156Replaces Tennant 1232675 | Qty on machine: 1 | Cover, Brush, MotorFits 1 of 2 versionsWhite model | $102.80/EA | ||
| – | TN4222610Replaces Tennant 1232677 | Qty on machine: 1 | Connector, Hose, SqgeFits 1 of 2 versionsWhite model | $57.60/EA | ||
| – | TN4033016Replaces Tennant 1234347 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Qty 10 Pads] (Buffing)Fits 1 of 2 versionsWhite model | $275.20/EA | ||
| – | TN4036146Replaces Tennant 1232649 | Qty on machine: 1 | Pad, Grn, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Daily Cleaning)Fits 1 of 2 versionsWhite model | $348.10/EA | ||
| – | TN4222570Replaces Tennant 1232481 | Qty on machine: 1 | Connector Assy, Upt, Sigar (Incl Clip and Mount Screw)Fits 1 of 2 versionsWhite model | $105.20/EA | ||
| – | TN4036518Replaces Tennant 1233556 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/grn Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsWhite model | $99.80/EA | ||
| – | TN4036519Replaces Tennant 1233557 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/red Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsWhite model | $99.80/EA | ||
| – | TN4036520Replaces Tennant 1233559 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsWhite model | $99.80/EA | ||
| – | TN4033018Replaces Tennant 1234350 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsWhite model | $333.10/EA | ||
| – | TN4033014Replaces Tennant 1234344 | Qty on machine: 1 | Pad, Blk, 8.5 [Xl Qty 10 Pads] (Light Stripping)Fits 1 of 2 versionsWhite model | $403.10/EA | ||
| – | TN4036143Replaces Tennant 1232645 | Qty on machine: 1 | Pad, Ylw, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Periodic Cleaning)Fits 1 of 2 versionsWhite model | $348.10/EA | ||
| – | TN4036147Replaces Tennant 1232650 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning)Fits 1 of 2 versionsWhite model | $261.60/EA | ||
| – | TN4036148Replaces Tennant 1232651 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning Aggressive)Fits 1 of 2 versionsWhite model | $287.70/EA | ||
| – | TN4036144Replaces Tennant 1232647 | Qty on machine: 1 | Pad, Orng, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Ceramic Tiles)Fits 1 of 2 versionsWhite model | $316.40/EA | ||
| – | TN4036145Replaces Tennant 1232648 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - High Traffic Areas)Fits 1 of 2 versionsWhite model | $316.40/EA | ||
| – | TN4036157Replaces Tennant 1232676 | Qty on machine: 1 | Clip, Retaining, TankFits 1 of 2 versionsWhite model | $60.80/EA | ||
| – | TN4217454Replaces Tennant 1246484 | Qty on machine: 1 | Grip, Handle [Set Of 2 xl Imop]Fits 1 of 2 versionsWhite model | $69.10/EA |

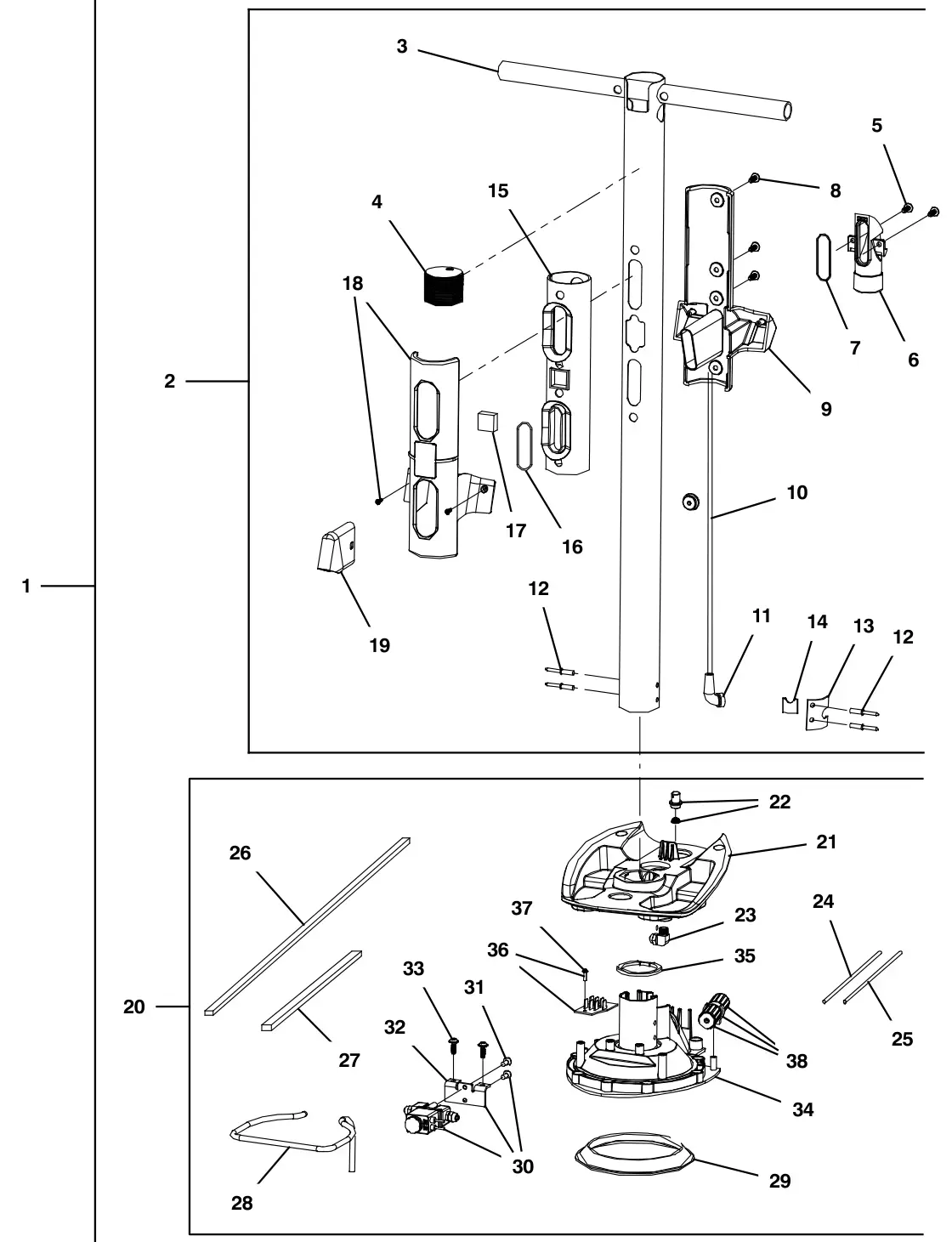

Tennant i-mop XL Plus Handle assembly parts
The parts Tennant numbers on its handle assembly drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4222563Replaces Tennant 1232443 | 1 | Tube Assy, Inlet (Entire Assy Includes Items #2-38)Fits 1 of 2 versionsWhite model | $891.80/EA |
| 2 | TN4222621Replaces Tennant 1232708 | 1 | Tube Kit, Inlet (Includes Items #2-19 Only)Complete assembly. Fits 1 of 2 versionsWhite model | $289.60/EA |
| – | TN4217430Replaces Tennant 1246355 | 1 | Handle Asm, Weldment [Xl Imop]Complete assembly. Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $310.07/EA |
| 3 | TN4221116Replaces Tennant 1237800 | 1 | Handle Wldt, Tube xl&xxlPart of Handle Asm, Weldment [Xl Imop] (1246355). Fits 1 of 2 versionsWhite model | $171.90/EA |
| 4 | – | 1 | End Cap Inlet TubePart of Handle Asm, Weldment [Xl Imop] (1246355). Fits 1 of 2 versionsWhite model | |
| 5 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | |
| 6 | TN4220039Replaces Tennant 1234958 | 1 | Connector, Hose, Squeegee [Imop]Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $52.90/EA |
| 7 | – | 1 | Gasket For Hose ConnectorPart of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | |
| – | TN4217431Replaces Tennant 1246357 | 1 | Holder, Tank, Rear [Xl & Xxl Imop]Complete assembly. Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $80.40/EA |
| 8 | – | 10 | Screw Wn 5451 50x25 Ejot Delta PtPart of Holder, Tank, Rear [Xl & Xxl Imop] (1246357). Fits 1 of 2 versionsWhite model | |
| 9 | – | 1 | Tank Holder RearPart of Holder, Tank, Rear [Xl & Xxl Imop] (1246357). Fits 1 of 2 versionsWhite model | |
| – | TN4217432Replaces Tennant 1246358 | 1 | Tube, Cable, Utp [Xl & Xxl Imop]Complete assembly. Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $79.80/EA |
| 10 | TN4222573Replaces Tennant 1232494 | 1 | Cable, Connector, Cntrl [Utp]Part of Tube, Cable, Utp [Xl & Xxl Imop] (1246358). Fits 1 of 2 versionsWhite model | $50.80/EA |
| 11 | – | 1 | Power Cable Guiding RubberPart of Tube, Cable, Utp [Xl & Xxl Imop] (1246358). Fits 1 of 2 versionsWhite model | |
| 12 | – | 4 | Rivet With Dia. 5mm & Length 10mmPart of Tube, Cable, Utp [Xl & Xxl Imop] (1246358). Fits 1 of 2 versionsWhite model | |
| 13 | – | 1 | Sealing Pressure PlatePart of Tube, Cable, Utp [Xl & Xxl Imop] (1246358). Fits 1 of 2 versionsWhite model | |
| 14 | – | 1 | Sealing Rubber Sheet Al TubePart of Tube, Cable, Utp [Xl & Xxl Imop] (1246358). Fits 1 of 2 versionsWhite model | |
| – | TN4217433Replaces Tennant 1246360 | 1 | Seal Kit, Compartment, Dirt [Xl & Xxl]Complete assembly. Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $100.80/EA |
| 15 | TN4220038Replaces Tennant 1234957 | 1 | Seal, Tank, Recvy [Imop]Part of Seal Kit, Compartment, Dirt [Xl & Xxl] (1246360). Fits 1 of 2 versionsWhite model | $69.80/EA |
| 16 | – | 1 | O-ring Wire Dia. 3mm, Od 46mmPart of Seal Kit, Compartment, Dirt [Xl & Xxl] (1246360). Fits 1 of 2 versionsWhite model | |
| 17 | – | 1 | Magnet Top Unit Small 20x20x10mmPart of Seal Kit, Compartment, Dirt [Xl & Xxl] (1246360). Fits 1 of 2 versionsWhite model | |
| 18 | TN4034363Replaces Tennant 1246366 | 1 | Holder, Tank, Front [Xl & Xxl Imop]Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $69.30/EA |
| 19 | TN4033051Replaces Tennant 1234953 | 1 | Deflector, Tank, Recvy [Imop]Part of Tube Kit, Inlet (Includes Items #2-19 Only) (1232708). Fits 1 of 2 versionsWhite model | $63.90/EA |
| 20 | TN4036165Replaces Tennant 1232710 | 1 | Motor Kit, TopComplete assembly. Fits 1 of 2 versionsWhite model | $159.40/EA |
| 21 | TN4034364Replaces Tennant 1246367 | 1 | Motor Hsg, Unit, Top [Xl & Xxl] (Includes Water Inlet Coupling & Metal Grease Filter)Complete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | $172.60/EA |
| 22 | TN4032679Replaces Tennant 1261821 | 1 | Fitting Kit, Coupling, W/Washer [Imop]Part of Motor Hsg, Unit, Top [Xl & Xxl] (Includes Water Inlet Coupling & Metal Grease Filter) (1246367). Fits 1 of 2 versionsWhite model | $59.09/EA |
| 23 | TN4034365Replaces Tennant 1246369 | 1 | Connector, Metal, Angle [Xl & Xxl Imop]Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | $57.50/EA |
| – | TN4034367Replaces Tennant 1246373 | 1 | Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads)Complete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | $57.80/EA |
| 24 | – | 1 | 187 Terminal + Wire 14awg Red, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsWhite model | |
| 25 | – | 1 | 187 Terminal + Wire 14awg Blk, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsWhite model | |
| – | TN4034366Replaces Tennant 1246370 | 1 | Gasket Set, Sealing, Motr [Xl & Xxl ImopComplete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | $53.40/EA |
| 26 | – | 1 | Sealing Gasket Eva 3x1.5x593mmPart of Gasket Set, Sealing, Motr [Xl & Xxl Imop (1246370). Fits 1 of 2 versionsWhite model | |
| 27 | – | 1 | Sealing Gasket Eva 4x2.5x150mmPart of Gasket Set, Sealing, Motr [Xl & Xxl Imop (1246370). Fits 1 of 2 versionsWhite model | |
| 28 | – | 1 | Water Channel Dia. 6mm L:225mmPart of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | |
| 29 | – | 1 | Vacuum Motor Sealing TopPart of Motor Kit, Top (1232710). Fits 1 of 2 versionsWhite model | |
| 30 | TN4031828Replaces Tennant 1252648 | 1 | Valve Asm, Complete, w/ wire connector [Xl & Xxl]Complete assembly. Fits 1 of 2 versionsWhite model | $69.20/EA |
| 31 | TN4220045Replaces Tennant 1234975 | 2 | Screw, Flt, Soc, M4 X 10 Ss [10x, Imop]Fits 1 of 2 versionsWhite model | $4.60/EA |
| 32 | – | 1 | Megnetic Ventil Fixation Plate Stainless SteelFits 1 of 2 versionsWhite model | |
| – | TN4034368Replaces Tennant 1246374 | 1 | Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37)Complete assembly. Part of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsWhite model | $79.60/EA |
| 33 | – | 2 | Screw M3x12 Crosshead Selftapping Bl-ni SstPart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsWhite model | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 34 | – | 1 | Motor Unit FramePart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsWhite model | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 35 | – | 1 | Motor Unit Frame RubberPart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsWhite model | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 36 | TN4036124Replaces Tennant 1232486 | 1 | Circuitboard, Valve (Includes Item #37) (Not Inlcuded In Assy P/N 1232710 Item #20)Part of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsWhite model | $44.00/EA |
| 37 | – | 2 | Screw M3x12 Crosshead Selftapping Bl-ni SstPart of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsWhite model | Included in kitValve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) · TN4031828 ›Manual: 1252648 |
| 38 | TN4222570Replaces Tennant 1232481 | 1 | Connector Assy, Upt, Sigar (Includes Clip and Mounting Screw) (Not Inlcuded In Assy P/N 1232710 Item #20)Part of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsWhite model | $105.20/EA |

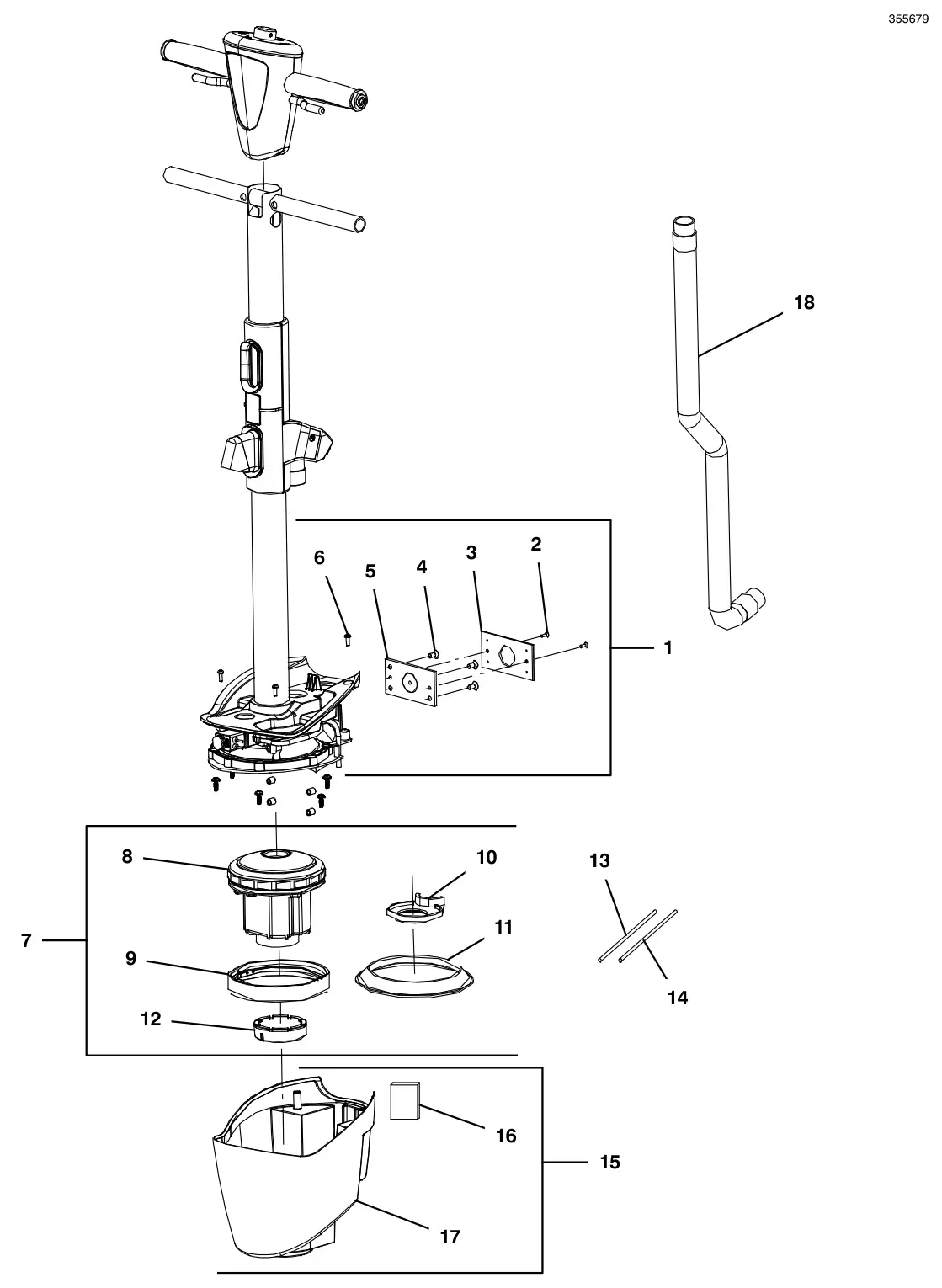

Tennant i-mop XL Plus Handle assembly (continued) parts
The parts Tennant numbers on its handle assembly (continued) drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036163Replaces Tennant 1232694 | 1 | Hinge Kit, LeverComplete assembly. Fits 1 of 2 versionsWhite model | $156.70/EA |
| 2 | – | 2 | Count Sunk Screw N3.5x13 Philips HeadPart of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsWhite model | |
| 3 | – | 1 | Plastic Plate For Hinge Welding AssyPart of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsWhite model | |
| 4 | TN4033059Replaces Tennant 1234974 | 4 | Screw, Flt, Soc, M6 X 12 Nl [10x, Imop]Part of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsWhite model | $53.90/EA |
| 5 | – | 1 | Hinge Welding Assy Top UnitPart of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsWhite model | |
| 6 | – | 4 | Screw M4x12Part of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsWhite model | |
| 7 | TN4032166Replaces Tennant 1255493 | 1 | Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373)Complete assembly. Fits 1 of 2 versionsWhite model | $407.40/EA |
| 8 | – | 1 | Domel Vacuum Cleaner MotorPart of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsWhite model | Included in kitFan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) · TN4032166 ›Manual: 1255493 |
| 9 | – | 1 | Vac Motor Sealing SupportPart of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsWhite model | Included in kitFan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) · TN4032166 ›Manual: 1255493 |
| 10 | – | 1 | Vac Motor Sealing BottomPart of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsWhite model | Included in kitFan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) · TN4032166 ›Manual: 1255493 |
| – | TN4034369Replaces Tennant 1246375 | 1 | Gasket Set, Motor, Vacuum [Xl & Xxl]Complete assembly. Part of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsWhite model | $46.70/EA |
| 11 | – | 1 | Center Sealing Gasket Top Vacuum MotorPart of Gasket Set, Motor, Vacuum [Xl & Xxl] (1246375). Fits 1 of 2 versionsWhite model | |
| 12 | – | 1 | Vacuum Motor Sealing TopPart of Gasket Set, Motor, Vacuum [Xl & Xxl] (1246375). Fits 1 of 2 versionsWhite model | |
| – | TN4034367Replaces Tennant 1246373 | 1 | Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads)Complete assembly. Fits 1 of 2 versionsWhite model | $57.80/EA |
| 13 | – | 1 | 187 Terminal + Wire 14awg Red, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsWhite model | |
| 14 | – | 1 | 187 Terminal + Wire 14awg Blk, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsWhite model | |
| 15 | TN4036166Replaces Tennant 1232711 | 1 | Cover Kit, FanComplete assembly. Fits 1 of 2 versionsWhite model | $162.40/EA |
| 16 | – | 1 | Magnet Top UnitPart of Cover Kit, Fan (1232711). Fits 1 of 2 versionsWhite model | |
| 17 | – | 1 | Motor Unit CoverPart of Cover Kit, Fan (1232711). Fits 1 of 2 versionsWhite model | |
| 18 | TN4222595Replaces Tennant 1232587 | 1 | Hose Assy, StretchFits 1 of 2 versionsWhite model | $76.10/EA |

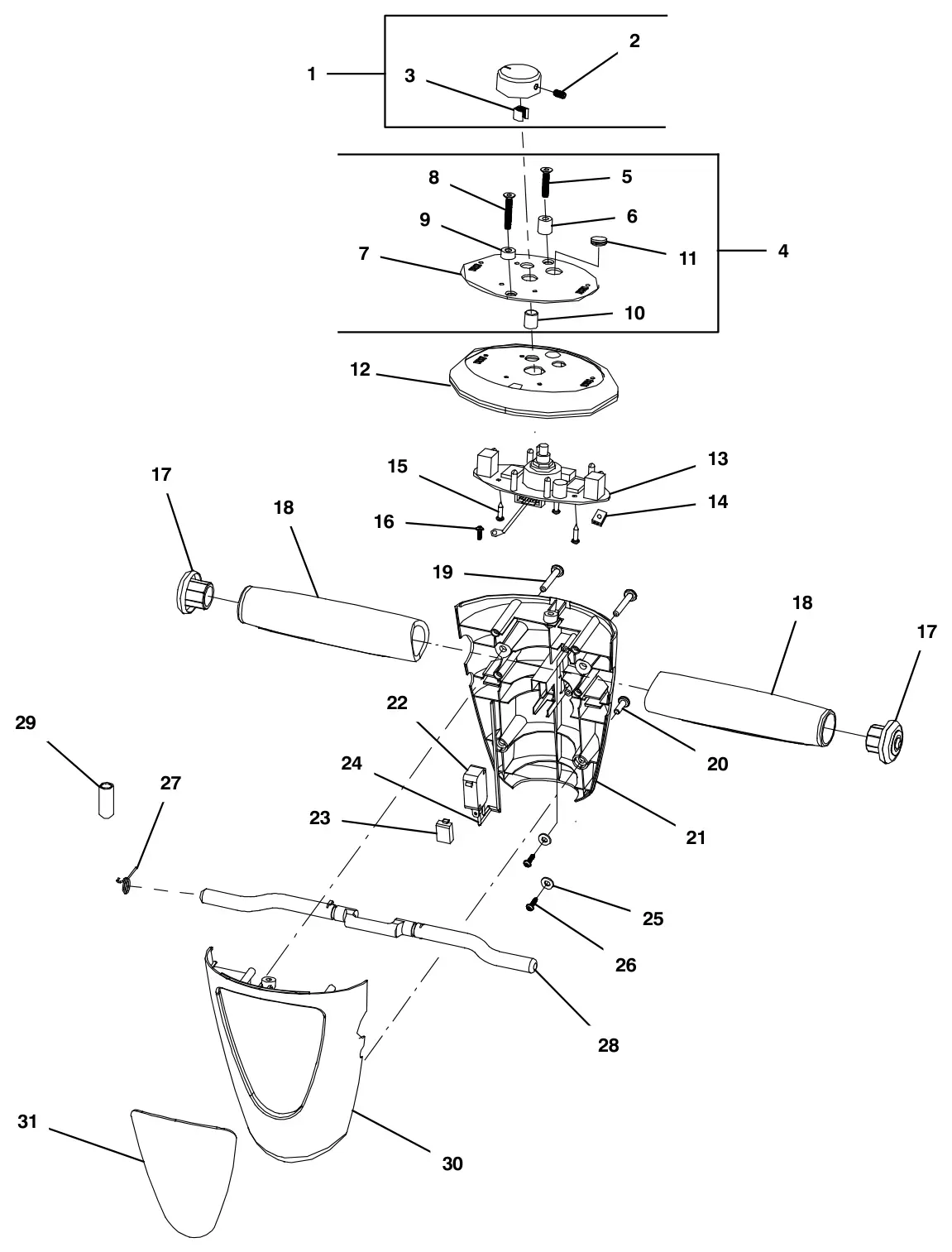

Tennant i-mop XL Plus Control console assembly parts
The parts Tennant numbers on its control console assembly drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033387Replaces Tennant 1237790 | 1 | Knob Kit, Housing, Top [Xxl]Complete assembly. Fits 1 of 2 versionsWhite model | $65.80/EA |
| 2 | – | 1 | Hexagon Socket Set Screw M4 x 8Part of Knob Kit, Housing, Top [Xxl] (1237790). Fits 1 of 2 versionsWhite model | |
| 3 | – | 1 | Fixation Insert Turning ButtonPart of Knob Kit, Housing, Top [Xxl] (1237790). Fits 1 of 2 versionsWhite model | |
| 4 | TN4217416Replaces Tennant 1246339 | 1 | Hardware Kit, Control Hsg [xl Imop]Complete assembly. Fits 1 of 2 versionsWhite model | $74.20/EA |
| 5 | – | 1 | M4x25 Countersunk Screw Stainless SteelPart of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Support Plastic Bush Top Al Sticker LongPart of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 7 | – | 1 | Decal Kit, Instr, Dash [xl]Part of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 8 | – | 1 | M4x20 Countersunk Screw Stainless SteelPart of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 9 | – | 1 | Support Plastic Bush Top Al Sticker ShortPart of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Water Save ButtonPart of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 11 | – | 1 | Rubber Block Water Save Adjustment Hole[A]Part of Hardware Kit, Control Hsg [xl Imop] (1246339). Fits 1 of 2 versionsWhite model | |
| 12 | TN4216156Replaces Tennant 1252788 | 1 | Control, Hsg, Top [w/bumper xl & xxl]Fits 1 of 2 versionsWhite model | $31.30/EA |
| – | TN8004703Replaces Tennant 1255495 | 1 | Circuitboard Kit, Contrl [Imop] (Includes Decal Item #7 and Water Save Button Item #10)Complete assembly. Fits 1 of 2 versionsWhite model | $293.90/EA |
| 13 | – | 1 | Circuitboard, Cntrl [XL&XXL Plus Imop]Part of Circuitboard Kit, Contrl [Imop] (Includes Decal & Button) (1255495). Fits 1 of 2 versionsWhite model | Included in kitCircuitboard Kit, Contrl [Imop] (Includes Decal & Button) · TN8004703 ›Manual: 1255495 |
| 14 | – | 1 | Switch Wire Clamp, Color: BlackPart of Circuitboard Kit, Contrl [Imop] (Includes Decal & Button) (1255495). Fits 1 of 2 versionsWhite model | Included in kitCircuitboard Kit, Contrl [Imop] (Includes Decal & Button) · TN8004703 ›Manual: 1255495 |
| 15 | – | 3 | Screw M3x12 Crosshead Selftapping Bl-ni SstPart of Circuitboard Kit, Contrl [Imop] (Includes Decal & Button) (1255495). Fits 1 of 2 versionsWhite model | Included in kitCircuitboard Kit, Contrl [Imop] (Includes Decal & Button) · TN8004703 ›Manual: 1255495 |
| 16 | – | 1 | Screw 4x10Part of Circuitboard Kit, Contrl [Imop] (Includes Decal & Button) (1255495). Fits 1 of 2 versionsWhite model | Included in kitCircuitboard Kit, Contrl [Imop] (Includes Decal & Button) · TN8004703 ›Manual: 1255495 |
| – | TN4217454Replaces Tennant 1246484 | 1 | Grip, Handle [xl Imop Set Of 2]Complete assembly. Fits 1 of 2 versionsWhite model | $69.10/EA |
| 17 | – | 2 | End Cap Grip, Color: Blue (P312C)Part of Grip, Handle [Set Of 2 xl Imop] (1246484). Fits 1 of 2 versionsWhite model | |
| 18 | TN4033054Replaces Tennant 1234963 | 1 | Grip, Handle [xl I-Mop Set Of 2]Part of Grip, Handle [Set Of 2 xl Imop] (1246484). Fits 1 of 2 versionsWhite model | $64.20/EA |
| – | TN4217417Replaces Tennant 1246342 | 1 | Housing Kit, Rear, W/Hardware [Xl & Xxl]Complete assembly. Fits 1 of 2 versionsWhite model | $74.30/EA |
| 19 | – | 2 | Screw M4x35 Crosshead, Standard Thread SstPart of Housing Kit, Rear, W/Hardware [Xl & Xxl] (1246342). Fits 1 of 2 versionsWhite model | |
| 20 | – | 2 | Screw M4x12 Crosshead, Standard Thread SstPart of Housing Kit, Rear, W/Hardware [Xl & Xxl] (1246342). Fits 1 of 2 versionsWhite model | |
| 21 | TN4220040Replaces Tennant 1234959 | 1 | Housing, Control, Rear [White,Imop]Part of Housing Kit, Rear, W/Hardware [Xl & Xxl] (1246342). Fits 1 of 2 versionsWhite model | $69.00/EA |
| – | TN4034362Replaces Tennant 1246344 | 1 | Switch Kit, Power [Xl & Xxl Imop]Complete assembly. Fits 1 of 2 versionsWhite model | $68.30/EA |
| 22 | – | 1 | Power Switch Control Unit OmoronPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsWhite model | |
| 23 | – | 1 | Rubber Block 15x10x5mm InjectedPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsWhite model | |
| 24 | – | 1 | On/Off Switch Wires / L=250mmPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsWhite model | |
| 25 | – | 2 | Plastic Washer 9x4x1mmPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsWhite model | |
| 26 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsWhite model | |
| – | TN4217456Replaces Tennant 1246490 | 1 | Trigger Asm, [Xl & Xxl Imop]Complete assembly. Fits 1 of 2 versionsWhite model | $58.90/EA |
| 27 | – | 1 | Spring Switch Lever Dia 0.8mmPart of Trigger Asm, [Xl & Xxl Imop] (1246490). Fits 1 of 2 versionsWhite model | |
| 28 | TN4220042Replaces Tennant 1234961 | 1 | Handle, Control [Blue, Imop]Part of Trigger Asm, [Xl & Xxl Imop] (1246490). Fits 1 of 2 versionsWhite model | $53.40/EA |
| 29 | TN4217418Replaces Tennant 1246347 | 1 | Ring, Magnetic, Easy Scrub [Xl & Xxl]Fits 1 of 2 versionsWhite model | $47.30/EA |
| 30 | TN4220043Replaces Tennant 1234962 | 1 | Housing, Control, Front [White, Imop]Fits 1 of 2 versionsWhite model | $92.20/EA |
| 31 | TN4215866Replaces Tennant 1251759 | 1 | Plate, Label, w/clip [xl plus Imop]Fits 1 of 2 versionsWhite model | $77.40/EA |
Tennant i-mop XL Plus Clean water tank assembly parts

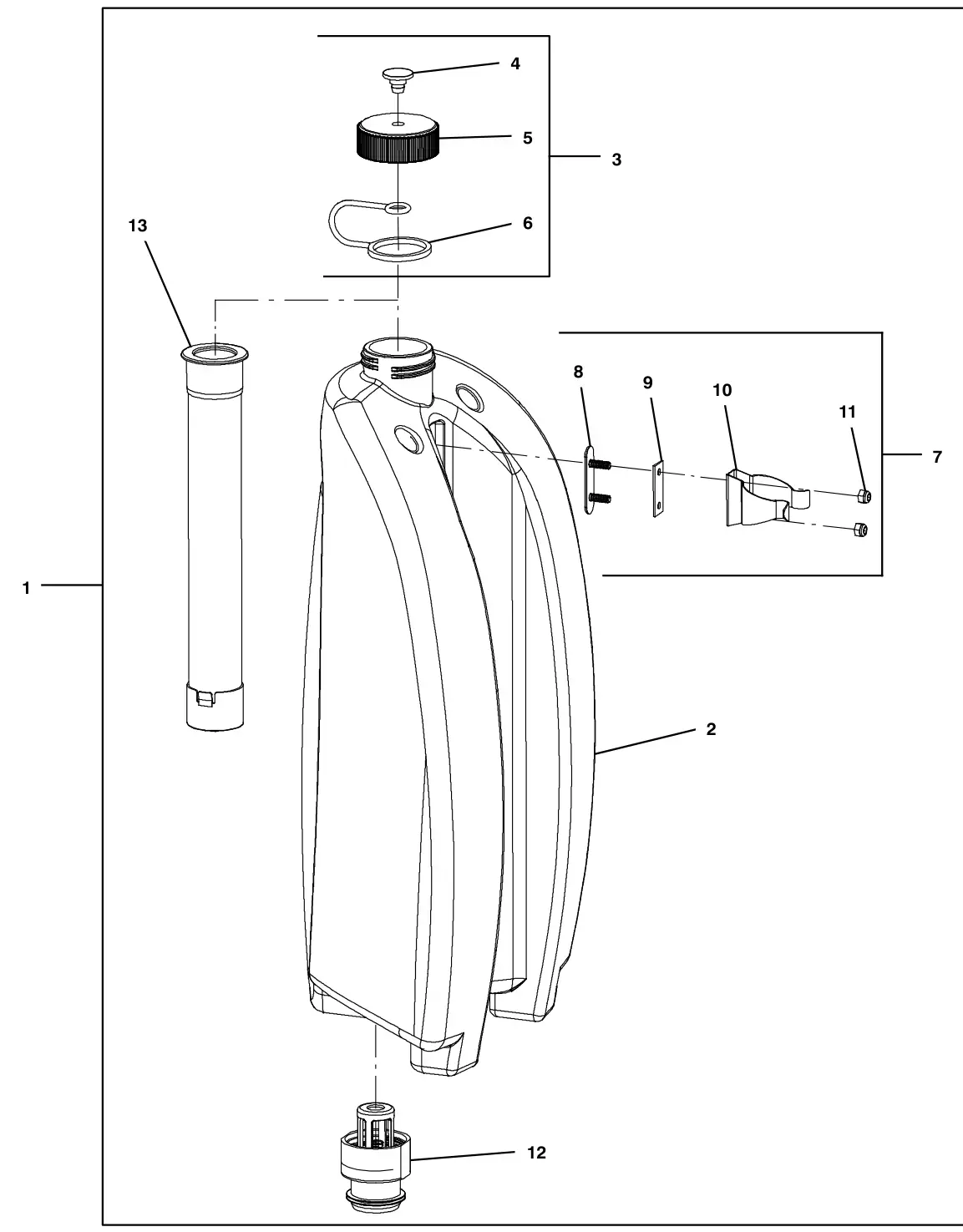

The parts Tennant numbers on its clean water tank assembly drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4222585Replaces Tennant 1232514 | 1 | Tank Assy, Sol [Blue Cap] (Standard)Complete assembly. Fits 1 of 2 versionsWhite model | $244.30/EA |
| 1 | TN4222598Replaces Tennant 1232603 | 1 | Tank Assy, Sol [Red Cap] (Option)Complete assembly. Fits 1 of 2 versionsWhite model | $241.90/EA |
| 1 | TN4222599Replaces Tennant 1232605 | 1 | Tank Assy, Sol [Yellow Cap] (Option)Complete assembly. Fits 1 of 2 versionsWhite model | $97.61/EA |
| 1 | TN4222600Replaces Tennant 1232606 | 1 | Tank Assy, Sol [Green Cap] (Option)Complete assembly. Fits 1 of 2 versionsWhite model | $97.61/EA |
| 2 | – | 1 | Clean Water CompartmentPart of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | |
| 3 | TN4036150Replaces Tennant 1232663 | 1 | Cap Kit, Tank, Sol [Blue] (Standard)Complete assembly. Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $44.80/EA |
| 3 | TN4036151Replaces Tennant 1232665 | 1 | Cap Kit, Tank, Sol [Red] (Option)Complete assembly. Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $53.20/EA |
| 3 | TN4036152Replaces Tennant 1232666 | 1 | Cap Kit, Tank, Sol [Yellow] (Option)Complete assembly. Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $53.20/EA |
| 3 | TN4036153Replaces Tennant 1232667 | 1 | Cap Kit, Tank, Sol [Green] (Option)Complete assembly. Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $53.20/EA |
| 4 | – | 1 | Sleeve Cap Holder Clean TankPart of Cap Kit, Tank, Sol [Green] (Option) (1232667). Fits 1 of 2 versionsWhite model | |
| 5 | – | 1 | Cap With HolePart of Cap Kit, Tank, Sol [Green] (Option) (1232667). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Cap HolderPart of Cap Kit, Tank, Sol [Green] (Option) (1232667). Fits 1 of 2 versionsWhite model | |
| 7 | TN4036157Replaces Tennant 1232676 | 1 | Clip, Retaining, Tank (Includes Qty 1 Clip Assembly)Complete assembly. Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $60.80/EA |
| 8 | – | 1 | Holder Plate Clip Clean TankPart of Clip, Retaining, Tank (1232676). Fits 1 of 2 versionsWhite model | |
| 9 | – | 1 | Rubber Cushion For Metal ClipPart of Clip, Retaining, Tank (1232676). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Clip, Retaining, TankPart of Clip, Retaining, Tank (1232676). Fits 1 of 2 versionsWhite model | |
| 11 | – | 2 | Nut M4 Nylon StainlessPart of Clip, Retaining, Tank (1232676). Fits 1 of 2 versionsWhite model | |
| 12 | TN4036125Replaces Tennant 1232519 | 1 | Coupling, WaterPart of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model | $80.20/EA |
| 13 | – | 1 | Hose Assy, Filling (Located Inside of Tank Assembly)Part of Tank Assy, Sol [Green Cap] (Option) (1232606). Fits 1 of 2 versionsWhite model |
Tennant i-mop XL Plus Dirty water tank assembly parts

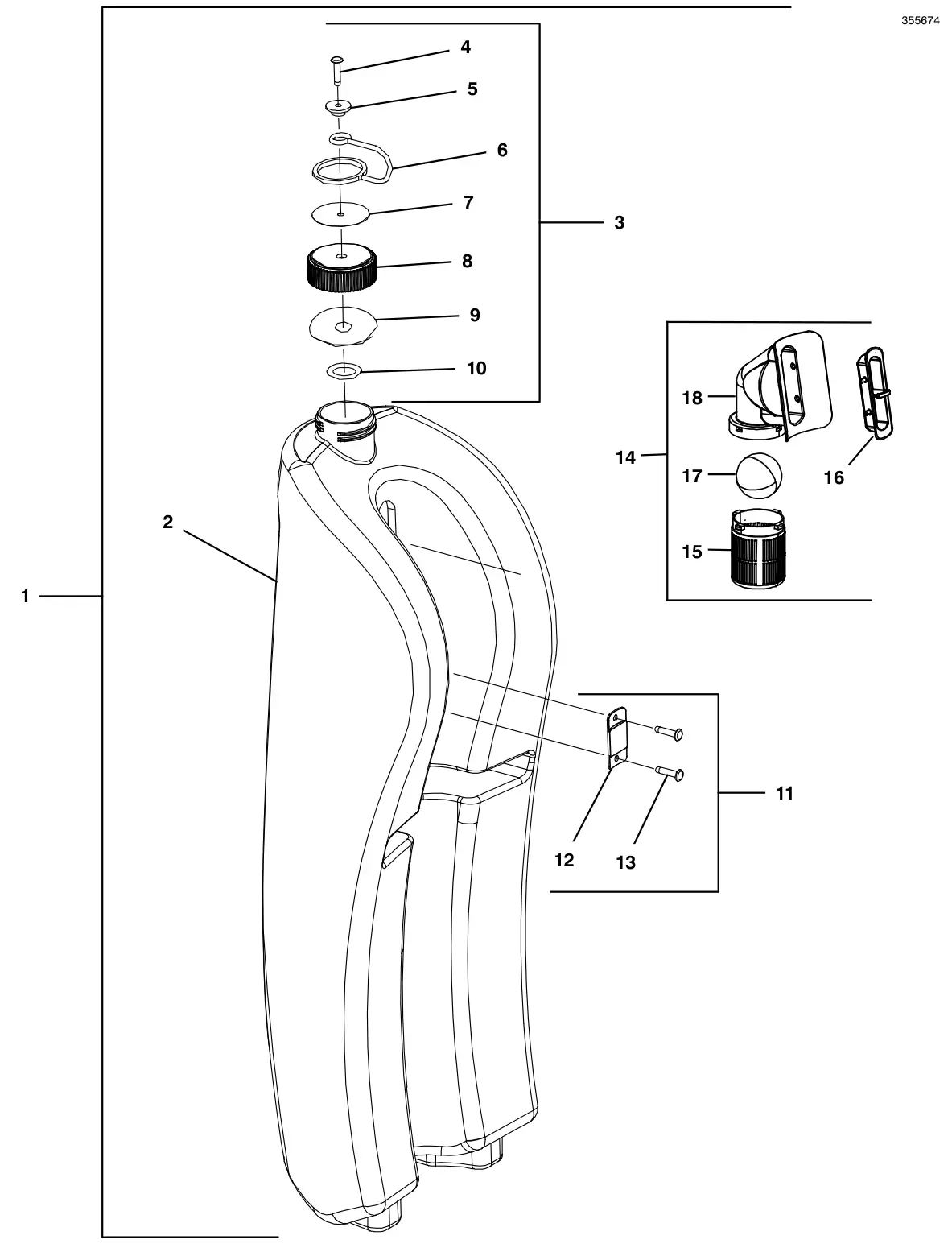

The parts Tennant numbers on its dirty water tank assembly drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4215865Replaces Tennant 1251757 | 1 | Tank Assy, Rec [xl plus imop]Complete assembly. Fits 1 of 2 versionsWhite model | $348.20/EA |
| 2 | – | 1 | Dirty Water CompartmentPart of Tank Assy, Rec [xl plus imop] (1251757). Fits 1 of 2 versionsWhite model | |
| 3 | TN4036149Replaces Tennant 1232661 | 1 | Cap Kit, Tank, RecComplete assembly. Part of Tank Assy, Rec [xl plus imop] (1251757). Fits 1 of 2 versionsWhite model | $54.94/EA |
| 4 | – | 1 | Blind Rivet Nail 4 X 15 MmgPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 5 | – | 1 | Sleeve Cap HolderPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Cap HolderPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 7 | – | 1 | Warning Plate On Dirty Tank Round Stainless 4.5mmPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 8 | – | 1 | Cap Without HolePart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 9 | – | 1 | Sealing Gasket Cap Dirty TankPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Plastic Washer 9x4x1mmPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsWhite model | |
| 11 | TN4036133Replaces Tennant 1232600 | 1 | Plate, Mtg, TankComplete assembly. Part of Tank Assy, Rec [xl plus imop] (1251757). Fits 1 of 2 versionsWhite model | $87.30/EA |
| 12 | – | 1 | Fixation Plate Dirt CompartmentPart of Plate, Mtg, Tank (1232600). Fits 1 of 2 versionsWhite model | |
| 13 | – | 2 | Blind Rivet Nail 4 X 15 MmgPart of Plate, Mtg, Tank (1232600). Fits 1 of 2 versionsWhite model | |
| 14 | TN4031492Replaces Tennant 1251765 | 1 | Float Asm, Ball [xl & xxl plus imop]Complete assembly. Part of Tank Assy, Rec [xl plus imop] (1251757). Fits 1 of 2 versionsWhite model | $72.70/EA |
| 15 | TN4031493Replaces Tennant 1251766 | 1 | Cage, Ball, Float [xl &xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsWhite model | $26.40/EA |
| 16 | TN4031494Replaces Tennant 1251767 | 1 | Support, Housing [xl & xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsWhite model | $27.20/EA |
| 17 | TN4031495Replaces Tennant 1251768 | 1 | Ball, Float [xl &xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsWhite model | $10.80/EA |
| 18 | TN4031496Replaces Tennant 1251769 | 1 | Housing, Ball, Float [xl &xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsWhite model | $41.20/EA |
Tennant i-mop XL Plus Scrub head assembly parts

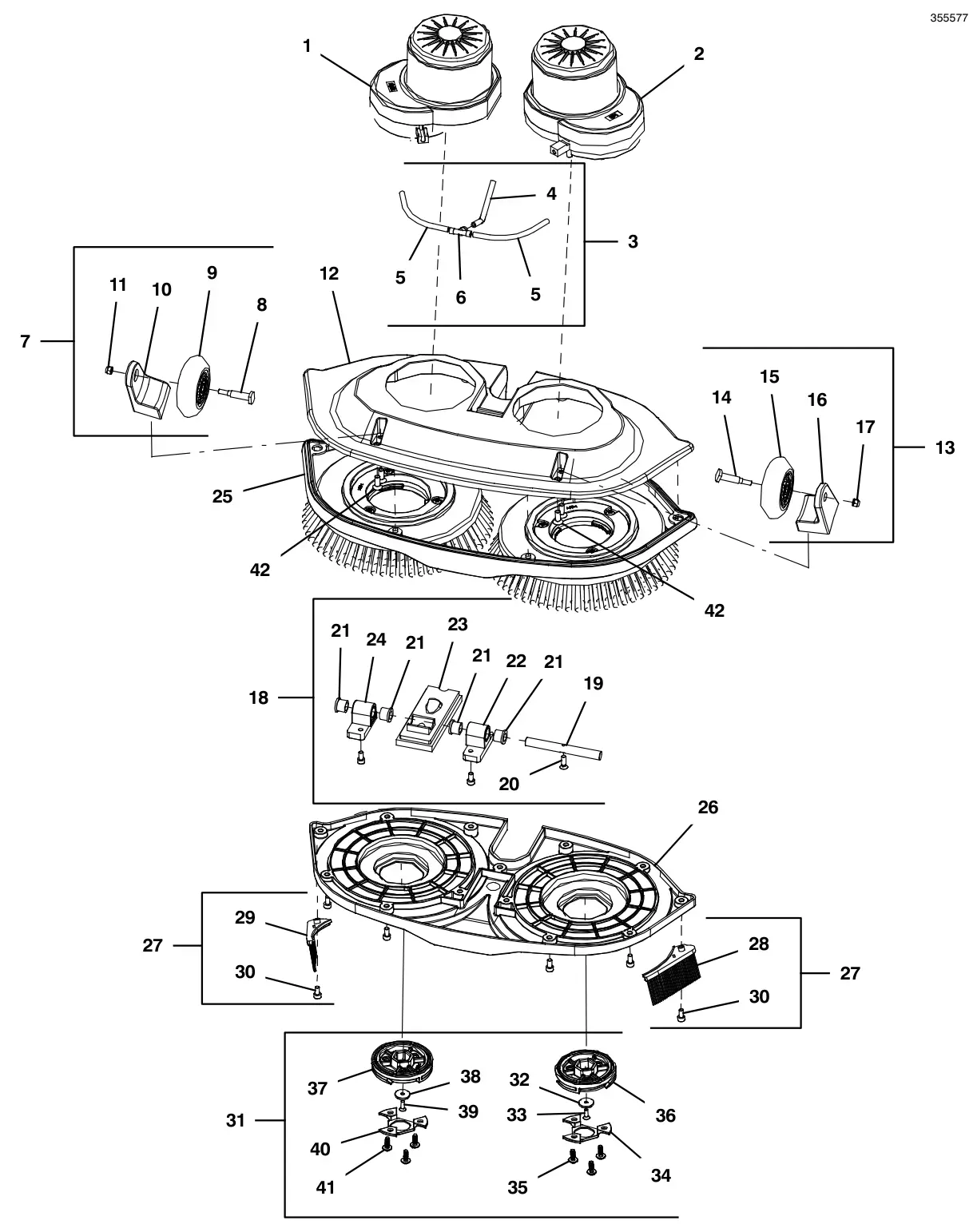

The parts Tennant numbers on its scrub head assembly drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036129Replaces Tennant 1232579 | 1 | Motor, Brush, RhFits 1 of 2 versionsWhite model | $577.60/EA |
| 2 | TN4036130Replaces Tennant 1232582 | 1 | Motor, Brush, LhFits 1 of 2 versionsWhite model | $577.60/EA |
| 3 | TN4036162Replaces Tennant 1232693 | 1 | Fitting Assy, Water Channel [Imop]Complete assembly. Fits 1 of 2 versionsWhite model | $49.20/EA |
| 4 | – | 1 | Water Channel Dia. 6mm L:690mmPart of Fitting Assy, Water Channel [Imop] (1232693). Fits 1 of 2 versionsWhite model | |
| 5 | – | 2 | Water Channel Dia. 4mm L:110mmPart of Fitting Assy, Water Channel [Imop] (1232693). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Water Coupling Brush MotorPart of Fitting Assy, Water Channel [Imop] (1232693). Fits 1 of 2 versionsWhite model | |
| 7 | TN4222618Replaces Tennant 1232698 | 1 | Transport Kit, Caster, RhComplete assembly. Fits 1 of 2 versionsWhite model | $79.80/EA |
| 8 | – | 1 | Shaft Transport CasterPart of Transport Kit, Caster, Rh (1232698). Fits 1 of 2 versionsWhite model | |
| 9 | – | 1 | Transport CasterPart of Transport Kit, Caster, Rh (1232698). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Transport Wheel Pilar RightPart of Transport Kit, Caster, Rh (1232698). Fits 1 of 2 versionsWhite model | |
| 11 | – | 1 | Nut M5 NylonPart of Transport Kit, Caster, Rh (1232698). Fits 1 of 2 versionsWhite model | |
| 12 | TN4222594Replaces Tennant 1232586 | 1 | Cover, Motor, BrushFits 1 of 2 versionsWhite model | $401.90/EA |
| 13 | TN4222620Replaces Tennant 1232700 | 1 | Transport Kit, Caster, LhComplete assembly. Fits 1 of 2 versionsWhite model | $79.80/EA |
| 14 | – | 1 | Shaft Transport CasterPart of Transport Kit, Caster, Lh (1232700). Fits 1 of 2 versionsWhite model | |
| 15 | – | 1 | Transport CasterPart of Transport Kit, Caster, Lh (1232700). Fits 1 of 2 versionsWhite model | |
| 16 | – | 1 | Transport Wheel Pilar LeftPart of Transport Kit, Caster, Lh (1232700). Fits 1 of 2 versionsWhite model | |
| 17 | – | 1 | Nut M5 NylonPart of Transport Kit, Caster, Lh (1232700). Fits 1 of 2 versionsWhite model | |
| 18 | TN4036169Replaces Tennant 1232714 | 1 | Hinge Kit, Hd, BrushComplete assembly. Fits 1 of 2 versionsWhite model | $116.70/EA |
| 19 | – | 1 | Chassis HingePart of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | |
| 20 | – | 1 | Nylok Screw Counter Sunk Bolt M4x12Part of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | |
| 21 | TN4034372Replaces Tennant 1246382 | 4 | Bushing, Cover, Motor [Xxl Imop] (Includes Qty 4)Part of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | $55.80/EA |
| 22 | – | 1 | Brush Unit Hinge Support LeftPart of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | |
| 23 | – | 1 | Construction Cover SealPart of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | |
| 24 | – | 1 | Brush Unit Hinge Support RightPart of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsWhite model | |
| 25 | TN4036161Replaces Tennant 1232687 | 1 | Bumper, BrushFits 1 of 2 versionsWhite model | $148.20/EA |
| 26 | TN4036131Replaces Tennant 1232583 | 1 | Cover, Brush, BottomFits 1 of 2 versionsWhite model | $139.80/EA |
| 27 | TN8004685Replaces Tennant 1232660 | 1 | Shield Kit, Splash (Includes Allen Wrench Tool)Complete assembly. Fits 1 of 2 versionsWhite model | $58.00/EA |
| 28 | – | 1 | Splashing Guard Imop LeftPart of Shield Kit, Splash (Includes Allen Wrench Tool) (1232660). Fits 1 of 2 versionsWhite model | |
| 29 | – | 1 | Splashing Guard Imop RightPart of Shield Kit, Splash (Includes Allen Wrench Tool) (1232660). Fits 1 of 2 versionsWhite model | |
| 30 | – | 2 | Nylok Hexagon Socket Head Cap Screw M5x20Part of Shield Kit, Splash (Includes Allen Wrench Tool) (1232660). Fits 1 of 2 versionsWhite model | |
| 31 | TN4036156Replaces Tennant 1232675 | 1 | Cover, Brush, Motor (Includes Qty 2 Cover Assemblies)Complete assembly. Fits 1 of 2 versionsWhite model | $102.80/EA |
| – | TN4034371Replaces Tennant 1246378 | 1 | Drive, Brush, Left [Xl & Xxl Imop]Complete assembly. Part of Cover, Brush, Motor (1232675). Fits 1 of 2 versionsWhite model | $67.80/EA |
| 32 | – | 1 | Support Disk Driving Wheel Side Hole Dia 5mmPart of Drive, Brush, Left [Xl & Xxl Imop] (1246378). Fits 1 of 2 versionsWhite model | |
| 33 | TN4033058Replaces Tennant 1234973 | 1 | Screw, Flt, Soc, M5 X 18.5 Lh Nl [ Imop]Part of Drive, Brush, Left [Xl & Xxl Imop] (1246378). Fits 1 of 2 versionsWhite model | $47.80/EA |
| 34 | – | 1 | Cover Brush Motor Screw Color: BluePart of Drive, Brush, Left [Xl & Xxl Imop] (1246378). Fits 1 of 2 versionsWhite model | |
| 35 | – | 3 | Screw Wn 5451 50x14 Ejot Delta PtPart of Drive, Brush, Left [Xl & Xxl Imop] (1246378). Fits 1 of 2 versionsWhite model | |
| 36 | – | 1 | Driving Wheel Bottom Left Color: GrayPart of Drive, Brush, Left [Xl & Xxl Imop] (1246378). Fits 1 of 2 versionsWhite model | |
| – | TN4034370Replaces Tennant 1246377 | 1 | Drive, Brush, Right [Xl & Xxl]Complete assembly. Part of Cover, Brush, Motor (1232675). Fits 1 of 2 versionsWhite model | $41.10/EA |
| 37 | – | 1 | Driving Wheel Bottom Right Color: GrayPart of Drive, Brush, Right [Xl & Xxl] (1246377). Fits 1 of 2 versionsWhite model | |
| 38 | – | 1 | Support Disk Driving Wheel Side Hole Dia 5mmPart of Drive, Brush, Right [Xl & Xxl] (1246377). Fits 1 of 2 versionsWhite model | |
| 39 | TN4033057Replaces Tennant 1234972 | 1 | Screw, Flt, Soc, M5 X 18.5 Nl [10x,Imop]Part of Drive, Brush, Right [Xl & Xxl] (1246377). Fits 1 of 2 versionsWhite model | $17.20/EA |
| 40 | – | 1 | Cover Brush Motor Screw Color: BluePart of Drive, Brush, Right [Xl & Xxl] (1246377). Fits 1 of 2 versionsWhite model | |
| 41 | – | 3 | Screw Wn 5451 50x14 Ejot Delta PtPart of Drive, Brush, Right [Xl & Xxl] (1246377). Fits 1 of 2 versionsWhite model | |
| 42 | TN4033055Replaces Tennant 1234969 | 4 | Screw, Flt, Soc, M6 X 16 Nl [10x,Imop]Fits 1 of 2 versionsWhite model | $48.20/EA |
Tennant i-mop XL Plus Brush motor assembly parts

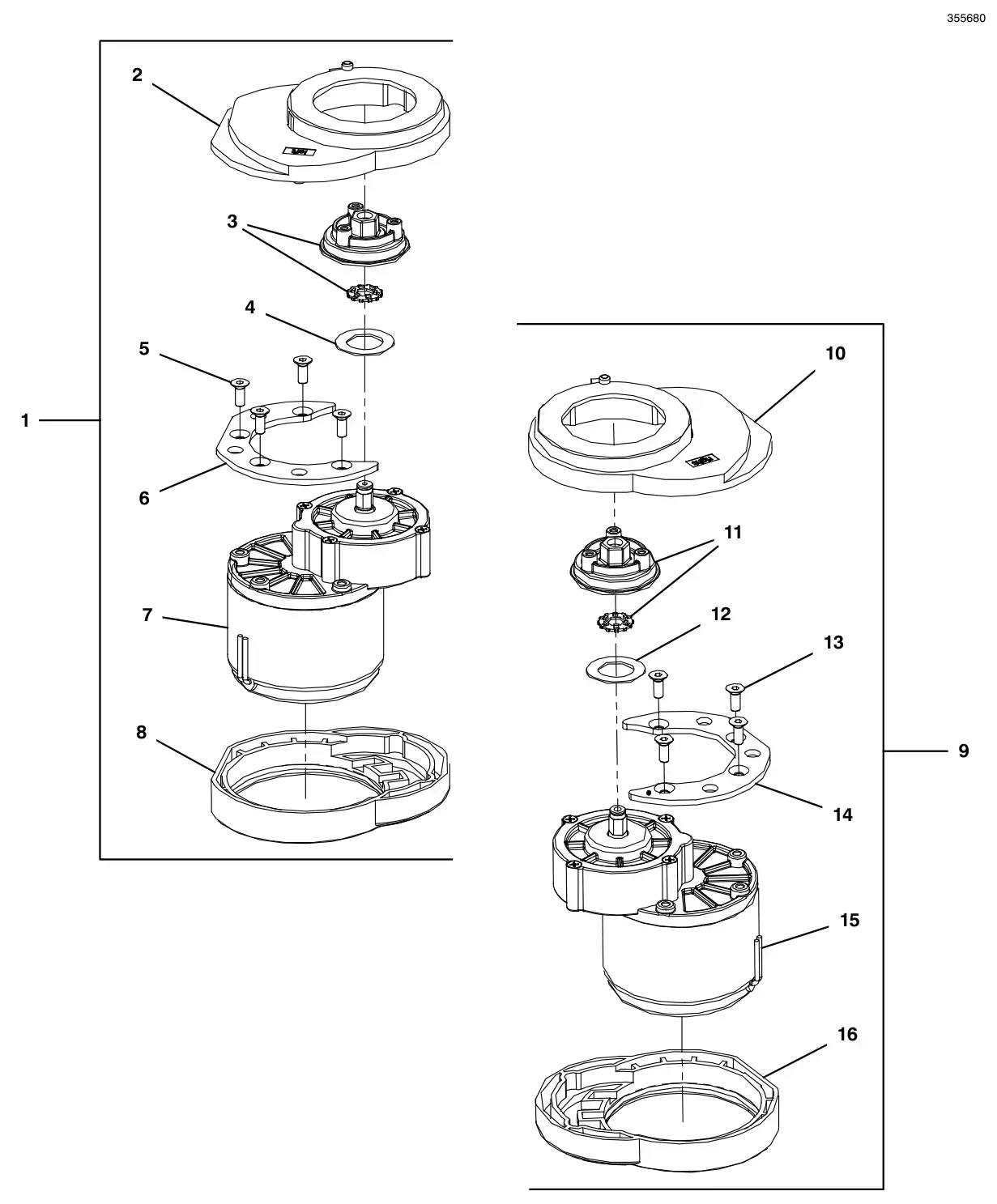

The parts Tennant numbers on its brush motor assembly drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036130Replaces Tennant 1232582 | 1 | Motor, Brush, LhComplete assembly. Fits 1 of 2 versionsWhite model | $577.60/EA |
| 2 | – | 1 | Brush Motor Support Rubber LeftPart of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 3 | TN4033388Replaces Tennant 1237826 | 1 | Wheel, Driving, W/Metal Insert [Xxl]Part of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | $85.20/EA |
| 4 | – | 1 | Felt Brush MotorPart of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 5 | – | 4 | Nylock Screw Counter Sunk Bolt M6 x 16Part of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Brush Motor Construction Ring LeftPart of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 7 | – | 1 | Brush Motor Helical Gears LeftPart of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 8 | – | 1 | Brush Motor Fixation Conductive Rubber LeftPart of Motor, Brush, Lh (1232582). Fits 1 of 2 versionsWhite model | |
| 9 | TN4036129Replaces Tennant 1232579 | 1 | Motor, Brush, RhComplete assembly. Fits 1 of 2 versionsWhite model | $577.60/EA |
| 10 | – | 1 | Brush Motor Support Rubber RightPart of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | |
| 11 | TN4033388Replaces Tennant 1237826 | 1 | Wheel, Driving, W/Metal Insert [Xxl]Part of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | $85.20/EA |
| 12 | – | 1 | Felt Brush MotorPart of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | |
| 13 | – | 4 | Nylock Screw Counter Sunk Bolt M6 x 16Part of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | |
| 14 | – | 1 | Brush Motor Construction Ring RightPart of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | |
| 15 | – | 1 | Brush Motor Helical Gears RightPart of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model | |
| 16 | – | 1 | Brush Motor Fixation Conductive Rubber RightPart of Motor, Brush, Rh (1232579). Fits 1 of 2 versionsWhite model |
Tennant i-mop XL Plus Brush driver assembly parts

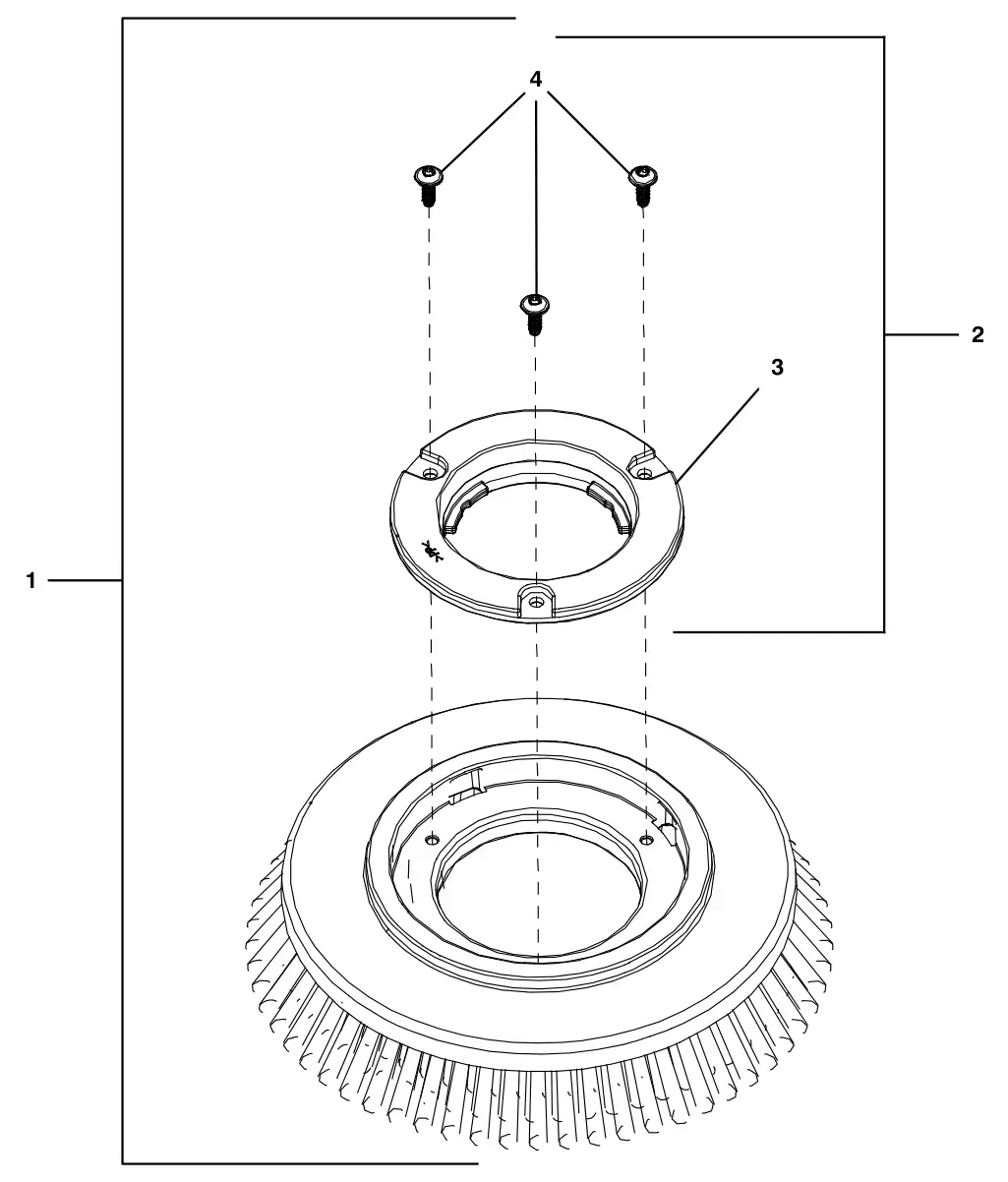

The parts Tennant numbers on its brush driver assembly drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036128Replaces Tennant 1232578 | 1 | Brush, Med, Blu, 9.0 [Xl Qty 2] (Standard - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsWhite model | $278.40/EA |
| 1 | TN4036135Replaces Tennant 1232608 | 1 | Brush, Soft, Lt Blu, 9.0 [Xl Qty 2] (Option - Soft Light Duty Cleaning)Complete assembly. Fits 1 of 2 versionsWhite model | $250.60/EA |
| 1 | TN4036134Replaces Tennant 1232607 | 1 | Brush, Hard, Red, 9.0 [Xl Qty 2] (Option - Heavy Duty Deep Cleaning & Grout)Complete assembly. Fits 1 of 2 versionsWhite model | $312.30/EA |
| 1 | TN4036518Replaces Tennant 1233556 | 1 | Brush, Med, Blu, 9.0 [Xl W/grn Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsWhite model | $99.80/EA |
| 1 | TN4036519Replaces Tennant 1233557 | 1 | Brush, Med, Blu, 9.0 [Xl W/red Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsWhite model | $99.80/EA |
| 1 | TN4036520Replaces Tennant 1233559 | 1 | Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsWhite model | $99.80/EA |
| 2 | TN4036137Replaces Tennant 1232620 | 1 | Driver Kit, Brush [Blue] (Set of 2) (Standard)Complete assembly. Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 2 | TN4036138Replaces Tennant 1232622 | 1 | Driver Kit, Brush [Red] (Set of 2) (Option)Complete assembly. Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 2 | TN4036139Replaces Tennant 1232624 | 1 | Driver Kit, Brush [Yellow] (Set of 2) (Option)Complete assembly. Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsWhite model | $31.00/EA |
| 2 | TN4036140Replaces Tennant 1232626 | 1 | Driver Kit, Brush [Green] (Set of 2) (Option)Complete assembly. Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 3 | – | 2 | Brush Locker Blue (Standard)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Red (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Yellow (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Green (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 4 | – | 6 | Screw Wn 5451 50x14 Ejot Delta PtPart of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model |
Tennant i-mop XL Plus Pad driver assembly parts

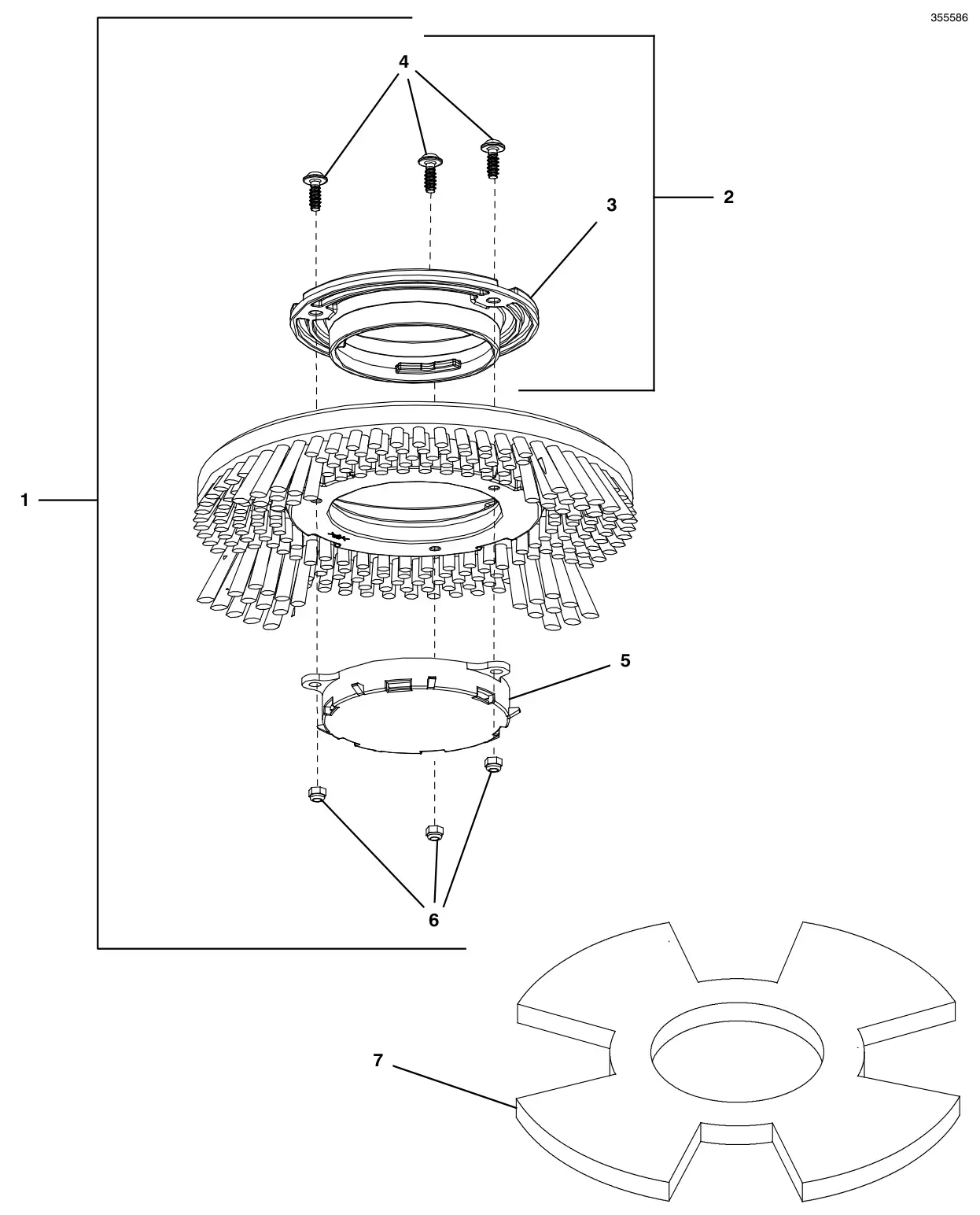

The parts Tennant numbers on its pad driver assembly drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036136Replaces Tennant 1232613 | 1 | Pad, Drvr, 9.2 [Xl Qty2]Complete assembly. Fits 1 of 2 versionsWhite model | $295.40/EA |
| 2 | TN4036137Replaces Tennant 1232620 | 2 | Driver Kit, Brush [Blue] (Standard)Complete assembly. Part of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 2 | TN4036138Replaces Tennant 1232622 | 2 | Driver Kit, Brush [Red] (Option)Complete assembly. Part of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 2 | TN4036139Replaces Tennant 1232624 | 2 | Driver Kit, Brush [Yellow] (Option)Complete assembly. Part of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | $31.00/EA |
| 2 | TN4036140Replaces Tennant 1232626 | 2 | Driver Kit, Brush [Green] (Option)Complete assembly. Part of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | $29.70/EA |
| 3 | – | 2 | Brush Locker Blue (Standard)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Red (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Yellow (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 3 | – | 2 | Brush Locker Green (Option)Part of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 4 | – | 6 | Screw Wn 5451 50x14 Ejot Delta PtPart of Driver Kit, Brush [Green] (Set of 2) (Option) (1232626). Fits 1 of 2 versionsWhite model | |
| 5 | – | 2 | Assy Pad Holder ImopPart of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | |
| 6 | – | 6 | Nut M4 Nylon StainlessPart of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsWhite model | |
| 7 | TN4033015Replaces Tennant 1234346 | 1 | Pad, Red, 8.5 [Xl Qty 10 Pads] (Cleaning)Fits 1 of 2 versionsWhite model | $302.80/EA |
| 7 | TN4033016Replaces Tennant 1234347 | 1 | Pad, Wht, 8.5 [Xl Qty 10 Pads] (Buffing)Fits 1 of 2 versionsWhite model | $275.20/EA |
| 7 | TN4033017Replaces Tennant 1234348 | 1 | Pad, Green, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsWhite model | $366.40/EA |
| 7 | TN4033018Replaces Tennant 1234350 | 1 | Pad, Blu, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsWhite model | $333.10/EA |
| 7 | TN4033014Replaces Tennant 1234344 | 1 | Pad, Blk, 8.5 [Xl Qty 10 Pads] (Light Stripping)Fits 1 of 2 versionsWhite model | $403.10/EA |
| 7 | TN4036146Replaces Tennant 1232649 | 1 | Pad, Grn, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Daily Cleaning)Fits 1 of 2 versionsWhite model | $348.10/EA |
| 7 | TN4036143Replaces Tennant 1232645 | 1 | Pad, Ylw, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Periodic Cleaning)Fits 1 of 2 versionsWhite model | $348.10/EA |
| 7 | TN4036147Replaces Tennant 1232650 | 1 | Pad, Wht, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning)Fits 1 of 2 versionsWhite model | $261.60/EA |
| 7 | TN4036148Replaces Tennant 1232651 | 1 | Pad, Red, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning Aggressive)Fits 1 of 2 versionsWhite model | $287.70/EA |
| 7 | TN4036144Replaces Tennant 1232647 | 1 | Pad, Orng, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Ceramic Tiles)Fits 1 of 2 versionsWhite model | $316.40/EA |
| 7 | TN4036145Replaces Tennant 1232648 | 1 | Pad, Blu, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - High Traffic Areas)Fits 1 of 2 versionsWhite model | $316.40/EA |

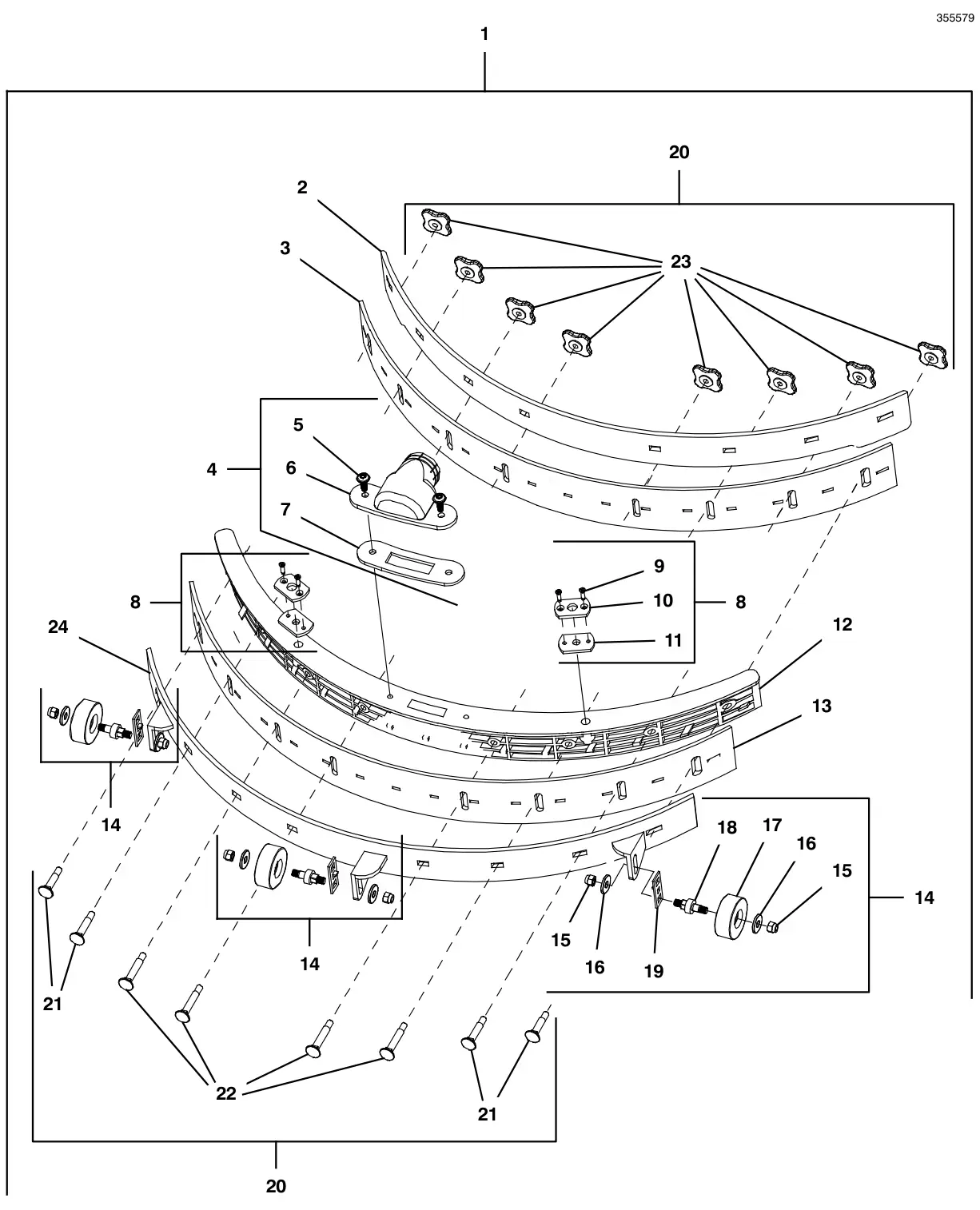

Tennant i-mop XL Plus Squeegee assembly parts
The parts Tennant numbers on its squeegee assembly drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004684Replaces Tennant 1232588 | 1 | Squeege Assy, ScrbrComplete assembly. Fits 1 of 2 versionsWhite model | $555.80/EA |
| 2 | TN4223082Replaces Tennant 1234369 | 1 | Plate, Rear, Squeegee [Imop]Part of Squeege Assy, Scrbr (1232588). Fits 1 of 2 versionsWhite model | $76.70/EA |
| 3 | TN4036141Replaces Tennant 1232627 | 1 | Blade, Sqge, Front, 22.4 [Xl] (Standard - Red Linatex)Part of Squeege Assy, Scrbr (1232588). Fits 1 of 2 versionsWhite model | $56.90/EA |
| 4 | TN4222610Replaces Tennant 1232677 | 1 | Connector, Hose, SqgeComplete assembly. Part of Squeege Assy, Scrbr (1232588). Fits 1 of 2 versionsWhite model | $57.60/EA |
| 5 | – | 2 | Screw Wn 5451 50x14 Ejot Delta PtPart of Connector, Hose, Sqge (1232677). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Squeegee Hose Connector-Up YellowPart of Connector, Hose, Sqge (1232677). Fits 1 of 2 versionsWhite model | |
| 7 | TN4033053Replaces Tennant 1234956 | 1 | Gasket, Hose, Squeegee [Imop]Part of Connector, Hose, Sqge (1232677). Fits 1 of 2 versionsWhite model | $40.10/EA |
| 8 | TN4036164Replaces Tennant 1232696 | 1 | Retaining Kit, Sqge (Includes Qty 2 Retaining Assemblies)Complete assembly. Part of Squeege Assy, Scrbr (1232588). Fits 1 of 2 versionsWhite model | $9.90/EA |
| 9 | – | 4 | M3x10 Countersunk Self Tap ScrewPart of Retaining Kit, Sqge (Includes Qty 2 Retaining Assemblies) (1232696). Fits 1 of 2 versionsWhite model | Included in kitRetaining Kit, Sqge (Includes Qty 2 Retaining Assemblies) · TN4036164 ›Manual: 1232696 |
| 10 | TN4220036Replaces Tennant 1234947 | 2 | Plate, Mtg, Sqge [Blue, Imop] (Qty 1)Part of Retaining Kit, Sqge (Includes Qty 2 Retaining Assemblies) (1232696). Fits 1 of 2 versionsWhite model | $15.80/EA |
| 11 | TN4036530Replaces Tennant 1233871 | 2 | Washer, Rbr, Sqge [Black, Imop] (Qty 1)Part of Retaining Kit, Sqge (Includes Qty 2 Retaining Assemblies) (1232696). Fits 1 of 2 versionsWhite model | $3.40/EA |
| 11 | TN4033050Replaces Tennant 1234948 | 1 | Washer, Rbr, Sqge [Black, Imop, Qty 100]Fits 1 of 2 versionsWhite model | $229.20/EA |
| 12 | TN4223081Replaces Tennant 1234368 | 1 | Plate, Top, Squeegee [Imop]Fits 1 of 2 versionsWhite model | $85.20/EA |
| 13 | TN4036142Replaces Tennant 1232629 | 1 | Blade, Sqge, Rear, 24.0[Xl Lina] (Standard - Red Linatex)Fits 1 of 2 versionsWhite model | $56.90/EA |
| 13 | TN4222604Replaces Tennant 1232635 | 1 | Blade, Sqge, Rear, 24.0 [Xl Ure] (Option)Fits 1 of 2 versionsWhite model | $68.28/EA |
| 14 | TN4222609Replaces Tennant 1232673 | 1 | Caster Assy, Sqge (Includes Qty 3 Caster Assemblies And Item #8 Retaining Assemblies)Complete assembly. Fits 1 of 2 versionsWhite model | $118.60/EA |
| 15 | – | 6 | Nut M5 NylonPart of Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys) (1232673). Fits 1 of 2 versionsWhite model | |
| 16 | – | 6 | M5 Washer Stainless Steel 5x15x1mmPart of Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys) (1232673). Fits 1 of 2 versionsWhite model | |
| 17 | – | 3 | Squeegee Castor Gray Dia 8mmPart of Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys) (1232673). Fits 1 of 2 versionsWhite model | |
| 18 | – | 3 | Shaft Squeegee Castor Dia 8mmPart of Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys) (1232673). Fits 1 of 2 versionsWhite model | |
| 19 | – | 3 | Height Adjustment PlatePart of Caster Assy, Sqge (Incl Qty 3 Caster & Retaining Assys) (1232673). Fits 1 of 2 versionsWhite model | |
| 20 | TN4222614Replaces Tennant 1232688 | 1 | Knob Kit, Retainer, SqgeComplete assembly. Fits 1 of 2 versionsWhite model | $68.50/EA |
| 21 | – | 4 | M5 Screw Bolt, Thread Length 30Part of Knob Kit, Retainer, Sqge (1232688). Fits 1 of 2 versionsWhite model | |
| 22 | – | 4 | M5 Screw Bolt, Thread Length 35Part of Knob Kit, Retainer, Sqge (1232688). Fits 1 of 2 versionsWhite model | |
| 23 | – | 8 | Plastic Nut SqueegeePart of Knob Kit, Retainer, Sqge (1232688). Fits 1 of 2 versionsWhite model | |
| 24 | TN4223079Replaces Tennant 1234358 | 1 | Plate, Rear, Sqge [Wheel Side Imop]Fits 1 of 2 versionsWhite model | $71.60/EA |

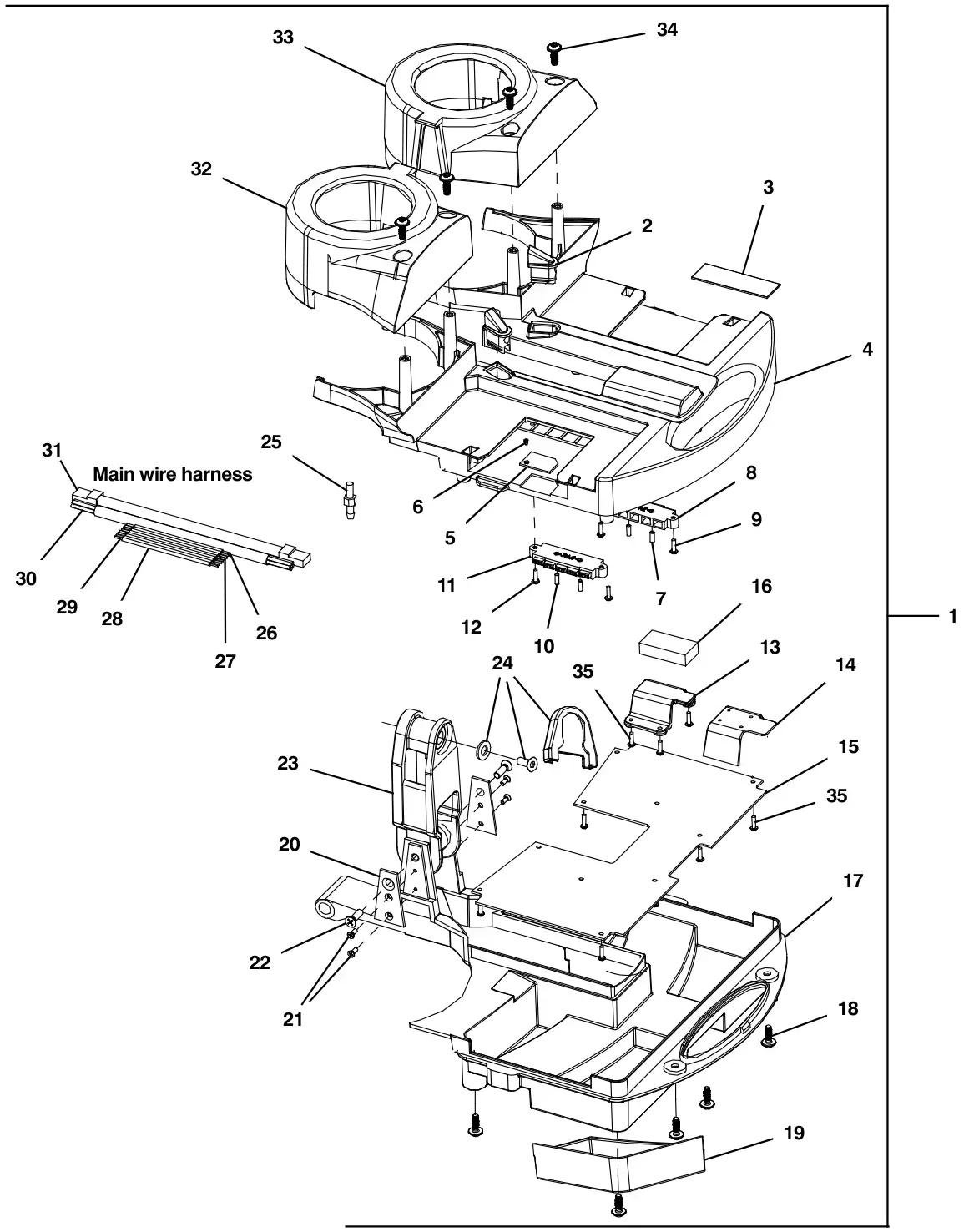

Tennant i-mop XL Plus Main lever assembly parts
The parts Tennant numbers on its main lever assembly drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4214012Replaces Tennant 1255498 | 1 | Lever Assy, Handle [Imop Xl&Plus]Complete assembly. Fits 1 of 2 versionsWhite model | $1,407.80/EA |
| – | TN4217439Replaces Tennant 1246384 | 1 | Cover, Lever, Main [Xl Imop]Complete assembly. Part of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | $196.60/EA |
| 2 | – | 2 | Pcb Machine SealPart of Cover, Lever, Main [Xl Imop] (1246384). Fits 1 of 2 versionsWhite model | |
| 3 | – | 1 | Sticker Imop [Strong Magnets]Part of Cover, Lever, Main [Xl Imop] (1246384). Fits 1 of 2 versionsWhite model | |
| 4 | – | 1 | Main Lever Cover Color: WhitePart of Cover, Lever, Main [Xl Imop] (1246384). Fits 1 of 2 versionsWhite model | |
| 5 | – | 1 | Cover Usb Update Slot Color: WhitePart of Cover, Lever, Main [Xl Imop] (1246384). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Screw Counter Sunk M1.7x6Part of Cover, Lever, Main [Xl Imop] (1246384). Fits 1 of 2 versionsWhite model | |
| – | TN4034375Replaces Tennant 1246387 | 1 | Connector, Battery, Rh [Xl & Xxl Imop]Complete assembly. Part of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | $48.70/EA |
| 7 | – | 2 | Alignment Pin Longer VersionPart of Connector, Battery, Rh [Xl & Xxl Imop] (1246387). Fits 1 of 2 versionsWhite model | |
| 8 | – | 1 | Battery Connector Male Right Color: GrayPart of Connector, Battery, Rh [Xl & Xxl Imop] (1246387). Fits 1 of 2 versionsWhite model | |
| 9 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Connector, Battery, Rh [Xl & Xxl Imop] (1246387). Fits 1 of 2 versionsWhite model | |
| – | TN4034374Replaces Tennant 1246386 | 1 | Connector, Battery, Lh [Xl & Xxl Imop]Complete assembly. Part of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | $52.40/EA |
| 10 | – | 2 | Alignment Pin Longer VersionPart of Connector, Battery, Lh [Xl & Xxl Imop] (1246386). Fits 1 of 2 versionsWhite model | |
| 11 | – | 1 | Battery Connector Male Left Color: BluePart of Connector, Battery, Lh [Xl & Xxl Imop] (1246386). Fits 1 of 2 versionsWhite model | |
| 12 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Connector, Battery, Lh [Xl & Xxl Imop] (1246386). Fits 1 of 2 versionsWhite model | |
| 13 | – | 1 | Magnet Top Unit Holder Color: GrayPart of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | |
| 14 | – | 1 | Steel Cover Isolation Magnet T=3mmPart of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | |
| 15 | TN4213712Replaces Tennant 1254496 | 1 | Circuitboard, Main, W/Cutoff [Imop]Part of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | $1,274.70/EA |
| 16 | – | 1 | Magnet Top Unit 40x20x10mmPart of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | |
| – | TN4217452Replaces Tennant 1246391 | 1 | Lever Housing, Main [Xl & Xxl Imop]Complete assembly. Part of Lever Assy, Handle [Imop Xl&Plus] (1255498). Fits 1 of 2 versionsWhite model | $287.80/EA |
| 17 | TN8004697Replaces Tennant 1234954 | 1 | Housing, Lever, Main [Imop]Part of Lever Housing, Main [Xl & Xxl Imop] (1246391). Fits 1 of 2 versionsWhite model | $270.60/EA |
| 18 | – | 8 | Screw Wn 5451 50x14 Ejot Delta PtPart of Lever Housing, Main [Xl & Xxl Imop] (1246391). Fits 1 of 2 versionsWhite model | |
| 19 | – | 1 | Bottom Name Plate + Laser Print TennantFits 1 of 2 versionsWhite model | |
| – | TN4034376Replaces Tennant 1246389 | 1 | Plate Asm, Hinge [Xl & Xxl Imop]Complete assembly. Fits 1 of 2 versionsWhite model | $56.90/EA |
| 20 | TN4033052Replaces Tennant 1234955 | 2 | Plate, Sppt, Lever (2pc) [Imop]Part of Plate Asm, Hinge [Xl & Xxl Imop] (1246389). Fits 1 of 2 versionsWhite model | Call to confirm part: 800-440-6723 |
| 21 | TN4033056Replaces Tennant 1234971 | 4 | Screw, Flt, Soc, M3 X 8 Ss Nl [10x,Imop]Part of Plate Asm, Hinge [Xl & Xxl Imop] (1246389). Fits 1 of 2 versionsWhite model | $50.60/EA |
| 22 | TN4033060Replaces Tennant 1234976 | 2 | Screw, Flt, Soc, M5 X 16 Nl [10x, Imop]Part of Plate Asm, Hinge [Xl & Xxl Imop] (1246389). Fits 1 of 2 versionsWhite model | $46.20/EA |
| 23 | TN4222597Replaces Tennant 1232590 | 1 | Hinge Assy, Lever (Hinge Not Included in Assembly 1255498 - Only Available in Kit 1232590)Complete assembly. Fits 1 of 2 versionsWhite model | $125.00/EA |
| 24 | TN4033389Replaces Tennant 1237828 | 1 | Hardware Kit, Disk, Screw, Cover [Imop]Fits 1 of 2 versionsWhite model | $58.90/EA |
| 25 | TN4034373Replaces Tennant 1246385 | 1 | Pin, Squeegee [Xl & Xxl Imop] (Includes Qty 2)Part of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model | $55.00/EA |
| – | TN4217450Replaces Tennant 1246388 | 1 | Lever Asm, Main, Utp [Xl & Xxl Imop]Complete assembly. Part of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model | $126.60/EA |
| 26 | – | 2 | Male Connector + Wires 14awg Red 150mmPart of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | |
| 27 | – | 2 | Male Connector + Connector Wires 14awg Black 150mmPart of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | |
| 28 | – | 2 | Wires For Brush Unit 14awg Black L=280mmPart of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | |
| 29 | – | 2 | Wires For Brush Unit 14awg Red L=280mmPart of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | |
| 30 | – | 1 | Power Cable 3 Wires [1.5mm 2 L=630mm]Part of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | |
| 31 | TN4220046Replaces Tennant 1234977 | 1 | Cable, Utp, 60cm L [Connector Be, Imop]Part of Lever Asm, Main, Utp [Xl & Xxl Imop] (1246388). Fits 1 of 2 versionsWhite model | $42.90/EA |
| 32 | – | 1 | Brush Motor Cooling Cover Right Color: WhitePart of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model | |
| 33 | – | 1 | Brush Motor Cooling Cover Right Color: WhitePart of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model | |
| 34 | – | 4 | Screw Wn 5451 50x14 Ejot Delta PtPart of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model | |
| 35 | – | 12 | Screw Wn 5451 25x10 Ejot Delta PtPart of Hinge Assy, Lever (1232590). Fits 1 of 2 versionsWhite model |

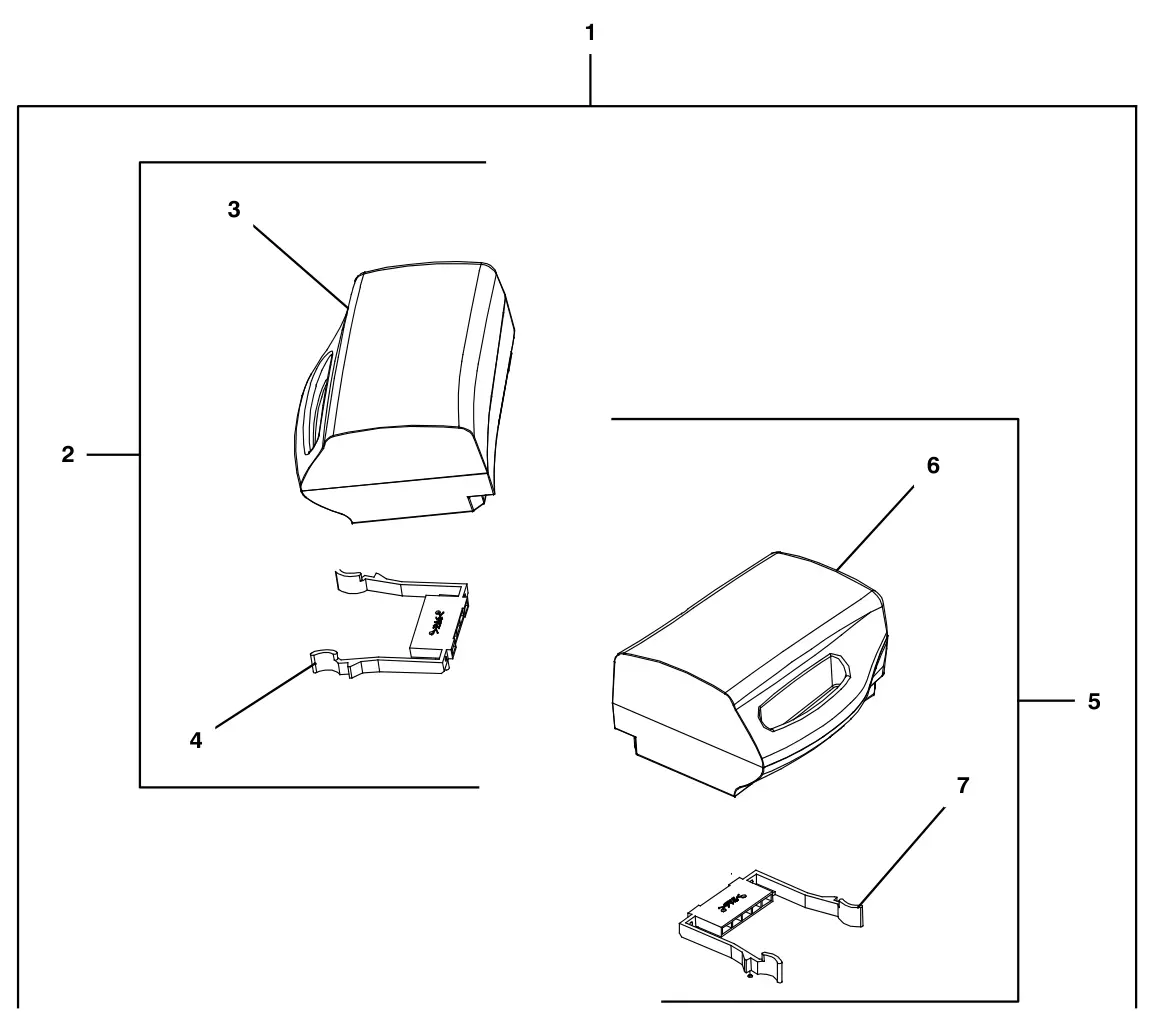

Tennant i-mop XL Plus Battery pack assembly parts
The parts Tennant numbers on its battery pack assembly drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005824Replaces Tennant 1232100 | 1 | Battery Kit [I-Mop Left & Right]Complete assembly. Fits 1 of 2 versionsWhite model | $1,210.30/EA |
| 2 | – | 1 | Battery, Pack, RhComplete assembly. Part of Battery Kit [I-Mop Left & Right] (1232100). Fits 1 of 2 versionsWhite model | |
| 3 | – | 1 | Battery Pack Gray [Right]Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsWhite model | |
| 4 | TN4036132Replaces Tennant 1232598 | 1 | Connector, Bat, Fem, Rh (Color: Gray)Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsWhite model | $60.00/EA |
| 5 | – | 1 | Battery, Pack, LhComplete assembly. Part of Battery Kit [I-Mop Left & Right] (1232100). Fits 1 of 2 versionsWhite model | |
| 6 | – | 1 | Battery Pack Blue [Left]Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsWhite model | |
| 7 | TN4036126Replaces Tennant 1232545 | 1 | Connector, Bat, Fem, Lh (Color: Blue)Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsWhite model | $60.00/EA |

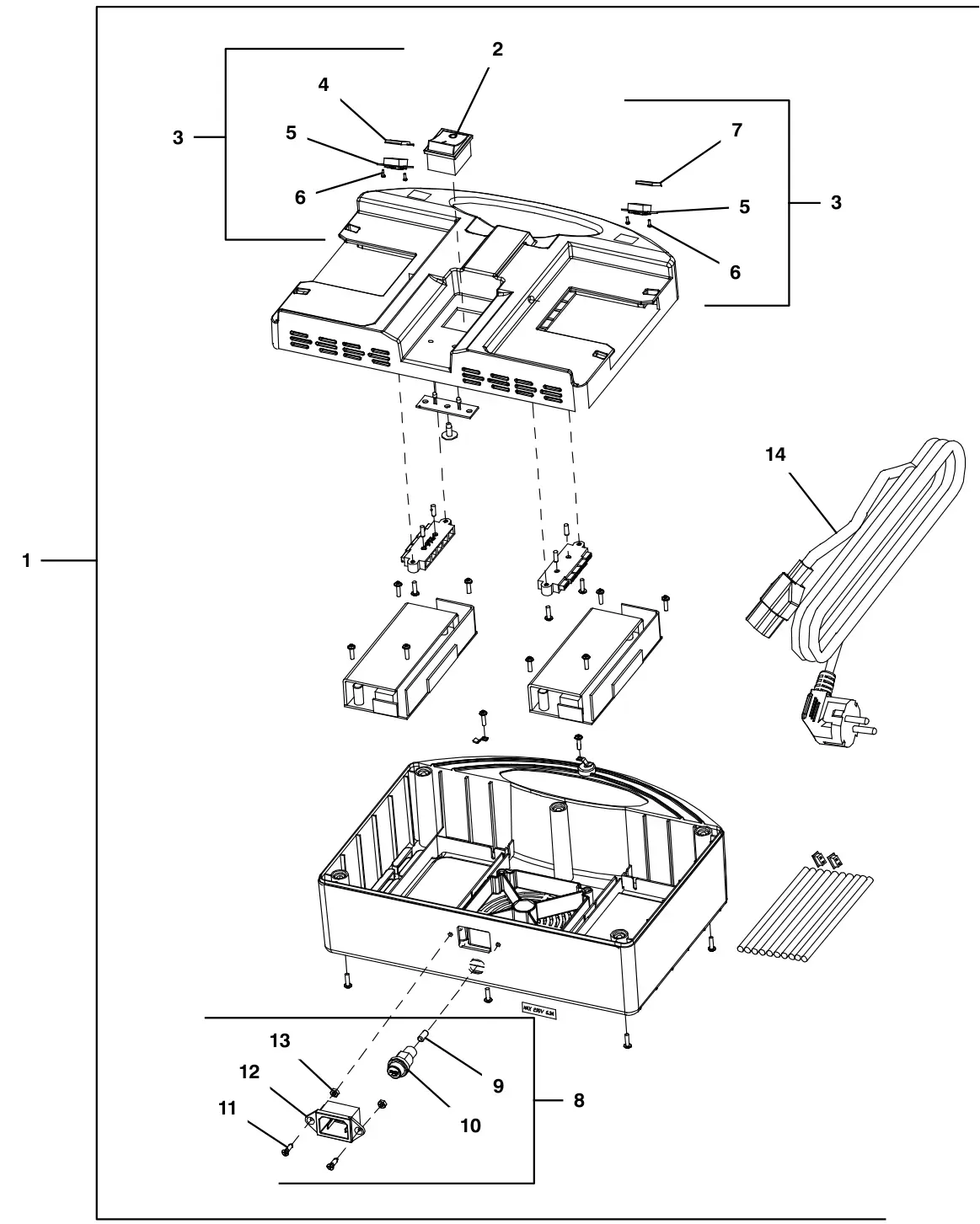

Tennant i-mop XL Plus Battery charger assembly parts
The parts Tennant numbers on its battery charger assembly drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4209960Replaces Tennant 1250527 | 1 | Charger, Bat (Plus model 3pin)Complete assembly. Fits 1 of 2 versionsWhite model | $671.20/EA |
| 2 | TN4036127Replaces Tennant 1232564 | 1 | Switch, ChrgrPart of Charger, Bat (Plus Model 3pin) (1250527). Fits 1 of 2 versionsWhite model | $48.70/EA |
| 3 | TN4036167Replaces Tennant 1232712 | 1 | Light, VoltageComplete assembly. Part of Charger, Bat (Plus Model 3pin) (1250527). Fits 1 of 2 versionsWhite model | $37.90/EA |
| 4 | – | 1 | Transparent Cover Voltage Display RightPart of Light, Voltage (1232712). Fits 1 of 2 versionsWhite model | |
| 5 | – | 2 | Voltage Display With PercentagePart of Light, Voltage (1232712). Fits 1 of 2 versionsWhite model | |
| 6 | – | 4 | Screw M2x5 Cross Head Self TappingPart of Light, Voltage (1232712). Fits 1 of 2 versionsWhite model | |
| 7 | – | 1 | Transparent Cover Voltage Display LeftPart of Light, Voltage (1232712). Fits 1 of 2 versionsWhite model | |
| 8 | TN4036168Replaces Tennant 1232713 | 1 | Receptacle Kit, ChrgrComplete assembly. Part of Charger, Bat (Plus Model 3pin) (1250527). Fits 1 of 2 versionsWhite model | $39.20/EA |
| 9 | – | 1 | Fuse 6.3aPart of Receptacle Kit, Chrgr (1232713). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Fuse 6.3a BasePart of Receptacle Kit, Chrgr (1232713). Fits 1 of 2 versionsWhite model | |
| 11 | – | 2 | Countersunk Screw M3x15Part of Receptacle Kit, Chrgr (1232713). Fits 1 of 2 versionsWhite model | |
| 12 | – | 1 | Recept Inlet 3p + Two Screw Holes Cb 3pinPart of Receptacle Kit, Chrgr (1232713). Fits 1 of 2 versionsWhite model | |
| 13 | – | 2 | Nut M3 NylonPart of Receptacle Kit, Chrgr (1232713). Fits 1 of 2 versionsWhite model | |
| 14 | TN4222589Replaces Tennant 1232546 | 1 | Cord, Power (Ul 3 Pin) (Standard)Part of Charger, Bat (Plus Model 3pin) (1250527). Fits 1 of 2 versionsWhite model | $65.00/EA |
| 14 | TN4223050Replaces Tennant 1233924 | 1 | Cord, Power [Ul 3 Pin, 11 Meters Lg] (Optional)Fits 1 of 2 versionsWhite model | $81.20/EA |

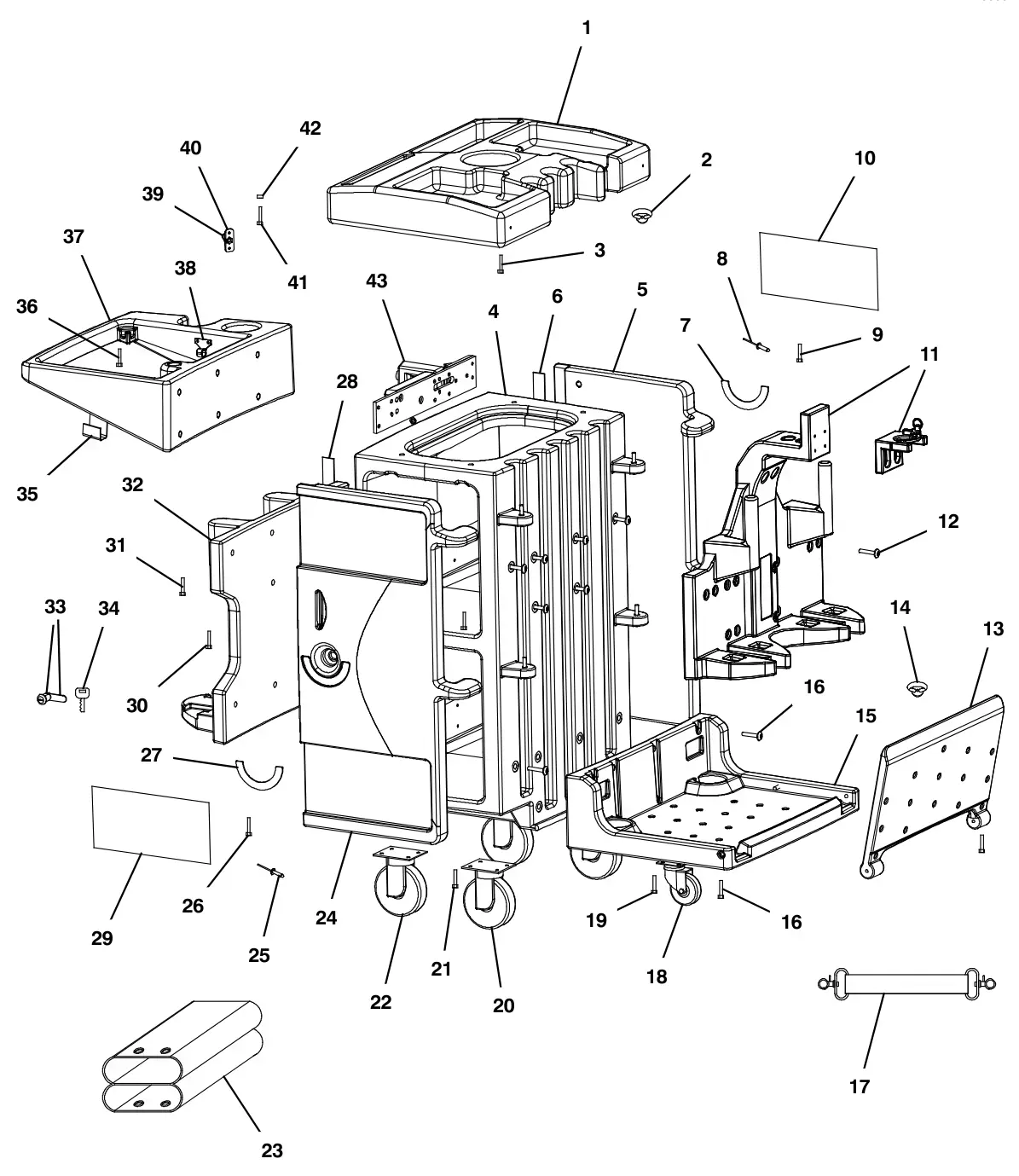

Tennant i-mop XL Plus i-cart trolley assembly (option) parts
The parts Tennant numbers on its i-cart trolley assembly (option) drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8005823Replaces Tennant 1232057 | 1 | Mop Cart Kit [I-Mop I-Cart L]Complete assembly. Fits 1 of 2 versionsWhite model | Call to confirm part: 800-440-6723 |
| 1 | Not sold separatelyTennant N/A | 1 | Cover, Top, GreyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 2 | Not sold separatelyTennant N/A | 1 | Ring, Screw, I-TrolleyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 3 | Not sold separatelyTennant N/A | 4 | Screw,Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 4 | Not sold separatelyTennant N/A | 1 | Main Body, I-Cart LPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 5 | TN8005771Replaces Tennant 1235553 | 1 | Door, Cart, Front, Lh (Assembly Does Not Include Lock)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $479.35/EA |
| 6 | – | 1 | Seal, Rubber, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsWhite model | |
| 7 | – | 1 | Plate, Arc, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsWhite model | |
| 8 | – | 7 | Rivet, Blind, 4x15mmPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsWhite model | |
| 9 | – | 4 | Screw, MPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsWhite model | |
| 10 | – | 1 | Plate, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsWhite model | |
| – | TN8005773Replaces Tennant 1235604 | 1 | Support Kit, Tank, Small, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $342.09/EA |
| 11 | – | 1 | Holder, Tank, SmallPart of Support Kit, Tank, Small, Cart [I-Mop] (1235604). Fits 1 of 2 versionsWhite model | |
| 12 | – | 6 | Screw, 5Part of Support Kit, Tank, Small, Cart [I-Mop] (1235604). Fits 1 of 2 versionsWhite model | |
| – | TN8005774Replaces Tennant 1235605 | 1 | Base Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $629.84/EA |
| 13 | – | 1 | Bridge, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsWhite model | |
| 14 | – | 1 | Ring, Screw, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsWhite model | |
| 15 | – | 1 | Shelf, Flat, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsWhite model | |
| 16 | – | 8 | Screw, 5Part of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsWhite model | |
| 17 | TN4034081Replaces Tennant 1243411 | 1 | Strap, Ramp [I-Cart]Part of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsWhite model | $75.65/EA |
| – | TN8005775Replaces Tennant 1235606 | 1 | Caster Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $229.90/EA |
| 18 | – | 1 | Caster, 2.5”Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsWhite model | |
| 19 | – | 4 | Screw,Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsWhite model | |
| 20 | – | 2 | Caster, Front, FixedPart of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsWhite model | |
| 21 | – | 16 | Screw,Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsWhite model | |
| 22 | – | 2 | Caster, Rear, SwivelPart of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsWhite model | |
| 23 | TN4036534Replaces Tennant 1233957 | 1 | Bag, Cart [Imop]Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $89.50/EA |
| 24 | TN8005770Replaces Tennant 1235549 | 1 | Door, Cart, Front, Rh (Assembly Does Not Include Lock)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $479.35/EA |
| 25 | – | 7 | Rivet, Blind, 4x15mmPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsWhite model | |
| 26 | – | 4 | Screw, MPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsWhite model | |
| 27 | – | 1 | Plate, Arc, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsWhite model | |
| 28 | – | 1 | Seal, Rubber, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsWhite model | |
| 29 | – | 1 | Plate, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsWhite model | |
| 30 | Not sold separatelyTennant N/A | 2 | Magnets, I-TrolleyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 31 | Not sold separatelyTennant N/A | 2 | Screw, #10-24 0.55”Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 32 | Not sold separatelyTennant N/A | 1 | Holder, Tank, Large GreyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 33 | TN4036535Replaces Tennant 1233959 | 1 | Lock, W/Key [Imop] (Includes Qty 2 Locks & Qty 6 Keys)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $182.81/EA |
| 34 | TN4033655Replaces Tennant 1239322 | 2 | Key, Lock, Door [Icart Qty 2]Part of Lock, W/Key [Imop] (Includes Qty 2 Locks & Qty 6 Keys) (1233959). Fits 1 of 2 versionsWhite model | $91.00/EA |
| – | TN8005772Replaces Tennant 1235600 | 1 | Handle Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $417.13/EA |
| 35 | – | 1 | Hanger, Sign, SafetyPart of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsWhite model | |
| 36 | – | 6 | Screw, 5Part of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsWhite model | |
| 37 | – | 1 | Handle, I-TrolleyPart of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsWhite model | |
| 38 | Not sold separatelyTennant N/A | 2 | Hook, BagPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 39 | TN8005639Replaces Tennant 1235544 | 1 | Hook Kit, Cord, Ext [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | $45.65/EA |
| 40 | – | 1 | Adapter, Holder, CablePart of Hook Kit, Cord, Ext [I-Mop] (1235544). Fits 1 of 2 versionsWhite model | |
| 41 | Not sold separatelyTennant N/A | 1 | Screw, M8 x 27 HexagonPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 42 | Not sold separatelyTennant N/A | 1 | Nut, Nylon M8Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 43 | Not sold separatelyTennant N/A | 1 | Socket, Plug, I-Trolley (USA)Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsWhite model | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |

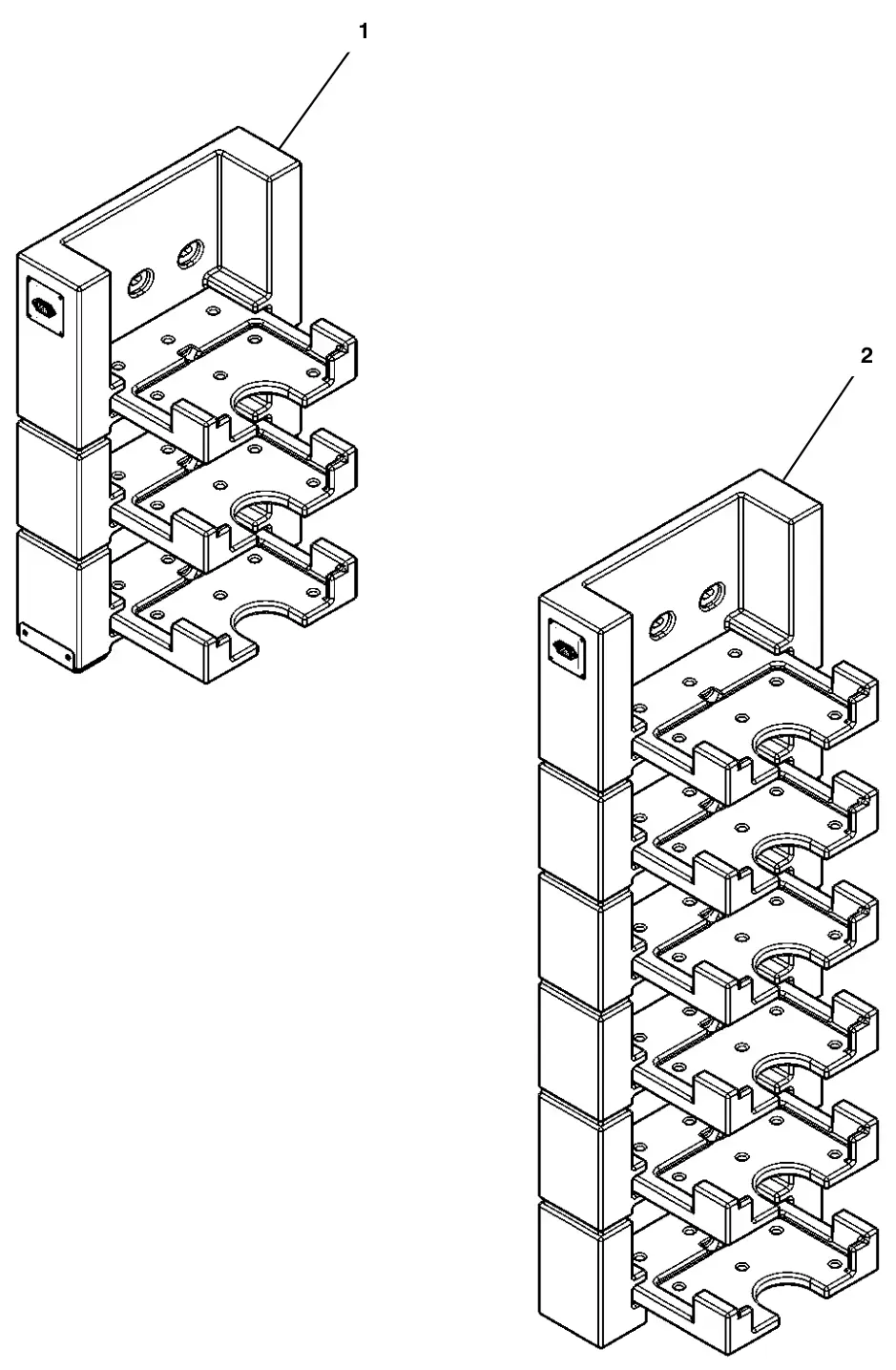

Tennant i-mop XL Plus Wall chargers (option) parts
The parts Tennant numbers on its wall chargers (option) drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8051726Replaces Tennant 1232094 | 1 | Charger, Wall [I-Mop 3 Layer]Fits 1 of 2 versionsWhite model | $711.30/EA |
| 2 | TN8051725Replaces Tennant 1232058 | 1 | Charger, Wall [I-Mop 6 Layer]Fits 1 of 2 versionsWhite model | $1,889.30/EA |
Tennant i-mop XL Plus Recommended spare parts list general recommended maintenance items (Teal V2025)
Recommended spare parts list general recommended maintenance items (Teal V2025) from Tennant's parts list. Manual page 4.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | TN4036141Replaces Tennant 1232627 | Qty on machine: 1 | Blade, Sqge, Front, 22.4 [Xl] (Standard - Red Linatex)Fits 1 of 2 versionsTeal model (V2025) | $56.90/EA | ||
| – | TN4036142Replaces Tennant 1232629 | Qty on machine: 1 | Blade, Sqge, Rear, 24.0 [Xl Lina] (Standard - Red Linatex)Fits 1 of 2 versionsTeal model (V2025) | $56.90/EA | ||
| – | TN4036128Replaces Tennant 1232578 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl Qty 2] (Standard - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $278.40/EA | ||
| – | TN4036134Replaces Tennant 1232607 | Qty on machine: 1 | Brush, Hard, Red, 9.0 [Xl Qty 2] (Option - Heavy Duty Deep Cleaning & Grout)Fits 1 of 2 versionsTeal model (V2025) | $312.30/EA | ||
| – | TN4036136Replaces Tennant 1232613 | Qty on machine: 1 | Pad, Driver, 9.2 [Xl Qty2]Fits 1 of 2 versionsTeal model (V2025) | $295.40/EA | ||
| – | TN4036135Replaces Tennant 1232608 | Qty on machine: 1 | Brush, Soft, Lt Blu, 9.0 [Xl Qty 2] (Option - Soft Light Duty Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $250.60/EA | ||
| – | TN4222604Replaces Tennant 1232635 | Qty on machine: 1 | Blade, Sqge, Rear, 24.0 [Xl Ure] (Option)Fits 1 of 2 versionsTeal model (V2025) | $68.28/EA | ||
| – | TN4033015Replaces Tennant 1234346 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Qty 10 Pads] (Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $302.80/EA | ||
| – | TN4033017Replaces Tennant 1234348 | Qty on machine: 1 | Pad, Green, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $366.40/EA | ||
| – | TN4033016Replaces Tennant 1234347 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Qty 10 Pads] (Buffing)Fits 1 of 2 versionsTeal model (V2025) | $275.20/EA | ||
| – | TN4036146Replaces Tennant 1232649 | Qty on machine: 1 | Pad, Grn, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Daily Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $348.10/EA | ||
| – | TN4036518Replaces Tennant 1233556 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/grn Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA | ||
| – | TN4036519Replaces Tennant 1233557 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/red Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA | ||
| – | TN4036520Replaces Tennant 1233559 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA | ||
| – | TN4033018Replaces Tennant 1234350 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $333.10/EA | ||
| – | TN4033014Replaces Tennant 1234344 | Qty on machine: 1 | Pad, Blk, 8.5 [Xl Qty 10 Pads] (Light Stripping)Fits 1 of 2 versionsTeal model (V2025) | $403.10/EA | ||
| – | TN4036143Replaces Tennant 1232645 | Qty on machine: 1 | Pad, Ylw, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Periodic Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $348.10/EA | ||
| – | TN4036147Replaces Tennant 1232650 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $261.60/EA | ||
| – | TN4036148Replaces Tennant 1232651 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning Aggressive)Fits 1 of 2 versionsTeal model (V2025) | $287.70/EA | ||
| – | TN4036144Replaces Tennant 1232647 | Qty on machine: 1 | Pad, Orng, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Ceramic Tiles)Fits 1 of 2 versionsTeal model (V2025) | $316.40/EA | ||
| – | TN4036145Replaces Tennant 1232648 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - High Traffic Areas)Fits 1 of 2 versionsTeal model (V2025) | $316.40/EA | ||
| – | TN8050797Replaces Tennant 1269619 | Qty on machine: 1 | Blade, Sqge, Front, Primo [I-Mop Xl] (Option)Fits 1 of 2 versionsTeal model (V2025) | $77.60/EA | ||
| – | TN8050798Replaces Tennant 1269620 | Qty on machine: 1 | Blade, Sqge, Rear, Primo [I-Mop Xl] (Option)Fits 1 of 2 versionsTeal model (V2025) | $77.60/EA |
Tennant i-mop XL Plus Recommended spare parts list general recommended maintenance items (Teal V2025)
Recommended spare parts list general recommended maintenance items (Teal V2025) from Tennant's parts list. Manual page 5.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | TN4036125Replaces Tennant 1232519 | Qty on machine: 1 | Coupling, WaterFits 1 of 2 versionsTeal model (V2025) | $80.20/EA | ||
| – | TN8005824Replaces Tennant 1232100 | Qty on machine: 1 | Battery Kit [I-Mop Left & Right]Fits 1 of 2 versionsTeal model (V2025) | $1,210.30/EA | ||
| – | TN4031828Replaces Tennant 1252648 | Qty on machine: 1 | Valve Asm, Complete, w/ wire connector [Xl & Xxl]Fits 1 of 2 versionsTeal model (V2025) | $69.20/EA | ||
| – | TN4031492Replaces Tennant 1251765 | Qty on machine: 1 | Float Asm, Ball [xl & xxl plus imop]Fits 1 of 2 versionsTeal model (V2025) | $72.70/EA | ||
| – | TN4036129Replaces Tennant 1232579 | Qty on machine: 1 | Motor, Brush, RhFits 1 of 2 versionsTeal model (V2025) | $577.60/EA | ||
| – | TN4034367Replaces Tennant 1246373 | Qty on machine: 1 | Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads)Fits 1 of 2 versionsTeal model (V2025) | $57.80/EA | ||
| – | TN4036130Replaces Tennant 1232582 | Qty on machine: 1 | Motor, Brush, LhFits 1 of 2 versionsTeal model (V2025) | $577.60/EA | ||
| – | TN4222589Replaces Tennant 1232546 | Qty on machine: 1 | Cord, Power (Ul 3 Pin) (N. America - Standard)Fits 1 of 2 versionsTeal model (V2025) | $65.00/EA | ||
| – | TN4032166Replaces Tennant 1255493 | Qty on machine: 1 | Fan Kit, Vac [Imop Xl & Xxl & Plus]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $407.40/EA | ||
| – | TN4034369Replaces Tennant 1246375 | Qty on machine: 1 | Gasket Set, Motor, Vacuum [Xl & Xxl]Part of Fan Kit, Vac [Imop Xl & Xxl & Plus] (Vac Motor Leads Not Included - Order Kit 1246373) (1255493). Fits 1 of 2 versionsTeal model (V2025) | $46.70/EA | ||
| – | TN8004907Replaces Tennant 1266786 | Qty on machine: 2 | Bracket, Caster, Static, Gray (Includes Qty 1 Assy)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $41.90/EA | ||
| – | TN8004921Replaces Tennant 1267130 | Qty on machine: 1 | Caster Kit, Squeegee [I-Mop]Part of Bracket, Caster, Static, Gray (Includes Qty 1 Assy) (1266786). Fits 1 of 2 versionsTeal model (V2025) | $69.39/EA | ||
| – | TN8004917Replaces Tennant 1267121 | Qty on machine: 1 | Hose, Stretch, Complete [I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $47.60/EA | ||
| – | TN8004909Replaces Tennant 1266791 | Qty on machine: 1 | Bracket, Caster, Swivel, Gray[Teal I-MopComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $142.00/EA | ||
| – | TN8004921Replaces Tennant 1267130 | Qty on machine: 2 | Caster Kit, Squeegee [I-Mop]Part of Bracket, Caster, Swivel, Gray[Teal I-Mop (1266791). Fits 1 of 2 versionsTeal model (V2025) | $69.39/EA | ||
| – | TN8004703Replaces Tennant 1266748 | Qty on machine: 1 | Circuitboard Kit, Contrl [Teal I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $293.90/EA | ||
| – | TN4209960Replaces Tennant 1250527 | Qty on machine: 1 | Charger, Bat (Plus Model 3pin) (Standard)Fits 1 of 2 versionsTeal model (V2025) | $671.20/EA | ||
| – | TN4036156Replaces Tennant 1232675 | Qty on machine: 1 | Cover, Brush, Motor (Includes Qty 2 Cover Assemblies)Fits 1 of 2 versionsTeal model (V2025) | $102.80/EA | ||
| – | TN8004696Replaces Tennant 1266713 | Qty on machine: 1 | Hinge Assy, Lever [Teal I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $125.00/EA | ||
| – | TN4030366Replaces Tennant 1273569 | Qty on machine: 1 | Wheel Assy (Transport)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $29.44/EA | ||
| – | TN4030364Replaces Tennant 1273567 | Qty on machine: 1 | Bracket, Wheel, LhPart of Wheel Assy (Transport) (1273569). Fits 1 of 2 versionsTeal model (V2025) | $72.42/EA | ||
| – | TN4030365Replaces Tennant 1273568 | Qty on machine: 1 | Bracket, Wheel, RhPart of Wheel Assy (Transport) (1273569). Fits 1 of 2 versionsTeal model (V2025) | $33.03/EA | ||
| – | TN8004908Replaces Tennant 1266788 | Qty on machine: 2 | Caster, Glide, Squeegee (Includes Qty 1 Assy)Fits 1 of 2 versionsTeal model (V2025) | $11.92/EA | ||
| – | TN8050708Replaces Tennant 1269598 | Qty on machine: 1 | Wheel & Caster Kit, Gray [I-Mop Xl&Xxl] (Standard Kit Includes Qty 2 Static & Qty 1 Swivel Castor Assy - For Other Options See Below)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $170.89/EA | ||
| – | TN8050709Replaces Tennant 1269611 | Qty on machine: 1 | Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $199.07/EA | ||
| – | TN8050791Replaces Tennant 1269613 | Qty on machine: 2 | Wheel Kit, Sqge, Ss, [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option) (1269611). Fits 1 of 2 versionsTeal model (V2025) | $64.03/EA | ||
| – | TN8050790Replaces Tennant 1269612 | Qty on machine: 1 | Caster Kit, Sqge, Ss, [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option) (1269611). Fits 1 of 2 versionsTeal model (V2025) | $180.89/EA | ||
| – | TN8050792Replaces Tennant 1269614 | Qty on machine: 1 | Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $217.25/EA | ||
| – | TN8050794Replaces Tennant 1269616 | Qty on machine: 2 | Wheel Kit, Sqge [Fkm I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option) (1269614). Fits 1 of 2 versionsTeal model (V2025) | $73.93/EA | ||
| – | TN8050793Replaces Tennant 1269615 | Qty on machine: 1 | Caster Kit, Fkm, Swivel [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option) (1269614). Fits 1 of 2 versionsTeal model (V2025) | $196.34/EA | ||
| – | TN4036157Replaces Tennant 1232676 | Qty on machine: 1 | Clip, Retaining, TankFits 1 of 2 versionsTeal model (V2025) | $60.80/EA | ||
| – | TN8004915Replaces Tennant 1267119 | Qty on machine: 1 | Connector, Hose, Stretch, Gray [I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $7.68/EA | ||
| – | TN8004918Replaces Tennant 1267124 | Qty on machine: 2 | Grip Kit, Handle [I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $26.36/EA | ||
| – | TN4209722Replaces Tennant 1264257 | Qty on machine: 1 | Chrgr, Batt, 100-240v 9a [Na] (Optional)Fits 1 of 2 versionsTeal model (V2025) | $943.40/EA | ||
| – | TN4223050Replaces Tennant 1233924 | Qty on machine: 1 | Cord, Power [Ul 3 Pin, 11 Meters Lg] (N. America - Optional)Fits 1 of 2 versionsTeal model (V2025) | $81.20/EA |
Tennant i-mop XL Plus Brush driver assembly (Teal V2025) parts
Brush driver assembly (Teal V2025) from Tennant's parts list. Manual page 6.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 1 | TN4036128Replaces Tennant 1232578 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl Qty 2] (Standard - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $278.40/EA | ||
| 1 | TN4036134Replaces Tennant 1232607 | Qty on machine: 1 | Brush, Hard, Red, 9.0 [Xl Qty 2] (Option - Heavy Duty Deep Cleaning & Grout)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $312.30/EA | ||
| 1 | TN4036135Replaces Tennant 1232608 | Qty on machine: 1 | Brush, Soft, Lt Blu, 9.0 [Xl Qty 2] (Option - Soft Light Duty Cleaning)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $250.60/EA | ||
| 1 | TN4036520Replaces Tennant 1233559 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA | ||
| 2 | TN4036137Replaces Tennant 1232620 | Qty on machine: 1 | Driver Kit, Brush [Blue] (Set of 2) (Standard)Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 2 | TN4036138Replaces Tennant 1232622 | Qty on machine: 1 | Driver Kit, Brush [Red] (Set of 2) (Option)Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 2 | TN4036139Replaces Tennant 1232624 | Qty on machine: 1 | Driver Kit, Brush [Yellow] (Set of 2) (Option)Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsTeal model (V2025) | $31.00/EA | ||
| 2 | TN4036140Replaces Tennant 1232626 | Qty on machine: 1 | Driver Kit, Brush [Green] (Set of 2) (Option)Part of Brush, Med, Blu, 9.0 [Xl W/ylw Lock Qty 2] (Option - Medium Duty Daily Scrubbing) (1233559). Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 1 | TN4036518Replaces Tennant 1233556 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/grn Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA | ||
| 1 | TN4036519Replaces Tennant 1233557 | Qty on machine: 1 | Brush, Med, Blu, 9.0 [Xl W/red Lock Qty 2] (Option - Medium Duty Daily Scrubbing)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $99.80/EA |
Tennant i-mop XL Plus Pad driver assembly (Teal V2025) parts
Pad driver assembly (Teal V2025) from Tennant's parts list. Manual page 7.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 1 | TN4036136Replaces Tennant 1232613 | Qty on machine: 1 | Pad, Drvr, 9.2 [Xl Qty2]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $295.40/EA | ||
| 2 | TN4036137Replaces Tennant 1232620 | Qty on machine: 2 | Driver Kit, Brush [Blue] (Standard)Part of Pad, Driver, 9.2 [Xl Qty2] (1232613). Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 3 | TN4033015Replaces Tennant 1234346 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Qty 10 Pads] (Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $302.80/EA | ||
| 3 | TN4033017Replaces Tennant 1234348 | Qty on machine: 1 | Pad, Green, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $366.40/EA | ||
| 3 | TN4033016Replaces Tennant 1234347 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Qty 10 Pads] (Buffing)Fits 1 of 2 versionsTeal model (V2025) | $275.20/EA | ||
| 3 | TN4036146Replaces Tennant 1232649 | Qty on machine: 1 | Pad, Grn, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Daily Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $348.10/EA | ||
| 2 | TN4036138Replaces Tennant 1232622 | Qty on machine: 2 | Driver Kit, Brush [Red] (Option)Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 2 | TN4036139Replaces Tennant 1232624 | Qty on machine: 2 | Driver Kit, Brush [Yellow] (Option)Fits 1 of 2 versionsTeal model (V2025) | $31.00/EA | ||
| 2 | TN4036140Replaces Tennant 1232626 | Qty on machine: 2 | Driver Kit, Brush [Green] (Option)Fits 1 of 2 versionsTeal model (V2025) | $29.70/EA | ||
| 3 | TN4033018Replaces Tennant 1234350 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Qty 10 Pads] (Scrubbing)Fits 1 of 2 versionsTeal model (V2025) | $333.10/EA | ||
| 3 | TN4033014Replaces Tennant 1234344 | Qty on machine: 1 | Pad, Blk, 8.5 [Xl Qty 10 Pads] (Light Stripping)Fits 1 of 2 versionsTeal model (V2025) | $403.10/EA | ||
| 3 | TN4036143Replaces Tennant 1232645 | Qty on machine: 1 | Pad, Ylw, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Periodic Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $348.10/EA | ||
| 3 | TN4036147Replaces Tennant 1232650 | Qty on machine: 1 | Pad, Wht, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning)Fits 1 of 2 versionsTeal model (V2025) | $261.60/EA | ||
| 3 | TN4036148Replaces Tennant 1232651 | Qty on machine: 1 | Pad, Red, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Deep Cleaning Aggressive)Fits 1 of 2 versionsTeal model (V2025) | $287.70/EA | ||
| 3 | TN4036144Replaces Tennant 1232647 | Qty on machine: 1 | Pad, Orng, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - Ceramic Tiles)Fits 1 of 2 versionsTeal model (V2025) | $316.40/EA | ||
| 3 | TN4036145Replaces Tennant 1232648 | Qty on machine: 1 | Pad, Blu, 8.5 [Xl Twister Qty 2] (Diamond Polishing Pad - High Traffic Areas)Fits 1 of 2 versionsTeal model (V2025) | $316.40/EA |
Tennant i-mop XL Plus Handle assembly (Teal V2025) parts
The parts Tennant numbers on its handle assembly (teal v2025) drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004699Replaces Tennant 1266737 | 1 | Tube Assy, Inlet [Teal I-Mop] (Includes Items #2-41)Fits 1 of 2 versionsTeal model (V2025) | $840.72/EA |
| 2 | TN4029943Replaces Tennant 1266736 | 1 | Tube Assy, Inlet [Teal Imop] (Includes Items #2-22)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $284.01/EA |
| 3 | TN8004920Replaces Tennant 1267129 | 1 | Tube Kit, Handle [Xl Teal I-Mop]Complete assembly. Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | $209.68/EA |
| 4 | – | 1 | End Cap Inlet TubePart of Tube Kit, Handle [Xl Teal I-Mop] (1267129). Fits 1 of 2 versionsTeal model (V2025) | |
| 5 | – | 4 | Rivet With Dia. 5mm & Length 10mmPart of Tube Kit, Handle [Xl Teal I-Mop] (1267129). Fits 1 of 2 versionsTeal model (V2025) | |
| 6 | – | 1 | Sealing Pressure PlatePart of Tube Kit, Handle [Xl Teal I-Mop] (1267129). Fits 1 of 2 versionsTeal model (V2025) | |
| 7 | – | 1 | Sealing Rubber Sheet Al TubePart of Tube Kit, Handle [Xl Teal I-Mop] (1267129). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN8004707Replaces Tennant 1266762 | 1 | Holder, Tank, Rear [Teal I-Mop]Complete assembly. Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | $34.24/EA |
| 8 | – | 1 | Holder, Tank, Rear [Teal I-Mop]Part of Holder, Tank, Rear [Teal I-Mop] (1266762). Fits 1 of 2 versionsTeal model (V2025) | |
| 9 | – | 10 | Screw Wn 5451 5.0x18 Ejot Delta PtPart of Holder, Tank, Rear [Teal I-Mop] (1266762). Fits 1 of 2 versionsTeal model (V2025) | |
| 10 | TN4034363Replaces Tennant 1246366 | 1 | Holder, Tank, Front [Xl & Xxl Imop] (Incld Screws Qty 2)Part of Holder, Tank, Rear [Teal I-Mop] (1266762). Fits 1 of 2 versionsTeal model (V2025) | $69.30/EA |
| – | TN8004688Replaces Tennant 1266703 | 1 | Cable, Utp, 100cm L [Teal I-Mop Xxl]Complete assembly. Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | $49.69/EA |
| 11 | – | 1 | Cable, Utp, 100cm LPart of Cable, Utp, 100cm L [Teal I-Mop Xxl] (1266703). Fits 1 of 2 versionsTeal model (V2025) | |
| 12 | – | 1 | Power Cable Guiding RubberPart of Cable, Utp, 100cm L [Teal I-Mop Xxl] (1266703). Fits 1 of 2 versionsTeal model (V2025) | |
| 13 | – | 1 | Sealing Ring Sigar Utp ConnectorPart of Cable, Utp, 100cm L [Teal I-Mop Xxl] (1266703). Fits 1 of 2 versionsTeal model (V2025) | |
| 14 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN8004702Replaces Tennant 1266740 | 1 | Seal, Tank, Recvy [Teal I-Mop]Complete assembly. Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | $67.17/EA |
| 15 | TN8004915Replaces Tennant 1267119 | 1 | Connector, Hose, Stretch, Gray [I-Mop]Part of Seal, Tank, Recvy [Teal I-Mop] (1266740). Fits 1 of 2 versionsTeal model (V2025) | $7.68/EA |
| 16 | – | 1 | Gasket For Hose ConnectorPart of Seal, Tank, Recvy [Teal I-Mop] (1266740). Fits 1 of 2 versionsTeal model (V2025) | |
| 17 | – | 1 | Seal, Tank, RecvyPart of Seal, Tank, Recvy [Teal I-Mop] (1266740). Fits 1 of 2 versionsTeal model (V2025) | |
| 18 | – | 1 | O-ring Wire Dia. 3mm, Od 46mmPart of Seal, Tank, Recvy [Teal I-Mop] (1266740). Fits 1 of 2 versionsTeal model (V2025) | |
| 19 | – | 1 | Magnet Top Unit Small 20x20x10mmPart of Seal, Tank, Recvy [Teal I-Mop] (1266740). Fits 1 of 2 versionsTeal model (V2025) | |
| 20 | TN4033051Replaces Tennant 1234953 | 1 | Deflector, Tank, Recvy [Imop]Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | $63.90/EA |
| 21 | – | 1 | Cable 3P 20Awg I-link L=400Part of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | |
| 22 | – | 1 | Rubber Ring Seal I-link Wiring CablePart of Tube Assy, Inlet [Teal Imop] (Includes Items #2-22) (1266736). Fits 1 of 2 versionsTeal model (V2025) | |
| 23 | TN8004906Replaces Tennant 1266784 | 1 | Pcb Assy Kit, [Teal I-Link Iot I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $27.47/EA |
| 24 | TN4036165Replaces Tennant 1232710 | 1 | Motor Kit, TopComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $159.40/EA |
| 25 | TN4034364Replaces Tennant 1246367 | 1 | Motor Hsg, Unit, Top [Xl & Xxl] (With Coupling & Filter)Complete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | $172.60/EA |
| 26 | TN4032679Replaces Tennant 1261821 | 1 | Fitting Kit, Coupling, W/Washer [Imop]Part of Motor Hsg, Unit, Top [Xl & Xxl] (Includes Water Inlet Coupling & Metal Grease Filter) (1246367). Fits 1 of 2 versionsTeal model (V2025) | $59.09/EA |
| 27 | TN4034365Replaces Tennant 1246369 | 1 | Connector, Metal, Angle [Xl & Xxl Imop]Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | $57.50/EA |
| – | TN4034367Replaces Tennant 1246373 | 1 | Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads)Complete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | $57.80/EA |
| 28 | – | 1 | 187 Terminal + Wire 14awg Red, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsTeal model (V2025) | |
| 29 | – | 1 | 187 Terminal + Wire 14awg Blk, L=280mm 250 TerminalPart of Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads) (1246373). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN4034366Replaces Tennant 1246370 | 1 | Gasket Set, Sealing, Motr [Xl & Xxl ImopComplete assembly. Part of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | $53.40/EA |
| 30 | – | 1 | Sealing Gasket Eva 3x1.5x593mmPart of Gasket Set, Sealing, Motr [Xl & Xxl Imop (1246370). Fits 1 of 2 versionsTeal model (V2025) | |
| 31 | – | 1 | Sealing Gasket Eva 4x2.5x150mmPart of Gasket Set, Sealing, Motr [Xl & Xxl Imop (1246370). Fits 1 of 2 versionsTeal model (V2025) | |
| 32 | – | 1 | Water Channel Dia. 6mm L:225mmPart of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | |
| 33 | – | 1 | Vacuum Motor Sealing TopPart of Motor Kit, Top (1232710). Fits 1 of 2 versionsTeal model (V2025) | |
| 34 | TN4031828Replaces Tennant 1252648 | 1 | Valve Asm, Complete, w/ wire connector [Xl & Xxl]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $69.20/EA |
| 35 | TN4220045Replaces Tennant 1234975 | 2 | Screw, Flt, Soc, M4 X 10 Ss [10x, Imop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $4.60/EA |
| 36 | – | 1 | Megnetic Ventil Fixation Plate Stainless SteelPart of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN4034368Replaces Tennant 1246374 | 1 | Connector Kit, Motor, Vacuum (Includes Items #37-41)Complete assembly. Part of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsTeal model (V2025) | $79.60/EA |
| 37 | – | 2 | Screw M3x12 Crosshead Selftapping Bl-ni SstPart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsTeal model (V2025) | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 38 | – | 1 | Motor Unit FramePart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsTeal model (V2025) | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 39 | – | 1 | Motor Unit Frame RubberPart of Connector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) (1246374). Fits 1 of 2 versionsTeal model (V2025) | Included in kitConnector Kit, Motor, Vacuum [Xl & Xxl] (Includes Items #33-37) · TN4034368 ›Manual: 1246374 |
| 40 | TN4036124Replaces Tennant 1232486 | 1 | Circuitboard, Valve (Not Included In Assy P/N 1232710 Item #24)Part of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsTeal model (V2025) | $44.00/EA |
| 41 | – | 2 | Screw M3x12 Crosshead Selftapping Bl-ni SstPart of Valve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) (1252648). Fits 1 of 2 versionsTeal model (V2025) | Included in kitValve Asm, Complete, w/ wire connector [Xl & Xxl] (Includes Fixation Plate and Mounting Screws) · TN4031828 ›Manual: 1252648 |
Tennant i-mop XL Plus Handle assembly (continued) (Teal V2025) parts
The parts Tennant numbers on its handle assembly (continued) (teal v2025) drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036163Replaces Tennant 1232694 | 1 | Hinge Kit, LeverComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $156.70/EA |
| 2 | TN4033059Replaces Tennant 1234974 | 4 | Screw, Flt, Soc, M6 X 12 Nl [10x, Imop]Part of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsTeal model (V2025) | $53.90/EA |
| 3 | – | 6 | Screw Wn 5451 5.0x14 Ejot Delta PtPart of Hinge Kit, Lever (1232694). Fits 1 of 2 versionsTeal model (V2025) | |
| 4 | TN8004917Replaces Tennant 1267121 | 1 | Hose, Stretch, Complete [I-Mop]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $47.60/EA |
| 5 | TN8004911Replaces Tennant 1267113 | 2 | Cuff, Hose, W/Hook [I-Mop]Part of Hose, Stretch, Complete [I-Mop] (1267121). Fits 1 of 2 versionsTeal model (V2025) | $20.91/EA |
| 6 | TN4030373Replaces Tennant 1273576 | 1 | Motor, CompltComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $555.50/EA |
| 7 | – | 1 | Domel Vacuum Cleaner MotorPart of Motor, Complt (1273576). Fits 1 of 2 versionsTeal model (V2025) | |
| 8 | TN4034367Replaces Tennant 1246373 | 1 | Wire, Terminal, Motor [Xl & Xxl Imop] (Vac Motor Leads)Part of Motor, Complt (1273576). Fits 1 of 2 versionsTeal model (V2025) | $57.80/EA |
| 9 | TN4034369Replaces Tennant 1246375 | 1 | Gasket Set, Motor, Vacuum [Xl & Xxl]Part of Motor, Complt (1273576). Fits 1 of 2 versionsTeal model (V2025) | $46.70/EA |
| 10 | TN4036166Replaces Tennant 1232711 | 1 | Cover Kit, FanFits 1 of 2 versionsTeal model (V2025) | $162.40/EA |
Tennant i-mop XL Plus Control console assembly (Teal V2025) parts
The parts Tennant numbers on its control console assembly (teal v2025) drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030436Replaces Tennant 1276960 | 1 | Control Assy, Unit [Imop Xl V25]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $300.48/EA |
| 1 | TN4222612Replaces Tennant 1232684 | 1 | Knob Kit, Housing, Top [xl]Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | Call to confirm part: 800-440-6723 |
| 2 | TN4030435Replaces Tennant 1276959 | 1 | Decal, Instr [Imop Xl V25]Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $94.08/EA |
| 3 | TN8004690Replaces Tennant 1266705 | 1 | Contrl Hsg, Top[Teal W/Bmpr Xl&Xxl I-MopPart of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $30.10/EA |
| 4 | TN4030374Replaces Tennant 1273577 | 1 | Circuitboard, TopPart of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $299.97/EA |
| – | TN8004918Replaces Tennant 1267124 | 2 | Grip Kit, Handle [I-Mop]Complete assembly. Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $26.36/EA |
| 5 | TN8004916Replaces Tennant 1267120 | 2 | Cap, End [W/Logo I-Mop]Part of Grip Kit, Handle [I-Mop] (1267124). Fits 1 of 2 versionsTeal model (V2025) | $10.30/EA |
| 6 | TN4033054Replaces Tennant 1234963 | 1 | Grip, Handle [xl I-Mop Set Of 2]Part of Grip Kit, Handle [I-Mop] (1267124). Fits 1 of 2 versionsTeal model (V2025) | $64.20/EA |
| 7 | TN4029942Replaces Tennant 1266706 | 1 | Housing Kit, Rear, W/Hdwr [Teal Xl&XxlComplete assembly. Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $71.51/EA |
| 8 | – | 2 | Screw M4x12 Crosshead, Standard Thread SstPart of Housing Kit, Rear, W/Hdwr [Teal Xl&Xxl (1266706). Fits 1 of 2 versionsTeal model (V2025) | |
| 9 | – | 2 | Screw M4x35 Crosshead, Standard Thread SstPart of Housing Kit, Rear, W/Hdwr [Teal Xl&Xxl (1266706). Fits 1 of 2 versionsTeal model (V2025) | |
| 10 | TN4034362Replaces Tennant 1246344 | 1 | Switch Kit, Power [Xl & Xxl Imop]Complete assembly. Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $68.30/EA |
| 11 | – | 2 | Plastic Washer 9x4x1mmPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsTeal model (V2025) | |
| 12 | – | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Switch Kit, Power [Xl & Xxl Imop] (1246344). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN8004689Replaces Tennant 1266704 | 1 | Handle, Control [Teal, I-Mop]Complete assembly. Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $53.43/EA |
| 13 | – | 1 | Spring Switch Lever Dia 0.8mmPart of Handle, Control [Teal, I-Mop] (1266704). Fits 1 of 2 versionsTeal model (V2025) | |
| 14 | – | 1 | Handle, Control [Teal, Imop]Part of Handle, Control [Teal, I-Mop] (1266704). Fits 1 of 2 versionsTeal model (V2025) | |
| 15 | TN8004691Replaces Tennant 1266708 | 1 | Housing, Control, Front [Teal I-Mop]Part of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $88.68/EA |
| 16 | TN8004695Replaces Tennant 1266712 | 1 | Plate, Label, W/Clip [Teal Xl Plus I-MopPart of Control Assy, Unit [Imop Xl V25] (1276960). Fits 1 of 2 versionsTeal model (V2025) | $74.44/EA |
Tennant i-mop XL Plus Clean water tank assembly (Teal V2025) parts
The parts Tennant numbers on its clean water tank assembly (teal v2025) drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029918Replaces Tennant 1265854 | 1 | Tank Kit, Solution [Imop Xl W/Blue Cap]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $241.90/EA |
| 2 | TN4036150Replaces Tennant 1232663 | 1 | Cap Kit, Tank, Sol [Blue] (Standard)Part of Tank Kit, Solution [Imop Xl W/Blue Cap] (1265854). Fits 1 of 2 versionsTeal model (V2025) | $44.80/EA |
| 2 | TN4036151Replaces Tennant 1232665 | 1 | Cap Kit, Tank, Sol [Red] (Option)Fits 1 of 2 versionsTeal model (V2025) | $53.20/EA |
| 2 | TN4036152Replaces Tennant 1232666 | 1 | Cap Kit, Tank, Sol [Yellow] (Option)Fits 1 of 2 versionsTeal model (V2025) | $53.20/EA |
| 2 | TN4036153Replaces Tennant 1232667 | 1 | Cap Kit, Tank, Sol [Green] (Option)Fits 1 of 2 versionsTeal model (V2025) | $53.20/EA |
| 3 | TN4036157Replaces Tennant 1232676 | 1 | Clip, Retaining, Tank (Includes Qty 1 Clip Assembly)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $60.80/EA |
| 4 | TN4036125Replaces Tennant 1232519 | 1 | Coupling, WaterPart of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $80.20/EA |
Tennant i-mop XL Plus Dirty water tank assembly (Teal V2025) parts
The parts Tennant numbers on its dirty water tank assembly (teal v2025) drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004686Replaces Tennant 1265855 | 1 | Tank Kit, Recovery, [I-Mop]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $344.81/EA |
| 2 | TN4036149Replaces Tennant 1232661 | 1 | Cap Kit, Tank, RecComplete assembly. Part of Tank Kit, Recovery, [I-Mop] (1265855). Fits 1 of 2 versionsTeal model (V2025) | $54.94/EA |
| 3 | – | 1 | Cap HolderPart of Cap Kit, Tank, Rec (1232661). Fits 1 of 2 versionsTeal model (V2025) | |
| 4 | TN4036133Replaces Tennant 1232600 | 1 | Plate, Mtg, TankPart of Tank Kit, Recovery, [I-Mop] (1265855). Fits 1 of 2 versionsTeal model (V2025) | $87.30/EA |
| 5 | TN4031492Replaces Tennant 1251765 | 1 | Float Asm, Ball [xl & xxl plus imop]Complete assembly. Part of Tank Kit, Recovery, [I-Mop] (1265855). Fits 1 of 2 versionsTeal model (V2025) | $72.70/EA |
| 6 | TN4031493Replaces Tennant 1251766 | 1 | Cage, Ball, Float [xl &xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsTeal model (V2025) | $26.40/EA |
| 7 | TN4031494Replaces Tennant 1251767 | 1 | Support, Housing [xl & xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsTeal model (V2025) | $27.20/EA |
| 8 | TN4030372Replaces Tennant 1273575 | 1 | Float, Ball, 35mm, Blu, 16gPart of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsTeal model (V2025) | $10.50/EA |
| 9 | TN4031496Replaces Tennant 1251769 | 1 | Housing, Ball, Float [xl &xxl plus imop]Part of Float Asm, Ball [xl & xxl plus imop] (1251765). Fits 1 of 2 versionsTeal model (V2025) | $41.20/EA |
Tennant i-mop XL Plus Scrub head assembly (Teal V2025) parts
The parts Tennant numbers on its scrub head assembly (teal v2025) drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036129Replaces Tennant 1232579 | 1 | Motor, Brush, RhFits 1 of 2 versionsTeal model (V2025) | $577.60/EA |
| 2 | TN4036130Replaces Tennant 1232582 | 1 | Motor, Brush, LhFits 1 of 2 versionsTeal model (V2025) | $577.60/EA |
| 3 | TN4036162Replaces Tennant 1232693 | 1 | Fitting Assy, Water Channel [Imop]Fits 1 of 2 versionsTeal model (V2025) | $49.20/EA |
| 4 | TN4030366Replaces Tennant 1273569 | 1 | Wheel AssyComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $29.44/EA |
| 5 | TN4030364Replaces Tennant 1273567 | 1 | Bracket, Wheel, LhPart of Wheel Assy (Transport) (1273569). Fits 1 of 2 versionsTeal model (V2025) | $72.42/EA |
| 6 | TN4030365Replaces Tennant 1273568 | 1 | Bracket, Wheel, RhPart of Wheel Assy (Transport) (1273569). Fits 1 of 2 versionsTeal model (V2025) | $33.03/EA |
| 7 | TN8004701Replaces Tennant 1266739 | 1 | Cover, Motor, Brush [Teal I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $386.63/EA |
| 8 | – | 1 | Screw, Flt, Soc, M6 X 16 Nl [10x,Imop]Fits 1 of 2 versionsTeal model (V2025) | |
| 9 | TN4036169Replaces Tennant 1232714 | 1 | Hinge Kit, Hd, BrushComplete assembly. Fits 1 of 2 versionsTeal model (V2025) | $116.70/EA |
| 10 | TN4034372Replaces Tennant 1246382 | 4 | Bushing, Cover, Motor [Xxl Imop] (Includes Qty 4)Part of Hinge Kit, Hd, Brush (1232714). Fits 1 of 2 versionsTeal model (V2025) | $55.80/EA |
| 11 | TN4036161Replaces Tennant 1232687 | 1 | Bumper, BrushFits 1 of 2 versionsTeal model (V2025) | $148.20/EA |
| 12 | TN4036131Replaces Tennant 1232583 | 1 | Cover, Brush, BottomFits 1 of 2 versionsTeal model (V2025) | $139.80/EA |
| 13 | TN8004685Replaces Tennant 1265853 | 1 | Splash Guard Kit, Lh & Rh [I-Mop Xl]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $58.00/EA |
| 14 | – | 4 | Bolt Splash Guard M5x21.5 (Silver)Part of Splash Guard Kit, Lh & Rh [I-Mop Xl] (1265853). Fits 1 of 2 versionsTeal model (V2025) | |
| 15 | – | 2 | Bolt Splash Guard M5x19 BlackPart of Splash Guard Kit, Lh & Rh [I-Mop Xl] (1265853). Fits 1 of 2 versionsTeal model (V2025) | |
| 16 | TN4030419Replaces Tennant 1276611 | 1 | Hub, Drive, Brush Lh+Rh [Imop,Xl]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $89.79/EA |
| 17 | TN4030367Replaces Tennant 1273570 | 1 | Hub Assy, Drive, LhPart of Hub, Drive, Brush Lh+Rh [Imop,Xl] (1276611). Fits 1 of 2 versionsTeal model (V2025) | $74.29/EA |
| 18 | TN4030368Replaces Tennant 1273571 | 1 | Hub Assy, Drive, RhPart of Hub, Drive, Brush Lh+Rh [Imop,Xl] (1276611). Fits 1 of 2 versionsTeal model (V2025) | $74.29/EA |
| 19 | TN4030429Replaces Tennant 1276621 | 1 | Screw Wn 5451 5.0x18 Ejot Delta PtPart of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $1.97/EA |
| 20 | TN4033388Replaces Tennant 1237826 | 2 | Wheel, Driving, W/Metal Insert[Xl & Xxl]Fits 1 of 2 versionsTeal model (V2025) | $85.20/EA |
| 21 | TN4030430Replaces Tennant 1276622 | 1 | Bolt, Hex Head,13 M5x13 Ss LhFits 1 of 2 versionsTeal model (V2025) | $3.69/EA |
| 21 | TN4030431Replaces Tennant 1276623 | 1 | Bolt, Hex Head,13 M5x13 Ss RhFits 1 of 2 versionsTeal model (V2025) | $3.64/EA |
Tennant i-mop XL Plus Squeegee assembly (Teal V2025) parts
The parts Tennant numbers on its squeegee assembly (teal v2025) drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004684Replaces Tennant 1265851 | 1 | Squeegee Assy, [I-Mop Xl]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $555.80/EA |
| 2 | TN8004914Replaces Tennant 1267118 | 1 | Connector, Hose, Squeegee [I-Mop]Complete assembly. Part of Squeegee Assy, [I-Mop Xl] (1265851). Fits 1 of 2 versionsTeal model (V2025) | $13.50/EA |
| 3 | TN4033053Replaces Tennant 1234956 | 1 | Gasket, Hose, Squeegee [Imop]Part of Connector, Hose, Squeegee [I-Mop] (1267118). Fits 1 of 2 versionsTeal model (V2025) | $40.10/EA |
| 4 | TN4030427Replaces Tennant 1276619 | 4 | Screw,Cyl,Rnd Head M3x8 [Xl]Part of Squeegee Assy, [I-Mop Xl] (1265851). Fits 1 of 2 versionsTeal model (V2025) | $0.20/EA |
| 5 | TN4030420Replaces Tennant 1276612 | 2 | Plate,Mnt,Sqge,Retain [Xl]Part of Squeegee Assy, [I-Mop Xl] (1265851). Fits 1 of 2 versionsTeal model (V2025) | $10.00/EA |
| 6 | TN4036530Replaces Tennant 1233871 | 2 | Washer, Rbr, Sqge [Black, Imop] (Qty 1)Part of Squeegee Assy, [I-Mop Xl] (1265851). Fits 1 of 2 versionsTeal model (V2025) | $3.40/EA |
| 6 | TN4033050Replaces Tennant 1234948 | 1 | Washer, Rbr, Sqge [Black, Imop, Qty 100]Fits 1 of 2 versionsTeal model (V2025) | $229.20/EA |
| 7 | TN8004908Replaces Tennant 1266788 | 2 | Caster, Glide, Squeegee [Teal I-Mop] (Includes Qty 1)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $11.92/EA |
| 8 | TN8004704Replaces Tennant 1266750 | 1 | Frame, Main, Squeegee [Teal Xl I-Mop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $130.30/EA |
| – | TN8050708Replaces Tennant 1269598 | 1 | Wheel & Caster Kit, Gray [I-Mop Xl&Xxl] (Standard Kit Includes Items #9- 12 - Qty 2 Static & Qty 1 Swivel Cas- tor Assy - For Other Options See Below)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $170.89/EA |
| 9 | TN8004907Replaces Tennant 1266786 | 2 | Bracket, Caster, Static, Gray[Teal I-Mop (Includes Qty 1)Complete assembly. Part of Wheel & Caster Kit, Gray [I-Mop Xl&Xxl] (Standard Kit Includes Qty 2 Static & Qty 1 Swivel Castor Assy - For Other Options See Below) (1269598). Fits 1 of 2 versionsTeal model (V2025) | $41.90/EA |
| 10 | TN8004921Replaces Tennant 1267130 | 1 | Caster Kit, Squeegee [I-Mop]Part of Bracket, Caster, Static, Gray (Includes Qty 1 Assy) (1266786). Fits 1 of 2 versionsTeal model (V2025) | $69.39/EA |
| 11 | TN8004909Replaces Tennant 1266791 | 1 | Bracket, Caster, Swivel, Gray[Teal I-MopComplete assembly. Part of Wheel & Caster Kit, Gray [I-Mop Xl&Xxl] (Standard Kit Includes Qty 2 Static & Qty 1 Swivel Castor Assy - For Other Options See Below) (1269598). Fits 1 of 2 versionsTeal model (V2025) | $142.00/EA |
| 12 | TN8004921Replaces Tennant 1267130 | 2 | Caster Kit, Squeegee [I-Mop]Part of Bracket, Caster, Swivel, Gray[Teal I-Mop (1266791). Fits 1 of 2 versionsTeal model (V2025) | $69.39/EA |
| 13 | TN4036141Replaces Tennant 1232627 | 1 | Blade, Sqge, Front, 22.4 [Xl] (Standard - Red Linatex)Part of Wheel & Caster Kit, Gray [I-Mop Xl&Xxl] (Standard Kit Includes Qty 2 Static & Qty 1 Swivel Castor Assy - For Other Options See Below) (1269598). Fits 1 of 2 versionsTeal model (V2025) | $56.90/EA |
| 13 | TN8050797Replaces Tennant 1269619 | 1 | Blade, Sqge, Front, Primo [I-Mop Xl] (Option)Fits 1 of 2 versionsTeal model (V2025) | $77.60/EA |
| 14 | TN8004705Replaces Tennant 1266751 | 1 | Holder, Blade, Squeegee [Teal Xl I-Mop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $109.18/EA |
| 15 | TN8004706Replaces Tennant 1266752 | 2 | Holder, Button, Push, Sqg [Teal Xl I-MopPart of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $7.27/EA |
| 16 | TN4036142Replaces Tennant 1232629 | 1 | Blade, Sqge, Rear, 24.0[Xl Lina] (Standard - Red Linatex)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $56.90/EA |
| 16 | TN4222604Replaces Tennant 1232635 | 1 | Blade, Sqge, Rear, 24.0 [Xl Ure] (Option)Fits 1 of 2 versionsTeal model (V2025) | $68.28/EA |
| 16 | TN8050798Replaces Tennant 1269620 | 1 | Blade, Sqge, Rear, Primo [I-Mop Xl] (Option)Fits 1 of 2 versionsTeal model (V2025) | $77.60/EA |
| – | TN8050709Replaces Tennant 1269611 | 1 | Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $199.07/EA |
| 9 | TN8050791Replaces Tennant 1269613 | 2 | Wheel Kit, Sqge, Ss, [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option) (1269611). Fits 1 of 2 versionsTeal model (V2025) | $64.03/EA |
| 11 | TN8050790Replaces Tennant 1269612 | 1 | Caster Kit, Sqge, Ss, [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Ss [I-Mop Xl & Xxl] (Option) (1269611). Fits 1 of 2 versionsTeal model (V2025) | $180.89/EA |
| – | TN8050792Replaces Tennant 1269614 | 1 | Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $217.25/EA |
| 9 | TN8050794Replaces Tennant 1269616 | 2 | Wheel Kit, Sqge [Fkm I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option) (1269614). Fits 1 of 2 versionsTeal model (V2025) | $73.93/EA |
| 11 | TN8050793Replaces Tennant 1269615 | 1 | Caster Kit, Fkm, Swivel [I-Mop Xl&Xxl] (Option)Part of Wheel & Caster Kit, Fkm [I-Mop Xl&Xxl] (Option) (1269614). Fits 1 of 2 versionsTeal model (V2025) | $196.34/EA |
Tennant i-mop XL Plus Main lever assembly (Teal V2025) parts
The parts Tennant numbers on its main lever assembly (teal v2025) drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030434Replaces Tennant 1276958 | 1 | Housing, Main, Assy [Imop Xl V25]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $1,565.50/EA |
| 2 | TN8004919Replaces Tennant 1267128 | 1 | Cover Assy, Lever, Main [Xl Teal I-Mop]Part of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $107.57/EA |
| 3 | TN4030421Replaces Tennant 1276613 | 2 | Pin, Alignment D1.5x7 Ss [Imop,Xl]Part of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $0.51/EA |
| 4 | TN4034375Replaces Tennant 1246387 | 1 | Battery Connector Male Right Color: GrayPart of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $48.70/EA |
| 5 | TN4030428Replaces Tennant 1276620 | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $0.30/EA |
| 6 | TN4030421Replaces Tennant 1276613 | 2 | Pin, Alignment D1.5x7 Ss [Imop,Xl]Part of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $0.51/EA |
| 7 | TN4034374Replaces Tennant 1246386 | 1 | Connector, Battery, Lh [Xl & Xxl Imop]Part of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $52.40/EA |
| 8 | TN4030428Replaces Tennant 1276620 | 2 | Screw Wn 5451 25x10 Ejot Delta PtPart of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $0.30/EA |
| 9 | TN4030370Replaces Tennant 1273573 | 1 | Circuitboard, MainPart of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $1,315.02/EA |
| 10 | – | 1 | Magnet Top Unit Holder Color: GrayPart of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | |
| 11 | TN8004697Replaces Tennant 1266714 | 1 | Housing, Lever, Main [Teal I-Mop]Part of Housing, Main, Assy [Imop Xl V25] (1276958). Fits 1 of 2 versionsTeal model (V2025) | $270.60/EA |
| 12 | TN8004912Replaces Tennant 1267116 | 1 | Plate, Name, Bottom, White [I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $15.55/EA |
| 13 | TN8004913Replaces Tennant 1267117 | 1 | Plate, Name, Bottom, White [I-Mop]Fits 1 of 2 versionsTeal model (V2025) | $15.55/EA |
| 14 | TN4033052Replaces Tennant 1234955 | 2 | Plate, Sppt, Lever (2pc) [Imop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | Call to confirm part: 800-440-6723 |
| 15 | TN4033056Replaces Tennant 1234971 | 4 | Screw, Flt, Soc, M3 X 8 Ss Nl [10x,Imop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $50.60/EA |
| 16 | TN4033060Replaces Tennant 1234976 | 2 | Screw, Flt, Soc, M5 X 16 Nl [10x, Imop]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $46.20/EA |
| 17 | TN8004696Replaces Tennant 1266713 | 1 | Hinge Assy, Lever [Teal I-Mop]Complete assembly. Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $125.00/EA |
| 18 | TN4033389Replaces Tennant 1237828 | 1 | Hardware Kit, Disk, Screw, Cover [Imop] (Same?)Part of Hinge Assy, Lever [Teal I-Mop] (1266713). Fits 1 of 2 versionsTeal model (V2025) | $58.90/EA |
| 19 | TN4034373Replaces Tennant 1246385 | 1 | Pin, Squeegee [Xl & Xxl Imop] (Includes Qty 2)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $55.00/EA |
| 20 | TN4030422Replaces Tennant 1276614 | 2 | Cable, Batt, Connection [Red,14awg]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $7.32/EA |
| 21 | TN4030423Replaces Tennant 1276615 | 2 | Cable, Batt, Connection [Black,14awg]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $7.32/EA |
| 22 | TN4030424Replaces Tennant 1276616 | 2 | Cable, Brush Motor[ Black,280mm]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $21.36/EA |
| 23 | TN4030425Replaces Tennant 1276617 | 2 | Cable, Brush Motor[Red,280mm]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $21.36/EA |
| 24 | TN4030426Replaces Tennant 1276618 | 1 | Cable, Power, 4wires [Vac-Sol,Xl]Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $26.87/EA |
| 25 | TN4029941Replaces Tennant 1266702 | 1 | Lever Asm, Main, Utp [Xl & Xxl Imop] (New UTP Cable) (Main Harness Assy?)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $121.81/EA |
| 26 | TN8004903Replaces Tennant 1266778 | 1 | Cover, Cooling, Motor, Gray [Teal I-Mop] (Incld Screws)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $20.50/EA |
| 27 | TN4029944Replaces Tennant 1266775 | 1 | Cover, Cooling, Brush Motor, Gray [Teal (Incld Screws)Part of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $20.50/EA |
| 28 | TN4030428Replaces Tennant 1276620 | 12 | Screw Wn 5451 25x10 Ejot Delta PtPart of the assembly above. Fits 1 of 2 versionsTeal model (V2025) | $0.30/EA |
Tennant i-mop XL Plus I- balance assembly (Teal V2025) parts
I- balance assembly (Teal V2025) from Tennant's parts list. Manual page 24.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8004905Replaces Tennant 1266782 | Qty on machine: 1 | Bracket Kit [Teal I-Balance Assy I-Mop]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $231.50/EA | |
| 2 | TN8004910Replaces Tennant 1267112 | Qty on machine: 1 | Hinge, Fork, Support [I-Mop]Part of Bracket Kit [Teal I-Balance Assy I-Mop] (1266782). Fits 1 of 2 versionsTeal model (V2025) | $44.34/EA | |
| 3 | TN4019857Replaces Tennant 9030090 | Qty on machine: 1 | Kit, I-Balance Update [Imop,Xl]Part of Bracket Kit [Teal I-Balance Assy I-Mop] (1266782). Fits 1 of 2 versionsTeal model (V2025) | Call to confirm part: 800-440-6723 |
Tennant i-mop XL Plus Battery pack assembly (Teal V2025) parts
The parts Tennant numbers on its battery pack assembly (teal v2025) drawing. Manual page 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005824Replaces Tennant 1232100 | 1 | Battery Kit [I-Mop Left & Right]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $1,210.30/EA |
| 2 | – | 1 | Battery, Pack, RhComplete assembly. Part of Battery Kit [I-Mop Left & Right] (1232100). Fits 1 of 2 versionsTeal model (V2025) | |
| 3 | TN4036132Replaces Tennant 1232598 | 1 | Connector, Bat, Fem, Rh (Color: Gray)Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsTeal model (V2025) | $60.00/EA |
| 4 | TN4208049Replaces Tennant 1272020 | 1 | Cover, Connector, Bat [Yellow]Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsTeal model (V2025) | $11.01/EA |
| 5 | – | 1 | Battery, Pack, LhComplete assembly. Part of Battery Kit [I-Mop Left & Right] (1232100). Fits 1 of 2 versionsTeal model (V2025) | |
| 6 | TN4036126Replaces Tennant 1232545 | 1 | Connector, Bat, Fem, Lh (Color: Blue)Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsTeal model (V2025) | $60.00/EA |
| 7 | TN4208049Replaces Tennant 1272020 | 1 | Cover, Connector, Bat [Yellow]Part of End Cap Inlet Tube (N/A). Fits 1 of 2 versionsTeal model (V2025) | $11.01/EA |
Tennant i-mop XL Plus Battery charger assembly (Teal V2025) parts
The parts Tennant numbers on its battery charger assembly (teal v2025) drawing. Manual page 26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4209960Replaces Tennant 1250527 | 1 | Charger, Bat (Plus Model 3pin) (Standard)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $671.20/EA |
| 1 | TN4209722Replaces Tennant 1264257 | 1 | Chrgr, Batt, 100-240v 9a [Na] (Optional)Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | $943.40/EA |
| 2 | TN4036127Replaces Tennant 1232564 | 1 | Switch, ChrgrPart of Chrgr, Batt, 100-240v 9a [Na] (Optional) (1264257). Fits 1 of 2 versionsTeal model (V2025) | $48.70/EA |
| 3 | TN4036167Replaces Tennant 1232712 | 1 | Light, VoltagePart of Chrgr, Batt, 100-240v 9a [Na] (Optional) (1264257). Fits 1 of 2 versionsTeal model (V2025) | $37.90/EA |
| 4 | TN4036168Replaces Tennant 1232713 | 1 | Receptacle Kit, ChrgrPart of Chrgr, Batt, 100-240v 9a [Na] (Optional) (1264257). Fits 1 of 2 versionsTeal model (V2025) | $39.20/EA |
| 5 | TN4222589Replaces Tennant 1232546 | 1 | Cord, Power (Ul 3 Pin) (N. America - Standard)Fits 1 of 2 versionsTeal model (V2025) | $65.00/EA |
| 5 | TN4223050Replaces Tennant 1233924 | 1 | Cord, Power [Ul 3 Pin, 11 Meters Lg] (N. America - Optional)Fits 1 of 2 versionsTeal model (V2025) | $81.20/EA |
Tennant i-mop XL Plus Wall chargers (option) (Teal V2025) parts
Wall chargers (option) (Teal V2025) from Tennant's parts list. Manual page 27.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8051726Replaces Tennant 1232094 | Qty on machine: 1 | Charger, Wall [I-Mop 3 Layer]Fits 1 of 2 versionsTeal model (V2025) | $711.30/EA | |
| 2 | TN8051725Replaces Tennant 1232058 | Qty on machine: 1 | Charger, Wall [I-Mop 6 Layer]Fits 1 of 2 versionsTeal model (V2025) | $1,889.30/EA |
Tennant i-mop XL Plus I- cart trolley assembly (option) (Teal V2025) parts
The parts Tennant numbers on its i- cart trolley assembly (option) (teal v2025) drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8005823Replaces Tennant 1232057 | 1 | Mop Cart Kit [I-Mop I-Cart L]Complete assembly. Fits 1 of 2 versionsTeal model (V2025) | Call to confirm part: 800-440-6723 |
| 1 | Not sold separatelyTennant N/A | 1 | Cover, Top, GreyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 2 | Not sold separatelyTennant N/A | 1 | Ring, Screw, I-TrolleyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 3 | Not sold separatelyTennant N/A | 4 | Screw,Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 4 | Not sold separatelyTennant N/A | 1 | Main Body, I-Cart LPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 5 | TN8005771Replaces Tennant 1235553 | 1 | Door, Cart, Front, Lh (Assembly Does Not Include Lock)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $479.35/EA |
| 6 | – | 1 | Seal, Rubber, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsTeal model (V2025) | |
| 7 | – | 1 | Plate, Arc, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsTeal model (V2025) | |
| 8 | – | 7 | Rivet, Blind, 4x15mmPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsTeal model (V2025) | |
| 9 | – | 4 | Screw, MPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsTeal model (V2025) | |
| 10 | – | 1 | Plate, DoorPart of Door, Cart, Front, Lh (Assembly Does Not Include Lock) (1235553). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN8005773Replaces Tennant 1235604 | 1 | Support Kit, Tank, Small, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $342.09/EA |
| 11 | – | 1 | Holder, Tank, SmallPart of Support Kit, Tank, Small, Cart [I-Mop] (1235604). Fits 1 of 2 versionsTeal model (V2025) | |
| 12 | – | 6 | Screw, 5Part of Support Kit, Tank, Small, Cart [I-Mop] (1235604). Fits 1 of 2 versionsTeal model (V2025) | |
| – | TN8005774Replaces Tennant 1235605 | 1 | Base Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $629.84/EA |
| 13 | – | 1 | Bridge, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsTeal model (V2025) | |
| 14 | – | 1 | Ring, Screw, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsTeal model (V2025) | |
| 15 | – | 1 | Shelf, Flat, I-TrolleyPart of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsTeal model (V2025) | |
| 16 | – | 8 | Screw, 5Part of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsTeal model (V2025) | |
| 17 | TN4034081Replaces Tennant 1243411 | 1 | Strap, Ramp [I-Cart]Part of Base Kit, Cart [I-Mop] (1235605). Fits 1 of 2 versionsTeal model (V2025) | $75.65/EA |
| – | TN8005775Replaces Tennant 1235606 | 1 | Caster Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $229.90/EA |
| 18 | – | 1 | Caster, 2.5”Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsTeal model (V2025) | |
| 19 | – | 4 | Screw,Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsTeal model (V2025) | |
| 20 | – | 2 | Caster, Front, FixedPart of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsTeal model (V2025) | |
| 21 | – | 16 | Screw,Part of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsTeal model (V2025) | |
| 22 | – | 2 | Caster, Rear, SwivelPart of Caster Kit, Cart [I-Mop] (1235606). Fits 1 of 2 versionsTeal model (V2025) | |
| 23 | TN4036534Replaces Tennant 1233957 | 1 | Bag, Cart [Imop]Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $89.50/EA |
| 24 | TN8005770Replaces Tennant 1235549 | 1 | Door, Cart, Front, Rh (Assembly Does Not Include Lock)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $479.35/EA |
| 25 | – | 7 | Rivet, Blind, 4x15mmPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsTeal model (V2025) | |
| 26 | – | 4 | Screw, MPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsTeal model (V2025) | |
| 27 | – | 1 | Plate, Arc, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsTeal model (V2025) | |
| 28 | – | 1 | Seal, Rubber, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsTeal model (V2025) | |
| 29 | – | 1 | Plate, DoorPart of Door, Cart, Front, Rh (Assembly Does Not Include Lock) (1235549). Fits 1 of 2 versionsTeal model (V2025) | |
| 30 | Not sold separatelyTennant N/A | 2 | Magnets, I-TrolleyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 31 | Not sold separatelyTennant N/A | 2 | Screw, #10-24 0.55”Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 32 | Not sold separatelyTennant N/A | 1 | Holder, Tank, Large GreyPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 33 | TN4036535Replaces Tennant 1233959 | 1 | Lock, W/Key [Imop] (Includes Qty 2 Locks & Qty 6 Keys)Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $182.81/EA |
| 34 | TN4033655Replaces Tennant 1239322 | 2 | Key, Lock, Door [Icart Qty 2]Part of Lock, W/Key [Imop] (Includes Qty 2 Locks & Qty 6 Keys) (1233959). Fits 1 of 2 versionsTeal model (V2025) | $91.00/EA |
| – | TN8005772Replaces Tennant 1235600 | 1 | Handle Kit, Cart [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $417.13/EA |
| 35 | – | 1 | Hanger, Sign, SafetyPart of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsTeal model (V2025) | |
| 36 | – | 6 | Screw, 5Part of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsTeal model (V2025) | |
| 37 | – | 1 | Handle, I-TrolleyPart of Handle Kit, Cart [I-Mop] (1235600). Fits 1 of 2 versionsTeal model (V2025) | |
| 38 | Not sold separatelyTennant N/A | 2 | Hook, BagPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 39 | TN8005639Replaces Tennant 1235544 | 1 | Hook Kit, Cord, Ext [I-Mop]Complete assembly. Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | $45.65/EA |
| 40 | – | 1 | Adapter, Holder, CablePart of Hook Kit, Cord, Ext [I-Mop] (1235544). Fits 1 of 2 versionsTeal model (V2025) | |
| 41 | Not sold separatelyTennant N/A | 1 | Screw, M8 x 27 HexagonPart of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 42 | Not sold separatelyTennant N/A | 1 | Nut, Nylon M8Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
| 43 | Not sold separatelyTennant N/A | 1 | Socket, Plug, I-Trolley (USA)Part of Mop Cart Kit [I-Mop I-Cart L] (1232057). Fits 1 of 2 versionsTeal model (V2025) | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |

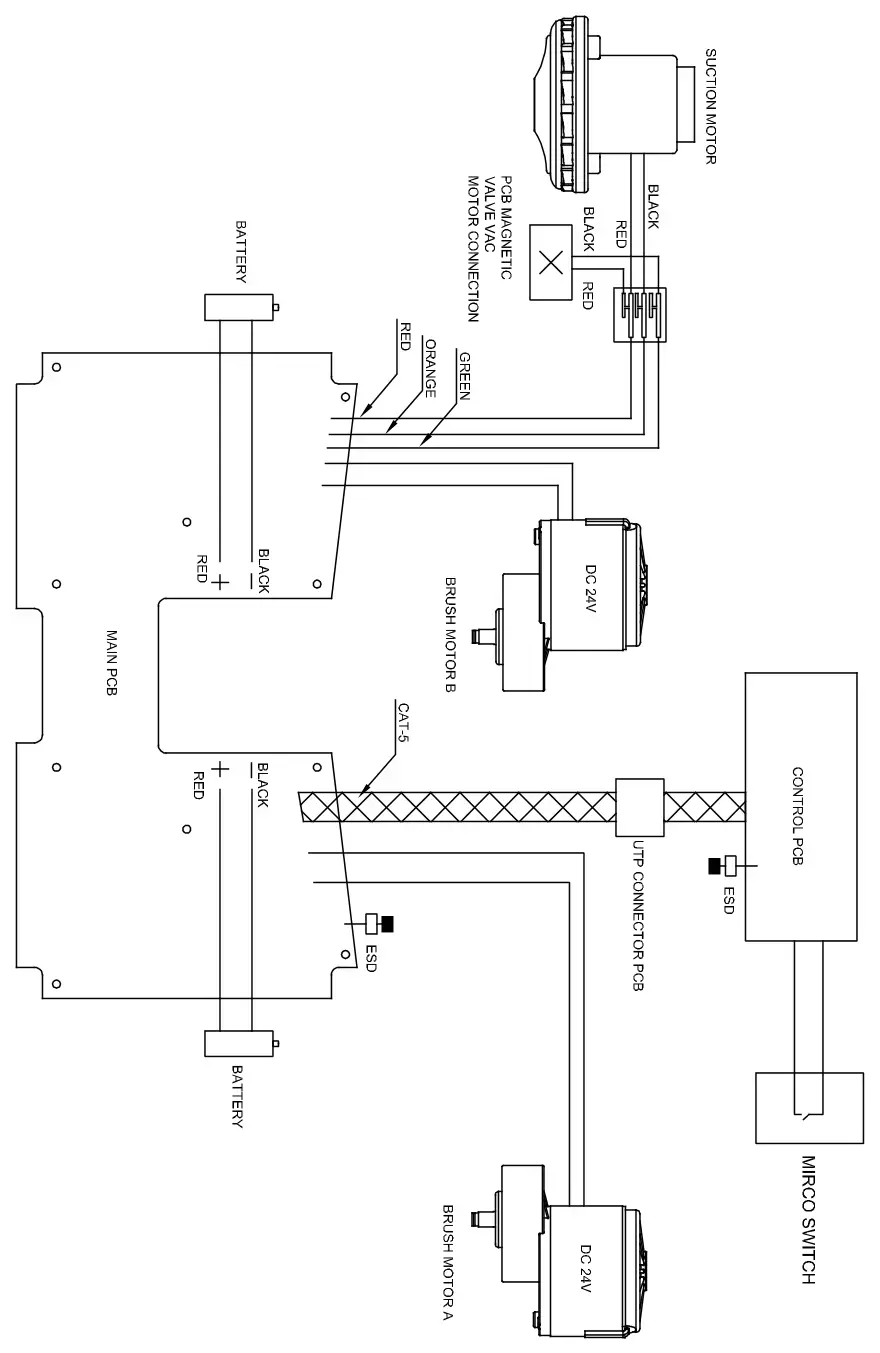

Tennant i-mop XL Plus Electrical diagram
| What it shows | Electrical diagram, as printed in the manual |
|---|---|
| Manual page | 36 |
Tennant i-mop XL Plus Electrical: Electrical Diagram
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Electrical Diagram, as printed in the manual |
|---|---|
| Manual page | 30 |
New to your Tennant i-mop XL Plus? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your i-mop XL Plus. The steps come from the i-mop XL Plus user manual, rewritten in plain steps, with the parts linked to the list above. A few specs come from Tennant's i-mop family brochure, and the serial number coverage from the parts manual. Tennant's use-and-care chart for this model isn't on file, so the care steps come from the user manual only.
1Charge and put the batteries in
- Charge both battery packs fully before the first use, as the battery charger (TN4209960) manual says.
- Push the blue battery into the blue slot until it clicks.
- Push the gray battery into the gray slot until it clicks.
- Watch the battery lights on the control panel while you work. Keep the packs charged every month.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 18, 19 and 22. SES ref PF-PUYW-VFU3
2Put the brushes and squeegee on
- Fold the machine into park position: push the vacuum hose back in, hold the handle and the scrub deck, and lift the deck until it stands upright. Guide the body toward the deck until it snaps into its resting position.
- Line up the left brush (TN4036128) with the left motor disk, push it on and turn it clockwise until the disk turns. Fit the right brush the same way, turning it counterclockwise.
- Push the hose connector into the squeegee and twist it 1/4 turn.
- Line up the squeegee holes with the pins on the scrub deck and push the left side, then the right side, into place.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 15, 19 and 20. SES ref PF-PUYW-VFU3
3Fill the tank and start
- Take the stopper (TN4036150) off, pour in no more than 1.05 gal (4 L) of cleaning solution, and close it tight. Clean your hands afterwards, even if you wore gloves.
- With the machine in park position, set the tank on valve first, press it down to break the seal and push it in until it clicks.
- Hold the scrub deck and lower it slowly to the floor. Never push it down with your foot. The machine only powers on when the deck is down.
- Pick a mode with the main switch, hold the handle with both hands and squeeze the trigger. Steer by turning the handle.
- Please be aware of the integrated magnets that hold the fluid tanks in place. WARNING: Operators and maintenance crew wearing pacemakers should keep a minimal distance of 6 in/15 cm.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 10, 13, 23, 24 and 25. SES ref PF-PUYW-VFU3
4Finish and put it away
- Switch to mode 3, brush and vacuum, and drive about 15 to 20 ft (4.5 to 6 m) further to pick up the last of the water. Then turn the main switch off.
- Empty both tanks into a suitable drain.
- Take the batteries out after each use. It is best to recharge them before you store them.
- Fold the machine into park position and stand it near a wall, handle toward the wall.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 15, 27, 28 and 29. SES ref PF-PUYW-VFU3
Questions about your i-mop XL Plus? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant i-mop XL Plus troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| No power | ||
| No batteries, or the batteries are empty | Put in charged batteries. Charge empty ones. | |
| Batteries not seated right | Take the batteries out and put them back in. | |
| Little or no water | ||
| Wrong mode, or ECO mode is on | Check the mode and the ECO light on the control panel. | |
| Tank empty or not seated | Fill the tank. Seat it so the valve clicks onto the nipple and opens the seal. | |
| Clogged particle filter | Make sure the solution tank is free of dirt and the particle filter is clean. | |
| Blocked water pipe | Call SES service. | |
| Poor water pickup | ||
| Blocked squeegee opening | Take the hose off and clean the squeegee opening. | |
| Torn squeegee blades | Replace the front blade (TN4036141) and rear blade (TN4036142). | |
| Blocked ball float or vacuum hose | Clean the ball float shutoff (TN4031492). Clear the vacuum hose. | |
| Vacuum pump not running | Call SES service. | |
| Leaking | ||
| Tanks not seated, or a torn vacuum hose | Take the tanks off and put them back on. Replace a torn vacuum hose, or call SES service. | |
| Battery won't charge | ||
| The battery is at end of life | Replace the battery kit (TN8005824). | |
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 39. SES ref PF-L4PO-KD2L
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant i-mop XL Plus maintenance schedule
Tennant's maintenance schedule for the i-mop XL Plus.
| Task | How often | Part |
|---|---|---|
| Pick up anything on the floor that the brushes could throw or catch. | Before every use | |
| Check the brushes and squeegee for wear and tear. | Before every use | |
| Drain both tanks and take the batteries out. | After every use | |
| It is best to recharge the batteries before you store them. | After every use | |
| Clean the outside with a non-abrasive, non-solvent cleaner or a clean damp cloth. Take the brushes off before you clean the scrub deck. | Weekly | |
| Make sure the battery packs are charged. When you don't use the machine regularly, store the charged packs in a dry, clean place. | Once a month | |
| Flush the lines: put 1/2 qt (0.5 L) to 1 qt (1 L) of clean water in the solution tank and run mode 4. | As needed | |
| Empty the recovery tank each time you fill the solution tank. Rinse both tanks with fresh water, at least before storage, and leave the caps open so they dry. | As needed | |
| Replace the brushes (TN4036128) when the yellow wear strip is level with the other bristles. | As needed | |
| Flip the squeegee blades the first time they wear. Replace them the second time with new front (TN4036141) and rear blades (TN4036142). Blades with small arrow shapes can't be flipped. | As needed | |
| Clean the particle filter under the solution tank with warm water. | As needed | |
| Take the ball float shutoff (TN4031492) out of the recovery tank and rinse it with tap water. | As needed | |
| Have the machine checked and fully serviced by an authorized service partner. SES is a Tennant service center: call 800-440-6723. | Every 500 hours |
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 9, 13, 15, 19, 22, 28, 29, 30, 31, 32, 34, 35, 37 and 38. SES ref PF-LSLB-3CC6
Tennant i-mop XL Plus specifications
From Tennant's documents for the i-mop XL Plus.
| Cleaning path | 18.1 in (460 mm) |
|---|---|
| Brush speed | 350 rpm |
| Brush pressure | 0.45 psi (31.5 g/cm²) |
| Solution tank | 1.05 gal (4 L) |
| Recovery tank | 1.5 gal (6 L); 1.05 gal (4 L) recommended maximum |
| Batteries | Two lithium-ion packs, 25.2V DC, 9 Ah, 222 Wh (brochure: 24.2V, 8.8 Ah) |
| Run time | 60 minutes (brochure: up to 70 minutes) |
| Productivity | 10,764 to 13,993 sq ft (1,000 to 1,300 sq m) per hour in practice; up to 19,375 sq ft (1,800 sq m) in theory |
| Size | 47.25 × 19 × 18 in (120 × 48 × 46 cm); parked 47.25 × 19 × 14 in (120 × 48 × 36 cm) |
| Weight | 49.6 lb (22.5 kg) with batteries (brochure, with battery and water: 58.9 lb (26.7 kg)) |
| Sound level | 79.6 dB at 3.3 ft (1 m) |
| Angle shutoff | Below 32 degrees |
Sources: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 10 and 11; Tennant i-mop family brochure (2/23), page 4. SES ref PF-33IV-UATJ
Tennant i-mop XL Plus manuals and source documents
The documents this page was built from. View any of them in our manual viewer and tap a part number to look it up and add it to the cart. Sign in with a free account to download.
Online manuals
Read the i-mop XL Plus manuals in your browser, with clickable part numbers. No sign-in needed.
- i-mop XL Plus operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESParts manual, white modelTennant 9020954 Rev. 03 (07-2024), 37 pages | i-mop XL Plus | Rev. 03 (07-2024) | 37 pages | ViewSign in to download |
| PDFby SESParts manual, Teal V2025 modelTennant 9030074 Rev. 00 (05-2025), Global, model 1273254, S/N 360000 and later, 31 pages | i-mop XL Plus | Rev. 00 (05-2025) | 31 pages | ViewSign in to download |
| PDFby SESUser manuali-mop XL Plus user manual, model 1251236, version 1.06 (11-2021) | i-mop XL Plus | ViewSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant i-mop XL Plus parts questions
Why won't my i-mop XL Plus turn on?
It only powers on when the scrub deck is lowered to the floor. In park position it stays fully off to save the batteries. If it still won't start, check that charged batteries are in and seated.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 24 and 39. SES ref PF-REX7-5V6S
Why does the i-mop XL Plus stop picking up water when I lower the handle?
Below a 32 degree handle angle it pauses water pickup so water can't get into the vacuum motor. Raise the handle and the vacuum restarts after 5 seconds.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), pages 26 and 27. SES ref PF-REX7-5V6S
When should I replace the i-mop XL Plus brushes?
When the yellow wear strip is level with the other bristles. The brushes come in pairs.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 31. SES ref PF-REX7-5V6S
Can I flip the i-mop squeegee blades?
Yes, once. Flip them the first time they wear, then fit a new pair the second time. Blades with small arrow shapes can't be flipped.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 32. SES ref PF-REX7-5V6S
How hot can the water be in an i-mop XL Plus?
No hotter than 113°F (45°C). Hotter water voids the tank warranty. Use water-based cleaning solutions only, between pH 2 and 11.
Source: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 9. SES ref PF-REX7-5V6S
How long does an i-mop XL Plus run on one charge?
60 minutes, per the user manual. Tennant's brochure says up to 70 minutes.
Sources: i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 10; Tennant i-mop family brochure (2/23), page 4. SES ref PF-REX7-5V6S
Does this parts list fit my i-mop XL Plus?
It covers model 1251236 and kit 9020942, serial numbers 330000 and later and P300004 to P300771. If you aren't sure which i-mop you have, call us with the serial number from the tag under the scrub deck, between the brushes.
Sources: Tennant i-mop XL plus parts manual 9020954 Rev. 03 (07-2024), page 1; i-mop XL Plus user manual, model 1251236, v1.06 (11-2021), page 11. SES ref PF-REX7-5V6S
Notes on this parts list
Places where Tennant's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Battery voltage and capacity: 25.2V DC, 9 Ah, 222 Wh (user manual); 24.2V, 8.8 Ah (brochure). This page shows 25.2V, 9 Ah, 222 Wh; the brochure value is noted once in the Batteries spec row.
- Run time: 60 minutes (user manual); up to 70 minutes at 100% charge (brochure). This page shows 60 minutes in the hero, spec row and FAQ; the brochure value is noted once in the Run time spec row and in the FAQ.
- Weight: 49.6 lb (22.5 kg) including batteries (user manual); 58.9 lb (26.7 kg) with battery and water (brochure). This page shows 49.6 lb (22.5 kg); the brochure value and its different basis are noted once in the Weight spec row.
- Solution tank fill volume: maximum 1 gal / 4 L when filling (user manual operation section); 4 L | 1.05 gallons (user manual spec table); 1 gal / 4 L (brochure). This page shows 1.05 gal (4 L) everywhere, from the spec table; 4 L is the same quantity in every source.
