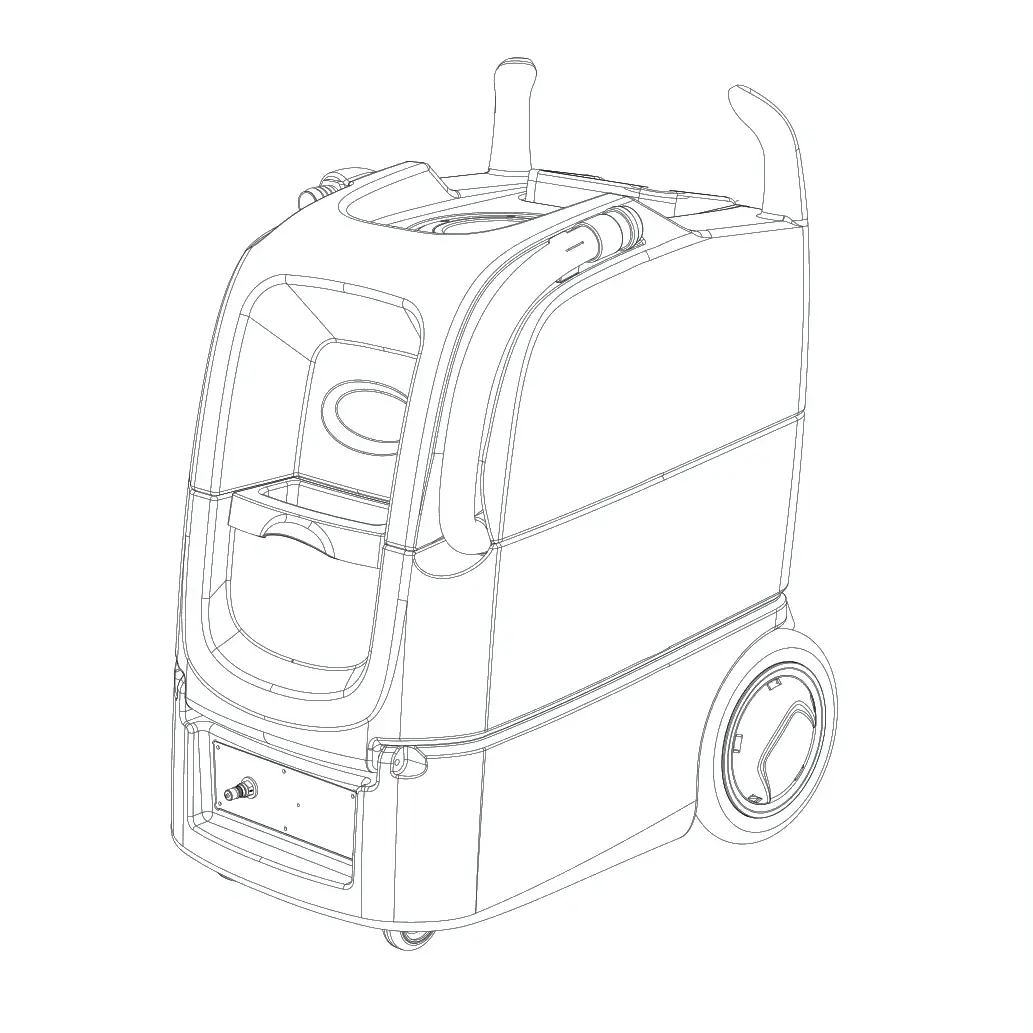

Tennant EH2 parts list and diagrams
Find any part on the Tennant EH2 heated carpet extractor by tapping its area in Tennant's drawings. Every line from the EH2 operator and parts manual is here, including the optional wands and hand tools, crossed to Tennant's current part numbers with our price.
Complete list: every line of the parts list in Tennant EH2 Operator and Parts Manual 9011261 Rev. 05 (01-2017), 124 printed part lines, with the parts numbered on its drawings. Checked .
New to your EH2? Start here → Manuals (free sign-in) →
- Pressure rating
- 200 psi (13.8 bar)
- Solution tank
- 15 gal (56.78 L)
- Recovery tank
- 13.5 gal (51.1 L)
- Heater
- 120V, 14 A, 1,750 W, 140°F (60°C) low and 200°F (93°C) max temperature
- Power
- 120V AC, 60 Hz, 26.5 A nominal, two power cords
- Weight
- 100 lb (46 kg); the 2013 sell sheet lists 102 lb (46 kg)
Maintenance and wear parts for the EH2
Tennant's recommended spare parts for the EH2. Keep these on the shelf.
Hose, drain, recvy tank kit, repair
$158.10/EAFloat, ball kit, replmt
$83.30/EACover, tank, recvy kit, replmt
$145.10/EACaster, assy kit, replmt [qty 2]
$122.90/EACord, ele kit, repair [15a/ qty 2]
$156.10/EAMotor, vac kit [100, 200, 1200psi model]
$531.60/EABrush, motor, vac kit, replmt
$47.47/EAPump, assy kit, replmt [200 psi]
$697.10/EACoupling, mal, replmt [qd]
$57.50/EACoupling, fem, replmt [qd]
$113.80/EACircuitbreaker, qty 2 [15a]
$85.40/EASwitch, ele, kit, [eh2, exp h2]
$128.40/EA
Source: Tennant EH2 Operator and Parts Manual 9011261 Rev. 05 (01-2017), page 43. SES ref PF-34FH-76FK
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant EH2 recommended spare parts
Recommended spare parts from Tennant's parts list. Manual page 43.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 11 | TN4198027Replaces Tennant 9011714 | HOSE, DRAIN, RECVY TANK KIT, REPAIR | $158.10/EA | |
| 13 | TN4198029Replaces Tennant 9011716 | FLOAT, BALL KIT, REPLMT | $83.30/EA | |
| 17 | TN4198033Replaces Tennant 9011720 | COVER, TANK, RECVY KIT, REPLMT | $145.10/EA | |
| 21 | TN4198036Replaces Tennant 9011724 | CASTER, ASSY KIT, REPLMT [QTY 2] | $122.90/EA | |
| 24 | TN4198039Replaces Tennant 9011727 | CORD, ELE KIT, REPAIR [15A/ QTY 2] | $156.10/EA | |
| 25 | TN4198040Replaces Tennant 9011728 | MOTOR, VAC KIT [100, 200, 1200PSI MODEL] | $531.60/EA | |
| 26 | TN4198041Replaces Tennant 9011729 | BRUSH, MOTOR, VAC KIT, REPLMT | $47.47/EA | |
| 30 | TN4198045Replaces Tennant 9011733 | PUMP, ASSY KIT, REPLMT [200 PSI] | $697.10/EA | |
| 49 | TN4028274Replaces Tennant 9011752 | COUPLING, MAL, REPLMT [QD] | $57.50/EA | |
| 50 | TN4028275Replaces Tennant 9011753 | COUPLING, FEM, REPLMT [QD] | $113.80/EA | |
| 56 | TN4028276Replaces Tennant 9011759 | CIRCUITBREAKER, QTY 2 [15A] | $85.40/EA | |
| 57 | TN4198168Replaces Tennant 9011760 | SWITCH, ELE, KIT, [EH2, EXP H2] | $128.40/EA | |
| 60 | TN4198171Replaces Tennant 9011763 | INDICATOR, LIGHT KIT, REPLMT [GREEN] | $48.10/EA | |
| 66 | TN4198177Replaces Tennant 9011769 | CORD, POWER, ELE, REPLMT [15A/ QTY2] | $427.90/EA | |
| 71 | TN4198182Replaces Tennant 9011774 | HOSE, ASSY KIT, REPLMT [VAC/PRESS 15FT] | $599.50/EA | |
| 74 | TN4198189Replaces Tennant 9011791 | STRAINER, SOLUTION TANK | $127.10/EA | |
| – | TN4198214Replaces Tennant 9011897 | FITTING, TIP, SPRAY, #11002 [QTY 2] | $57.50/EA | |
| 80 | TN4028431Replaces Tennant 9011922 | STRAP, HOSE MANAGEMENT | $40.10/EA |
Tennant EH2 recovery tank parts

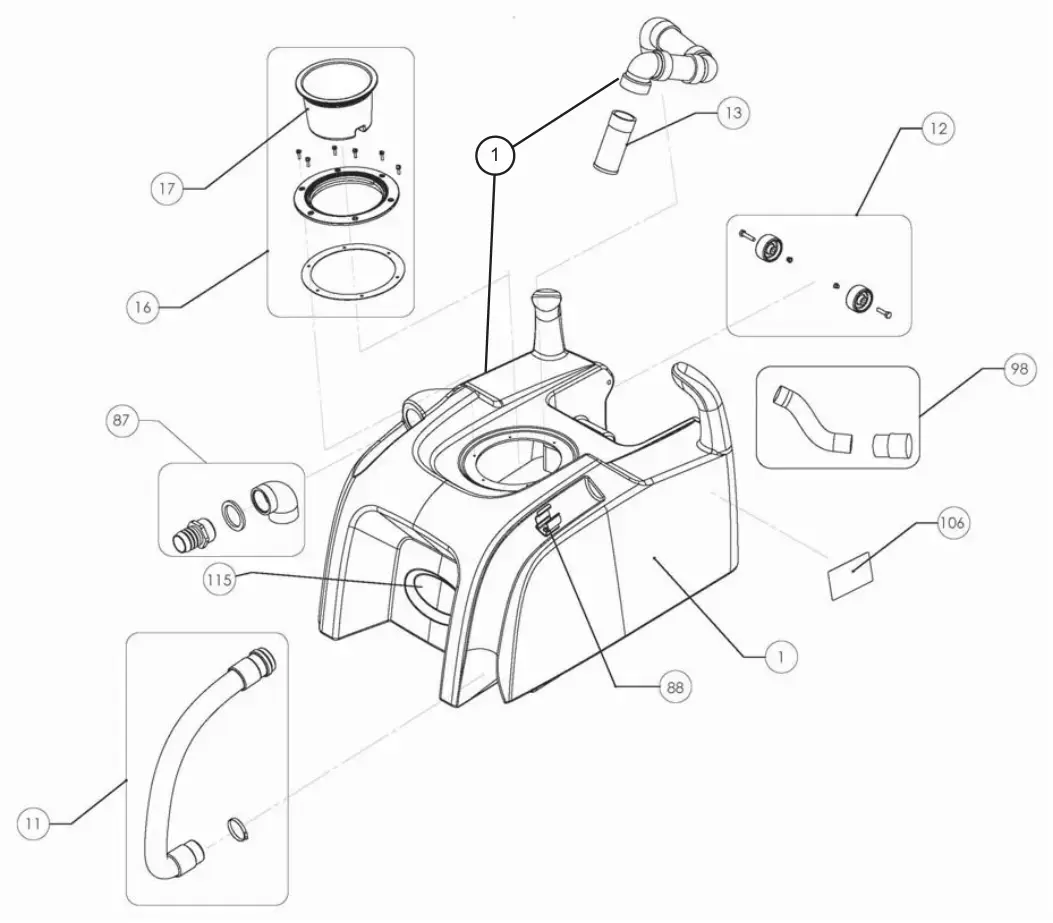

The parts Tennant numbers on its recovery tank drawing. Manual page 32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4198017Replaces Tennant 9011704 | 1 | TANK, RECVY, W/LBLS [EH1, 2, 5, EC2] | $1,247.10/EA |
| 11 | TN4198027Replaces Tennant 9011714 | 1 | HOSE, DRAIN, RECVY TANK KIT, REPAIR | $158.10/EA |
| 12 | TN4198028Replaces Tennant 9011715 | 1 | WHEEL, SUPPT, RECVY TANK KIT, REPLMTQty printed as 1 [SET]. | $62.50/EA |
| 13 | TN4198029Replaces Tennant 9011716 | 1 | FLOAT, BALL KIT, REPLMT | $83.30/EA |
| 16 | TN4198032Replaces Tennant 9011719 | 1 | COVER, TANK, RECVY KIT, REPAIR | $248.20/EA |
| 17 | TN4198033Replaces Tennant 9011720 | 1 | COVER, TANK, RECVY KIT, REPLMT | $145.10/EA |
| 87 | TN4196448Replaces Tennant 9012617 | 1 | FITTING, HOSE, BRB, KIT [W/GASKET] | $68.50/EA |
| 88 | TN4196449Replaces Tennant 9012618 | 1 | RETAINER, CLIP, RECVY TANK [W/HDWR] | $53.20/EA |
| 98 | TN4196481Replaces Tennant 9012621 | 1 | HOSE, VACUUM | $127.80/EA |
| 106 | TN4180592Replaces Tennant 1072959 | 1 | LABEL, MODEL [EH2]Qty printed as 1 [SET]. | $64.03/EA |
| 115 | TN4039536Replaces Tennant 1205477 | 1 | NAMEPLATE, TENNANT DOME, 5.5 IN | $37.00/EA |

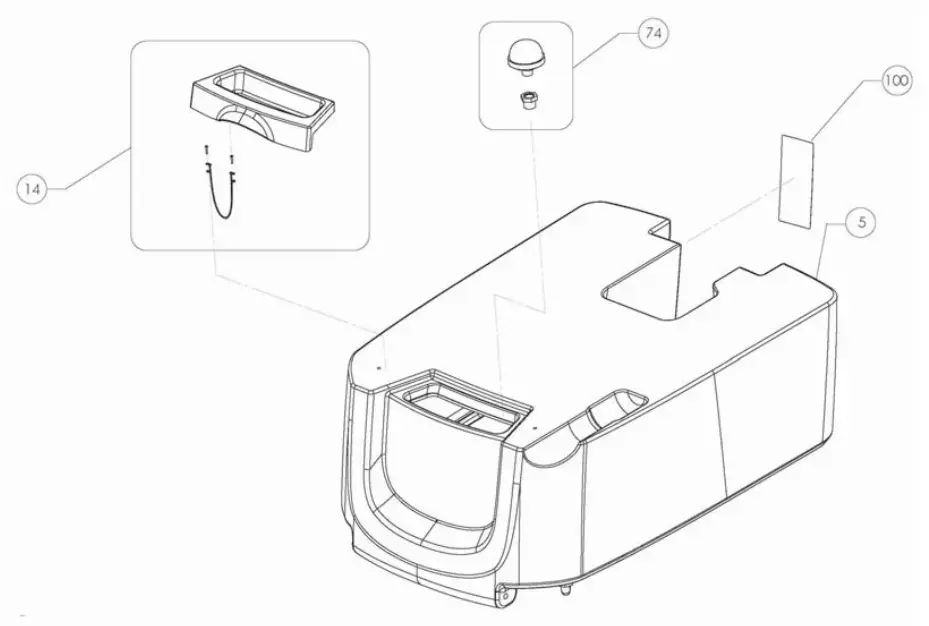

Tennant EH2 solution tank parts
The parts Tennant numbers on its solution tank drawing. Manual page 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 5 | TN4198021Replaces Tennant 9011708 | 1 | TANK, SOLTN, W/LBLS [EH1, EH2, EC2] | $561.06/EA |
| 14 | TN4198030Replaces Tennant 9011717 | 1 | COVER, FILL KIT, REPLMT | $109.90/EA |
| 74 | TN4198189Replaces Tennant 9011791 | 1 | STRAINER, SOLUTION TANK | $127.10/EA |
| 100 | TN4180590Replaces Tennant 1072957 | 1 | LABEL, WARNING [AC, EXTR] | $22.02/EA |
Tennant EH2 switch housing parts

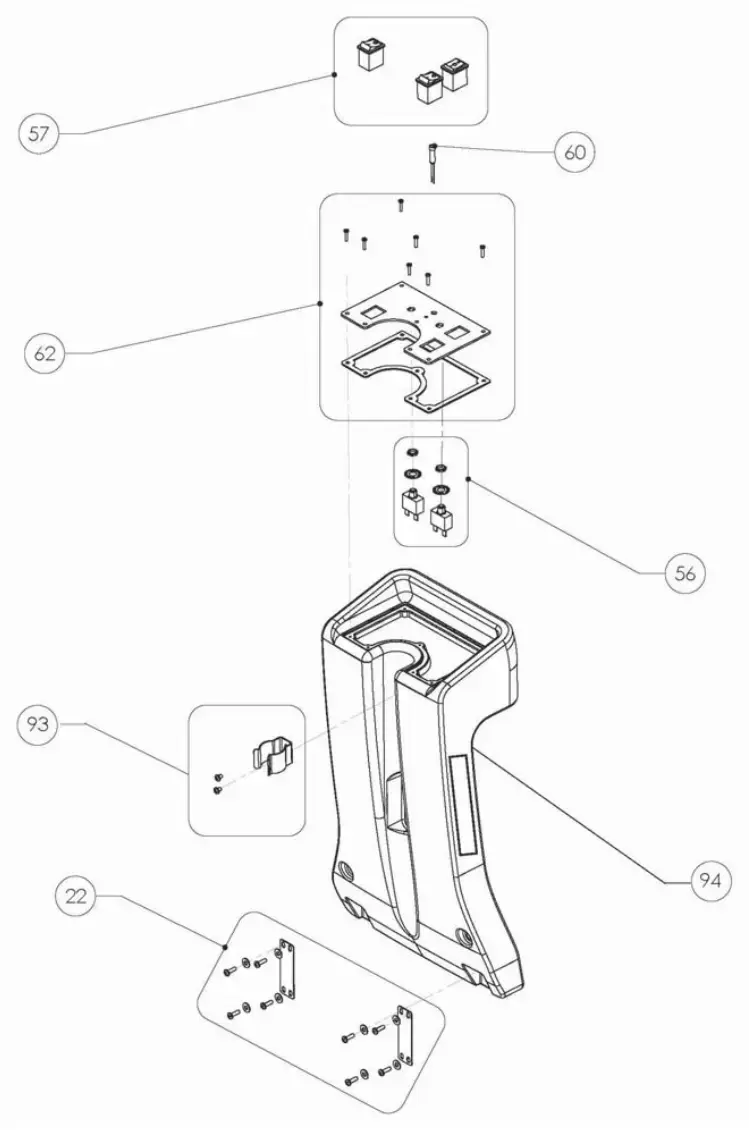

The parts Tennant numbers on its switch housing drawing. Manual page 34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 22 | TN4198037Replaces Tennant 9011725 | 1 | PLATE, SERVICE KIT, REPLMTQty printed as 1 [SET]. | $70.20/EA |
| 56 | TN4028276Replaces Tennant 9011759 | 1 | CIRCUITBREAKER, QTY 2 [15A] | $85.40/EA |
| 57 | TN4198168Replaces Tennant 9011760 | 1 | SWITCH, ELE, KIT [EH2, EXP H2] | $128.40/EA |
| 60 | TN4198171Replaces Tennant 9011763 | 1 | INDICATOR, LIGHT KIT, REPLMT [GREEN] | $48.10/EA |
| 62 | TN4198173Replaces Tennant 9011765 | 1 | PLATE, SWITCH KIT [EH2, EXP H2] | $190.39/EA |
| 93 | TN4196480Replaces Tennant 9012619 | 1 | RETAINER,CLIP, CNTRL HOUSING [W/HDWR] | $48.58/EA |
| 94 | TN4196485Replaces Tennant 9012625 | 1 | HOUSING, CNTRL | $459.85/EA |
Tennant EH2 base parts

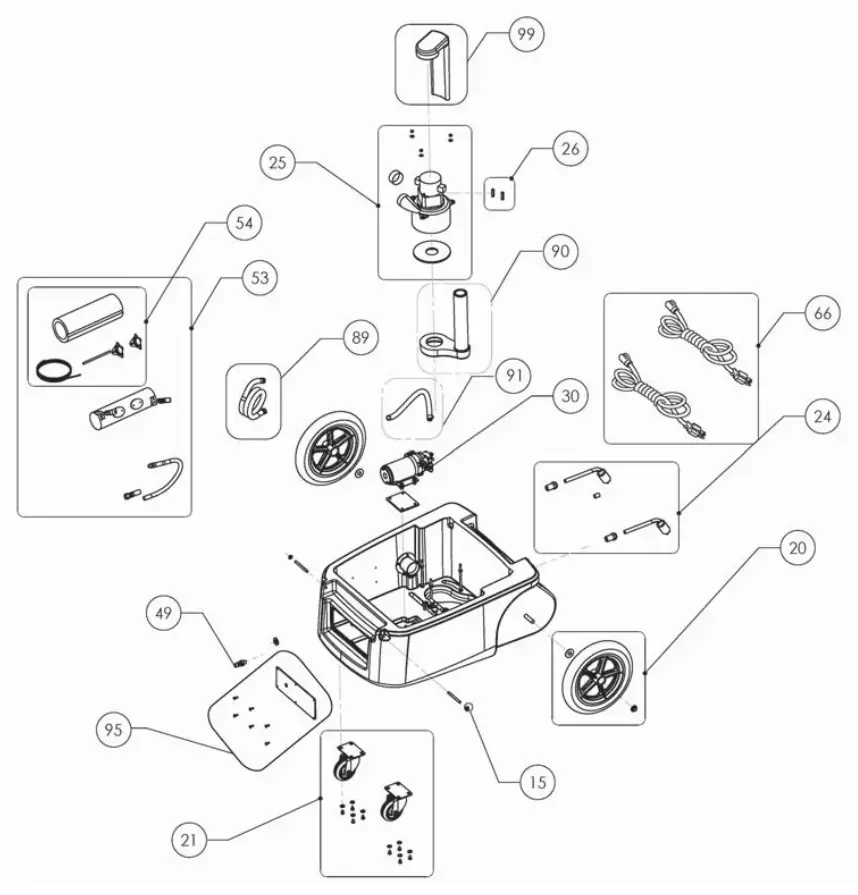

The parts Tennant numbers on its base drawing. Manual page 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 15 | TN4198031Replaces Tennant 9011718 | 1 | HINGE, COVER, TANK KIT, REPAIR [QTY 2]Qty printed as 1 [SET]. | $56.40/EA |
| 20 | TN4198035Replaces Tennant 9011723 | 1 | WHEEL, ASSY KIT, REPLMT [QTY 2]Qty printed as 1 [SET]. | $364.00/EA |
| 21 | TN4198036Replaces Tennant 9011724 | 1 | CASTER, ASSY KIT, REPLMT [QTY 2]Qty printed as 1 [SET]. | $122.90/EA |
| 24 | TN4198039Replaces Tennant 9011727 | 2 | CORD, ELE KIT, REPAIR [15A / QTY 2] | $156.10/EA |
| 25 | TN4198040Replaces Tennant 9011728 | 1 | MOTOR, VAC KIT, [100, 200, 1200 PSI MODEL] | $531.60/EA |
| 26 | TN4198041Replaces Tennant 9011729 | 1 | BRUSH, MOTOR, VAC KIT, REPLMTQty printed as 1 [SET]. | $47.47/EA |
| 30 | TN4198045Replaces Tennant 9011733 | 1 | PUMP, ASSY KIT, REPLMT [200 PSI] | $697.10/EA |
| 49 | TN4028274Replaces Tennant 9011752 | 1 | COUPLING, MAL, REPLMT [QD] | $57.50/EA |
| 53 | TN4198166Replaces Tennant 9011756 | 1 | HEATER, ASSY KIT, REPLMT [1750W] | $1,161.60/EA |
| 54 | TN4198166Replaces Tennant 9011757 | 1 | HEATER, ASSY KIT, REPAIR [1750W] | $1,161.60/EA |
| 66 | TN4198177Replaces Tennant 9011769 | 1 | CORD, POWER, ELE, REPLMT [15A / QTY 2]Qty printed as 1 [SET]. | $427.90/EA |
| 89 | TN4196483Replaces Tennant 9012623 | 1 | HOSE, SOLTN, PUMP, OUTLET [H1, H2, C2] | $110.50/EA |
| 90 | TN4196486Replaces Tennant 9012626 | 1 | ADAPTER, HOSE, VACUUM | $128.40/EA |
| 91 | TN4196482Replaces Tennant 9012622 | 1 | HOSE, SOLTN, PUMP, INLET [H2, H2, C2] | $144.90/EA |
| 95 | TN4196489Replaces Tennant 9012629 | 1 | PLATE, OUTLET, KIT [H1, H2, C2] | $386.63/EA |
| 99 | TN4196506Replaces Tennant 9012636 | 1 | ADAPTER, VACUUM, INTAKE | $145.24/EA |
| – | TN4197583Replaces Tennant 9014320 | WIRE HARNESS KIT [EH2] (not shown) | $922.53/EA |
Tennant EH2 vacuum and pressure hose, 15 ft (4.6 m) parts

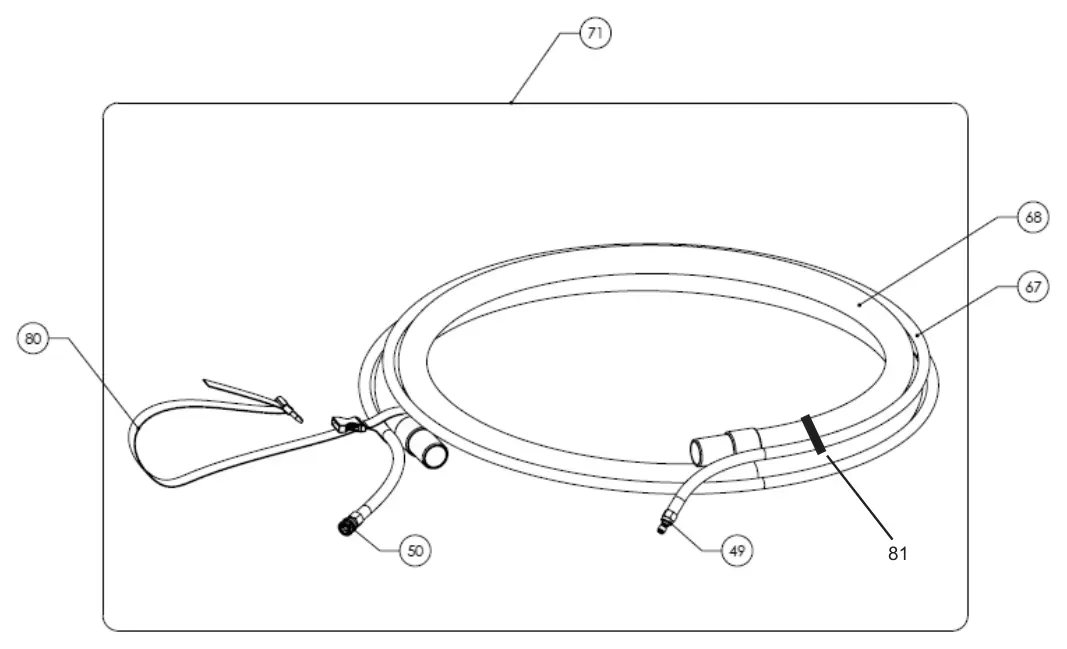

The parts Tennant numbers on its vacuum and pressure hose, 15 ft (4.6 m) drawing. Manual page 36.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 49 | TN4028274Replaces Tennant 9011752 | 1 | COUPLING, MAL, REPLMT [QD] | $57.50/EA |
| 50 | TN4028275Replaces Tennant 9011753 | 1 | COUPLING, FEM, REPLMT [QD] | $113.80/EA |
| 67 | TN4198178Replaces Tennant 9011770 | 1 | HOSE, PRESS KIT, REPAIR [15FT] | $462.80/EA |
| 68 | TN4198179Replaces Tennant 9011771 | 1 | HOSE, VACUUM KIT REPAIR [15FT] | $143.00/EA |
| 71 | TN4198182Replaces Tennant 9011774 | 1 | HOSE, ASSY KIT, REPLMT [VAC/PRESS 15FT] | $599.50/EA |
| 80 | TN4028431Replaces Tennant 9011922 | 1 | STRAP, HOSE MGMT | $40.10/EA |
| 81 | TN4025924Replaces Tennant 9013729 | 1 | STRAP, HOSE MGMT, VELCRO | $31.60/EA |

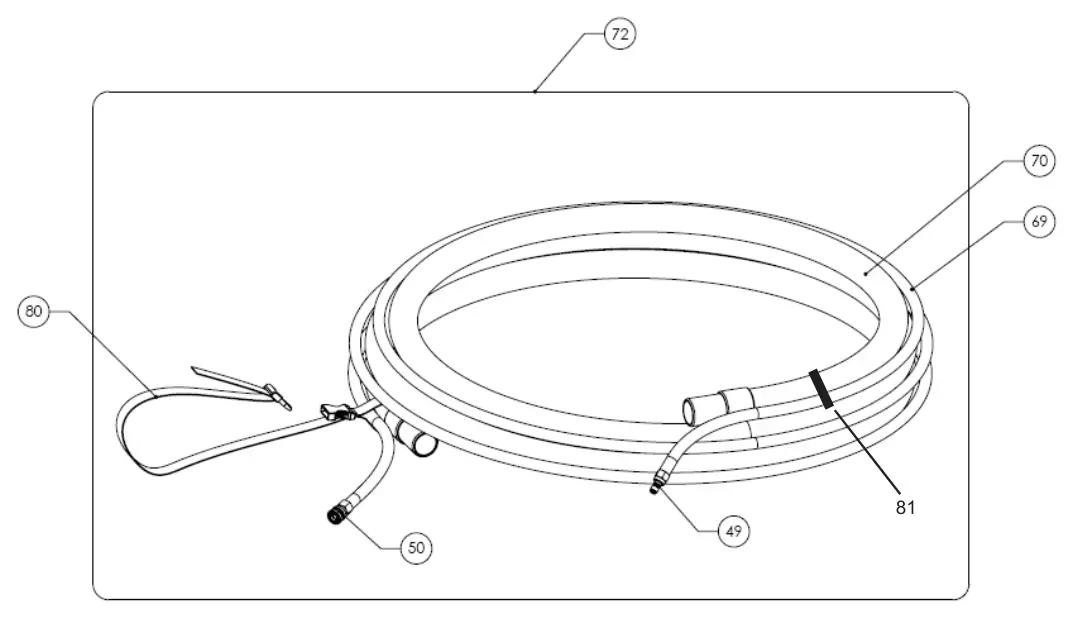

Tennant EH2 vacuum and pressure hose, 25 ft (7.6 m) (optional) parts
The parts Tennant numbers on its vacuum and pressure hose, 25 ft (7.6 m) (optional) drawing. Manual page 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 49 | TN4028274Replaces Tennant 9011752 | 1 | COUPLING, MAL, REPLMT [QD] | $57.50/EA |
| 50 | TN4028275Replaces Tennant 9011753 | 1 | COUPLING, FEM, REPLMT [QD] | $113.80/EA |
| 69 | TN4198180Replaces Tennant 9011772 | 1 | HOSE, PRESS KIT, REPAIR [25FT] | $660.90/EA |
| 70 | TN4198181Replaces Tennant 9011773 | 1 | HOSE, VACUUM KIT, REPAIR [25FT] | $236.00/EA |
| 72 | TN4198183Replaces Tennant 9011775 | 1 | HOSE, ASSY KIT, REPLMT [VAC/PRESS 25FT] | $894.90/EA |
| 80 | TN4028431Replaces Tennant 9011922 | 1 | STRAP, HOSE MANAGEMENT | $40.10/EA |
| 81 | TN4025924Replaces Tennant 9013729 | 1 | STRAP, HOSE MGMT, VELCRO | $31.60/EA |
Tennant EH2 stainless steel floor tool parts

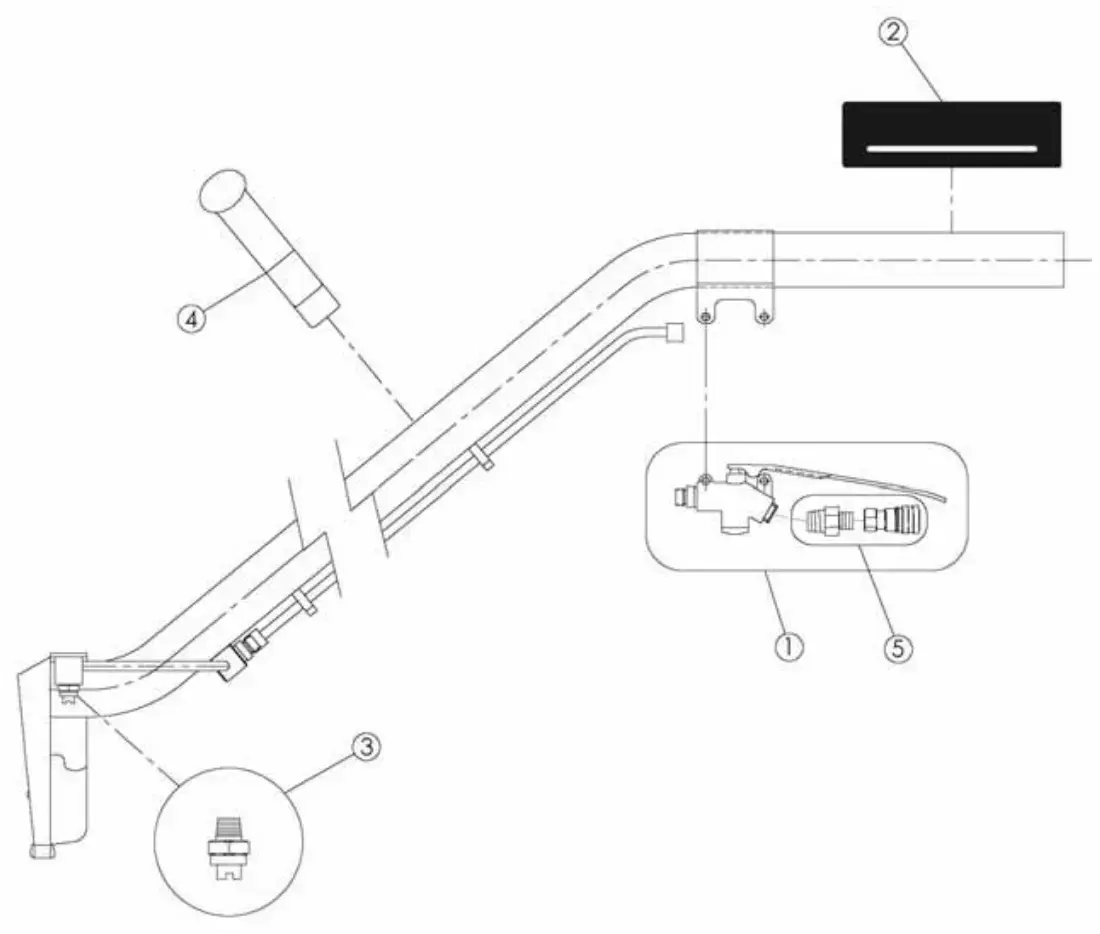

The parts Tennant numbers on its stainless steel floor tool drawing. Manual page 38.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4198212Replaces Tennant 9011895 | 1 | Valve, Water, Spray [W/Hardware SS} | $183.10/EA |
| 2 | TN4198213Replaces Tennant 9011896 | 1 | Grip Handle, Sleeve [SS] | $10.25/EA |
| 3 | TN4198214Replaces Tennant 9011897 | 1 | Fitting, Tip, Spray SS#11002 [QTY 2]Qty printed as 1 [SET]. | $57.50/EA |
| 4 | TN4198215Replaces Tennant 9011898 | 1 | Handle Assy, Grip [SS] | $28.31/EA |
| 5 | TN4199010Replaces Tennant 9012461 | 1 | Coupling, Fem, [QD W/Adapter] | $159.60/EA |

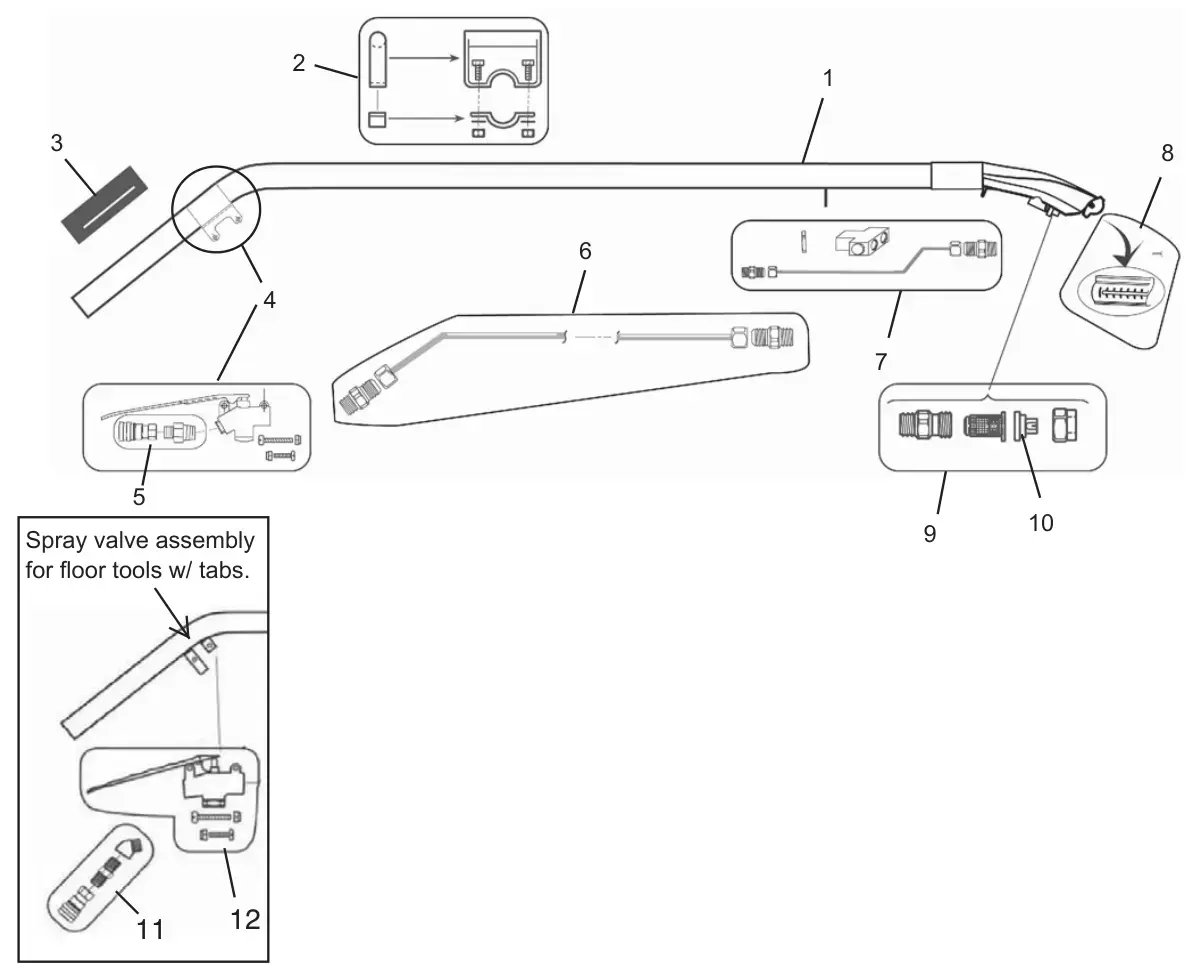

Tennant EH2 high-flow titanium floor tool, 13 in (33 cm) (optional) parts
The parts Tennant numbers on its high-flow titanium floor tool, 13 in (33 cm) (optional) drawing. Manual page 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030545Replaces Tennant 1071320 | 1 | TOOL, FLOOR, 13.0 [COMPLETE ASSEMBLY] | $1,686.60/EA |
| 2 | TN4030546Replaces Tennant 1071321 | 1 | HANDLE ASSY, GRIP | $157.80/EA |
| 3 | TN4030547Replaces Tennant 1071322 | 1 | GRIP HANDLE, SLEEVE | $22.83/EA |
| 4 | TN4198212Replaces Tennant 9011895 | VALVE, WATER, SPRAY, [W/HARDWARE] | $183.10/EA | |
| 5 | TN4199010Replaces Tennant 9012461 | 1 | COUPLING, FEM [QD w/ADAPTER] | $159.60/EA |
| 6 | TN4030550Replaces Tennant 1071325 | 1 | TUBE, UPPER, SS | $167.16/EA |
| 7 | TN4030551Replaces Tennant 1071326 | 1 | TUBE, LOWER, SS | $422.31/EA |
| 8 | TN4030552Replaces Tennant 1071327 | 1 | PLATE, GLIDE, [W/HARDWARE] | $188.40/EA |
| 9 | TN4030553Replaces Tennant 1071328 | 1 | FITTING, TIP, SPRAY ASM #11002 [QTY 2] 100-250 PSIQty printed as 1 [SET]. | $158.07/EA |
| 10 | TN4028428Replaces Tennant 9011918 | 1 | FITTING, TIP, SPRAY, #11002 [QTY 2] 100-250 PSIQty printed as 1 [SET]. | $72.50/EA |
| 11 | TN4030549Replaces Tennant 1071324 | 1 | FITTING, BRS, QDC ASM | $209.50/EA |
| 12 | TN4030548Replaces Tennant 1071323 | 1 | VALVE, WATER, SPRAY [W/HARDWARE] | Call to confirm part: 800-440-6723Call 800-440-6723 |

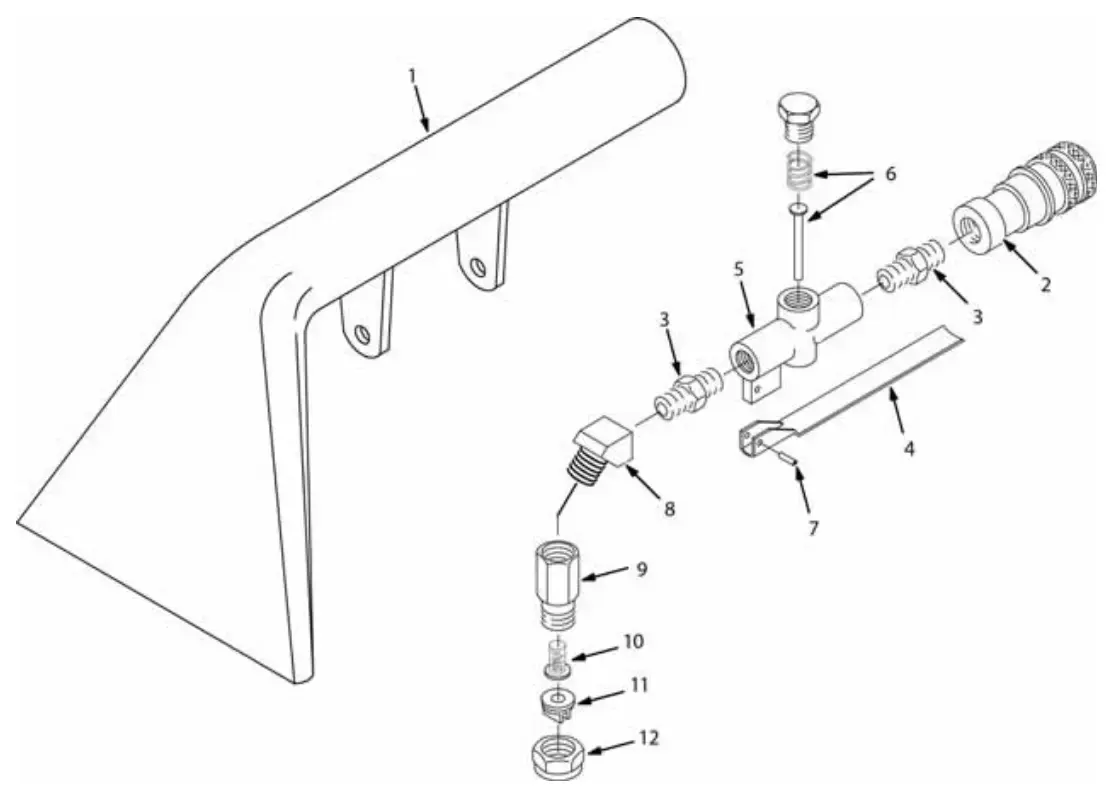

Tennant EH2 hand tool, 5 in (127 mm) (optional) parts
The parts Tennant numbers on its hand tool, 5 in (127 mm) (optional) drawing. Manual page 40.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042632Replaces Tennant 200505 | 1 | TOOL, HAND, 127MM 5.0W | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4042606Replaces Tennant 200431.BK | 1 | TOOL, HAND, BLK | $164.13/EA |
| 2 | TN4041158Replaces Tennant 150913 | 1 | FITTING, BRS, QDC, PF04 [SER 60] | $49.10/EA |
| 3 | TN4041132Replaces Tennant 150606 | 2 | FITTING, BRS, STR, PM04/PM04 X 1.38L [NIP] | $5.10/EA |
| 4 | TN4042761Replaces Tennant 200905 | 1 | LEVER [K-VALVE W/PIN] | $31.10/EA |
| 5 | TN4039161Replaces Tennant 210210 | 1 | VALVE, WATER, FLOW CNTRL, PF04/PF04 | $100.60/EA |
| 6 | TN4042239Replaces Tennant 190600 | 1 | K—VALVE KIT, REPAIR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4044104Replaces Tennant 140609 | 1 | PIN, ROL, .187D X 0.56L, PL | $2.50/EA |
| 8 | TN4044398Replaces Tennant 150403 | 1 | FITTING, BRS, E45, PF04/PM04 [TAPED] | $7.90/EA |
| 9 | TN4039045Replaces Tennant 200992 | 1 | FITTING, BRS, STR, PF02, SWIVEL | $16.70/EA |
| 10 | TN4039048Replaces Tennant 200996 | 1 | FILTER, SCREEN, 100 MESH, CHECK VALVE | $21.90/EA |
| 11 | TN4039029Replaces Tennant 200965 | 1 | FITTING, BRS, TIP [8002, T—JET] | $21.10/EA |
| 12 | TN4039047Replaces Tennant 200994 | 1 | CAP, NOZZLE, SPRAY [#8002} | $6.00/EA |
Tennant EH2 crevice tool, 3 in (76 mm) (optional) parts

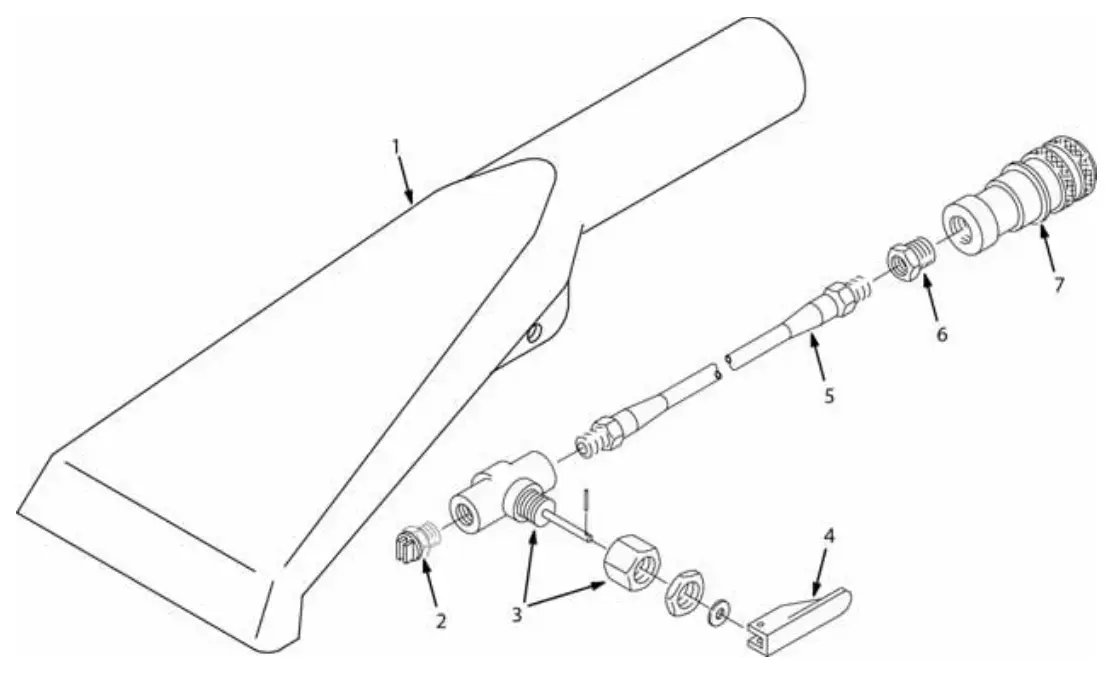

The parts Tennant numbers on its crevice tool, 3 in (76 mm) (optional) drawing. Manual page 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042633Replaces Tennant 200517 | 1 | TOOL [CREVICE LP/HP SERIES 60] | $634.20/EA |
| 1 | TN4042607Replaces Tennant 200436.BK | 1 | TOOL, BLK [CREVICE] | $209.17/EA |
| 2 | TN4201772Replaces Tennant 200975 | 1 | FITTING, BRS, JET [.125 V—JET] | $15.30/EA |
| 3 | TN4039138Replaces Tennant 210014 | 2 | VALVE, WATER, TOGGLE, PF02, W/ NUT | $245.10/EA |
| 4 | TN4201840Replaces Tennant 210020 | 1 | HANDLE, VALVE [POSITIONER] | $11.41/EA |
| 5 | TN4203005Replaces Tennant 160106 | 1 | HOSE, SOLTN, CREVICE TOOL | $24.91/EA |
| 6 | TN4044383Replaces Tennant 150100 | 1 | FITTING, BRS, STR, PF02/PM04 | $4.10/EA |
| 7 | TN4041158Replaces Tennant 150913 | 1 | FITTING, BRS, QDC, PF04 [SER60] | $49.10/EA |
Tennant EH2 upholstery tool, high pressure (optional) parts

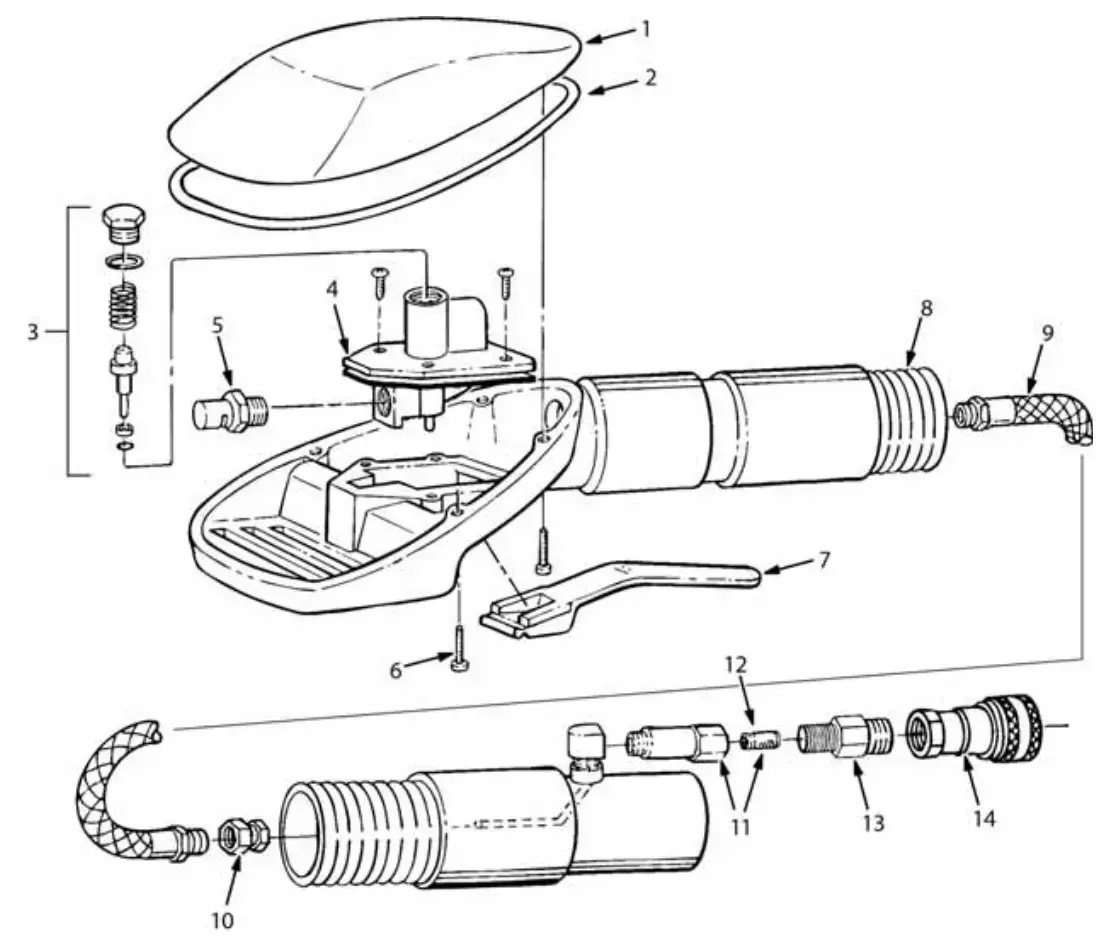

The parts Tennant numbers on its upholstery tool, high pressure (optional) drawing. Manual page 42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042635Replaces Tennant 200545 | 1 | TOOL [UPHOLSTERY HP SERIES 60] | $1,308.10/EA |
| 1 | TN4042753Replaces Tennant 200845 | 1 | COVER, TOOL, UPHOLSTERY | $63.74/EA |
| 2 | TN4042751Replaces Tennant 200843 | 1 | GASKET, COVER | $22.83/EA |
| 3 | TN4042241Replaces Tennant 190631 | 1 | SERVICE KIT [UPHOLSTERY, TOOL] | $106.35/EA |
| 4 | TN4039165Replaces Tennant 210226 | 1 | VALVE, WATER, SOLENOID | $297.40/EA |
| 5 | TN4039069Replaces Tennant 201016 | 1 | FITTING, BRS, JET, [.125 K-JET] | $15.55/EA |
| 6 | TN8006093Replaces Tennant 200838 | 4 | SCREW, PAN, PHL, 06—32 X 0.75 | $2.85/EA |
| 7 | TN4042748Replaces Tennant 200840 | 1 | TRIGGER, UPHOLSTERY TOOL | $44.21/EA |
| 8 | TN4042752Replaces Tennant 200844 | 1 | HOSE, VACUUM [UPHOLSTERY TOOL W/O CUFFS] | $104.64/EA |
| 9 | TN4042747Replaces Tennant 200837 | 1 | HOSE [UPHOLSTERY TOOL] | $250.99/EA |
| 10 | TN4042754Replaces Tennant 200848 | 1 | FITTING, BRS [3PCS] | $21.01/EA |
| 11 | TN4042750Replaces Tennant 200842 | 1 | FILTER, IN—LINE, COMPLT | $129.40/EA |
| 12 | TN4042749Replaces Tennant 200841 | 1 | SCREEN, FLTR, IN—LINE | $56.06/EA |
| 13 | TN4041132Replaces Tennant 150606 | 1 | FITTING, BRS, STR, PM04/PM04 X 1.38L [NIP] | $5.10/EA |
| 14 | TN4041158Replaces Tennant 150913 | 1 | FITTING, BRS, QDC, PF04 [SER60] | $49.10/EA |
Tennant EH2 electrical diagram

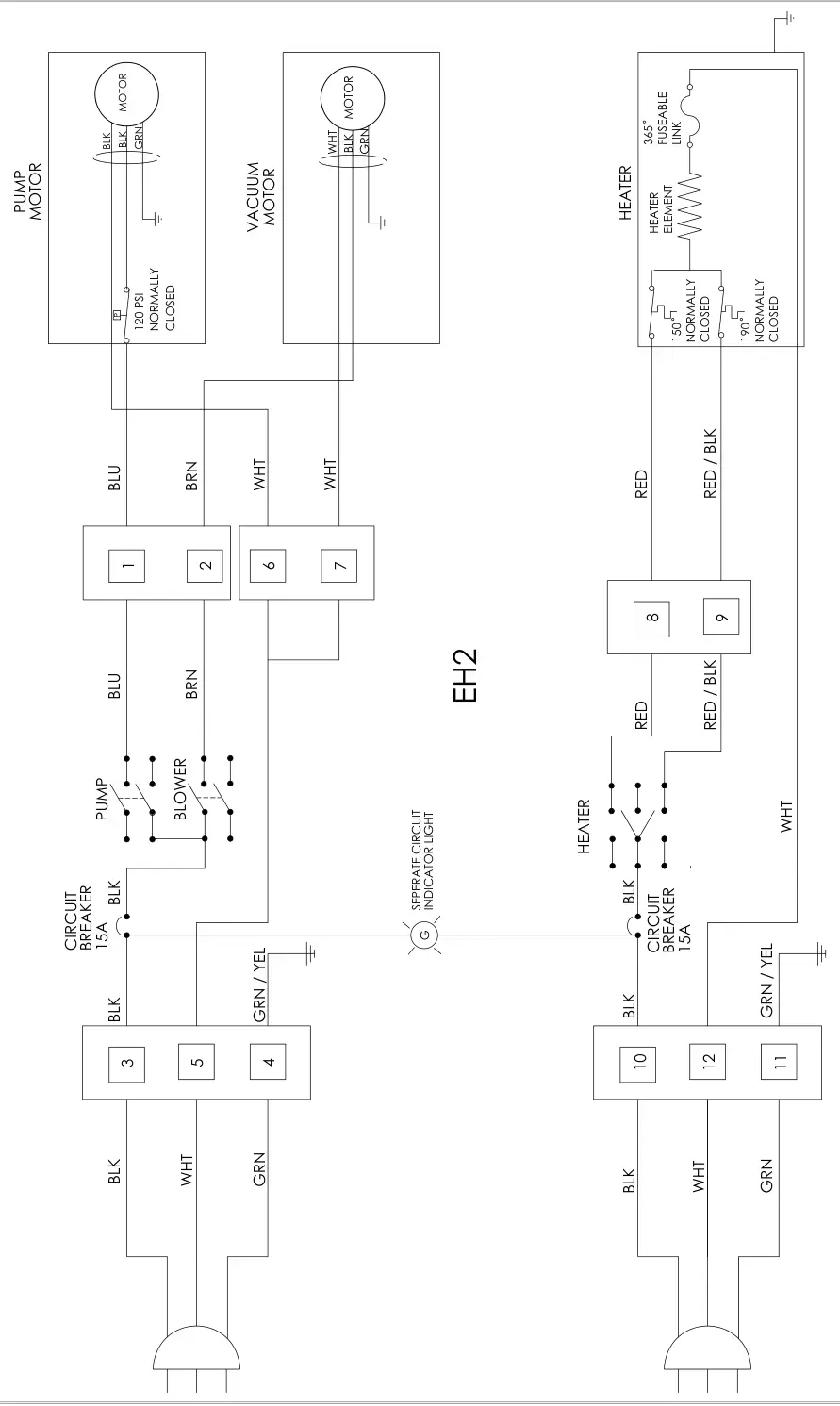

| What it shows | Electrical diagram, as printed in the manual |
|---|---|
| Manual page | 44 |
Tennant EH2 accessory tools application guide

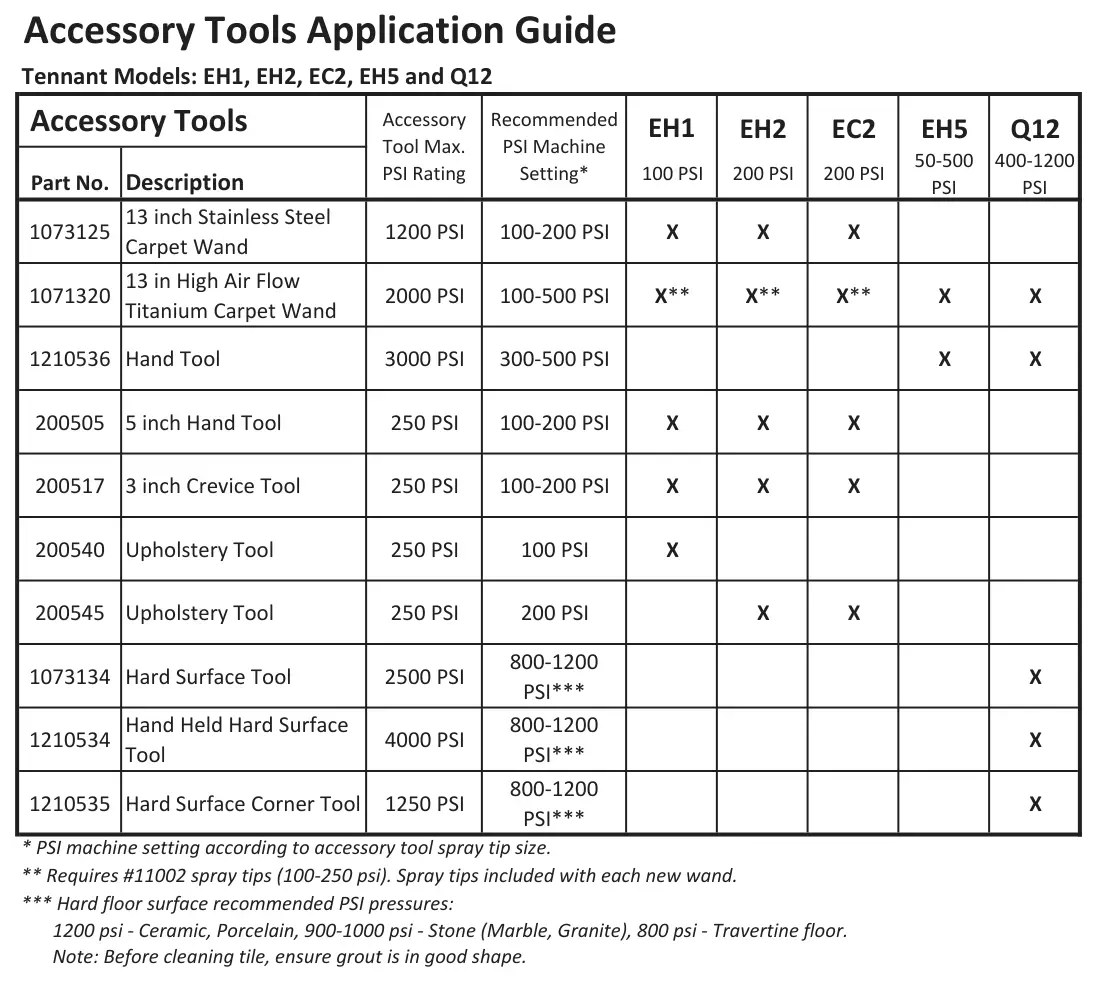

| What it shows | Accessory tools application guide, as printed in the manual |
|---|---|
| Manual page | 45 |
New to your Tennant EH2? Start here
Set up, run and look after your EH2. Everything here comes from Tennant's EH2 operator and parts manual, rewritten in plain steps, with the parts you need linked to the list above. The sell sheet is used only for the spec notes.
1Fill it and plug it in
- Before each use, check that the machine, hoses and wand are clean and complete. Make sure the spray tips (TN4198214) are tight and the ball float screen in the recovery tank is clean.
- Close and tighten the recovery tank cover (TN4198033). Screw the cap onto the drain hose (TN4198027).
- Fill the solution tank with 15 gal (57 L) of clean water from a garden hose or bucket. Never use water hotter than 120°F (49°C).
- Turn off all switches. Plug the two power cords into properly grounded outlets. Do not connect both cords to the same circuit.
- The dual circuit indicator (TN4198171) lights bright green when the cords are plugged into different circuits.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 6. SES ref PF-AZQY-V5QP
2Connect the wand and prime the pump
- With all switches off, connect the solution hose (TN4198178) and the vacuum hose (TN4198179) to the machine and the wand.
- Never connect the solution hose while the pump or heater switch is on.
- Put the wand in a bucket or tub. Turn the pump on at the control panel.
- Press the wand lever and spray until no air comes out with the water, about 2 to 3 minutes. Then turn the pump off.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), pages 6 and 7. SES ref PF-AZQY-V5QP
3Clean the carpet
- Pre-spray the carpet with an approved detergent from a pump-up sprayer.
- Set the heater switch to high heat (II) or low heat (I) and wait two minutes for the heater to reach operating temperature.
- Turn on the pump and vacuum switches. Work an area about 4 × 4 ft (1.2 × 1.2 m) in V strokes and spray on the back stroke.
- Let go of the trigger about 4 in (10 cm) before the end of each stroke. Go over the area with a vacuum-only stroke before you move on.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 7. SES ref PF-AZQY-V5QP
4Finish and drain
- Turn off all switches. Hold the wand lever to release the water pressure before you disconnect the solution hose.
- CAUTION: When disconnecting the solution hose coupler, wear protective gloves to avoid a burn hazard.
- To drain the recovery tank, hold the capped end of the drain hose above the machine and take the cap off.
- Lower the drain hose over a drain or a bucket and let the tank empty.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 8. SES ref PF-AZQY-V5QP
Tennant EH2 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Low pump pressure | ||
| Plugged or dirty solution tank inlet filter | Clean the solution tank inlet filter. | |
| Faulty pump | Call SES service. Parts: pump (TN4198045). | |
| No spray | ||
| Solution tank is empty | Fill the solution tank. | |
| Spray tip is plugged | Clean or replace the spray tip (TN4198214). | |
| Damaged solution hose | Replace the solution hose (TN4198178). | |
| Pump not running | ||
| Circuit breaker tripped | Reset the circuit breaker (TN4028276) on the control panel. | |
| Low suction | ||
| Recovery tank cover or drain hose cap is loose | Close the recovery tank cover and secure the drain hose cap. | |
| Dirty ball float screen | Clean the ball float screen. | |
| No suction | ||
| Recovery tank is full | Empty the recovery tank. | |
| Faulty vacuum motor | Call SES service. Parts: vacuum motor (TN4198040). | |
| Low heat | ||
| Spraying too long | Shorten spray times by shortening your cleaning strokes. | |
| No heat | ||
| Faulty heater | Call SES service. Parts: heater (TN4198166). | |
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 11. SES ref PF-B77M-PRIR
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant EH2 maintenance schedule
Tennant's maintenance schedule for the EH2.
| Task | How often | Part |
|---|---|---|
| If you used chemicals, flush the system by running clean water through it. | After every use | |
| Drain and rinse the recovery tank. | After every use | |
| Take out the ball float screen and unscrew the solution tank inlet filter. Remove any debris from both and put them back securely. | After every use | |
| Wipe the machine with a damp cloth. Don't hose it off or power spray it. Check both hoses for cracks or damage, and don't use a damaged hose. | After every use | |
| Check the power cords (TN4198177) and the cord ends on the machine for damage. Replace a damaged power cord. If a cord end on the machine is damaged, call SES service. | After every use | |
| Coil the cords neatly after each use and store them on the machine. | After every use | |
| Flush the solution lines, pump and heater with a descaling solution such as white vinegar. | After 80 hours of use | |
| Take the spray tips (TN4198214) off the wand and soak them in descaling solution. | After 80 hours of use | |
| Pour the solution into the solution tank and spray it through the wand with the pump on. Don't reuse it: it carries mineral deposits. | After 80 hours of use | |
| Flush with clean water, then put the spray tips back. | After 80 hours of use | |
| FOR SAFETY: When servicing the machine, unplug the cords from the wall outlets. Wear appropriate personal protection equipment as needed. | As needed | |
| Before storage, vacuum all water out of the solution tank into the recovery tank. Then drain and rinse the recovery tank. | As needed | |
| Run the pump dry: connect the solution hose, turn on the pump and hold the wand lever. Then turn the pump off. | As needed | |
| Store the extractor indoors in a dry area, with the tank covers off so air can circulate. | As needed | |
| If you store the machine in freezing temperatures, make sure the solution system and pump are completely drained and dry. | As needed | |
| Tennant asks for a qualified service technician to do all repairs. SES is a Tennant service center: call 800-440-6723. | As needed |
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), pages 8 and 9. SES ref PF-SV6A-YSM4
Tennant EH2 specifications
From Tennant's documents for the EH2.
| Model number | 1072860 (120V) |
|---|---|
| Pressure rating | 200 psi (13.8 bar) |
| Solution pump | 115V, 1.6 A, 0.8 gpm; the spec table and the 2013 sell sheet list the pump at 220 psi (15.16 bar) |
| Solution tank | 15 gal (56.78 L) |
| Recovery tank | 13.5 gal (51.1 L) |
| Heater | 120V, 14 A, 1,750 W, 140°F (60°C) low and 200°F (93°C) max temperature |
| Power | 120V AC, 60 Hz, 26.5 A nominal, two power cords |
| Vacuum motor | 120V, 0.685 hp (0.504 kW), 3-stage, 13.2 A |
| Water lift and airflow | 137 in (3,479 mm) water lift, 107 CFM |
| Size (L × W × H) | 32.5 × 25.25 × 41.5 in (826 × 641 × 1,054 mm) |
| Weight | 100 lb (46 kg); the 2013 sell sheet lists 102 lb (46 kg) |
| Power cord | Two 12/3 cords, 40 ft (12 m) |
| Sound level | 75 dBA |
Sources: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), pages 1 and 10; Tennant EH1/EC2/EH2/EH5 sell sheet 1.057.001 (09-2013), page 2. SES ref PF-RO7U-WZUJ
Tennant EH2 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Operator and parts manualTennant 9011261 Rev. 05 (01-2017), 45 pages | EH2 | Rev. 05 (01-2017) | 45 pages | Sign in to view or downloadSign in to download |
| Quick start guide (wall chart)Tennant 9011876 Rev. 00 (07-2013) | EH2 | Rev. 00 (07-2013) | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant EH2 parts questions
What water temperature can I put in the Tennant EH2?
No hotter than 120°F (49°C). Fill the solution tank with up to 15 gal (57 L) of clean water. To increase heater efficiency, fill the tank with warm water, but never above that limit.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 6. SES ref PF-H5HS-ACKC
What pressure does the EH2 spray at?
Tennant rates the EH2 at 200 psi (13.8 bar). The spec table lists the pump itself at 220 psi (15.16 bar).
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), pages 1 and 10. SES ref PF-H5HS-ACKC
How often should I descale my EH2?
After 80 hours of use. Flush the solution lines, pump and heater with a descaling solution such as white vinegar, soak the spray tips, then flush with clean water.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 8. SES ref PF-H5HS-ACKC
Why did my EH2 stop picking up water?
Check whether the recovery tank is full: when it is, the ball float screen shuts off suction so the tank can't overflow. Empty the tank. Too much foam can stop the screen from working, so always use defoamer.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), pages 8 and 11. SES ref PF-H5HS-ACKC
Can I use an extension cord with the EH2?
Yes, if it is 12/3 gauge and no longer than 40 ft (12 m). Don't use additional extension cords with the machine.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 3. SES ref PF-H5HS-ACKC
Which accessory tools fit the Tennant EH2?
Tennant's accessory guide lists the 13 in stainless steel and titanium carpet wands, the 5 in hand tool, the 3 in crevice tool and the upholstery tool. The titanium wand needs the 100 to 250 psi spray tips that come with each new wand.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 45. SES ref PF-H5HS-ACKC
What outlet does the EH2 need?
Two grounded outlets on different circuits, one for each power cord. The dual circuit indicator lights bright green when the cords are on different circuits.
Source: Tennant EH2 operator and parts manual 9011261 Rev. 05 (01-2017), page 6. SES ref PF-H5HS-ACKC
Notes on this parts list
Places where Tennant's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Spray pressure: 200 psi (13.8 bar) rating on the manual cover; 220 psi (15.16 bar) solution pump in the manual spec table; 220 psi (15.2 bar) in the sell sheet. This page shows 200 psi (13.8 bar) as the machine rating; the pump value is noted once in the Solution pump spec row and in the FAQ.
- Weight: 100 lb (46 kg) in the manual spec table; 102 lb (46 kg) in the sell sheet (EC2 | EH2 column, second value). This page shows 100 lb (46 kg) everywhere; the sell sheet value is noted once in the Weight spec row.
