Tennant BR-2000-DC parts list and diagrams
Tap a part on Tennant's drawings to see its current number, price and quantity. Every line from the BR-2000-DC parts manual is here, crossed from the numbers printed in the manual to Tennant's current part numbers.
Complete list: every line of the parts list in Tennant BR-2000-DC Parts Manual 9007379 Rev. 01 (03-2014), 141 printed part lines, with the parts numbered on its drawings. Checked .
New to your BR-2000-DC? Start here → Manuals (free sign-in) →
- Pad speed
- 2,000 rpm at 15 A
- Pad diameter
- 20 in (508 mm)
- Drive motor
- 120V, 1.5 hp, 15 A, 60 Hz
- Dust bag
- Cloth filter bag standard; optional filter bag listed
Maintenance and wear parts for the BR-2000-DC
Tennant's recommended maintenance parts for the BR-2000-DC. Keep these on the shelf.
Caster, Swivel, 2.5d 1.1w, .50-13 Stem
$42.20/EASkirt Assy, Dust-Cntrl
$208.70/EAWheel, 05.0d 1.25w 0.50b
$23.50/EABag, Fltr, Cloth [2370/Ultrashine] (Standard)
$46.10/EABag, Fltr [Ultrashine, 1pick=1pkg] (Optional)
$25.40/EAMotor, 115vac 2000rpm 1.50hp
$1,798.60/EAMotor, 100vac 2100rpm 1.30hp (Japan)
$2,013.90/EABrush, Carbon [1pick=1pc]
$25.30/EARectifier, 60a/600v
$143.50/EASeal
$19.20/EAPad, 20.0[Burnish, Hairblend,1pick=1ctn] (1Ctn = 5Pads)
$72.70/EADriver Assy, Pad, 20d
$224.00/EA
Source: Tennant BR-2000-DC Parts Manual 9007379 Rev. 01 (03-2014), page 7. SES ref PF-PQUY-7LN3
Your machine
How to tell which you have
- BR-2000-DC · 120V: model number 9007349.
- BR-2000-DC · 100V: model number 1000152, Japan.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant BR-2000-DC recommended maintenance parts
Recommended maintenance parts from Tennant's parts list. Manual page 7.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027258Replaces Tennant 600189 | 1 | Caster, Swivel, 2.5d 1.1w, .50-13 Stem | $42.20/EA |
| – | TN4038992Replaces Tennant 1005629 | 1 | Skirt Assy, Dust-Cntrl | $208.70/EA |
| – | TN4042341Replaces Tennant 1001369 | 2 | Wheel, 05.0d 1.25w 0.50b | $23.50/EA |
| – | TN4042312Replaces Tennant 1000617 | 1 | Bag, Fltr, Cloth [2370/Ultrashine] (Standard) | $46.10/EA |
| – | TN4042378Replaces Tennant 1001923 | 1 | Bag, Fltr [Ultrashine, 1pick=1pkg] (Optional) | $25.40/EA |
| – | TN4042310Replaces Tennant 1000584 | 1 | Motor, 115vac 2000rpm 1.50hpComplete assembly. Fits BR-2000-DC · 120V. | $1,798.60/EA |
| – | TN4042313Replaces Tennant 1000622 | 1 | Motor, 100vac 2100rpm 1.30hp (Japan)Complete assembly. Fits BR-2000-DC · 100V. | $2,013.90/EA |
| – | TN4039744Replaces Tennant 22117 | 4 | Brush, Carbon [1pick=1pc]Part of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $25.30/EA |
| – | TN4042254Replaces Tennant 190753 | 1 | Rectifier, 60a/600vPart of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $143.50/EA |
| – | TN4042314Replaces Tennant 1000703 | 1 | Seal | $19.20/EA |
| – | TN4022882Replaces Tennant 611788 | 1 | Pad, 20.0[Burnish, Hairblend,1pick=1ctn] (1Ctn = 5Pads) | $72.70/EA |
| – | TN4038852Replaces Tennant 1210491 | 1 | Driver Assy, Pad, 20dComplete assembly. | $224.00/EA |
| – | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 20d (1210491). | $32.30/EA |
| – | TN4041139Replaces Tennant 1205787 | 1 | Collar, Locking, Pad Driver, 6.1”Part of Driver Assy, Pad, 20d (1210491). | $10.60/EA |

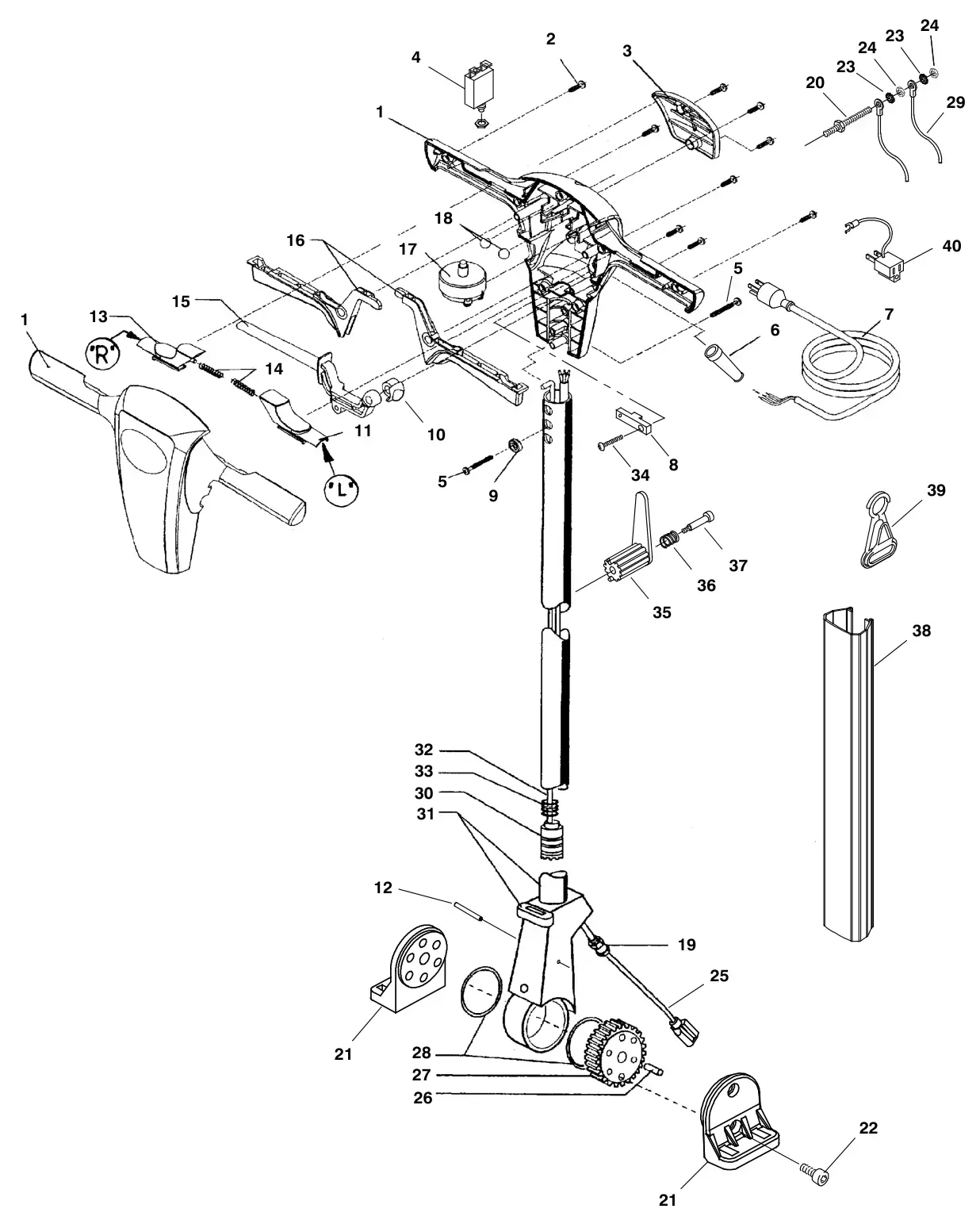

Tennant BR-2000-DC handle group parts
The parts Tennant numbers on its handle group drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4043957Replaces Tennant 1038953 | 1 | Handle Assy, Burnisher, 120v [2370, Tj]Complete assembly. | $1,384.70/EA |
| 1 | TN4028066Replaces Tennant 613272 | 1 | Vr, Handle Kit, Front & Rear [2370]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $499.40/EA |
| 2 | TN4041694Replaces Tennant 1043573 | 9 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $2.50/EA |
| 3 | TN4027285Replaces Tennant 801003 | 1 | Cover [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $18.10/EA |
| 4 | TN4042289Replaces Tennant 1000209 | 1 | Circuitbreaker, 17.0aPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $54.00/EA |
| 5 | TN4041693Replaces Tennant 1043572 | 2 | Screw, #10-14 X 01.5, Spl[Shcs Selftap]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $2.50/EA |
| 6 | TN4022997Replaces Tennant 801448 | 1 | Sleeve, Rbr, 0.59b 0.91dPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $34.70/EA |
| 7 | TN4038985Replaces Tennant 1005511 | 1 | Cord, Power, 14/3 [23meter, Sjt]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $283.90/EA |
| 8 | TN4045205Replaces Tennant 1034174 | 1 | Clamp, Cable, Pa6 WhitePart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $5.30/EA |
| 9 | TN4045206Replaces Tennant 1034176 | 1 | Bushing, Flng, 05mmb 12mmd 08mml [Pa6]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $4.20/EA |
| 10 | TN4045363Replaces Tennant 1034951 | 1 | Plug, Hole, Handle, Gray [Spectrasheen]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $5.10/EA |
| 11 | TN8003881Replaces Tennant 801005 | 1 | Vr, Lock, Slide, Lh [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $6.80/EA |
| 12 | TN4045359Replaces Tennant 1034924 | 1 | Pin, Roll, 04mmd X 40mmlPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $1.50/EA |
| 13 | TN8003880Replaces Tennant 801004 | 1 | Vr, Lock, Slide, Rh [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $9.50/EA |
| 14 | TN4027288Replaces Tennant 801013 | 2 | Spring, Extn, 0.27od 0.02wir 01.7lPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $8.20/EA |
| 15 | TN4045362Replaces Tennant 1034945 | 1 | Lever, Adjmt, HandlePart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $8.70/EA |
| 16 | TN4027286Replaces Tennant 801006 | 2 | Lever [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $9.90/EA |
| 17 | TN4045424Replaces Tennant 1035649 | 1 | Switch, Dpst, Momentary [2370]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $98.20/EA |
| 18 | TN4027291Replaces Tennant 801035 | 2 | Ball [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $4.00/EA |
| 19 | TN4045432Replaces Tennant 1035729 | 1 | Strainrelief, Bshg, [2370]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $13.80/EA |
| 20 | TN4045364Replaces Tennant 1034952 | 1 | Screw, Hex, M4 X 0.7 X 12, Dbl ThrdPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $1.50/EA |
| 21 | TN4042294Replaces Tennant 1000307 | 2 | Handle, Pivot, HalfPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $40.00/EA |
| 22 | TN4014170Replaces Tennant 49609 | 4 | Screw, Soc, M8 X 1.25 X 16, 12.9Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $4.00/EA |
| 23 | TN4043788Replaces Tennant 140061 | 2 | Washer, Lock, Ext, 08, PlPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $2.60/EA |
| 24 | TN4017353Replaces Tennant 42368 | 2 | Nut, Hex, Std, M4 X 0.70, 8Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $3.30/EA |
| 25 | TN4042307Replaces Tennant 1000517 | 1 | Cord, 14ga /3, 35.0l, W/ Receptacle,GrayPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $21.80/EA |
| 26 | TN4045202Replaces Tennant 1034155 | 2 | Pin, Roll, 06mmd X 36mmlPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $1.50/EA |
| 27 | TN4045289Replaces Tennant 1034872 | 1 | Gear, Lock, HandlePart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $119.80/EA |
| 28 | TN4023209Replaces Tennant 612422 | 2 | Seal, Org, Gear SeatPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $5.60/EA |
| 29 | TN4042306Replaces Tennant 1000512 | 1 | Wire, 14ga 07.9l Blk Ferrule /.14ringPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $7.75/EA |
| 30 | TN4045350Replaces Tennant 1034873 | 1 | Plunger, Notched PinPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | TN8006173Replaces Tennant 1040948 | 1 | Vr, Tube Assy, Handle [2370]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $294.82/EA |
| 32 | TN4042302Replaces Tennant 1000476 | 1 | Rod, Release [Spectrasheen]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $31.50/EA |
| 33 | TN4037313Replaces Tennant 1013295 | 1 | Spring, Cmpr [2100 Series]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $2.60/EA |
| 34 | TN4041694Replaces Tennant 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $2.50/EA |
| 35 | TN4027957Replaces Tennant 603104 | 1 | Hook, Cord, Blk [Quick-Release]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $7.90/EA |
| 36 | TN4027959Replaces Tennant 603108 | 1 | Spring, Cmpr, SwitchPart of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $4.10/EA |
| 37 | TN4043835Replaces Tennant 140239 | 1 | Bolt, Shld, .38d X 1.75, .31-18Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $5.10/EA |
| 38 | TN4042318Replaces Tennant 1000760 | 1 | Cover, Handle [2370]Part of Handle Assy, Burnisher, 120v [2370, Tj] (1038953). | $52.32/EA |
| 39 | TN4043267Replaces Tennant 130176 | 1 | Clip, Cord, Strainrelief [Belt] (Optional) | $10.50/EA |
| 40 | TN4014733Replaces Tennant 989611 | 1 | Adapter, Ground [Pse] (Japan)Fits BR-2000-DC · 100V. | Call to confirm part: 800-440-6723Call 800-440-6723 |

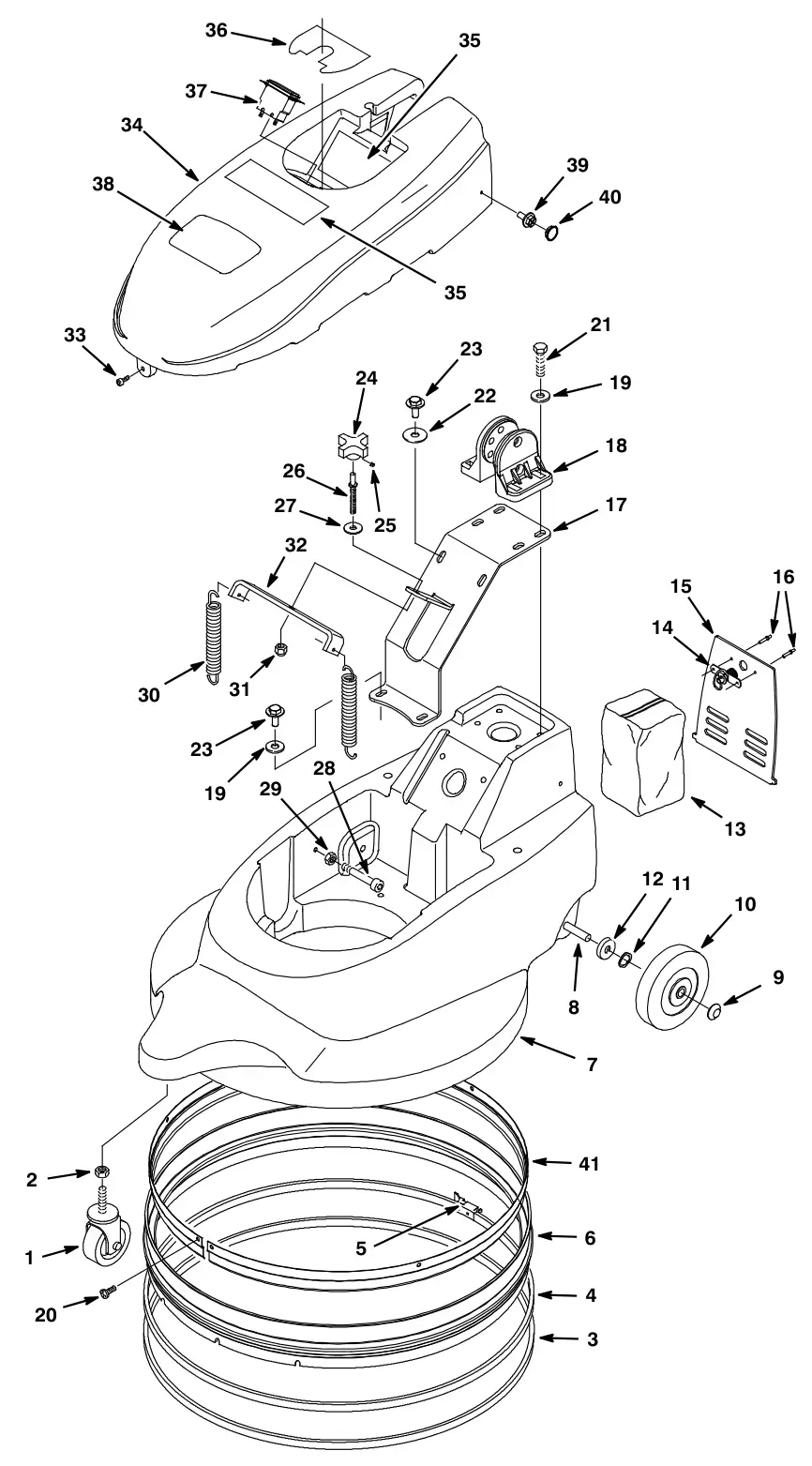

Tennant BR-2000-DC base group parts
The parts Tennant numbers on its base group drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027258Replaces Tennant 600189 | 1 | Caster, Swivel, 2.5d 1.1w, .50-13 Stem | $42.20/EA |
| 2 | TN4044081Replaces Tennant 140509 | 1 | Nut, Hex, Jam, .50-13, Ss | $4.00/EA |
| 3 | TN4020821Replaces Tennant 630613 | 1 | Bumper, Strip, 1626mm [L03] | $173.70/EA |
| 4 | TN4041354Replaces Tennant 069767094 | 1 | Band Kit, 72 Inch, Replmt | $43.40/EA |
| 5 | TN4027636Replaces Tennant 602044000 | 1 | Fastener [Adjusting, S-2500 Skirt] | $25.25/EA |
| 6 | TN4038992Replaces Tennant 1005629 | 1 | Skirt Assy, Dust-Cntrl | $208.70/EA |
| 7 | TN4012173Replaces Tennant 9007664 | 1 | Base, 20.0, Rm-Blk, Afmkt | $764.70/EA |
| 8 | TN4042333Replaces Tennant 1001193 | 1 | Axle, .5d X 14.72l | $22.80/EA |
| 9 | TN4031408Replaces Tennant 103019 | 2 | Nut, Retainer, 0.50d 0.29l, Ss | $4.90/EA |
| 10 | TN4042341Replaces Tennant 1001369 | 2 | Wheel, 05.0d 1.25w 0.50b | $23.50/EA |
| 11 | TN4017356Replaces Tennant 4252 | 2 | Washer, Flat, .50 Compression, Zn | $4.10/EA |
| 12 | TN4043789Replaces Tennant 140063 | 2 | Washer, Flat, 0.51b 1.25d .31, Nyl | $4.00/EA |
| 13 | TN4042312Replaces Tennant 1000617 | 1 | Bag, Fltr, Cloth [2370/Ultrashine] (Standard) | $46.10/EA |
| 13 | TN4042378Replaces Tennant 1001923 | 1 | Bag, Fltr [Ultrashine, 1pick=1pkg] (Optional) | $25.40/EA |
| 14 | TN4044310Replaces Tennant 140962 | 1 | Latch, Cmpr, Spring, Knurled Knob, Pl | $12.60/EA |
| 15 | TN4042292Replaces Tennant 1000277 | 1 | Bag, Door [Nobles] | $36.50/EA |
| 16 | TN4044114Replaces Tennant 140706 | 2 | Rivet, Blind, .125d, Pl | $3.40/EA |
| 17 | TN4200700Replaces Tennant 1000225 | 1 | Bracket, Handle, Sppt | $60.40/EA |
| 18 | TN4042294Replaces Tennant 1000307 | 2 | Handle, Pivot, Half | $40.00/EA |
| 19 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 20 | TN4043862Replaces Tennant 140350 | 6 | Screw, Pan, Phl, 10-16 X 0.50, Ss[Typ25] | $4.00/EA |
| 21 | TN4035127Replaces Tennant 1016399 | 4 | Screw, Hex, M8 X 1.25 X 30, Nl, Ss | $3.40/EA |
| 22 | TN4043642Replaces Tennant 140014 | 1 | Washer, Flat, 0.31b 1.50d, Fendr, Pl | $4.20/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 24 | TN4027432Replaces Tennant 600974 | 1 | Knob, Star, 2.25d 4ear 1.1l .38id, BshgComplete assembly. | $26.40/EA |
| 25 | TN140894Tennant 140894 | 1 | Screw, Set, Soc, 10-32 X 0.25, Blk[Cppt]Part of Knob, Star, 2.25d 4ear 1.1l .38id, Bshg (600974). | $2.20/EA |
| 26 | TN4023176Replaces Tennant 611865 | 1 | Stud, Adjmt | $12.40/EA |
| 27 | TN4039092Replaces Tennant 20536-2 | 1 | Washer, Flat, 0.50b 1.00d .03, Nyl | $4.10/EA |
| 28 | TN4042570Replaces Tennant 200001486 | 2 | Screw, Soc, M8 X 1.25 X 16 | $4.00/EA |
| 29 | TN4042580Replaces Tennant 200101017 | 2 | Nut, Hex, Jam, M8 X 1.25 | $3.40/EA |
| 30 | TN4040377Replaces Tennant 1010685 | 2 | Spring, Extn, 0.98od 0.11wir 03.8l | $9.40/EA |
| 31 | TN4028758Replaces Tennant 36643 | 1 | Nut, Hex, Lock, .38-16, Nl, Thin | $2.50/EA |
| 32 | TN4027260Replaces Tennant 600194 | 1 | Bracket, Spring | $48.10/EA |
| 33 | TN4042569Replaces Tennant 200001483 | 1 | Screw, Soc, M8 X 1.25 X 12, Pl | $3.23/EA |
| 34 | TN4200957Replaces Tennant 9007666 | 1 | Cover, Motor, Rm-Cphg, AfmktComplete assembly. | $392.79/EA |
| 35 | TN4194132Replaces Tennant 1026786 | 1 | Label, Warning [Expl,Fire,Shk En/Fr/Es]Part of Cover, Motor, Rm-Cphg, Afmkt (9007666). | $83.53/EA |
| 34 | TN4012306Replaces Tennant 9007841 | 1 | Cover, Motor, Rm-Cphg, Afmkt, TjComplete assembly. | $392.89/EA |
| 35 | TN4019574Replaces Tennant 613866 | 1 | Label, Warning, 4 X 3, Tj[Ac Floor Mach] (Japan)Part of Cover, Motor, Rm-Cphg, Afmkt, Tj (9007841). Fits BR-2000-DC · 100V. | $47.77/EA |
| 36 | TN4023261Replaces Tennant 612771 | 1 | Label, Pad Press [2370] | $16.06/EA |
| 37 | TN4036866Replaces Tennant 1011541 | 1 | Gauge, Pad, Press 4-16a D.C. | $54.90/EA |
| 38 | TN4034595Replaces Tennant 1060465 | 1 | Label, Logo, Cmdty, Dual, Small | $5.40/EA |
| 38 | TN4034593Replaces Tennant 1060463 | 1 | Label, Logo, Cmdty, Tco, Small | $11.75/EA |
| 39 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 40 | TN4030601Replaces Tennant 130175 | 2 | Plug, Hole, Rnd, 0.75d, Blk | $4.00/EA |
| 41 | TN4038994Replaces Tennant 1005645 | 1 | Shield, Skirt | $205.40/EA |

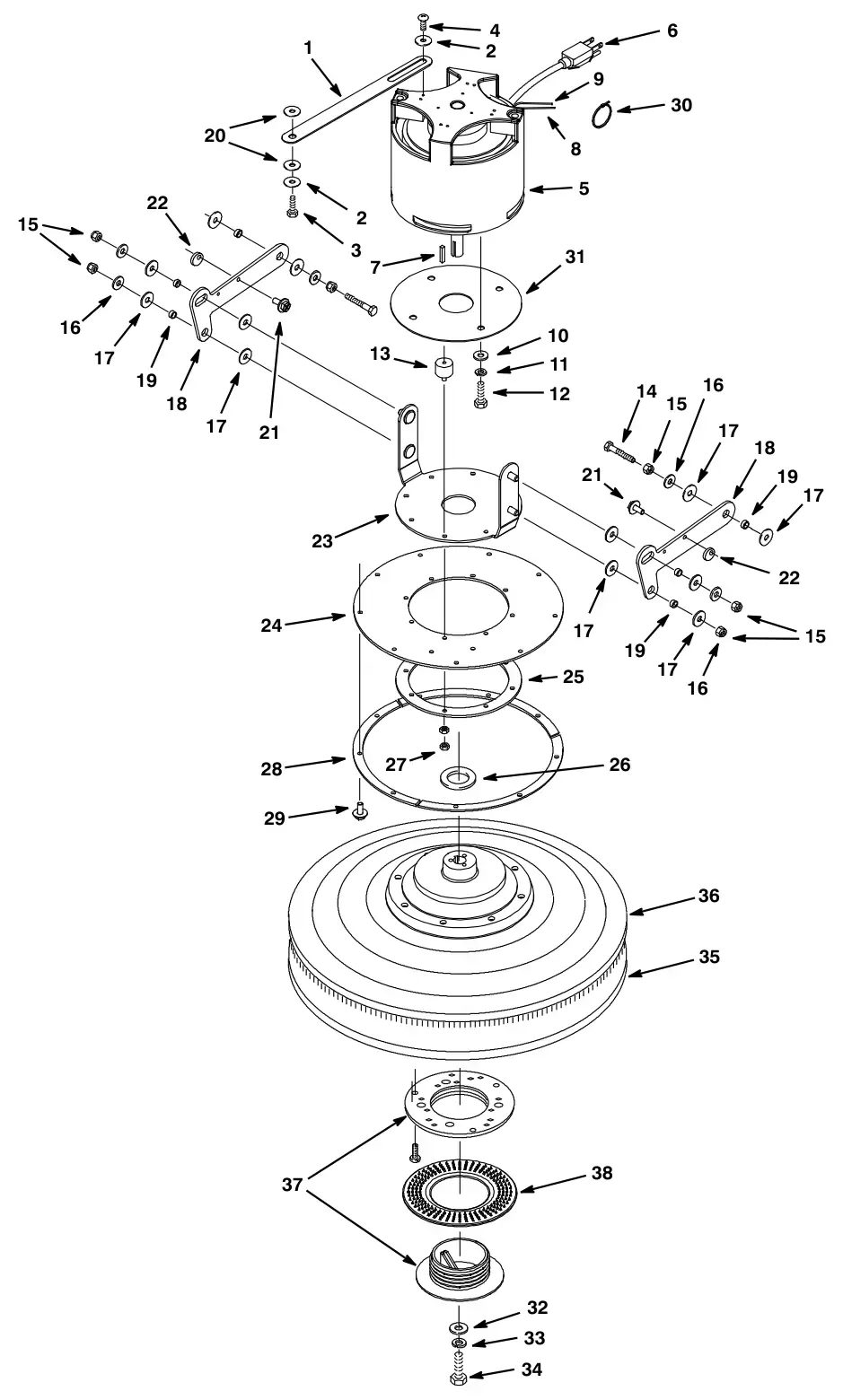

Tennant BR-2000-DC pad driver group parts
The parts Tennant numbers on its pad driver group drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019578Replaces Tennant 613910 | 1 | Strap Kit, Replmt | $49.20/EA |
| 2 | TN4043629Replaces Tennant 140003 | 2 | Washer, Flat, 0.25b 1.00d , Ss, Fendr | $3.20/EA |
| 3 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, Ss | $3.20/EA |
| 4 | TN4043862Replaces Tennant 140350 | 1 | Screw, Pan, Phl, 10-16 X 0.50, Ss[Typ25] | $4.00/EA |
| 5 | TN4042310Replaces Tennant 1000584 | 1 | Motor, 115vac 2000rpm 1.50hpComplete assembly. Fits BR-2000-DC · 120V. | $1,798.60/EA |
| 5 | TN4042313Replaces Tennant 1000622 | 1 | Motor, 100vac 2100rpm 1.30hp (Japan)Complete assembly. Fits BR-2000-DC · 100V. | $2,013.90/EA |
| – | TN4039744Replaces Tennant 22117 | 4 | Brush, Carbon [1pick=1pc]Part of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $25.30/EA |
| – | TN4042254Replaces Tennant 190753 | 1 | Rectifier, 60a/600vPart of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $143.50/EA |
| 6 | TN4042372Replaces Tennant 1001679 | 1 | Cord, Power, 14/3, 024.0l Gray [Sjt]Part of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $44.50/EA |
| 7 | TN4044110Replaces Tennant 140628 | 1 | Key, Sq, 0.19 X 0.19, 1.00lPart of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $36.30/EA |
| 8 | TN4042304Replaces Tennant 1000483 | 1 | Wire, 14ga 15.8l Blk .25qf /.25qfPart of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | $9.45/EA |
| 9 | TN1000484Tennant 1000484 | 1 | Wire, 14ga 15.8l White .25qf /.19ringPart of Motor, 100vac 2100rpm 1.30hp (Japan) (1000622). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4043660Replaces Tennant 140028 | 4 | Washer, Flat, 0.42b 1.00d .05, Ss | $3.20/EA |
| 11 | TN4043645Replaces Tennant 140017 | 4 | Washer, Lock, Split, 0.38, Ss | $3.30/EA |
| 12 | TN4036071Replaces Tennant 2949.5 | 4 | Screw, Hex, .38-16 X 0.62, Ss | $4.20/EA |
| 13 | TN4042298Replaces Tennant 1000409 | 4 | Mount, Stud / Plate | $16.80/EA |
| 14 | TN4043830Replaces Tennant 140233 | 2 | Screw, Hex, .38-16 X 1.75, Ss | $1.45/EA |
| 15 | TN4028758Replaces Tennant 36643 | 6 | Nut, Hex, Lock, .38-16, Nl, Thin | $2.50/EA |
| 16 | TN4043660Replaces Tennant 140028 | 6 | Washer, Flat, 0.42b 1.00d .05, Ss | $3.20/EA |
| 17 | TN4039092Replaces Tennant 20536-2 | 12 | Washer, Flat, 0.50b 1.00d .03, Nyl | $4.10/EA |
| 18 | TN4023173Replaces Tennant 611859 | 2 | Bracket, Arm, Lift | $40.40/EA |
| 19 | TN4027259Replaces Tennant 600191 | 6 | Sleeve, P/M, 0.38b 0.50d 0.2l, Pl | $5.70/EA |
| 20 | TN4029363Replaces Tennant 575600 | 2 | Washer, Flat, 0.25b 1.06d, Rbr, Neo | $4.95/EA |
| 21 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 22 | TN4042343Replaces Tennant 1001408 | 2 | Cam, Stop | $13.80/EA |
| 23 | TN4023174Replaces Tennant 611862 | 1 | Bracket, Motor | $124.70/EA |
| 24 | TN4042314Replaces Tennant 1000703 | 1 | Seal | $19.20/EA |
| 25 | TN4042317Replaces Tennant 1000713 | 1 | Plate, Seal, Motor Mount | $45.30/EA |
| 26 | TN4041302Replaces Tennant 069760023 | 1 | Washer, Flat, 0.77b 1.26d .03, Ss | $4.10/EA |
| 27 | TN4044086Replaces Tennant 140524 | 8 | Nut, Hex, Lock, .25-20, Kep | $3.30/EA |
| 28 | TN4042316Replaces Tennant 1000711 | 3 | Plate, Base, Seal | $26.60/EA |
| 29 | TN4045268Replaces Tennant 1034731 | 9 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 30 | TN4030573Replaces Tennant 130040 | 1 | Tie, Cable, Nyl, 06.0l .12w | $3.30/EA |
| 31 | TN4042340Replaces Tennant 1001311 | 1 | Retainer, Seal | $56.90/EA |
| 32 | TN4035643Replaces Tennant 25732 | 1 | Washer, Flat, 0.36b 1.25d .09, Pl | $4.00/EA |
| 33 | TN4043643Replaces Tennant 140015 | 1 | Washer, Lock, Split, 0.31, Ss | $4.40/EA |
| 34 | TN4043826Replaces Tennant 140221 | 1 | Screw, Hex, .31-18 X 1.25, Ss | $4.00/EA |
| 35 | TN4022882Replaces Tennant 611788 | 1 | Pad, 20.0[Burnish, Hairblend,1pick=1ctn] (1Ctn = 5Pads) | $72.70/EA |
| 36 | TN4038852Replaces Tennant 1210491 | 1 | Driver Assy, Pad, 20dComplete assembly. | $224.00/EA |
| 37 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 20d (1210491). | $32.30/EA |
| 38 | TN4041139Replaces Tennant 1205787 | 1 | Collar, Locking, Pad Driver, 6.1”Part of Driver Assy, Pad, 20d (1210491). | $10.60/EA |

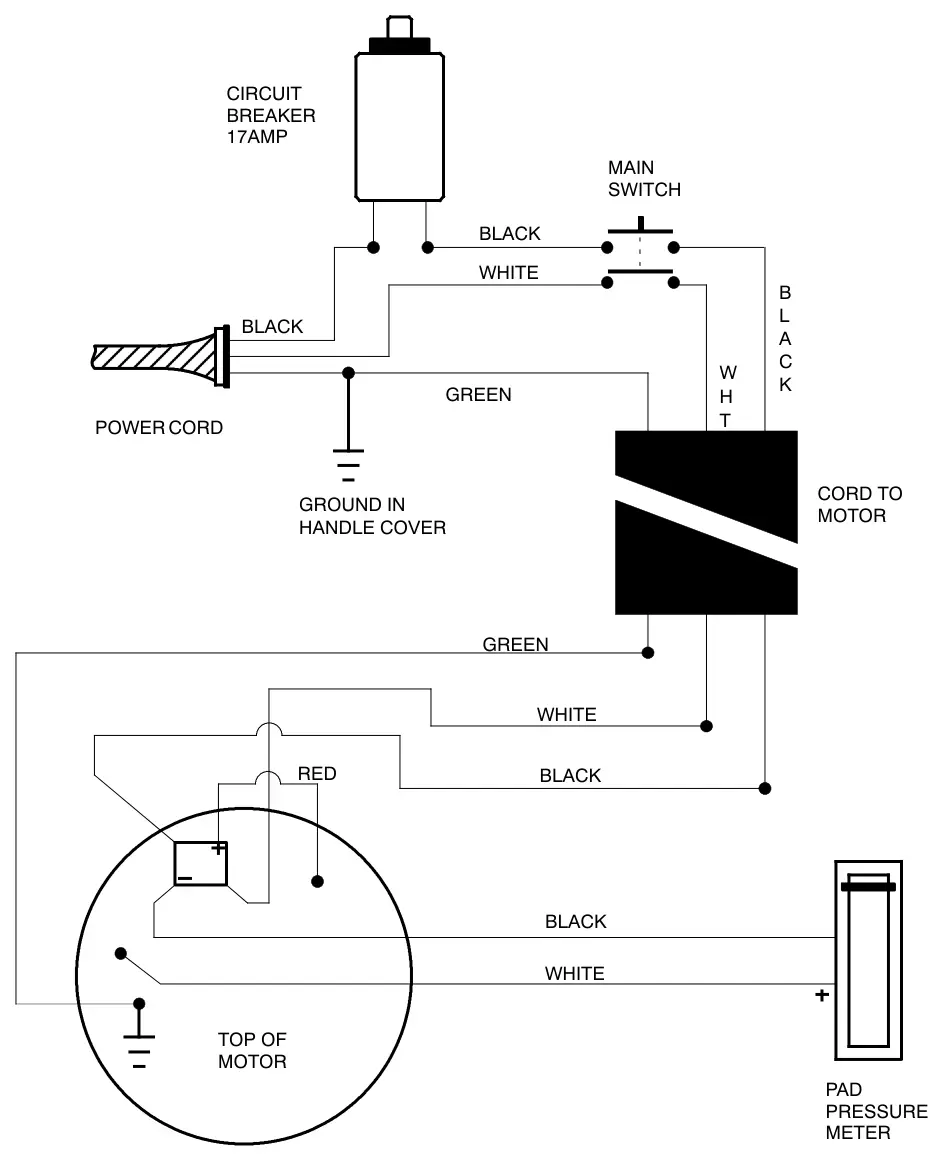

Tennant BR-2000-DC electrical diagram (120v / 100v)
| What it shows | Electrical diagram (120V / 100V), as printed in the manual |
|---|---|
| Manual page | 14 |
New to your Tennant BR-2000-DC? Start here
Set up, run and look after your BR-2000-DC. Everything here comes from Tennant's operator manual and use-and-care chart, rewritten in plain steps, with the parts linked to the list above.
1Put a pad on
- Unplug the machine. Use a 20 in (508 mm) pad made for 2,000 rpm high-speed burnishing, like the 20 in burnishing pad (TN4022882).
- Pull the handle height lever, raise the handle upright and tilt the machine back so the handle rests on the floor.
- Take the plastic centerlock off the pad driver (TN4038852), center the pad, and turn the centerlock clockwise until it is tight.
- Tilt the machine back down.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 10. SES ref PF-5S27-6NAI
2Put a dust bag in
- Turn the knob at the back of the machine counterclockwise to open the bag compartment.
- Slide the bag collar over the intake tube. The standard bag is the cloth filter bag (TN4042312); an optional filter bag (TN4042378) is also listed.
- Always start with an empty bag. Never run it without a bag in place.
Sources: Tennant operator manual 9007378 Rev. 00 (04-2010), pages 8 and 11; Tennant parts manual 9007379 Rev. 01 (03-2014), page 7. SES ref PF-5S27-6NAI
3Start burnishing
- Make sure the floor is completely dry. This machine is for dry hard floors only.
- Pull and turn the quick-release cord hook up to free the cord, then plug into a grounded outlet. No extension cords.
- Pull the height lever and set the handle where it is comfortable. The levers won't work while the handle is upright.
- Press the safety lock buttons on top of the handle, then pull the on/off levers.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 11. SES ref PF-5S27-6NAI
4Set the pad pressure
- Turn the pressure knob counterclockwise for more pressure, clockwise for less.
- Watch the pad pressure meter (TN4036866). Never run in the red zone: you can damage the motor and the floor.
- Work away from the cord and outlet, in a W pattern or straight passes. Keep moving.
- Let go of the levers to stop, and hold the handle until the pad stops.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 12. SES ref PF-5S27-6NAI
Tennant BR-2000-DC troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| It's unplugged, or the cord between the handle and the base isn't connected | Plug it in and check the handle-to-base connection (handle cord (TN4042307)). | |
| The machine's or the building's breaker tripped | Unplug, wait at least 15 seconds and press the reset button on the handle. Reset the building breaker if needed. | |
| Bad power cord, wiring, on/off switch or rectifier | Call SES service. Parts: power cord (TN4038985), on/off switch (TN4045424), rectifier (TN4042254). | |
| Breaker keeps tripping | ||
| Too much pad pressure | Turn the pressure knob clockwise and keep the meter out of the red. | |
| Loaded pad or the wrong pad | Replace the pad or use a less aggressive one. | |
| Worn carbon brushes or a bad breaker | Call SES service. Parts: carbon brushes (TN4039744), circuit breaker (TN4042289). | |
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 13. SES ref PF-DNPV-VNDW
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant BR-2000-DC maintenance schedule
Tennant's maintenance schedule for the BR-2000-DC.
| Task | How often | Part |
|---|---|---|
| Sweep and dust mop the floor first. | Before every use | |
| Check the pad. Flip it or put on a new one, and make sure the centerlock is tight. | Before every use | |
| Make sure a dust bag is installed and empty. | Before every use | |
| Check the dust skirt (TN4038992) for wear. It should just touch the floor; adjust it if needed. | Before every use | |
| Check the power cord for damage, and check that the pressure meter isn't in the red zone. | Before every use | |
| Unplug it, then flip or replace the pad if it is worn. | After every use | |
| Empty the dust bag and shake it out hard. | After every use | |
| Wipe the machine with an all-purpose cleaner and a damp cloth. | After every use | |
| Wipe the cord and coil it on the hook. Replace a damaged power cord (TN4038985) right away. | After every use | |
| Store it dry, handle up or folded down. | After every use | |
| Check that all nuts and bolts are tight. | Now and then | |
| Replace the dust skirt when it is worn. | Now and then | |
| Have the motor's carbon brushes (TN4039744) checked. Replace them when they are worn to 3/8 in (1 cm) or less. | Every 250 hours | |
| Tennant asks for an authorized service center to do this. SES is one: call 800-440-6723. | Every 250 hours |
Sources: Tennant use and care guide 613781 Rev. 01 (03-2013), page 1; Tennant operator manual 9007378 Rev. 00 (04-2010), page 12. SES ref PF-CV7K-CJFA
Tennant BR-2000-DC specifications
From Tennant's documents for the BR-2000-DC.
| Pad speed | 2,000 rpm at 15 A |
|---|---|
| Pad diameter | 20 in (508 mm) |
| Drive motor | 120V, 1.5 hp, 15 A, 60 Hz |
| Power cord | 75 ft (23 m) |
| Length | 32.5 in (826 mm) |
| Width | 22.5 in (572 mm) |
| Height | 47.5 in (1,207 mm); 18 in (457 mm) with the handle folded |
| Weight | 92 lb (42 kg); 80 lb (36 kg) without the cord |
| Sound level | 66 dBA at the operator's ear, indoors on tile |
| Dust bag | Cloth filter bag standard; optional filter bag listed |
| Model in spec table | 2370 |
Sources: Tennant operator manual 9007378 Rev. 00 (04-2010), page 14; Tennant parts manual 9007379 Rev. 01 (03-2014), page 7. SES ref PF-XZD5-3SMD
Tennant BR-2000-DC manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9007379 Rev. 01 (03-2014), 15 pages | BR-2000-DC | Rev. 01 (03-2014) | 15 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9007378 | BR-2000-DC | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant BR-2000-DC parts questions
Is the Tennant BR-2000-DC the same machine as the Tennant 2370?
The specification table in the BR-2000-DC operator manual lists the model as 2370, and many BR-2000-DC parts carry 2370 in their names. Check the part numbers on this page against your machine's serial plate before ordering.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 14. SES ref PF-JLPO-QL5L
Can I spray buff with the BR-2000-DC?
No. Tennant says the machine is not designed for spray buffing. It is made to burnish dry hard floors only.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 10. SES ref PF-JLPO-QL5L
What does the red zone on the pad pressure meter mean?
Too much pressure. Running in the red can damage the motor and the floor and will trip the breaker. Turn the pressure knob clockwise to back it off.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 12. SES ref PF-JLPO-QL5L
Why does my BR-2000 keep tripping its breaker?
Usually too much pad pressure or a loaded or too-aggressive pad. Unplug it, wait 15 seconds, press the reset button on the handle, then lower the pressure or change the pad. If it keeps tripping, have the carbon brushes and breaker checked.
Source: Tennant operator manual 9007378 Rev. 00 (04-2010), page 13. SES ref PF-JLPO-QL5L
Which dust bag does the BR-2000-DC use?
It comes with a cloth filter bag, and Tennant also lists an optional filter bag. Empty and shake out the bag after every use and never run without one.
Sources: Tennant operator manual 9007378 Rev. 00 (04-2010), pages 8, 11 and 12; Tennant parts manual 9007379 Rev. 01 (03-2014), page 7. SES ref PF-JLPO-QL5L
Which pad should I use?
A 20 in (508 mm) pad rated for 2,000 rpm high-speed burnishing.
Sources: Tennant use and care guide 613781 Rev. 01 (03-2013), page 1; Tennant operator manual 9007378 Rev. 00 (04-2010), page 14. SES ref PF-JLPO-QL5L
