PowerBoss Scrubmaster B260R parts list and diagrams
Every part number in Hako's spare parts catalogs for the PowerBoss Scrubmaster B260R, with the catalogs' drawings. Troubleshooting, maintenance and specs come from the operating manual. Pick your build to see only your parts. Each part number links to that part in our store.
Online manuals: Operator
Complete list: every parts line in Hako's spare parts catalogs for the PowerBoss SM4268CSB (7182.72), SM4268D (7182.70) and SM4868D (7182.71), the Scrubmaster B260R with a 42 in cylindrical brush deck and side broom, a 42 in disc deck or a 48 in disc deck. Checked .
New to your B260R? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Brush width
- Disc 42 in build: 42.5 in (1,080 mm); disc 48 in build: 48.4 in (1,230 mm); roller brush: 42.5 in (1,080 mm)
- Squeegee width
- 49.6 in (1,260 mm)
- Tanks
- Solution tank 68.7 US gal (260 L); waste water tank 68.7 US gal (260 L)
- Driving speed (forward / reverse)
- 5.0 / 2.5 mph (8 / 4 km/h)
- Battery
- 36 V nominal; 36 V / 480 Ah PzS wet or 36 V / 420 Ah PzV maintenance free
Wear parts most Scrubmaster B260R owners reorder
Hako's maintenance plan and maintenance pages name the brushes, the squeegee sealing and slot strips, the side wiper rubber and the fresh water filter for regular checks or replacement. These are the ones on the parts lists.
sealing strip 1260mm
$79.92/EAsealing strip 1360mm
$201.61/EAslot strip 1260mm
$62.18/EAslot strip 1360mm
$105.75/EAdisk brush 22(560) PPN 0.5
$239.72/EASet cylindrical brushes 1080 PA6-0,8
$637.64/EAsqueegee strip 765
$105.29/EAsqueegee strip
$53.77/EAWater filter
$55.34/EADisk brush 17(430) PPN 0,5
Call to confirm part: 800-440-6723
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 66, 67, 80, 81, 82, 91 and 94. SES ref PF-CC42-DMAN
Your machine
How to tell which you have
- Read the type plate: it is in front of the left front wheel. Give the machine type and serial number whenever you order parts or ask for service (operating manual pages 18 and 66; the pre-sweep unit has its own plate on page 19).
- Look at the brush deck: the catalogs show the SM4268D with a disc deck 42.5 in (1,080 mm) wide and 2 brushes, the SM4868D with a disc deck 48.4 in (1,230 mm) wide and 3 brushes, and the SM4268CSB with a cylindrical brush head 42.5 in (1,080 mm) wide and a side broom.
- Most parts fit all three: the three catalogs share most of their groups. The brush deck, bumper, brush electrics, squeegee suction unit, side broom and some water lines differ. Pick your build above the parts list to see only your lines.
How to read this list
Our part numbers are Hako's Part-No with MM in front, so Hako part no. 01371900 is MM01371900. Hako's catalogs print a Part-No and a Material-No on each line; the Material-No is in the note. Where we list a line under its Material-No instead, the note says so. Lines that Hako prints as a pointer to a sub-assembly are not sold separately: their parts are on that group's own drawing. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

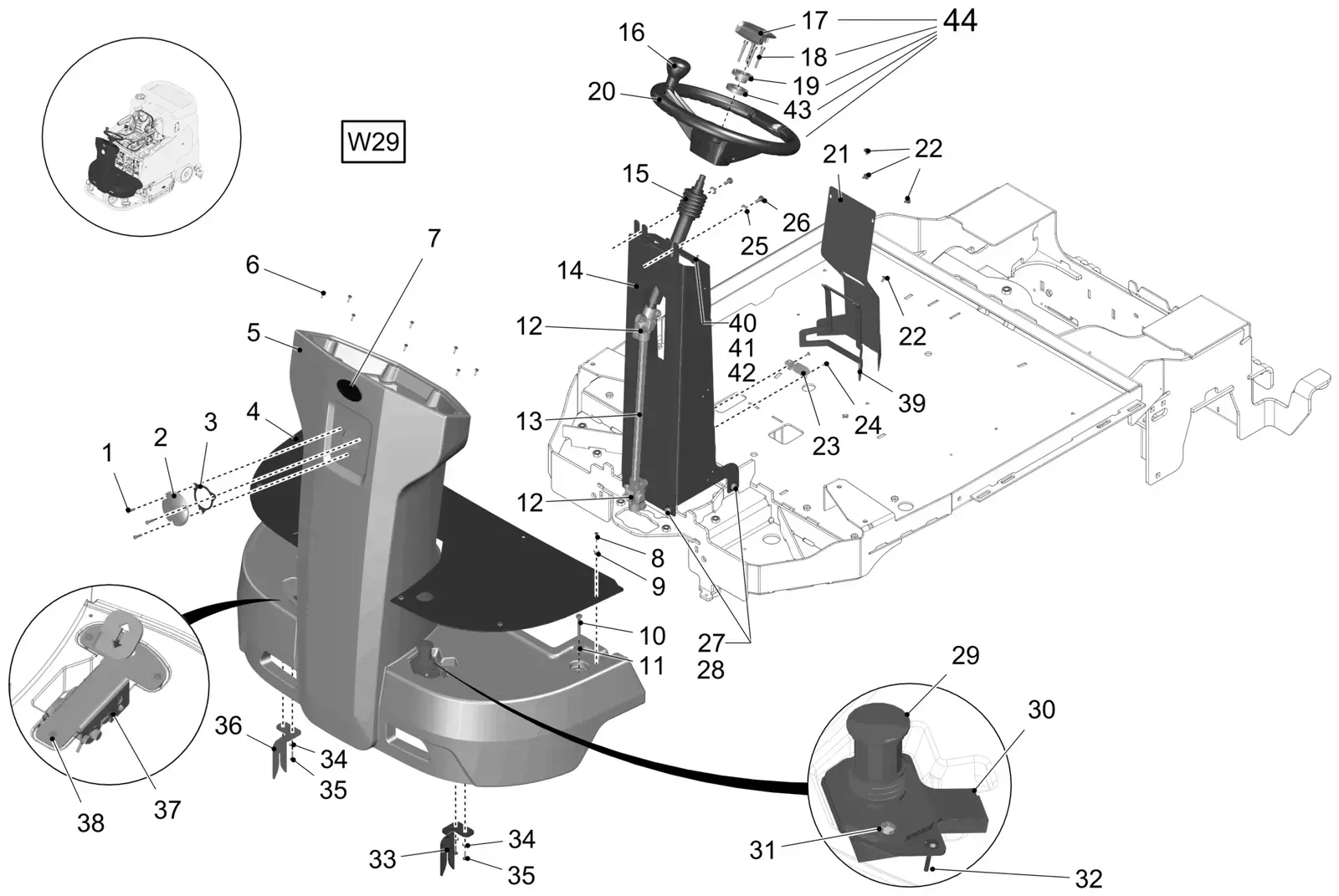

PowerBoss Scrubmaster B260R Control console parts
Hako's control console group (part of operation area), 45 lines. Shared by all three builds. Manual pages 42D p5, list 42D p6-7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11709151 | 3 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 2 | MM01375240 | 1 | capHako material no. 90535972. | $2.25/EA |
| 3 | MM01072000 | 1 | SealHako material no. 90429317. | $3.89/EA |
| 4 | MM01376510 | 1 | floor matHako material no. 92045301. | $91.40/EA |
| 5 | MM03021510 | 1 | console terminalHako material no. 96162862. | $742.72/EA |
| 6 | MM01136860 | 8 | Countersunk screw M4x12-4.8-flZnnc ISO 14583Hako material no. 11160009. | $1.05/EA |
| 7 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723 |
| 8 | MM01073120 | 6 | Amtec screw B52005-4,0x25-10.9 weiß verz.Hako material no. 11709210. | $1.05/EA |
| 9 | MM01073130 | 6 | KnobHako material no. 90417007. | $3.47/EA |
| 10 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Hako material no. 11038304. | $1.05/EA |
| 11 | MM12515086 | 2 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 12 | MM00746040 | 2 | Cardan jointHako material no. 90122177. | $62.89/EA |
| 13 | MM01376500 | 1 | shaftHako material no. 92043660. | $67.11/EA |
| 14 | Not sold separatelyPowerBoss 97135206 | Steering systemNot sold separately. Has sub-assemblies, see Steering system parts. | Not sold separately. Its parts are listed under Steering system | |
| 15 | MM01054880 | 1 | BellowsHako material no. 90392457. | $6.32/EA |
| 16 | MM01370020 | 1 | knob ACC2102Hako material no. 92022631. | $47.92/EA |
| 17 | MM610001Replaces PowerBoss 01375260 | 1 | steering wheel cab PBHako material no. 96162409. | $10.36/EA |
| 18 | MM01382410 | 1 | socket head screw M6x45-10.9 N2 ISO 4762Hako material no. 11127263. Valid from 2018-06. | $1.00/EA |
| 19 | MM01382520 | 1 | flangeHako material no. 92067586. Valid from 2018-06. | $77.98/EA |
| 20 | MM01371160 | 1 | steering wheelHako material no. 97164396. | $218.14/EA |
| 21 | MM01372830 | 1 | coverHako material no. 90695131. | $118.63/EA |
| 22 | MM11177179 | 5 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 23 | MM03021720 | 1 | wiring harness W3Hako material no. 97184790. illustrated content: OBDII-socket. | $1,911.03/EA |
| 24 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 25 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 26 | MM11038197 | 2 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 27 | MM01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 28 | MM00740080 | 4 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 29 | MM90472176 | 1 | Foot switchHako part no. 01145750. | $128.55/EA |
| 30 | MM01372900 | 1 | plateHako material no. 90697418. | $32.17/EA |
| 31 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 32 | MM11709151 | 2 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 33 | MM01376310 | 1 | assembling aid L.H.Hako material no. 92045087. | $11.66/EA |
| 34 | MM00730940 | 4 | Detent edged washer SKM-6-dacrometisiertHako material no. 12520045. | $1.22/EA |
| 35 | MM01074430 | 4 | Screw B52004-6,0x20-10.9 A2EHako material no. 11709144. | $1.05/EA |
| 36 | MM01376260 | 1 | assembling aid R.H.Hako material no. 92045079. | $11.66/EA |
| 37 | Not sold separatelyPowerBoss 01378020 | drive sensorHako material no. 97128227. Not sold separately. Has sub-assemblies, see drive sensor. | Not sold separately. Its parts are listed under Drive sensor | |
| 38 | MM01133380 | 3 | Countersunk screw M5x12-8.8-N2 ISO 10642Hako material no. 11225588. | $1.22/EA |
| 39 | MM01372090 | 1 | gasketHako material no. 92018316. | $3.90/EA |
| 40 | MM00102140 | 1 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 41 | MM01072030 | 1 | Toothed washer A 6,4 A3G DIN 6797Hako material no. 12515144. | $1.05/EA |
| 42 | MM01071890 | 1 | hexagon screw M6x16 CrNi-A2-70 ISO 4017Hako material no. 11039666. | $2.04/EA |
| 43 | MM01382630 | 1 | ringHako material no. 92067594. Valid from 2018-06. | $35.33/EA |
| 44 | MM01382890 | 1 | steering wheel PB, cpl.Hako material no. 97501084. | $474.13/EA |
| W29 | MM03020450 | 1 | wiring harness W29Hako material no. 97145791. | $51.57/EA |

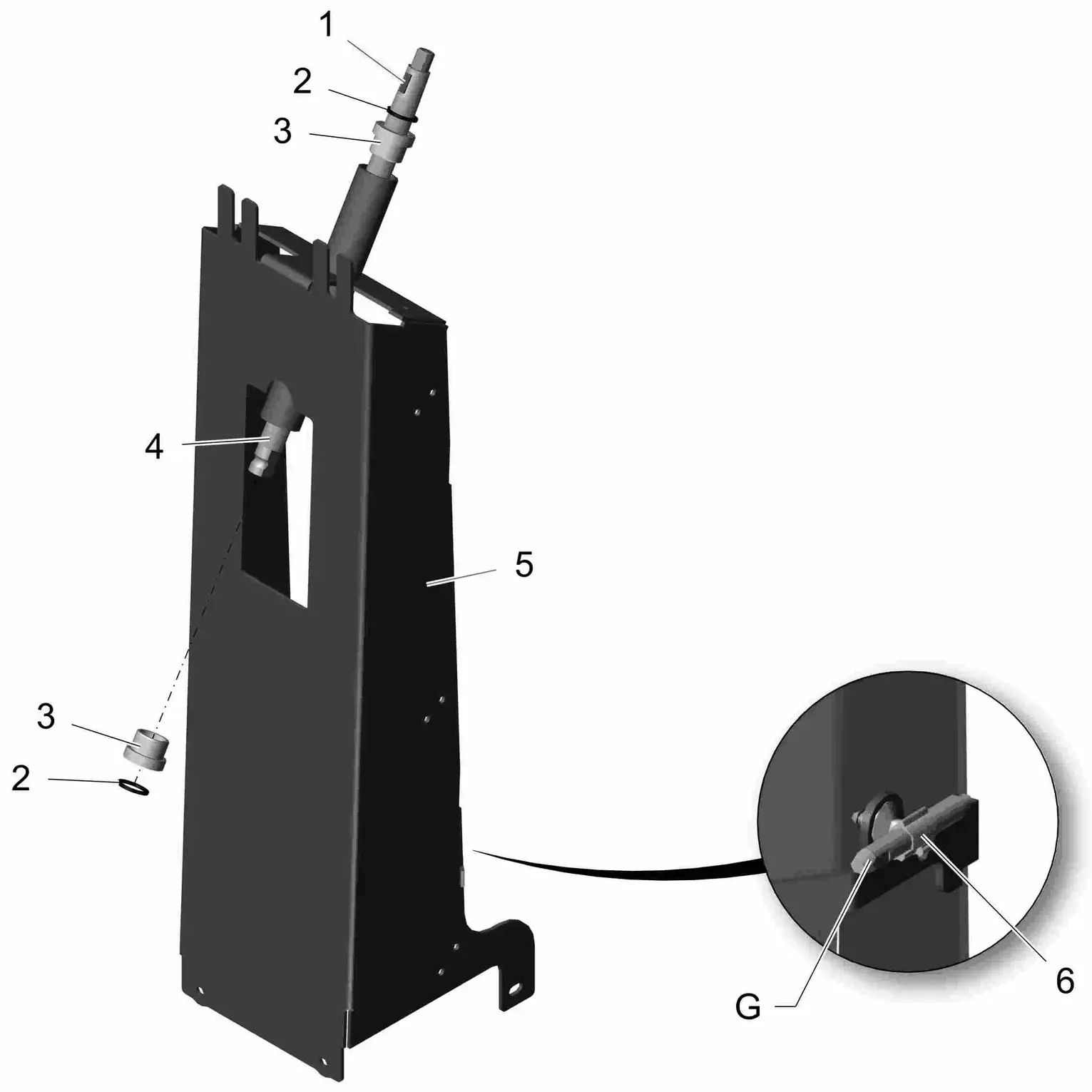

PowerBoss Scrubmaster B260R Steering system parts
Hako's steering system group (part of control console), 7 lines. Shared by all three builds. Manual pages 42D p8, list 42D p9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00701170 | 1 | Woodruff key 5x6,5-St60k DIN 6888Hako material no. 13545082. | $1.05/EA |
| 2 | MM00554400 | 2 | O-ring oil resistant 20x3 80 ShoreHako material no. 15286529. | $1.05/EA |
| 3 | MM00523630 | 2 | BushingHako material no. 90302258. | $26.06/EA |
| 4 | MM01373910 | 1 | shaftHako material no. 90685645. | $72.95/EA |
| 5 | MM03020220 | 1 | steering holderHako material no. 96151659. | $381.17/EA |
| 6 | MM01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| G | – | Not sold separately |

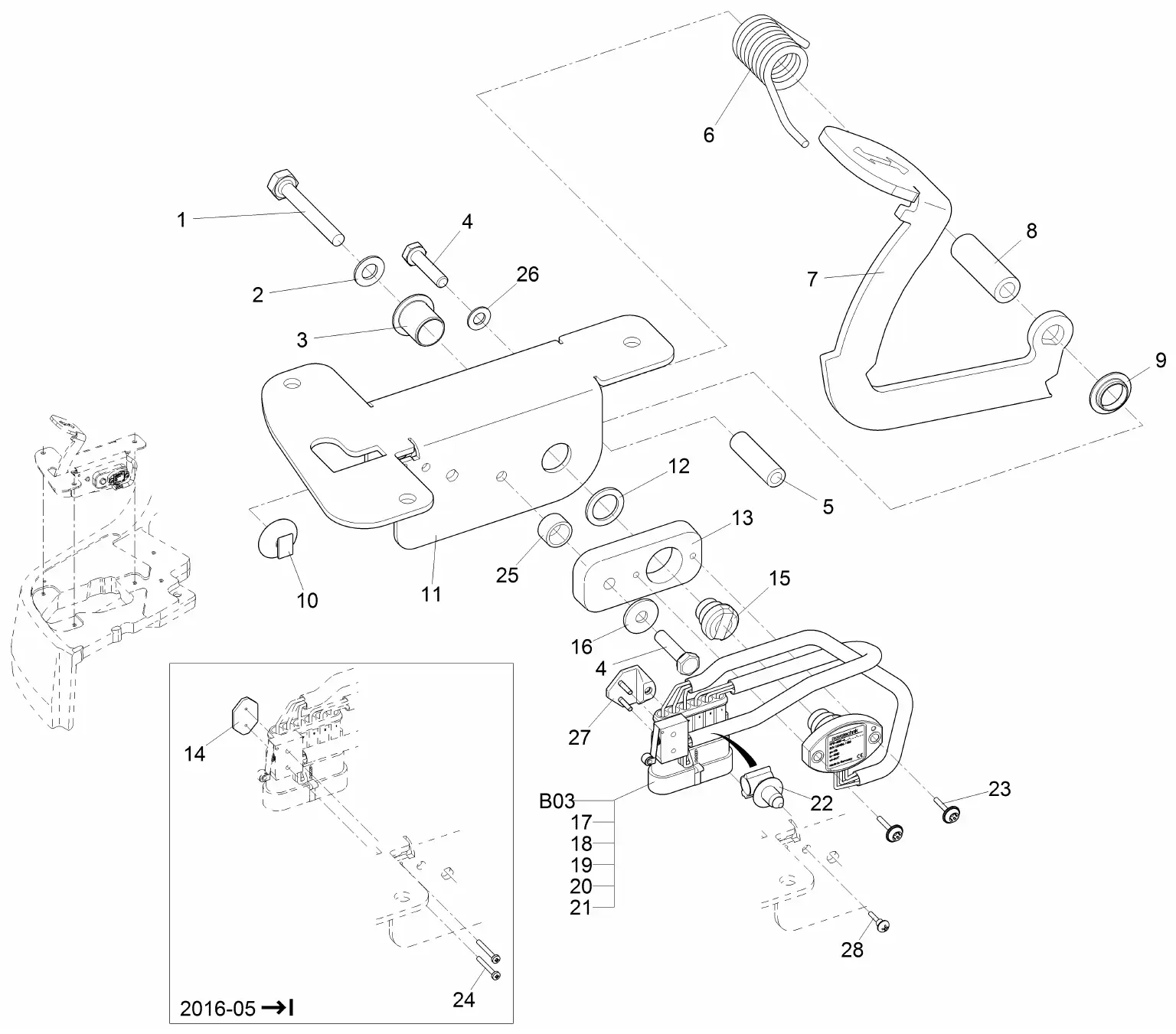

PowerBoss Scrubmaster B260R Drive sensor parts
Hako's drive sensor group, 29 lines. Shared by all three builds. Manual pages 42D p10, list 42D p11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00523790 | 1 | hexagon screw M8x50-A4-70 ISO 4017Hako material no. 11039492. | $1.54/EA |
| 2 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264. | $1.08/EA |
| 3 | MM00740190 | 1 | Slide bearing bush GFM-1416-17Hako material no. 14895163. | $3.13/EA |
| 4 | MM00133130 | 2 | Screw D M6x25-St A2G DIN 7500Hako material no. 11702065. | $1.05/EA |
| 5 | MM01064890 | 0.040 M | Hose 6x2x88Hako material no. 25842303. Quantity printed 0,040 M. | $12.35/EA |
| 6 | MM01277850 | 1 | Leg springHako material no. 90666967. | $9.74/EA |
| 7 | MM01380050 | 1 | accelerator pedalHako material no. 92084938. | $30.00/EA |
| 8 | MM01372690 | 1 | clambing bushHako material no. 90657974. | $21.39/EA |
| 9 | MM01055150 | 1 | Slide bearing bush GFM-1416-04Hako material no. 14895205. | $1.65/EA |
| 10 | MM01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 11 | MM01372700 | 1 | pedal retainerHako material no. 90658055. | $64.17/EA |
| 12 | MM01372160 | 1 | starting diskHako material no. 14898118. | $1.54/EA |
| 13 | MM01372170 | 1 | retainerHako material no. 90667007. | $3.90/EA |
| 14 | MM01473610 | 1 | Threaded plateHako material no. 90646043. til appr. 2016-05. Valid until 2016-05. | $13.23/EA |
| 15 | MM01380110 | 1 | magnet supportHako material no. 96145941. | $66.83/EA |
| 16 | MM00854210 | 1 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 17 | MM01006190 | 6 | Seal 1,4-1,7Hako material no. 19719319. | $1.05/EA |
| 18 | MM01141370 | 0.420 M | insulating tube B6x0,6 sw DIN 40621Hako material no. 25855073. Quantity printed 0,420 M. | $3.90/EA |
| 19 | MM00696680 | 1 | Micro switchHako material no. 90265596. | $55.37/EA |
| 20 | MM03003250 | 1 | Pin housingHako material no. 19719335. | $3.86/EA |
| 21 | MM01006210 | 6 | Pin contact 0,3-0,5Hako material no. 19719293. | $1.05/EA |
| 22 | MM01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 23 | MM11709244 | 2 | Screw 4x14 verzinkt DIN 7500Hako part no. 01078860. | $1.05/EA |
| 24 | MM01141220 | 2 | lens head screw M2x16-4.8-H-N2 ISO 7045Hako material no. 11175478. til appr. 2016-05. Valid until 2016-05. | $1.00/EA |
| 25 | MM00901550 | 1 | BushingHako material no. 90299074. | $2.32/EA |
| 26 | MM12310033 | 1 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 27 | MM01372180 | 1 | retainerHako material no. 90679820. from appr. 2016-06. Valid from 2016-06. | $3.44/EA |
| 28 | MM00902430 | 1 | Screw KA 35x12 WN-1412-10.9 A2Hako material no. 11709037. from appr. 2016-06. Valid from 2016-06. | $1.05/EA |
| B03 | MM01277740 | 1 | Angle sensorHako material no. 97131882. incl. pos. 17-21. | $280.72/EA |

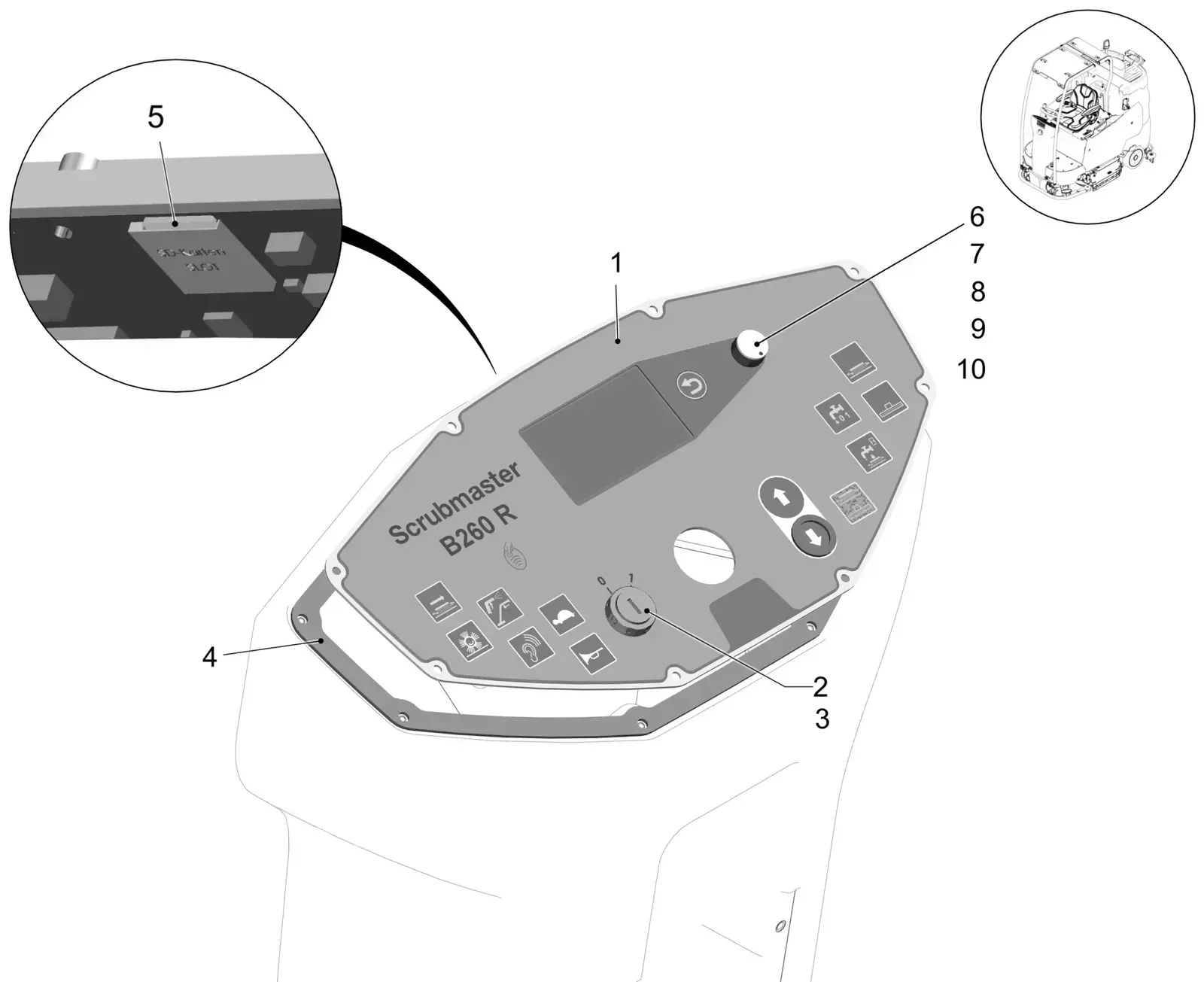

PowerBoss Scrubmaster B260R Control panel parts
Hako's control panel group (part of operation area), 10 lines. Shared by all three builds. Manual pages 42D p12, list 42D p13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01376040 | 1 | dash boardHako material no. 97500896. | $1,589.61/EA |
| 2 | MM90323437 | 1 | Key switchHako part no. 00021710. | $27.66/EA |
| 3 | MM00745890 | 1 PR | Set (2pc.) key | $22.56/EA |
| 4 | MM01372000 | 1 | gasketHako material no. 92007863. | $35.08/EA |
| 5 | MM01374870 | 1 | smart cardHako material no. 92034982. | $105.25/EA |
| 6 | MM01379950 | 1 | gasketHako material no. 92022300. | $1.05/EA |
| 7 | MM01379960 | 1 | bushingHako material no. 92020155. | $1.05/EA |
| 8 | MM01379970 | 1 | connection cable DDSHako material no. 92020148. | $5.25/EA |
| 9 | MM01379980PowerBoss 01379980 | 1 | turn-push-buttonHako material no. 92011428. | Call to confirm part: 800-440-6723 |
| 10 | MM01379990 | 1 | turning knobHako material no. 92005826. | $8.49/EA |

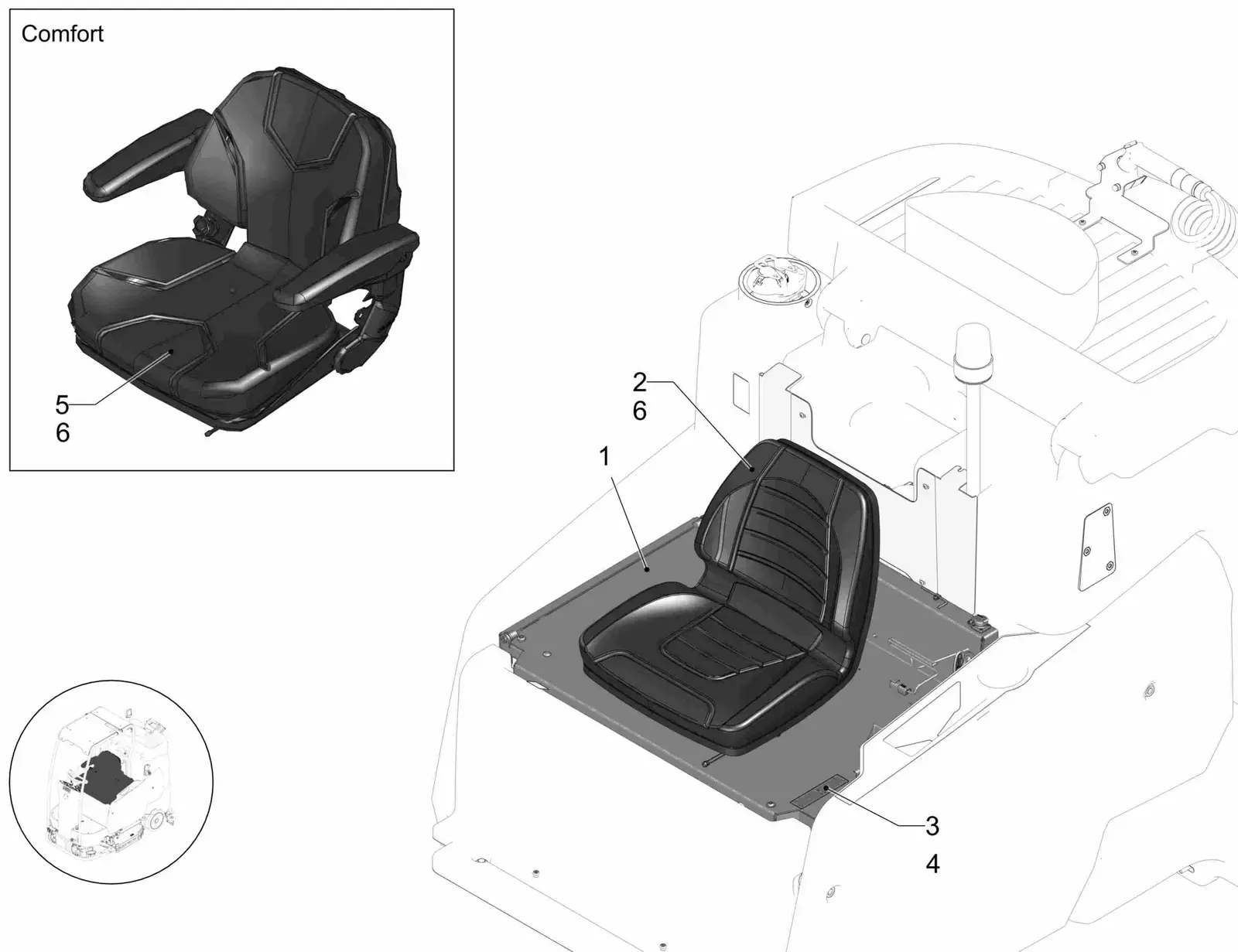

PowerBoss Scrubmaster B260R Seat group - seat variants parts
Hako's seat group - seat variants group (part of operation area), 6 lines. Shared by all three builds. Manual pages 42D p14, list 42D p15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97149751 | Seat plateNot sold separately. Has sub-assemblies, see Seat plate parts. | Not sold separately. Its parts are listed under Seat plate | |
| 2 | MM01277650 | 1 | seatHako material no. 90690694. | $317.74/EA |
| 3 | MM01371840 | 1 | decal SIGN_GRADE 6Hako material no. 17268418. 6%. | $6.98/EA |
| 4 | MM01376870 | 1 | decal GRADE 15Hako material no. 17268566. 15%. | $16.32/EA |
| 5 | MM01370010PowerBoss 01370010 | 1 | driver seat MUL2020Hako material no. 92016195. | Call to confirm part: 800-440-6723 |
| 6 | MM01277700 | 1 | Seat contact switch | $77.56/EA |

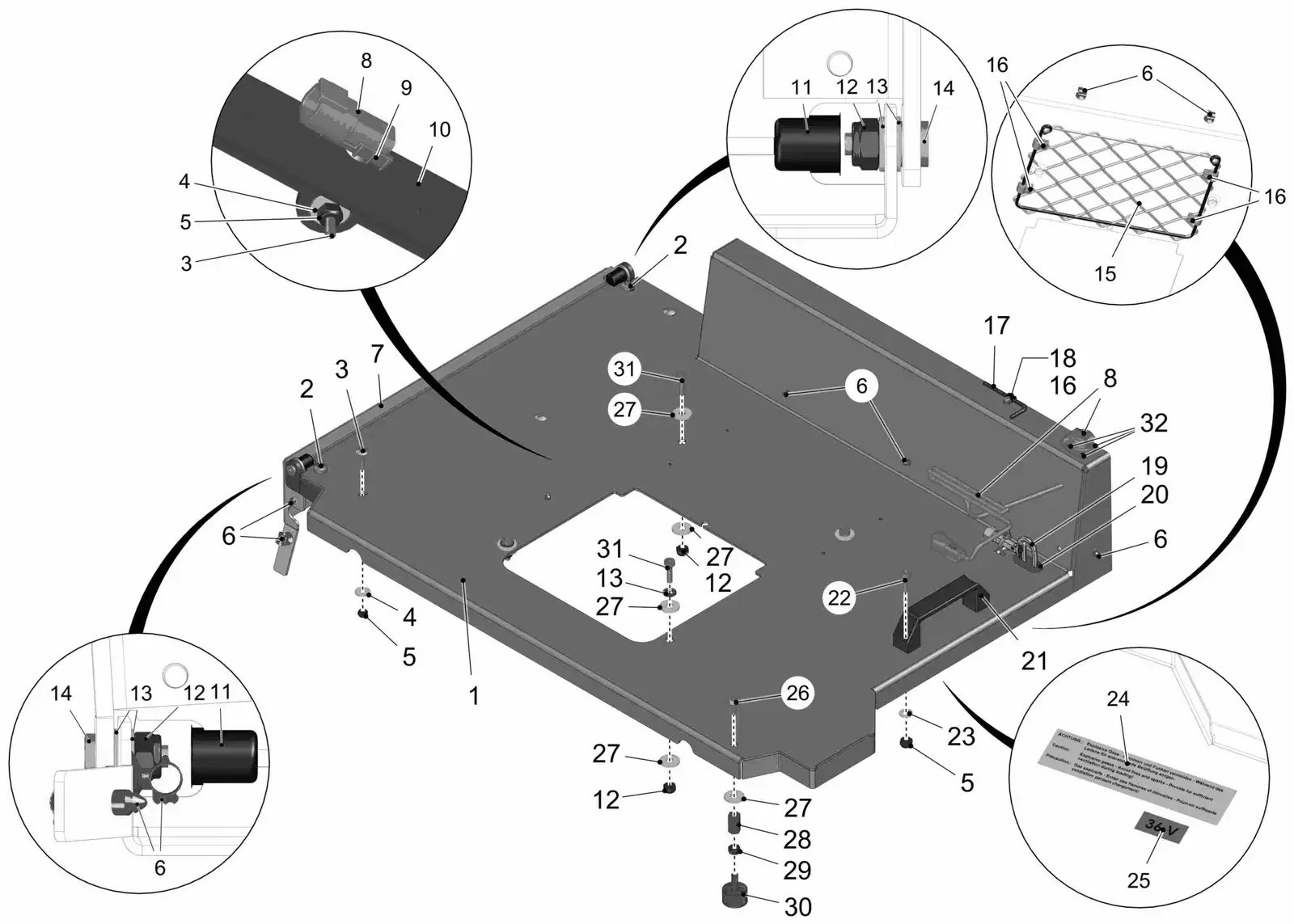

PowerBoss Scrubmaster B260R Seat plate parts
Hako's seat plate group (part of seat group - seat variants), 32 lines. Shared by all three builds. Manual pages 42D p16, list 42D p17-18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03021350 | 1 | seat flapHako material no. 96172754. | $515.38/EA |
| 2 | MM01272710 | 2 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 3 | MM01221580 | 3 | Round head screw M6x25-A2-70 DIN 603Hako material no. 11620606. | $1.05/EA |
| 4 | MM00854210 | 3 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 5 | MM00102140 | 3 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 6 | MM01493500 | 10 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 7 | MM01375380 | 1 | hinge basicHako material no. 92069715. | $46.71/EA |
| 8 | MM01371470 | 1 | USB charging connectionHako material no. 92005412. | $287.83/EA |
| 9 | MM01371260 | 1 | mounting clip DEUTSCH-connectorHako material no. 19730860. | $1.54/EA |
| 10 | MM01375850 | 1 | frameHako material no. 96184478. | $116.69/EA |
| 11 | MM00874930 | 2 | Lens cap SW13-1-G18 SWHako material no. 15592074. | $1.05/EA |
| 12 | MM12040051 | 8 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 13 | MM730609Replaces PowerBoss 00101550 | 4 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264. | $1.08/EA |
| 14 | MM00154410PowerBoss 00154410 | 2 | socket head screw M8x16-8.8-N3 ISO 4762Hako material no. 11126059. | Call to confirm part: 800-440-6723 |
| 15 | MM01172540 | 1 | Luggage rackHako material no. 90555848. | $61.49/EA |
| 16 | MM00501420 | 5 | Screw C M4x12St A2G DIN 7500Hako material no. 11702057. | $1.05/EA |
| 17 | MM03023330 | 1 | allen wrench SW4Hako material no. 92017755. | $1.00/EA |
| 18 | MM00903290 | 1 | Tube clamp RSGU1.5/9-W1Hako material no. 17529140. | $1.58/EA |
| 19 | MM00071900 | 1 | KeyHako material no. 90329541. | $3.69/EA |
| 20 | MM00028800 | 1 | Socket HV 1607Hako material no. 90135690. | $1.19/EA |
| 21 | MM01102910 | 1 | Grasp GN 528-PA-117-SWHako material no. 17095027. | $14.77/EA |
| 22 | MM00045540 | 2 | socket head screw M8x20-8.8-N3 ISO 4762Hako material no. 11126109. | $1.05/EA |
| 23 | MM12310041 | 4 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 24 | MM17267139 | 1 | Decal explosive gazesHako part no. 01174740. | $7.94/EA |
| 25 | MM01371680 | 1 | decal 36 V 8328Hako material no. 17264995. | $7.79/EA |
| 26 | MM11177187 | 1 | Lens flange screw M8x16-A2-70 ISO7380-2Hako part no. 01074320. | $3.30/EA |
| 27 | MM600940Replaces PowerBoss 00042900 | 9 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 28 | MM00744340 | 1 | Hex. NutHako material no. 90113622. | $1.05/EA |
| 29 | MM12022059 | 1 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 30 | MM00538440 | 1 | Buffer Phönix 781073Hako material no. 90221730. | $5.03/EA |
| 31 | MM00102790 | 4 | Cylinder head screw M8x25-8.8 A2G DIN 7984Hako material no. 11132057. | $1.00/EA |
| 32 | MM01110570 | 4 | Screw M3x8-St A2B DIN 7500-PEHako material no. 11702149. | $1.05/EA |

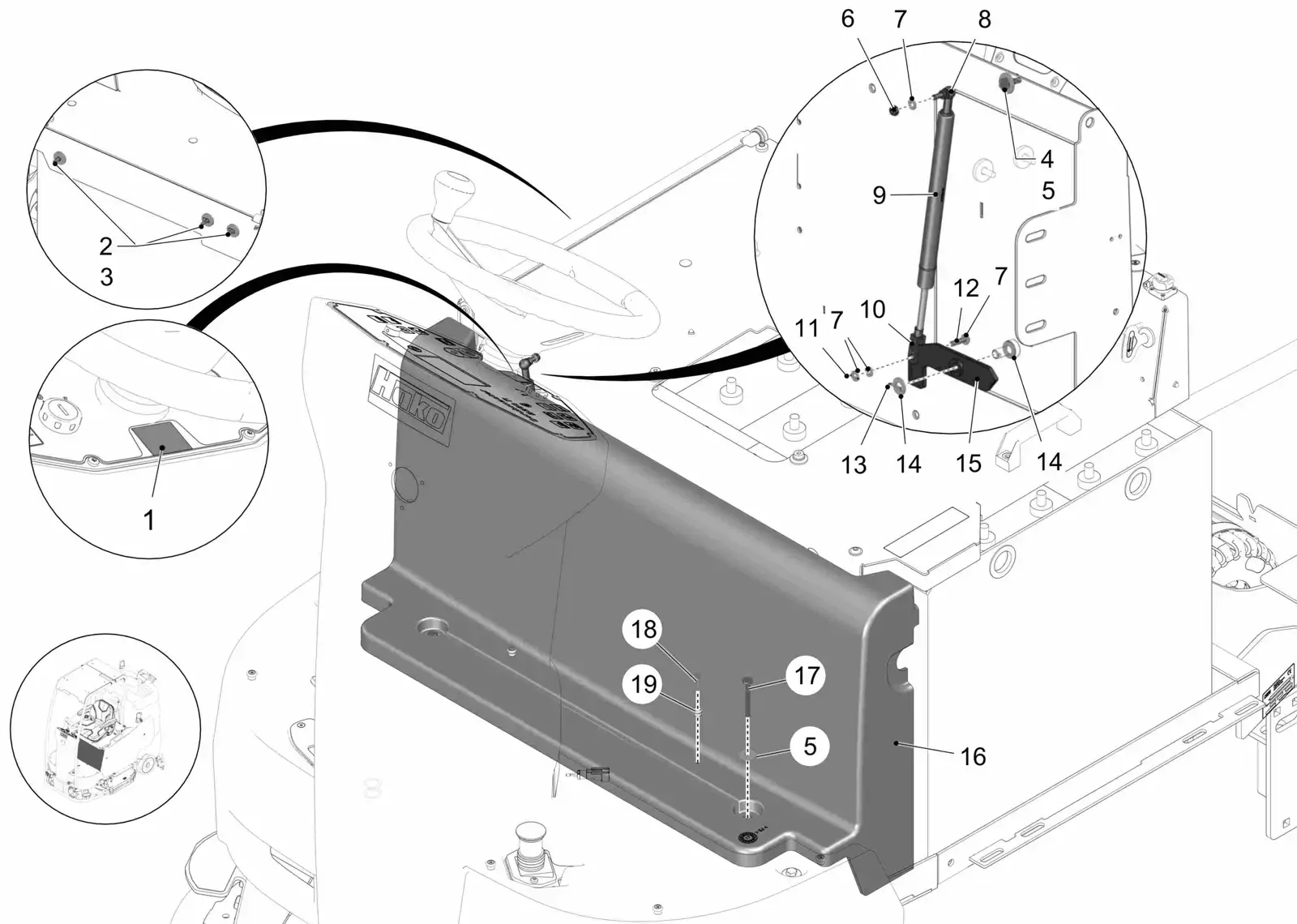

PowerBoss Scrubmaster B260R Operation area - covering for electric equipment parts
Hako's operation area - covering for electric equipment group (part of operation area), 19 lines. Shared by all three builds. Manual pages 42D p19, list 42D p20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019480 | 1 | adhesive labelHako material no. 17220039. | $1.05/EA |
| 2 | MM11038213 | 3 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 3 | MM12515086 | 3 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 4 | MM00704610 | 2 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Hako material no. 11720117. | $1.05/EA |
| 5 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 6 | MM12040044 | 1 | Hex. Nut M6-6 A2G DIN 985Hako part no. 00051520. | $1.38/EA |
| 7 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 8 | MM16046104 | 1 | Hinged joint CS10 A2GHako part no. 01166800. | $7.61/EA |
| 9 | MM01388240PowerBoss 01388240 | 1 | gas-pressurized springHako material no. 92075472. | Call to confirm part: 800-440-6723 |
| 10 | MM00851570 | 1 | Swivel head G6x24 A2G DIN 71752Hako material no. 16055048. | $3.72/EA |
| 11 | MM00534540 | 1 | split pin 1,6x10-St-N2 ISO 1234Hako material no. 13280276. | $1.22/EA |
| 12 | MM00705580 | 1 | Bolt B6H11x22-St A2G DIN 1444Hako material no. 13328208. | $1.05/EA |
| 13 | MM13280110 | 1 | split pin 3,2x16-St-N2 ISO 1234Hako part no. 00551410. | $5.84/EA |
| 14 | MM12310058 | 2 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 15 | MM01375800 | 1 | rockerHako material no. 96164249. | $47.67/EA |
| 16 | MM01376240 | 1 | coveringHako material no. 92038587. | $587.34/EA |
| 17 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Hako material no. 11038304. | $1.05/EA |
| 18 | MM01073120 | 2 | Amtec screw B52005-4,0x25-10.9 weiß verz.Hako material no. 11709210. | $1.05/EA |
| 19 | MM01073130 | 2 | KnobHako material no. 90417007. | $3.47/EA |

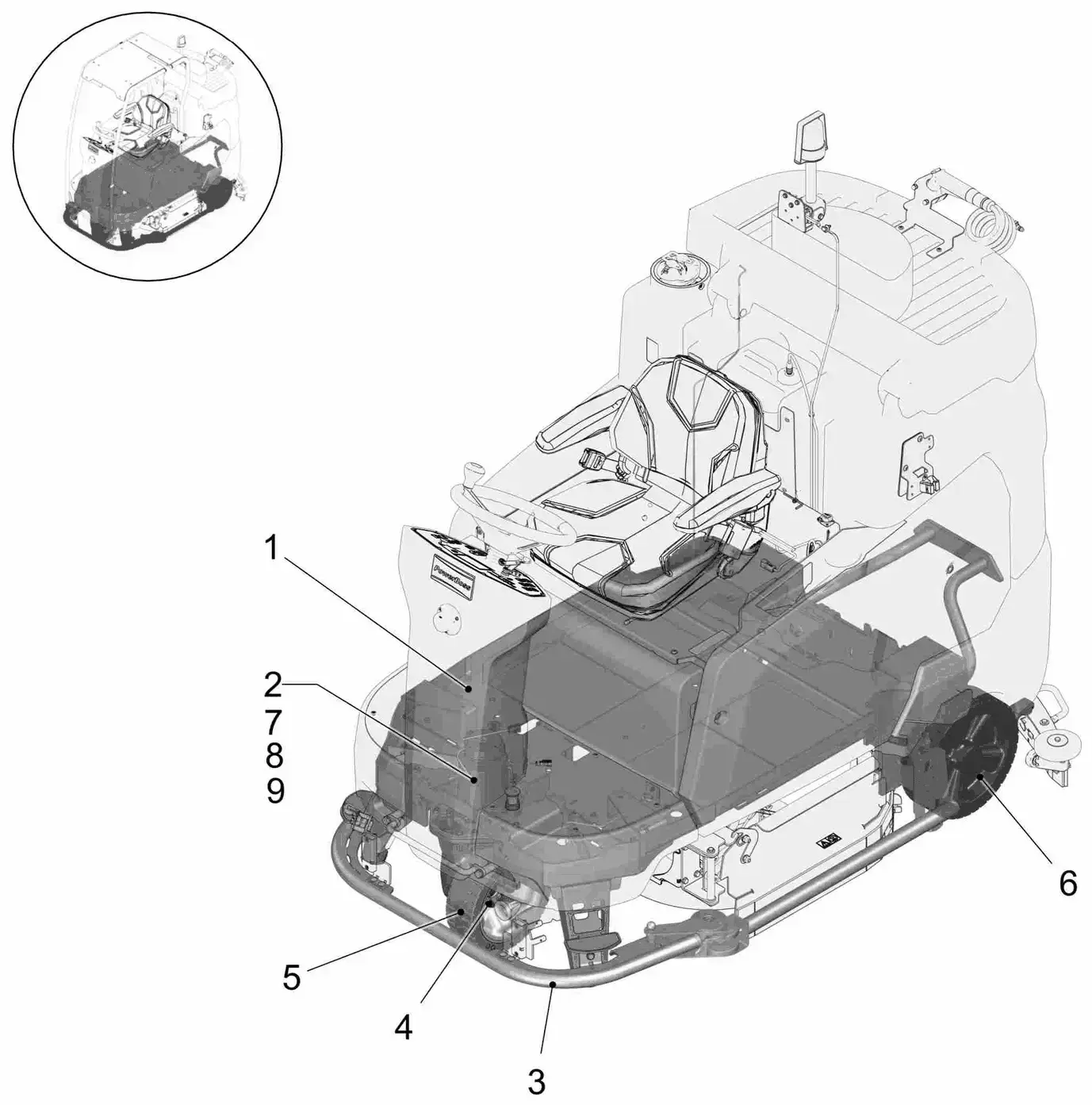

PowerBoss Scrubmaster B260R Chassis (97145585) parts
Hako's chassis group (part of powerboss sm4268csb), 11 lines. Lines tagged with a build fit only that build. Manual pages 42D p21, list 42D p22.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97147839 | ChassisNot sold separately. Has sub-assemblies, see Chassis parts. | Not sold separately. Its parts are listed under Chassis (97147839) | |
| 2 | MM01371270 | 1 | traction drive AC 36V 1,9kWHako material no. 90685835. | $4,033.19/EA |
| 3 | Not sold separatelyPowerBoss 97142103 | Front bumper disk brush head 1230Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Front bumper disk brush head 1230 | |
| 3 | Not sold separatelyPowerBoss 97144836 | Front bumper disk brush head 1080Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Front bumper disk brush head 1080 | |
| 3 | Not sold separatelyPowerBoss 97145221 | Front bumper disk side broom 1080Fits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Front bumper disk side broom 1080 | |
| 4 | MM00156320 | 5 | Spherical collar nut A12-8 A3G DIN 74361Hako material no. 16552010. With every exchange of wheel exchange the nuts, too, please. | $4.58/EA |
| 5 | MM01375070 | 1 | wheel, oil resistant, non-markingHako material no. 96162326. | $1,474.53/EA |
| 6 | Not sold separatelyPowerBoss 97153290 | Rear axle, not drivenNot sold separately. Has sub-assemblies, see Rear axle, not driven parts. | Not sold separately. Its parts are listed under Rear axle, not driven | |
| 7 | MM01379670 | 1 | temperature sensor, cpl.thermo switch; content of item 2. | $72.22/EA |
| 8 | MM01379880PowerBoss 01379880 | 1 | sensor, cpl.Encoder; content of item 2. | Call to confirm part: 800-440-6723 |
| 9 | MM01383440 | 1 | repairing set Brakecontent of item 2. | $543.97/EA |

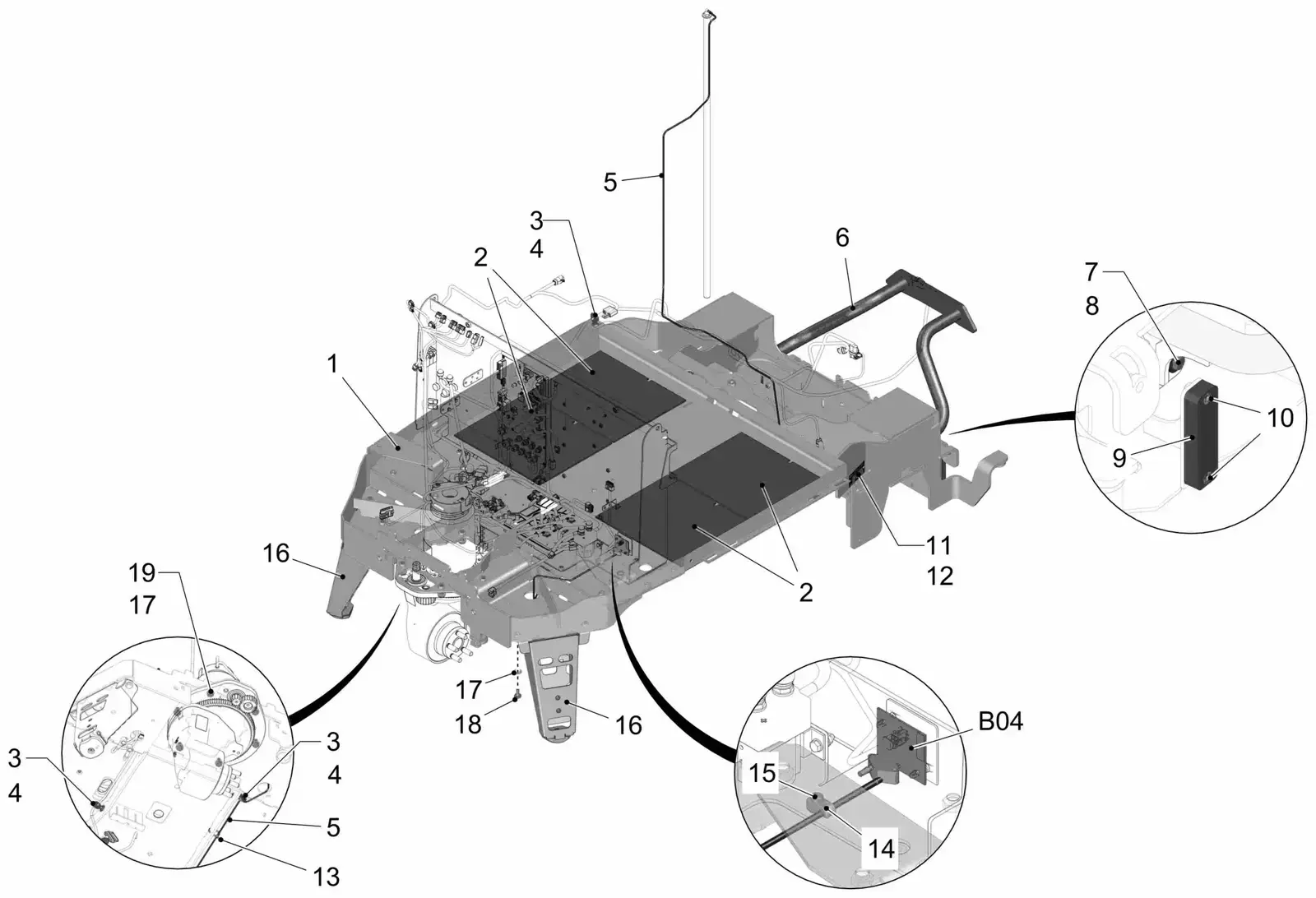

PowerBoss Scrubmaster B260R Chassis (97147839) parts
Hako's chassis group (part of chassis), 21 lines. Shared by all three builds. Manual pages 42D p23, list 42D p24.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03021330 | 1 | chassis B260 RHako material no. 96155510. til appr. 10-2021. Valid until 10-2021. | $2,396.03/EA |
| 1 | – | 1 | Spare part on request | |
| 2 | MM01371760 | 4 | matHako material no. 92007541. | $16.51/EA |
| 3 | MM01370250 | 4 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 4 | MM01370240 | 4 | mounting feetHako material no. 17526237. | $1.05/EA |
| 5 | MM01372290 | 2.750 M | hose 4x1 Norflex PUR 401 MHFHako material no. 25842196. Quantity printed 2,750 M. | $7.75/EA |
| 6 | MM01375720 | 1 | bumper rearHako material no. 96163191. | $336.45/EA |
| 7 | MM11038213 | 2 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 8 | MM00740080 | 2 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 9 | MM01372250 | 2 | bufferHako material no. 92011311. | $23.34/EA |
| 10 | MM00508990 | 4 | Countersunk screw M6x25-8.8-N2 ISO 10642Hako material no. 11225307. | $1.05/EA |
| 11 | MM01073780 | 1 | NameplateHako material no. 17212103. | $2.03/EA |
| 12 | MM00131600 | 2 | Rivet F3x10-AlHako material no. 13165055. | $1.22/EA |
| 13 | MM90156688 | 1 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 14 | MM00100550 | 1 | Clamp A6 NylfixHako material no. 17521014. | $1.05/EA |
| 15 | MM00959220 | 1 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 16 | Not sold separatelyPowerBoss 97147284 | Stay baseNot sold separately. Has sub-assemblies, see Stay base parts. | Not sold separately. Its parts are listed under Stay base | |
| 17 | MM00740290 | 12 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 18 | MM11038353 | 6 | hexagon screw M10x20-8.8-N2 ISO 4017Hako part no. 00021130. | $1.44/EA |
| 19 | MM00053160 | 6 | hexagon screw M10x30-8.8-N3 ISO 4017Hako material no. 11038379. | $1.05/EA |
| B04 | MM01371480 | 1 | pressure sensorHako material no. 92013481. fresh water sensor; Attention. Sensor must be calibrated. | $277.58/EA |

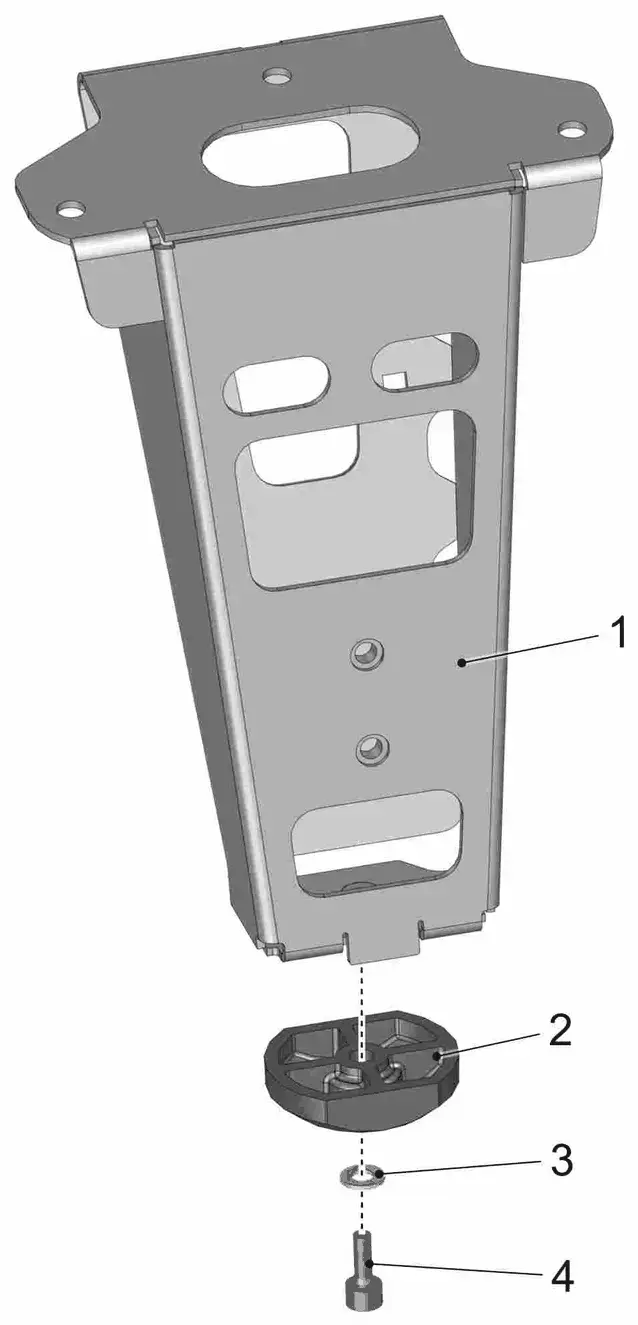

PowerBoss Scrubmaster B260R Stay base parts
Hako's stay base group (part of chassis), 4 lines. Shared by all three builds. Manual pages 42D p25, list 42D p26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375690 | 1 | supportHako material no. 96157771. | $222.28/EA |
| 2 | MM01371320 | 1 | stayHako material no. 92009976. | $10.56/EA |
| 3 | MM00740310 | 1 | Washer SKS-8-dacrometisiertHako material no. 12520029. | $1.05/EA |
| 4 | MM00045540 | 1 | socket head screw M8x20-8.8-N3 ISO 4762Hako material no. 11126109. | $1.05/EA |

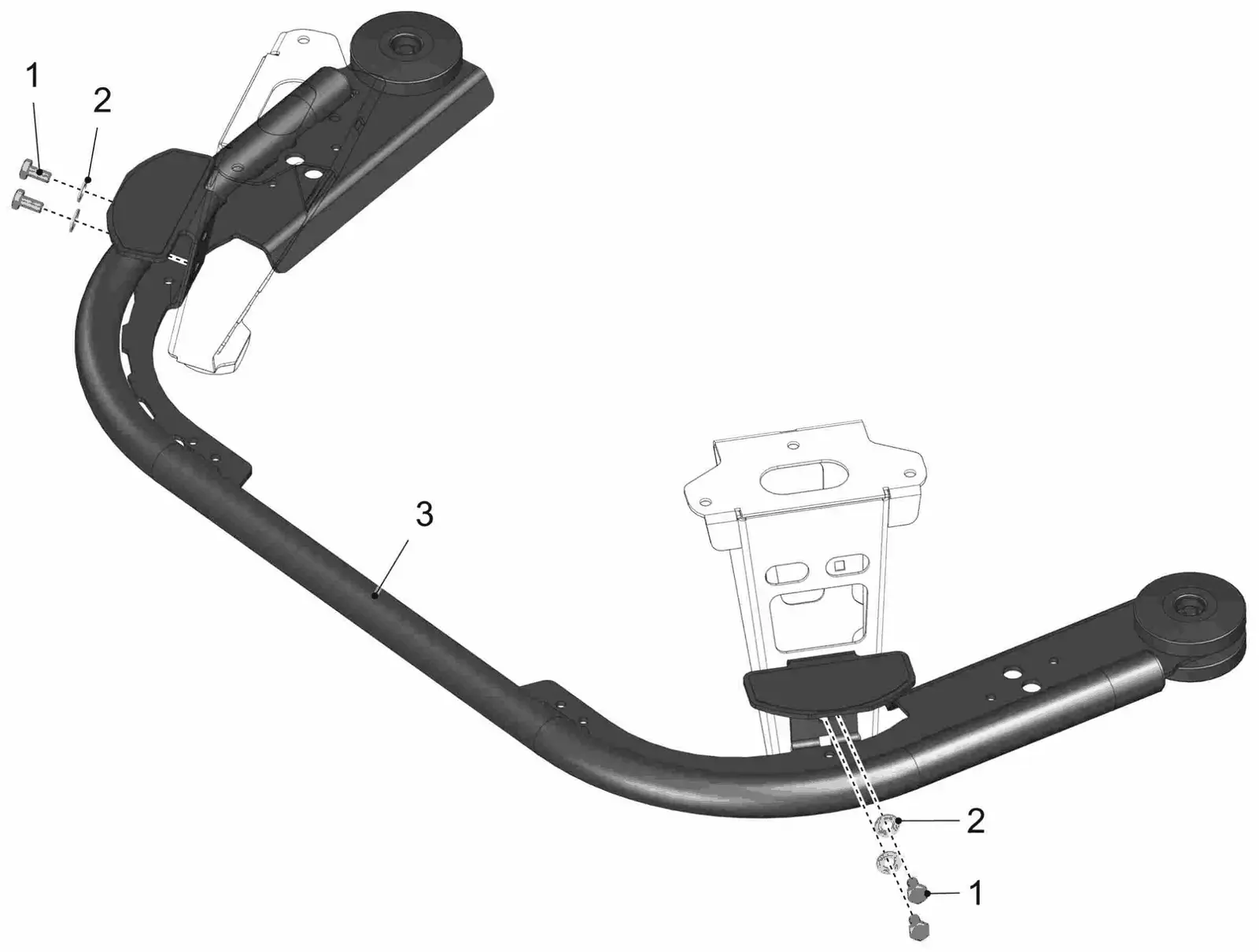

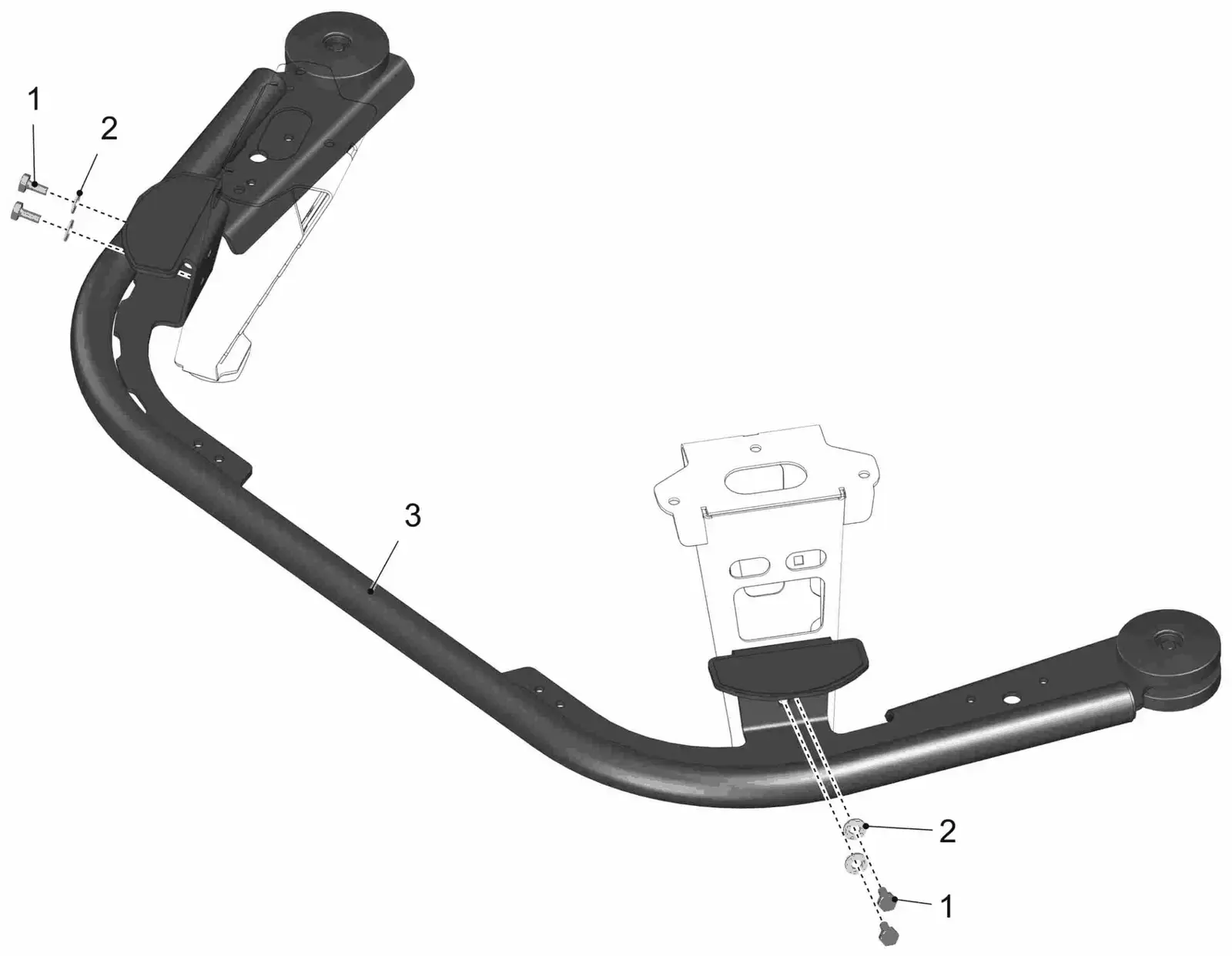

PowerBoss Scrubmaster B260R Front bumper disk brush head 1230 parts
Hako's front bumper disk brush head 1230 group (part of chassis), 3 lines. Fits the 48 in disc only. Manual pages 48D p27, list 48D p28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions48 in disc | $1.44/EA |
| 2 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions48 in disc | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97159503 | Bumper 1230Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Bumper 1230 |

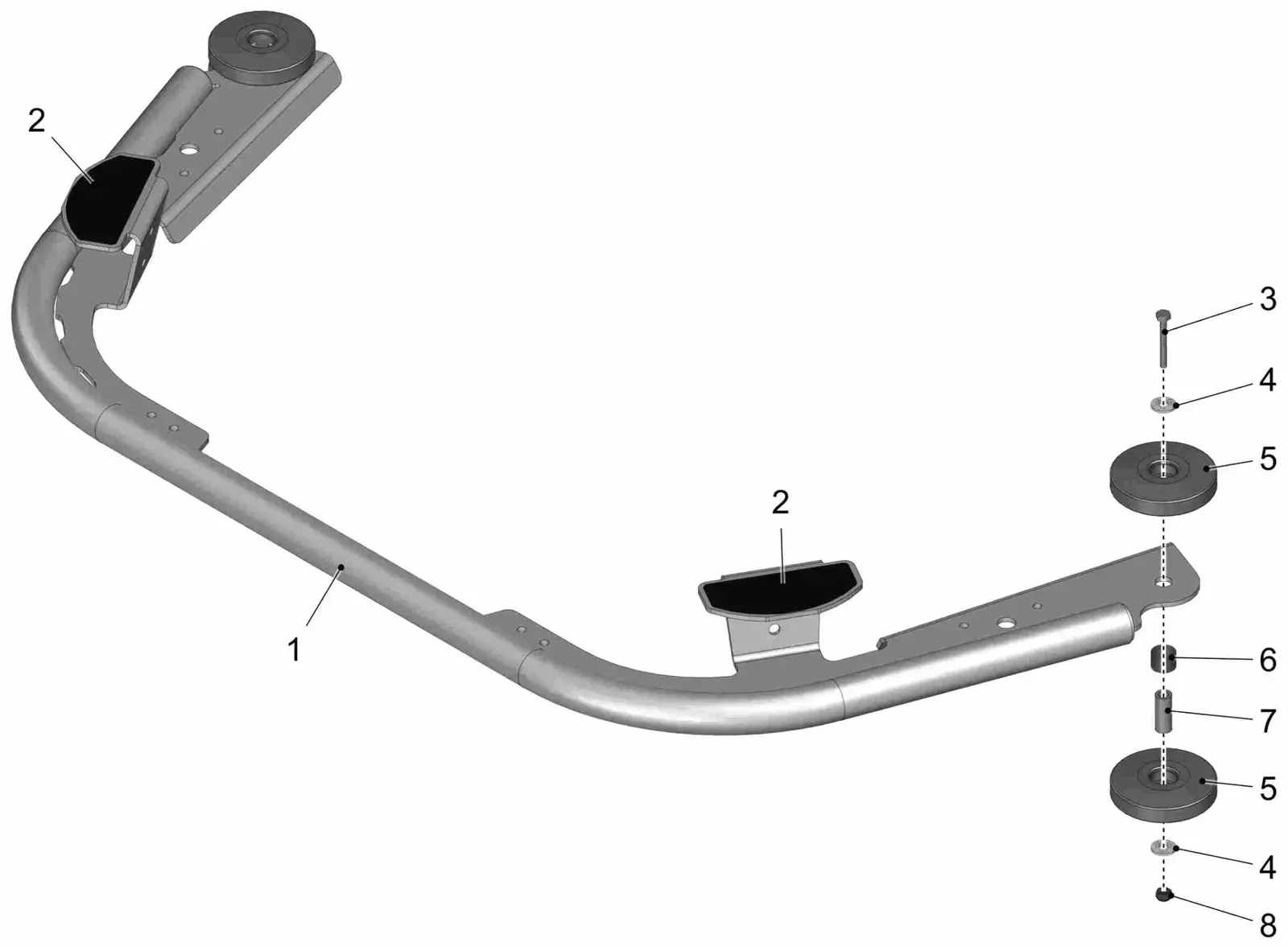

PowerBoss Scrubmaster B260R Bumper 1230 parts
Hako's bumper 1230 group (part of front bumper disk brush head 1230), 8 lines. Fits the 48 in disc only. Manual pages 48D p29, list 48D p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01380430 | 1 | bumper TB1230Fits 1 of 3 versions48 in disc | $502.33/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions48 in disc | $4.67/EA |
| 3 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions48 in disc | $1.05/EA |
| 4 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions48 in disc | $1.11/EA |
| 5 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions48 in disc | $4.29/EA |
| 6 | MM01228800 | 0.016 M | Hose 18x3Fits 1 of 3 versions48 in disc | $101.55/EA |
| 7 | MM00975110 | 2 | BushingFits 1 of 3 versions48 in disc | $8.47/EA |
| 8 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions48 in disc | $4.15/EA |

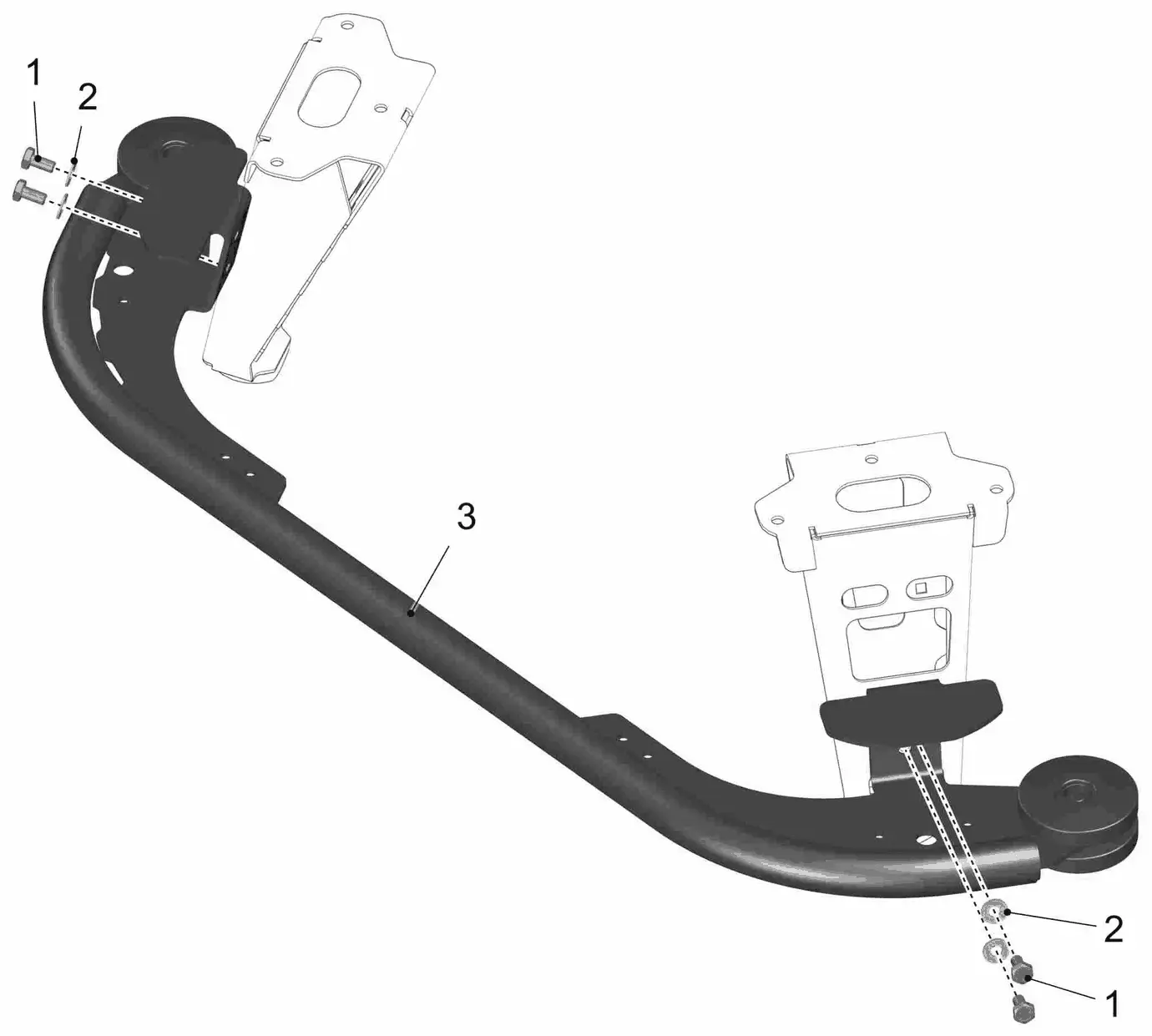

PowerBoss Scrubmaster B260R Front bumper disk side broom 1080 parts
Hako's front bumper disk side broom 1080 group (part of chassis), 3 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p27, list 42C p28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.44/EA |
| 2 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97158638 | Bumper SB1080Fits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Bumper SB1080 |

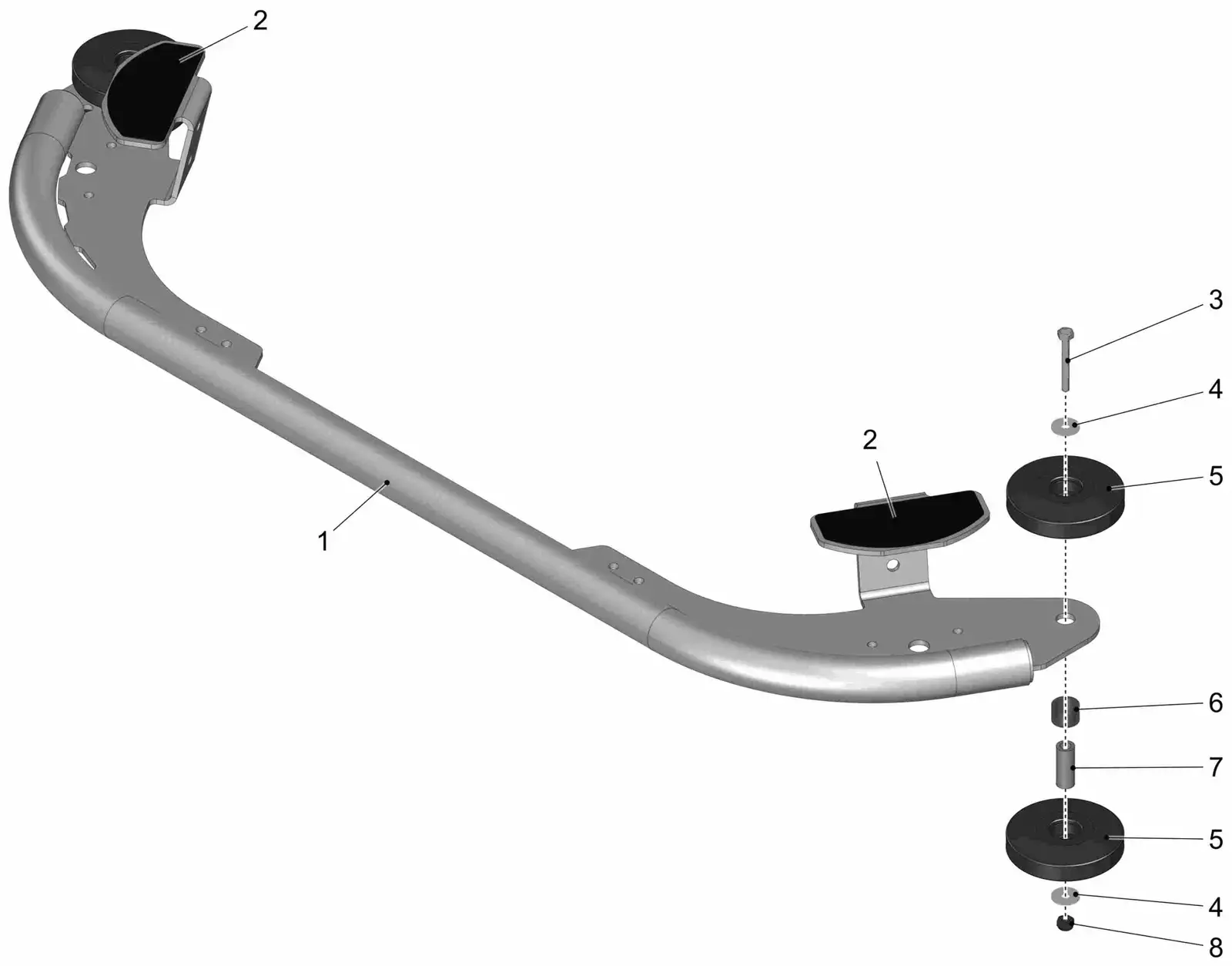

PowerBoss Scrubmaster B260R Bumper SB1080 parts
Hako's bumper SB1080 group (part of front bumper disk side broom 1080), 8 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p29, list 42C p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01382750 | 1 | bumper SB1080Fits 1 of 3 versions42 in cylindrical with side broom | $383.33/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions42 in cylindrical with side broom | $4.67/EA |
| 3 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 4 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42 in cylindrical with side broom | $1.11/EA |
| 5 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions42 in cylindrical with side broom | $4.29/EA |
| 6 | MM01228800 | 0.016 M | Hose 18x3Fits 1 of 3 versions42 in cylindrical with side broom | $101.55/EA |
| 7 | MM00975110 | 2 | BushingFits 1 of 3 versions42 in cylindrical with side broom | $8.47/EA |
| 8 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
PowerBoss Scrubmaster B260R Front bumper disk brush head 1080 parts
Hako's front bumper disk brush head 1080 group (part of chassis), 3 lines. Fits the 42 in disc only. Manual pages 42D p27, list 42D p28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions42 in disc | $1.44/EA |
| 2 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions42 in disc | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97155154 | Bumper 1080Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Bumper 1080 |

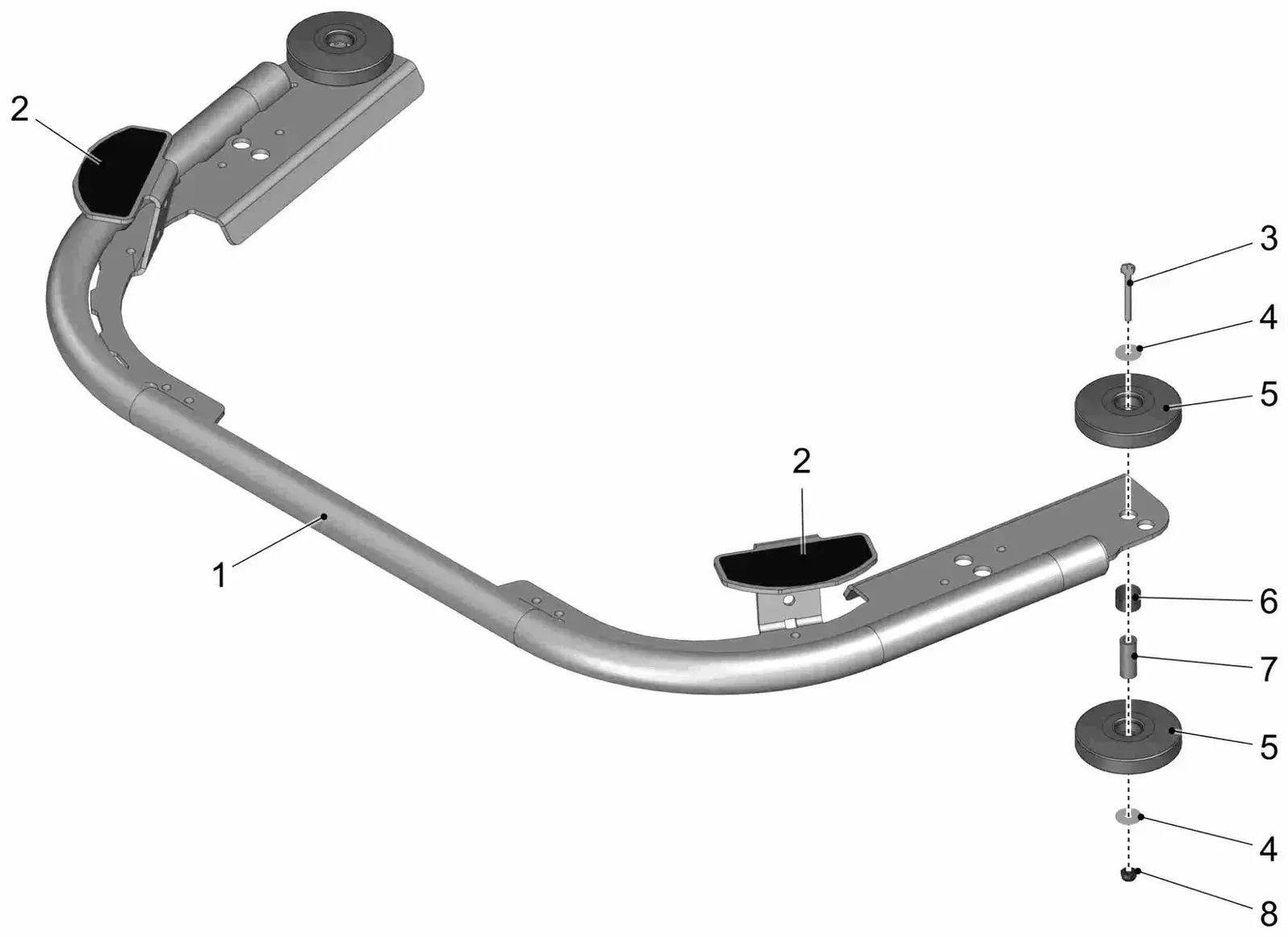

PowerBoss Scrubmaster B260R Bumper 1080 parts
Hako's bumper 1080 group (part of front bumper disk brush head 1080), 8 lines. Fits the 42 in disc only. Manual pages 42D p29, list 42D p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375450 | 1 | bumperFits 1 of 3 versions42 in disc | $525.08/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions42 in disc | $4.67/EA |
| 3 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions42 in disc | $1.05/EA |
| 4 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42 in disc | $1.11/EA |
| 5 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions42 in disc | $4.29/EA |
| 6 | MM01228800 | 0.016 M | Hose 18x3Fits 1 of 3 versions42 in disc | $101.55/EA |
| 7 | MM00975110 | 2 | BushingFits 1 of 3 versions42 in disc | $8.47/EA |
| 8 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in disc | $4.15/EA |

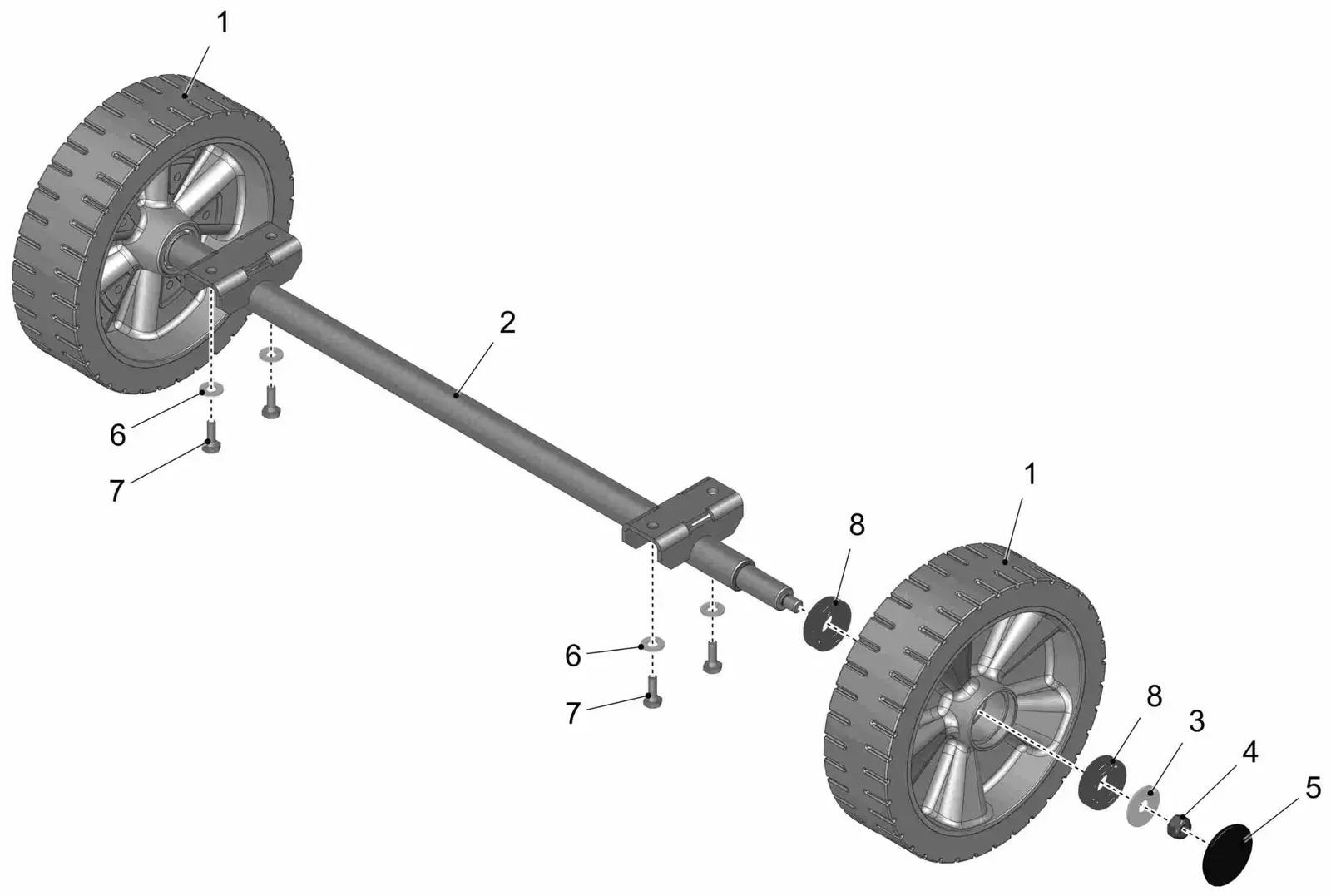

PowerBoss Scrubmaster B260R Rear axle, not driven parts
Hako's rear axle, not driven group (part of chassis), 8 lines. Shared by all three builds. Manual pages 42D p31, list 42D p32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375820 | 2 | driving wheelHako material no. 96165089. incl. item 8. | $779.75/EA |
| 2 | MM03021400 | 1 | axleHako material no. 96163894. | $383.12/EA |
| 3 | MM00954200 | 2 | Washer 16-200HV-N2 ISO 7093Hako material no. 12332102. | $1.22/EA |
| 4 | MM00135350 | 2 | Hex. Nut M16-6 A3G DIN 985Hako material no. 12040085. | $1.05/EA |
| 5 | MM01380260 | 2 | sealing plug 71,5Hako material no. 15590953. | $4.44/EA |
| 6 | MM00875950 | 4 | Washer SKM-12-dacromet.Hako material no. 12520079. | $1.05/EA |
| 7 | MM00053200 | 4 | hexagon screw M12x30-8.8-N3 ISO 4017Hako material no. 11038478. | $1.05/EA |
| 8 | MM00150290 | 2 | Deep groove ball bearing 6206-2RS DIN 625Hako material no. 14110670. content of item 1. | $28.15/EA |

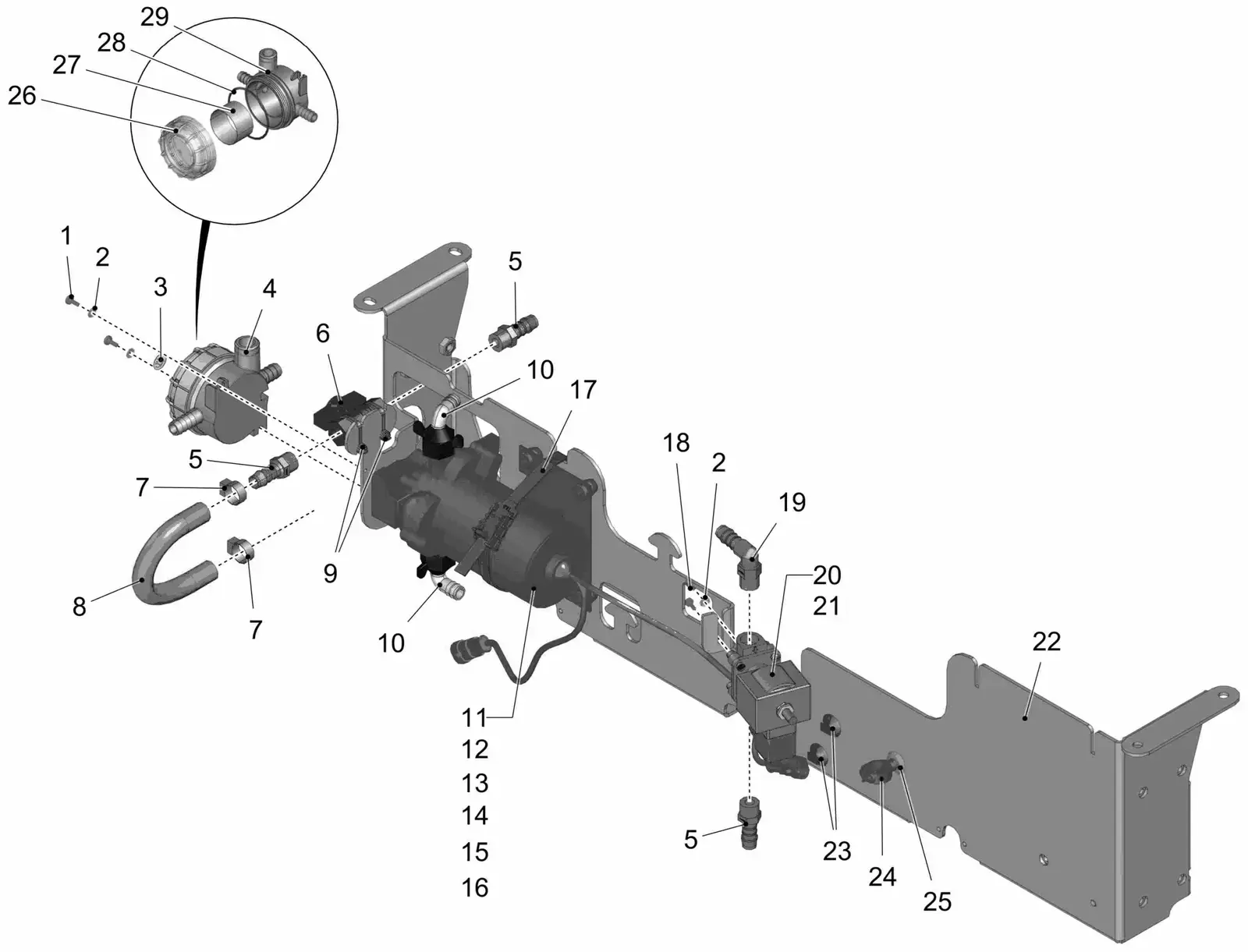

PowerBoss Scrubmaster B260R Water plate - base parts
Hako's water plate - base group (part of water plate), 29 lines. Shared by all three builds. Manual pages 42D p37, list 42D p38.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 2 | MM12310017 | 4 | Washer 4-200HV-N3 ISO 7089Hako part no. 00053710. | $1.38/EA |
| 3 | MM01179160 | 1 | Decal yellow pointHako material no. 17267717. | $1.05/EA |
| 4 | MM97113377 | 1 | Water filterHako part no. 01077170. incl. items 26-29. Includes item 29. | $55.34/EA |
| 5 | MM90310665 | 3 | screwed plug GES 12 R3/8Hako part no. 00976140. | $2.21/EA |
| 6 | MM00952760 | 1 | Ball tapHako material no. 90315375. | $42.91/EA |
| 7 | MM01389740 | 2 | hose clampHako material no. 17528332. | $2.33/EA |
| 8 | MM00112010 | 0.180 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,180 M. | $11.83/EA |
| 9 | MM90156688 | 2 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 10 | MM90330168 | 2 | Screwed angle fittingHako part no. 00154140. | $3.43/EA |
| 11 | MM90329095 | 1 | Pump 24V DCHako part no. 00543750. | $132.57/EA |
| 12 | MM19719517 | 1 | pin housingHako part no. 01135470. | $2.31/EA |
| 13 | MM01063790 | 2 | Pin contact 1,0-1,5Hako material no. 19719152. | $1.05/EA |
| 14 | MM19719145 | 2 | Gasket 1,8-2,4Hako part no. 00903580. | $1.08/EA |
| 15 | MM19724020 | 1 | Flat connector 6,3/1,5-2,5Hako part no. 00903190. | $1.08/EA |
| 16 | MM01052080 | 1 | Valve plate;for options | $95.77/EA |
| 17 | MM01073340 | 1 | Cable tieHako material no. 90436650. | $11.53/EA |
| 18 | MM11038965 | 2 | hexagon screw M4x10-8.8-N3 DIN 933Hako part no. 00058580. | $6.92/EA |
| 19 | MM90174970 | 1 | Angle socket "WES12R3/8"""Hako part no. 00020020. | $5.06/EA |
| 20 | MM90435595 | 1 | Electrovalve DL6 24V DCHako part no. 01071000. | $126.95/EA |
| 21 | MM01371990 | 1 | valve connectorHako material no. 90530635. | $45.53/EA |
| 22 | MM01375790 | 1 | sheet metalHako material no. 96162755. | $459.50/EA |
| 23 | MM01278080 | 2 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 24 | MM01370250 | 1 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 25 | MM01370240 | 1 | mounting feetHako material no. 17526237. | $1.05/EA |
| 26 | MM90576778 | 1 | Filter coverHako part no. 01177090. | $24.28/EA |
| 27 | MM90542549 | 1 | StrainerHako part no. 01178210. | $8.50/EA |
| 28 | MM15282155 | 1 | O-ring 62x2,5-N-NBR70 DIN 3771Hako part no. 01178130. | $1.28/EA |
| 29 | – | Part of the water filter assembly | Included in kitWater filter · MM97113377 › |

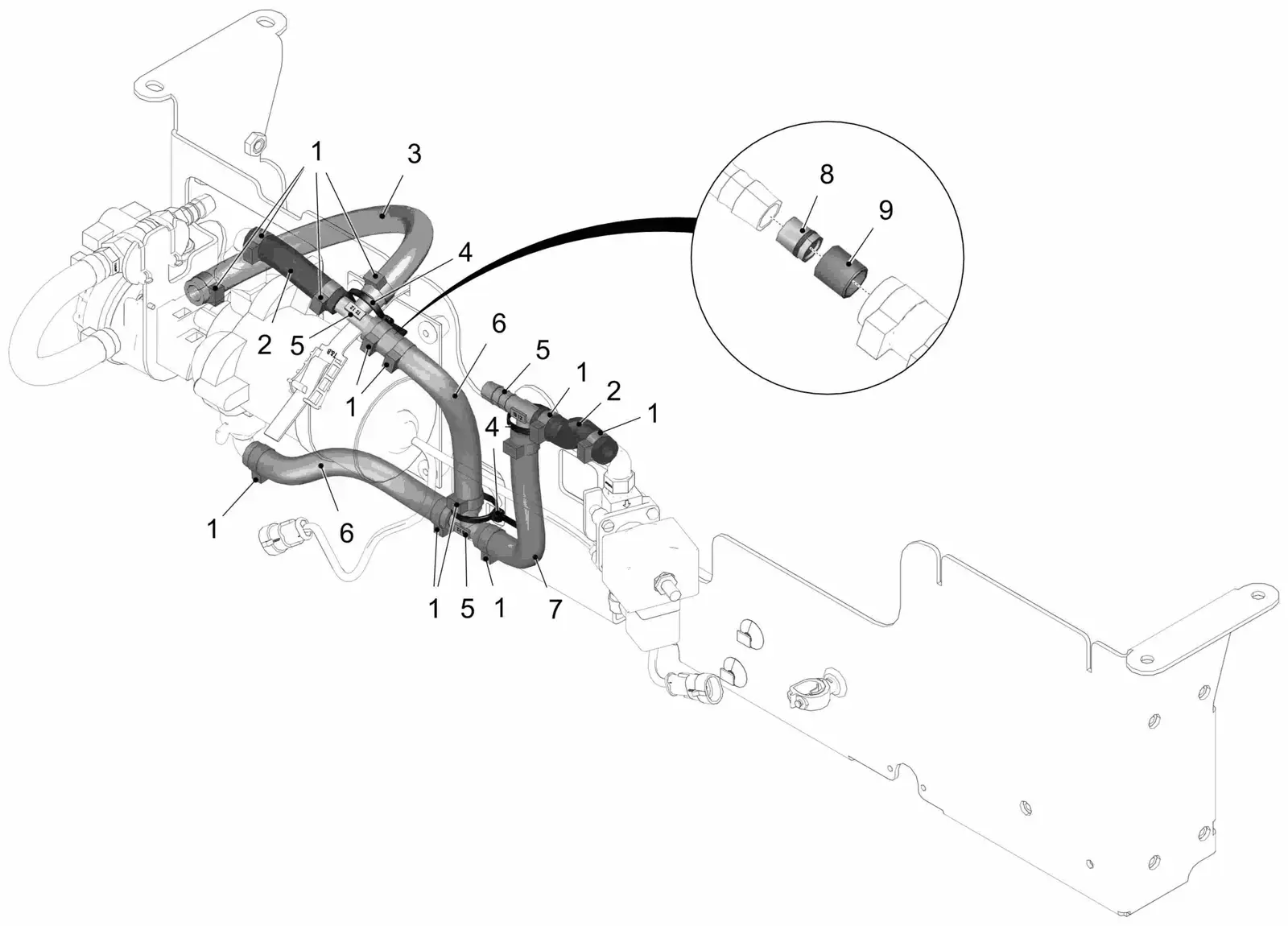

PowerBoss Scrubmaster B260R Without option onboard solution dosage but with spraying tools parts
Hako's without option onboard solution dosage but with spraying tools group (part of water plate), 9 lines. Shared by all three builds. Manual pages 42D p39, list 42D p40.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01376430 | 13 | hose clamp COBRA 18-8 W4Hako material no. 17528118. | $1.54/EA |
| 2 | MM00112010 | 0.080 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,080 M. | $11.83/EA |
| 3 | MM00112010 | 0.320 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,320 M. | $11.83/EA |
| 4 | MM90156688 | 3 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 5 | MM90310681 | 3 | T-piece TS12Hako part no. 00976160. | $5.25/EA |
| 6 | MM00112010 | 0.180 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,180 M. | $11.83/EA |
| 7 | MM00112010 | 0.140 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,140 M. | $11.83/EA |
| 8 | MM01371810 | 1 | recycling stopHako material no. 92032416. | $11.83/EA |
| 9 | MM01372620 | 1 | plain bearing bush GSM-1012-12Hako material no. 14895825. | $1.54/EA |

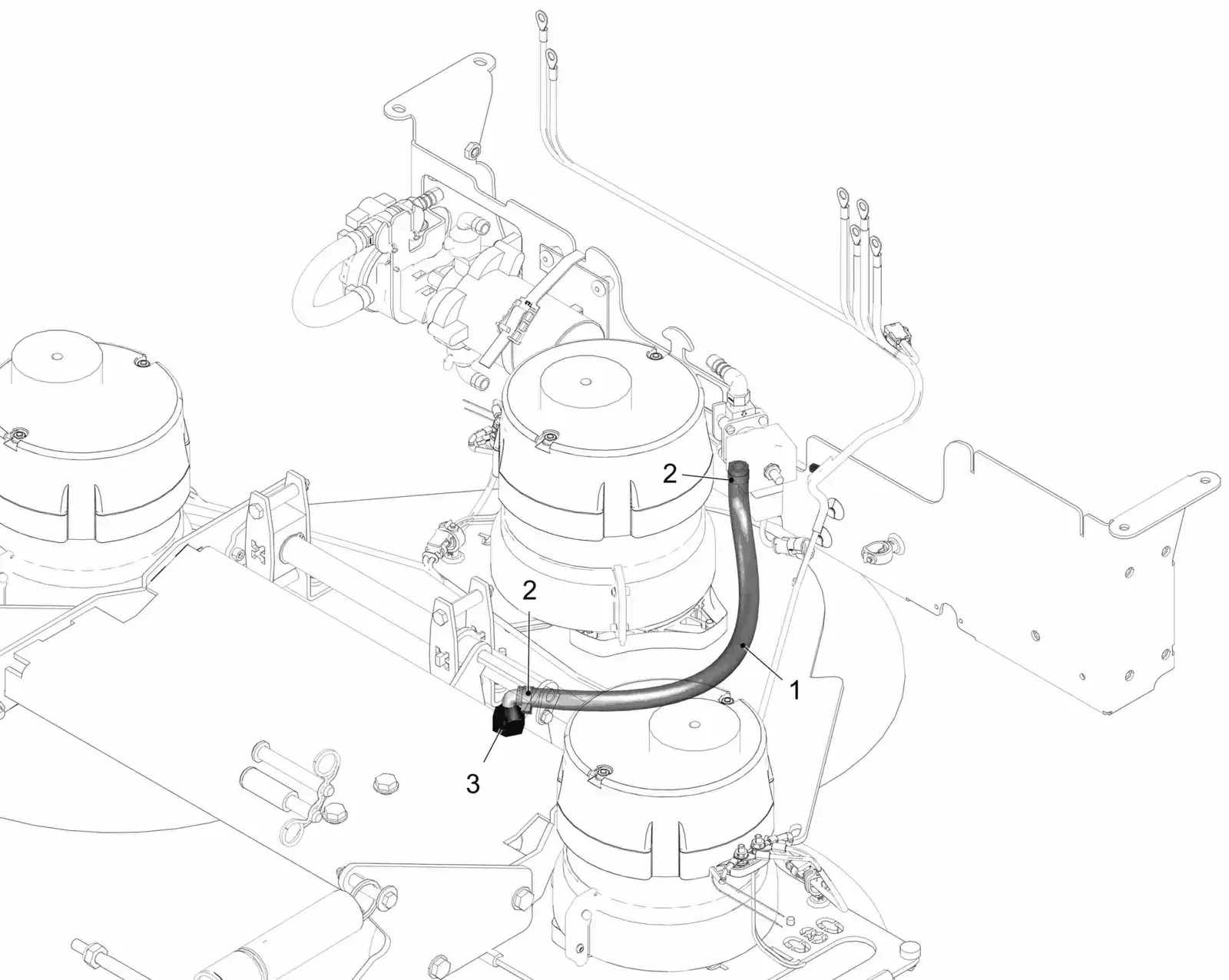

PowerBoss Scrubmaster B260R With disk brush head- 3 brushes parts
Hako's with disk brush head- 3 brushes group (part of water plate), 3 lines. Fits the 48 in disc only. Manual pages 48D p41, list 48D p42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00112010 | 0.530 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions48 in disc | $11.83/EA |
| 2 | MM01376430 | 2 | hose clamp COBRA 18-8 W4Fits 1 of 3 versions48 in disc | $1.54/EA |
| 3 | MM90330168 | 1 | Screwed angle fittingFits 1 of 3 versions48 in disc | $3.43/EA |

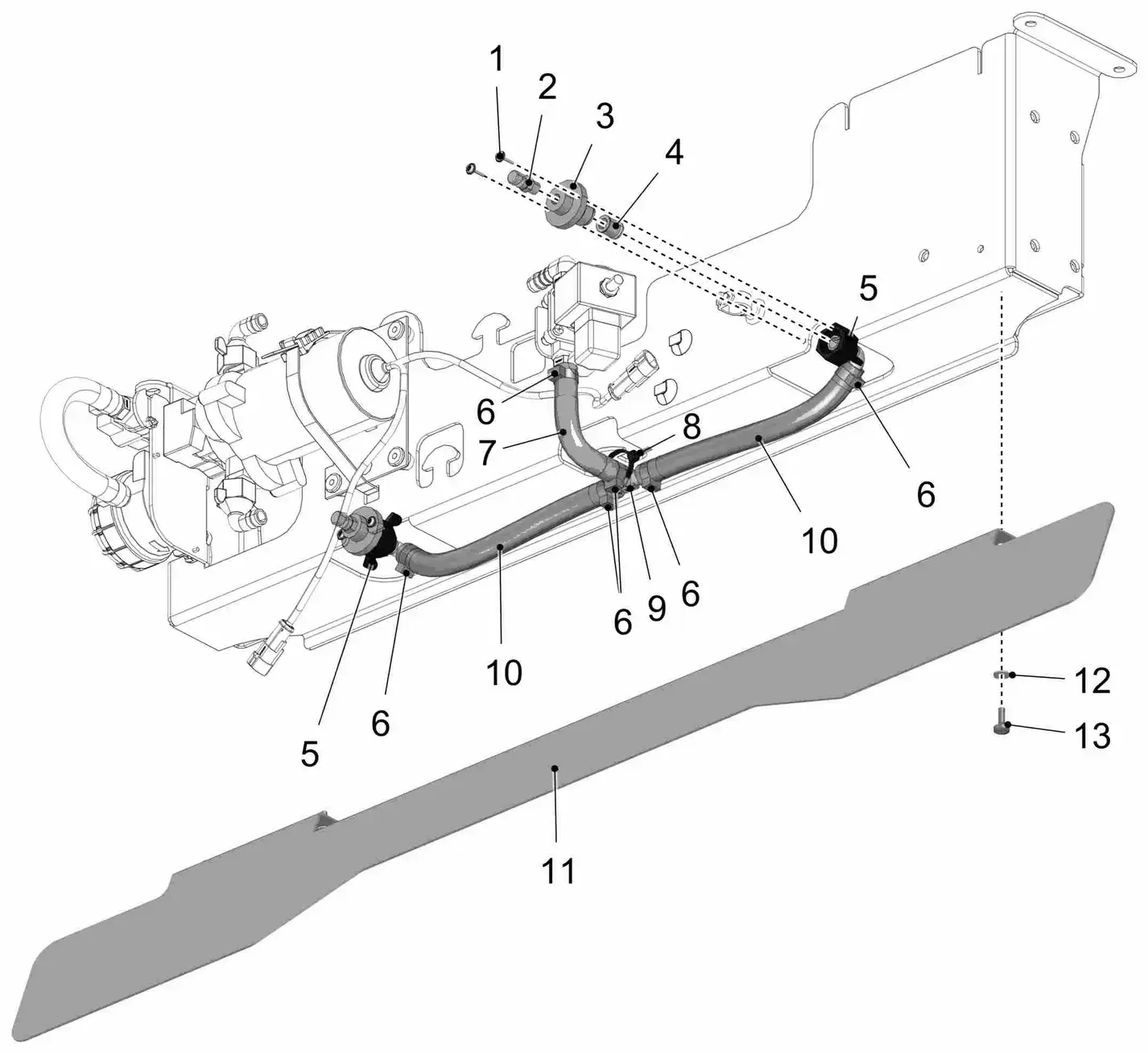

PowerBoss Scrubmaster B260R With cylindrical brush head 1080 parts
Hako's with cylindrical brush head 1080 group (part of water plate), 13 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p41, list 42C p42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11709244 | 4 | Screw 4x14 verzinkt DIN 7500Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 2 | MM90429952 | 1 | Jet 1-8 K5Fits 1 of 3 versions42 in cylindrical with side broom | $24.64/EA |
| 3 | MM01376880 | 1 | nozzle holderFits 1 of 3 versions42 in cylindrical with side broom | $35.98/EA |
| 4 | – | No longer Available.Fits 1 of 3 versions42 in cylindrical with side broom | ||
| 5 | MM90330168 | 2 | Screwed angle fittingFits 1 of 3 versions42 in cylindrical with side broom | $3.43/EA |
| 6 | MM01376430 | 6 | hose clamp COBRA 18-8 W4Fits 1 of 3 versions42 in cylindrical with side broom | $1.54/EA |
| 7 | MM00112010 | 0.115 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions42 in cylindrical with side broom | $11.83/EA |
| 8 | MM90156688 | 1 | Cable tie 4,8x360Fits 1 of 3 versions42 in cylindrical with side broom | $2.06/EA |
| 9 | MM90310681 | 1 | T-piece TS12Fits 1 of 3 versions42 in cylindrical with side broom | $5.25/EA |
| 10 | MM00112010 | 0.220 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions42 in cylindrical with side broom | $11.83/EA |
| 11 | MM01381490 | 1 | apronFits 1 of 3 versions42 in cylindrical with side broom | $127.72/EA |
| 12 | MM00740280 | 4 | Washer SKS-6-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 13 | MM00539730 | 4 | Screw M6x16-St A3G Kombit. DIN 7500Fits 1 of 3 versions42 in cylindrical with side broom | $1.00/EA |

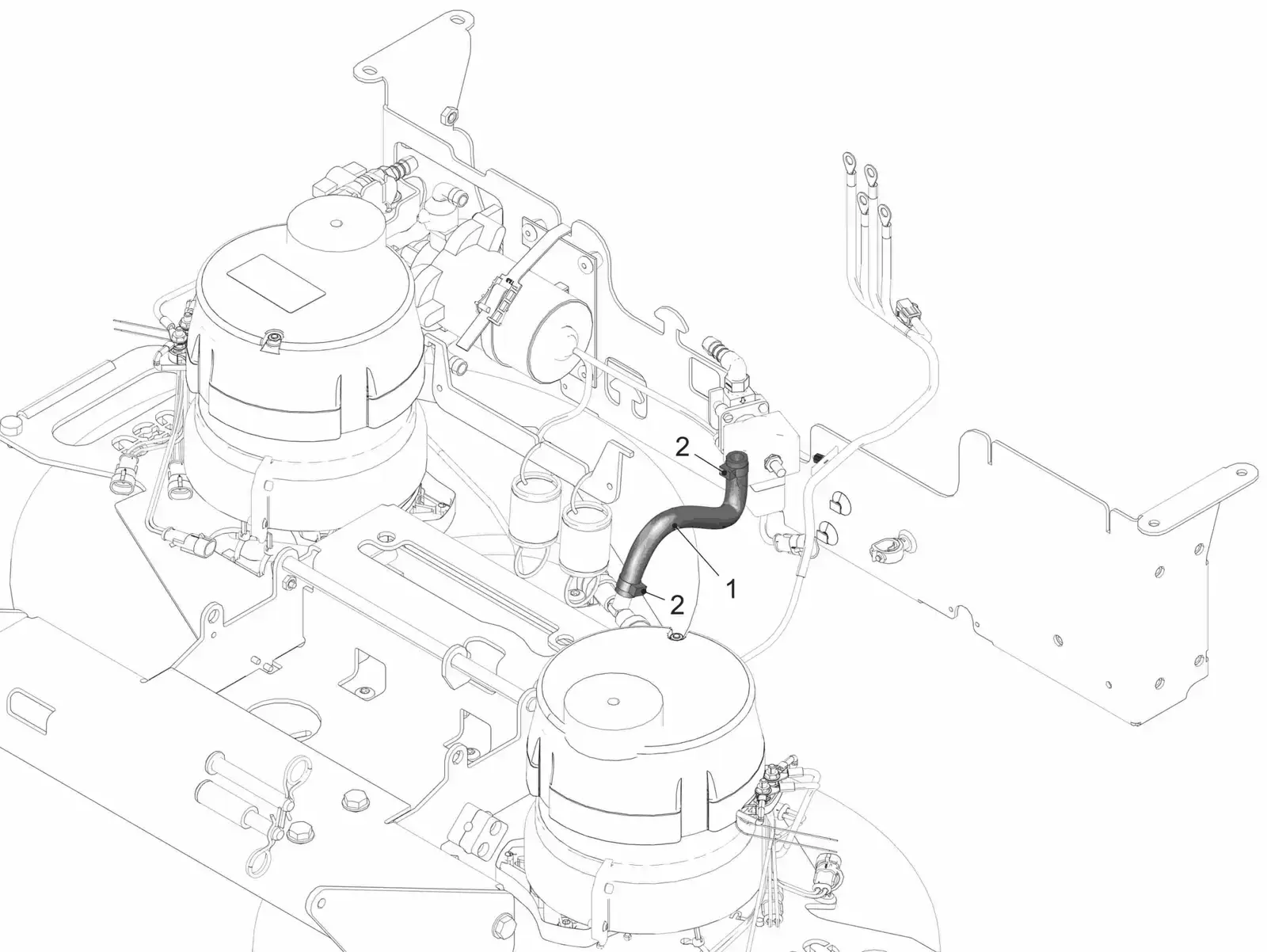

PowerBoss Scrubmaster B260R With disk brush head- 2 brushes parts
Hako's with disk brush head- 2 brushes group (part of water plate), 2 lines. Fits the 42 in disc only. Manual pages 42D p41, list 42D p42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00112010 | 0.220 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions42 in disc | $11.83/EA |
| 2 | MM01376430 | 2 | hose clamp COBRA 18-8 W4Fits 1 of 3 versions42 in disc | $1.54/EA |

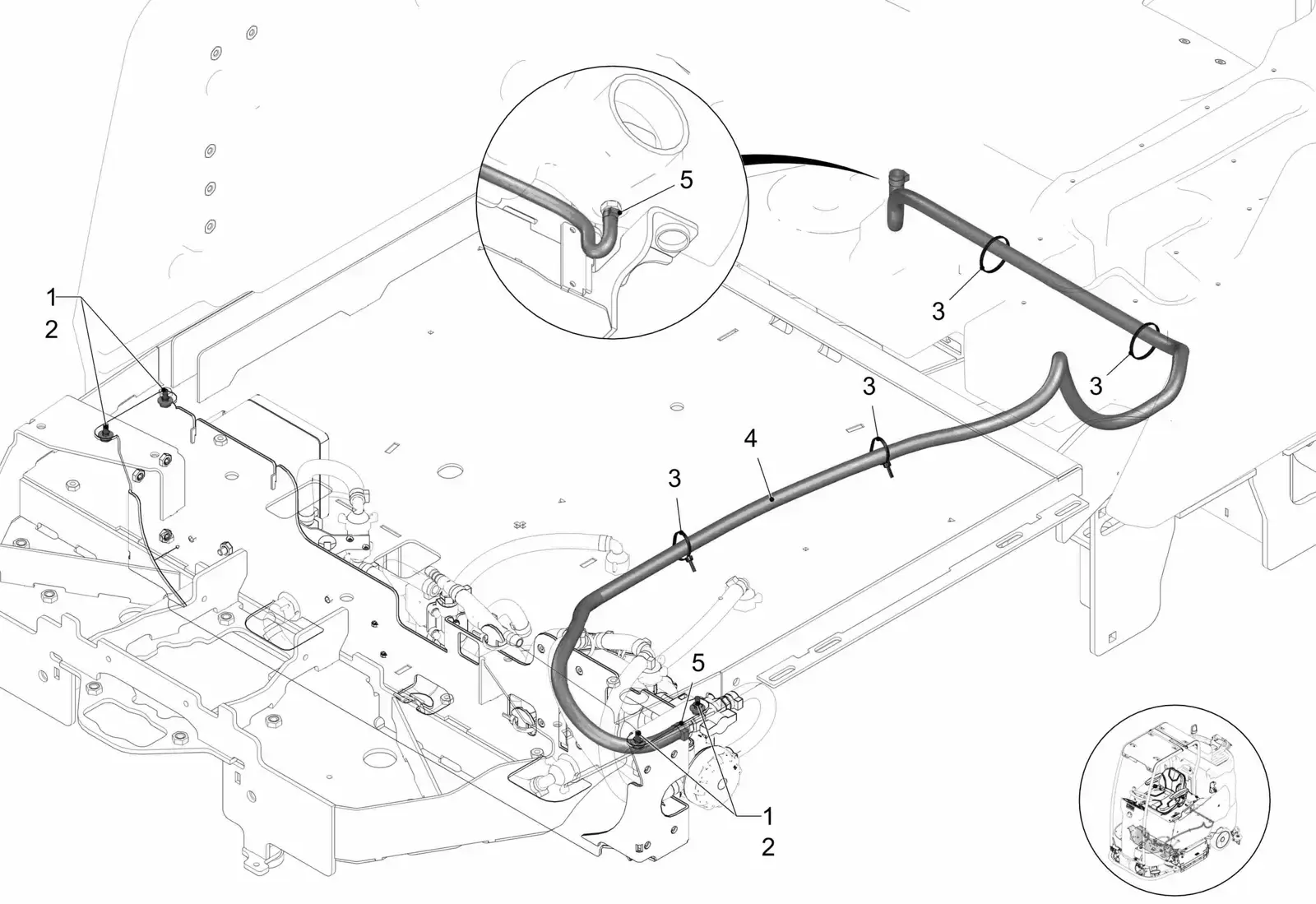

PowerBoss Scrubmaster B260R Tank connection water system parts
Hako's tank connection water system group (part of water system), 5 lines. Shared by all three builds. Manual pages 42D p43, list 42D p44.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038197 | 4 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 2 | MM00740090 | 4 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 3 | MM90156688 | 4 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 4 | MM00112010 | 2.250 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 2,250 M. | $11.83/EA |
| 5 | MM01376430 | 2 | hose clamp COBRA 18-8 W4Hako material no. 17528118. | $1.54/EA |

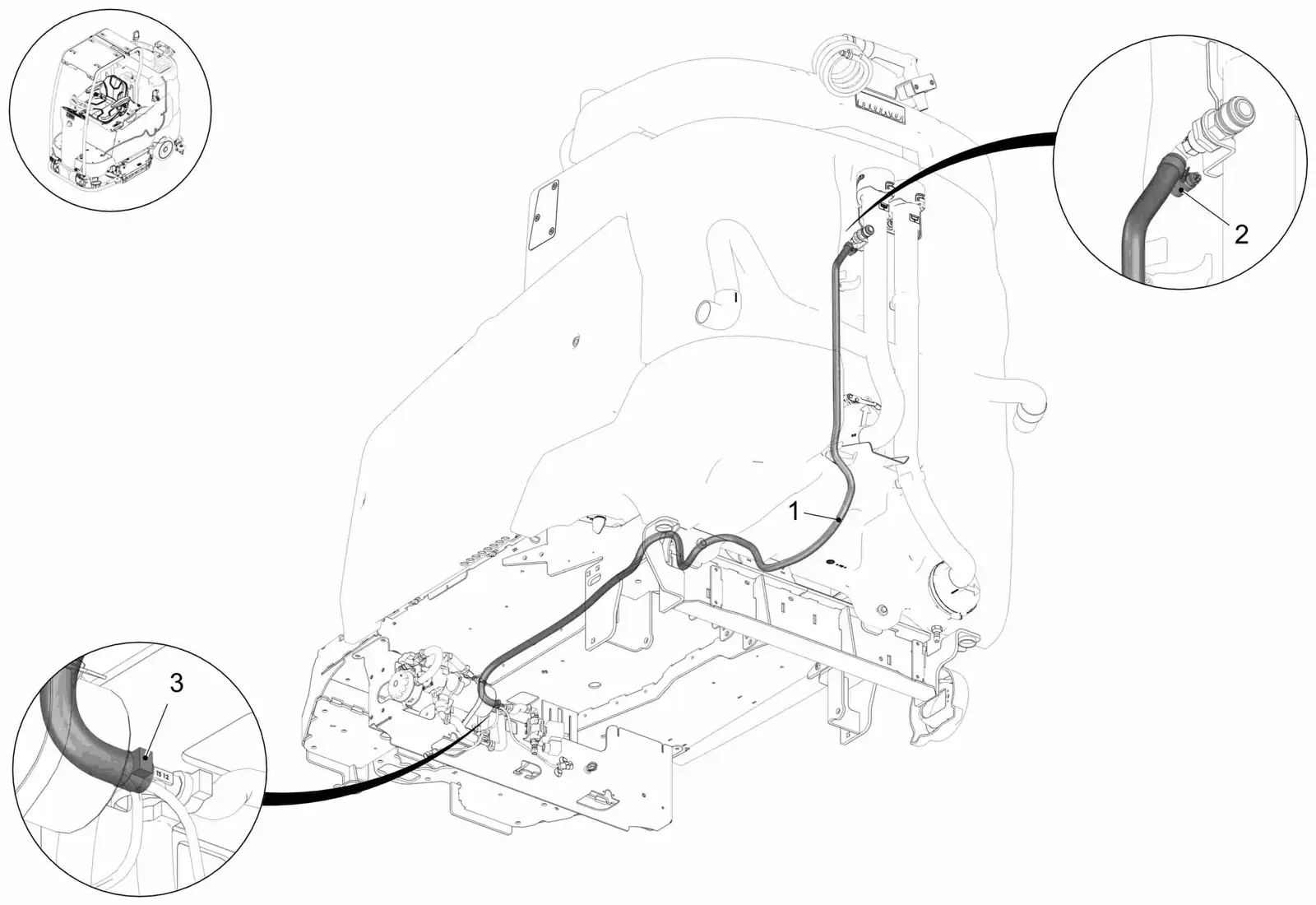

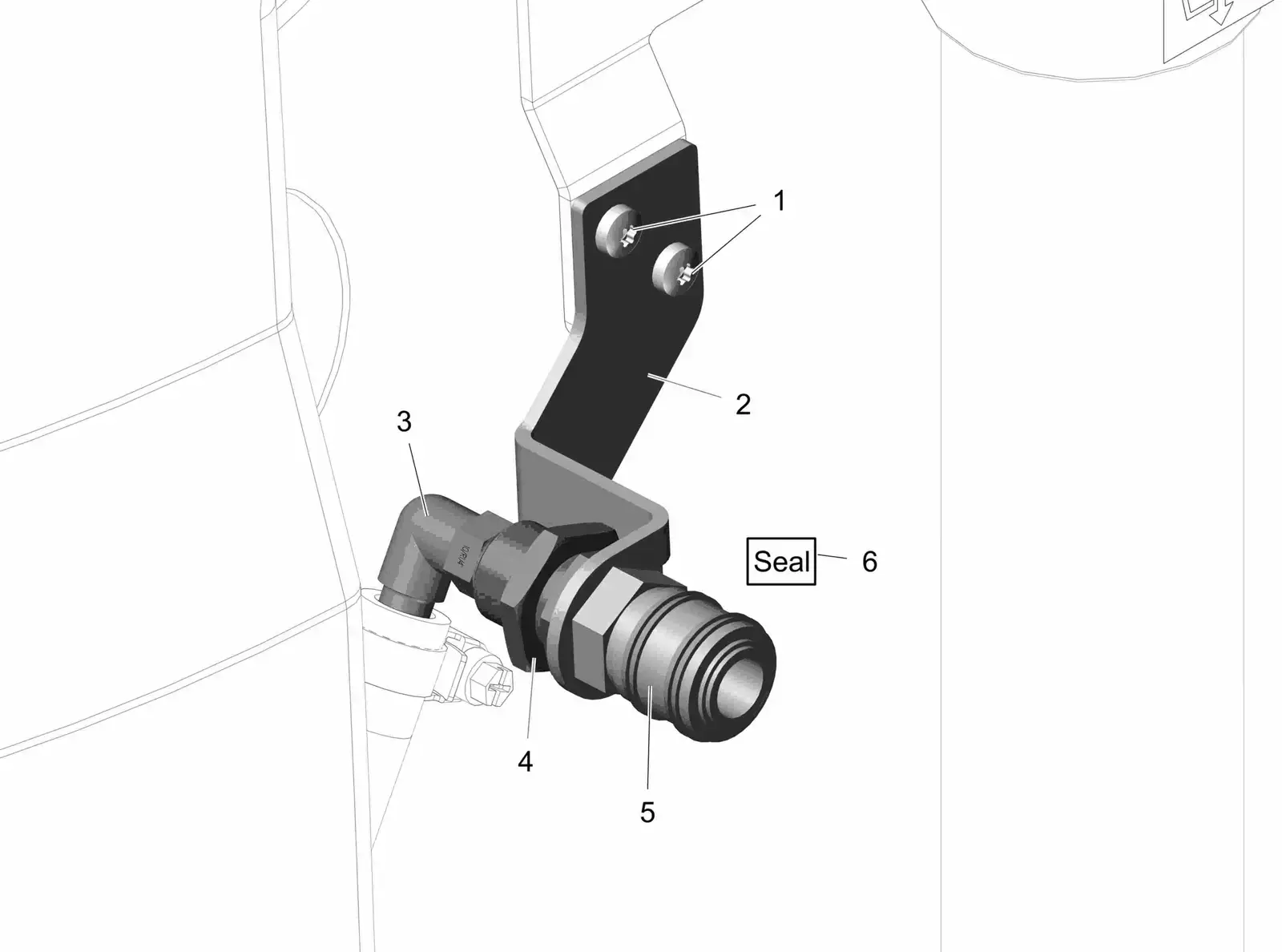

PowerBoss Scrubmaster B260R Preliminary parts for spraying tools
Hako's preliminary parts for spraying tools group (part of water system), 3 lines. Shared by all three builds. Manual pages 42D p45, list 42D p46.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00112010 | 2.250 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 2,250 M. | $11.83/EA |
| 2 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako material no. 17533159. | $5.02/EA |
| 3 | MM01376430 | 1 | hose clamp COBRA 18-8 W4Hako material no. 17528118. | $1.54/EA |

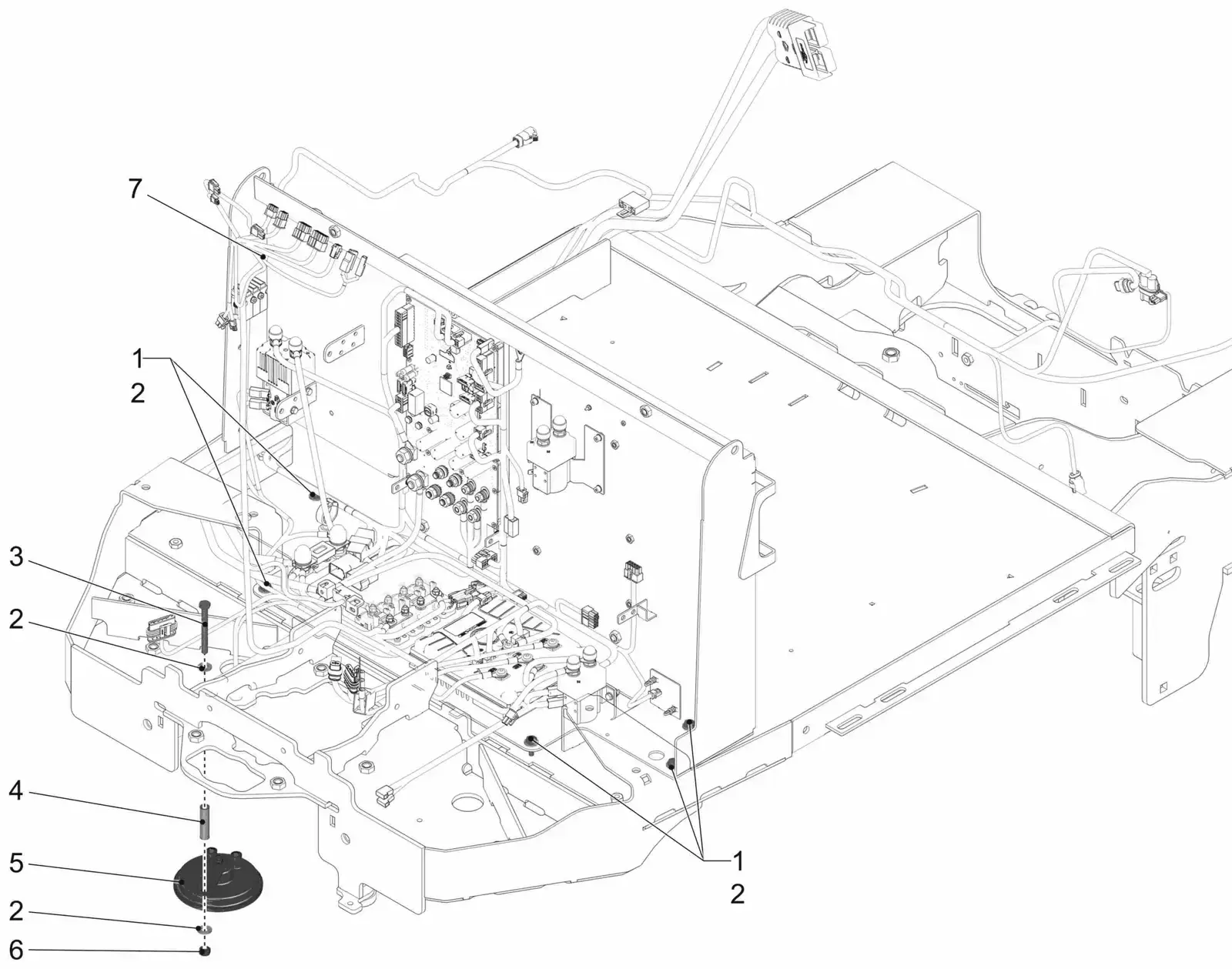

PowerBoss Scrubmaster B260R Electric equipment parts
Hako's electric equipment group (part of elektric system), 9 lines. Lines tagged with a build fit only that build. Manual pages 42D p49, list 42D p50.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038213 | 5 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 2 | MM00740090 | 7 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 3 | MM01073400 | 1 | hexagon screw M8x70-8.8 ISO 4014Hako material no. 11033040. | $1.05/EA |
| 4 | MM01373300 | 1 | distance pieceHako material no. 92014281. | $6.22/EA |
| 5 | MM00050810 | 1 | Signal horn 40V HellaHako material no. 90194911. | $205.40/EA |
| 6 | MM12022059 | 1 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 7 | Not sold separatelyPowerBoss 97148092 | Electric plate, configurableFits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Base electric plate, Electric plate without 4-wheel drive, Electric plate with option pre-sweep unit, Electric plate with operation of pre-sweep unit or 3-disk brush head, Wiring harness battery connection and Electric plate with option side broom system | |
| 7 | Not sold separatelyPowerBoss 97148092 | Electric plate, configurableFits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Base electric plate, Electric plate without 4-wheel drive, Electric plate with option pre-sweep unit, Electric plate with operation of pre-sweep unit or 3-disk brush head, Wiring harness battery connection and Electric plate with option side broom system | |
| 7 | Not sold separatelyPowerBoss 97148092 | Electric plate, configurableFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Base electric plate, Electric plate without 4-wheel drive, Electric plate with option pre-sweep unit, Electric plate with operation of pre-sweep unit or 3-disk brush head, Wiring harness battery connection and Electric plate with option side broom system |

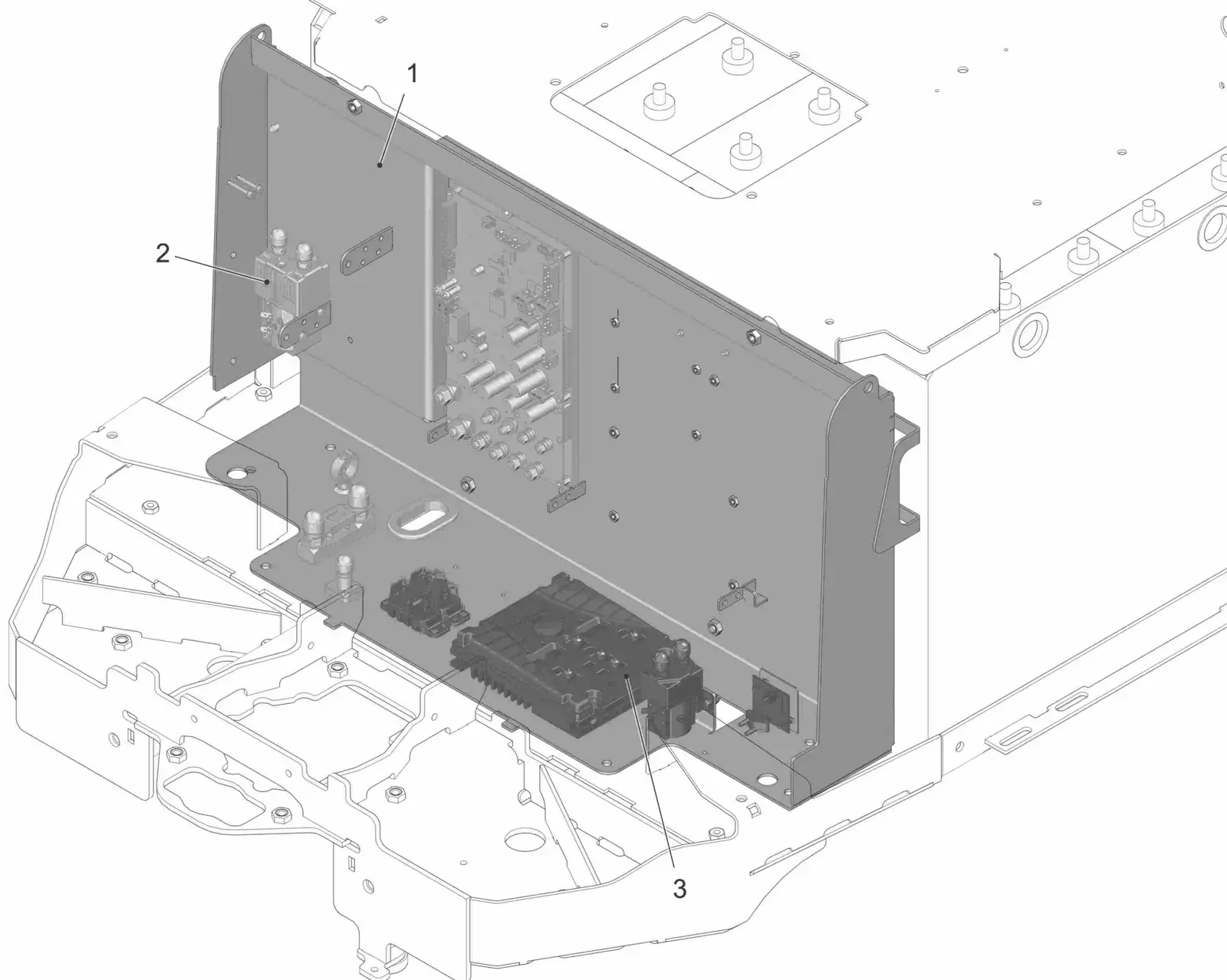

PowerBoss Scrubmaster B260R Base electric plate parts
Hako's base electric plate group (part of electric plate, configurable), 3 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p52, list 42C p53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03021500 | 1 | carrierFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $634.01/EA |
| 2 | Not sold separatelyPowerBoss 97148100-1 | Base electric plate, part 1Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | Not sold separately. Its parts are listed under Base electric plate, part 1 | |
| 3 | Not sold separatelyPowerBoss 97148100-2 | Base electric plate, part 2Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | Not sold separately. Its parts are listed under Base electric plate, part 2 |

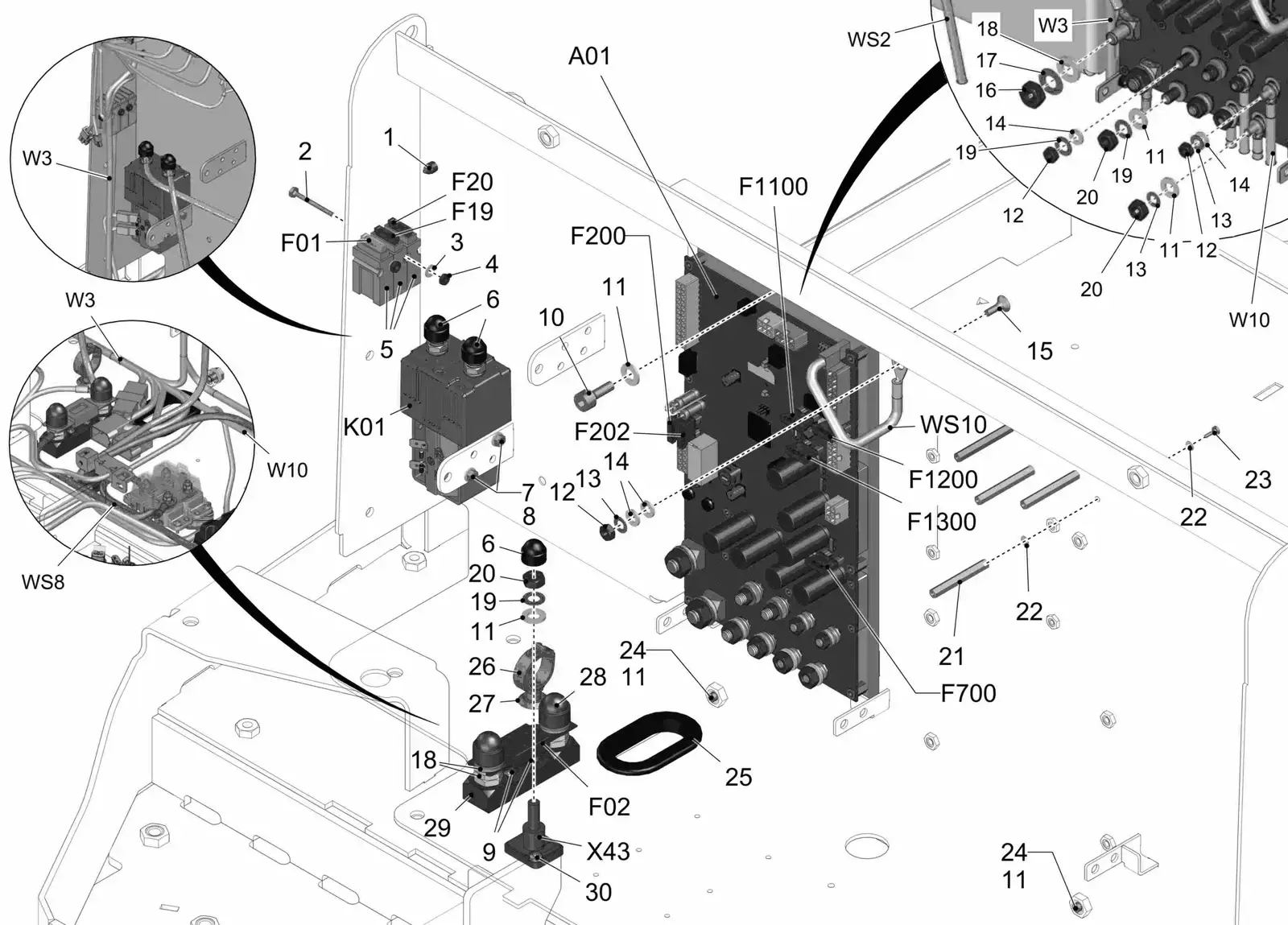

PowerBoss Scrubmaster B260R Base electric plate, part 1
Hako's base electric plate, part 1 group (part of base electric plate), 48 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p54, list 42C p55-56.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01493500 | 1 | Retainer NW7,5Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 2 | MM01130570 | 2 | hexagon screw M4x35-8.8-N3 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 3 | MM12310017 | 2 | Washer 4-200HV-N3 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 4 | MM00052810 | 2 | Hex. Nut M4-8 A2G DIN 934Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 5 | MM00733650 | 3 | Fuse holderFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2.06/EA |
| 6 | MM15592033 | 3 | Lens cap 1000/893 SWFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.55/EA |
| 7 | MM00054680 | 2 | hexagon screw M5x10-8.8-N3 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $3.94/EA |
| 8 | MM12310025 | 4 | Washer 5-200HV-N2 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 9 | MM01272680 | 2 | Screw PE M4x16-St A2L DIN 7500Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 10 | MM00045540 | 1 | socket head screw M8x20-8.8-N3 ISO 4762Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 11 | MM12310041 | 8 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2.75/EA |
| 12 | MM12022042 | 5 | Hex. Nut M6-8 A2G DIN 934Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.08/EA |
| 13 | MM00053840 | 5 | Spring washer B6 A2G DIN 137Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2.43/EA |
| 14 | MM12310033 | 6 | Washer 6-200HV-N2 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 15 | MM00872460 | 1 | Countersunk screw M6x16-8.8-N2 ISO 10642Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $9.31/EA |
| 16 | MM12022067 | 2 | Hex. Nut M10-8 A3G DIN 934Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.15/EA |
| 17 | MM00053860 | 2 | Spring washer B10 A3G DIN 137Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 18 | MM12310058 | 3 | Washer 10-200HV-N3 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.15/EA |
| 19 | MM00053850 | 5 | Spring washer B8 A2G DIN 137Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 20 | MM12022059 | 5 | Hex. Nut M8-8 A2G DIN 934Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $5.51/EA |
| 21 | MM01376610 | 4 | spacer bolt M3Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.54/EA |
| 22 | MM12310132 | 8 | Washer 3-200HV-N3 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 23 | MM00535780 | 4 | lens head screw M3x10-4.8-H-N2 ISO 7045Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 24 | MM00151810 | 2 | hexagon screw M8x12-8.8-N3 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $0.90/EA |
| 25 | MM90513367 | 1 | GrommetFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $11.08/EA |
| 26 | MM01476570 | 1 | retainer Ø20Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.11/EA |
| 27 | MM01370240 | 1 | mounting feetFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 28 | MM15592041 | 2 | Lens cap 1000/1072 SWFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.60/EA |
| 29 | MM00121440 | 1 | fuse holder (display not current, see document links) M10Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $129.85/EA |
| 30 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| A01 | MM01385160 | 1 | controllerFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2,503.58/EA |
| F01 | MM01371450 | 1 | fuse link 7,5A 80VFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $3.90/EA |
| F02 | MM00059580 | 1 | Fuse B125 DIN 43560Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $13.47/EA |
| F19 | MM00874950 | 1 | Fuse C5A/80V-3 DIN 72581Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $3.90/EA |
| F20 | MM00874950 | 1 | Fuse C5A/80V-3 DIN 72581Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $3.90/EA |
| F200 | MM01376830 | 1 | fuse link FKS C3A 80VFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $5.44/EA |
| F202 | MM01376830 | 1 | fuse link FKS C3A 80VFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $5.44/EA |
| F700 | MM01376770 | 1 | fuse link FKS C25A 80VFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $5.44/EA |
| F1100 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.31/EA |
| F1200 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.31/EA |
| F1300 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.31/EA |
| K01 | MM01371500 | 1 | solenoid switch 1pol. 150A SPST / 36VFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $148.18/EA |
| W3 | MM03021720 | 1 | wiring harness W3Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1,911.03/EA |
| W10 | MM03021610 | 1 | wiring harness W10Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $219.77/EA |
| WS2 | MM03021870 | 1 | cable loom WS2Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $142.93/EA |
| WS8 | MM03021850 | 1 | wiring harness WS8Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $143.96/EA |
| WS10 | MM03020420 | 1 | cable loom WS10Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $15.55/EA |
| X43 | MM00744670PowerBoss 00744670 | 1 | Single clamp EKS127AFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | Call to confirm part: 800-440-6723 |

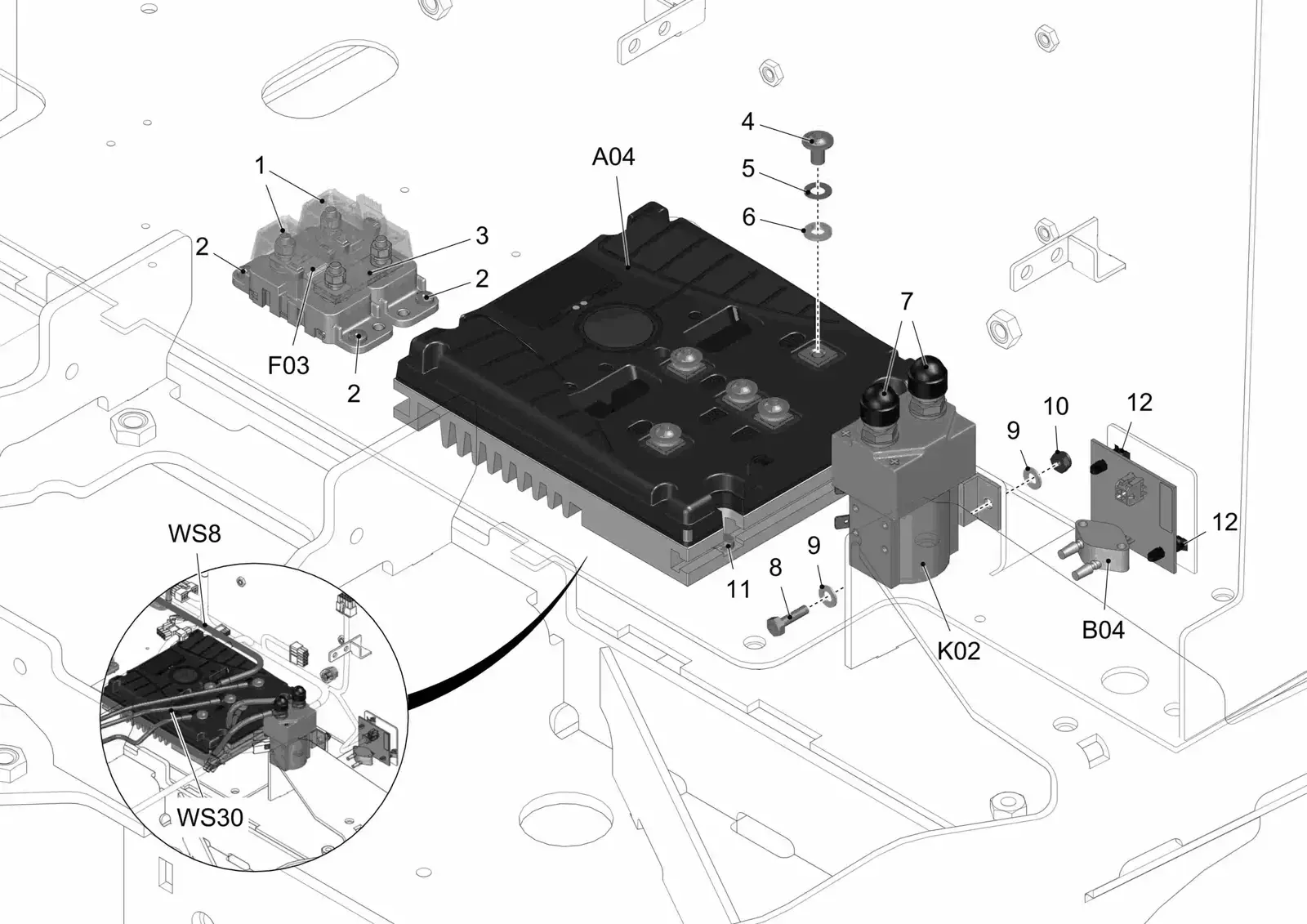

PowerBoss Scrubmaster B260R Base electric plate, part 2
Hako's base electric plate, part 2 group (part of base electric plate), 18 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p57, list 42C p58.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01473870 | 2 | Fuse holderFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $15.55/EA |
| 2 | MM01112160 | 4 | Screw PE M4x10-St A2B DIN 7500Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 3 | MM01376390 | 1 | current barFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $10.11/EA |
| 4 | MM11177179 | 5 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.73/EA |
| 5 | MM00053840 | 5 | Spring washer B6 A2G DIN 137Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2.43/EA |
| 6 | MM12310033 | 5 | Washer 6-200HV-N2 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 7 | MM15592033 | 2 | Lens cap 1000/893 SWFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.55/EA |
| 8 | MM11038049 | 2 | hexagon screw M5x16-8.8-N3 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.08/EA |
| 9 | MM12310025 | 2 | Washer 5-200HV-N2 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 10 | MM12040036 | 2 | Hex. Nut M5-6 A2G DIN 985Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $2.75/EA |
| 11 | MM00959220 | 4 | Screw C M5x12-St A2G TORX DIN 7500Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 12 | MM00745840 | 2 | Print plate holder 4,8Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| A04 | MM01375880 | 1 | driving control AC 36V 180AFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1,279.86/EA |
| B04 | MM01371480 | 1 | pressure sensorFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $277.58/EA |
| F03 | MM01371300 | 1 | fuse link 150A Midi 58VDCFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.67/EA |
| K02 | MM00965060 | 1 | Solenoid switch 120ECS 40V ELMAFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $146.64/EA |
| WS8 | MM03021850 | 1 | wiring harness WS8Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $143.96/EA |
| WS30 | MM03020280 | 1 | wiring harness W30Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $125.11/EA |

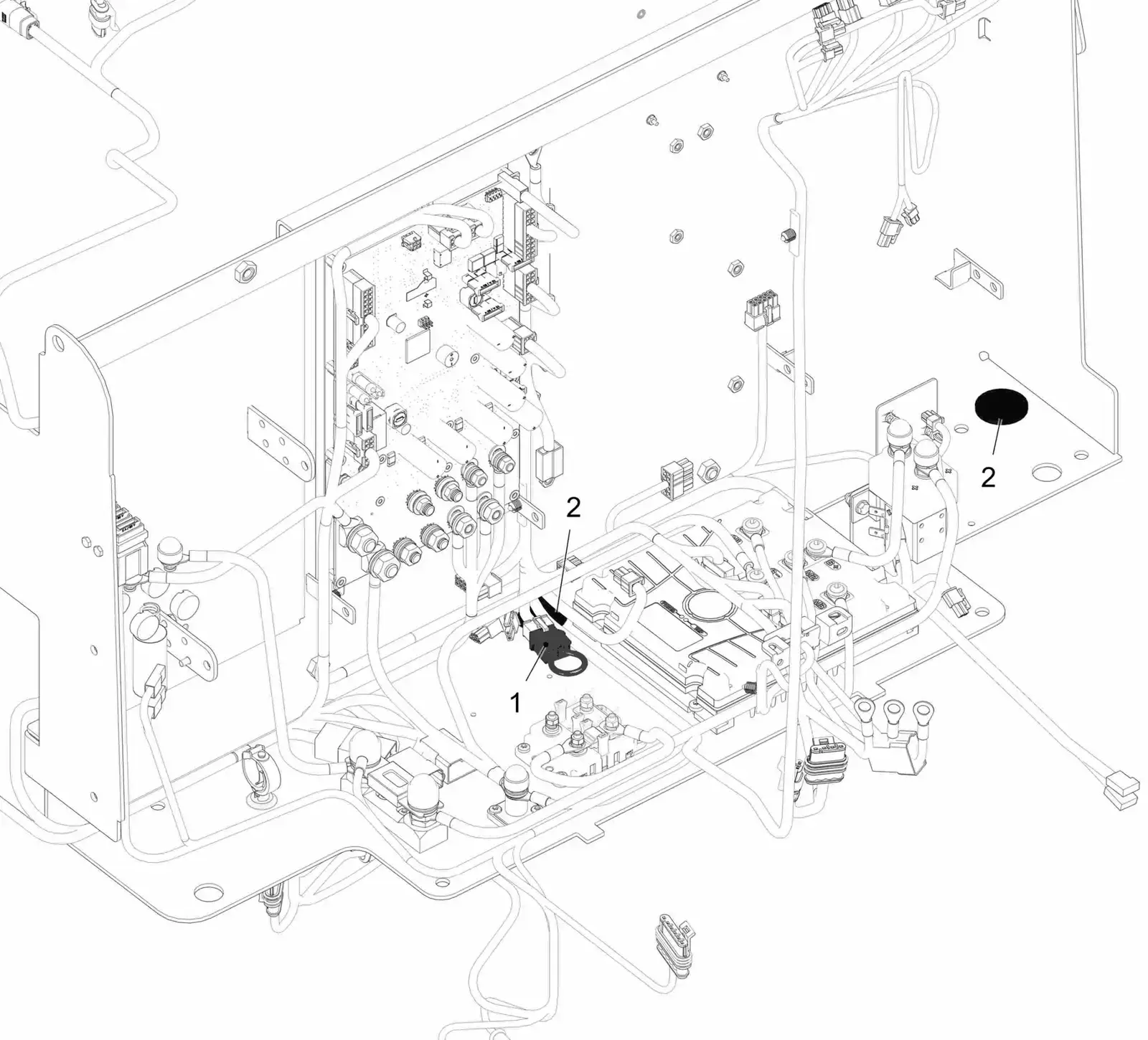

PowerBoss Scrubmaster B260R Electric plate without 4-wheel drive parts
Hako's electric plate without 4-wheel drive group (part of electric plate, configurable), 2 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p59, list 42C p60.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03020460 | 1 | cable loom WS6Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $18.49/EA |
| 2 | MM00130790 | 2 | Drain plug F24 SWFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |

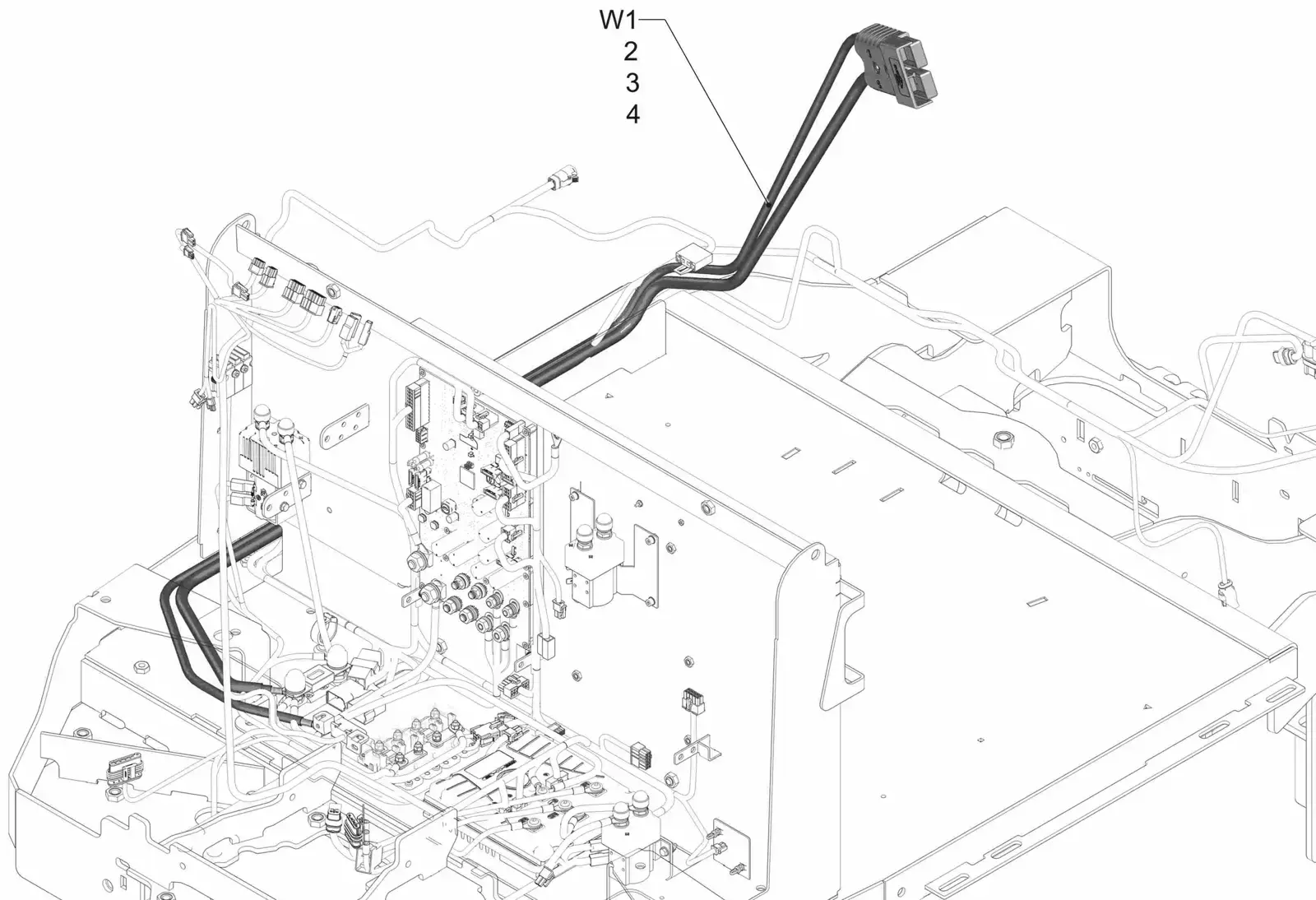

PowerBoss Scrubmaster B260R Wiring harness battery connection parts
Hako's wiring harness battery connection group (part of electric plate, configurable), 4 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p61, list 42C p62.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | MM01163580 | 0.100 M | Shrinkable tube 19,1x0,8-PVC bl-HTS-B11Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $6.58/EA |
| 3 | MM01377150 | 0.100 M | heat shrink tube 19,1x0,8-PVC 2 1 red :Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $7.79/EA |
| 4 | MM01497550 | 1.530 M | corrugated hose NW23Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $15.55/EA |
| W1 | MM03021920 | 1 | wiring harness W1Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $544.56/EA |

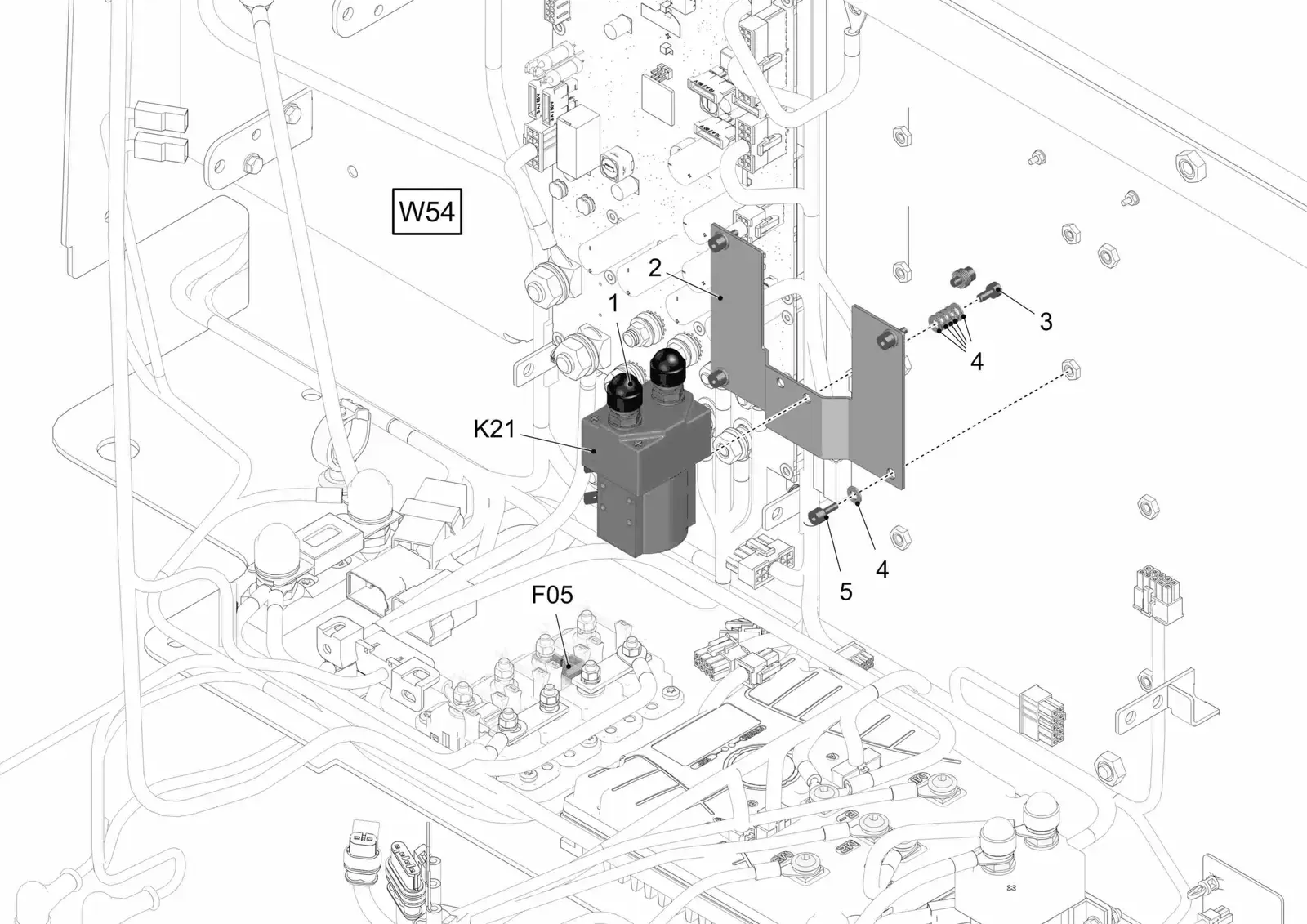

PowerBoss Scrubmaster B260R Electric plate with option pre-sweep unit parts
Hako's electric plate with option pre-sweep unit group (part of electric plate, configurable), 8 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p63, list 42C p64.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM15592033 | 2 | Lens cap 1000/893 SWFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.55/EA |
| 2 | MM01375540PowerBoss 01375540 | 1 | relay carrierFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | Call to confirm part: 800-440-6723 |
| 3 | MM00730930 | 2 | socket head screw M4x8-8.8-N3 ISO 4762Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| 4 | MM12310017 | 14 | Washer 4-200HV-N3 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.38/EA |
| 5 | MM01380230 | 4 | socket head screw M4x10-8.8-N2 ISO 4762Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.00/EA |
| F05 | MM01371170 | 1 | fuse link 30A Midi 58VDCFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $4.67/EA |
| K21 | MM00965060 | 1 | Solenoid switch 120ECS 40V ELMAFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $146.64/EA |
| W54 | MM03022000 | 1 | wiring harness W54Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $564.01/EA |

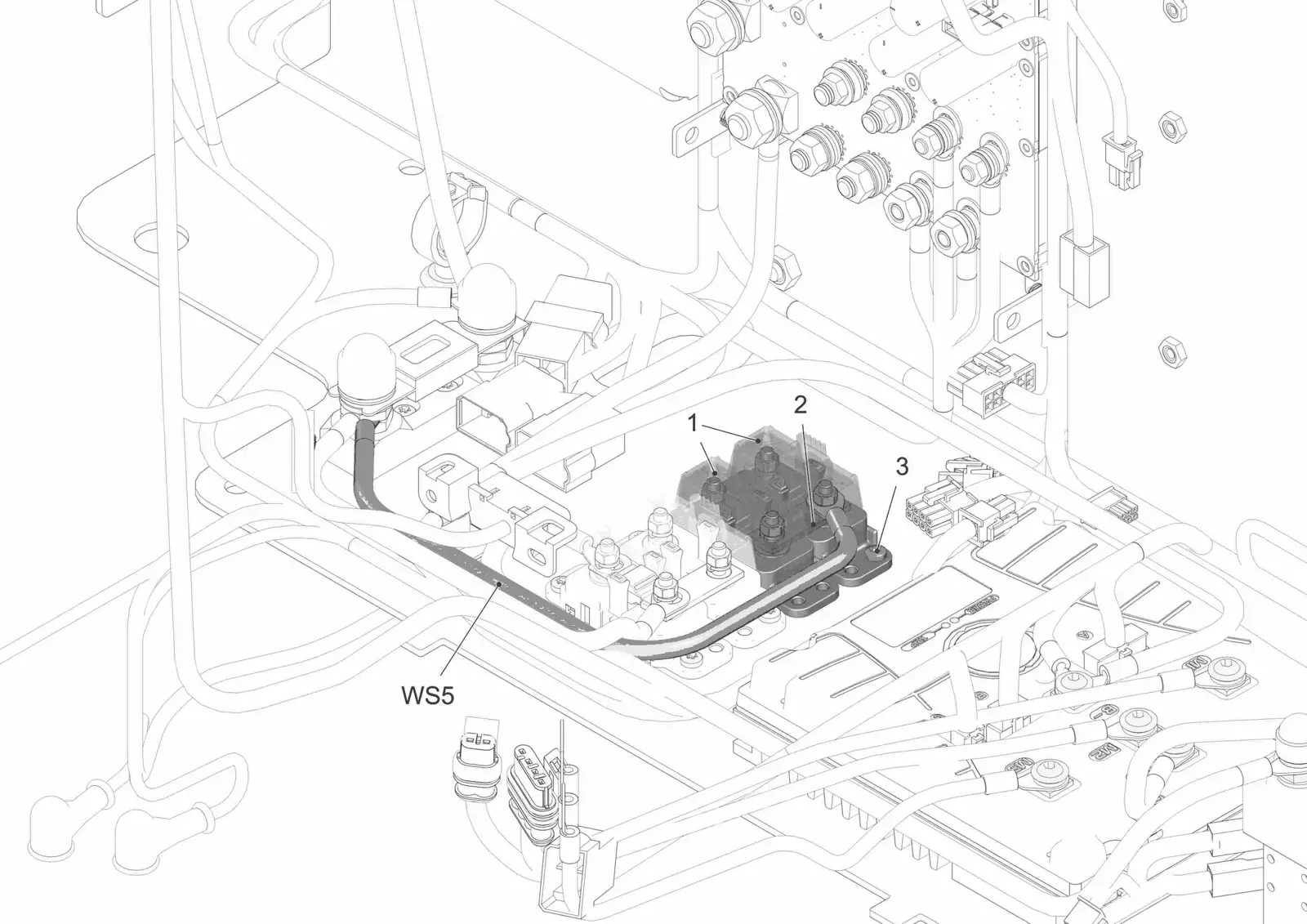

PowerBoss Scrubmaster B260R Electric plate with operation of pre-sweep unit or 3-disk brush head parts
Hako's electric plate with operation of pre-sweep unit or 3-disk brush head group (part of electric plate, configurable), 4 lines. Fits the 42 in cylindrical with side broom and the 48 in disc only. Manual pages 42C p65, list 42C p66.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01473870 | 2 | Fuse holderFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $15.55/EA |
| 2 | MM01376390 | 1 | current barFits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $10.11/EA |
| 3 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $1.05/EA |
| WS5 | MM03021630 | 1 | cable loom WS5Fits 2 of 3 versions42 in cylindrical with side broom, 48 in disc | $47.67/EA |

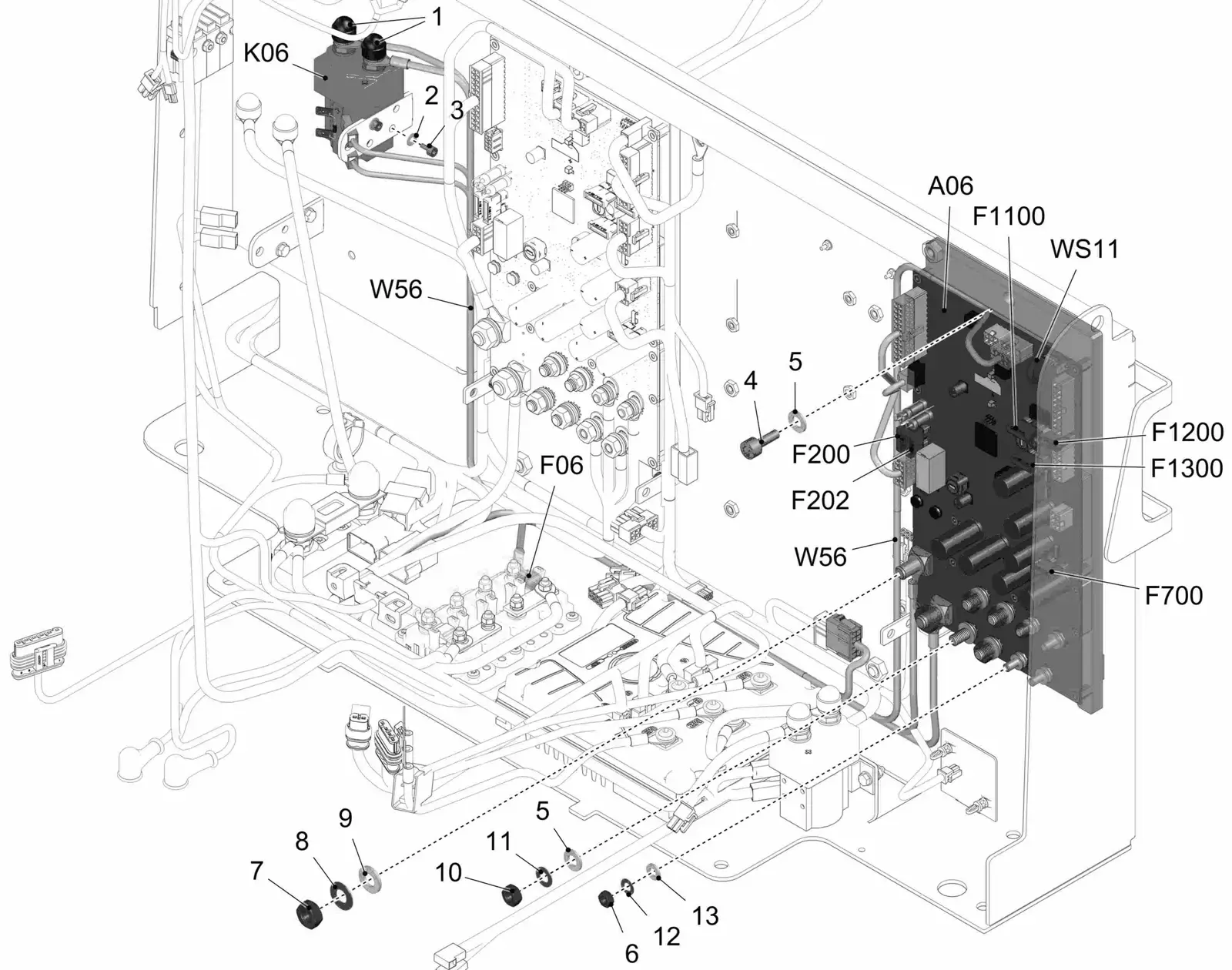

PowerBoss Scrubmaster B260R Electric plate with operation of 3-disk brush head parts
Hako's electric plate with operation of 3-disk brush head group (part of electric plate, configurable), 24 lines. Fits the 48 in disc only. Manual pages 48D p67, list 48D p68.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM15592033 | 2 | Lens cap 1000/893 SWFits 1 of 3 versions48 in disc | $1.55/EA |
| 2 | MM12310017 | 2 | Washer 4-200HV-N3 ISO 7089Fits 1 of 3 versions48 in disc | $1.38/EA |
| 3 | MM00730930 | 2 | socket head screw M4x8-8.8-N3 ISO 4762Fits 1 of 3 versions48 in disc | $1.05/EA |
| 4 | MM00045540 | 1 | socket head screw M8x20-8.8-N3 ISO 4762Fits 1 of 3 versions48 in disc | $1.05/EA |
| 5 | MM12310041 | 5 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions48 in disc | $2.75/EA |
| 6 | MM12022042 | 4 | Hex. Nut M6-8 A2G DIN 934Fits 1 of 3 versions48 in disc | $1.08/EA |
| 7 | MM12022067 | 2 | Hex. Nut M10-8 A3G DIN 934Fits 1 of 3 versions48 in disc | $4.15/EA |
| 8 | MM00053860 | 2 | Spring washer B10 A3G DIN 137Fits 1 of 3 versions48 in disc | $1.05/EA |
| 9 | MM12310058 | 2 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions48 in disc | $4.15/EA |
| 10 | MM12022059 | 4 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions48 in disc | $5.51/EA |
| 11 | MM00053850 | 4 | Spring washer B8 A2G DIN 137Fits 1 of 3 versions48 in disc | $1.05/EA |
| 12 | MM00053840 | 4 | Spring washer B6 A2G DIN 137Fits 1 of 3 versions48 in disc | $2.43/EA |
| 13 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions48 in disc | $1.38/EA |
| A06 | MM01385160 | 1 | controllerFits 1 of 3 versions48 in disc | $2,503.58/EA |
| F06 | MM01371170 | 1 | fuse link 30A Midi 58VDCFits 1 of 3 versions48 in disc | $4.67/EA |
| F200 | MM01376830 | 1 | fuse link FKS C3A 80VFits 1 of 3 versions48 in disc | $5.44/EA |
| F202 | MM01376830 | 1 | fuse link FKS C3A 80VFits 1 of 3 versions48 in disc | $5.44/EA |
| F700 | MM01376770 | 1 | fuse link FKS C25A 80VFits 1 of 3 versions48 in disc | $5.44/EA |
| F1100 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 1 of 3 versions48 in disc | $4.31/EA |
| F1200 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 1 of 3 versions48 in disc | $4.31/EA |
| F1300 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Fits 1 of 3 versions48 in disc | $4.31/EA |
| K06 | MM00965060 | 1 | Solenoid switch 120ECS 40V ELMAFits 1 of 3 versions48 in disc | $146.64/EA |
| W56 | MM03021410 | 1 | wiring harness W56Fits 1 of 3 versions48 in disc | $416.20/EA |
| WS11 | MM03021900 | 1 | cable loom WS11Fits 1 of 3 versions48 in disc | $34.99/EA |

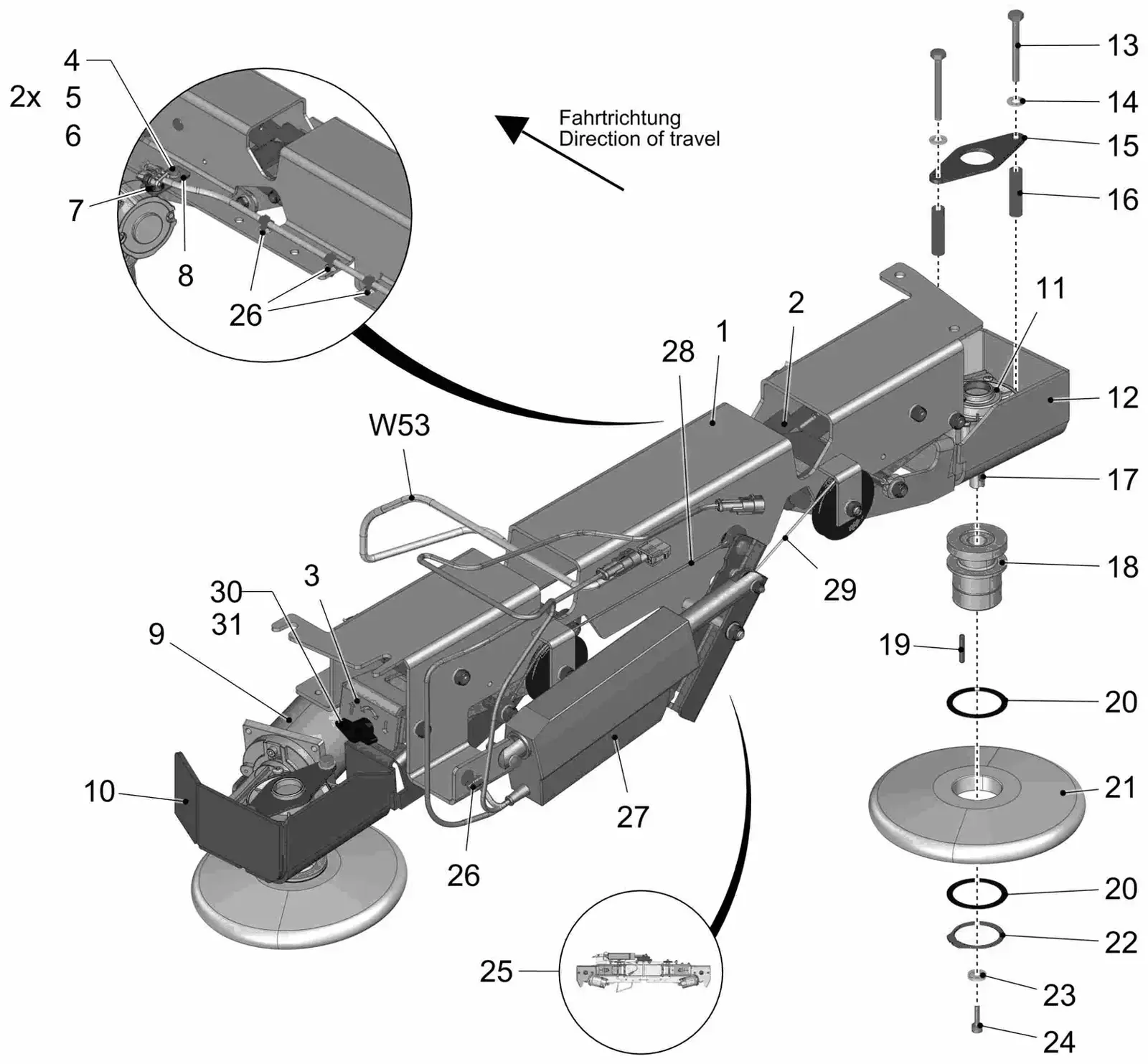

PowerBoss Scrubmaster B260R Electric plate with option side broom system parts
Hako's electric plate with option side broom system group (part of electric plate, configurable), 4 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p67, list 42C p68.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01015310 | 1 | socket head screw M5x10-8.8-N3 ISO 4762Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 2 | MM12310025 | 1 | Washer 5-200HV-N2 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| K05 | MM00965030 | 1 | Relay 24V 10A/20AFits 1 of 3 versions42 in cylindrical with side broom | $31.83/EA |
| W52 | – | 1 | Spare part on requestFits 1 of 3 versions42 in cylindrical with side broom |
PowerBoss Scrubmaster B260R Tanks parts
Hako's tanks group (part of tank), 7 lines. Shared by all three builds. Manual page 42D p54.
No drawing for this list. PowerBoss prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 010 | MM03021570 | Qty on machine: 1 | tanks standard red (Available. No.03021570)Hako material no. 97151047. Available. Pos. has sub-assemblies. See tanks standard red (available. No.03021570). Includes items 1 (Fresh water tank standard red); 14 (Foul water tank standard red). | $5,912.24/EA | |

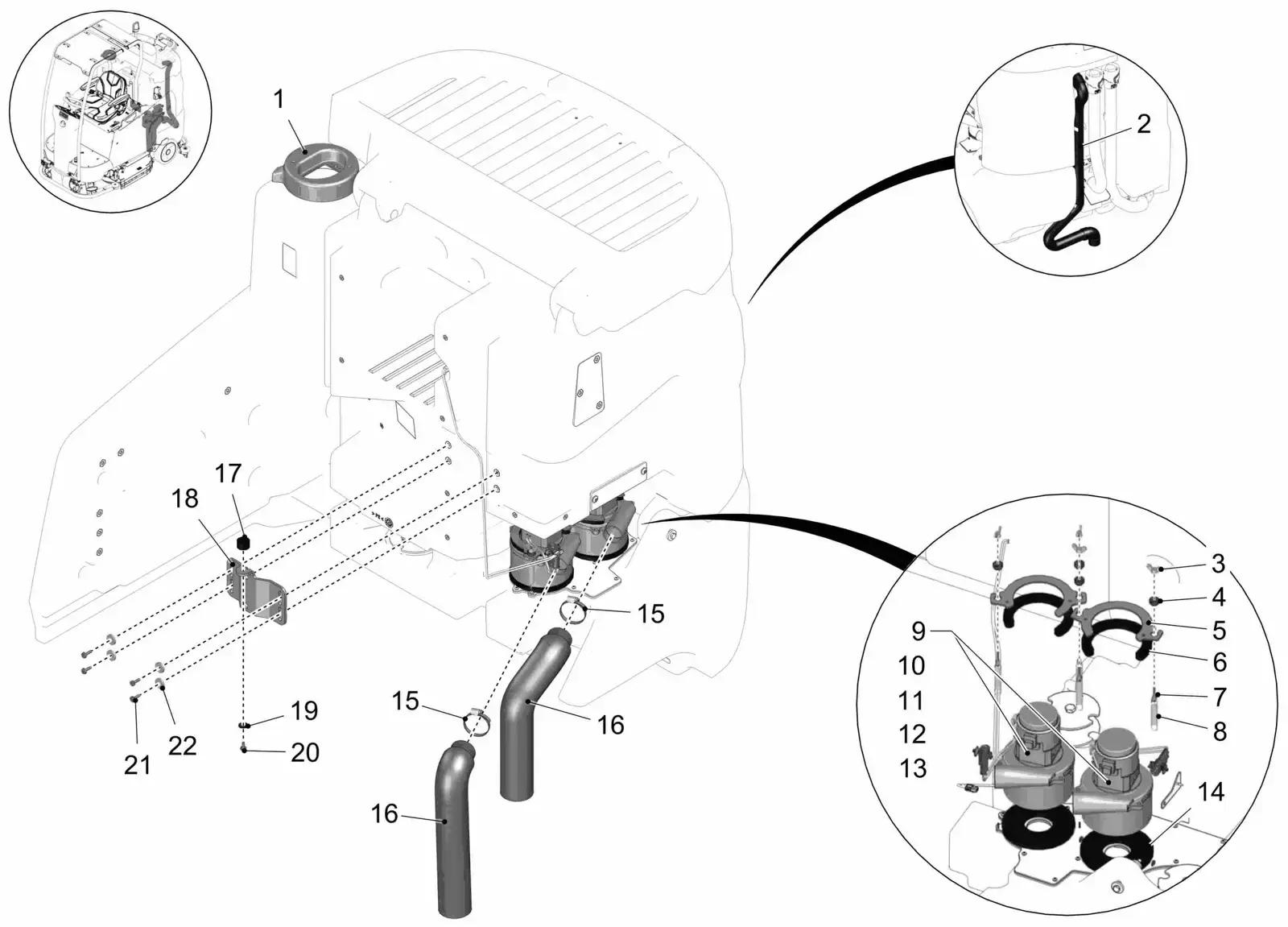

| 020 | Not sold separatelyPowerBoss 97154165 | Suction units - suction hose - tank attachementsNot sold separately. Has sub-assemblies, see Suction units - suction hose - tank attachements parts. | Not sold separately. Its parts are listed under Suction units - suction hose - tank attachements | ||

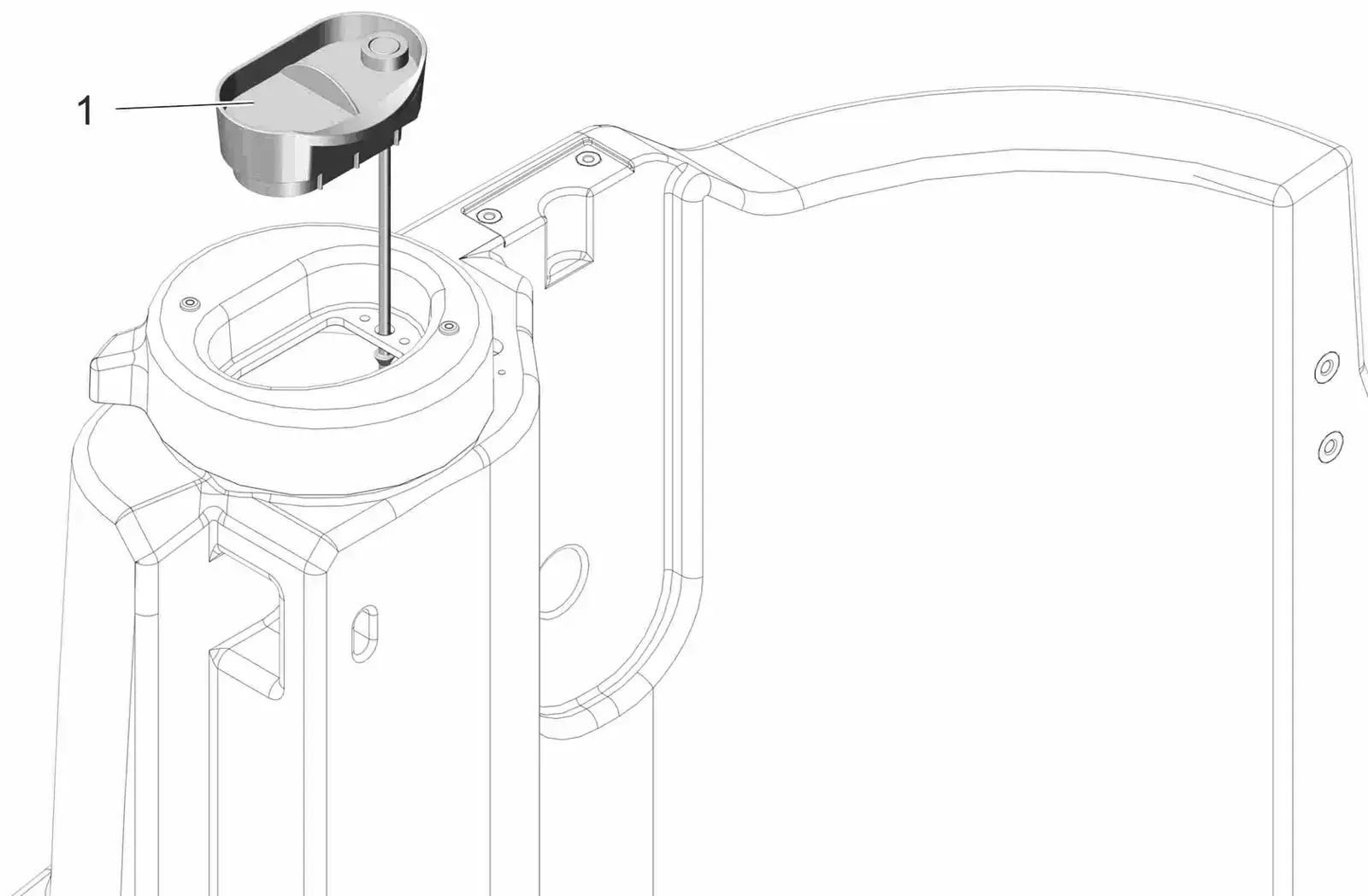

| 030 | Not sold separatelyPowerBoss 97143937 | Fresh water cap (variant without automatic filling unit)Not sold separately. Has sub-assemblies, see Fresh water cap (variant without automatic filling unit) parts. | Not sold separately. Its parts are listed under Fresh water cap (variant without automatic filling unit) | ||
| 040 | MM97150296PowerBoss 97150296 | Preliminary parts for spraying tools at tank | Call to confirm part: 800-440-6723 | ||
| 060 | MM97142384PowerBoss 97142384 | Spraying nozzle | Call to confirm part: 800-440-6723 | ||

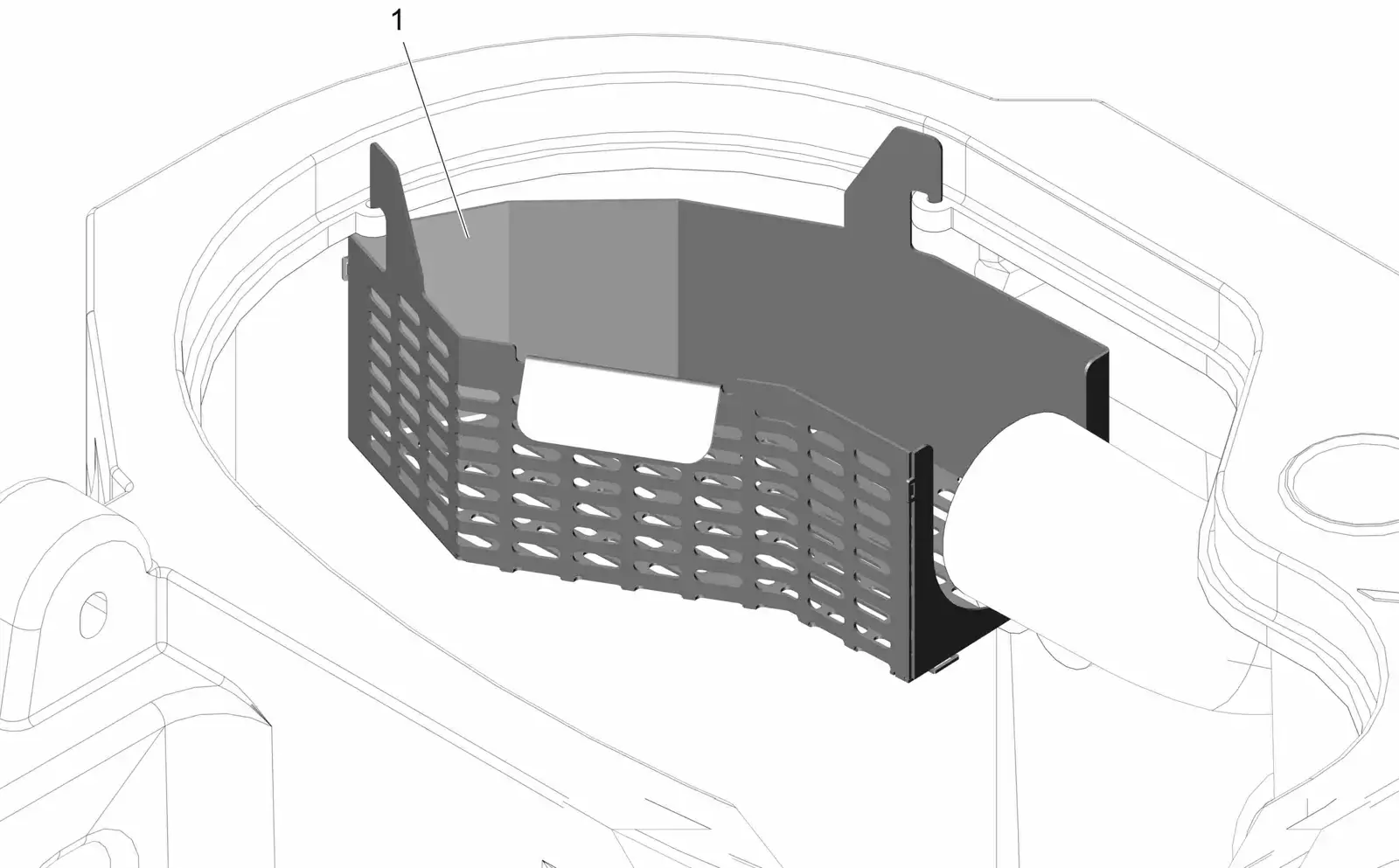

| 070 | MM97143929PowerBoss 97143929 | Rough mud strainer | Call to confirm part: 800-440-6723 | ||

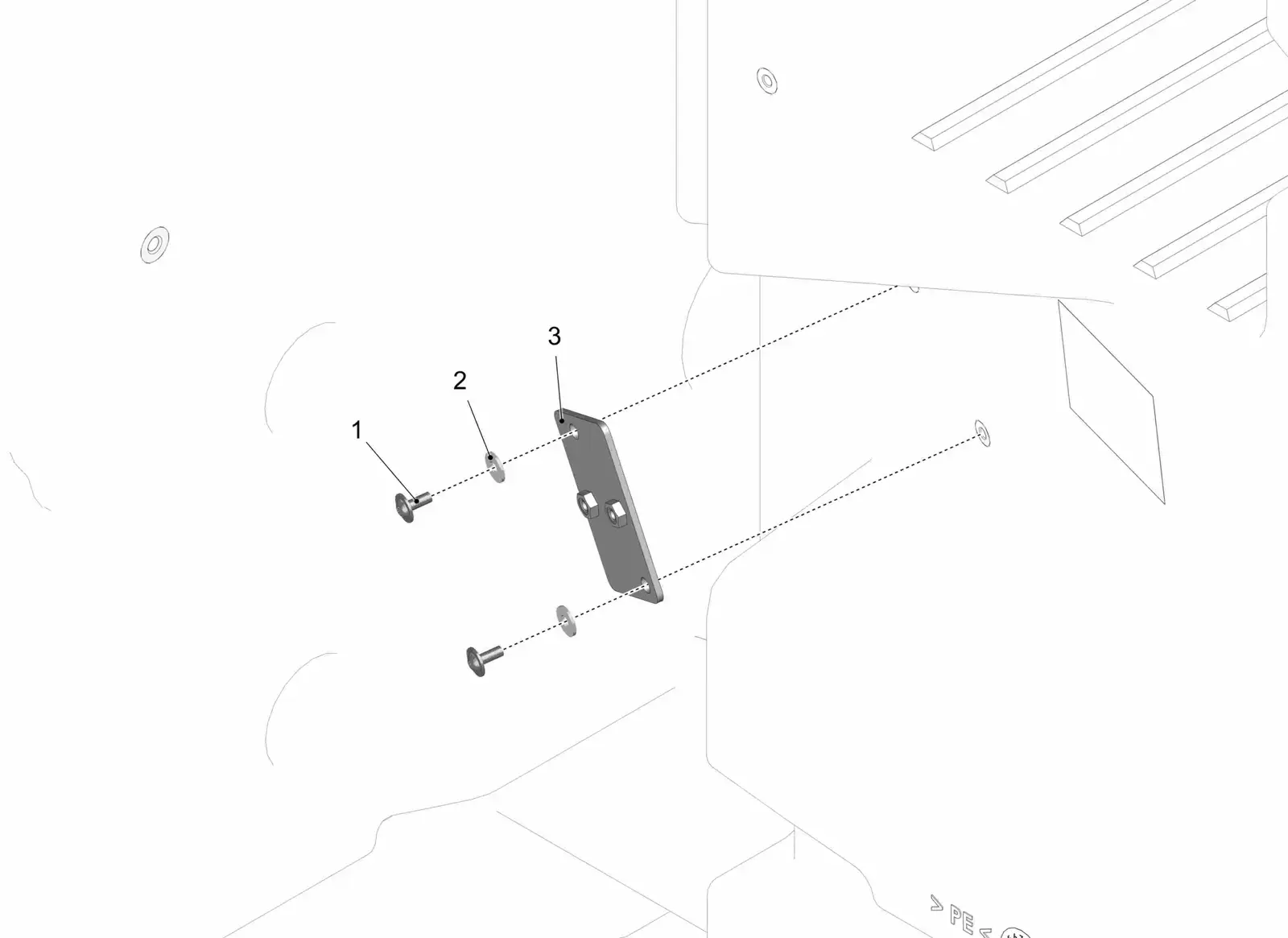

| 080 | Not sold separatelyPowerBoss 97160568 | Retaining of battery plugNot sold separately. Has sub-assemblies, see Retaining of battery plug parts. | Not sold separately. Its parts are listed under Retaining of battery plug |

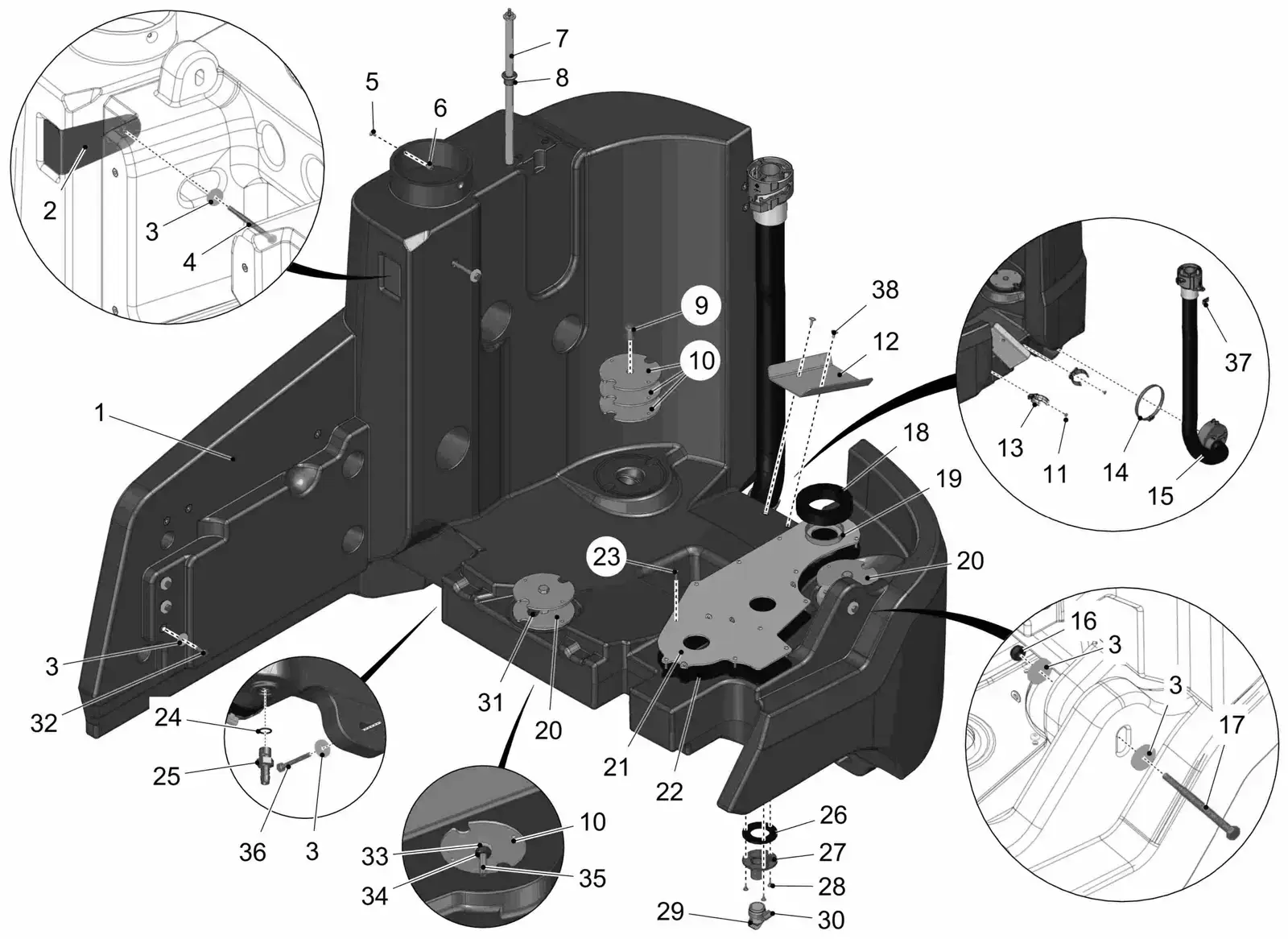

PowerBoss Scrubmaster B260R Fresh water tank standard red parts
Hako's fresh water tank standard red group (part of tanks standard red), 38 lines. Shared by all three builds. Manual pages 42D p57, list 42D p58-59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | 1 | Part of the tanks standard red (available. no.03021570) assembly | Included in kittanks standard red (Available. No.03021570) · MM03021570 › |
| 2 | MM01377010 | 1 | carrier M8Hako material no. 96162268. | $21.39/EA |
| 3 | MM12515086 | 6 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 4 | MM00053150 | 1 | hexagon screw M8x110-8.8 N2 ISO 4014Hako material no. 11032281. | $1.05/EA |
| 5 | MM00028470 | 2 | Countersunk screw M6x12-A2-70-H DIN 965Hako material no. 11206430. | $1.05/EA |
| 6 | MM01372790 | 2 | boltHako material no. 90689977. | $9.33/EA |
| 7 | MM01382870 | 1 | sensorHako material no. 96164934. | $62.88/EA |
| 8 | MM01382950 | 1 | bushingHako material no. 92056159. | $8.30/EA |
| 9 | MM00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Hako material no. 13328430. | $3.11/EA |
| 10 | MM01376280 | 5 | plateHako material no. 92054931. max. 5 plates; (powder-coated) t=4mm. | $13.64/EA |
| 11 | MM01000850 | 2 | Lens flange screw M6x12-10.9-N11 ISO7380-2Hako material no. 11177094. | $1.05/EA |
| 12 | MM01373450 | 1 | dirt chuteHako material no. 92019520. | $56.42/EA |
| 13 | MM01375310 | 2 | clipHako material no. 92002286. | $6.44/EA |
| 14 | MM01014640 | 1 | Hose clamp A-120-140x 9-W4 DIN 3017Hako material no. 17533183. | $13.22/EA |
| 15 | MM01372360 | 1 | hose long, cpl.Hako material no. 97170583. Available. Pos. has sub-assemblies. See hose long, cpl. Includes item 4 (Hose long, cpl.). | $266.03/EA |
| 16 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 17 | MM11032273 | 1 | hexagon screw M8x100-8.8 N2 ISO 4014Hako part no. 00053140. | $2.11/EA |
| 18 | MM01371740 | 1 | gasketHako material no. 90696345. | $15.55/EA |
| 19 | MM01371770 | 1 | tubular support 25862004-12Hako material no. 92011766. | $14.60/EA |
| 20 | Not sold separatelyPowerBoss 97149587 | Height adjustmentNot sold separately. Has sub-assemblies, see Height adjustment parts. | Not sold separately. Its parts are listed under Height adjustment | |
| 21 | MM01377000 | 1 | coveringHako material no. 96160957. | $130.32/EA |
| 22 | MM01376980 | 1 | gasketHako material no. 92044643. | $37.93/EA |
| 23 | MM11709151 | 12 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 24 | MM15286149 | 1 | O-ring oil resistant 15x2.5 85Hako part no. 00057720. | $13.25/EA |
| 25 | MM01072180 | 1 | Screwed plugHako material no. 90429788. | $10.77/EA |
| 26 | MM01371920 | 1 | gasketHako material no. 90696659. | $1.54/EA |
| 27 | MM01373830 | 1 | flowing offHako material no. 96154703. | $71.96/EA |
| 28 | MM00905520 | 4 | Round head screw 5x14Hako material no. 11709060. | $1.05/EA |
| 29 | MM00054560 | 1 | ValveHako material no. 90329517. | $7.92/EA |
| 30 | MM00733160 | 1 | Hose clamp A-20-32x9-W1-2 DIN 3017Hako material no. 17533035. | $1.82/EA |
| 31 | MM01370250 | 2 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 32 | MM11038213 | 3 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 33 | MM12310066 | 1 | Washer 12-200HV-N3 ISO 7089Hako part no. 00053770. | $4.15/EA |
| 34 | MM00053370 | 1 | Hex. Nut M12-8 A3G DIN 934Hako material no. 12022075. | $1.05/EA |
| 35 | MM00054830 | 1 | hexagon screw M12x50-8.8-N3 ISO 4017Hako material no. 11038528. | $0.90/EA |
| 36 | MM00027910 | 2 | hexagon screw M8x60-8.8-N3 ISO 4017Hako material no. 11039096. | $1.05/EA |
| 37 | MM01170150 | 1 | Decal SOLUTION TANKHako material no. 17264896. | $1.11/EA |
| 38 | MM11177179 | 2 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Hako part no. 01072520. | $1.73/EA |

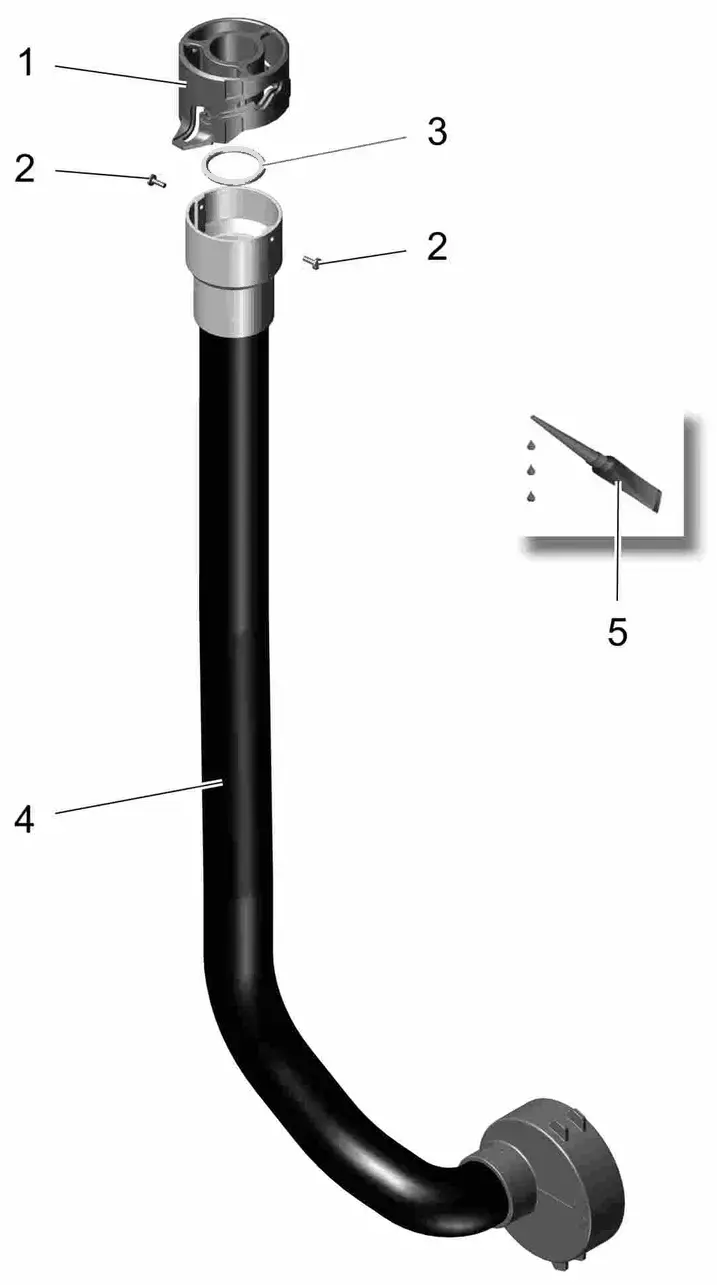

PowerBoss Scrubmaster B260R Hose long, cpl. parts
Hako's hose long, cpl. group, 5 lines. Shared by all three builds. Manual pages 42D p60, list 42D p61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00142230 | 1 | coverHako material no. 97168355. | $16.08/EA |
| 2 | MM00108650 | 2 | lens head screw M5x12-4.8-H-N2 ISO 7045Hako material no. 11175189. | $1.22/EA |
| 3 | MM01177960 | 1 | O-Ring 42x5 NBR 55 DIN 3771Hako material no. 15286957. | $4.85/EA |
| 4 | – | Part of the hose long, cpl. assembly | Included in kithose long, cpl. · MM01372360 › | |
| 5 | MM03009260 | 1 | LOCTIDE sealing compoundHako material no. 28990018. | $35.76/EA |

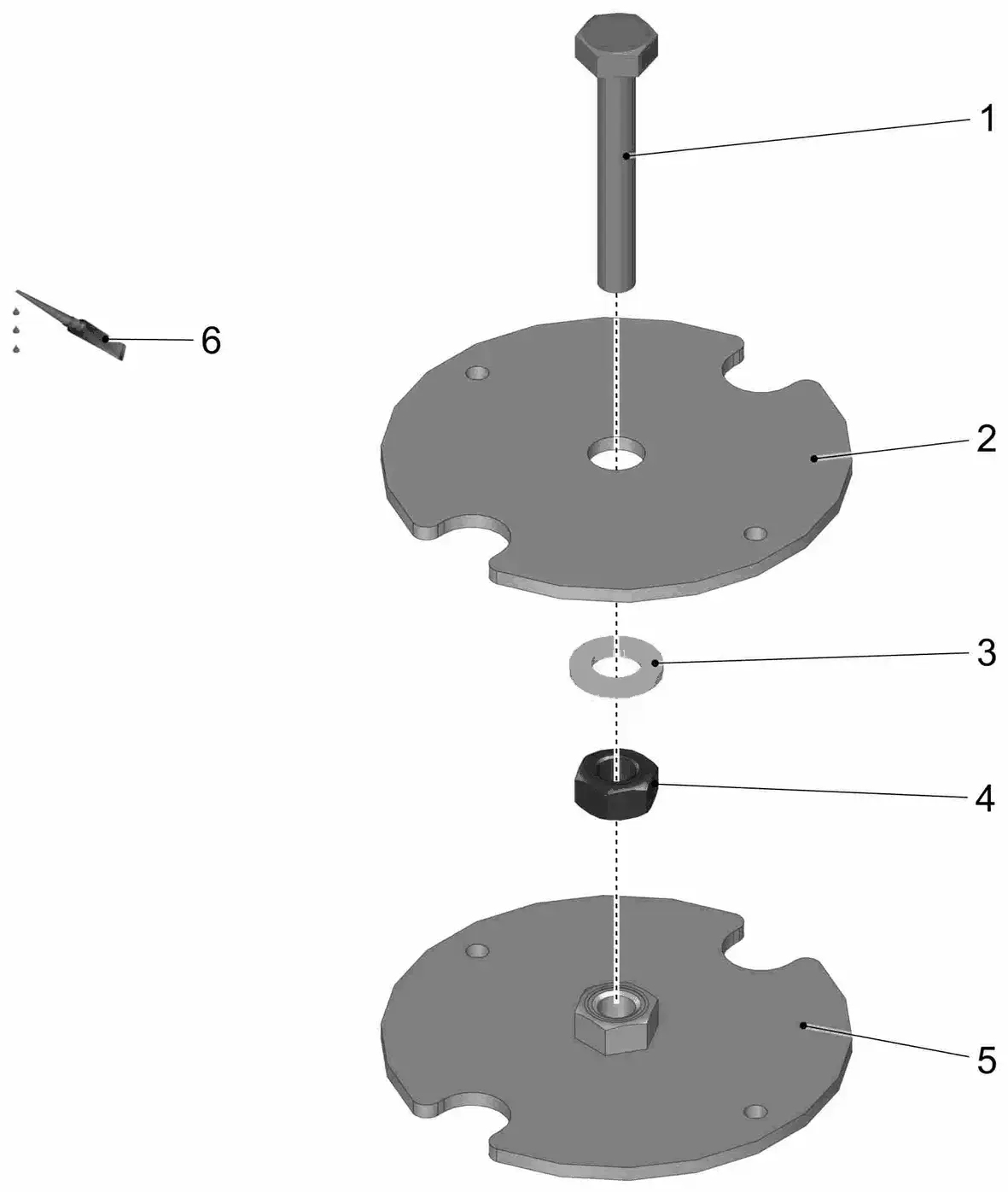

PowerBoss Scrubmaster B260R Height adjustment parts
Hako's height adjustment group (part of fresh water tank standard red), 7 lines. Shared by all three builds. Manual pages 42D p62, list 42D p63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00137590 | 1 | hexagon screw M12x70-8.8-N2 ISO 4017Hako material no. 11038569. | $1.05/EA |
| 2 | MM01376280 | 1 | plateHako material no. 92054931. max. 5 plates; (powder-coated) t=4mm. | $13.64/EA |
| 2 | MM01376280 | 1 | plateHako material no. 92054931. | $13.64/EA |
| 3 | MM12310066 | 1 | Washer 12-200HV-N3 ISO 7089Hako part no. 00053770. | $4.15/EA |
| 4 | MM00053370 | 1 | Hex. Nut M12-8 A3G DIN 934Hako material no. 12022075. | $1.05/EA |
| 5 | MM01376990 | 1 | plateHako material no. 96160940. | $18.49/EA |
| 6 | MM03009260 | 0.01 | LOCTIDE sealing compoundHako material no. 28990018. Quantity printed 0,01 PC. | $35.76/EA |

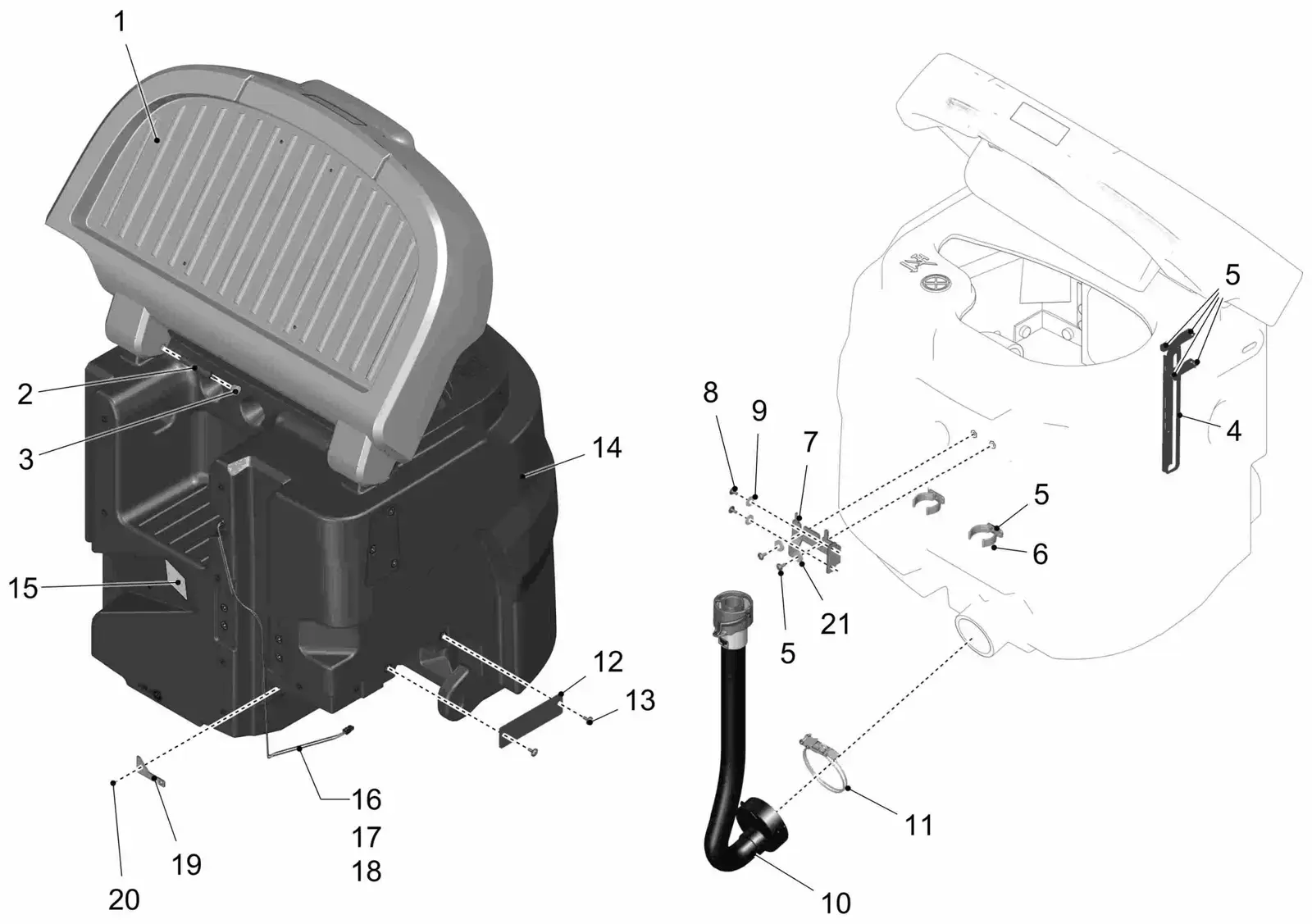

PowerBoss Scrubmaster B260R Foul water tank standard red parts
Hako's foul water tank standard red group (part of tanks standard red), 21 lines. Shared by all three builds. Manual pages 42D p64, list 42D p65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97151740 | LidNot sold separately. Has sub-assemblies, see Lid Printed with build 7182-70. | Not sold separately. Its parts are listed under Lid | |
| 2 | MM01372940 | 2 | cover axleHako material no. 92000116. | $24.86/EA |
| 3 | MM01136440 | 2 | Sealing plug SL 22x1,0-2,5 schwarzHako material no. 15590664. | $1.05/EA |
| 4 | Not sold separatelyPowerBoss 97159743 | Cover's put-up hingeNot sold separately. Has sub-assemblies, see Cover's put-up hinge parts. | Not sold separately. Its parts are listed under Cover's put-up hinge | |
| 5 | MM01000850 | 6 | Lens flange screw M6x12-10.9-N11 ISO7380-2Hako material no. 11177094. | $1.05/EA |
| 6 | MM01375310 | 2 | clipHako material no. 92002286. | $6.44/EA |
| 7 | MM01376960 | 1 | connecting angleHako material no. 92039429. | $15.55/EA |
| 8 | MM11177128 | 4 | Lens flange screw M8x16-10.9-N3 ISO7380-2Hako part no. 01006820. | $1.08/EA |
| 9 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 10 | MM01372410 | 1 | hose shortHako material no. 97170591. Available. Pos. has sub-assemblies. See hose short. Includes item 5 (Hose short). | $241.97/EA |
| 11 | MM01374000 | 1 | clamping pieceHako material no. 97146237. | $185.22/EA |
| 12 | MM01376900 | 1 | lockHako material no. 92037118. | $14.60/EA |
| 13 | MM11177187 | 2 | Lens flange screw M8x16-A2-70 ISO7380-2Hako part no. 01074320. | $3.30/EA |
| 14 | – | 1 | Part of the tanks standard red (available. no.03021570) assembly | Included in kittanks standard red (Available. No.03021570) · MM03021570 › |
| 15 | – | 1 | Spare part on request | |
| 16 | MM00959650 | 1 | Float switchHako material no. 90311705. | $81.75/EA |
| 17 | MM01372420 | 1 | pin housing (2 pin)Hako material no. 19730217. | $1.54/EA |
| 18 | MM01372370 | 2 | tab-cont. Mini-Fit Jr. (0,25-1,00)Hako material no. 19725480. | $1.05/EA |
| 19 | MM01376970 | 1 | carrierHako material no. 92039445. | $3.90/EA |
| 20 | MM00905520 | 4 | Round head screw 5x14Hako material no. 11709060. | $1.05/EA |
| 21 | MM12515086 | 2 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |

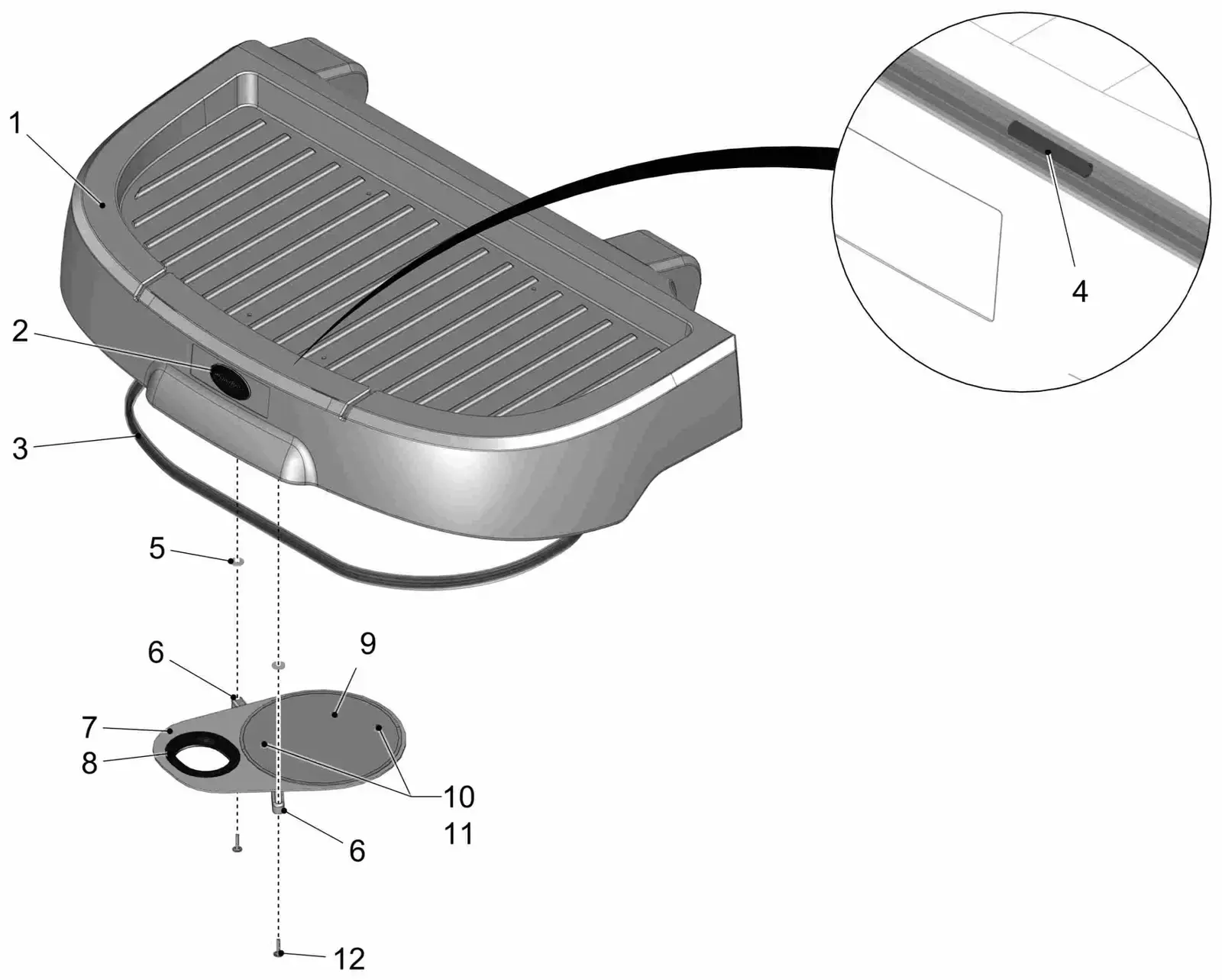

PowerBoss Scrubmaster B260R Lid parts
Hako's lid group (part of foul water tank standard red), 12 lines. Shared by all three builds. Manual pages 42D p66, list 42D p67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01377020 | 1 | coverHako material no. 96162540. | $427.84/EA |
| 2 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723 |
| 3 | MM25510512 | 1.904 M | Sealing profile 14,8x11 schwarzHako part no. 01071770. Quantity printed 1,904 M. | $2.42/EA |
| 4 | MM01090200 | 0.040 M | Hose 6x4 PVC-transp. DIN 16940Hako material no. 25842113. Quantity printed 0,040 M. | $1.52/EA |
| 5 | MM00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 6 | MM00968190 | 2 | ToggleHako material no. 90258187. | $4.78/EA |
| 7 | MM01376490 | 1 | filter carrierHako material no. 92040658. | $75.85/EA |
| 8 | MM00681570 | 0.305 M | Edge protectionHako material no. 25583097. Quantity printed 0,305 M. | $11.53/EA |
| 9 | MM01375490 | 1 | strainerHako material no. 92040666. | $71.56/EA |
| 10 | MM01076740 | 2 | Rivet 5,9x12 schwarzHako material no. 13166087. | $1.22/EA |
| 11 | MM12310256 | 2 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
| 12 | MM11177161 | 2 | Lens flange screw M6x25-A2-70-T30 ISO7380-2Hako part no. 01082530. | $1.38/EA |
PowerBoss Scrubmaster B260R Cover's put-up hinge parts
Hako's cover's put-up hinge group (part of foul water tank standard red), 7 lines. Shared by all three builds. Manual pages 42D p68, list 42D p69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 2 | MM00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 3 | MM711592Replaces PowerBoss 01102770 | 4 | Approach disk 12,5x26x1,5-POMHako material no. 14898019. | Call to confirm part: 800-440-6723 |
| 4 | MM01372950PowerBoss 01372950 | 1 | cover put-up hingeHako material no. 92000215. | Call to confirm part: 800-440-6723 |
| 5 | MM01279800 | 2 | bushingHako material no. 90661745. | $7.79/EA |
| 6 | MM01372960 | 2 | put-up hinge bearingHako material no. 92061068. | $37.93/EA |
| 7 | MM00054720 | 2 | Countersunk screw M6x20-A2-70 ISO 10642Hako material no. 11225489. | $1.05/EA |
PowerBoss Scrubmaster B260R Hose short parts
Hako's hose short group, 5 lines. Shared by all three builds. Manual pages 42D p70, list 42D p71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00142230 | 1 | coverHako material no. 97168355. | $16.08/EA |
| 2 | MM00108650 | 2 | lens head screw M5x12-4.8-H-N2 ISO 7045Hako material no. 11175189. | $1.22/EA |
| 3 | MM01177960 | 1 | O-Ring 42x5 NBR 55 DIN 3771Hako material no. 15286957. | $4.85/EA |
| 4 | MM17264888 | 1 | Decal FOUL WATERHako part no. 01170060. | $3.66/EA |
| 5 | – | Part of the hose short assembly | Included in kithose short · MM01372410 › |
PowerBoss Scrubmaster B260R Suction units - suction hose - tank attachements parts
Hako's suction units - suction hose - tank attachements group (part of tanks), 23 lines. Shared by all three builds. Manual pages 42D p72, list 42D p73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372190 | 1 | coverHako material no. 97136212. | $260.63/EA |
| 2 | MM01371890 | 1 | suction hoseHako material no. 96156005. | $191.11/EA |
| 3 | MM12158028 | 4 | Wing nut M6-5 A2G DIN 315Hako part no. 00054020. | $5.51/EA |
| 4 | MM00903210 | 4 | Knurled nut P 1612012-M6 PA6Hako material no. 12156055. | $1.22/EA |
| 5 | MM01372880 | 2 | clamping sheet metalHako material no. 90696568. | $42.78/EA |
| 6 | MM01071550 | 2 | SealHako material no. 90434812. | $13.97/EA |
| 7 | MM00508770 | 4 | Eye bolt BM6x30-4.6 A3G DIN 444Hako material no. 11518149. | $2.69/EA |
| 8 | MM00109410 | 4 | Tension springHako material no. 90246679. | $5.19/EA |
| 9 | MM01372140 | 2 | suction turbine 36VHako material no. 97142475. | $540.36/EA |
| 9 | MM01381950PowerBoss 01381950 | 2 | carbon brush | Call to confirm part: 800-440-6723 |
| 10 | MM01092490 | 2 | Single seal 6.3Hako material no. 19719426. | $1.05/EA |
| 11 | MM01092500 | 2 | Flat connector Ducon 6.3Hako material no. 19719434. | $1.54/EA |
| 12 | MM01092510 | 1 | Connector housingHako material no. 19719459. | $3.92/EA |
| 13 | MM01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 14 | MM01371800 | 2 | sealing ringHako material no. 92029545. | $7.42/EA |
| 15 | MM3044112Replaces PowerBoss 00732130 | 2 | Hose clamp A-40-60x 9-W1-2 DIN 3017Hako material no. 17533027. | $1.28/EA |
| 16 | MM00471570 | 2 | HoseHako material no. 90215930. | $61.03/EA |
| 17 | MM00733560 | 1 | Rubber-metal buffer E-30Hako material no. 90108705. | $9.00/EA |
| 18 | MM01373070 | 1 | seat bearingHako material no. 92002146. | $107.94/EA |
| 19 | MM00740080 | 1 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 20 | MM11038197 | 1 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 21 | MM11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 22 | MM12515086 | 4 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
PowerBoss Scrubmaster B260R Fresh water cap (variant without automatic filling unit) parts
Hako's fresh water cap (variant without automatic filling unit) group (part of tanks), 1 lines. Shared by all three builds. Manual pages 42D p74, list 42D p75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01173540 | 1 | Fresh water capHako material no. 96121124. | $29.58/EA |
PowerBoss Scrubmaster B260R Preliminary parts for spraying tools at tank
Hako's preliminary parts for spraying tools at tank group (part of tanks), 6 lines. Shared by all three builds. Manual pages 42D p76, list 42D p77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 2 | MM01373100 | 1 | connecting angleHako material no. 92002492. | $51.57/EA |
| 3 | MM01090430 | 1 | Screwed angle fittingHako material no. 90356734. | $4.25/EA |
| 4 | MM01016090 | 1 | Bulkhead union G1/4 LW6Hako material no. 18400028. | $18.28/EA |
| 5 | MM00552590 | 1 | Quick hitch "G1/4"""Hako material no. 90314220. | $39.35/EA |
| 6 | MM03007630 | 0.070 M | Sealing band (spool with 12m) 12x0,1 TeflonHako material no. 25743014. Quantity printed 0,070 M. | $27.10/EA |
PowerBoss Scrubmaster B260R Spraying nozzle parts
Hako's spraying nozzle group (part of tanks), 3 lines. Shared by all three builds. Manual pages 42D p78, list 42D p79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00873910 | 2 | Truss head screw 6x16 A2GHako material no. 11709110. | $1.05/EA |
| 2 | MM01372240 | 1 | spray pistol with hoseHako material no. 92010412. | $216.83/EA |
| 3 | Not sold separatelyPowerBoss 97147334 | Retainer spraying nozzleNot sold separately. Has sub-assemblies, see Retainer spraying nozzle parts. | Not sold separately. Its parts are listed under Retainer spraying nozzle |
PowerBoss Scrubmaster B260R Retainer spraying nozzle parts
Hako's retainer spraying nozzle group (part of spraying nozzle), 6 lines. Shared by all three builds. Manual pages 42D p80, list 42D p81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373710 | 1 | retainerHako material no. 92044338. | $111.84/EA |
| 2 | MM01271540 | 2 | socket head screw M6x60-8.8-N3 ISO 4762Hako material no. 11126851. | $1.19/EA |
| 3 | MM01477410 | 1 | pair of clamping HRGL5KP35PP DIN 3015Hako material no. 17516873. | $6.28/EA |
| 4 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 5 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Hako part no. 00051520. | $1.38/EA |
| 6 | MM00525910 | 2 | Lens cap 1000/1069 SWHako material no. 15592025. | $0.90/EA |
PowerBoss Scrubmaster B260R Rough mud strainer parts
Hako's rough mud strainer group (part of tanks), 1 lines. Shared by all three builds. Manual pages 42D p82, list 42D p83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373950PowerBoss 01373950 | 1 | coarse dirt strainer, replaced by 99706065Hako material no. 96162896. | Call to confirm part: 800-440-6723 |
PowerBoss Scrubmaster B260R Retaining of battery plug parts
Hako's retaining of battery plug group (part of tanks), 3 lines. Shared by all three builds. Manual pages 42D p84, list 42D p85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01000850 | 2 | Lens flange screw M6x12-10.9-N11 ISO7380-2Hako material no. 11177094. | $1.05/EA |
| 2 | MM00730940 | 2 | Detent edged washer SKM-6-dacrometisiertHako material no. 12520045. | $1.22/EA |
| 3 | MM01376620 | 1 | adapter plateHako material no. 96162599. | $29.18/EA |
PowerBoss Scrubmaster B260R Side covering L.H. - seperating panel parts
Hako's side covering L.H. - seperating panel group (part of tank), 7 lines. Shared by all three builds. Manual pages 42D p86, list 42D p87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97146286 | Side coveringNot sold separately. Has sub-assemblies, see Side covering parts. | Not sold separately. Its parts are listed under Side covering | |
| 2 | MM01376220 | 1 | sheet metalHako material no. 92037100. | $11.66/EA |
| 3 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 4 | MM01272710 | 2 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 5 | Not sold separatelyPowerBoss 97159875 | Separating plateNot sold separately. Has sub-assemblies, see Separating plate parts. | Not sold separately. Its parts are listed under Separating plate | |
| 6 | MM11177179 | 4 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 7 | MM01376250 | 1 | sealing plateHako material no. 92042134. | $37.93/EA |
PowerBoss Scrubmaster B260R Side covering parts
Hako's side covering group (part of side covering l.h. - seperating panel), 11 lines. Shared by all three builds. Manual pages 42D p88, list 42D p89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03021490 | 1 | side coveringHako material no. 92044627. | $533.43/EA |
| 2 | MM01380030 | 2 | Latch lockHako material no. 92075779. | $43.23/EA |
| 3 | MM01376060 | 1 | centeringHako material no. 92037092. | $47.67/EA |
| 4 | MM01074430 | 5 | Screw B52004-6,0x20-10.9 A2EHako material no. 11709144. | $1.05/EA |
| 5 | MM01154830 | 2 | Cage nut M8-N0Hako material no. 12181152. | $1.05/EA |
| 6 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 7 | MM12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 8 | MM01134740 | 2 | Filister head flange screw M8x40-10.9-N8 ISO7380-2Hako material no. 11177211. | $1.05/EA |
| 9 | MM01384520PowerBoss 01384520 | 0.950 M | Sealing profile 1,0-4,0 schwarzHako material no. 25583279. Quantity printed 0,950 M. | Call to confirm part: 800-440-6723 |
| 10 | MM01376230 | 1 | supportHako material no. 92037159. | $30.14/EA |
| 11 | MM00905520 | 12 | Round head screw 5x14Hako material no. 11709060. | $1.05/EA |
PowerBoss Scrubmaster B260R Separating plate parts
Hako's separating plate group (part of side covering l.h. - seperating panel), 6 lines. Shared by all three builds. Manual pages 42D p90, list 42D p91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01376030 | 1 | coveringHako material no. 92034404. | $95.33/EA |
| 2 | MM01370240 | 1 | mounting feetHako material no. 17526237. | $1.05/EA |
| 3 | MM01370250 | 1 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 4 | MM01031000 | 0.470 M | Sealing tape 20x6Hako material no. 25505322. Quantity printed 0,470 M. | $5.44/EA |
| 5 | MM01031000 | 0.223 M | Sealing tape 20x6Hako material no. 25505322. Quantity printed 0,223 M. | $5.44/EA |
| 6 | MM01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
PowerBoss Scrubmaster B260R Cover (variant without driver canopy) parts
Hako's cover (variant without driver canopy) group (part of tank), 3 lines. Shared by all three builds. Manual pages 42D p92, list 42D p93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375980 | 1 | coverHako material no. 92034156. | $136.12/EA |
| 2 | MM11177179 | 4 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 3 | – | 1 | Spare part on request |
PowerBoss Scrubmaster B260R Disk brush head 1230 parts
Hako's disk brush head 1230 group (part of working tools), 27 lines. Fits the 48 in disc only. Manual pages 48D p113, list 48D p114.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97153670 | Lifting disk brush headFits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Lifting disk brush head | |
| 2 | MM11038346 | 6 | hexagon screw M10x25-8.8-N3 ISO 4017Fits 1 of 3 versions48 in disc | $1.08/EA |
| 3 | MM00740290 | 6 | Detent edged washer SKM-10Fits 1 of 3 versions48 in disc | $1.05/EA |
| 4 | MM01376630 | 1 | boltFits 1 of 3 versions48 in disc | $61.27/EA |
| 5 | MM11038072 | 1 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 1 of 3 versions48 in disc | $1.08/EA |
| 6 | MM00740280 | 1 | Washer SKS-6-dacrometisiertFits 1 of 3 versions48 in disc | $2.43/EA |
| 7 | MM01278160 | 3 | BufferFits 1 of 3 versions48 in disc | $4.67/EA |
| 8 | Not sold separatelyPowerBoss 97159230 | Brush head 1230Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Brush head 1230 | |
| 9 | MM01375680 | 2 | tension springFits 1 of 3 versions48 in disc | $29.18/EA |
| 10 | MM00120940 | 2 | hexagon screw M12x160-8.8 N2 ISO 4014Fits 1 of 3 versions48 in disc | $3.90/EA |
| 11 | MM12040077 | 2 | Hex. Nut M12-6 A3G DIN 985Fits 1 of 3 versions48 in disc | $3.77/EA |
| 12 | MM25842055 | 0.050 M | PVC hose 13x3,5 transp. mit Gew.Fits 1 of 3 versions48 in disc | $6.64/EA |
| 13 | MM00879630 | 2 | Bolt B12h11x85-St A3G DIN 1444Fits 1 of 3 versions48 in disc | $7.67/EA |
| 14 | MM00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits 1 of 3 versions48 in disc | $1.22/EA |
| 15 | MM12040259 | 2 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions48 in disc | $1.08/EA |
| 16 | MM01376450 | 2 | bushingFits 1 of 3 versions48 in disc | $8.75/EA |
| 17 | MM730526Replaces PowerBoss 00902280 | 2 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions48 in disc | $1.08/EA |
| 18 | MM01376790 | 3 | hexagon screw M8x60-A2-70 ISO 4014Fits 1 of 3 versions48 in disc | $1.05/EA |
| 19 | MM01376290 | 2 | rocker sheet metalFits 1 of 3 versions48 in disc | $100.18/EA |
| 20 | MM01111790 | 2 | hexagon screw M14x60-8.8-N3 ISO 4017Fits 1 of 3 versions48 in disc | $1.05/EA |
| 21 | MM01495650 | 4 | Washer 15-350HV-flznnc480h DIN 6340Fits 1 of 3 versions48 in disc | $3.90/EA |
| 22 | MM01499130 | 2 | starting discFits 1 of 3 versions48 in disc | $4.67/EA |
| 23 | MM01376470 | 1 | bushingFits 1 of 3 versions48 in disc | $22.39/EA |
| 24 | MM01102650 | 2 | Hex. Nut M 14 10 A3G DIN 985Fits 1 of 3 versions48 in disc | $1.54/EA |
| 25 | MM01376550 | 1 | bushingFits 1 of 3 versions48 in disc | $22.39/EA |
| 26 | MM01370240 | 1 | mounting feetFits 1 of 3 versions48 in disc | $1.05/EA |
| 27 | MM01370250 | 1 | retainer ø13Fits 1 of 3 versions48 in disc | $1.54/EA |
PowerBoss Scrubmaster B260R Cylindrical brush head 1080 (97141261) parts
Hako's cylindrical brush head 1080 group (part of working tools), 29 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p113, list 42C p114.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97155840 | Cylindrical brush head 1080Fits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Cylindrical brush head 1080 (97155840) | |
| 2 | Not sold separatelyPowerBoss 97153696 | Lifting cylindrical brush headFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Lifting cylindrical brush head | |
| 3 | MM11038072 | 1 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 4 | MM00740280 | 1 | Washer SKS-6-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 5 | MM01376720 | 1 | boltFits 1 of 3 versions42 in cylindrical with side broom | $68.06/EA |
| 6 | Not sold separatelyPowerBoss 97158372 | Release springFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Release spring | |
| 7 | MM00120940 | 2 | hexagon screw M12x160-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $3.90/EA |
| 8 | MM12040077 | 2 | Hex. Nut M12-6 A3G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $3.77/EA |
| 9 | MM03022590 | 1 | rocker lowerFits 1 of 3 versions42 in cylindrical with side broom | $640.85/EA |
| 10 | MM00879630 | 2 | Bolt B12h11x85-St A3G DIN 1444Fits 1 of 3 versions42 in cylindrical with side broom | $7.67/EA |
| 11 | MM25842055 | 0.050 M | PVC hose 13x3,5 transp. mit Gew.Fits 1 of 3 versions42 in cylindrical with side broom | $6.64/EA |
| 12 | MM00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 13 | MM00053160 | 6 | hexagon screw M10x30-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 14 | MM00740290 | 6 | Detent edged washer SKM-10Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 15 | MM12022059 | 4 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions42 in cylindrical with side broom | $5.51/EA |
| 16 | MM00740310 | 6 | Washer SKS-8-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 17 | MM11038213 | 2 | hexagon screw M8x20-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 18 | MM00109720 | 2 | Screw M8x20-St Duo-Taptite DIN 7500-DFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 19 | MM00695300 | 2 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 20 | MM01111790 | 2 | hexagon screw M14x60-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 21 | MM01495650 | 4 | Washer 15-350HV-flznnc480h DIN 6340Fits 1 of 3 versions42 in cylindrical with side broom | $3.90/EA |
| 22 | MM01499130 | 2 | starting discFits 1 of 3 versions42 in cylindrical with side broom | $4.67/EA |
| 23 | MM01376470 | 1 | bushingFits 1 of 3 versions42 in cylindrical with side broom | $22.39/EA |
| 24 | MM01102650 | 2 | Hex. Nut M 14 10 A3G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.54/EA |
| 25 | MM01375320 | 2 | bufferFits 1 of 3 versions42 in cylindrical with side broom | $6.98/EA |
| 26 | MM01376550 | 1 | bushingFits 1 of 3 versions42 in cylindrical with side broom | $22.39/EA |
| 27 | MM01476570 | 1 | retainer Ø20Fits 1 of 3 versions42 in cylindrical with side broom | $1.11/EA |
| 28 | MM01370240 | 1 | mounting feetFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 29 | MM00904080 | 2 | Drain plug F19 SWFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
PowerBoss Scrubmaster B260R Cylindrical brush head 1080 (97155840) parts
Hako's cylindrical brush head 1080 group (part of cylindrical brush head 1080), 23 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p115, list 42C p116.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03022680 | 1 | housingFits 1 of 3 versions42 in cylindrical with side broom | $827.95/EA |
| 2 | MM00127470 | 2 | BufferFits 1 of 3 versions42 in cylindrical with side broom | $5.39/EA |
| 3 | MM12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 4 | MM01377520 | 1 | driver R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $7.42/EA |
| 5 | MM12040259 | 12 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 6 | MM730609Replaces PowerBoss 00101550 | 6 | Washer 8-200HV-A2-70 ISO 7090Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 7 | MM00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.17/EA |
| 8 | MM01377670 | 1 | driver L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $7.42/EA |
| 9 | MM01377620 | 12 | round head screw M8x20-A2-70 DIN 603Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 10 | MM01377350 | 2 | catch 6007-U80Fits 1 of 3 versions42 in cylindrical with side broom | $37.78/EA |
| 11 | MM01377540 | 2 | boltFits 1 of 3 versions42 in cylindrical with side broom | $23.15/EA |
| 12 | MM11177179 | 2 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Fits 1 of 3 versions42 in cylindrical with side broom | $1.73/EA |
| 13 | MM01360580PowerBoss 01360580 | 2 | Side coverFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 14 | MM00052620 | 4 | lens head screw M4x12-4.8-H-N2 ISO 7045Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 15 | MM12310017 | 4 | Washer 4-200HV-N3 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 16 | MM12040028 | 4 | Hex. Nut M4-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 17 | MM01377760 | 1 | litter hopperFits 1 of 3 versions42 in cylindrical with side broom | $570.44/EA |
| 18 | MM01170830 | 2 | Socket head screw M8x16-A2-70 ISO 4762Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 19 | MM01102910 | 1 | Grasp GN 528-PA-117-SWFits 1 of 3 versions42 in cylindrical with side broom | $14.77/EA |
| 20 | MM12040259 | 2 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 21 | Not sold separatelyPowerBoss 97144349 | Rocker with connectionFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Rocker with connection | |
| 22 | Not sold separatelyPowerBoss 97153639 | GuideFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Guide | |
| 23 | Not sold separatelyPowerBoss 97155840-1 | Motors - drive - cylindrical brushesFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Motors - drive - cylindrical brushes |
PowerBoss Scrubmaster B260R Side cover parts
Hako's side cover group, 9 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p117, list 42C p118.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177179 | 3 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Fits 1 of 3 versions42 in cylindrical with side broom | $1.73/EA |
| 2 | MM11177187 | 1 | Lens flange screw M8x16-A2-70 ISO7380-2Fits 1 of 3 versions42 in cylindrical with side broom | $3.30/EA |
| 3 | MM01377650 | 1 | handleFits 1 of 3 versions42 in cylindrical with side broom | $25.95/EA |
| 4 | MM730526Replaces PowerBoss 00902280 | 1 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 5 | MM01377570 | 1 | side coverFits 1 of 3 versions42 in cylindrical with side broom | $33.34/EA |
| 6 | MM12310256 | 6 | Washer 6-200HV-A2-70 ISO 7090Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 7 | MM01377680 | 1 | protecting ringFits 1 of 3 versions42 in cylindrical with side broom | $42.60/EA |
| 8 | MM01360690PowerBoss 01360690 | 1 | Counter bearingFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 9 | MM01113940 | 1 | Sealing plug 910/3205 SWFits 1 of 3 versions42 in cylindrical with side broom | $3.90/EA |
PowerBoss Scrubmaster B260R Counter bearing parts
Hako's counter bearing group, 7 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p119, list 42C p120.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01178500 | 1 | Bearing pinFits 1 of 3 versions42 in cylindrical with side broom | $27.68/EA |
| 2 | MM01071860 | 1 | Ring 6203 ZAVFits 1 of 3 versions42 in cylindrical with side broom | $4.13/EA |
| 3 | MM01377690 | 1 | counter bearingFits 1 of 3 versions42 in cylindrical with side broom | $90.77/EA |
| 4 | MM01377460 | 1 | O-ring 66,04x5,33 N NBR70 ISO3601Fits 1 of 3 versions42 in cylindrical with side broom | $3.72/EA |
| 5 | MM14110563 | 1 | Deep groove ball bearing 6203-2RSH DIN 625Fits 1 of 3 versions42 in cylindrical with side broom | $16.34/EA |
| 6 | MM00133100 | 1 | Retaining ring 40x1,75 phos. DIN 472Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 7 | MM00022230 | 1 | Retaining ring 17x1-phos. DIN 471Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
PowerBoss Scrubmaster B260R Rocker with connection parts
Hako's rocker with connection group (part of cylindrical brush head 1080), 23 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p121, list 42C p122.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03023060 | 1 | rocker upperFits 1 of 3 versions42 in cylindrical with side broom | $401.94/EA |
| 2 | MM12040051 | 3 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 3 | MM11518180 | 1 | Eye bolt BM8x40-4.6 A2G DIN 444Fits 1 of 3 versions42 in cylindrical with side broom | $27.72/EA |
| 4 | MM730526Replaces PowerBoss 00902280 | 3 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 5 | MM01377390 | 1 | damperFits 1 of 3 versions42 in cylindrical with side broom | $124.11/EA |
| 6 | MM00138180 | 2 | hexagon screw M8x50-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 7 | MM01377730 | 2 | slide plateFits 1 of 3 versions42 in cylindrical with side broom | $101.87/EA |
| 8 | MM25582024-1Replaces PowerBoss 00161240 | 0.150 M | Edge protection 10,5x17 schwarzFits 1 of 3 versions42 in cylindrical with side broom | $4.36/EA |
| 9 | MM12022059 | 1 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions42 in cylindrical with side broom | $5.51/EA |
| 10 | MM600940Replaces PowerBoss 00042900 | 1 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42 in cylindrical with side broom | $1.11/EA |
| 11 | MM12040259 | 6 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 12 | MM01376450 | 6 | bushingFits 1 of 3 versions42 in cylindrical with side broom | $8.75/EA |
| 13 | MM01376790 | 6 | hexagon screw M8x60-A2-70 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 14 | MM01370240 | 4 | mounting feetFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 15 | MM01376410 | 2 | link blockFits 1 of 3 versions42 in cylindrical with side broom | $29.18/EA |
| 16 | MM00022190 | 4 | socket head screw M6x20-8.8-N3 ISO 4762Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 17 | MM01375480 | 2 | stop rubberFits 1 of 3 versions42 in cylindrical with side broom | $15.55/EA |
| 18 | MM12332011 | 4 | Washer ISO 7093-6-200HV-N2Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 19 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 20 | MM01377740 | 1 | axleFits 1 of 3 versions42 in cylindrical with side broom | $137.08/EA |
| 21 | MM01377750 | 1 | damper bearingFits 1 of 3 versions42 in cylindrical with side broom | $17.61/EA |
| 22 | MM01375620 | 1 | ringFits 1 of 3 versions42 in cylindrical with side broom | $12.64/EA |
| 23 | MM01376800 | 2 | circlip 25x1,2-1.4122 DIN 471Fits 1 of 3 versions42 in cylindrical with side broom | $1.54/EA |
PowerBoss Scrubmaster B260R Guide parts
Hako's guide group (part of cylindrical brush head 1080), 8 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p123, list 42C p124.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01377560 | 1 | slide barFits 1 of 3 versions42 in cylindrical with side broom | $111.13/EA |
| 2 | MM01377580 | 1 | side gasketFits 1 of 3 versions42 in cylindrical with side broom | $27.78/EA |
| 3 | MM01377770 | 1 | side wallFits 1 of 3 versions42 in cylindrical with side broom | $55.57/EA |
| 4 | MM11177060 | 4 | Lens flange screw M6x16-A2-70-T30 ISO7380-2Fits 1 of 3 versions42 in cylindrical with side broom | $2.76/EA |
| 5 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 6 | MM11709244 | 6 | Screw 4x14 verzinkt DIN 7500Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 7 | MM01377640 | 1 | angle plateFits 1 of 3 versions42 in cylindrical with side broom | $13.17/EA |
| 8 | MM01377780 | 1 | guide profileFits 1 of 3 versions42 in cylindrical with side broom | $177.44/EA |
PowerBoss Scrubmaster B260R Motors - drive - cylindrical brushes parts
Hako's motors - drive - cylindrical brushes group (part of cylindrical brush head 1080), 25 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p125, list 42C p126.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177179 | 8 | Lens flange screw M6x10-A2-70-T30 ISO7380-2Fits 1 of 3 versions42 in cylindrical with side broom | $1.73/EA |
| 2 | MM01377490 | 2 | belt coveringFits 1 of 3 versions42 in cylindrical with side broom | $148.18/EA |
| 3 | MM01377550 | 2 | gasketFits 1 of 3 versions42 in cylindrical with side broom | $15.73/EA |
| 4 | MM11038197 | 10 | hexagon screw M8x16-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 5 | MM00695300 | 2 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 6 | MM00101450 | 2 | Retaining ring 16x1-phos. DIN 471Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 7 | MM01377300 | 2 | V-ribbed pulley 8PJ32,5Fits 1 of 3 versions42 in cylindrical with side broom | $55.57/EA |
| 8 | MM01377270 | 2 | V-ribbed belt 8EPJ-581-776S DIN7867Fits 1 of 3 versions42 in cylindrical with side broom | $44.56/EA |
| 9 | MM01377410 | 2 | V-ribbed pulley 8PJ87,5Fits 1 of 3 versions42 in cylindrical with side broom | $90.77/EA |
| 10 | MM00106300 | 4 | Deep groove ball bearing 6003-2RSH DIN 625Fits 1 of 3 versions42 in cylindrical with side broom | $35.62/EA |
| 11 | MM00101660 | 4 | Retaining ring 35x1,5 phos. DIN 472Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 12 | MM01377630 | 2 | bushingFits 1 of 3 versions42 in cylindrical with side broom | $16.36/EA |
| 13 | MM00102410 | 2 | Ring 6003 AVFits 1 of 3 versions42 in cylindrical with side broom | $3.40/EA |
| 14 | MM01130920 | 2 | Drag elementFits 1 of 3 versions42 in cylindrical with side broom | $76.67/EA |
| 15 | MM13540549 | 2 | Feather key AB5x5x16-St50 DIN 6885Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 16 | MM00740310 | 8 | Washer SKS-8-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 17 | MM01375870 | 2 | motor 36V 1,1kWFits 1 of 3 versions42 in cylindrical with side broom | $1,504.00/EA |
| 18 | MM01376140 | 8 | carbon brushFits 1 of 3 versions42 in cylindrical with side broom | $91.92/EA |
| 19 | MM01476570 | 2 | retainer Ø20Fits 1 of 3 versions42 in cylindrical with side broom | $1.11/EA |
| 20 | MM01370240 | 2 | mounting feetFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 21 | MM99789410 | 1 | Set cylindrical brushes 1080 PA6-0,8Fits 1 of 3 versions42 in cylindrical with side broom | $637.64/EA |
| 22 | MM99789440 | 1 | Set cylindrical brushes 1080 5-Comp.Fits 1 of 3 versions42 in cylindrical with side broom | $699.42/EA |
| 23 | MM99789430 | 1 | Set cylindrical brushes 1080 PA6.12 K320Fits 1 of 3 versions42 in cylindrical with side broom | $837.89/EA |
| 24 | MM99789420 | 1 | Set cylindrical brushes 1080 PA6.12 K180Fits 1 of 3 versions42 in cylindrical with side broom | $719.12/EA |
| W4 | MM03023070 | 1 | wiring harness W4Fits 1 of 3 versions42 in cylindrical with side broom | $476.03/EA |
PowerBoss Scrubmaster B260R Lifting cylindrical brush head parts
Hako's lifting cylindrical brush head group (part of cylindrical brush head 1080), 25 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p127, list 42C p128.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370110 | 1 | lifting element 24V 1200N 200mmFits 1 of 3 versions42 in cylindrical with side broom | $651.97/EA |
| 2 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 3 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42 in cylindrical with side broom | $1.11/EA |
| 4 | MM01370980 | 2 | rope assuranceFits 1 of 3 versions42 in cylindrical with side broom | $27.24/EA |
| 5 | MM01377480 | 1 | recruitment guideFits 1 of 3 versions42 in cylindrical with side broom | $166.70/EA |
| 6 | MM13328851 | 1 | Bolt B12h11x75-St A3G DIN 1444Fits 1 of 3 versions42 in cylindrical with side broom | $7.77/EA |
| 7 | MM00744820 | 1 | cotter pin 3,2 A2G DIN 11024Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 8 | MM01141510 | 2 | Washer 8-Polyamid 6.6 nat. ISO 7093Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 9 | MM00504590 | 1 | hexagon screw M8x120-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 10 | MM01271700 | 1 | BushingFits 1 of 3 versions42 in cylindrical with side broom | $1.14/EA |
| 11 | MM00025300 | 1 | hexagon screw M12x120-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $3.22/EA |
| 12 | MM00156720 | 2 | Washer 13-140HV-St A3G DIN 433Fits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 13 | MM711592Replaces PowerBoss 01102770 | 2 | Approach disk 12,5x26x1,5-POMFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 14 | MM01072930 | 3 | Slide bearing bush GFM-1214-17Fits 1 of 3 versions42 in cylindrical with side broom | $2.61/EA |
| 15 | MM01375510 | 1 | tension springFits 1 of 3 versions42 in cylindrical with side broom | $48.63/EA |
| 16 | MM12040077 | 1 | Hex. Nut M12-6 A3G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $3.77/EA |
| 17 | MM01371040 | 3 | screw M8x25-St Duo-Taptite DIN 7500-DFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 18 | MM01135600 | 2 | Slide bearing bush MSM-0814-10Fits 1 of 3 versions42 in cylindrical with side broom | $0.95/EA |
| 19 | MM01375460 | 1 | retaining washerFits 1 of 3 versions42 in cylindrical with side broom | $3.13/EA |
| 20 | MM01377610 | 1 | proof leverFits 1 of 3 versions42 in cylindrical with side broom | $25.95/EA |
| 21 | Not sold separatelyPowerBoss 97160923 | Sensor supportFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Sensor support | |
| 22 | Not sold separatelyPowerBoss 97156285 | lifting ropeFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Lifting rope | |
| 23 | MM00521270 | 2 | RollerFits 1 of 3 versions42 in cylindrical with side broom | $4.50/EA |
| 24 | MM01372810 | 1 | pipeFits 1 of 3 versions42 in cylindrical with side broom | $9.58/EA |
| 25 | MM00053150 | 1 | hexagon screw M8x110-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
PowerBoss Scrubmaster B260R Sensor support parts
Hako's sensor support group (part of lifting cylindrical brush head), 12 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p129, list 42C p130.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040259 | 1 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 2 | MM730526Replaces PowerBoss 00902280 | 1 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 3 | MM01058400 | 2 | Slide bearing bush GFM-1416-12Fits 1 of 3 versions42 in cylindrical with side broom | $2.61/EA |
| 4 | MM01271700 | 1 | BushingFits 1 of 3 versions42 in cylindrical with side broom | $1.14/EA |
| 5 | MM01377600 | 1 | mountingFits 1 of 3 versions42 in cylindrical with side broom | $40.76/EA |
| 6 | MM01375440 | 1 | slot switchFits 1 of 3 versions42 in cylindrical with side broom | $401.69/EA |
| 7 | MM00523790 | 1 | hexagon screw M8x50-A4-70 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.54/EA |
| 8 | MM01272680 | 2 | Screw PE M4x16-St A2L DIN 7500Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 9 | MM01377590 | 1 | sheet metalFits 1 of 3 versions42 in cylindrical with side broom | $14.82/EA |
| 10 | MM01113660 | 0.100 M | Hose 6,0x13,0Fits 1 of 3 versions42 in cylindrical with side broom | $18.67/EA |
| 11 | MM01230020 | 1 | pipeFits 1 of 3 versions42 in cylindrical with side broom | $4.00/EA |
| 12 | MM01019860 | 1 | Socket head screw M8x45-A2-70 DIN 912Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
PowerBoss Scrubmaster B260R Disk brush head 1080 parts
Hako's disk brush head 1080 group (part of working tools), 22 lines. Fits the 42 in disc only. Manual pages 42D p96, list 42D p97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038346 | 6 | hexagon screw M10x25-8.8-N3 ISO 4017Fits 1 of 3 versions42 in disc | $1.08/EA |
| 2 | MM00740290 | 6 | Detent edged washer SKM-10Fits 1 of 3 versions42 in disc | $1.05/EA |
| 3 | MM01376720 | 1 | boltFits 1 of 3 versions42 in disc | $68.06/EA |
| 4 | MM11038072 | 1 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 1 of 3 versions42 in disc | $1.08/EA |
| 5 | MM00740280 | 1 | Washer SKS-6-dacrometisiertFits 1 of 3 versions42 in disc | $2.43/EA |
| 6 | Not sold separatelyPowerBoss 97153670 | Lifting disk brush headFits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Lifting disk brush head | |
| 7 | MM01278160 | 2 | BufferFits 1 of 3 versions42 in disc | $4.67/EA |
| 8 | MM01375670 | 1 | restoring deviceFits 1 of 3 versions42 in disc | $12.64/EA |
| 9 | MM01375680 | 2 | tension springFits 1 of 3 versions42 in disc | $29.18/EA |
| 10 | MM01111790 | 2 | hexagon screw M14x60-8.8-N3 ISO 4017Fits 1 of 3 versions42 in disc | $1.05/EA |
| 11 | MM01495650 | 4 | Washer 15-350HV-flznnc480h DIN 6340Fits 1 of 3 versions42 in disc | $3.90/EA |
| 12 | MM01499130 | 2 | starting discFits 1 of 3 versions42 in disc | $4.67/EA |
| 13 | MM01376290 | 2 | rocker sheet metalFits 1 of 3 versions42 in disc | $100.18/EA |
| 14 | MM01376470 | 1 | bushingFits 1 of 3 versions42 in disc | $22.39/EA |
| 15 | MM01102650 | 2 | Hex. Nut M 14 10 A3G DIN 985Fits 1 of 3 versions42 in disc | $1.54/EA |
| 16 | MM25842055 | 0.050 M | PVC hose 13x3,5 transp. mit Gew.Fits 1 of 3 versions42 in disc | $6.64/EA |
| 17 | MM00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits 1 of 3 versions42 in disc | $1.22/EA |
| 18 | MM00879630 | 2 | Bolt B12h11x85-St A3G DIN 1444Fits 1 of 3 versions42 in disc | $7.67/EA |
| 19 | MM01376550 | 1 | bushingFits 1 of 3 versions42 in disc | $22.39/EA |
| 20 | Not sold separatelyPowerBoss 97155832 | Brush head 1080Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Brush head 1080 | |
| 21 | MM01370250 | 1 | retainer ø13Fits 1 of 3 versions42 in disc | $1.54/EA |
| 22 | MM01370240 | 1 | mounting feetFits 1 of 3 versions42 in disc | $1.05/EA |
PowerBoss Scrubmaster B260R Lifting disk brush head parts
Hako's lifting disk brush head group (part of disk brush head 1080), 21 lines. Fits the 42 in disc and the 48 in disc only. Manual pages 42D p98, list 42D p99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370110 | 1 | lifting element 24V 1200N 200mmFits 2 of 3 versions42 in disc, 48 in disc | $651.97/EA |
| 2 | MM13328851 | 1 | Bolt B12h11x75-St A3G DIN 1444Fits 2 of 3 versions42 in disc, 48 in disc | $7.77/EA |
| 3 | MM00744820 | 1 | cotter pin 3,2 A2G DIN 11024Fits 2 of 3 versions42 in disc, 48 in disc | $1.22/EA |
| 4 | MM01377480 | 1 | recruitment guideFits 2 of 3 versions42 in disc, 48 in disc | $166.70/EA |
| 5 | MM01371040 | 3 | screw M8x25-St Duo-Taptite DIN 7500-DFits 2 of 3 versions42 in disc, 48 in disc | $1.05/EA |
| 6 | MM01375460 | 1 | retaining washerFits 2 of 3 versions42 in disc, 48 in disc | $3.13/EA |
| 7 | MM01135600 | 2 | Slide bearing bush MSM-0814-10Fits 2 of 3 versions42 in disc, 48 in disc | $0.95/EA |
| 8 | MM01375510 | 1 | tension springFits 2 of 3 versions42 in disc, 48 in disc | $48.63/EA |
| 9 | MM01375600 | 1 | proof leverFits 2 of 3 versions42 in disc, 48 in disc | $20.40/EA |
| 10 | MM00025300 | 1 | hexagon screw M12x120-8.8 N2 ISO 4014Fits 2 of 3 versions42 in disc, 48 in disc | $3.22/EA |
| 11 | Not sold separatelyPowerBoss 97156285 | lifting ropeFits 2 of 3 versions42 in disc, 48 in disc | Not sold separately. Its parts are listed under Lifting rope | |
| 12 | MM00156720 | 2 | Washer 13-140HV-St A3G DIN 433Fits 2 of 3 versions42 in disc, 48 in disc | $2.43/EA |
| 13 | MM711592Replaces PowerBoss 01102770 | 2 | Approach disk 12,5x26x1,5-POMFits 2 of 3 versions42 in disc, 48 in disc | Call to confirm part: 800-440-6723 |
| 14 | MM01072930 | 2 | Slide bearing bush GFM-1214-17Fits 2 of 3 versions42 in disc, 48 in disc | $2.61/EA |
| 15 | MM12040077 | 1 | Hex. Nut M12-6 A3G DIN 985Fits 2 of 3 versions42 in disc, 48 in disc | $3.77/EA |
| 16 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions42 in disc, 48 in disc | $4.15/EA |
| 17 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Fits 2 of 3 versions42 in disc, 48 in disc | $1.11/EA |
| 18 | MM01370980 | 2 | rope assuranceFits 2 of 3 versions42 in disc, 48 in disc | $27.24/EA |
| 19 | MM00521270 | 2 | RollerFits 2 of 3 versions42 in disc, 48 in disc | $4.50/EA |
| 20 | MM01372810 | 1 | pipeFits 2 of 3 versions42 in disc, 48 in disc | $9.58/EA |
| 21 | MM00053150 | 1 | hexagon screw M8x110-8.8 N2 ISO 4014Fits 2 of 3 versions42 in disc, 48 in disc | $1.05/EA |
PowerBoss Scrubmaster B260R Lifting rope parts
Hako's lifting rope group (part of lifting cylindrical brush head), 4 lines. Shared by all three builds. Manual pages 42D p100, list 42D p101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375470 | 1 | ropeHako material no. 92036151. | $29.62/EA |
| 2 | MM01371070 | 2 | cable guideHako material no. 92000413. | $11.08/EA |
| 3 | MM01371050 | 1 | roller assemblyHako material no. 90684846. | $33.08/EA |
| 4 | MM01371040 | 2 | screw M8x25-St Duo-Taptite DIN 7500-DHako material no. 11702115. | $1.05/EA |
PowerBoss Scrubmaster B260R Brush head 1230 parts
Hako's brush head 1230 group (part of disk brush head 1230), 50 lines. Fits the 48 in disc only. Manual pages 48D p119, list 48D p120-121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01271070 | 3 | Motor Amer 710W 36VFits 1 of 3 versions48 in disc | $987.97/EA |
| 2 | MM01274230 | 1 | Carbon brushFits 1 of 3 versions48 in disc | $38.88/EA |
| 3 | MM01274300 | 1 | Carbon brush housingFits 1 of 3 versions48 in disc | $353.77/EA |
| 4 | MM01277040 | 1 | Rotary shaft sealFits 1 of 3 versions48 in disc | $22.40/EA |
| 5 | MM01272710 | 23 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 1 of 3 versions48 in disc | $3.90/EA |
| 6 | Not sold separatelyPowerBoss 97157861 | Head rockerFits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Head rocker (97157861) | |
| 7 | MM00127470 | 2 | BufferFits 1 of 3 versions48 in disc | $5.39/EA |
| 8 | MM01113660 | 0.100 M | Hose 6,0x13,0Fits 1 of 3 versions48 in disc | $18.67/EA |
| 9 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions48 in disc | $1.38/EA |
| 10 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions48 in disc | $1.38/EA |
| 11 | – | 1 | Spare part on requestFits 1 of 3 versions48 in disc | |
| 12 | MM01370250 | 5 | retainer ø13Fits 1 of 3 versions48 in disc | $1.54/EA |
| 13 | MM01370240 | 5 | mounting feetFits 1 of 3 versions48 in disc | $1.05/EA |
| 14 | MM01376100 | 3 | covering 17Fits 1 of 3 versions48 in disc | $127.38/EA |
| 15 | MM01271080 | 6 | Splash guardFits 1 of 3 versions48 in disc | $5.69/EA |
| 16 | MM01170850 | 12 | Screw 4x8 verz.Fits 1 of 3 versions48 in disc | $1.05/EA |
| 17 | MM00112010 | 0.430 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions48 in disc | $11.83/EA |
| 18 | MM01376580 | 1 | distributorFits 1 of 3 versions48 in disc | $85.60/EA |
| 19 | MM90310665 | 3 | screwed plug GES 12 R3/8Fits 1 of 3 versions48 in disc | $2.21/EA |
| 20 | MM01376860 | 3 | screw M6x30-St-N2 DIN 7500-DFits 1 of 3 versions48 in disc | $1.05/EA |
| 21 | Not sold separatelyPowerBoss 97111066 | Brush carrier cpl.Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Brush carrier cpl. | |
| 22 | MM600940Replaces PowerBoss 00042900 | 17 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions48 in disc | $1.11/EA |
| 23 | MM12310041 | 12 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions48 in disc | $2.75/EA |
| 24 | MM00704610 | 15 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits 1 of 3 versions48 in disc | $1.05/EA |
| 25 | MM90209537 | 3 | WasherFits 1 of 3 versions48 in disc | $2.29/EA |
| 26 | MM99794311PowerBoss 99794311 | 1 | Disk brush 17(430) PPN 0,5Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 27 | MM99794312 | 1 | Disk brush 17 (430) K901Fits 1 of 3 versions48 in disc | $167.42/EA |
| 28 | MM99794317PowerBoss 99794317 | 1 | Disc brush 17(430) 5-CompFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 29 | MM99794313 | 1 | Disk brush 17(430) SIC K600Fits 1 of 3 versions48 in disc | $289.42/EA |
| 30 | MM99794314 | 1 | Disk brush 17(430) PPN 0,8Fits 1 of 3 versions48 in disc | $184.53/EA |
| 31 | MM99794315 | 1 | Disk brush 17(430) SIC K180Fits 1 of 3 versions48 in disc | $276.08/EA |
| 32 | MM99794316 | 1 | Disk brush 17(430) SIC K120Fits 1 of 3 versions48 in disc | $268.94/EA |
| 33 | MM99783805PowerBoss 99783805 | 1 BOX | Super-pad 17(430) red (5pc) 45x45x13Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 34 | MM99769105PowerBoss 99769105 | 1 BOX | Carton Pad, blue17" (5pcs)Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 35 | MM99764705PowerBoss 99764705 | 1 BOX | Super- pad 17(430) green (5pc) 46x46x13Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 36 | MM99783705PowerBoss 99783705 | 1 BOX | Super-pad 17(430) brown (5pc) 45x45x13Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 37 | MM99784005PowerBoss 99784005 | 1 BOX | Super-pad 17(430) black (5pc) 45x45x13Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 38 | MM99785002PowerBoss 99785002 | 1 | Microfibre-pad 17(430)Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 39 | MM99791742PowerBoss 99791742 | Twisterpad II 17", white(Dual Pack) 43cmFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 40 | MM99791712PowerBoss 99791712 | Twisterpad II 17",yellow(Dual Pack) 43cmFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 41 | MM99791702PowerBoss 99791702 | Twisterpad II 17", green(Dual Pack) 43cmFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 42 | MM99791722PowerBoss 99791722 | Twisterpad II 17", red (Dual Pack) 43cmFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 43 | MM99796171PowerBoss 99796171 | Melamin Super-Pad 17" (43 cm)Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 44 | MM99794310PowerBoss 99794310 | Disk brush 17(430)Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 45 | MM99794360PowerBoss 99794360 | Disk brush 17(430) bristlesFits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 | |
| 46 | MM00712010 | 1 | Center-lock, cpl.Fits 1 of 3 versions48 in disc | $69.02/EA |
| 47 | MM90364365 | 1 | Center-lock, lower partFits 1 of 3 versions48 in disc | $38.25/EA |
| 48 | MM11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits 1 of 3 versions48 in disc | $1.38/EA |
| 49 | MM90364373 | 1 | Center-lock,upper partFits 1 of 3 versions48 in disc | $41.86/EA |
| 50 | MM01377320 | 3 | fitting key 6x6x22 DIN 6885Fits 1 of 3 versions48 in disc | $2.50/EA |
PowerBoss Scrubmaster B260R Head rocker (97157861) parts
Hako's head rocker group (part of brush head 1230), 13 lines. Fits the 48 in disc only. Manual pages 48D p122, list 48D p123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01376120 | 1 | rockerFits 1 of 3 versions48 in disc | $357.87/EA |
| 2 | MM01376450 | 6 | bushingFits 1 of 3 versions48 in disc | $8.75/EA |
| 3 | MM12040259 | 6 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions48 in disc | $1.08/EA |
| 4 | MM01376790 | 3 | hexagon screw M8x60-A2-70 ISO 4014Fits 1 of 3 versions48 in disc | $1.05/EA |
| 5 | MM01375480 | 2 | stop rubberFits 1 of 3 versions48 in disc | $15.55/EA |
| 6 | MM00022190 | 4 | socket head screw M6x20-8.8-N3 ISO 4762Fits 1 of 3 versions48 in disc | $1.05/EA |
| 7 | MM01376560 | 6 | slide plateFits 1 of 3 versions48 in disc | $15.55/EA |
| 8 | MM01376410 | 2 | link blockFits 1 of 3 versions48 in disc | $29.18/EA |
| 9 | MM01376800 | 2 | circlip 25x1,2-1.4122 DIN 471Fits 1 of 3 versions48 in disc | $1.54/EA |
| 10 | MM12332011 | 4 | Washer ISO 7093-6-200HV-N2Fits 1 of 3 versions48 in disc | $4.15/EA |
| 11 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions48 in disc | $1.38/EA |
| 12 | MM01376520 | 1 | axleFits 1 of 3 versions48 in disc | $148.81/EA |
| 13 | MM01375620 | 1 | ringFits 1 of 3 versions48 in disc | $12.64/EA |
PowerBoss Scrubmaster B260R Release spring parts
Hako's release spring group (part of cylindrical brush head 1080), 10 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p133, list 42C p134.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247 | 1 | hexagon screw M8x25-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.08/EA |
| 2 | MM01377700 | 2 | hexagon screw M8x200-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $3.72/EA |
| 3 | MM01377470 | 1 | springFits 1 of 3 versions42 in cylindrical with side broom | $55.57/EA |
| 4 | MM00733400 | 1 | Spacer sleeveFits 1 of 3 versions42 in cylindrical with side broom | $1.83/EA |
| 5 | MM00878400 | 1 | WasherFits 1 of 3 versions42 in cylindrical with side broom | $2.42/EA |
| 6 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 7 | MM01377710 | 1 | clamping sheet metalFits 1 of 3 versions42 in cylindrical with side broom | $34.25/EA |
| 8 | MM12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions42 in cylindrical with side broom | $5.51/EA |
| 9 | MM00855380 | 1 | Washer 10,5-St A3G DIN 7349Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 10 | MM00964200 | 1 | hexagon screw M10x150-8.8-N2 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $4.00/EA |
PowerBoss Scrubmaster B260R Side wiper cylindrical brush head 1080 parts
Hako's side wiper cylindrical brush head 1080 group (part of working tools), 3 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p135, list 42C p136.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97149694-97147854 | Side wiper R.H. + L.H.Fits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97149694-97147854) | |
| 2 | Not sold separatelyPowerBoss 97149710-97149702 | Lock R.H. + L.H.Fits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Lock R.H. + L.H. | |
| 3 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
PowerBoss Scrubmaster B260R Side wiper R.H. + L.H. (97149694-97147854) parts
Hako's side wiper R.H. + L.H. group, 21 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p137, list 42C p138.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions42 in cylindrical with side broom | $2.42/EA |
| 2 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 3 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions42 in cylindrical with side broom | $1.33/EA |
| 4 | MM01373400 | 2 | tubeFits 1 of 3 versions42 in cylindrical with side broom | $21.32/EA |
| 5 | MM00460890 | 0.140 M | Hose 14x20Fits 1 of 3 versions42 in cylindrical with side broom | $17.64/EA |
| 6 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 7 | MM01377340 | 2 | side retainerFits 1 of 3 versions42 in cylindrical with side broom | $67.25/EA |
| 8 | MM01376000 | 1 | swivel arm R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $55.11/EA |
| 9 | MM01376270 | 2 | hookFits 1 of 3 versions42 in cylindrical with side broom | $18.58/EA |
| 10 | MM01381090 | 1 | squeegee R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $348.86/EA |
| 11 | MM01377500 | 2 | tension band 765Fits 1 of 3 versions42 in cylindrical with side broom | $86.94/EA |
| 12 | MM01377660 | 2 | squeegee strip 765Fits 1 of 3 versions42 in cylindrical with side broom | $105.29/EA |
| 13 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions42 in cylindrical with side broom | $1.67/EA |
| 14 | MM01381170 | 1 | squeegee L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $310.39/EA |
| 15 | MM01376130 | 1 | swivel arm L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $54.58/EA |
| 16 | MM01374100 | 8 | fitting screwFits 1 of 3 versions42 in cylindrical with side broom | $20.22/EA |
| 17 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions42 in cylindrical with side broom | $5.33/EA |
| 18 | MM01073870 | 4 | LeverFits 1 of 3 versions42 in cylindrical with side broom | $26.65/EA |
| 19 | MM01074210 | 2 | BushingFits 1 of 3 versions42 in cylindrical with side broom | $4.97/EA |
| 20 | MM12310058 | 8 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 21 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $6.92/EA |
PowerBoss Scrubmaster B260R Lock R.H. + L.H. parts
Hako's lock R.H. + L.H. group, 12 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p139, list 42C p140.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00695280 | 1 | Thrust washer 8 verz.Fits 1 of 3 versions42 in cylindrical with side broom | $6.22/EA |
| 2 | MM01378440 | 1 | dip stickFits 1 of 3 versions42 in cylindrical with side broom | $10.40/EA |
| 3 | MM00711670 | 0.120 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions42 in cylindrical with side broom | $3.42/EA |
| 4 | MM01111880 | 1 | Decal ABBAFits 1 of 3 versions42 in cylindrical with side broom | $19.69/EA |
| 5 | MM00705480 | 1 | Lens cap 1000/1068 SWFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 6 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 7 | MM12310256 | 6 | Washer 6-200HV-A2-70 ISO 7090Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 8 | MM00127470 | 2 | BufferFits 1 of 3 versions42 in cylindrical with side broom | $5.39/EA |
| 9 | MM01132510 | 0.080 M | Hose OLNS1 2370 DN10Fits 1 of 3 versions42 in cylindrical with side broom | $60.81/EA |
| 10 | MM01383460 | 1 | squeegee guide R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $119.03/EA |
| 11 | MM01383450PowerBoss 01383450 | 1 | squeegee guide L.H.Fits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 12 | MM03006680 | 1 | Sealing compoundFits 1 of 3 versions42 in cylindrical with side broom | $51.38/EA |
PowerBoss Scrubmaster B260R Brush head 1080 parts
Hako's brush head 1080 group (part of disk brush head 1080), 51 lines. Fits the 42 in disc only. Manual pages 42D p102, list 42D p103-104.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01271070 | 2 | Motor Amer 710W 36VFits 1 of 3 versions42 in disc | $987.97/EA |
| 2 | MM01274230 | 1 | Carbon brushFits 1 of 3 versions42 in disc | $38.88/EA |
| 3 | MM01274300 | 1 | Carbon brush housingFits 1 of 3 versions42 in disc | $353.77/EA |
| 4 | MM01277040 | 1 | Rotary shaft sealFits 1 of 3 versions42 in disc | $22.40/EA |
| 5 | MM00127470 | 2 | BufferFits 1 of 3 versions42 in disc | $5.39/EA |
| 6 | MM01113660 | 0.100 M | Hose 6,0x13,0Fits 1 of 3 versions42 in disc | $18.67/EA |
| 7 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions42 in disc | $1.38/EA |
| 8 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in disc | $1.38/EA |
| 9 | MM01371750 | 1 | covering 1080Fits 1 of 3 versions42 in disc | $369.53/EA |
| 10 | MM01272710 | 19 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 1 of 3 versions42 in disc | $3.90/EA |
| 11 | Not sold separatelyPowerBoss 97153464 | Head rockerFits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Head rocker (97153464) | |
| 12 | MM01271080 | 4 | Splash guardFits 1 of 3 versions42 in disc | $5.69/EA |
| 13 | MM01170850 | 8 | Screw 4x8 verz.Fits 1 of 3 versions42 in disc | $1.05/EA |
| 14 | MM01375580 | 1 | plate 1080Fits 1 of 3 versions42 in disc | $351.99/EA |
| 15 | MM90156688 | 8 | Cable tie 4,8x360Fits 1 of 3 versions42 in disc | $2.06/EA |
| 16 | MM00562480 | 0.600 M | Spiral hose KX3000/Steel-Lw 10Fits 1 of 3 versions42 in disc | $11.94/EA |
| 17 | MM00159550 | 2 | pipe clamp RSGU 1.18/20-W1Fits 1 of 3 versions42 in disc | $3.90/EA |
| 18 | MM90275157 | 1 | T-reducer muff TRS10-13-10Fits 1 of 3 versions42 in disc | $4.41/EA |
| 19 | MM01370250 | 3 | retainer ø13Fits 1 of 3 versions42 in disc | $1.54/EA |
| 20 | MM01370240 | 3 | mounting feetFits 1 of 3 versions42 in disc | $1.05/EA |
| 22 | MM00704610 | 10 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits 1 of 3 versions42 in disc | $1.05/EA |
| 23 | MM12310041 | 8 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions42 in disc | $2.75/EA |
| 24 | MM90311663 | 2 | Spray tubeFits 1 of 3 versions42 in disc | $2.63/EA |
| 25 | MM01171270 | 4 | Screw M6x12-St A2G DIN 7500-DFits 1 of 3 versions42 in disc | $1.05/EA |
| 26 | Not sold separatelyPowerBoss 97111066 | Brush carrier cpl.Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Brush carrier cpl. | |
| 27 | MM90209537 | 2 | WasherFits 1 of 3 versions42 in disc | $2.29/EA |
| 28 | MM99752220 | 2 | disk brush 22(560) PPN 0.5Fits 1 of 3 versions42 in disc | $239.72/EA |
| 29 | MM99752230 | 2 | Disk brush 22(560) K901Fits 1 of 3 versions42 in disc | $274.72/EA |
| 30 | MM99752210 | 2 | Disk brush 22(560) 5-comp.Fits 1 of 3 versions42 in disc | $204.75/EA |
| 31 | MM99752250 | 2 | Disk brush 22(560) PPN 0.8Fits 1 of 3 versions42 in disc | $231.00/EA |
| 32 | MM99752240 | 2 | Disk brush 22(560) SIC K600Fits 1 of 3 versions42 in disc | $316.10/EA |
| 33 | MM99752260 | 2 | Disk brush 22(560) SIC K180Fits 1 of 3 versions42 in disc | $302.90/EA |
| 34 | MM99752270 | 2 | Disk brush 22(560) SIC K120Fits 1 of 3 versions42 in disc | $164.64/EA |
| 35 | MM99766405PowerBoss 99766405 | Super-Pad 22(560) red (5pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 36 | MM99766415PowerBoss 99766415 | Super-Pad 22(560) blue (5pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 37 | MM99766425PowerBoss 99766425 | Super-Pad 22(560) green (5pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 38 | MM99766435PowerBoss 99766435 | Super-Pad 22(560) brown (5pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 39 | MM99766445PowerBoss 99766445 | Super-Pad 22(560) black (5pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 40 | MM99766420PowerBoss 99766420 | Microfibre-Pad 22(560)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 41 | MM99766402PowerBoss 99766402 | Twister-Pad 22(560) white (2pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 42 | MM99766412PowerBoss 99766412 | Twister-Pad 22(560) yellow (2pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 43 | MM99766422PowerBoss 99766422 | Twister-Pad 22(560) green (2pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 44 | MM99766432PowerBoss 99766432 | Twister-Pad 22(560) red (2pcs)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 45 | MM99766430PowerBoss 99766430 | Melamin Super-Pad 22(560)Fits 1 of 3 versions42 in disc | Call to confirm part: 800-440-6723 | |
| 46 | MM99766400 | Padholder 22(560)Fits 1 of 3 versions42 in disc | $369.03/EA | |
| 47 | MM00712010 | 1 | Center-lock, cpl.Fits 1 of 3 versions42 in disc | $69.02/EA |
| 48 | MM90364365 | 1 | Center-lock, lower partFits 1 of 3 versions42 in disc | $38.25/EA |
| 49 | MM90364373 | 1 | Center-lock,upper partFits 1 of 3 versions42 in disc | $41.86/EA |
| 50 | MM11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits 1 of 3 versions42 in disc | $1.38/EA |
| 51 | MM01377320 | 2 | fitting key 6x6x22 DIN 6885Fits 1 of 3 versions42 in disc | $2.50/EA |
| W6 | MM03021880 | 1 | wiring harness W6Fits 1 of 3 versions42 in disc | $385.07/EA |
PowerBoss Scrubmaster B260R Head rocker (97153464) parts
Hako's head rocker group (part of brush head 1080), 17 lines. Fits the 42 in disc only. Manual pages 42D p105, list 42D p106.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375810 | 1 | rockerFits 1 of 3 versions42 in disc | $394.81/EA |
| 2 | MM01496100 | 1 | Pair of clamping LKP-1-R-8-PP DIN3015Fits 1 of 3 versions42 in disc | $2.32/EA |
| 3 | MM12332011 | 8 | Washer ISO 7093-6-200HV-N2Fits 1 of 3 versions42 in disc | $4.15/EA |
| 4 | MM00133130 | 4 | Screw D M6x25-St A2G DIN 7500Fits 1 of 3 versions42 in disc | $1.05/EA |
| 5 | MM01376790 | 3 | hexagon screw M8x60-A2-70 ISO 4014Fits 1 of 3 versions42 in disc | $1.05/EA |
| 6 | MM01376450 | 3 | bushingFits 1 of 3 versions42 in disc | $8.75/EA |
| 7 | MM01376410 | 2 | link blockFits 1 of 3 versions42 in disc | $29.18/EA |
| 8 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in disc | $1.38/EA |
| 9 | MM00022190 | 4 | socket head screw M6x20-8.8-N3 ISO 4762Fits 1 of 3 versions42 in disc | $1.05/EA |
| 10 | MM01375480 | 2 | stop rubberFits 1 of 3 versions42 in disc | $15.55/EA |
| 11 | MM01376680 | 1 | axleFits 1 of 3 versions42 in disc | $85.60/EA |
| 12 | MM01376800 | 2 | circlip 25x1,2-1.4122 DIN 471Fits 1 of 3 versions42 in disc | $1.54/EA |
| 13 | MM01178830 | 2 | Socket head screw M5x12-A2-70 ISO 4762Fits 1 of 3 versions42 in disc | $1.22/EA |
| 14 | MM12040283 | 2 | Hex. Nut M5-A2-70 DIN 985Fits 1 of 3 versions42 in disc | $1.08/EA |
| 15 | MM12040259 | 3 | Hex. Nut M8-A2-70 DIN 985Fits 1 of 3 versions42 in disc | $1.08/EA |
| 16 | MM01375550 | 2 | slide plateFits 1 of 3 versions42 in disc | $47.67/EA |
| 17 | MM01375620 | 1 | ringFits 1 of 3 versions42 in disc | $12.64/EA |
PowerBoss Scrubmaster B260R Brush carrier cpl. parts
Hako's brush carrier cpl. group (part of brush head 1080), 4 lines. Fits the 42 in disc and the 48 in disc only. Manual pages 42D p107, list 42D p108.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01172810 | 1 | Brush driverFits 2 of 3 versions42 in disc, 48 in disc | $106.50/EA |
| 2 | MM90541814 | 1 | DriverFits 2 of 3 versions42 in disc, 48 in disc | $13.92/EA |
| 3 | MM12310256 | 3 | Washer 6-200HV-A2-70 ISO 7090Fits 2 of 3 versions42 in disc, 48 in disc | $1.05/EA |
| 4 | MM01170820 | 3 | Socket head screw M6x30-A2 ISO 4762Fits 2 of 3 versions42 in disc, 48 in disc | $1.05/EA |
PowerBoss Scrubmaster B260R Side wiper disk brush head 1230 parts
Hako's side wiper disk brush head 1230 group (part of working tools), 3 lines. Fits the 48 in disc only. Manual pages 48D p126, list 48D p127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97152995-97152987 | Side wiper R.H. + L.H.Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97152995-97152987) | |
| 2 | Not sold separatelyPowerBoss 97152086-97152094 | Locking plate R.H. + L.H.Fits 1 of 3 versions48 in disc | Not sold separately. Its parts are listed under Locking plate R.H. + L.H. | |
| 3 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions48 in disc | $1.05/EA |
PowerBoss Scrubmaster B260R Side wiper R.H. + L.H. (97152995-97152987) parts
Hako's side wiper R.H. + L.H. group, 22 lines. Fits the 48 in disc only. Manual pages 48D p128, list 48D p129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions48 in disc | $2.42/EA |
| 2 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions48 in disc | $1.05/EA |
| 3 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions48 in disc | $1.33/EA |
| 4 | MM01373400 | 2 | tubeFits 1 of 3 versions48 in disc | $21.32/EA |
| 5 | MM00460890 | 0.140 M | Hose 14x20Fits 1 of 3 versions48 in disc | $17.64/EA |
| 6 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions48 in disc | $4.15/EA |
| 7 | MM01377340 | 2 | side retainerFits 1 of 3 versions48 in disc | $67.25/EA |
| 8 | MM01376000 | 1 | swivel arm R.H.Fits 1 of 3 versions48 in disc | $55.11/EA |
| 9 | MM01376270 | 2 | hookFits 1 of 3 versions48 in disc | $18.58/EA |
| 10 | MM01377430 | 1 | squeegee carrier R.H.1230Fits 1 of 3 versions48 in disc | $412.94/EA |
| 11 | MM01377500 | 2 | tension band 765Fits 1 of 3 versions48 in disc | $86.94/EA |
| 12 | MM01377660 | 2 | squeegee strip 765Fits 1 of 3 versions48 in disc | $105.29/EA |
| 13 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions48 in disc | $1.67/EA |
| 14 | MM01377720 | 1 | squeegee carrier L.H.1230Fits 1 of 3 versions48 in disc | $382.08/EA |
| 15 | MM01376130 | 1 | swivel arm L.H.Fits 1 of 3 versions48 in disc | $54.58/EA |
| 16 | MM01272760 | 2 | Decal KEEP OFFFits 1 of 3 versions48 in disc | $3.90/EA |
| 17 | MM01374100 | 8 | fitting screwFits 1 of 3 versions48 in disc | $20.22/EA |
| 18 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions48 in disc | $5.33/EA |
| 19 | MM01073870 | 4 | LeverFits 1 of 3 versions48 in disc | $26.65/EA |
| 20 | MM01074210 | 2 | BushingFits 1 of 3 versions48 in disc | $4.97/EA |
| 21 | MM12310058 | 10 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions48 in disc | $4.15/EA |
| 22 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions48 in disc | $6.92/EA |
PowerBoss Scrubmaster B260R Side wiper disk brush head 1080 parts
Hako's side wiper disk brush head 1080 group (part of working tools), 3 lines. Fits the 42 in disc only. Manual pages 42D p109, list 42D p110.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97152060-97152078 | Side wiper R.H. + L.H.Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97152060-97152078) | |
| 2 | Not sold separatelyPowerBoss 97152086-97152094 | Locking plate R.H. + L.H.Fits 1 of 3 versions42 in disc | Not sold separately. Its parts are listed under Locking plate R.H. + L.H. | |
| 3 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions42 in disc | $1.05/EA |
PowerBoss Scrubmaster B260R Side wiper R.H. + L.H. (97152060-97152078) parts
Hako's side wiper R.H. + L.H. group, 22 lines. Fits the 42 in disc only. Manual pages 42D p111, list 42D p112.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions42 in disc | $2.42/EA |
| 2 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions42 in disc | $1.05/EA |
| 3 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions42 in disc | $1.33/EA |
| 4 | MM01373400 | 2 | tubeFits 1 of 3 versions42 in disc | $21.32/EA |
| 5 | MM00460890 | 0.140 M | Hose 14x20Fits 1 of 3 versions42 in disc | $17.64/EA |
| 6 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in disc | $4.15/EA |
| 7 | MM01375990 | 2 | steady arm TB1080Fits 1 of 3 versions42 in disc | $64.42/EA |
| 8 | MM01376000 | 1 | swivel arm R.H.Fits 1 of 3 versions42 in disc | $55.11/EA |
| 9 | MM01376270 | 2 | hookFits 1 of 3 versions42 in disc | $18.58/EA |
| 10 | MM01376080 | 1 | squeegee carrier R.H. 1080Fits 1 of 3 versions42 in disc | $250.90/EA |
| 11 | MM01373970 | 2 | tension band longFits 1 of 3 versions42 in disc | $175.96/EA |
| 12 | MM01077040 | 2 | squeegee stripFits 1 of 3 versions42 in disc | $53.77/EA |
| 13 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions42 in disc | $1.67/EA |
| 14 | MM01376110 | 1 | squeegee carrier L.H. 1080Fits 1 of 3 versions42 in disc | $250.90/EA |
| 15 | MM01376130 | 1 | swivel arm L.H.Fits 1 of 3 versions42 in disc | $54.58/EA |
| 16 | MM01272760 | 2 | Decal KEEP OFFFits 1 of 3 versions42 in disc | $3.90/EA |
| 17 | MM01374100 | 8 | fitting screwFits 1 of 3 versions42 in disc | $20.22/EA |
| 18 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions42 in disc | $5.33/EA |
| 19 | MM01073870 | 4 | LeverFits 1 of 3 versions42 in disc | $26.65/EA |
| 20 | MM01074210 | 2 | BushingFits 1 of 3 versions42 in disc | $4.97/EA |
| 21 | MM12310058 | 10 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions42 in disc | $4.15/EA |
| 22 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions42 in disc | $6.92/EA |
PowerBoss Scrubmaster B260R Locking plate R.H. + L.H. parts
Hako's locking plate R.H. + L.H. group, 9 lines. Fits the 42 in disc and the 48 in disc only. Manual pages 42D p113, list 42D p114.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00695280 | 1 | Thrust washer 8 verz.Fits 2 of 3 versions42 in disc, 48 in disc | $6.22/EA |
| 2 | MM00711670 | 0.210 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 2 of 3 versions42 in disc, 48 in disc | $3.42/EA |
| 3 | MM01376160 | 1 | squeegee guide R.H.Fits 2 of 3 versions42 in disc, 48 in disc | $58.36/EA |
| 4 | MM01373610 | 1 | pipeFits 2 of 3 versions42 in disc, 48 in disc | $20.03/EA |
| 5 | MM01111880 | 1 | Decal ABBAFits 2 of 3 versions42 in disc, 48 in disc | $19.69/EA |
| 6 | MM01142460 | 1 | Protection cap SW10-1-G16 SWFits 2 of 3 versions42 in disc, 48 in disc | $1.05/EA |
| 7 | MM01132510 | 0.060 M | Hose OLNS1 2370 DN10Fits 2 of 3 versions42 in disc, 48 in disc | $60.81/EA |
| 8 | MM01132510 | 0.040 M | Hose OLNS1 2370 DN10Fits 2 of 3 versions42 in disc, 48 in disc | $60.81/EA |
| 9 | MM01376090 | 1 | squeegee guide L.H.Fits 2 of 3 versions42 in disc, 48 in disc | $38.88/EA |
PowerBoss Scrubmaster B260R Squegee with lifting parts
Hako's squegee with lifting group (part of working tools), 3 lines. Lines tagged with a build fit only that build. Manual pages 42D p115, list 42D p116.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97146229 | Squeegee linkage groupNot sold separately. Has sub-assemblies, see Squeegee linkage group parts. | Not sold separately. Its parts are listed under Squeegee linkage group (97146229) | |
| 2 | MM01378350 | suction unit 1360Fits 1 of 3 versions48 in disc | $1,780.11/EA | |
| 2 | MM01387730 | Squeegee 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $2,189.36/EA |
PowerBoss Scrubmaster B260R Squeegee linkage group (97146229) parts
Hako's squeegee linkage group (part of squegee with lifting), 7 lines. Shared by all three builds. Manual pages 42D p117, list 42D p118.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97146245 | Lifting elementNot sold separately. Has sub-assemblies, see Lifting element parts. | Not sold separately. Its parts are listed under Lifting element | |
| 2 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 3 | MM11038247 | 6 | hexagon screw M8x25-8.8-N3 ISO 4017Hako part no. 00053100. | $1.08/EA |
| 4 | MM03021740 | 1 | Squeegee linkage groupHako material no. 97134035. Available. Pos. has sub-assemblies. See Squeegee linkage group. | $1,409.99/EA |
| 5 | MM00740310 | 4 | Washer SKS-8-dacrometisiertHako material no. 12520029. | $1.05/EA |
| 6 | MM12310041 | 2 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 7 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
PowerBoss Scrubmaster B260R Lifting element parts
Hako's lifting element group (part of squeegee linkage group), 14 lines. Shared by all three builds. Manual pages 42D p119, list 42D p120.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12310058 | 4 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 2 | MM01271590 | 4 | Starting disk GTM-1018-020Hako material no. 14898100. | $3.68/EA |
| 3 | MM01375970 | 1 | lifting element guideHako material no. 92029917. | $51.57/EA |
| 4 | MM00522020 | 2 | Bolt B10h11x80-St A2G DIN 1444Hako material no. 13328489. | $14.77/EA |
| 5 | MM00744820 | 2 | cotter pin 3,2 A2G DIN 11024Hako material no. 13851043. | $1.22/EA |
| 6 | MM00903290 | 1 | Tube clamp RSGU1.5/9-W1Hako material no. 17529140. | $1.58/EA |
| 7 | MM01112160 | 1 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 8 | MM01376190 | 1 | tension springHako material no. 92031335. | $28.00/EA |
| 9 | MM01375050 | 1 | lifting element 24V 750N 70mmHako material no. 92005727. | $375.33/EA |
| 10 | MM01072930 | 2 | Slide bearing bush GFM-1214-17Hako material no. 14895296. | $2.61/EA |
| 11 | MM01154830 | 2 | Cage nut M8-N0Hako material no. 12181152. | $1.05/EA |
| 12 | MM00043450 | 1 | Clevis pin 10h11x30x25-St A2G DIN 1434Hako material no. 13328075. | $3.90/EA |
| 13 | MM13280136 | 1 | split pin 3,2x20-St-N2 ISO 1234Hako part no. 00553580. | $5.51/EA |
| 14 | MM01375950 | 1 | leverHako material no. 92021096. | $17.54/EA |
PowerBoss Scrubmaster B260R Squeegee linkage group (03021740) parts
Hako's squeegee linkage group, 32 lines. Shared by all three builds. Manual pages 42D p121, list 42D p122-123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372500 | 1 | base plateHako material no. 96141999. | $278.09/EA |
| 2 | MM00074710 | 2 | Hex. Nut M10-04-N2 ISO 4035Hako material no. 12012027. | $2.43/EA |
| 3 | MM01389590 | 2 | steering roller 75mmHako material no. 92164276. Serial No. begin 7182005055 72. | $49.25/EA |
| 4 | MM01278920 | 2 | Socket head screw M6x35-A2 ISO 4762Hako material no. 11126810. | $1.05/EA |
| 5 | MM12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
| 6 | MM01373090 | 1 | jointHako material no. 92002484. | $50.94/EA |
| 7 | MM00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 8 | MM01373280 | 2 | bushingHako material no. 92013978. | $18.49/EA |
| 9 | MM01375180 | 1 | hexagon nut M10x1-A2-40 ISO 4035Hako material no. 12012159. | $1.05/EA |
| 10 | MM01373080 | 1 | adjustment bushingHako material no. 92002435. | $44.73/EA |
| 11 | MM01380340 | 1 | hexagon nut M10x1-LH-A2-40 ISO 4035Hako material no. 12012142. | $15.27/EA |
| 12 | MM01164420 | 8 | Lens flange screw M8x25-A2-70 ISO7380-2Hako material no. 11177245. | $1.54/EA |
| 13 | MM01226400 | 8 | Detent edged washer SKS 8-1.4401Hako material no. 12520210. | $1.05/EA |
| 14 | MM12040259 | 12 | Hex. Nut M8-A2-70 DIN 985Hako part no. 00101540. | $1.08/EA |
| 15 | MM01371360 | 4 | hexagon screw M8x80-A2-70 ISO 4017Hako material no. 11039617. | $1.05/EA |
| 16 | MM01373460 | 8 | spacer sleeveHako material no. 92020361. | $12.25/EA |
| 17 | MM00077900 | 8 | DU-Drying socket 12x14x15Hako material no. 14896021. | $1.59/EA |
| 18 | MM01373730 | 4 | adapterHako material no. 96151816. | $84.60/EA |
| 19 | MM01372720 | 1 | shaftHako material no. 90682386. | $88.49/EA |
| 20 | MM01372860 | 2 | indicatorHako material no. 90695784. | $6.98/EA |
| 21 | MM01077710 | 2 | Tension springHako material no. 90485137. | $10.50/EA |
| 22 | MM01377290 | 4 | slide bearing bush AMV-BV-20x23x31-21,5Hako material no. 14895106. | $17.54/EA |
| 23 | MM01373240 | 2 | guideHako material no. 92010883. | $24.33/EA |
| 24 | MM01373800 | 1 | shaftHako material no. 96154570. | $136.12/EA |
| 25 | MM01371600 | 2 | leaf springHako material no. 90686510. | $21.61/EA |
| 26 | MM01371520 | 2 | leaf springHako material no. 90686502. | $32.50/EA |
| 27 | MM01371560 | 2 | tension springHako material no. 92007335. | $80.75/EA |
| 28 | MM01371620 | 1 | fork headHako material no. 96155320. | $129.36/EA |
| 29 | MM01371570 | 2 | fork headHako material no. 92002427. | $26.24/EA |
| 30 | MM00734550 | 2 | DU-Drying socket 20x23x20Hako material no. 14896112. | $2.21/EA |
| 31 | MM01373780 | 1 | stopHako material no. 96154265. | $252.84/EA |
| 32 | MM01370230 | 2 | circlip 20x1,2 - 1.4122 DIN 471Hako material no. 12610028. | $1.54/EA |
PowerBoss Scrubmaster B260R Suction unit 1360 parts
Hako's suction unit 1360 group, 28 lines. Fits the 48 in disc only. Manual pages 48D p141, list 48D p142.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM717037Replaces PowerBoss 00059460 | 2 | hexagon screw M8x40-A2-70 ISO 4017Fits 1 of 3 versions48 in disc | $2.00/EA |
| 2 | MM01178290 | 2 | Conical spring washer 75730/01 (5x140=700)**(10x)Fits 1 of 3 versions48 in disc | $4.19/EA |
| 3 | MM01373050 | 2 | pipeFits 1 of 3 versions48 in disc | $25.28/EA |
| 4 | MM01376740 | 4 | slide bearing bush GFM-2527-07Fits 1 of 3 versions48 in disc | $3.90/EA |
| 5 | MM01371490 | 2 | deflector 125mmFits 1 of 3 versions48 in disc | $20.92/EA |
| 6 | MM01378310 | 1 | deflector bow 1360mm R.H. 1360mmFits 1 of 3 versions48 in disc | $156.45/EA |
| 7 | MM11039609 | 4 | hexagon screw M8x16-A2-70 ISO 4017Fits 1 of 3 versions48 in disc | $1.38/EA |
| 8 | MM730526Replaces PowerBoss 00902280 | 4 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions48 in disc | $1.08/EA |
| 9 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits 1 of 3 versions48 in disc | $1.08/EA |
| 10 | MM01371530 | 2 | steering rollerFits 1 of 3 versions48 in disc | $6.98/EA |
| 11 | MM01019860 | 2 | Socket head screw M8x45-A2-70 DIN 912Fits 1 of 3 versions48 in disc | $1.05/EA |
| 12 | MM01228240 | 2 | Washer 12-200HV-A2-70 ISO 7089Fits 1 of 3 versions48 in disc | $1.05/EA |
| 13 | MM00711670 | 0.350 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions48 in disc | $3.42/EA |
| 14 | MM01090220PowerBoss 01090220 | 2 | Angle screwing WES8 M10x1Fits 1 of 3 versions48 in disc | Call to confirm part: 800-440-6723 |
| 15 | MM01375180 | 2 | hexagon nut M10x1-A2-40 ISO 4035Fits 1 of 3 versions48 in disc | $1.05/EA |
| 16 | MM01378400 | 1 | suction unit 1360mm, cpl. 1360mmFits 1 of 3 versions48 in disc | $852.36/EA |
| 17 | MM01371630 | 2 | star handle yellow M10Fits 1 of 3 versions48 in disc | $41.39/EA |
| 18 | MM01371690 | 1 | T-screwing in connecting piece TES8 R1/4Fits 1 of 3 versions48 in disc | $3.90/EA |
| 19 | MM01185240 | 1 | O-ring 11x2,5 NBR 72 ShoreFits 1 of 3 versions48 in disc | $1.05/EA |
| 20 | MM00711670 | 0.900 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions48 in disc | $3.42/EA |
| 21 | MM01378320 | 1 | insert 1360mm 15mm 15mmFits 1 of 3 versions48 in disc | $197.57/EA |
| 22 | MM01164420 | 4 | Lens flange screw M8x25-A2-70 ISO7380-2Fits 1 of 3 versions48 in disc | $1.54/EA |
| 23 | MM01378230 | 1 | slot strip 1360mmFits 1 of 3 versions48 in disc | $105.75/EA |
| 24 | MM01378170 | 1 | sealing strip 1360mmFits 1 of 3 versions48 in disc | $201.61/EA |
| 25 | MM01378270 | 1 | tension band 1360mm front, cpl. 1360mmFits 1 of 3 versions48 in disc | $275.61/EA |
| 26 | MM01378180 | 1 | tension band 1360mm rear, cpl.Fits 1 of 3 versions48 in disc | $241.39/EA |
| 27 | MM01378280 | 1 | deflector bow 1360mm L.H.Fits 1 of 3 versions48 in disc | $170.39/EA |
| 28 | MM01371540 | 2 | handleFits 1 of 3 versions48 in disc | $44.73/EA |
PowerBoss Scrubmaster B260R Squeegee 1260mm parts
Hako's squeegee 1260mm group, 29 lines. Fits the 42 in cylindrical with side broom and the 42 in disc only. Manual pages 42D p124, list 42D p125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM717037Replaces PowerBoss 00059460 | 2 | hexagon screw M8x40-A2-70 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $2.00/EA |
| 2 | MM01178290 | 2 | Conical spring washer 75730/01 (5x140=700)**(10x)Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $4.19/EA |
| 3 | MM01373050 | 2 | pipeFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $25.28/EA |
| 4 | MM01376740 | 4 | slide bearing bush GFM-2527-07Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $3.90/EA |
| 5 | MM01371490 | 2 | deflector 125mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $20.92/EA |
| 6 | MM01376180 | 1 | deflector bow R.H. 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $108.90/EA |
| 7 | MM11039609 | 4 | hexagon screw M8x16-A2-70 ISO 4017Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.38/EA |
| 8 | MM730526Replaces PowerBoss 00902280 | 4 | Washer 8-200HV-A4-70 ISO 7093Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.08/EA |
| 9 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.08/EA |
| 10 | MM01371530 | 2 | steering rollerFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $6.98/EA |
| 11 | MM01019860 | 2 | Socket head screw M8x45-A2-70 DIN 912Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.05/EA |
| 12 | MM01228240 | 2 | Washer 12-200HV-A2-70 ISO 7089Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.05/EA |
| 13 | MM00711670 | 0.305 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $3.42/EA |
| 14 | MM01090220PowerBoss 01090220 | 2 | Angle screwing WES8 M10x1Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | Call to confirm part: 800-440-6723 |
| 15 | MM01375180 | 2 | hexagon nut M10x1-A2-40 ISO 4035Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.05/EA |
| 16 | MM01373740 | 1 | suction unit 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $948.78/EA |
| 17 | MM01371630 | 2 | star handle yellow M10Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $41.39/EA |
| 18 | MM01371690 | 1 | T-screwing in connecting piece TES8 R1/4Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $3.90/EA |
| 19 | MM01185240 | 1 | O-ring 11x2,5 NBR 72 ShoreFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.05/EA |
| 20 | MM00711670 | 0.860 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $3.42/EA |
| 21 | MM01371880 | 1 | enclosure 1260 15mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $190.59/EA |
| 22 | MM01164420 | 4 | Lens flange screw M8x25-A2-70 ISO7380-2Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $1.54/EA |
| 23 | MM01371940 | 1 | slot strip 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $62.18/EA |
| 23 | MM01372020 | 1 | slot strip, highly wear-resistant 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $115.67/EA |
| 24 | MM01371900 | 1 | sealing strip 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $79.92/EA |
| 25 | MM01371700 | 1 | tension band front 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $145.87/EA |
| 26 | MM01371640 | 1 | tension band rear 1260mmFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $144.19/EA |
| 27 | MM01375960 | 1 | deflector bow L.H. 1260Fits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $108.90/EA |
| 28 | MM01371540 | 2 | handleFits 2 of 3 versions42 in cylindrical with side broom, 42 in disc | $44.73/EA |
PowerBoss Scrubmaster B260R Side broom equipment (97142954) parts
Hako's side broom equipment group (part of working tools), 10 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p152, list 42C p153.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97142947 | Side broom equipmentFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Side broom equipment (97142947) | |
| 2 | MM11038197 | 4 | hexagon screw M8x16-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 3 | MM00740310 | 4 | Washer SKS-8-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 4 | MM6348Replaces PowerBoss 99634800 | 1 | Spare side broomFits 1 of 3 versions42 in cylindrical with side broom | $129.90/EA |
| 5 | MM99623700 | 2 | Spare side broomFits 1 of 3 versions42 in cylindrical with side broom | $43.44/EA |
| 6 | MM01373170 | 2 | drive plateFits 1 of 3 versions42 in cylindrical with side broom | $46.31/EA |
| 7 | MM00740280 | 2 | Washer SKS-6-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 8 | MM01380010 | 2 | wing screw M6x16-St-N2 DIN 316Fits 1 of 3 versions42 in cylindrical with side broom | $2.43/EA |
| 9 | MM99651310 | 2 | Side broom PP-PES 400Fits 1 of 3 versions42 in cylindrical with side broom | $97.36/EA |
| 10 | MM99623710PowerBoss 99623710 | 2 | Spare side broom PES 400Fits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
PowerBoss Scrubmaster B260R Side broom equipment (97142947) parts
Hako's side broom equipment group (part of side broom equipment), 32 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p154, list 42C p155-156.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01360020PowerBoss 01360020 | 1 | base carrierFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 2 | MM01373900 | 2 | control arm topFits 1 of 3 versions42 in cylindrical with side broom | $138.08/EA |
| 3 | MM01372980 | 2 | draft linkFits 1 of 3 versions42 in cylindrical with side broom | $112.79/EA |
| 4 | MM00154210 | 2 | hexagon screw M6x18-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 5 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 6 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 7 | MM01278080 | 2 | Mounting clipFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 8 | MM01373310 | 2 | cable holderFits 1 of 3 versions42 in cylindrical with side broom | $5.44/EA |
| 9 | MM01371210 | 1 | drive 36V 50W (P3) L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $486.20/EA |
| 10 | MM01372780 | 1 | motor bracket L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $256.74/EA |
| 11 | MM01371180 | 1 | drive 36V 50W (P3) R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $463.05/EA |
| 12 | MM01373990 | 1 | motor bracket R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $256.74/EA |
| 13 | MM01072300 | 4 | hexagon screw M8x65-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 14 | MM00740310 | 4 | Washer SKS-8-dacrometisiertFits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 15 | MM01373000 | 2 | plateFits 1 of 3 versions42 in cylindrical with side broom | $20.40/EA |
| 16 | MM01373300 | 4 | distance pieceFits 1 of 3 versions42 in cylindrical with side broom | $6.22/EA |
| 17 | MM00022430 | 2 | Feather key A5x5x18 St50 DIN 6885Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 18 | MM01373180 | 2 | hubFits 1 of 3 versions42 in cylindrical with side broom | $147.47/EA |
| 19 | MM00051130 | 2 | Dowel pin 5x28 DIN 1481Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 20 | MM00105330 | 4 | Adjusting washer 45x55x1 DIN 988Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 21 | MM00563260 | 2 | Rejecting plateFits 1 of 3 versions42 in cylindrical with side broom | $11.39/EA |
| 22 | MM00137910 | 2 | Retaining ring 45x1,75-phos. DIN 471Fits 1 of 3 versions42 in cylindrical with side broom | $1.22/EA |
| 23 | MM00856290 | 2 | Washer 6,4-St A3G DIN 7349Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 24 | MM00022190 | 2 | socket head screw M6x20-8.8-N3 ISO 4762Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 25 | Not sold separatelyPowerBoss 97142947A | Bottom view of unitFits 1 of 3 versions42 in cylindrical with side broom | Not sold separately. Its parts are listed under Bottom view of unit | |
| 26 | MM01493500 | 4 | Retainer NW7,5Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 27 | MM01375050 | 1 | lifting element 24V 750N 70mmFits 1 of 3 versions42 in cylindrical with side broom | $375.33/EA |
| 28 | MM01383560PowerBoss 01383560 | 1 | rope 310mmFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 29 | MM01383670PowerBoss 01383670 | 1 | rope 345mmFits 1 of 3 versions42 in cylindrical with side broom | Call to confirm part: 800-440-6723 |
| 30 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions42 in cylindrical with side broom | $1.67/EA |
| 31 | MM12310041 | 2 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $2.75/EA |
| W53 | MM03020470 | 1 | wiring harness W53Fits 1 of 3 versions42 in cylindrical with side broom | $262.54/EA |
PowerBoss Scrubmaster B260R Bottom view of unit parts
Hako's bottom view of unit group (part of side broom equipment), 25 lines. Fits the 42 in cylindrical with side broom only. Manual pages 42C p157, list 42C p158.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372980 | 2 | draft linkFits 1 of 3 versions42 in cylindrical with side broom | $112.79/EA |
| 2 | MM00028550 | 1 | hexagon screw M8x120-A2-70 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 3 | MM12310041 | 17 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $2.75/EA |
| 4 | MM01372780 | 1 | motor bracket L.H.Fits 1 of 3 versions42 in cylindrical with side broom | $256.74/EA |
| 5 | MM01001180 | 2 | Pressure springFits 1 of 3 versions42 in cylindrical with side broom | $2.77/EA |
| 6 | MM01372990 | 2 | thread base plateFits 1 of 3 versions42 in cylindrical with side broom | $29.18/EA |
| 7 | MM12040051 | 15 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 8 | MM01130080 | 16 | Slide bearing bushFits 1 of 3 versions42 in cylindrical with side broom | $1.33/EA |
| 9 | MM01373110 | 8 | boltFits 1 of 3 versions42 in cylindrical with side broom | $18.67/EA |
| 10 | MM00133700 | 2 | hexagon screw M8x40-8.8-N2 DIN 933Fits 1 of 3 versions42 in cylindrical with side broom | $1.05/EA |
| 11 | MM01370270 | 2 | spacer sleeveFits 1 of 3 versions42 in cylindrical with side broom | $4.00/EA |
| 12 | MM11038130 | 2 | hexagon screw M6x35-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $1.25/EA |
| 13 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 14 | MM01373040 | 2 | sleeveFits 1 of 3 versions42 in cylindrical with side broom | $14.60/EA |
| 15 | MM01111140 | 4 | Slide bearing bush GFM-1012-05Fits 1 of 3 versions42 in cylindrical with side broom | $1.39/EA |
| 16 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42 in cylindrical with side broom | $1.38/EA |
| 17 | MM11038213 | 2 | hexagon screw M8x20-8.8-N3 ISO 4017Fits 1 of 3 versions42 in cylindrical with side broom | $4.15/EA |
| 18 | MM00557730 | 2 | Spreader tubeFits 1 of 3 versions42 in cylindrical with side broom | $1.59/EA |
| 19 | MM01373020 | 1 | leverFits 1 of 3 versions42 in cylindrical with side broom | $63.21/EA |
| 20 | MM01375050 | 1 | lifting element 24V 750N 70mmFits 1 of 3 versions42 in cylindrical with side broom | $375.33/EA |
| 21 | MM12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions42 in cylindrical with side broom | $5.51/EA |
| 22 | MM00521270 | 2 | RollerFits 1 of 3 versions42 in cylindrical with side broom | $4.50/EA |
| 23 | MM01373030 | 2 | rope assuranceFits 1 of 3 versions42 in cylindrical with side broom | $23.34/EA |
| 24 | MM01373990 | 1 | motor bracket R.H.Fits 1 of 3 versions42 in cylindrical with side broom | $256.74/EA |
| W53 | MM03020470 | 1 | wiring harness W53Fits 1 of 3 versions42 in cylindrical with side broom | $262.54/EA |
PowerBoss Scrubmaster B260R Mounting of equipment and superstructures parts
Hako's mounting of equipment and superstructures group (part of powerboss sm4268csb), 2 lines. Shared by all three builds. Manual pages 42D p126, list 42D p127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97150304 | Preliminary parts for pre-sweeping unitNot sold separately. Has sub-assemblies, see Preliminary parts for pre-sweeping unit parts. | Not sold separately. Its parts are listed under Preliminary parts for pre-sweeping unit | |
| 2 | Not sold separatelyPowerBoss 97159156 | Pre-equipment partsNot sold separately. Has sub-assemblies, see Pre-equipment parts parts. | Not sold separately. Its parts are listed under Pre-equipment parts |
PowerBoss Scrubmaster B260R Preliminary parts for pre-sweeping unit
Hako's preliminary parts for pre-sweeping unit group (part of mounting of equipment and superstructures), 13 lines. Shared by all three builds. Manual pages 42D p128, list 42D p129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01110570 | 4 | Screw M3x8-St A2B DIN 7500-PEHako material no. 11702149. | $1.05/EA |
| 2 | MM01496210 | 1 | Flap lidHako material no. 19730641. | $38.78/EA |
| 3 | MM01383640 | 2 | screw DIN 7500-EE M6x40-ST galZn8Di SPHako material no. 11702214. | $1.44/EA |
| 4 | MM01375500 | 1 | adapterHako material no. 92041318. | $10.70/EA |
| 5 | MM01498920 | 1 | connection piece NW17Hako material no. 90641374. content of wiring harness W54. | $25.65/EA |
| 6 | MM01271700 | 2 | BushingHako material no. 90544701. | $1.14/EA |
| 7 | Not sold separatelyPowerBoss 97153472-97153480 | Preliminary parts for pre-sweeping unit L.H. and R.H.Not sold separately. Has sub-assemblies, see Preliminary parts for pre-sweeping unit L.H. and R.H. | Not sold separately. Its parts are listed under Preliminary parts for pre-sweeping unit L.H. and R.H. | |
| 8 | MM01375760 | 1 | bracketHako material no. 96159454. | $114.78/EA |
| 9 | MM12310066 | 2 | Washer 12-200HV-N3 ISO 7089Hako part no. 00053770. | $4.15/EA |
| 10 | MM00878410 | 8 | Round head screw M8x20-8.8 A2G DIN 603Hako material no. 11620283. | $1.05/EA |
| 11 | MM00740090 | 8 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 12 | MM12022059 | 8 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| W54 | MM03022000 | 1 | wiring harness W54Hako material no. 97160022. socket, 9 pins - available only with compl. Harness W54. | $564.01/EA |
PowerBoss Scrubmaster B260R Preliminary parts for pre-sweeping unit L.H. and R.H.
Hako's preliminary parts for pre-sweeping unit L.H. and R.H. group, 7 lines. Shared by all three builds. Manual pages 42D p130, list 42D p131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01508280 | 4 | countersunk screw DIN 965-M6x35-A2-70-HHako material no. 11206505. | $1.00/EA |
| 2 | MM01375370 | 2 | supportHako material no. 92032796. | $64.17/EA |
| 3 | MM01372250 | 2 | bufferHako material no. 92011311. | $23.34/EA |
| 4 | MM01376210 | 1 | counter bearing R.H.Hako material no. 92036193. | $40.47/EA |
| 5 | MM12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
| 6 | MM00102140 | 4 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 7 | MM01376050 | 1 | counter bearing L.H.Hako material no. 92036201. | $50.53/EA |
PowerBoss Scrubmaster B260R Pre-equipment parts
Hako's pre-equipment parts group, 3 lines. Fits the 42 in disc and the 48 in disc only. Manual pages 42D p132, list 42D p133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00025300 | 2 | hexagon screw M12x120-8.8 N2 ISO 4014Fits 2 of 3 versions42 in disc, 48 in disc | $3.22/EA |
| 2 | MM12310066 | 6 | Washer 12-200HV-N3 ISO 7089Fits 2 of 3 versions42 in disc, 48 in disc | $4.15/EA |
| 3 | MM01376480 | 2 | pipeFits 2 of 3 versions42 in disc, 48 in disc | $16.51/EA |
New to your PowerBoss Scrubmaster B260R? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Charge it, fill it, clean with it and look after it. Everything here comes from Hako's operating manual for the Scrubmaster B260 R, rewritten in plain steps, with the parts you need linked to the list above.
1Charge the batteries before you start
- Do not smoke or use naked flames near the batteries. Explosive gases can develop when you charge.
- Charge the battery fully with the commissioning charge before the first start. Follow the charger and battery manufacturer manuals.
- Park on a level surface and turn the machine off. Swivel the seat console all the way up and leave it open while you charge.
- Pull the battery plug from the machine plug and connect it to the charger plug. Switch the charger on.
- When the battery is full, turn the charger off and wait about 15 minutes with the seat console open. Then reconnect the battery plug to the machine plug.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 48, 69 and 70. SES ref PF-NYZ4-OIAO
2Fill the solution tank
- Park on a level surface and take the insert out of the grey cover.
- Fill the solution tank three-quarters full with water. The water must not be hotter than 122 °F (50 °C).
- Add detergent through the sieve insert as the detergent maker says. Use only detergent made for automatic machines (foam retarded).
- Fill the tank with fresh water up to the maximum filling level.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 53, 55 and 75. SES ref PF-NYZ4-OIAO
3Clean a floor
- Check the parking area for signs of leaks. Cables and tanks must show no leaks or damage. Check the battery charge and empty the waste water tank.
- Sit on the driver's seat. The machine only runs when the driver is seated.
- Turn the key switch on, choose the driving direction and select the cleaning programme.
- Press the accelerator pedal. The brush unit and the water supply start with the last setting you used.
- Switch on the fresh water supply if you need it. On heavy soil, raise the brush pressure on the display or press the Boost button for 1 minute.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 48, 51 and 55. SES ref PF-NYZ4-OIAO
4Stop and shut down
- Bring the accelerator pedal slowly back to zero. The parking brake applies audibly when the machine stops.
- Switch off the cleaning functions, turn the key switch off and take the key out.
- Drive to a suitable disposal point. Take the drain hose out of its holder, open the drain valve and drain the waste water tank, then close the hose closure fully.
- Check the sealing strips and the suction hose (MM01371890), charge the battery and clean the machine.
- Do not use a high-pressure cleaner or steam cleaner on the machine. If you will not use it for a long time, empty the solution tank fully.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 58 and 78. SES ref PF-NYZ4-OIAO
Questions about your B260R? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
PowerBoss Scrubmaster B260R troubleshooting
Faults, likely causes and fixes from the service code table in Hako's operating manual. The display shows a four-digit service code when a problem occurs. Clear the cause, then acknowledge the fault by turning the key switch off and on.
| Likely cause | Fix | Part |
|---|---|---|
| Brushes stop (service codes 1.2.5.1, 1.2.5.2, 1.2.5.5) | ||
| Foreign particles between the brush and the shaft | Inspect the brushes for foreign particles and remove them. | |
| Brushes stop (service codes 1.2.6.1, 1.2.6.2, 1.2.6.8) | ||
| Foreign particles block the brush, or the brush is not seated correctly in the holder | Inspect the brushes for foreign particles and remove them. If the brush is not seated, actuate the brush decoupling system. Call SES service if needed. | |
| Brush lift, brushes and suction turbine switched off (service code 1.2.6.3) | ||
| Foreign particles between the brush head and the machine, or the brush head is stuck | Inspect the brush head for foreign particles and remove them. Release the brush head if it is stuck. | |
| Squeegee lift stops (service code 1.4.6.1) | ||
| Overload from foreign particles, foreign particles between the squeegee and the machine, or the squeegee is jammed | Inspect the squeegee and the lift system for foreign particles and remove them. Make the squeegee accessible if it is jammed. | |
| Suction turbine stops (service codes 1.4.6.3, 1.4.6.4) | ||
| Foreign particles in the suction turbine, or a faulty suction turbine | Call SES service. | |
| Fresh water level not displayed (service code 1.5.5.1) | ||
| Error in the electronics | Call SES service. | |
| Rotating cylindrical brush stops (service code 2.2.5.1) | ||
| Foreign particles block the brush | Inspect the rotating cylindrical brush for foreign particles and remove them. | |
| Side brushes stop, or the side brush arm lift stops (service codes 2.3.5.1, 2.3.6.1, 2.3.6.4) | ||
| Foreign particles block the side brushes, or overload or foreign particles between the side arm and the machine | Inspect the side brushes and the arm lift for foreign particles and remove them. | |
| Cleaning function no longer possible (service code 3.1.6.E) | ||
| Electrical defects | Call SES service. | |
| Driving not possible (service codes 3.4.1.2, 3.4.1.4) | ||
| Error in the drive control | Switch the machine off and on. Call SES service if needed. | |
| Cleaning function switches off (service code 3.4.5.1) | ||
| Drive wheel is sluggish from foreign particles, or the drive motor is overheated | Remove the foreign particles. If the motor is hot, let it cool down. After an overload, let the machine cool for about 15 minutes, then restart it. | |
| Driving and cleaning not possible (service code 3.6.6.4) | ||
| The seat is permanently loaded | Relieve the seat. | |
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 56, 60 and 61. SES ref PF-EBND-JON2
Still stuck? SES services PowerBoss machines. Call 800-440-6723 and have your model and serial number ready.
PowerBoss Scrubmaster B260R maintenance schedule
Hako's maintenance plan and the care steps in the operating manual. Before any service, turn the machine off and disconnect the battery plug. Do not clean the machine with a high-pressure or steam cleaner.
| Task | How often | Part |
|---|---|---|
| Empty the waste water tank and clean the tank, drain hose, coarse dirt sieve (MM01373950) and suction filter. | Daily | |
| Check the cover seal of the waste water tank and clean it if needed. | Daily | |
| Check the battery and charge it if needed. | Daily | |
| Check the squeegee and clean it if needed. | Daily | |
| Check all brushes for foreign particles and clean them if needed. | Daily | |
| On the roller brush unit (optional), empty the dirt hopper. | Daily | |
| Clean the solution tank. | Weekly | |
| Check the sieve insert in the fresh water filter (MM97113377) and clean or replace it if needed. | Weekly | |
| Check the brushes (MM99789410 / MM99752220 / MM99794311) and the water retaining ring for fit and wear and replace them if needed. | Weekly | |
| Check the squeegee suction. Clean the strips or turn or replace the sealing strip (MM01371900 / MM01378170) if worn or damaged. Each strip can be used four times. | Weekly | |
| Check the rubber of the side wiper (MM01377660 / MM01077040). Turn it or replace it if needed. | Weekly | |
| Check the battery acid level if the batteries have the Aquamatic system. | Weekly | |
| Check the wear indicator on the rotating brush unit with the unit lowered. Change the brushes or pads at the latest when the pointer is in the red zone. | When the wear pointer is in the red zone | |
| Replace the seal in the drain valve at the latest after 125 operating hours. Check it daily. | Every 125 operating hours | |
| Grease the new seal and the cone with Molykote. | Every 125 operating hours | |
| Have an expert check the machine for safe condition. Hako recommends this at least once a year. | Every year | |
| On the on-board dosing system (option), replace the piece of hose in the dosing pump after one year at the latest. | Every year | |
| Recharge the battery if it has not been used for more than three months. | If unused for 3 months |
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 12, 54, 66, 67, 71, 74, 80, 81, 82, 91 and 94. SES ref PF-LPBX-GKF2
PowerBoss Scrubmaster B260R specifications
From Hako's Scrubmaster B260 R operating manual. The manual lists several configurations; the rows show each one as Hako prints it.
| Brush width | Disc 42 in build: 42.5 in (1,080 mm); disc 48 in build: 48.4 in (1,230 mm); roller brush: 42.5 in (1,080 mm) |
|---|---|
| Squeegee width | 49.6 in (1,260 mm) |
| Tanks | Solution tank 68.7 US gal (260 L); waste water tank 68.7 US gal (260 L) |
| Brush speed | Rotating brush 210 rpm; roller brush 640 rpm |
| Brush pressure (normal / stage 1 / stage 2) | 2 rotating brushes 1080: 88 / 121 / 154 lb (40 / 55 / 70 kg); 3 rotating brushes 1080: 128 / 161 / 194 lb (58 / 73 / 88 kg); 3 rotating brushes 1230: 150 / 183 / 216 lb (68 / 83 / 98 kg); roller brush 1080: 55 / 88 / 121 lb (25 / 40 / 55 kg) |
| Driving speed (forward / reverse) | 5.0 / 2.5 mph (8 / 4 km/h) |
| Climbing while cleaning | Front-wheel drive 6 % (2 min); X-AC drive 15 % (up to 5 min at 2.5 mph, 4 km/h) |
| Weight, empty without batteries | Front-wheel drive: 2 rotating brushes 1080, 1,179 lb (535 kg); 3 rotating brushes 1230, 1,235 lb (560 kg); roller brush and side brush, 1,312 lb (595 kg) |
| Weight, ready for use | Front-wheel drive: 2 rotating brushes 1080, 2,976 lb (1,350 kg); 3 rotating brushes 1230, 3,031 lb (1,375 kg); roller brush and side brush, 3,109 lb (1,410 kg) |
| Size | Length 79.5 in (2,020 mm) without and 109.8 in (2,790 mm) with pre-sweep unit; height 58.7 in (1,490 mm) without and 82.3 in (2,090 mm) with overhead guard |
| Wheel diameter (front / rear) | 12.0 / 13.8 in (305 / 350 mm) |
| Battery | 36 V nominal; 36 V / 480 Ah PzS wet or 36 V / 420 Ah PzV maintenance free |
| Vacuum | Air quantity approx. 118 cfm (200 m³/h); maximum vacuum approx. 68 in H₂O (170 mbar) |
| Sound power level (LwAd) | Rotating brush unit: 86 dB(A) standard, 82 dB(A) silent operation; roller brush unit: 89 dB(A) standard, 86 dB(A) silent operation |
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 47, 62, 63, 64 and 65. SES ref PF-T6ZR-WD3D
PowerBoss Scrubmaster B260R manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the Scrubmaster B260R manuals in your browser, with clickable part numbers. No sign-in needed.
- Scrubmaster B260R operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESSM4268CSB spare parts catalogHako spare parts catalog with drawings and parts lists, 164 pages | PowerBoss SM4268CSB, 42 in cylindrical deck with side broom (7182.72) | Form 81-60-1993, no revision date printed (this page) | 19.1 MB | Sign in to view or downloadSign in to download |
| PDFby SESSM4268D spare parts catalogHako spare parts catalog with drawings and parts lists, 133 pages | PowerBoss SM4268D, 42 in disc deck (7182.70) | Form 81-60-1993, no revision date printed (this page) | 14.2 MB | Sign in to view or downloadSign in to download |
| PDFby SESSM4868D spare parts catalogHako spare parts catalog with drawings and parts lists, 150 pages | PowerBoss SM4868D, 48 in disc deck (7182.71) | Form 81-60-1993, no revision date printed (this page) | 16.7 MB | Sign in to view or downloadSign in to download |
| PDFby SESScrubmaster B260 R operating manualOperating manual, 110 pages | Scrubmaster B260 R (7182) | 88-10-3142, valid from 03.2020 | 22.0 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common PowerBoss Scrubmaster B260R parts questions
How big are the tanks on the PowerBoss Scrubmaster B260R?
The solution tank and the waste water tank each hold 68.7 US gal (260 L). The display shows the solution level in 20 % steps and warns you when less than 2.6 US gal (10 L) is left.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 63 and 75. SES ref PF-CM7M-JP7T
What batteries does the Scrubmaster B260R use?
It runs on 36 V. Hako lists a 480 Ah PzS wet trough battery and a 420 Ah PzV maintenance-free trough battery. Use only batteries Hako approves for the machine.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 47 and 72. SES ref PF-CM7M-JP7T
How do I charge the Scrubmaster B260R?
Swivel the seat console all the way up, then connect the battery plug to the charger and switch it on. Keep the console open while charging and for about 15 minutes after the charger is off.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), page 70. SES ref PF-CM7M-JP7T
How often should I check the squeegee strips?
Weekly. Turn or replace a strip that is worn or damaged. Each strip can be used four times before you need to replace it. Clean the squeegee body before you turn or replace a strip.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), page 91. SES ref PF-CM7M-JP7T
Can I wash the B260R with a pressure washer?
No. Hako does not allow a high-pressure cleaner or steam cleaner on the machine. After cleaning, let it air dry.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 12 and 58. SES ref PF-CM7M-JP7T
How steep a slope can the Scrubmaster B260R clean on?
A front-wheel drive machine can clean on a slope of up to 6 % for 2 minutes. A machine with the X-AC drive can clean on up to 15 % for up to 5 minutes.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 11 and 63. SES ref PF-CM7M-JP7T
Where is the type plate on the Scrubmaster B260R?
It is in front of the left front wheel. Quote the serial number whenever you ask for service or order spare parts.
Source: Scrubmaster B260 R Operating manual 88-10-3142 (03.2020), pages 18 and 66. SES ref PF-CM7M-JP7T
Notes on this parts list
Places where PowerBoss's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Hako prints two numbers on most lines, a Part-No and a Material-No. Our number is MM plus the Part-No, with the Material-No in the note. Where only the Material-No is listed in our store, the line uses it and the note gives the Part-No.
- Where Hako prints a line as a pointer to a sub-assembly (Not available, Pos. has sub-assemblies), the line has no quantity of its own. It is not sold separately; the line links the group on this page that lists its parts.
- Twelve lines have no part number printed. Five of them (chassis item 1, side broom wiring harness W52, foul water tank item 15, cover item 3 and brush head 1230 item 11) say Spare part on request and print a number only in the remark, which is kept in the note. The others say Not supplied alone or No longer available and name the assembly to order instead; when that assembly is a line on this page, the line links to it.
- Hako's catalog for the SM4268CSB calls its deck a cylindrical brush head 1080. The operating manual calls the same width a roller brush 1080. The page keeps the catalog wording.
- The 48 in build lists a suction unit 1360 with a 1360 mm squeegee, while the operating manual (page 62) gives a squeegee width of 1260 mm. The 42 in builds list a 1260 mm squeegee.
- The operating manual also covers a Scrubmaster with X-AC drive and a 3-brush 1080 unit (pages 62 to 64). No catalog of the three is that build, so it is not on this page.
- The coarse dirt strainer (rough mud strainer group) is printed as replaced by 99706065. That number is not a line in any of the three catalogs, so the page links the strainer that is printed.
- The chassis and electric equipment drawings differ slightly between the three catalogs while the lines are the same. The page shows the 42 in disc catalog drawing.
- Groups that appear in more than one catalog with the same lines are shown once for all builds. Where only some lines differ, those lines are tagged to the builds they fit. Groups printed in one catalog only are tagged to that build.
- Catalog pages have no printed page numbers. Page labels are the catalog (42C, 42D or 48D) and its PDF page number; the operating manual uses its printed page numbers.
- Spelling and spacing in descriptions are kept as Hako printed them. Line-wrapped DIN and ISO standard numbers are joined.
