Minuteman E17 / E20 Electric parts list and diagrams
Every part number in Minuteman's E17/E20 electric brush drive parts catalog, with the catalog's drawings, troubleshooting, maintenance and specs from the user manual. Each part number links to that part in our store.
Online manuals: Operator
Complete list: every parts line in Minuteman's E17/E20 Electric Brush Drive Parts Catalog (form 988720E, Rev C 07/20), for the E17 and E20 cord-electric disc scrubbers in 115 V and 230 V. Checked .
New to your E17 / E20? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Cleaning path
- E17: 17 in (43 cm); E20: 20 in (51 cm)
- Power
- 115 V or 230 V, depending on the model; 32 A maximum
- Brush
- One disc brush at 180 rpm, driven by a 3/4 hp (560 W) motor
- Solution tank
- 12 gal (45 L)
- Weight
- E17: 316 lb (143 kg); E20: 312 lb (142 kg)
Wear parts most E17 / E20 owners reorder
Minuteman's user manual names the squeegee blades, brush or pad, solution filter and screened float as parts to check and clean on a schedule. These are the ones on the parts list.
Squeegee-front blade 30", 1/8 pu
$52.11/EASqueegee-rear blade 30", 1/8 pu
$54.33/EASqueegee-front blade 34", 1/8 pu
$53.22/EASqueegee-rear blade 34", 1/8 pu
$55.44/EABrush-disc, 17” nylon, black
$218.17/EABrush, 20" nylon
$285.72/EA17" pad driver - see below for retainer
$122.94/EA20" pad driver - 230v-see below for retainer
$143.03/EAFilter, fill port, es1720
$13.35/EAFloat, screened
$29.00/EA
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual (Rev * 07/11), pages 16, 22, 23 and 35. SES ref PF-KD3B-HNJ6
Your machine
How to tell which you have
- Model number: Minuteman's four models are E17115BD, E17230BD, E20115BD and E20230BD (user manual, page 3). E17 and E20 are the two sizes; the machine runs on 115 V or 230 V depending on the model (page 7).
- Cleaning path: the E17 cleans a 17 in (43 cm) path and the E20 cleans a 20 in (51 cm) path.
- Voltage: the catalog lists a twist-lock pigtail power cord for 115 V and a CE connector pigtail cord for 230 V (catalog page 13). Lines marked 115 or 230 in the catalog are tagged on this page.

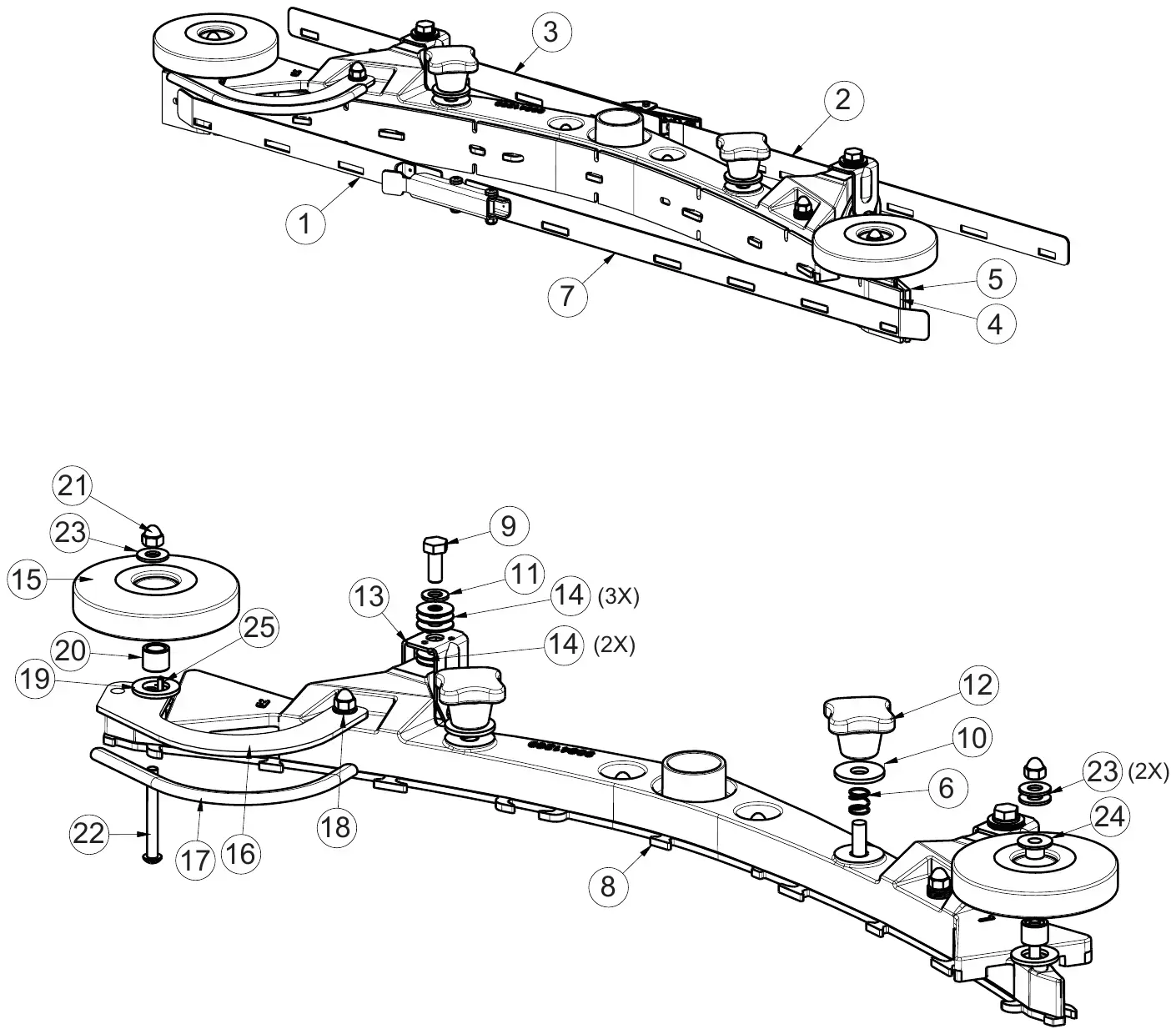

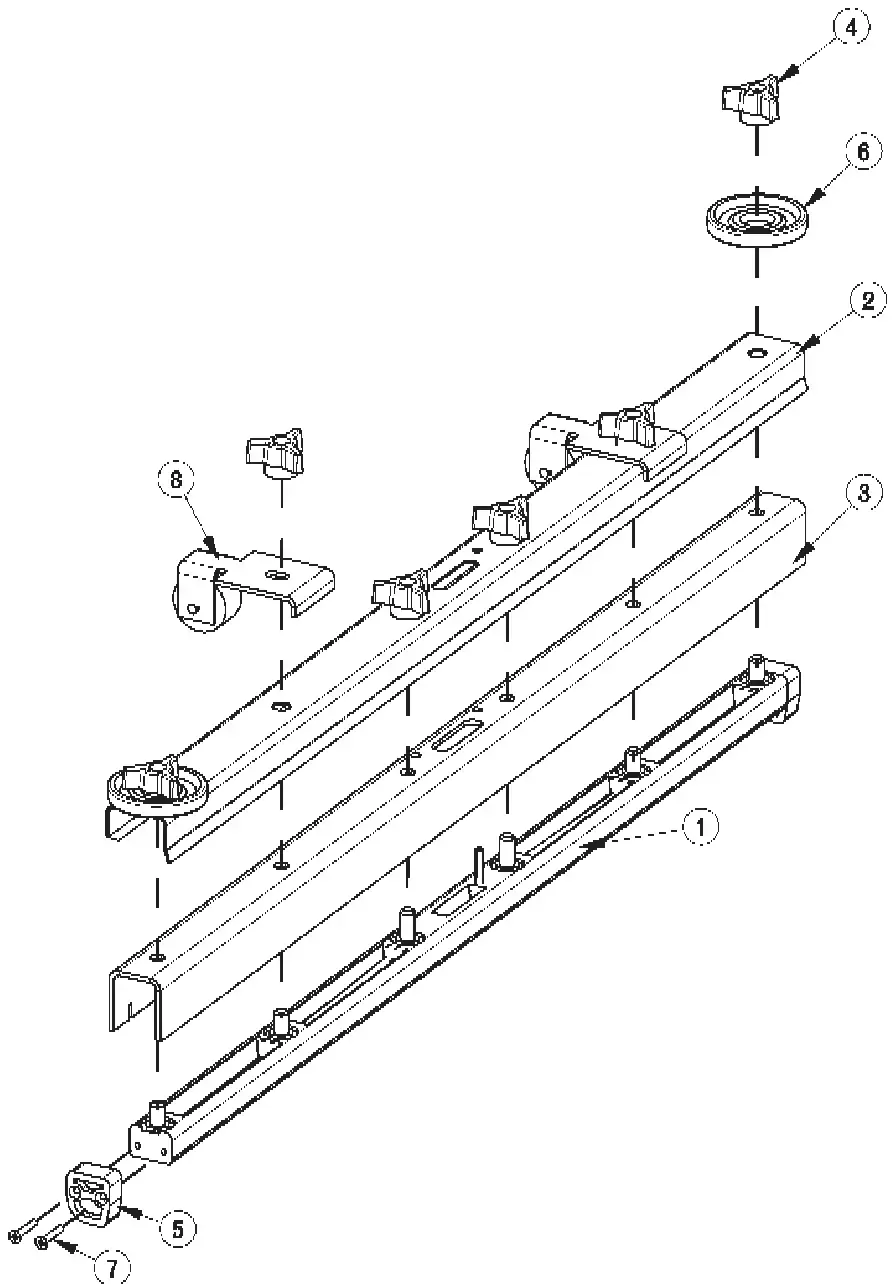

- E17 squeegee: the catalog shows both a straight and a curved E17 rear squeegee (pages 39 and 41) and does not say which machines have which. Match the drawing to the squeegee on your machine.
- Many parts fit all four: the size changes the brush deck, squeegee, tension band and brush options. The voltage changes the main assembly, power cord, cord mount bracket and strain relief.
How to read this list
Our part numbers are the Minuteman number with MM in front, so Minuteman 172159 is MM172159. Where Minuteman prints a space inside a number, our part number drops it. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

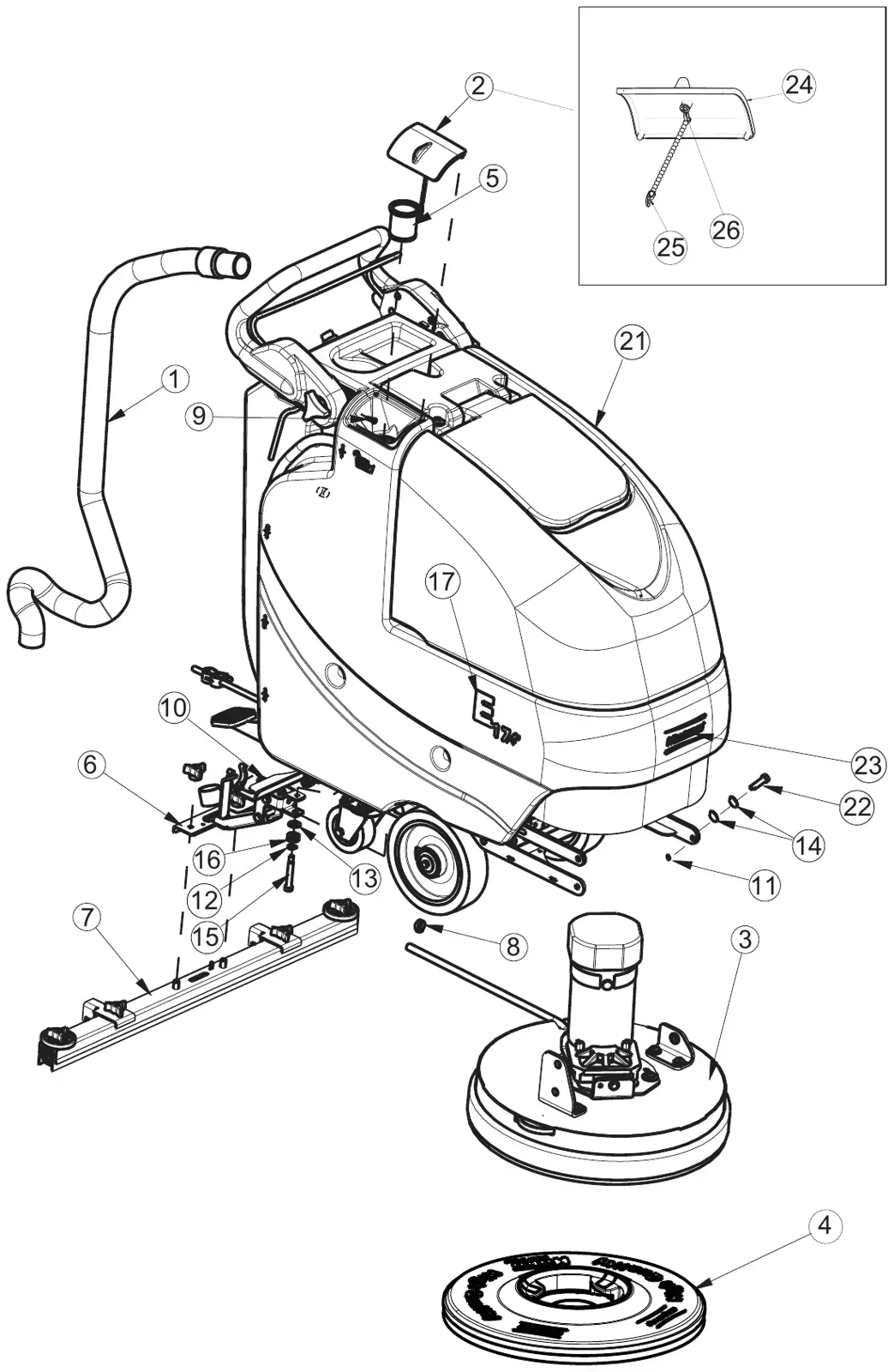

Minuteman E17 / E20 Electric E17 main assembly parts
The E17 main assembly: brush deck, pad driver, squeegee, fill port filter, tank lid and the complete electric main assembly in 115 V and 230 V. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172010 | 1 | HOSE, CLEAR VAC W/ 45 CUFFFits 2 of 4 versionsE17 115 V, E17 230 V | $39.92/EA |
| 2 | MM172018 | 1 | SOLUTION TANK LID ASSYFits 2 of 4 versionsE17 115 V, E17 230 V | $18.97/EA |
| 3 | MM172090 | 1 | BRUSH DECK ASSY 17"Fits 2 of 4 versionsE17 115 V, E17 230 V | $961.56/EA |
| 4 | MM172517-2 | 1 | 17" PAD DRIVER - SEE BELOW FOR RETAINERFits 2 of 4 versionsE17 115 V, E17 230 V | $122.94/EA |
| 5 | MM172159 | 1 | FILTER, FILL PORT, ES1720Fits 2 of 4 versionsE17 115 V, E17 230 V | $13.35/EA |
| 6 | MM172170Minuteman 172170 | 1 | BD SQUEEGEE LIFT MECH ASSYFits 2 of 4 versionsE17 115 V, E17 230 V | Call to confirm part: 800-440-6723 |
| 6KT | MM172150 | 1 | SQUEEGEE LIFT MECH ASSYFits 2 of 4 versionsE17 115 V, E17 230 V | $214.85/EA |
| 7 | MM210080 | 1 | SQUEEGE ASY COMP 20" STRFits 2 of 4 versionsE17 115 V, E17 230 V | $792.33/EA |
| 7KT | MM172530-1 | 1 | SQUEEGEE ASSY BD 30" (760)Fits 2 of 4 versionsE17 115 V, E17 230 V | $817.19/EA |
| 8 | MM450076 | 1 | CLAMP-CRIMP 185R SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.38/EA |
| 9 | MM711118 | 1 | SCR-ST-A 10 X .75 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 10 | MM711374 | 1 | NUT-NYLOC 5/16-18Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 11 | MM711375 | 3 | NUT-NYLOC 3/8-16 X 1/2 NUTFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 12 | MM711523 | 1 | WSR-WAVE .37X .68 X .08Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 13 | MM711569 | 1 | WSR-FLT .390 X .880 X .062 NYLFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 14 | MM711592 | 6 | WSR-FLAT .506 X .9 X .064 NYLFits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 15 | MM712143 | 1 | BLT-SHLD 3/8 X 2.0, 5/16-18Fits 2 of 4 versionsE17 115 V, E17 230 V | $4.69/EA |
| 16 | MM712301 | 2 | WSR-FLAT .37 X .87 X .06Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 17 | MM715917 | 2 | DECAL, E17Fits 2 of 4 versionsE17 115 V, E17 230 V | $5.41/EA |
| 21 | MM172501 | 1 | E1720 ELECTRIC BD MAIN ASSY, 115VFits 1 of 4 versionsE17 115 V | $4,181.00/EA |
| 21CE | MM172502 | 1 | E1720 ELECTRIC BD MAIN ASSY, 230VFits 1 of 4 versionsE17 230 V | $4,220.03/EA |
| 22 | MM712099PLT | 3 | BLT- SHLDR 1/2 X 1/2 ZINC PLTFits 2 of 4 versionsE17 115 V, E17 230 V | $4.39/EA |
| 23 | MM715914W | 1 | DECAL, MINUTEMAN W/SWOOSHES, WHITEFits 2 of 4 versionsE17 115 V, E17 230 V | $4.27/EA |
| 24 | MM172008 | 1 | SOLUTION TANK LIDFits 2 of 4 versionsE17 115 V, E17 230 V | $9.78/EA |
| 25 | MM172123 | 1 | CHAIN, BEADED SS W/EYELET SFits 2 of 4 versionsE17 115 V, E17 230 V | $3.97/EA |
| 26 | MM712145 | 1 | SCR-MC 6-32 X .37 PPH SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
Minuteman E17 / E20 Electric E17 brush options parts
Brush, pad driver retainer and Aqua Stop brush options for the 17 in E17. Manual page 7.
No drawing for this list. Minuteman prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | MM833772Replaces Minuteman 762394 | PAD RETAINER, FIXED - NOT SHOWNFits 2 of 4 versionsE17 115 V, E17 230 V | $42.21/EA | ||
| – | MM833772Replaces Minuteman 762370 | PAD RETAINER, REMOVEABLE - NOT SHOWNFits 2 of 4 versionsE17 115 V, E17 230 V | $42.21/EA | ||
| – | MM172517-1 | BRUSH-DISC, 17” NYLON, BLACKFits 2 of 4 versionsE17 115 V, E17 230 V | $218.17/EA | ||
| – | MM172517-3 | BRUSH-DISC, 17” NYLO-GRIT 80GR GREENFits 2 of 4 versionsE17 115 V, E17 230 V | $400.72/EA | ||
| – | MM172517-6 | BRUSH-DISC 17”SCRUB GRIT II 120GRFits 2 of 4 versionsE17 115 V, E17 230 V | $208.34/EA | ||
| – | MM7943-01 | BRUSH, 17” LIGHT-MEDIUM PP.5 A/S, (WHITE)Fits 2 of 4 versionsE17 115 V, E17 230 V | $191.31/EA | ||
| – | MM7943-02 | BRUSH, 17” LIGHT-MEDIUM A/S K901 (BLACK)Fits 2 of 4 versionsE17 115 V, E17 230 V | $214.38/EA | ||
| – | MM7943-03 | BRUSH, 17” MEDIUM NYLON 600GR. A/S, (GREY)Fits 2 of 4 versionsE17 115 V, E17 230 V | $409.80/EA | ||
| – | MM7943-04 | BRUSH, 17” MEDIUM-HEAVY PP.8 A/S (WHITE)Fits 2 of 4 versionsE17 115 V, E17 230 V | $98.90/EA | ||
| – | MM99794315Replaces Minuteman 7943-05 | BRUSH, 17” HEAVY NYLON 180GR. A/S (GRAY)Fits 2 of 4 versionsE17 115 V, E17 230 V | $276.08/EA | ||
| – | MM99794316Replaces Minuteman 7943-06 | BRUSH, 17” HEAVY-2 NYL 120GR. A/S, GREENFits 2 of 4 versionsE17 115 V, E17 230 V | $268.94/EA | ||

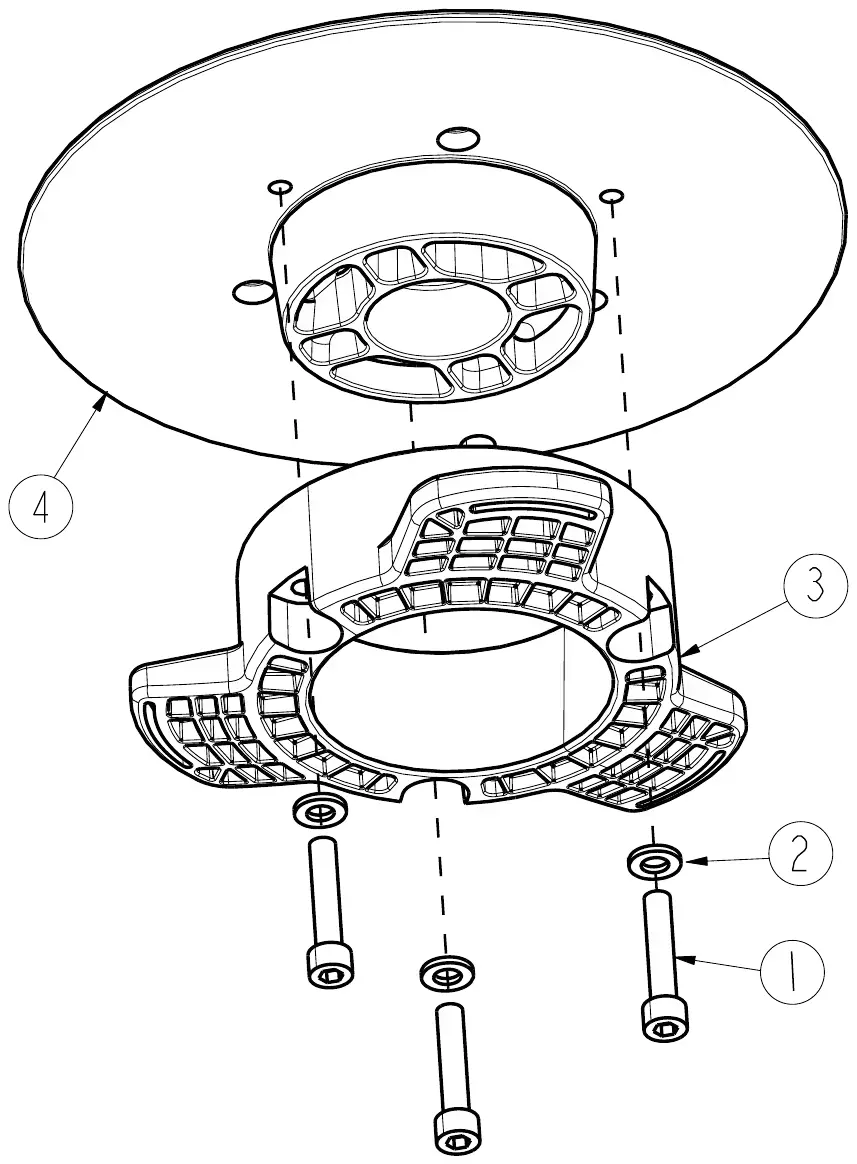

| – | MMK-E1720HUB | CONVERSION KIT FOR THE BLACK TRI-LOBE BRUSH HUB (named in the page note)Fits 2 of 4 versionsE17 115 V, E17 230 V | $86.00/EA |

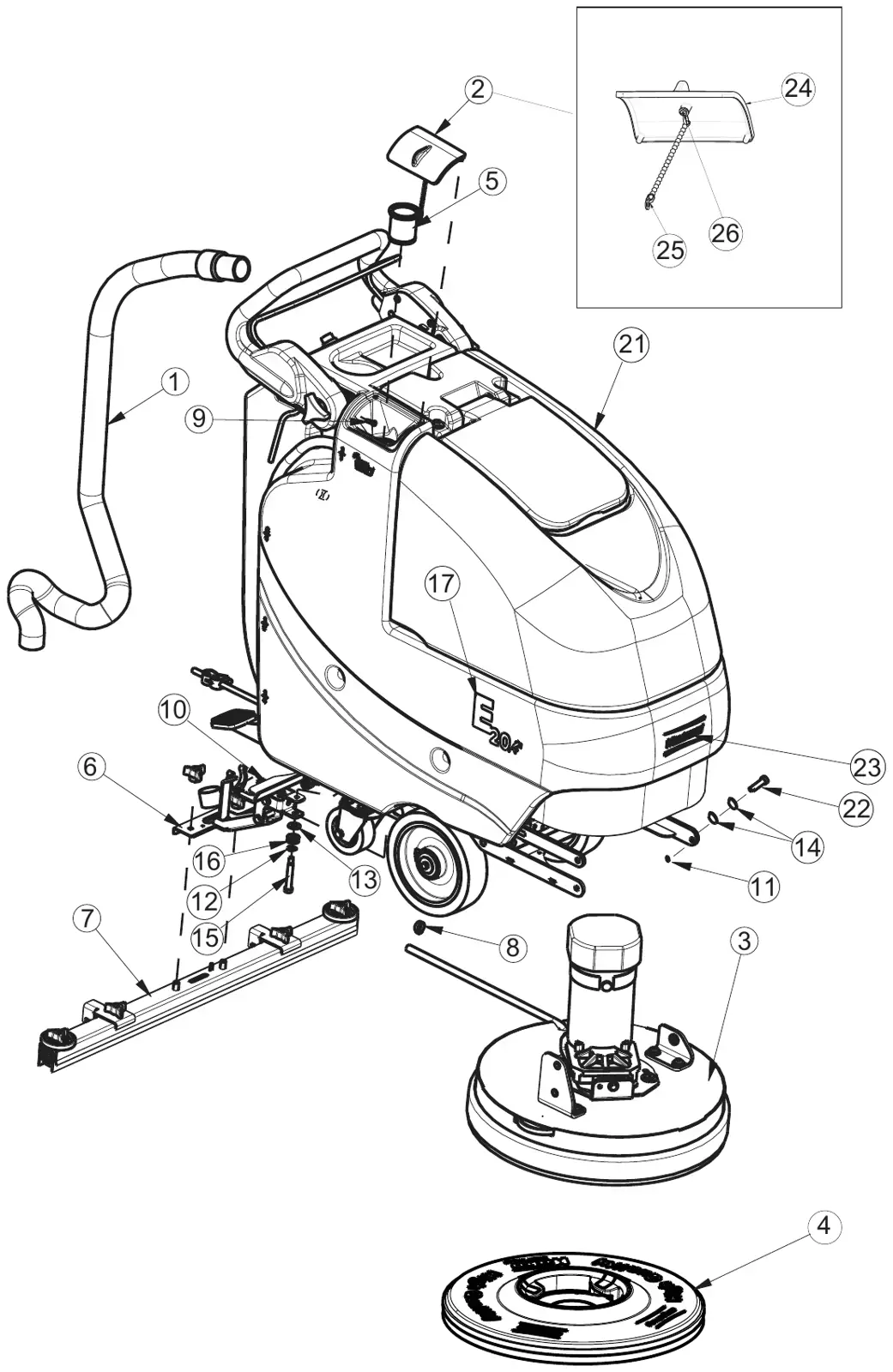

Minuteman E17 / E20 Electric E20 main assembly parts
The E20 main assembly: brush deck, pad driver, squeegee, fill port filter, tank lid and the complete electric main assembly in 115 V and 230 V. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172010 | 1 | HOSE, CLEAR VAC W/ 45 CUFF, E20Fits 2 of 4 versionsE20 115 V, E20 230 V | $39.92/EA |
| 2 | MM172018 | 1 | SOLUTION TANK LID ASSYFits 2 of 4 versionsE20 115 V, E20 230 V | $18.97/EA |
| 3 | MM172100 | 1 | BRUSH DECK ASSY 20"Fits 2 of 4 versionsE20 115 V, E20 230 V | $1,363.27/EA |
| 4 | MM172520-2 | 1 | 20" PAD DRIVER - 230V-SEE BELOW FOR RETAINERFits 2 of 4 versionsE20 115 V, E20 230 V | $143.03/EA |
| 5 | MM172150 | 1 | SQUEEGEE LIFT MECH ASSYFits 2 of 4 versionsE20 115 V, E20 230 V | $214.85/EA |
| 6 | MM172159 | 1 | FILTER, FILL PORT, ES1720Fits 2 of 4 versionsE20 115 V, E20 230 V | $13.35/EA |
| 7 | MM172534-1 | 1 | SQUEEGEE, 34" (860)Fits 2 of 4 versionsE20 115 V, E20 230 V | $817.19/EA |
| 8 | MM450076 | 1 | CLAMP-CRIMP 185R SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.38/EA |
| 9 | MM711118 | 1 | SCR-ST-A 10 X .75 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 10 | MM711374 | 1 | NUT-NYLOC 5/16-18Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.10/EA |
| 11 | MM711375 | 3 | NUT-NYLOC 3/8-16 X 1/2 NUTFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 12 | MM711523 | 1 | WSR-WAVE .37X .68 X .08Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 13 | MM711569 | 1 | WSR-FLT .390 X .880 X .062 NYLFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 14 | MM711592 | 6 | WSR-FLAT .506 X .9 X .064 NYLFits 2 of 4 versionsE20 115 V, E20 230 V | $1.10/EA |
| 15 | MM712143 | 1 | BLT-SHLD 3/8 X 2.0, 5/16-18Fits 2 of 4 versionsE20 115 V, E20 230 V | $4.69/EA |
| 16 | MM712301 | 2 | WSR-FLAT .37 X .87 X .06Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 17 | MM715920 | 2 | DECAL, E20Fits 2 of 4 versionsE20 115 V, E20 230 V | $5.41/EA |
| 21 | MM172501 | 1 | E1720 ELECTRIC BD MAIN ASSY, 115VFits 1 of 4 versionsE20 115 V | $4,181.00/EA |
| 21CE | MM172502 | 1 | E1720 ELECTRIC BD MAIN ASSY, 230VFits 1 of 4 versionsE20 230 V | $4,220.03/EA |
| 22 | MM712099PLT | 3 | BLT- SHLDR 1/2 X 1/2 ZINC PLTFits 2 of 4 versionsE20 115 V, E20 230 V | $4.39/EA |
| 23 | MM715914W | 1 | DECAL, MINUTEMAN W/SWOOSHES, WHITEFits 2 of 4 versionsE20 115 V, E20 230 V | $4.27/EA |
| 24 | MM172008 | 1 | SOLUTION TANK LIDFits 2 of 4 versionsE20 115 V, E20 230 V | $9.78/EA |
| 25 | MM172123 | 1 | CHAIN, BEADED SS W/EYELETSFits 2 of 4 versionsE20 115 V, E20 230 V | $3.97/EA |
| 26 | MM712145 | 1 | SCR-MC 6-32 X .37 PPH SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 26 | MM712145 | 1 | SCR-MC 6-32 X .37 PPH SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
Minuteman E17 / E20 Electric E20 brush options parts
Brush, pad driver retainer and Aqua Stop brush options for the 20 in E20. Manual page 9.
No drawing for this list. Minuteman prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | MM833772Replaces Minuteman 762394 | PAD RETAINER, FIXED - NOT SHOWNFits 2 of 4 versionsE20 115 V, E20 230 V | $42.21/EA | ||
| – | MM833772Replaces Minuteman 762370 | PAD RETAINER, REMOVEABLE - NOT SHOWNFits 2 of 4 versionsE20 115 V, E20 230 V | $42.21/EA | ||
| – | MM172520-1 | BRUSH, 20" NYLONFits 2 of 4 versionsE20 115 V, E20 230 V | $285.72/EA | ||
| – | MM172520-3 | BRUSH-DISC, 20" NYLO-GRIT 80GR, GREENFits 2 of 4 versionsE20 115 V, E20 230 V | $534.72/EA | ||
| – | MM172520-6 | DISC BRUSH 20", SCRUB GRIT 2, 120GR REDFits 2 of 4 versionsE20 115 V, E20 230 V | $534.72/EA | ||
| – | MM7951-01 | BRUSH, 20” LIGHT-MED PP.5 A/S, WHITEFits 2 of 4 versionsE20 115 V, E20 230 V | $214.14/EA | ||
| – | MM7951-02 | BRUSH, 20” LIGHT-MEDIUM A/S, K901, BLACKFits 2 of 4 versionsE20 115 V, E20 230 V | $259.36/EA | ||
| – | MM7951-03 | BRUSH, 20” MEDIUM NYLON 600GR. A/S, GREYFits 2 of 4 versionsE20 115 V, E20 230 V | $255.10/EA | ||
| – | MM7951-04 | BRUSH, 20” MEDIUM-HEAVY PP.8 A/S, WHITEFits 2 of 4 versionsE20 115 V, E20 230 V | $234.51/EA | ||
| – | MM7951-05 | BRUSH, 20” HEAVY NYLON 180GR. A/S, GREYFits 2 of 4 versionsE20 115 V, E20 230 V | $398.94/EA | ||
| – | MM7951-06 | BRUSH, 20” HEAVY-2 NYL 120GR. A/S, GREENFits 2 of 4 versionsE20 115 V, E20 230 V | $466.64/EA |

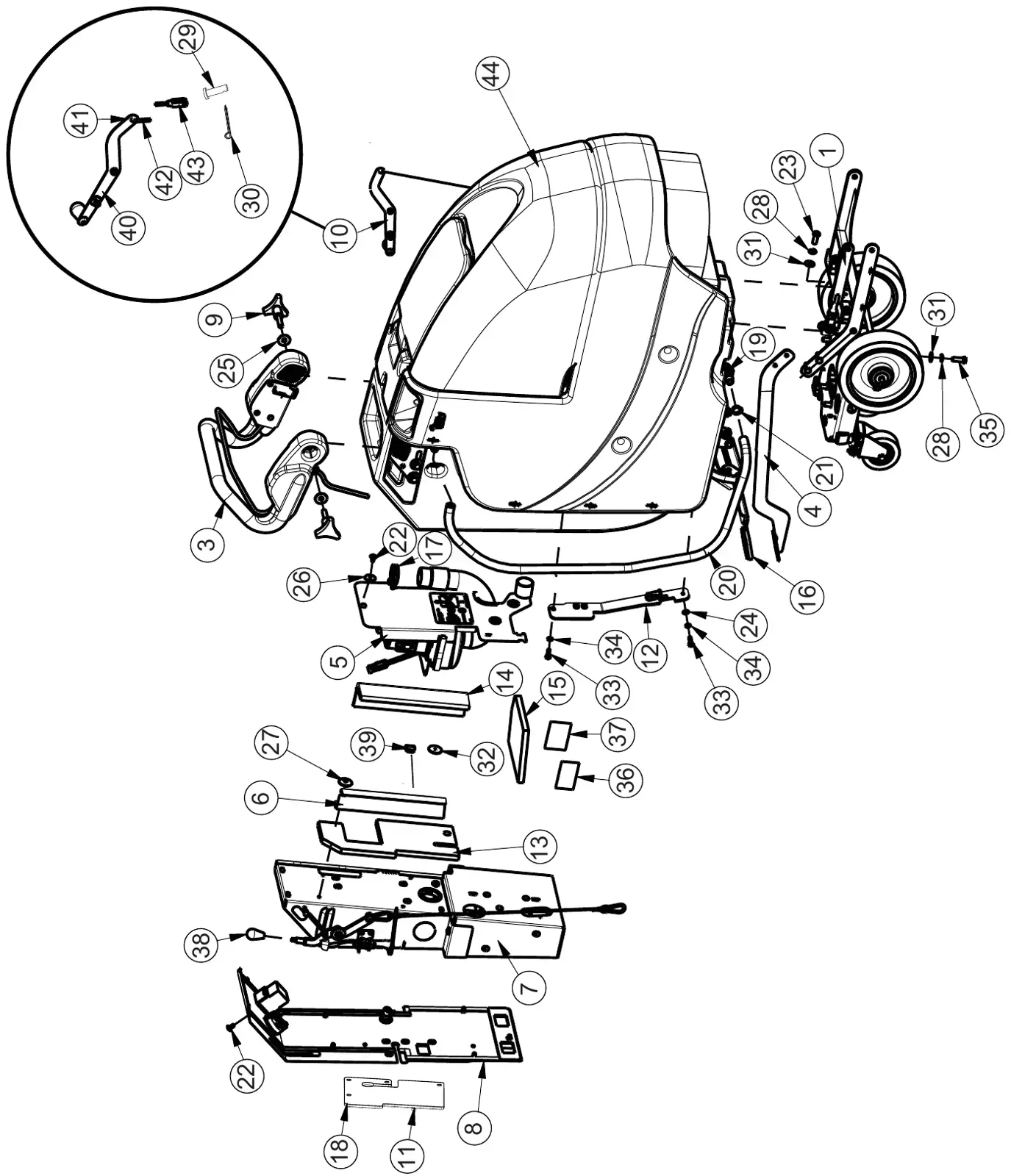

Minuteman E17 / E20 Electric Brush drive base assembly parts
The brush drive base assembly: chassis, handle, lift pedal, vacuum motor, electrical box, power cord mount, strain relief, hoses and fasteners. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172002 | 1 | E17 BD CHASSIS ASSY | $854.39/EA |
| 3 | MM172016 | 1 | BD HANDLE ASSY, E1720 | $488.76/EA |
| 4 | MM172032 | 1 | LIFT PEDAL WMT | $55.42/EA |

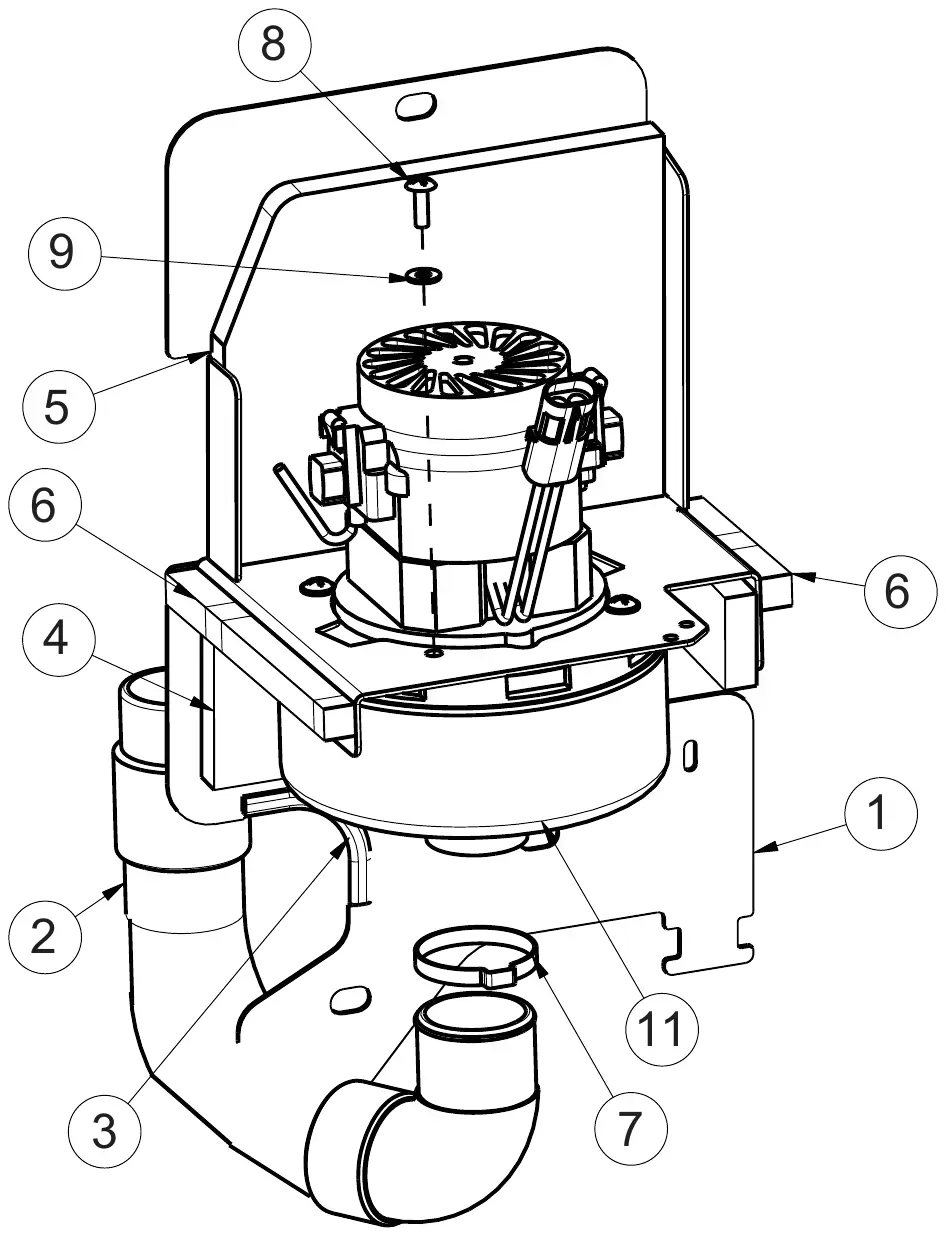

| 5 | MM172050 | 1 | VAC MOTOR ASSY | $288.99/EA |
| 6 | MM172055 | 1 | BKT, VAC AREA INSIDE COVER | $16.72/EA |
| 7 | MM172505 | 1 | ELEC BOX ASSY, E1720 ELECTRIC | $792.22/EA |
| 8 | MM172503 | 1 | COVER ASSY, BD DASH, E1720 ELECTRIC | $296.57/EA |
| 9 | MM172085 | 2 | KNOB, 3/8-16 STUD, 3LOBE | $8.04/EA |
| 10 | MM172112 | 1 | SOL CONTROL ASSY | $53.92/EA |
| 11 | MM172529 | 1 | BKT, PWR CORD MOUNT, 3/4 HOLE, 115Fits 2 of 4 versionsE17 115 V, E20 115 V | $14.52/EA |
| 11 | MM172129 | 1 | BKT, PWR CORD MOUNT, 5/8 HOLE, 230Fits 2 of 4 versionsE17 230 V, E20 230 V | $11.81/EA |
| 12 | MM172157 | 1 | LIFT PEDAL STOP ASSY | $57.55/EA |
| 13 | MM172184 | 1 | FOAM COVER W/ ADHESIVE | $6.22/EA |
| 14 | MM172185 | 1 | FOAM COVER REAR 2, 1/2" THICK | $5.17/EA |
| 15 | MM172187 | 1 | FOAM COVER FRONT 2, 1/2" THICK | $5.33/EA |
| 16 | MM210142 | 1 | PEDAL PAD | $8.44/EA |
| 17 | MM3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |
| 18 | MM740108 | 1 | STRAIN RELIEF - 115Fits 2 of 4 versionsE17 115 V, E20 115 V | $1.31/EA |
| 18 | MM293080 | 1 | STRAIN RELIEF - 230Fits 2 of 4 versionsE17 230 V, E20 230 V | $1.08/EA |
| 19 | MM342440 | 1 | FTG-TEE 3/4 MPT X 1/2 HB NYLON | $1.97/EA |
| 20 | MM430156 | 1 | HOSE, CLEAR 1/2 ID X 39.75" | $8.06/EA |
| 21 | MM450093 | 1 | CLAMP-CRIMP 3/4" OD STEPLESS | $1.94/EA |
| 22 | MM710178 | 10 | SCR-THMS 1/4-20 X .50 ZP | $1.08/EA |
| 23 | MM710985 | 2 | SCR-BHSCS 3/8-16 X .625 ZP | $1.67/EA |
| 24 | MM711504 | 1 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 25 | MM711507 | 2 | WASHER-FLAT 3/8 X 1.12 X .06 | $1.08/EA |
| 26 | MM711519 | 3 | WASHER-FLAT 1/4 X 1.00 X .06 ZP | $1.08/EA |
| 27 | MM711543 | 2 | WASHER-LOCK #10 SPLIT ZP | $1.08/EA |
| 28 | MM711546 | 6 | WASHER-LOCK 3/8 SPLIT ZP | $1.08/EA |
| 29 | MM711803 | 1 | PIN-COTTER .06 X .75 | $1.08/EA |
| 30 | MM712117 | 1 | PIN-CLEVIS 3/16 X .593 | $1.08/EA |
| 31 | MM712301 | 8 | WASHER-FLAT 3/8 X .87 X .06 ZP | $1.08/EA |
| 32 | MM712312 | 2 | WASHER-BALANCING .187 X 1.25 | $1.08/EA |
| 33 | MM712562 | 2 | SCR-HH 1/4-20 X .75, 18-8 SS | $1.08/EA |
| 34 | MM712758 | 2 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 35 | MM713042 | 4 | SCR-HH 3/8-16 X 1.00 ZP GR 5 | $1.08/EA |
| 36 | MM715029 | 1 | DECAL-NAME PLATE MODEL ID | $1.38/EA |
| 37 | MM715047 | 1 | DECAL-CLEAR LAMINATE 2X3 | $2.85/EA |
| 38 | MM760592 | 1 | KNOB-OVAL TAPERED | $10.34/EA |
| 39 | MM809443 | 1 | CLIP-WIRE & CORD | $2.02/EA |
| 40 | MM172115 | 1 | SOLUTION CTRL LEVER ASSY | $34.81/EA |
| 41 | MM172122 | 1 | NUT, PUSH-ON WSR CAP, 3/16 | $1.73/EA |
| 42 | MM172069 | 1 | SOLUTION CONTROL ROD | $10.86/EA |
| 43 | MM172062 | 1 | YOKE, 3/16 CLEVIS X 10-32 THD | $3.92/EA |
| 44 | MM172001BASE | 1 | E1720 BASE ASSY | $737.28/EA |

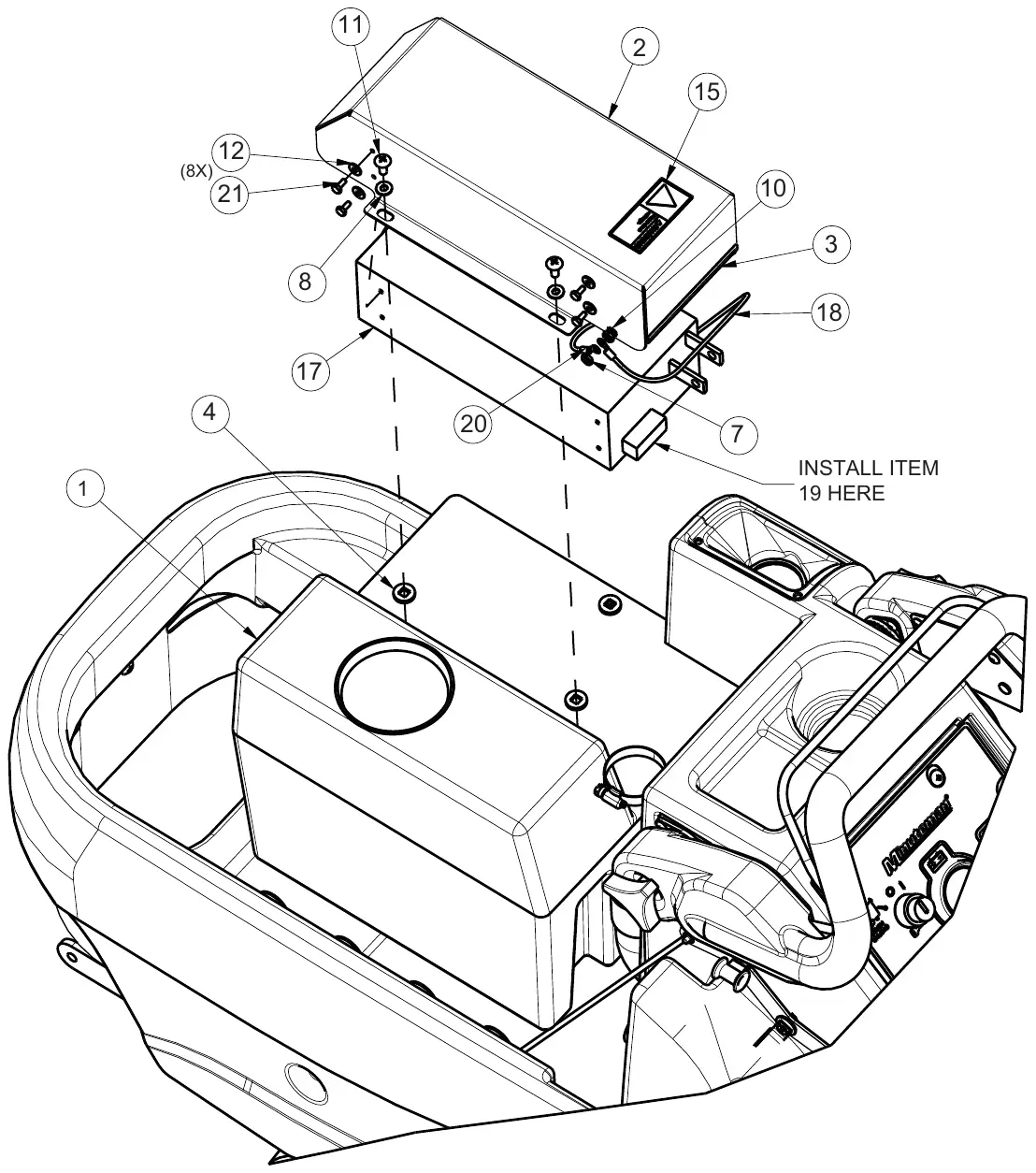

Minuteman E17 / E20 Electric Power assembly parts
The power assembly, including the 115 V twist-lock cord and the 230 V CE connector cord. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172455-1 | 1 | WEIGHT BOX, E1720E | $134.45/EA |
| 2 | MM172456 | 1 | BKT, POWER SUPPLY MOUNT, E20E | $101.62/EA |
| 3 | MM172457 | 1 | EDGE TRIM, .063 X 5.0, BLACK | $1.05/EA |
| 4 | MM290014 | 3 | WSR RUBBER .312SQ.75X.12 | $1.38/EA |
| 5 | MM383347 | 2 | CLAMP-CRIMP 1/2 HOSE | $1.38/EA |
| 6 | MM710985 | 2 | SCR-BHSCS 3/8-16 X .625 ZP | $1.67/EA |
| 7 | MM711310 | 2 | NUT-HEX 10-32 ZP | $1.08/EA |
| 8 | MM711504 | 4 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 9 | MM711505 | 5 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 10 | MM711534 | 1 | WASHER-EXT LOCK #10 ZP | $1.08/EA |
| 11 | MM712565 | 3 | SCR-THMS 1/4-20 X .62 SS | $1.13/EA |
| 12 | MM712764 | 8 | WASHER-FLAT #10 SS | $1.08/EA |
| 13 | MM712811 | 2 | SCR-RHMS 10-24 X .50 ZP | $1.08/EA |
| 14 | MM713002 | 5 | SCR-HH 1/4-20 X .75 ZP 5 | $1.10/EA |
| 15 | MM715646 | 1 | DECAL, HAZ VOLT WARN, 3X1-3/8 | $4.94/EA |
| 16 | MM740108 | 1 | STRAIN RELIEF-HEYCO 1237 | $1.31/EA |
| 17 | MM748123 | 1 | 24POWER SUPPLY, OUTPUT 24VDC, 63A | $1,356.97/EA |
| 18 | MM748666 | 1 | WIRE ASY, 14G GREEN/YELLOW 20" | $4.86/EA |
| 19 | MM748925 | 1 | CORD, PIGTAIL TWIST-LOCK, GRAY, 115Fits 2 of 4 versionsE17 115 V, E20 115 V | $59.36/EA |
| 19 | MM748928 | 1 | CORD, PIGTAIL CE CONNECTOR, GRAY, 230Fits 2 of 4 versionsE17 230 V, E20 230 V | $37.09/EA |
| 20 | MM748927 | 1 | WIRE ASSY, GREEN/YELLOW, 4", 14G | $6.25/EA |
| 21 | MM11038965 | 8 | BLT-HH M4 X 0.7 X 10 STL ZD 8.8 DIN 933 | $6.92/EA |

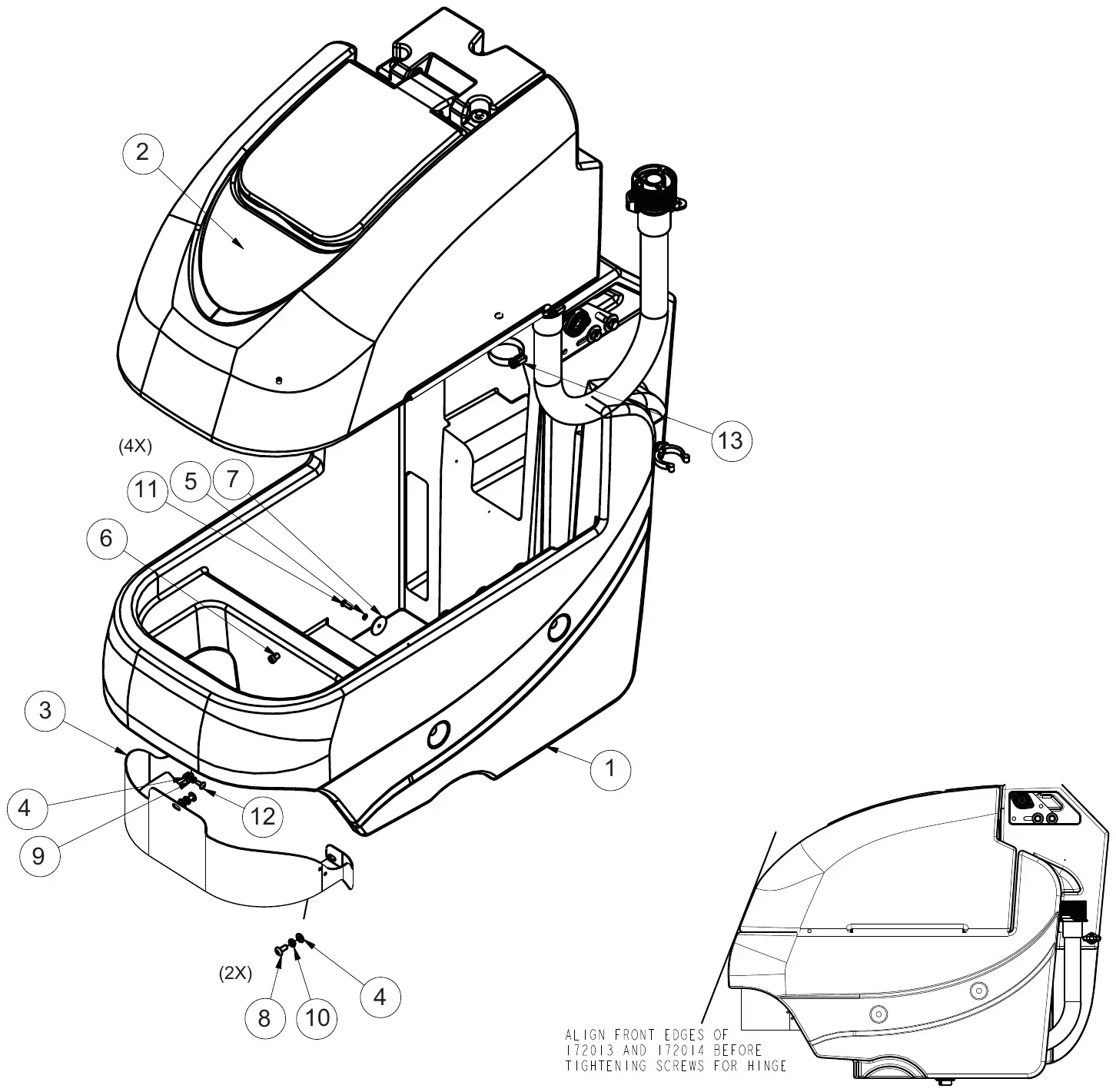

Minuteman E17 / E20 Electric E17/20 base assembly parts
The E17/20 base assembly. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172013 | 1 | SOLUTION TANK ASSY | $1,262.56/EA |
| 2 | MM172014 | 1 | RECOVERY TANK ASSEMBLY | $945.40/EA |
| 3 | MM172144 | 1 | COVER, FRONT PANEL E1720 | $64.43/EA |
| 4 | MM711504 | 3 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 5 | MM711543 | 4 | WASHER-LOCK #10 SPLIT ZP | $1.08/EA |
| 6 | MM712041 | 1 | BLT-SHOULDER 5/16 X .375 LG X 1/4-20 BLK | $1.08/EA |
| 7 | MM712312 | 4 | WASHER-BALANCING .187 X 1.25 | $1.08/EA |
| 8 | MM712565 | 2 | SCR-THMS 1/4-20 X .62 SS | $1.13/EA |
| 9 | MM712757 | 1 | WASHER-LOCK #10 SPLIT SS | $1.08/EA |
| 10 | MM712758 | 2 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 11 | MM712812 | 4 | SCR-PHMS 10-24 X .62 ZP | $1.05/EA |
| 12 | MM712822 | 1 | SCR-THMS 10-24 X .50 SS | $1.08/EA |
| 13 | MM3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |

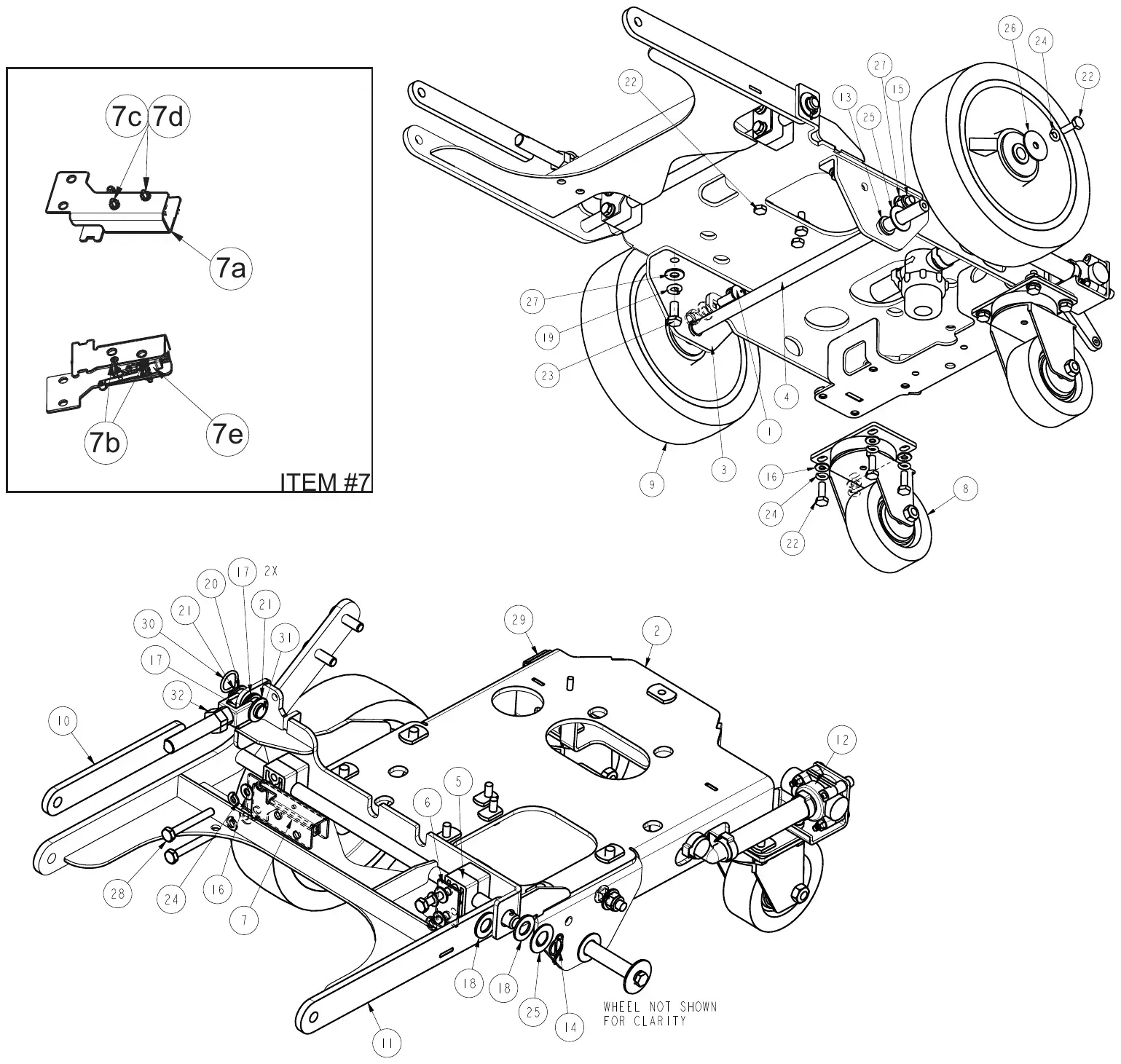

Minuteman E17 / E20 Electric Chassis assembly parts
The chassis: main frame, wheel brackets, bearing blocks, deck switch, casters, wheels and lift arms. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM70-516-16 | 2 | BLT-CARR 5/16-18 X 1 ZP | $1.08/EA |
| 2 | MM172020 | 1 | E1720 MAIN FRAME WMT | $239.99/EA |
| 3 | MM172024 | 2 | BKT, WHEEL, E1720BD | $147.60/EA |
| 4 | MM172035 | 1 | ROD, .5" E1720 AXLE | $16.25/EA |
| 5 | MM172038 | 4 | BEARING BLOCK | $3.30/EA |
| 6 | MM172039 | 1 | BEARING BLOCK PLATE | $1.38/EA |
| 7 | MM172110 | 1 | DECK SWITCH ASSY | $42.64/EA |
| 7a | MM172111 | 1 | BEARING BLOCK/SWITCH PLATEDetail of item 7, deck switch assembly. | $8.42/EA |
| 7b | MM710493 | 2 | SCR-RHMS 4-40 X .75 ZPDetail of item 7, deck switch assembly. | $1.08/EA |
| 7c | MM711428 | 2 | NUT-HEX 4-40 ZPDetail of item 7, deck switch assembly. | $1.08/EA |
| 7d | MM712326 | 2 | WASHER-INT LOCK #4 SSDetail of item 7, deck switch assembly. | $1.08/EA |
| 7e | MM747603-2 | 1 | SWITCH ASY, MICRO ROLLER W/PACK/CONDUITDetail of item 7, deck switch assembly. | $29.58/EA |
| 8 | MM172167 | 2 | CASTER, 3 1/2" PU WHEEL | $31.43/EA |
| 9 | MM172265 | 2 | WHEEL, 8X2X.5ID, 75A W/ GROOVES | $52.17/EA |
| 10 | MM172368 | 1 | UPPER LIFT ARM | $52.33/EA |
| 11 | MM172370 | 1 | DISC DECK LIFT WMT, E1720 | $164.59/EA |
| 12 | MM172571 | 1 | ASSY-SOLUTION VALVE E1720 | $113.07/EA |
| 13 | MM260041 | 2 | BUSHING-FLG .502 X .627 X .375 OILITE | $2.92/EA |
| 14 | MM600578 | 1 | RING-RUE .50 ZP | $1.08/EA |
| 15 | MM711374 | 2 | NUT-NYLOC 5/16-18 ZP | $1.10/EA |
| 16 | MM711504 | 12 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 17 | MM711569 | 3 | WASHER-FLAT .390 X .880 X .062 NYL | $1.08/EA |
| 18 | MM711592 | 2 | WASHER-FLAT 1/2 X .90 X .064 NYLON | $1.10/EA |
| 19 | MM712140 | 4 | WASHER-LOCK 5/16 SPLIT SS | $1.08/EA |
| 20 | MM712265 | 1 | CLEVIS-YOKE, 1/2-20 WITH .375 PIN | $27.72/EA |
| 21 | MM712301 | 2 | WASHER-FLAT 3/8 X .87 X .06 ZP | $1.08/EA |
| 22 | MM712562 | 13 | SCR-HH 1/4-20 X .75, 18-8 SS | $1.08/EA |
| 23 | MM712575 | 4 | SCR-HH 5/16-18 X .75 18-8 SS | $1.08/EA |
| 24 | MM712758 | 14 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 25 | MM712760 | 3 | WASHER-FLAT .56 X 1.06 X .04 SS | $1.08/EA |
| 26 | MM712761 | 2 | WASHER-FENDER 1/4 X 1.25 X .059 SS | $1.08/EA |
| 27 | MM712772 | 6 | WASHER-FLAT .344 X .75 X .06 SS | $1.08/EA |
| 28 | MM713007 | 4 | SCR-HH 1/4-20 X 2.00 ZP GR 5 | $1.08/EA |
| 29 | MM809444 | 1 | CLIP-CORD | $3.87/EA |
| 30 | MM833374 | 1 | PIN-HAIRPIN COTTER 3/8 | $1.08/EA |
| 31 | MM833833 | 1 | PIN-CLEVIS 3/8 X 1.25 | $3.43/EA |
| 32 | MM3400449 | 1 | NUT-JAM 1/2-20 ZP | $1.08/EA |

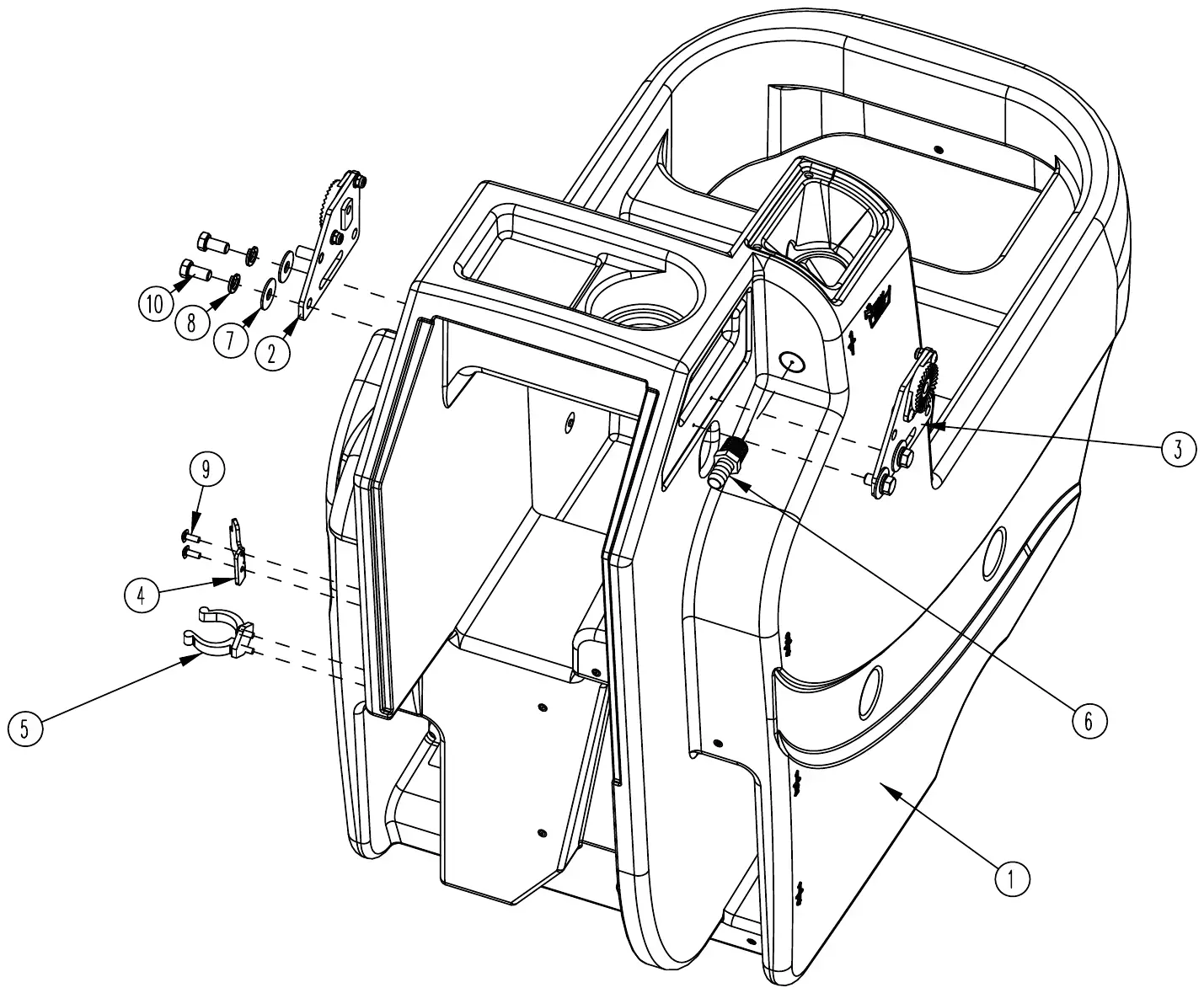

Minuteman E17 / E20 Electric Solution tank assembly parts
The solution tank, handle mounts, drain hose hook and fittings. Manual page 18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172003 | 1 | SOLUTION TANK | $404.47/EA |
| 2 | MM172080 | 1 | HANDLE MOUNT ASSY, LEFT | $18.75/EA |
| 3 | MM172082 | 1 | HANDLE MOUNT ASSY, RIGHT | $20.16/EA |
| 4 | MM172341 | 1 | HOOK, DRAIN HOSE WITH TWIST VALVE | $10.80/EA |
| 5 | MM260579 | 1 | TOOL CLIP, 1.5" HOSE | $7.25/EA |
| 6 | MM342438 | 1 | FITTING, 1/2 MPT 1/2 HB BRASS | $5.05/EA |
| 7 | MM711507 | 4 | WSR-FLAT .37 X 1.12 X .06 | $1.08/EA |
| 8 | MM711546 | 4 | WSR-HELICAL 3/8 | $1.08/EA |
| 9 | MM712822 | 4 | SCR-MC TR HD 10-24 X .50 SS | $1.08/EA |
| 10 | MM713041 | 4 | BLT-HH 3/8-16 X 3/4 #5 | $1.08/EA |

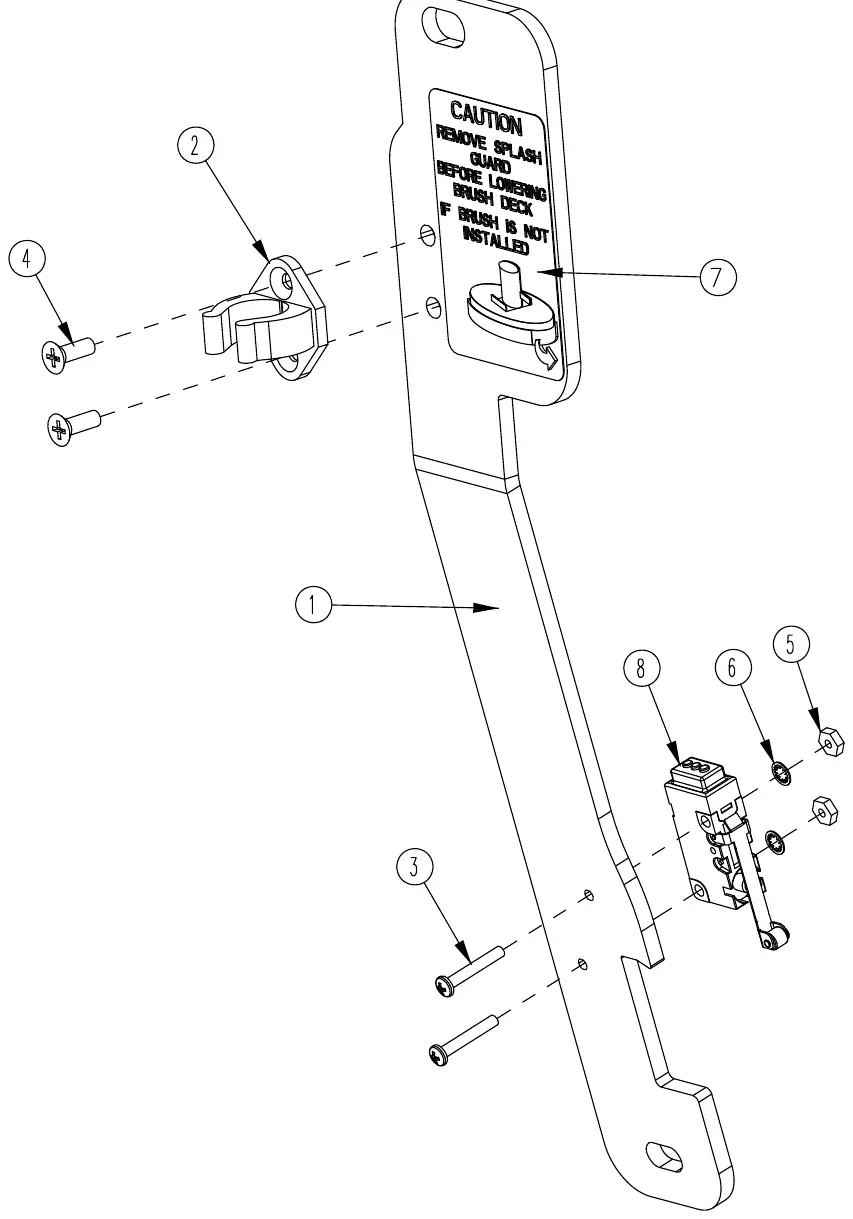

Minuteman E17 / E20 Electric Lift pedal stop assembly parts
The lift pedal stop bracket, hose clip, decal and micro switch. Manual page 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172036 | 1 | BKT, PEDAL STOP | $22.86/EA |
| 2 | MM172065 | 1 | CLIP, FOR 1/2" ID HOSE | $4.78/EA |
| 3 | MM710493 | 2 | SCR-MC 4-40 X .75 PAN HD | $1.08/EA |
| 4 | MM710530 | 2 | SCR-MC FL HD 8-32 X .50 BRS | $1.10/EA |
| 5 | MM711428 | 2 | NUT-HEX 4-40 | $1.08/EA |
| 6 | MM712326 | 2 | WSR-INT LOCK #4 | $1.08/EA |
| 7 | MM715685 | 1 | DECAL, REMOVE SPLASH GUARD | $2.92/EA |
| 8 | MM747603-2 | 1 | SWITCH ASY, MICRO ROLLER W/PACK/CONDUIT | $29.58/EA |

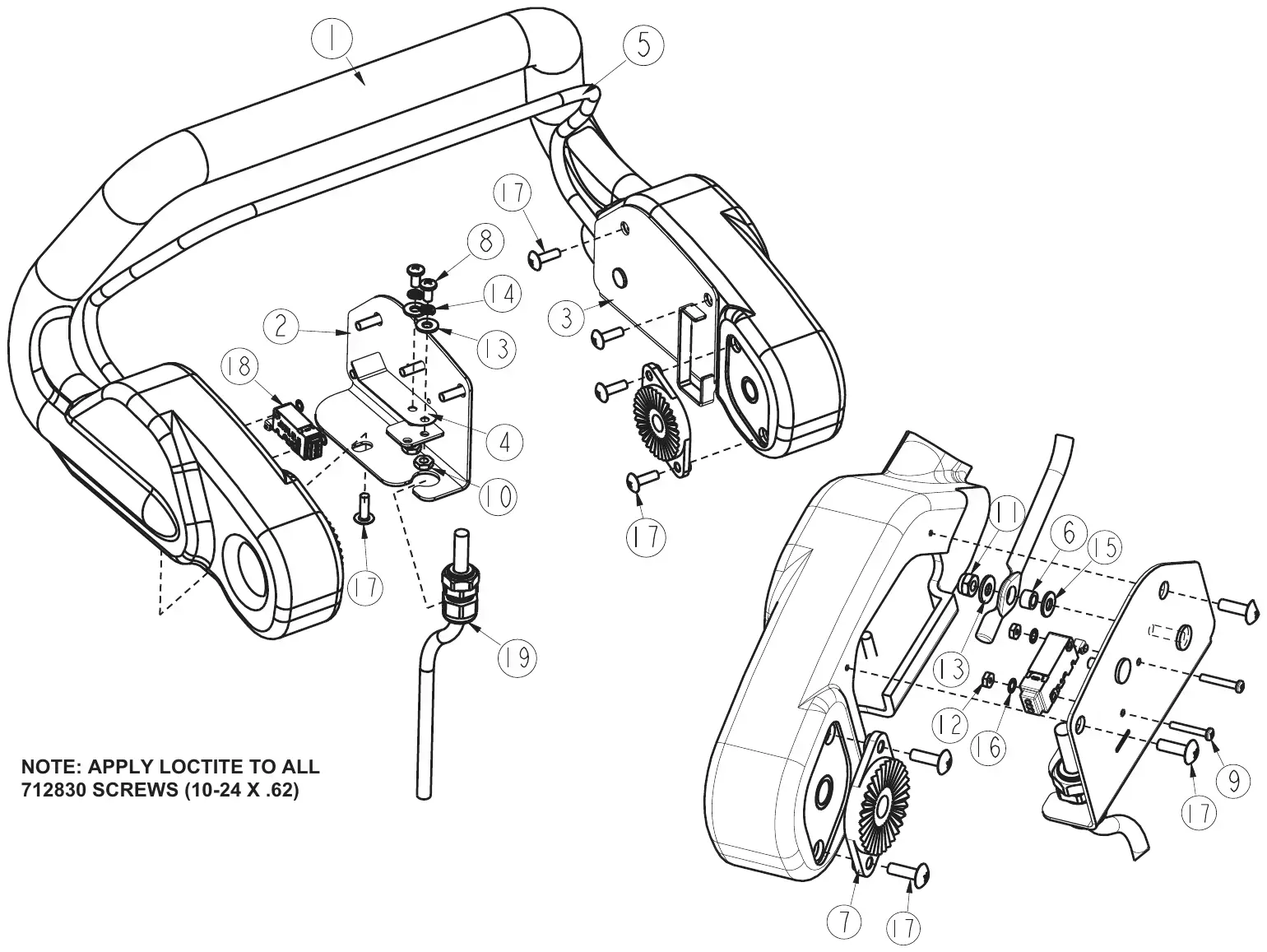

Minuteman E17 / E20 Electric Handle assembly parts
The handle, bail plates, bail, leaf springs, pivot jaws and a micro switch. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172006 | 1 | HANDLE, ES1720 | $326.93/EA |
| 2 | MM172053 | 1 | BAIL PLATE WMT RH | $33.89/EA |
| 3 | MM172054 | 1 | BAIL PLATE WMT LH | $35.25/EA |
| 4 | MM172057 | 2 | LEAF SPRING, ES1720 | $6.55/EA |
| 5 | MM172059 | 1 | ES1720 BAIL, HANDLE | $21.66/EA |
| 6 | MM172074 | 2 | SPACER, 5/16OD X 17GA, ALUM | $2.63/EA |
| 7 | MM270143 | 2 | HANDLE PIVOT JAW | $5.18/EA |
| 8 | MM710353 | 4 | SCR-PHMS 10-32 X .37 ZP | $1.08/EA |
| 9 | MM710493 | 2 | SCR-RHMS 4-40 X .75 ZP | $1.08/EA |
| 10 | MM711310 | 4 | NUT-HEX 10-32 ZP | $1.08/EA |
| 11 | MM711350 | 2 | NUT-NYLOC 10-32 ZP | $1.08/EA |
| 12 | MM711428 | 2 | NUT-HEX 4-40 ZP | $1.08/EA |
| 13 | MM711503 | 6 | WASHER-FLAT #10 X .50 ZP | $1.08/EA |
| 14 | MM711543 | 4 | WASHER-LOCK #10 SPLIT ZP | $1.08/EA |
| 15 | MM712320 | 2 | WASHER-FLAT 20 X .45 X .048 NYLON | $1.08/EA |
| 16 | MM712326 | 2 | WASHER-INT LOCK #4 SS | $1.08/EA |
| 17 | MM712830 | 10 | SCR-THMS 10-24 X .62 ZP | $1.08/EA |
| 18 | MM747603-3 | 1 | SWITCH ASY, MICRO ROLLER W/PACK | $23.65/EA |
| 19 | MM747715 | 1 | ABLE ASY, 5 COND 18G CONSOLE | $713.61/EA |

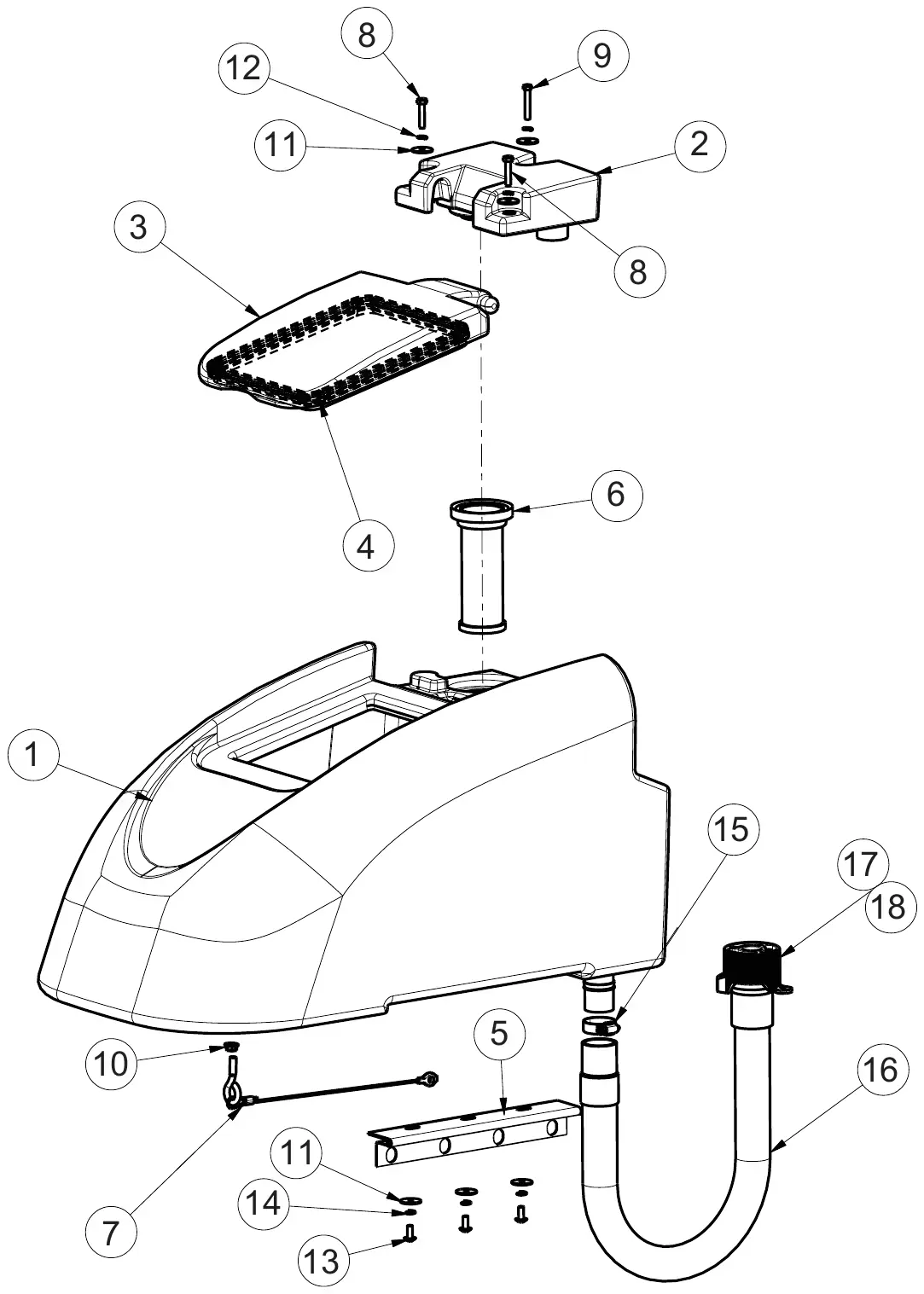

Minuteman E17 / E20 Electric Recovery tank assembly parts
The recovery tank, vacuum manifold, lid, lid gasket, screened float and drain hose assembly. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172004 | 1 | ES1720 RECOVERY TANK | $334.24/EA |
| 2 | MM172005 | 1 | ES1720 VACUUM MANIFOLD | $45.19/EA |
| 3 | MM172007 | 1 | LID, ES1720 | $193.97/EA |
| 4 | MM172017 | 1 | GASKET, ES1720 LID | $23.45/EA |
| 5 | MM172049 | 1 | HINGE, RECOVERY TANK | $34.48/EA |
| 6 | MM172132 | 1 | FLOAT, SCREENED | $29.00/EA |
| 7 | MM172394 | 1 | CABLE, REC TANK 12.0 | $14.50/EA |
| 8 | MM711210 | 2 | SCR-HH 1/4-20 X 1.25 ZP GR 5 FULL THRD | $1.08/EA |
| 9 | MM711212 | 1 | SCR-HH 1/4-20 X 1.50 ZP GR 5 | $1.08/EA |
| 10 | MM711379 | 1 | NUT-FLANGED WIZZ 5/16-18 ZPQuantity printed as I, read as 1. | $1.08/EA |
| 11 | MM711519 | 6 | WASHER-FLAT 1/4 X 1.00 X .06 ZP | $1.08/EA |
| 12 | MM711544 | 3 | WASHER-LOCK 1/4 SPLIT ZP | $1.08/EA |
| 13 | MM712565 | 3 | SCR-THMS 1/4-20 X .62 SS | $1.13/EA |
| 14 | MM712758 | 3 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 15 | MM3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |
| 16 | MM97090096 | 1 | DRAIN HOSE ASSY, RECOVERY TANK | $90.25/EA |
| 17 | MM15282072 | 1 | REPLACEMENT O-RING | $4.75/EA |
| 18 | MM90304528 | 1 | CAP | $23.19/EA |

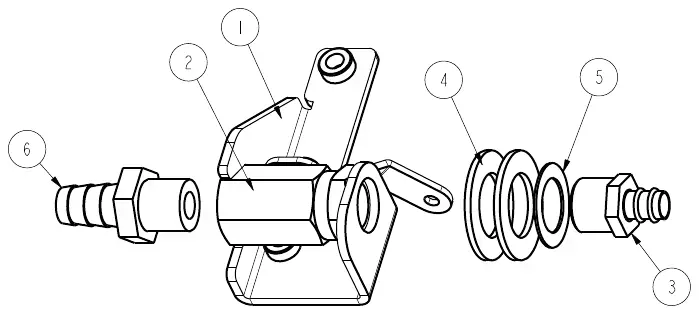

Minuteman E17 / E20 Electric Old style - solution valve assembly parts
The old style brass solution valve assembly, marked no longer available. Manual page 24.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172563Replaces Minuteman 172513 | 1 | BRKT, SOL VALVE MOUNTNo longer available. Replacing 172514 with 172571 needs kit K-172571. | $15.82/EA |
| 2 | MM172515 | 1 | BALL VALVE, BRASS, 3/8FNPT, CUST HANDLENo longer available. Replacing 172514 with 172571 needs kit K-172571. | $24.19/EA |
| 3 | MM320265 | 1 | FTG-ADAPTER 3/8 MPT X 3/8 HB BRASSNo longer available. Replacing 172514 with 172571 needs kit K-172571. | $11.97/EA |
| 4 | MM711512 | 2 | WASHER-FLAT 3/4 X 1.37 X .08 ZPNo longer available. Replacing 172514 with 172571 needs kit K-172571. | $1.08/EA |
| 5 | MM711513 | 1 | WASHER-FLAT .689 X 1.06 X .029 SSNo longer available. Replacing 172514 with 172571 needs kit K-172571. | $1.10/EA |
| 6 | MM827008 | 1 | FTG-ADAPTER 3/8 MPT 1/2 HB BRASSNo longer available. Replacing 172514 with 172571 needs kit K-172571. | $8.27/EA |

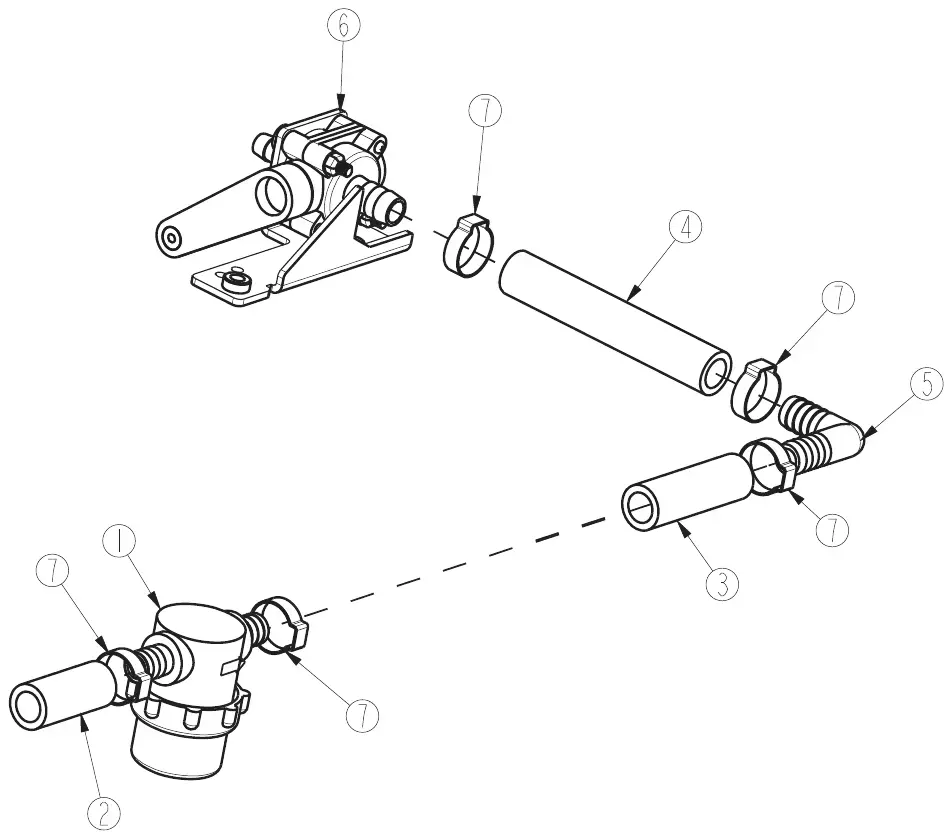

Minuteman E17 / E20 Electric New style - solution valve assembly parts
The new style solution valve assembly with its filter, hoses, elbow and control valve. Manual page 24.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172564 | 1 | FILTER-SOLUTION E1720 | $11.99/EA |
| 2 | MM172566 | 1 | HOSE- 1/2ID X 1.75" NYLOBRAID | $1.37/EA |
| 3 | MM172567 | 1 | HOSE-1/2"ID X 2.375" NYLOBRAID | $1.49/EA |
| 4 | MM172568 | 1 | HOSE-WIRE REINF 1/2"ID X 4.25" | $2.28/EA |
| 5 | MM172569 | 1 | FTG-ELBOW 90 1/2 HB X 1/2 HB NYLON | $1.08/EA |
| 6 | MM172579 | 1 | SOLUTION CNTRL VALVE, WITH BRKT | $88.86/EA |
| 7 | MM383347 | 5 | CLAMP-CRIMP 1/2 HOSE | $1.38/EA |

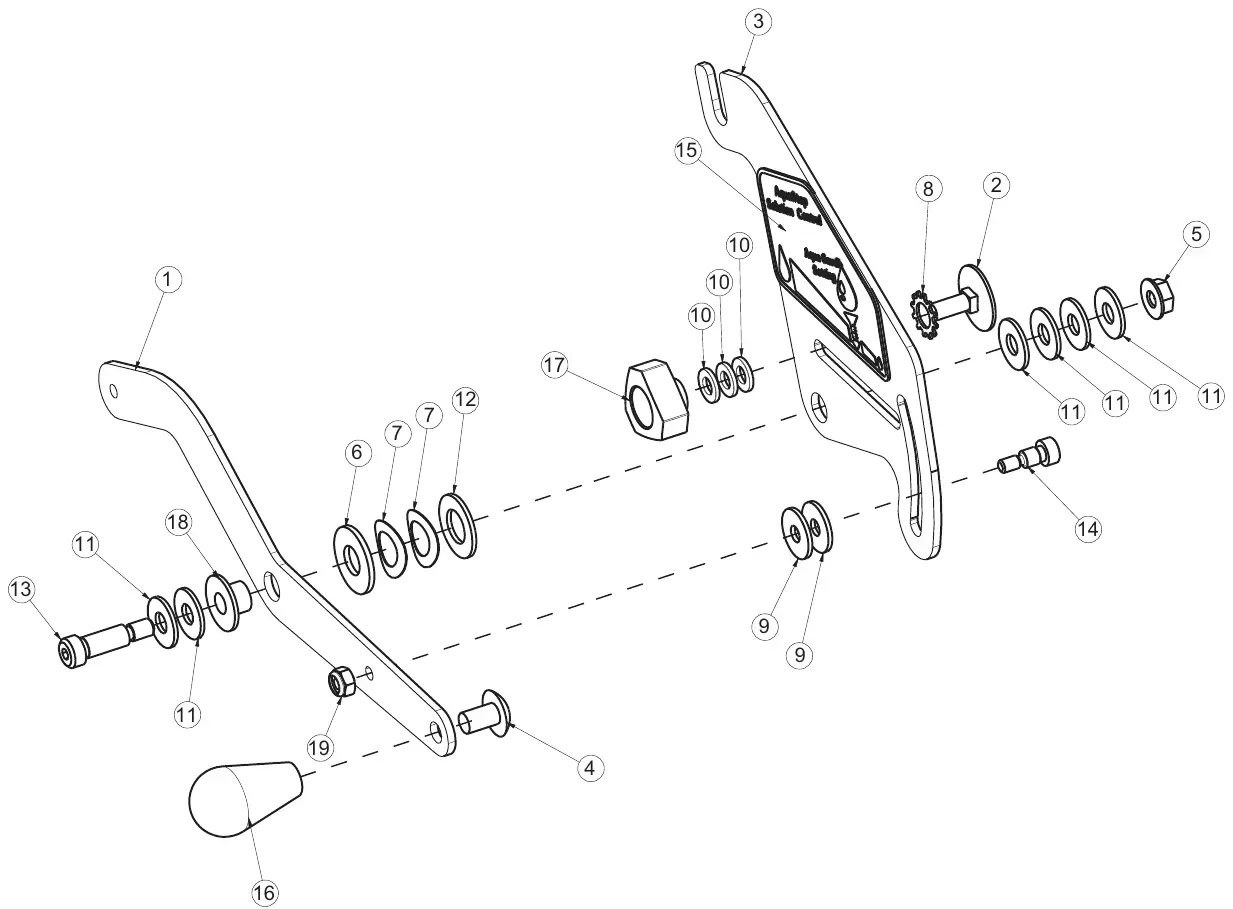

Minuteman E17 / E20 Electric Solution control handle assembly parts
The solution control handle assembly and its knobs. Manual page 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172061 | 1 | LEVER, SOLUTION CONTROL BRK'T | $26.53/EA |
| 2 | MM172424 | 1 | BLT-ELEVATOR 1/4-20 x .75 ZINC | $1.08/EA |
| 3 | MM172575 | 1 | BRKT, AQUASTOP SOL CNTRL | $16.08/EA |
| 4 | MM710195 | 1 | SCR-PHMS 5/16-18 X .50 ZP | $1.08/EA |
| 5 | MM711425 | 1 | NUT-FLANGED WIZZ 1/4-20 ZP | $1.08/EA |
| 6 | MM711508 | 1 | WASHER-FLAT 3/8 X 1.00 X .08 ZP | $1.08/EA |
| 7 | MM711524 | 2 | WASHER-FLAT 3/8 X 1.00 X .08 ZP | $1.10/EA |
| 8 | MM711539 | 1 | WASHER-EXT LOCK 3/8 ZP | $1.08/EA |
| 9 | MM711550 | 2 | WASHER-FLAT 1/4 X .75 NYLON | $1.08/EA |
| 10 | MM711566 | 3 | WASHER-FLAT #12 X .50 X .065 ZP | $1.08/EA |
| 11 | MM711575 | 6 | WASHER-FLAT 1/4 X .75 X .06 ZP | $1.08/EA |
| 12 | MM711592 | 1 | WASHER-FLAT 1/2 X .90 X .064 NYLON | $1.10/EA |
| 13 | MM712070 | 1 | BLT-SHOULDER 5/16 X .75 LG X 1/4-20 BLK | $1.08/EA |
| 14 | MM713598 | 1 | BLT-SHOULDER 1/4 X .313 LG X 10-24 SS | $3.34/EA |
| 15 | MM715690 | 1 | DECAL, AQUASTOP SOLUTION CONTROL | $2.80/EA |
| 16 | MM760592 | 1 | KNOB-OVAL TAPERED | $10.34/EA |
| 17 | MM833214 | 1 | KNOB-3 SIDED 1/4-20 INSERT | $7.93/EA |
| 18 | MM840202 | 1 | BUSHING-FLG .31 X .435 X .325 NYL | $1.08/EA |
| 19 | MM712638Replaces Minuteman 3400399 | 1 | NUT-NYLOC 10-24 SS | $1.10/EA |

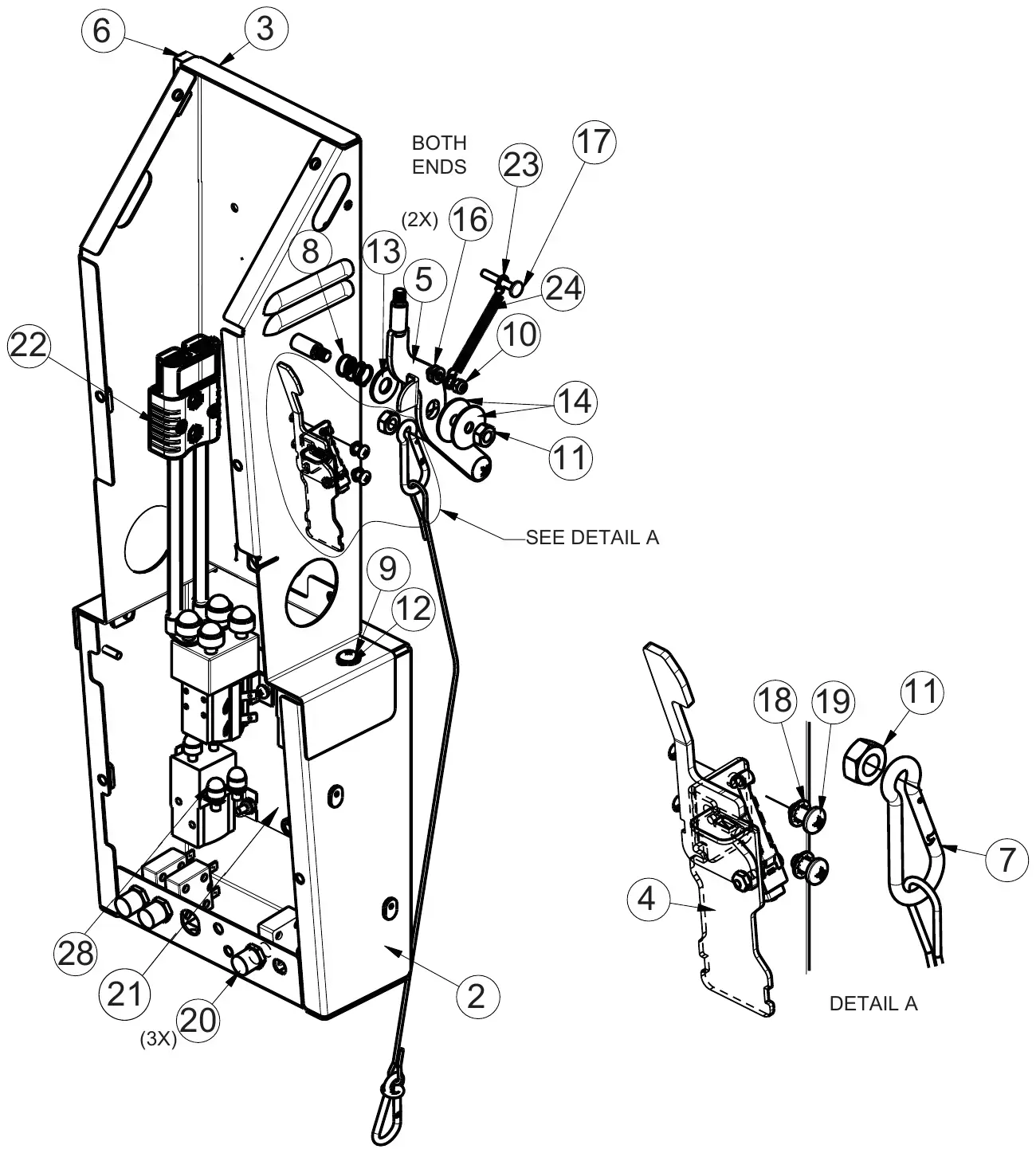

Minuteman E17 / E20 Electric Electrical box assembly parts
The electrical box assembly, including the vacuum switch and circuit breaker boot. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | MM172077 | 1 | ELEC BOX BOTTOM WMT | $127.97/EA |
| 3 | MM172088 | 1 | ELEC BOX TOP WMT | $128.09/EA |
| 4 | MM172141 | 1 | VAC SWITCH ASSY | $49.73/EA |
| 5 | MM172152 | 1 | WELDMENT-VAC LEVER | $54.83/EA |
| 6 | MM172188 | 1 | FOAM TAPE, 1/2" SQ X 16.5" | $2.63/EA |
| 7 | MM172381 | 1 | SQUEEGEE CABLE ASSY (curved squeegee only)Curved squeegee only. | $31.92/EA |
| 8 | MM670093 | 1 | SPRING-COMP .502 X .6 X 1 ZINC | $3.52/EA |
| 9 | MM710178 | 3 | SCR-THMS 1/4-20 X .50 ZP | $1.08/EA |
| 10 | MM711372 | 1 | NUT-NYLOC 8-32 ZP | $1.08/EA |
| 11 | MM711383 | 2 | NUT-HEX 5/16-18 ZP REVERSE LOC | $1.08/EA |
| 12 | MM711505 | 9 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 13 | MM711508 | 1 | WASHER-FLAT 3/8 X 1.00 X .08 ZP | $1.08/EA |
| 14 | MM711516 | 2 | WASHER-FLAT 5/16 X 1.25 X .05 ZP | $1.08/EA |
| 16 | MM712320 | 2 | WASHER-FLAT 20 X .45 X .048 NYLON | $1.08/EA |
| 17 | MM712533 | 1 | SCR-PHMS 10-24 X 1.25 SS | $1.08/EA |
| 18 | MM712770 | 6 | WASHER-INT TOOTH LOCK #10 SS | $1.08/EA |
| 19 | MM712810 | 6 | SCR-RHMS 10-24 X .37 ZP | $1.08/EA |
| 20 | MM742748 | 3 | CIRCUIT BREAKER-BOOT | $5.95/EA |
| 21 | MM747630 | 1 | ELECTRICAL PANEL ASY, E1720BD | $540.29/EA |
| 22 | MM747637 | 1 | WIRE ASY, MACHINE-BATTERY E1720 | $65.83/EA |
| 23 | MM760134 | 2 | MOUNT RING | $2.63/EA |
| 24 | MM762084 | 1 | SPRING-EXT .25OD X 2" F.L. MUSIC | $4.03/EA |
| 28 | MM15592033 | 2 | CAP, SAFETY NUT COVER M8 | $1.55/EA |

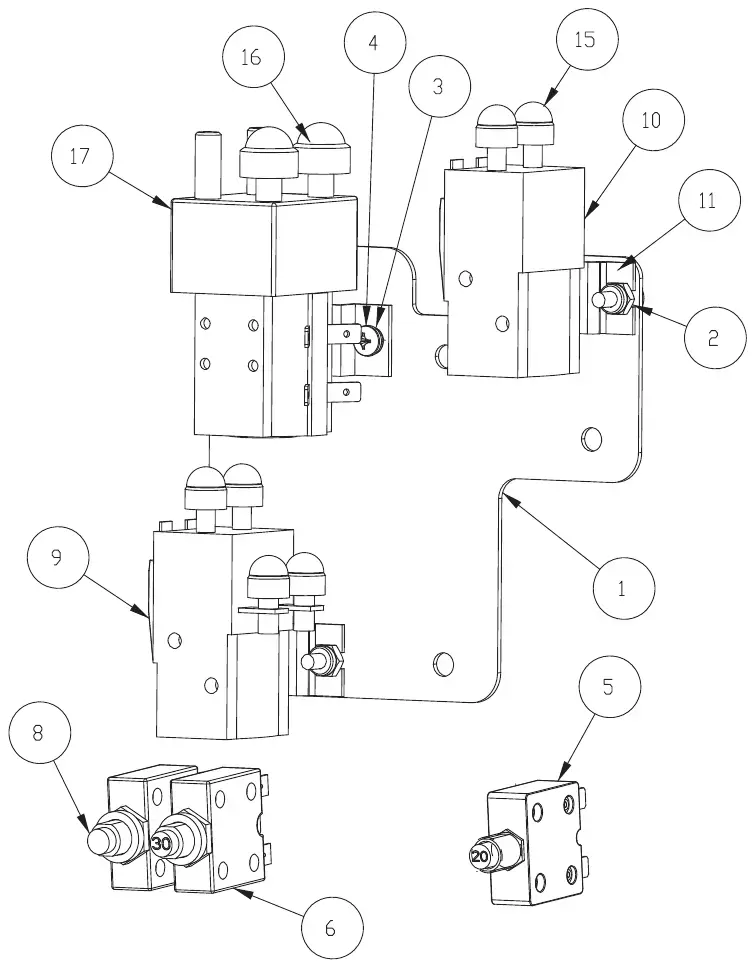

Minuteman E17 / E20 Electric Electrical panel assembly parts
The electrical panel: relays, circuit breakers, brackets and wire assemblies. Manual page 28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172189 | 1 | PANEL, RELAY MOUNT | $30.42/EA |
| 2 | MM711350 | 4 | NUT -NYLOC 10-32 | $1.08/EA |
| 3 | MM711543 | 2 | WSR-HELICAL #10 | $1.08/EA |
| 4 | MM712800 | 2 | SCR-MC 10-24 X .25 ST PL | $1.08/EA |
| 5 | MM740220 | 1 | CIRCUIT BREAKER-20AMP 2-T ERMIN | $5.70/EA |
| 6 | MM740247 | 1 | CIRCUIT BREAKER-30AMP PUSH BUT | $6.71/EA |
| 7 | MM740482 | 2 | DIODE ASY, 1N4007 W/PIGGY (NOT SHOWN)Not shown on the drawing. | $5.81/EA |
| 8 | MM747609 | 1 | CIRCUIT BREAKER-4.0AMP PUSHBUT | $14.40/EA |
| 9 | MM747615 | 1 | RELAY, 2 POLE CURT IS (1720) | $63.13/EA |
| 10 | MM747616 | 1 | RELAY, 1 POLE CURT IS (1720) | $61.50/EA |
| 11 | MM747619 | 2 | BRACKET , RELAY 747615 & 747616 | $4.96/EA |
| 12 | MM747640 | 1 | WIRE ASY, 10G RED 13" (NOT SHOWN)Not shown on the drawing. | $3.20/EA |
| 13 | MM747641 | 1 | WIRE ASY, 10G RED 7" (NOT SHOWN)Not shown on the drawing. | $2.91/EA |
| 14 | MM747653 | 1 | WIRE HARNESS, E1720BD MAIN (NOT SHOWN)Not shown on the drawing. | $805.11/EA |
| 15 | MM15592025 | 6 | CAP, SAFET Y NUT COVER M 6 | $2.64/EA |
| 16 | MM15592033 | 2 | CAP, SAFET Y NUT COVER M 8 | $1.55/EA |
| 17 | MM90331026 | 1 | RELAY, 24VDC 2 POLE 100A (HAKO) | $99.90/EA |

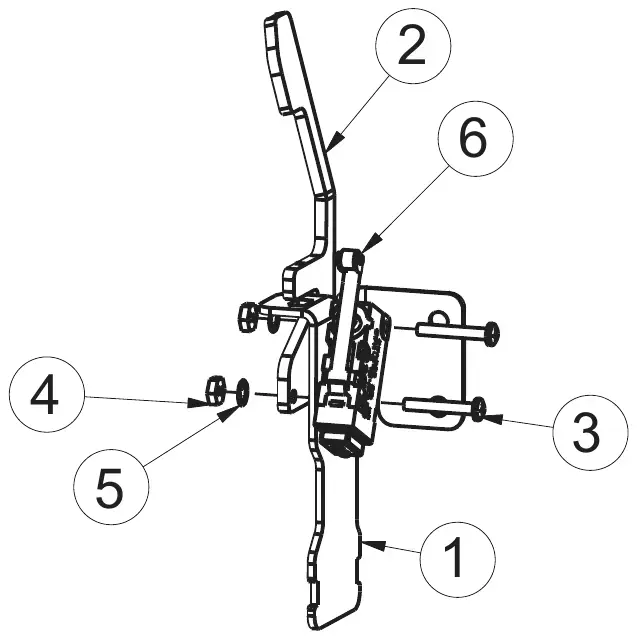

Minuteman E17 / E20 Electric Vacuum switch assembly parts
The vacuum switch bracket, cover and micro switch. Manual page 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172140 | 1 | BKT, VAC SWITCH MOUNT | $11.74/EA |
| 2 | MM172337 | 1 | VAC SWITCH COVER | $7.14/EA |
| 3 | MM710493 | 2 | SCR-RHMS 4-40 X .75 ZP | $1.08/EA |
| 4 | MM711428 | 2 | NUT-HEX 4-40 ZP | $1.08/EA |
| 5 | MM712326 | 2 | WASHER-INT LOCK #4 SS | $1.08/EA |
| 6 | MM747603-2 | 1 | SWITCH ASY, MICRO ROLLER W/PACK/CONDUIT | $29.58/EA |
Minuteman E17 / E20 Electric Electrical box assembly - straight squeegee parts
The extra parts for machines with a straight squeegee, including the squeegee lift cable assembly. Manual page 30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM719Minuteman 719 | 1 | LOCTITEFor machines with straight squeegee. | Call to confirm part: 800-440-6723 |
| 2 | MM172128 | 1 | BKT, LOWER BUSHING MOUNTFor machines with straight squeegee. | $9.11/EA |
| 3 | MM172149 | 1 | CABLE, SQUEEGEE LIFT ASSY, E17BDFor machines with straight squeegee. | $35.19/EA |
| 4 | MM172331 | 1 | PIPE, 3/4 X 3.0" SCHD 40 PVCFor machines with straight squeegee. | $3.91/EA |
| 5 | MM710178 | 2 | SCR-THMS 1/4-20 X .50 ZPFor machines with straight squeegee. | $1.08/EA |
| 6 | MM711505 | 2 | WASHER-FLAT 1/4 ZPFor machines with straight squeegee. | $1.08/EA |
| 7 | MM711544 | 2 | WASHER-LOCK 1/4 SPLIT ZPFor machines with straight squeegee. | $1.08/EA |
| 8 | MM717018 | 2 | NUT-NYLOC M6 X 1.0 ZPFor machines with straight squeegee. | $1.08/EA |
| 9 | MM717022 | 2 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8For machines with straight squeegee. | $1.11/EA |
| 10 | MM90508391 | 1 | BUSHING, CABLE GUIDE, HAKOFor machines with straight squeegee. | $5.05/EA |

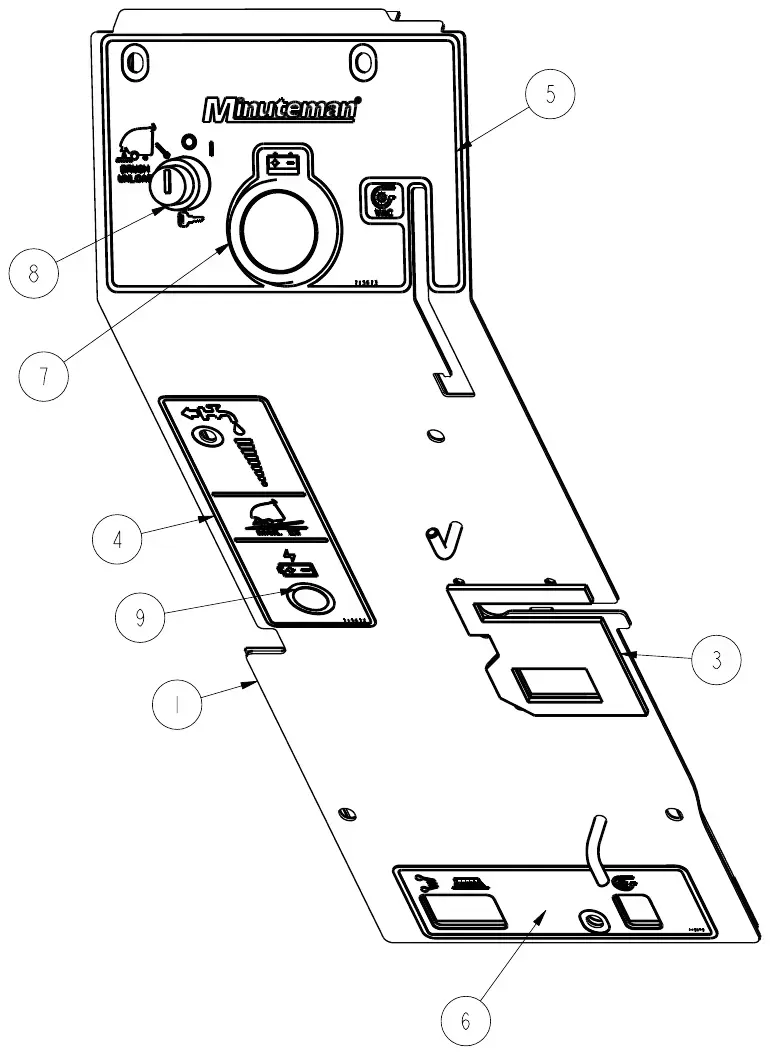

Minuteman E17 / E20 Electric Electrical box cover assembly parts
The electrical box cover, gaskets, decals and key switch assembly. Manual page 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172181 | 1 | BD COVER WMT | $162.25/EA |
| 2 | MM172193 | 1 | GASKET, CB OUTLINE (NOT SHOWN)Not shown on the drawing. | $2.63/EA |
| 3 | MM172194 | 1 | GASKET, CHARGER CORD PLATE | $2.63/EA |
| 4 | MM715672 | 1 | DECAL, CHARGE STATUS, SOLUTION CTRL | $2.85/EA |
| 5 | MM715673 | 1 | DECAL, BD DASHBOARD, ES1720 | $6.50/EA |
| 6 | MM715675 | 1 | DECAL, BD CIRC BKRS, ES1720 | $2.85/EA |
| 7 | MM740216 | 1 | GAUGE-BATTERY COND | $96.83/EA |
| 8 | MM747617-1 | 1 | KEYSWITCH ASY, KEYSWITCH + HARN E1720BD | $164.68/EA |
| 9 | MM3301669 | 1 | PLUG-PLASTIC, 11/16 DIA | $1.11/EA |
Minuteman E17 / E20 Electric Vac motor assembly parts
The vacuum motor assembly: mount, hose, foam covers, clamp and the motor itself. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172045 | 1 | VAC MOUNT WMT | $83.04/EA |
| 2 | MM172048 | 1 | HOSE, STRETCH 13", 90 CUFF | $25.64/EA |
| 3 | MM172124 | 1 | EDGE TRIM, .063 X 3.0, BLACK | $1.08/EA |
| 4 | MM172186 | 1 | FOAM COVER FRONT 1, 1/2 THICK | $4.97/EA |
| 5 | MM172187 | 1 | FOAM COVER FRONT 2, 1/2" THICK | $5.33/EA |
| 6 | MM172188 | .5 | FOAM TAPE, 1/2" SQ X 16.5" | $2.63/EA |
| 7 | MM450095 | 1 | CLAMP-CRIMP 1.75" OD | $2.63/EA |
| 8 | MM711160 | 4 | SCR-HI/LO 10 X .625 BLACK ZINC | $1.10/EA |
| 9 | MM711503 | 4 | WASHER-FLAT #10 X .50 ZP | $1.08/EA |
| 10 | MM715967 | 1 | DECAL - WARNING, DO NOT PICK UP (NOT SHOWN)Not shown on the drawing. | $2.45/EA |
| 11 | MM747607-1 | 1 | VAC MOTOR ASY, 24V PERIF BYPASS | $174.44/EA |
| 11 | MM747665-1 | 1 | VAC MOTOR ASSY, HOSP VERSION | $287.56/EA |

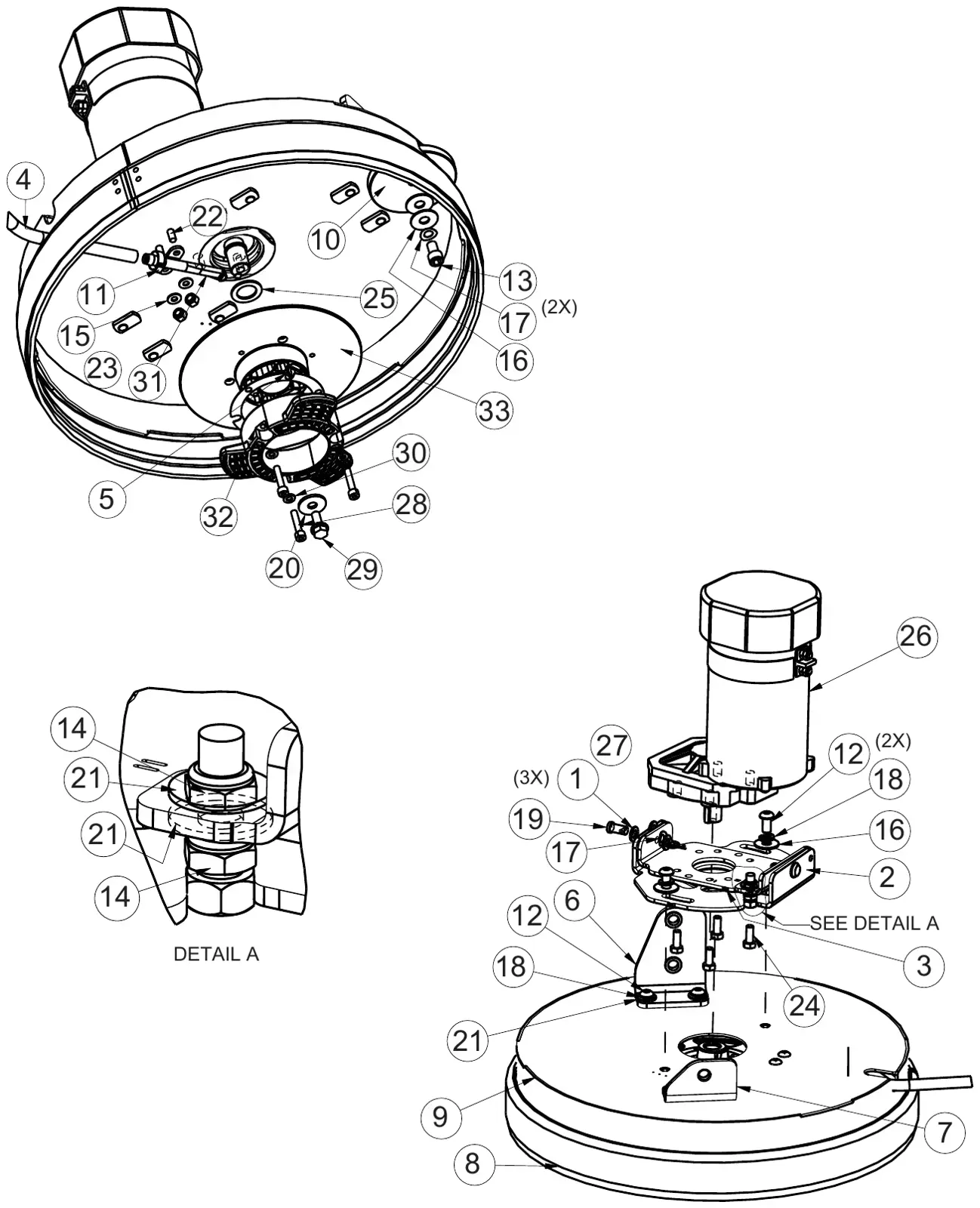

Minuteman E17 / E20 Electric 17” brush deck assembly parts
The 17 in brush deck: motor mount plate, skirt, roller wheel, brush motor and drive hub. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM712301Replaces Minuteman 3400087 | 6 | WASHER-FLAT .390 X .687 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 2 | MM172040 | 1 | WELDMENT-DECK ANGLE ADJUSTFits 2 of 4 versionsE17 115 V, E17 230 V | $57.69/EA |
| 3 | MM172044 | 1 | PLATE MOTOR MOUNTFits 2 of 4 versionsE17 115 V, E17 230 V | $27.47/EA |
| 4 | MM241097 | 1 | HOSE-WIRE REINF 3/8 X 31"Fits 2 of 4 versionsE17 115 V, E17 230 V | $14.75/EA |
| 5 | MM172210 | 1 | SPACER, HUBFits 2 of 4 versionsE17 115 V, E17 230 V | $18.23/EA |
| 6 | MM172296 | 1 | BKT, E1720 DECK MOUNT RTFits 2 of 4 versionsE17 115 V, E17 230 V | $23.18/EA |
| 7 | MM172297 | 1 | BKT, E1720 DECK MOUNT LEFTFits 2 of 4 versionsE17 115 V, E17 230 V | $23.18/EA |
| 8 | MM172363-1 | 1 | E17 DECK SKIRTFits 2 of 4 versionsE17 115 V, E17 230 V | $130.67/EA |
| 9 | MM172365 | 1 | 17" BRUSH DECK WMTFits 2 of 4 versionsE17 115 V, E17 230 V | $257.39/EA |
| 10 | MM210153 | 1 | ROLLER WHEELFits 2 of 4 versionsE17 115 V, E17 230 V | $7.25/EA |
| 11 | MM450076 | 1 | CLAMP-HOSE 5/8 (.590-.791) SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.38/EA |
| 12 | MM710990 | 6 | SCR-BHSCS 3/8-24 X .75 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.50/EA |
| 13 | MM710991 | 1 | SCR-HH 3/8-24 X .62 ZP GR 5Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 14 | MM711375 | 2 | NUT-NYLOC 3/8-16 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 15 | MM711504 | 2 | WASHER-FLAT 1/4 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 16 | MM711507 | 4 | WASHER-FLAT 3/8 X 1.12 X .06Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 17 | MM711523 | 3 | WASHER-WAVE .37 X .68 X .08Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 18 | MM711546 | 6 | WASHER-LOCK 3/8 SPLIT ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 19 | MM711679 | 2 | PIN-CLEVIS 3/8 X .750 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 20 | MM711855 | 1 | WASHER-FENDER 3/8 X 1.12 X .10 ZP HARDFits 2 of 4 versionsE17 115 V, E17 230 V | $2.57/EA |
| 21 | MM712301 | 6 | WASHER-FLAT 3/8 X .87 X .06 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 22 | MM712565 | 2 | SCR-THMS 1/4-20 X .62 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.13/EA |
| 23 | MM712667 | 2 | NUT-NYLOC 1/4-20 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 24 | MM717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 25 | MM717025 | 1 | WASHER-FLAT 13/16 X 1.25 X .08 ZPFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 26 | MM747600 | 1 | MOTOR, 24VDC PM 600WFits 2 of 4 versionsE17 115 V, E17 230 V | $675.49/EA |
| 27 | MM3400125 | 2 | RING-RUE 3/8Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.81/EA |
| 28 | MM11127000 | 3 | SCR-SHCS M6X30 SS, ISO4762Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 29 | MM11717203 | 1 | BLT-HH FLG M8X1.25X20 PRECOTE, ZD 10.9Fits 2 of 4 versionsE17 115 V, E17 230 V | $2.25/EA |
| 30 | MM12310256 | 3 | WSR-FLT 6.4X12X1.6, SS DIN125Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.05/EA |
| 31 | MM90311663 | 1 | FITTING, WATER NOZZLE W/ MOUNT HOLESFits 2 of 4 versionsE17 115 V, E17 230 V | $2.63/EA |
| 32 | MM90541814 | 1 | DRIVE HUB, PLASTIC, 3-LOBEFits 2 of 4 versionsE17 115 V, E17 230 V | $13.92/EA |
| 33 | MM172096MCH | 1 | HUB BASE MACHINEDFits 2 of 4 versionsE17 115 V, E17 230 V | $29.52/EA |
Minuteman E17 / E20 Electric 20” brush deck assembly parts
The 20 in brush deck: deck plate, floating skirt, roller wheel, brush motor and drive hub. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM712301Replaces Minuteman 3400087 | 6 | WASHER-FLAT .390 X .687 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 2 | MM172040 | 1 | WELDMENT-DECK ANGLE ADJUSTFits 2 of 4 versionsE20 115 V, E20 230 V | $57.69/EA |
| 3 | MM172044 | 1 | PLATE MOTOR MOUNTFits 2 of 4 versionsE20 115 V, E20 230 V | $27.47/EA |
| 4 | MM241097 | 1 | HOSE-WIRE REINF 3/8 X 31"Fits 2 of 4 versionsE20 115 V, E20 230 V | $14.75/EA |
| 5 | MM172208-1 | 1 | E20 BRUSH DECK PLATEFits 2 of 4 versionsE20 115 V, E20 230 V | $140.86/EA |
| 6 | MM172296 | 1 | BKT, E1720 DECK MOUNT RTFits 2 of 4 versionsE20 115 V, E20 230 V | $23.18/EA |
| 8 | MM172297 | 1 | BKT, E1720 DECK MOUNT LEFTFits 2 of 4 versionsE20 115 V, E20 230 V | $23.18/EA |
| 9 | MM172375 | 1 | DECK COVER WMT, 20"Fits 2 of 4 versionsE20 115 V, E20 230 V | $266.39/EA |
| 10 | MM172384 | 1 | E20 FLOATING BRUSH DECK SKIRTFits 2 of 4 versionsE20 115 V, E20 230 V | $107.36/EA |
| 11 | MM210153 | 1 | ROLLER WHEELFits 2 of 4 versionsE20 115 V, E20 230 V | $7.25/EA |
| 12 | MM450076 | 1 | CLAMP-HOSE 5/8 (.590-.791) SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.38/EA |
| 13 | MM710990 | 6 | SCR-BHSCS 3/8-24 X .75 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.50/EA |
| 14 | MM710991 | 1 | SCR-HH 3/8-24 X .62 ZP GR 5Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 16 | MM711375 | 2 | NUT-NYLOC 3/8-16 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 17 | MM711504 | 2 | WASHER-FLAT 1/4 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.10/EA |
| 18 | MM711507 | 4 | WASHER-FLAT 3/8 X 1.12 X .06Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 19 | MM711523 | 3 | WASHER-WAVE .37 X .68 X .08Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 20 | MM711546 | 6 | WASHER-LOCK 3/8 SPLIT ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 21 | MM711679 | 2 | PIN-CLEVIS 3/8 X .750 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 22 | MM711855 | 1 | WASHER-FENDER 3/8 X 1.12 X .10 ZP HARDFits 2 of 4 versionsE20 115 V, E20 230 V | $2.57/EA |
| 23 | MM712301 | 6 | WASHER-FLAT 3/8 X .87 X .06 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 24 | MM712565 | 2 | SCR-THMS 1/4-20 X .62 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.13/EA |
| 25 | MM717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 26 | MM717025 | 1 | WASHER-FLAT 13/16 X 1.25 X .08 ZPFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 27 | MM747600 | 1 | MOTOR, 24VDC PM 600WFits 2 of 4 versionsE20 115 V, E20 230 V | $675.49/EA |
| 28 | MM11127000 | 3 | SCR-SHCS M6X30 SS, ISO4762Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 29 | MM11717203 | 1 | BLT-HH FLG M8X1.25X20 PRECOTE, ZD 10.9Fits 2 of 4 versionsE20 115 V, E20 230 V | $2.25/EA |
| 30 | MM12310256 | 3 | WSR-FLT 6.4X12X1.6, SS DIN125Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.05/EA |
| 31 | MM90311663 | 1 | FITTING, WATER NOZZLE W/ MOUNT HOLESFits 2 of 4 versionsE20 115 V, E20 230 V | $2.63/EA |
| 32 | MM90541814 | 1 | DRIVE HUB, PLASTIC, 3-LOBEFits 2 of 4 versionsE20 115 V, E20 230 V | $13.92/EA |
| 33 | MM172096MCH | 1 | HUB BASE MACHINEDFits 2 of 4 versionsE20 115 V, E20 230 V | $29.52/EA |
Minuteman E17 / E20 Electric E17/20 brush hub assembly parts
The 3-lobe plastic drive hub and its machined base. Manual page 38.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11127000 | 3 | SCR-SHCS M6X30 SS, ISO4762 | $1.08/EA |
| 2 | MM12310256 | 3 | WSR-FLT 6.4X12X1.6, SS DIN125 | $1.05/EA |
| 3 | MM90541814 | 1 | DRIVE HUB, PLASTIC 3 LOBE | $13.92/EA |
| 4 | MM172096MCH | 1 | BASE, DRIVE HUB WITH KEYWAY | $29.52/EA |
Minuteman E17 / E20 Electric E17 rear squeegee assembly (straight) parts
The straight rear squeegee for the E17: casting, mount bracket, blade, bumper wheel and wheel assembly. Manual page 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM210023 | 1 | SQUEEGEE CASTING ASYFits 2 of 4 versionsE17 115 V, E17 230 V | $615.58/EA |
| 2 | MM210024 | 1 | SQUEEGEE MOUNT BKTFits 2 of 4 versionsE17 115 V, E17 230 V | $56.67/EA |
| 3 | MM210065 | 1 | SQUEEGEE BLADE 200 GUMFits 2 of 4 versionsE17 115 V, E17 230 V | $53.83/EA |
| 4 | MM430074 | 6 | ADJUSTING NUT 17B/EFits 2 of 4 versionsE17 115 V, E17 230 V | $2.71/EA |
| 5 | MM430076 | 2 | NYLON SQUEEGEE INSERTFits 2 of 4 versionsE17 115 V, E17 230 V | $5.28/EA |
| 6 | MM430085 | 2 | SQUEEGEE BUMPER WHEELFits 2 of 4 versionsE17 115 V, E17 230 V | $11.24/EA |
| 7 | MM712517 | 4 | SCR-MC 8-32 X 1" ST PL - PHFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 8 | MM831400 | 2 | WHEEL ASSYFits 2 of 4 versionsE17 115 V, E17 230 V | $36.68/EA |
Minuteman E17 / E20 Electric E17 rear squeegee assembly (curved) parts
The curved rear squeegee for the E17: straps, front and rear blades, base, bumper and fixed caster. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172224 | 1 | STRAP WMT, FRT RT - 30" (760)Fits 2 of 4 versionsE17 115 V, E17 230 V | $39.15/EA |
| 2 | MM172226 | 1 | STRAP WMT, REAR LEFT - 30" (760)Fits 2 of 4 versionsE17 115 V, E17 230 V | $42.27/EA |
| 3 | MM172227 | 1 | STRAP WMT, REAR RT - 30" (760)Fits 2 of 4 versionsE17 115 V, E17 230 V | $76.69/EA |
| 4 | MM172258 | 1 | SQUEEGEE-FRONT BLADE 30", 1/8 PUFits 2 of 4 versionsE17 115 V, E17 230 V | $52.11/EA |
| 5 | MM172259 | 1 | SQUEEGEE-REAR BLADE 30", 1/8 PUFits 2 of 4 versionsE17 115 V, E17 230 V | $54.33/EA |
| 6 | MM172429 | 2 | SPRING, COMP .4 ID X .5FL SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.58/EA |
| 7 | MM172443 | 1 | STRAP ASM W/ LATCH, FRONT, 30" SQGFits 2 of 4 versionsE17 115 V, E17 230 V | $106.44/EA |
| 8 | MM172531 | 1 | 30" SQUEEGEE BASE ASMFits 2 of 4 versionsE17 115 V, E17 230 V | $339.23/EA |
| 9 | MM717030 | 2 | SCR-HH M8-1.25 X 20 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 10 | MM717040 | 2 | WASHER-FLAT M10.5 X 30 X 2.5 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 11 | MM730609 | 2 | WSR-FLT M8.4 X 16 X 1.6 A2 SS 140HV DINFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 12 | MM17133026 | 2 | STAR HANDLE, M10, BLACKFits 2 of 4 versionsE17 115 V, E17 230 V | $2.98/EA |
| 13 | MM90513094 | 2 | FIXED CASTERFits 2 of 4 versionsE17 115 V, E17 230 V | $12.43/EA |
| 14 | MM90531112 | 10 | WASHER-FLAT 8.3 x 22 x 1.00mm STAINLESSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.54/EA |
| 15 | MM90548397 | 2 | ROLLER - PLASTIC, 100mm DIA. (4")Fits 2 of 4 versionsE17 115 V, E17 230 V | $4.29/EA |
| 16 | MM172257 | 1 | BUMPER, 30" SQGFits 2 of 4 versionsE17 115 V, E17 230 V | $174.45/EA |
| 17 | MM172275 | 1 | EDGE TRIM, 5/16 X 8" BLACKFits 2 of 4 versionsE17 115 V, E17 230 V | $9.63/EA |
| 18 | MM711504 | 5 | WASHER-FLAT 1/4 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.10/EA |
| 19 | MM711527 | 2 | WASHER-FLAT .63 X 1.12 X .09Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 20 | MM430322 | 2 | BUSHING-.435 X .625 X .50 ZINCFits 2 of 4 versionsE17 115 V, E17 230 V | $6.12/EA |
| 21 | MM712591 | 6 | NUT-ACORN 1/4-20 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 22 | MM712592 | 2 | SCR-BHSCS 1/4-20 X 2.25 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.19/EA |
| 23 | MM712772 | 3 | WASHER-FLAT .344 X .75 X .06 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 24 | MM840202 | 1 | BUSHING-FLG .31 X .435 X .325 NYLFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 25 | MM3400727 | 1 | PIN-ROLL 1/8 X .50 ZINCFits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |

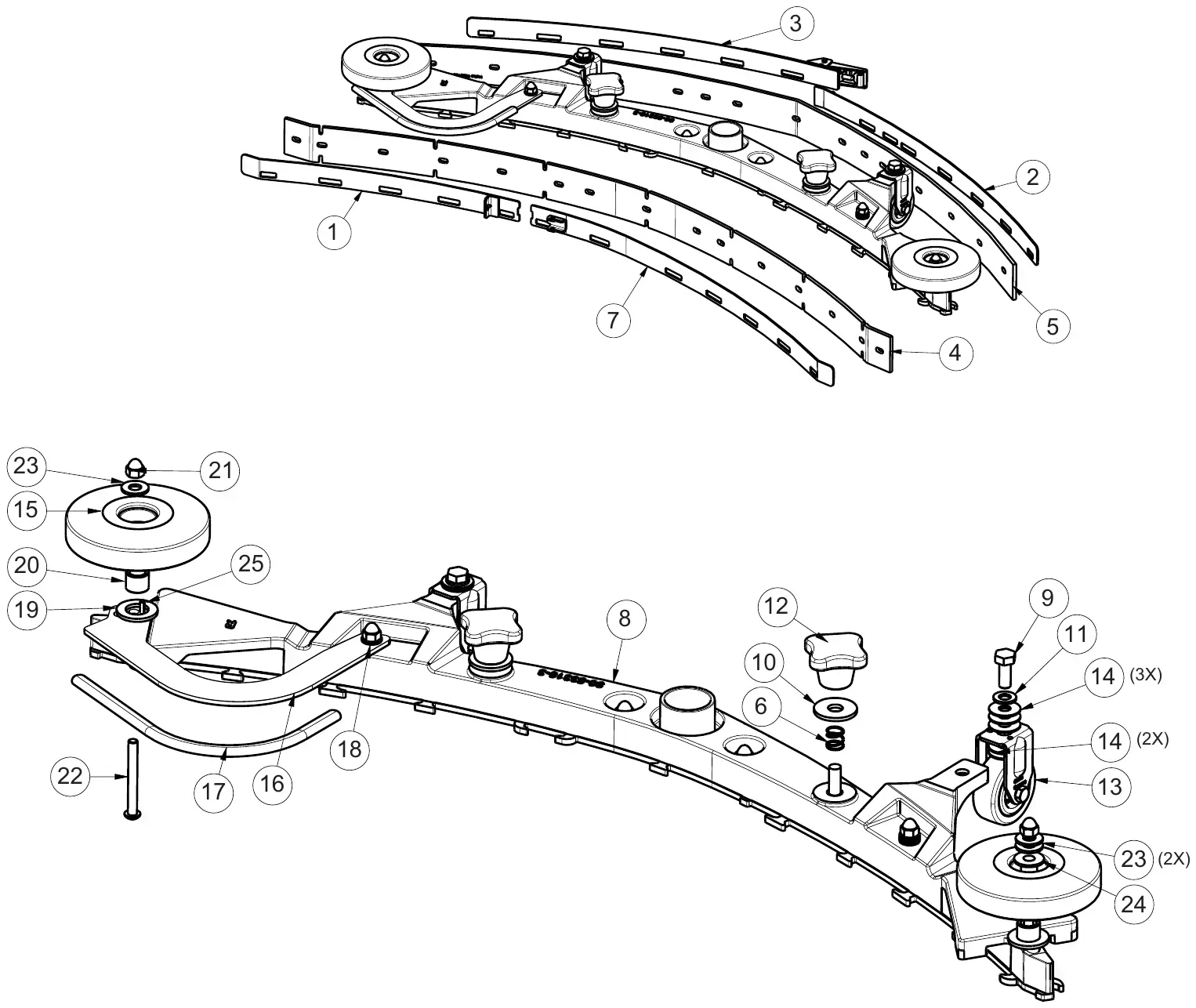

Minuteman E17 / E20 Electric E20 rear squeegee assembly (curved) parts
The curved rear squeegee for the E20: straps, front and rear blades, body casting, bumper and fixed caster. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172241 | 1 | STRAP WMT, FRONT RT - 34" (860) SQGFits 2 of 4 versionsE20 115 V, E20 230 V | $27.94/EA |
| 2 | MM172245 | 1 | STRAP WMT, REAR LEFT - 34" (860) SQGFits 2 of 4 versionsE20 115 V, E20 230 V | $27.32/EA |
| 3 | MM172246 | 1 | WELD-STRAP REAR RT - 34" (860) SQGFits 2 of 4 versionsE20 115 V, E20 230 V | $74.11/EA |
| 4 | MM172272 | 1 | SQUEEGEE-FRONT BLADE 34", 1/8 PUFits 2 of 4 versionsE20 115 V, E20 230 V | $53.22/EA |
| 5 | MM172273 | 1 | SQUEEGEE-REAR BLADE 34", 1/8 PUFits 2 of 4 versionsE20 115 V, E20 230 V | $55.44/EA |
| 6 | MM172429 | 2 | SPRING, COMP .4 ID X .5FL SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.58/EA |
| 7 | MM172440 | 1 | STRAP W/ LATCH, FRONT LEFT, 34" SQGFits 2 of 4 versionsE20 115 V, E20 230 V | $110.92/EA |
| 8 | MM90533183 | 1 | CASTING, SQG BODY 34" (860MM)Fits 2 of 4 versionsE20 115 V, E20 230 V | $58.46/EA |
| 9 | MM717030 | 2 | SCR-HH M8-1.25 X 20 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 10 | MM717040 | 2 | WASHER-FLAT M10.5 X 30 X 2.5 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.10/EA |
| 11 | MM730609 | 2 | WSR-FLT M8.4 X 16 X 1.6 A2 SS 140HV DINFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 12 | MM17133026 | 2 | STAR HANDLE, M10, BLACKFits 2 of 4 versionsE20 115 V, E20 230 V | $2.98/EA |
| 13 | MM90513094 | 2 | FIXED CASTERFits 2 of 4 versionsE20 115 V, E20 230 V | $12.43/EA |
| 14 | MM90531112 | 10 | WASHER-FLAT 8.3 x 22 x 1.00mm STAINLESSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.54/EA |
| 15 | MM90548397 | 2 | ROLLER - PLASTIC, 100mm DIA. (4")Fits 2 of 4 versionsE20 115 V, E20 230 V | $4.29/EA |
| 16 | MM172271 | 1 | BUMPER, 34" SQGFits 2 of 4 versionsE20 115 V, E20 230 V | $19.98/EA |
| 17 | MM172274 | 1 | EDGE TRIM, 5/16 X 10" BLACKFits 2 of 4 versionsE20 115 V, E20 230 V | $16.86/EA |
| 18 | MM711504 | 5 | WASHER-FLAT 1/4 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.10/EA |
| 19 | MM711527 | 2 | WASHER-FLAT .63 X 1.12 X .09Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 20 | MM430322 | 2 | USHING-.435 X .625 X .50 ZINCFits 2 of 4 versionsE20 115 V, E20 230 V | $6.12/EA |
| 21 | MM712591 | 6 | NUT-ACORN 1/4-20 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 22 | MM712592 | 2 | SCR-BHSCS 1/4-20 X 2.25 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.19/EA |
| 23 | MM712772 | 3 | WASHER-FLAT .344 X .75 X .06 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 24 | MM840202 | 1 | BUSHING-FLG .31 X .435 X .325 NYLFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 25 | MM3400727 | 1 | PIN-ROLL 1/8 X .50 ZINCFits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |

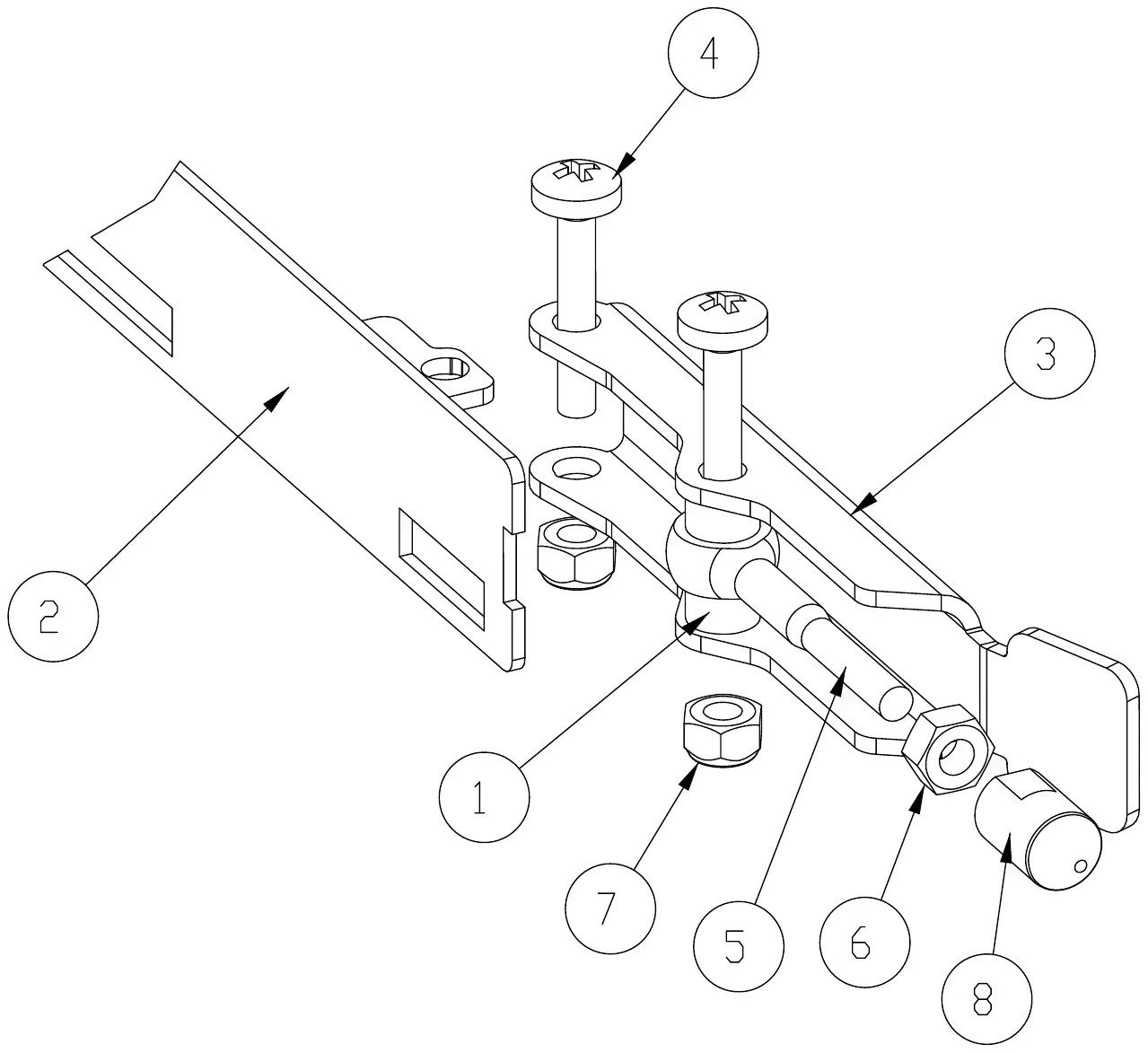

Minuteman E17 / E20 Electric E17 tension band sub-assembly parts
The E17 tension band sub-assembly: strap, lever, eye bolt and hardware. Manual page 44.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172074 | 2 | SPACER, 5/16OD X 17GA, ALUMFits 2 of 4 versionsE17 115 V, E17 230 V | $2.63/EA |
| 2 | MM172223 | 1 | STRAP WMT, FRT LEFT-30" (760)Fits 2 of 4 versionsE17 115 V, E17 230 V | $38.86/EA |
| 3 | MM172234 | 1 | LEVER, 90535758Fits 2 of 4 versionsE17 115 V, E17 230 V | $14.25/EA |
| 4 | MM11175494 | 2 | SCR-MC M5 X 25 SS DIN7985Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 5 | MM11518313 | 1 | BLT-EYE M5 X 40 SSFits 2 of 4 versionsE17 115 V, E17 230 V | $19.36/EA |
| 6 | MM12022430 | 1 | NUT- HEX, M5, SS DIN934Fits 2 of 4 versionsE17 115 V, E17 230 V | $9.66/EA |
| 7 | MM12040283 | 2 | NUT- HEX, M5 NYLON LOCK, SS DIN985Fits 2 of 4 versionsE17 115 V, E17 230 V | $1.08/EA |
| 8 | MM90513631Minuteman 90513631 | 1 | PIN, THD 90513631Fits 2 of 4 versionsE17 115 V, E17 230 V | Call to confirm part: 800-440-6723 |

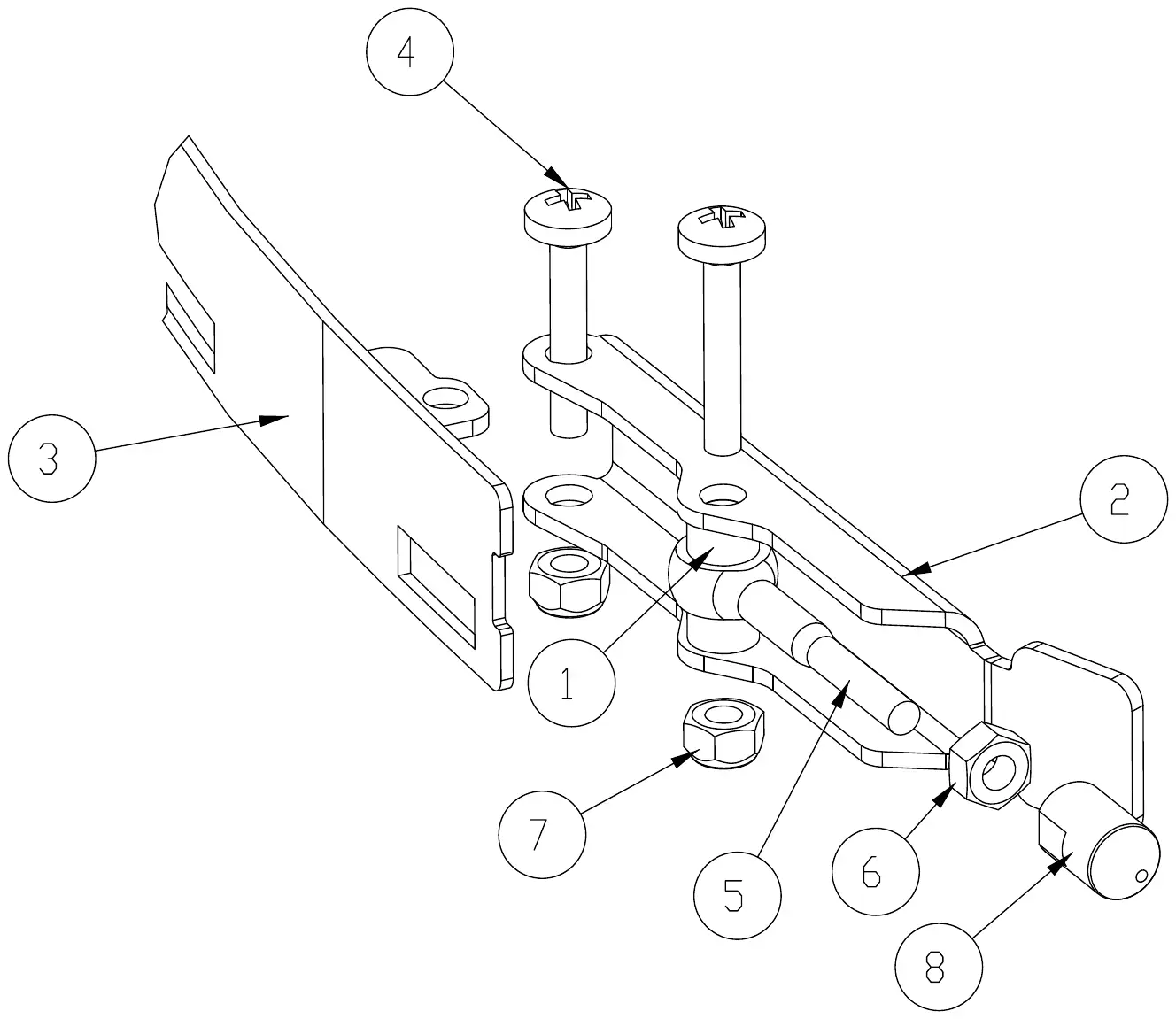

Minuteman E17 / E20 Electric E20 tension band sub-assembly parts
The E20 tension band sub-assembly: strap, lever, eye bolt and hardware. Manual page 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172074 | 2 | SPACER, 5/16OD X 17GA, ALUMFits 2 of 4 versionsE20 115 V, E20 230 V | $2.63/EA |
| 2 | MM172234 | 1 | LEVER, 90535758Fits 2 of 4 versionsE20 115 V, E20 230 V | $14.25/EA |
| 3 | MM172240 | 1 | STRAP WMT, FRONT LEFTFits 2 of 4 versionsE20 115 V, E20 230 V | $44.71/EA |
| 4 | MM11175494 | 2 | SCR-MC M5 X 25 SS DIN7985Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 5 | MM11518313 | 1 | BLT-EYE M5 X 40 SSFits 2 of 4 versionsE20 115 V, E20 230 V | $19.36/EA |
| 6 | MM12022430 | 1 | NUT- HEX, M5, SS DIN934Fits 2 of 4 versionsE20 115 V, E20 230 V | $9.66/EA |
| 7 | MM12040283 | 2 | NUT- HEX, M5 NYLON LOCK, SS DIN985Fits 2 of 4 versionsE20 115 V, E20 230 V | $1.08/EA |
| 8 | MM90513631Minuteman 90513631 | 1 | PIN, THD 90513631Fits 2 of 4 versionsE20 115 V, E20 230 V | Call to confirm part: 800-440-6723 |

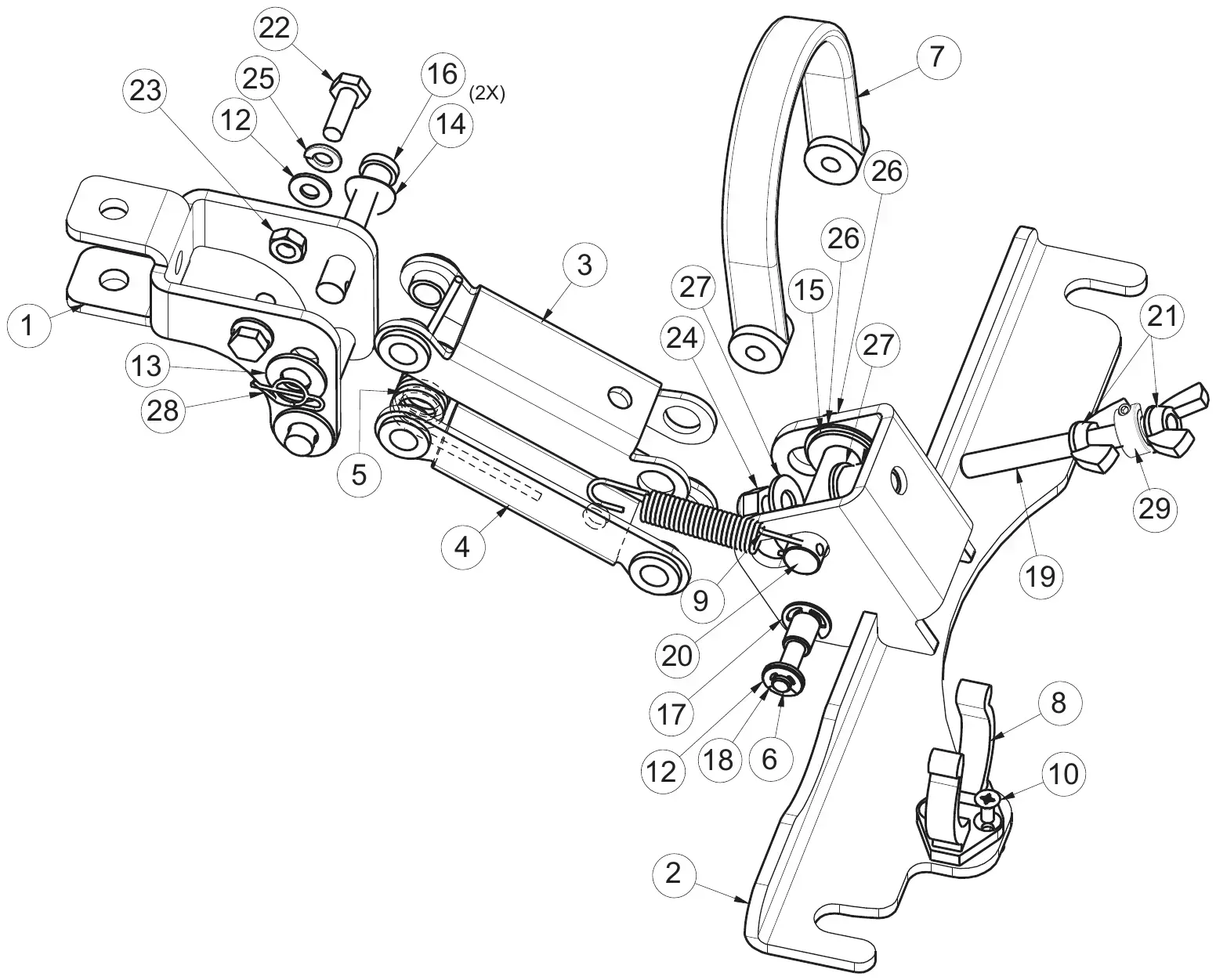

Minuteman E17 / E20 Electric Squeegee mechanism assembly parts
The squeegee lift mechanism: hinge bracket, mount, links, springs, strap and hardware. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172074 | 2 | SPACER, 5/16OD X 17GA, ALUMItem number is used again lower in this list. | $2.63/EA |
| 2 | MM172234 | 1 | LEVER, 90535758Item number is used again lower in this list. | $14.25/EA |
| 3 | MM172240 | 1 | STRAP WMT, FRONT LEFTItem number is used again lower in this list. | $44.71/EA |
| 4 | MM11175494 | 2 | SCR-MC M5 X 25 SS DIN7985Item number is used again lower in this list. | $1.08/EA |
| 5 | MM11518313 | 1 | BLT-EYE M5 X 40 SSItem number is used again lower in this list. | $19.36/EA |
| 6 | MM12022430 | 1 | NUT- HEX, M5, SS DIN934Item number is used again lower in this list. | $9.66/EA |
| 7 | MM12040283 | 2 | NUT- HEX, M5 NYLON LOCK, SS DIN985Item number is used again lower in this list. | $1.08/EA |
| 8 | MM90513631Minuteman 90513631 | 1 | PIN, THD 90513631Item number is used again lower in this list. | Call to confirm part: 800-440-6723 |
| 1 | MM172134 | 1 | BKT, SQG HINGEItem number is used again lower in this list. | $23.74/EA |
| 2 | MM172155 | 1 | SQUEEGEE MOUNT WMTItem number is used again lower in this list. | $42.64/EA |
| 3 | MM172196 | 1 | UPPER SQG LINKItem number is used again lower in this list. | $24.82/EA |
| 4 | MM172197 | 1 | LOWER SQG LINKItem number is used again lower in this list. | $28.75/EA |
| 5 | MM172261 | 1 | SPRING, TORSION 1720 SQGItem number is used again lower in this list. | $2.47/EA |
| 6 | MM172352 | 1 | PIN, 3/8 X 3.0, SQG STRAPItem number is used again lower in this list. | $7.85/EA |
| 7 | MM172357 | 1 | STRAP, 9" PU, BLACKItem number is used again lower in this list. | $14.11/EA |
| 8 | MM260579 | 1 | CLIP-TOOL 1.5 INCH HOSEItem number is used again lower in this list. | $7.25/EA |
| 9 | MM430051 | 1 | SPRING-RETURN .313 X .438 X 2.93 SS | $3.10/EA |
| 10 | MM710528 | 2 | SCR-FHMS 8-32 X .37 BRASS | $1.10/EA |
| 11 | MM711420 | 1 | NUT-JAM 5/16-18 ZP | $1.08/EA |
| 12 | MM711504 | 4 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 13 | MM712767 | 2 | WASHER-FLAT .406 X .75 X .035 SS | $1.08/EA |
| 14 | MM711523 | 2 | WASHER-WAVE .37 X .68 X .08 | $1.08/EA |
| 15 | MM711592 | 2 | WASHER-FLAT 1/2 X .90 X .064 NYLON | $1.10/EA |
| 16 | MM711678 | 2 | PIN-CLEVIS 3/8 X 2 1/4 ZP | $1.28/EA |
| 17 | MM711717 | 2 | RET RING-E EXT .37 | $1.08/EA |
| 18 | MM711720 | 2 | RET RING-E EXT .25 | $1.08/EA |
| 19 | MM712147 | 1 | ROD-THD 5/16-18 X 3.25 SS | $2.70/EA |
| 20 | MM712148 | 1 | PIN-CLEVIS 1/2 X 2.25 WITH HOLE | $11.68/EA |
| 21 | MM712157 | 2 | NUT-WING 5/16-18 SS | $1.08/EA |
| 22 | MM712562 | 2 | SCR-HH 1/4-20 X .75, 18-8 SS | $1.08/EA |
| 23 | MM712665 | 2 | NUT-HEX 1/4-20 SS | $1.08/EA |
| 24 | MM712683 | 1 | NUT-NYLOC 5/16-18 SS | $1.10/EA |
| 25 | MM712758 | 2 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 26 | MM712760 | 3 | WASHER-FLAT .56 X 1.06 X .04 SS | $1.08/EA |
| 27 | MM712772 | 2 | WASHER-FLAT .344 X .75 X .06 SS | $1.08/EA |
| 28 | MM3400125 | 1 | RING-RUE 3/8 | $1.81/EA |
| 29 | MM713528 | 1 | COLLAR-THREADED CLAMP 5/16-18X5/16-BK OX | $14.33/EA |

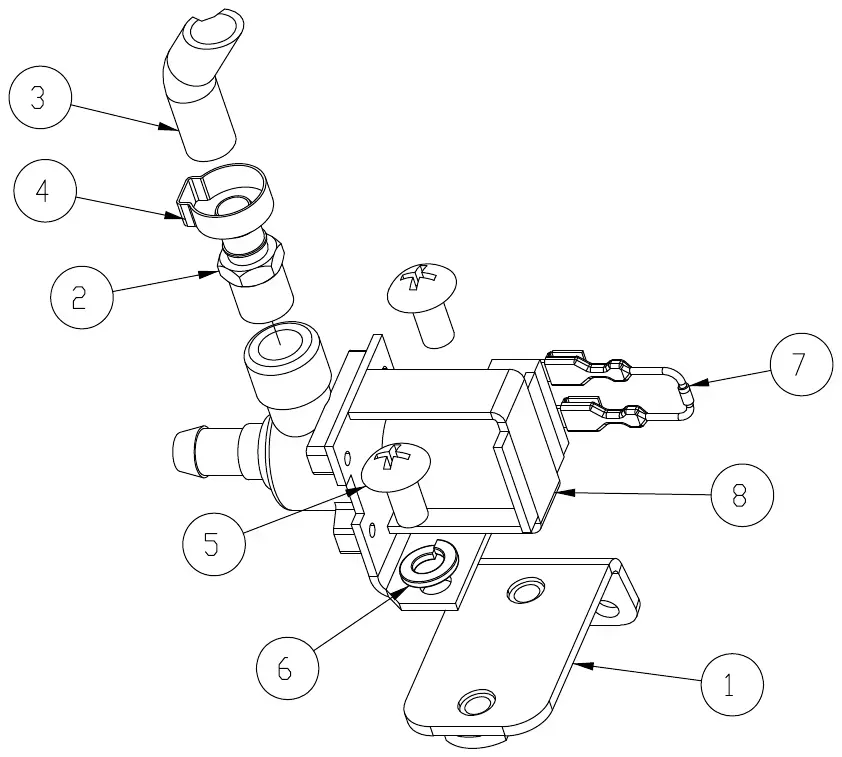

Minuteman E17 / E20 Electric Kit K-E1720S - water solenoid valve parts
Kit K-E1720S, the optional water solenoid valve: bracket, fittings, hose, diode and the valve. Manual page 48.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172168 | 1 | BKT, BD SOLENOID MOUNTKit K-E1720S, BOM 172169. | $31.54/EA |
| 2 | MM320264 | 1 | FITTING BRASS - 3/8 DBL BARB X 1/4MPTKit K-E1720S, BOM 172169. | $3.70/EA |
| 3 | MM450055 | 1 | HOSE-NYLO REINF 3/8 X 9"Kit K-E1720S, BOM 172169. | $3.09/EA |
| 4 | MM450076 | 1 | CLAMP-CRIMP 185R SSKit K-E1720S, BOM 172169. | $1.38/EA |
| 5 | MM710196 | 2 | SCR-MC 5/16-18 X .62Kit K-E1720S, BOM 172169. | $1.08/EA |
| 6 | MM711545 | 2 | WSR-HELICAL 5/16Kit K-E1720S, BOM 172169. | $1.08/EA |
| 7 | MM740482 | 1 | DIODE ASY, 1N4007 W/PIGGYKit K-E1720S, BOM 172169. | $5.81/EA |
| 8 | MM740493 | 1 | WATER VALVE 24VDCKit K-E1720S, BOM 172169. | $111.95/EA |
Minuteman E17 / E20 Electric Kit K-E1720S - water solenoid valve (second list) parts
The second list for kit K-E1720S: micro switches, solenoid harness and wiring hardware. Manual page 48.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM710495 | 2 | SCR-MC 4-40 X 1.25 STL ZKit K-E1720S, second list; BOM number not printed. | $1.08/EA |
| 2 | MM711428 | 2 | NUT-HEX 4-40Kit K-E1720S, second list; BOM number not printed. | $1.08/EA |
| 3 | MM712326 | 2 | WSR-INT LOCK #4Kit K-E1720S, second list; BOM number not printed. | $1.08/EA |
| 4 | MM747603-2 | 2 | SWITCH ASY, MICRO ROLLER W/PACK/CONDUITKit K-E1720S, second list; BOM number not printed. | $29.58/EA |
| 5 | MM747660 | 1 | HARNESS, SOLENOID KIT E1720BDKit K-E1720S, second list; BOM number not printed. | $29.14/EA |
New to your Minuteman E17 / E20 Electric? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your E17 or E20 electric scrubber. Everything here comes from Minuteman’s user manual, rewritten in plain steps, with the parts you need linked to the list above.
1Check it before every use
- Look under the machine for leaks.
- Check the rear squeegee for wear and damage. Turn or replace a worn blade: front blade (MM172258 / MM172272), rear blade (MM172259 / MM172273).
- Check the levels in the solution tank and the recovery tank.
- Make sure the screened float (MM172132) is in place in the recovery tank. Running the machine without it in place can damage the machine.
- Close and fasten all covers, doors and latches. Keep hands and feet clear of moving parts while the machine runs.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 6, 23 and 27. SES ref PF-4FNL-RJHM
2Load a brush or pad
- Center the brush deck over the scrub brush (MM172517-1 / MM172520-1).
- Lower the scrub deck by releasing the deck lift pedal.
- With the key turned on, pull the bail handle to engage the brush onto the scrub deck.
- Never lower the deck onto the floor without a brush or pad driver (MM172517-2 / MM172520-2) installed. The bristles can be damaged.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 25 and 30. SES ref PF-4FNL-RJHM
3Start cleaning
- Turn the key to the operate position ( I ).
- Lower the squeegee into the operate position. The vacuum motor turns on by itself.
- Move the brush lift pedal from the home (down) position to the operating (up) position. Press the bail handle. The brush motor turns on and helps move the machine forward.
- Move the solution lever up from the closed (down) position to the flow you want. Up gives more solution and down gives less.
- Work on level floors only. Do not use the machine on ramps or inclines greater than 2%.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 6, 11 and 28. SES ref PF-4FNL-RJHM
4Finish and put it away
- Lift the scrub deck, turn the solution lever off and lift the rear squeegee.
- Empty the solution tank: take the drain hose off the barb fitting and run it to a drain. Rinse the tank with clean water.
- Empty the recovery tank and flush it with a hose. Clean the float shut-off screen. Do not clean the machine with a pressure washer.
- Take off the brush or pad holder, rinse it in warm water and hang it to dry. Take off the rear squeegee, rinse it in warm water and put it back.
- Store the machine indoors in a clean, dry place where it will not freeze. Leave both tank lids open. Turn the key switch off (O) and take out the key.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 6 and 34. SES ref PF-4FNL-RJHM
Questions about your E17 / E20? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Minuteman E17 / E20 Electric troubleshooting
Problems, likely causes and fixes from Minuteman's troubleshooting pages. Stop on a level surface and disconnect the power before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Turn or replace the blades: front blade (MM172258 / MM172272), rear blade (MM172259 / MM172273). | |
| Debris caught in the squeegee, or the vacuum hose is clogged | Clean the squeegee. Remove debris and flush the hose. | |
| Recovery tank full | Empty the recovery tank. | |
| Recovery tank drain hose leaks | Secure the drain hose cap or replace the recovery drain hose (MM97090096). | |
| Recovery tank lid gasket leaks | Replace the lid gasket (MM172017) and fit the lid cover properly. | |
| Poor scrubbing performance | ||
| Worn brush | Replace the brush (MM172517-1 / MM172520-1) or pad. | |
| Retaining ring on the brush motor shaft is not in its groove | Remove the brush hub assembly and slide the ring into the groove. | |
| No solution to the floor, or too little | ||
| Solution lines, valves or filter clogged | Flush the lines and clean the solution filter (MM172564). | |
| Machine does not operate | ||
| Control power circuit breaker tripped, cord not plugged in completely, or wall outlet breaker tripped | Press the tripped breaker button to reset it. Check the twist-lock connection and the wall plug. Reset the wall outlet breaker. | |
| Vacuum motor does not turn on | ||
| Recovery tank full, or too much foam in the recovery tank | Empty the recovery tank. Use less chemical or change it. Use a defoaming agent. | |
| Vacuum motor circuit breaker tripped | Press the breaker button to reset it. | |
| Brush does not unload | ||
| Foot pedal not in the home position, or a broken switch by the foot pedal, or a damaged brush block or drive hub | Place the pedal in the notch. For a broken switch or a damaged brush block or drive hub, call SES service. | |
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 14, 36 and 37. SES ref PF-4MFF-IX5D
Still stuck? SES services Minuteman machines. Call 800-440-6723 and have your model and serial number ready.
Minuteman E17 / E20 Electric maintenance schedule
Minuteman's maintenance schedule and care steps. Minuteman says authorized personnel must do repairs and maintenance and that you should use Minuteman replacement parts.
| Task | How often | Part |
|---|---|---|
| Check and clean the tanks and hoses. | Daily | |
| Check and clean the brush or pad. | Daily | |
| Check and clean the squeegee. | Daily | |
| Check and clean the vacuum shut-off float in the recovery tank. Rinse the screened float (MM172132) well with a hose. You do not need to take it out for daily care. | Daily | |
| Check for wire, string or twine wrapped around the scrub brush. | After every use | |
| Check the rear squeegee for wear and damage. | After every use | |
| Check the rear squeegee suction hose for obstructions. | After every use | |
| Drain and clean the recovery tank and the drain hose cap. | After every use | |
| Check under the machine for leaks. | After every use | |
| Check the service records to see what maintenance is due. | After every use | |
| Check and clean the brush deck skirt (deck skirt (MM172363-1 / MM172384)). | Weekly | |
| Check and clean the solution filter (MM172564). | Weekly | |
| Check the inner and outer squeegee blades for wear (front blade (MM172258 / MM172272), rear blade (MM172259 / MM172273)). Each blade can be turned 4 times to use all 4 edges. | Weekly | |
| Grease the fittings on the rear caster swivel. Apply a generous amount of grease until it seeps out around the bearings. | Monthly | |
| Put lubricant or light machine oil on the pivot mounting point of the rear squeegee to the chassis and on the rear squeegee caster wheel axle. | Monthly | |
| Take the screened float (MM172132) out completely. Clean it and check the seal and the metal screen for damage. | Monthly | |
| Have a qualified service technician check the vacuum motor carbon brushes once a year or after 300 operating hours. Call SES service: 800-440-6723. | Yearly, or by operating hours | |
| Have a technician check the brush motor and transaxle motor carbon brushes every 500 hours or once a year. | Yearly, or by operating hours |
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 16, 23, 27 and 35. SES ref PF-4L6N-DXDK
Minuteman E17 / E20 Electric specifications
From Minuteman's user manual and parts catalog. Where the two differ, both values are shown.
| Model numbers | E17115BD, E17230BD, E20115BD, E20230BD |
|---|---|
| Power | 115 V or 230 V, depending on the model; 32 A maximum |
| Cleaning path | E17: 17 in (43 cm); E20: 20 in (51 cm) |
| Squeegee width | E17: 30 in (76 cm) in the user manual, 33 in (84 cm) in the parts catalog; E20: 34 in (86 cm) |
| Productivity | Theoretical. E17: 17,000 ft² per hour in the user manual, 12,750 ft² per hour (1,185 m²) in the parts catalog. E20: 20,000 ft² per hour in the user manual, 15,000 ft² per hour (1,394 m²) in the parts catalog |
| Working speed | 2.3 mph (3.7 km/h) in the user manual, 1.7 mph (2.7 km/h) in the parts catalog |
| Brush | One disc brush at 180 rpm, driven by a 3/4 hp (560 W) motor |
| Vacuum | 65 cfm (110 m³/h); 45 in (112 mbar) waterlift; 0.60 hp (450 W) |
| Solution tank | 12 gal (45 L) |
| Recovery tank | 13 gal (49 L) |
| Weight | E17: 316 lb (143 kg); E20: 312 lb (142 kg) |
| Size (L × W × H) | E17: 44.4 × 18.8 × 42.3 in (112.8 × 47.8 × 107.4 cm); E20: 47.4 × 21.3 × 42.3 in (120.4 × 54.1 × 107.4 cm) |
| Sound level | 69 dBA |
| Warranty | User manual (07/11): parts 1 year, labor 6 months, polyethylene tanks 10 years. Parts catalog (07/20): Cord Electric Group parts 5 years, labor 3 years, poly 12 years, travel 90 days |
Sources: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 3 and 39; Minuteman E17/E20 Electric Brush Drive Parts Catalog, form 988720E (Rev C 07/20), pages 3 and 53. SES ref PF-JFFJ-MOJG
Minuteman E17 / E20 Electric manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the E17 / E20 Electric manuals in your browser, with clickable part numbers. No sign-in needed.
- E17 / E20 Electric operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESE17/E20 electric parts catalogParts catalog 988720E with drawings and parts lists, 54 pages | E17 and E20, 115 V and 230 V | Rev C 07/20 (this page) | 3.1 MB | Sign in to view or downloadSign in to download |
| PDFby SESE17/E20 electric user manualUser manual 988720UME with operation, maintenance and troubleshooting, 40 pages | E17 and E20, 115 V and 230 V | Rev * 07/11 | 1.5 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Minuteman E17 / E20 Electric parts questions
What power does the Minuteman E17/E20 electric scrubber use?
It is a cord-electric machine. It runs on 115 V or 230 V, depending on the model. The models are E17115BD, E20115BD, E17230BD and E20230BD, and the maximum current is 32 A.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 3 and 7. SES ref PF-4XIQ-OEPA
How do I load and unload a brush on the E17/E20?
To load, center the deck over the brush, release the deck lift pedal, then pull the bail handle with the key on. To unload, lift the deck with the pedal in its home position and turn the key to Brush Unload for 1 to 2 seconds. The brush falls to the floor.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 30 and 31. SES ref PF-4XIQ-OEPA
How often do I check the squeegee blades on the E17/E20?
Check and clean the squeegee every day. Check the inner and outer blades for wear every week. Each blade can be turned 4 times to use all 4 edges before you replace it.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 16 and 35. SES ref PF-4XIQ-OEPA
Why won’t my E17/E20 run?
Check the circuit breakers at the bottom of the back panel and press any tripped button to reset it. Then check that the cord is plugged in completely at the twist-lock connection and the wall plug, and that the wall outlet breaker has not tripped.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), pages 14 and 36. SES ref PF-4XIQ-OEPA
How do I look after the screened float?
Rinse it with a hose every day. At least once a month, take it out, clean it and check the seal and metal screen for damage. Do not run the machine without the float in place.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), page 23. SES ref PF-4XIQ-OEPA
What is the difference between the E17 and the E20?
The E17 cleans a 17 in (43 cm) path and the E20 cleans a 20 in (51 cm) path. Each has its own brush deck, squeegee and tension band parts. The 115 V and 230 V versions differ in the main assembly, power cord and cord mount parts. Pick your model above the parts list.
Sources: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), page 3; Minuteman E17/E20 Electric Brush Drive Parts Catalog, form 988720E (Rev C 07/20), pages 11, 13, 35, 37, 41, 43, 44 and 45. SES ref PF-4XIQ-OEPA
Can I use the E17/E20 on a ramp?
No. The machine is for level operation only. Minuteman says not to use it on ramps or inclines greater than 2%.
Source: Minuteman E17/E20 Electric Walk-Behind Scrubber Disc Brush Drive User Manual, form 988720UME (Rev * 07/11), page 6. SES ref PF-4XIQ-OEPA
Notes on this parts list
Places where Minuteman's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- A few lines in both manuals read as if they were written for another model (user manual pages 6, 11 and 28; catalog page 31). This page lists the catalog lines as printed and leaves out steps that do not apply to a cord-electric machine.
- The E20 main assembly list (catalog page 9) prints item 4 as a 20 in pad driver marked 230V, and prints item 26 twice with the same number and quantity. Both lines are listed as printed, tagged for both E20 voltages.
- The user manual rates the brush motor at 3/4 hp (560 W) (page 3). The catalog's brush deck lists a 24VDC PM 600W motor (pages 35 and 37). Both are as printed.
- The user manual (page 3) lists the E20 at 312 lb (142 kg), lighter than the E17 at 316 lb (143 kg). Both are as printed.
- The user manual's maintenance page (35) mentions a transaxle motor. The catalog lists no transaxle motor, so the 500-hour carbon brush check is given as printed.
- The two documents print different specifications on page 3. The user manual gives the E17 squeegee width as 30 in (76 cm), productivity of 17,000 and 20,000 ft² per hour and a working speed of 2.3 mph (3.7 km/h). The parts catalog gives 33 in (84 cm), 12,750 and 15,000 ft² per hour and 1.7 mph (2.7 km/h). Each document's metric figures match its own imperial figures except the user manual's productivity, so both sets are shown in the specifications as printed.
- The warranty differs between the two documents. The user manual (07/11, pages 38 and 39) gives the E17 and E20 one year parts, six months labor and 10 years on polyethylene tanks. The newer parts catalog (07/20, page 53) gives the Cord Electric Group five years parts, three years labor, 12 years poly and 90 days travel, with no E17/E20 exception. Both are shown in the specifications; confirm with Minuteman for your machine.
- The user manual specifications (page 3) say Aqua-Stop is "Coming Soon". The catalog already lists Aqua Stop brushes (pages 7 and 9).
- The old style solution valve assembly 172514 is marked no longer available. Replacing it with 172571 needs kit K-172571 (catalog page 24); that kit number is printed in a note and has no parts line.
- Kit K-E1720HUB is named in a note on the brush options (page 7) and has no parts line. It is listed here from that note, marked as such. Kit K-E1720S (page 48) is printed as two lists; the second list prints no bill of material number. The hour meter kit K-E1720HM (user manual page 12) is not in the catalog.
- The squeegee mechanism list (page 47) is titled E17/E20/H20. Its first eight lines repeat the lines of the E20 tension band sub-assembly (page 45) and reuse item numbers 1 to 8, so each of those numbers appears twice in the list.
- The vac motor list (page 33) prints two motors under item 11, the standard 747607-1 and a hospital version 747665-1. The catalog does not say which machines have which, so both are listed for every model.
- The user manual describes the in-line solution filter assembly (pages 13 and 26) without a part number. The catalog's FILTER-SOLUTION E1720 is linked in the solution filter steps because the names match.
- The lid gasket line in the user manual troubleshooting (page 36) reads "Replace gasket lid cover properly". This page paraphrases it as replace the gasket and fit the lid cover properly.
- Descriptions are copied as Minuteman prints them, including its spellings and abbreviations. The brush options lists print no quantities.
