Minuteman E Ride 2832 Sport parts list and diagrams
Every part number in Minuteman's E Ride 28/32 Scrubber Sport parts manual, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Online manuals: Operator
Complete list: every parts line in Minuteman's E Ride 28/32 Scrubber Sport Parts Manual, form 988739S (Rev * 03/16), for the E Ride 2832 Sport ride-on scrubber with the 28 in or 32 in disc scrub deck. Checked .
New to your E Ride 2832 Sport? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Scrub deck
- Disc, 28 in or 32 in
- Brush speed
- SPORT key position I: 200 rpm, II: 300 rpm, III: 400 rpm, nominal
- Voltage, batteries
- 36 volts, six 6-volt batteries
- Weight
- 1,243 lb (564 kg) with batteries, 847 lb (384 kg) without
Wear parts most E Ride 2832 Sport owners reorder
Minuteman's maintenance schedule has you check squeegees, brushes and filters daily or weekly. These are the matching parts on the parts list.
Squeegee blade, rear
$38.81/EASqueegee blade, front
$47.68/EASide squeegee blade linatex, scv 2832
$56.54/EABrush 14" pwr drive w/pad hldr (standard)
$150.67/EABrush 16" pwr drive w/pad hldr (standard)
$163.25/EABrush scrub 14" plastic nylon
$234.75/EABrush scrub 16" plastic nylon
$272.44/EAVac motor filter
$5.34/EAFilter assy, water
$55.34/EAScreened float
$35.61/EA
Source: Minuteman E Ride 28/32 SPORT User Manual (Rev * 05/14), pages 7, 42 and 48; Minuteman Parts Manual 988739S (Rev * 03/16), pages 42, 50 and 52. SES ref PF-KUOR-RZ7O
Your machine
How to tell which you have
- Check the model number: Minuteman's parts manual lists ER28DS, ER28DSQP, ER28DSQPG, ER28DSQPT and ER28DSPLUS for the 28 in deck, and ER32DS, ER32DSQP, ER32DSQPG, ER32DSQPT and ER32DSPLUS for the 32 in deck. The user manual asks for the machine's serial number with any parts order.
- Look at the brushes: the 28 in deck runs two 14 in (36 cm) disc brushes and the 32 in deck runs two 16 in (41 cm) disc brushes.
- Disc decks only: this parts manual prints drawings and lists for the 28 in and 32 in disc decks. It prints no cylindrical deck parts.
- Many parts fit both: the deck size only changes the scrub deck assemblies and bases, deck covers, deck motor, deck plate and the front roller mounting brackets.
How to read this list
Our part numbers are the Minuteman number with MM in front, so Minuteman 281193 is MM281193. Where Minuteman prints a space inside a number, our part number drops it. Each line shows the item number on the drawing; the wiring list shows the schematic reference instead. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

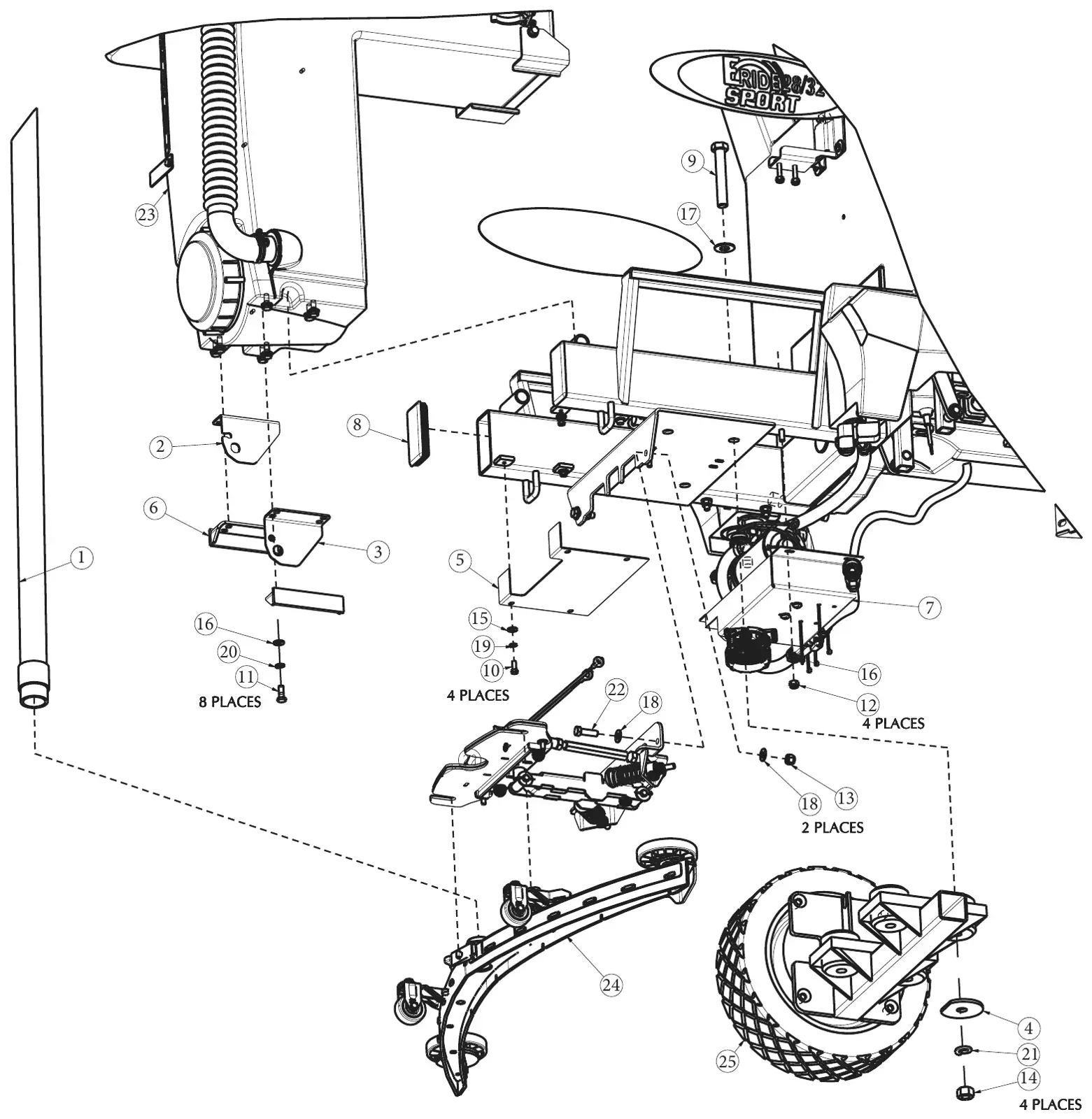

Minuteman E Ride 2832 Sport Main assembly I parts
The rear cover, squeegee lift brackets, vacuum hose, solution pump assembly, and the recovery tank, rear squeegee and rear axle assemblies. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM241356 | 1 | HOSE-VAC 1.5" ID X 48" | $45.23/EA |
| 2 | MM281193 | 1 | BRACKET - SQUEEGEE LIFT, LH | $18.77/EA |
| 3 | MM281194 | 1 | BRACKET - SQUEEGEE LIFT, RH | $18.77/EA |
| 4 | MM281211 | 4 | WSR-SNUBBING | $7.08/EA |
| 5 | MM281228 | 1 | REAR COVER | $34.53/EA |
| 6 | MM281360 | 2 | WELD-SLIDER FIXED | $47.75/EA |
| 7 | MM281395 | 1 | ASSY, PUMP-SOLUTION,w/EASY ACCESS FILTERAssembly. Parts list on page 36. | $725.31/EA |
| 8 | MM281446 | 2 | END CAP-TUBING 2" X 4" | $5.46/EA |
| 9 | MM711173 | 4 | SCR-HH 5/8-11 X 4 ZP GR 5 | $3.29/EA |
| 10 | MM711203 | 10 | SCR-HH 1/4-20 X .62 ZP TAP | $1.08/EA |
| 11 | MM711229 | 8 | SCR-HH 5/16-18 X .87 ZP GR 5 | $1.08/EA |
| 12 | MM711374 | 4 | NUT-NYLOC 5/16-18 ZP | $1.10/EA |
| 13 | MM711380 | 7 | NUT-NYLOC 3/8-16 ZP | $1.08/EA |
| 14 | MM711445 | 4 | NUT-HEX 5/8 X 11 ZP | $1.08/EA |
| 15 | MM711505 | 17 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 16 | MM711506 | 20 | WASHER-FLAT 5/16 X .688 ZP | $1.08/EA |
| 17 | MM711511 | 4 | WASHER-FLAT 5/8 X 1.31 X .09 SS | $1.08/EA |
| 18 | MM712301Replaces Minuteman 711515 | 31 | WASHER-FLAT 3/8 X .812 X .0625 ZP | $1.08/EA |
| 19 | MM711544 | 14 | WASHER-LOCK 1/4 SPLIT ZP | $1.08/EA |
| 20 | MM711545 | 20 | WASHER-LOCK 5/16 SPLIT ZP | $1.08/EA |
| 21 | MM712315 | 4 | WASHER-LOCK 5/8 SPLIT ZP | $1.08/EA |
| 22 | MM713043 | 2 | SCR-HH 3/8-16 X 1.25 ZP GR 5 | $1.08/EA |
| 23 | MM281010M | 1 | RECOVERY TANK ASY.-E RIDE 2832(W/ LIDS)Assembly. Parts list on pages 30 and 31. | $1,762.90/EA |
| 24 | MM281338 | 1 | REAR SQUEEGEE ASM - ERIDE 2832Assembly. Parts list on page 42. | $921.42/EA |
| 25 | MM281201E | 1 | REAR AXLE ASSYAssembly. Parts list on page 37. | $1,802.44/EA |
Minuteman E Ride 2832 Sport Main assembly II parts
The main frame, squeegee lift brackets, pulley shaft and pulleys, extension springs, squeegee actuator and the pins and washers that hold them. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281193 | 1 | BRACKET - SQUEEGEE LIFT, LH | $18.77/EA |
| 2 | MM281194 | 1 | BRACKET - SQUEEGEE LIFT, RH | $18.77/EA |
| 3 | MM281195 | 1 | SHAFT - PULLEY | $17.58/EA |
| 4 | MM281196 | 2 | PULLEY - PLASTIC | $8.80/EA |
| 5 | MM281225 | 2 | SPRING - EXTENSION, 3" | $16.46/EA |
| 6 | MM711749 | 2 | RET RING-E TYPE .625 | $1.08/EA |
| 7 | MM281300 | 1 | MAIN FRAME - E RIDE 2832 | $1,334.91/EA |
| 8 | MM711504 | 2 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 9 | MM711505 | 17 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 10 | MM711527 | 2 | WASHER-FLAT .63 X 1.12 X .09 | $1.08/EA |
| 11 | MM711575 | 15 | WASHER-FLAT 1/4 X .75 X .06 ZP | $1.08/EA |
| 12 | MM711671 | 1 | PIN-CLEVIS .31 X 2.13 | $2.08/EA |
| 13 | MM711675 | 2 | PIN-CLEVIS 1/4 X 1 7/8 ZINC | $2.22/EA |
| 14 | MM711749 | 2 | RET RING-E TYPE .625 | $1.08/EA |
| 15 | MM711808 | 3 | PIN-HAIRPIN COTTER #13 | $1.08/EA |
| 16 | MM712667 | 3 | NUT-NYLOC 1/4-20 SS | $1.10/EA |
| 17 | MM762371 | 2 | BUSHING-.260 X .50 X .37 ALM | $7.46/EA |
| 18 | MM840118 | 1 | BUSHING-.375 X .625 X .750 ZINC | $5.42/EA |
| 19 | MM3400125 | 2 | RING-RUE 3/8 | $1.81/EA |
| 20 | MM748009-1 | 1 | ACTUATOR, W/WEATHER PACK SCV SQUEEGE | $853.91/EA |
Minuteman E Ride 2832 Sport Main assembly III parts
The steering column assembly and covers, solution tank assembly, front bumper, hour meter, latches and mounting hardware. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281246 | 1 | ASSY, REAR COVER, STEERING COLUMN, SPORT | $120.94/EA |
| 2 | MM281671 | 2 | BRACKET, U CHANNEL- BATTERY SPACER | $6.59/EA |
| 3 | MM281992 | 1 | STEERING COVER, BOTTOM, SCV2832 | $54.22/EA |
| 4 | MM383277 | 2 | KEY-WOODRUFF 3/16 X .750 | $1.38/EA |
| 5 | MM3307719Replaces Minuteman 450207 | 2 | LATCH-SOFT | $38.72/EA |
| 6 | MM710180 | 4 | SCR-THMS 1/4-20 X .75 ZP | $1.10/EA |
| 7 | MM710328 | 4 | SCR-RHMS 8-32 X .37 ZP | $1.08/EA |
| 8 | MM710385 | 2 | SCR-RHMS 1/4-20 X 1.50 NICKEL | $1.08/EA |
| 9 | MM711161 | 10 | SCR-HI/LO 10 X .75 BLACK ZINC PAN HD | $2.11/EA |
| 10 | MM711210 | 4 | SCR-HH 1/4-20 X 1.25 ZP GR 5 FULL THRD | $1.08/EA |
| 11 | MM711228 | 12 | SCR-HH 5/16-18 X .75 ZP GR 5 | $1.08/EA |
| 12 | MM711241 | 11 | SCR-HH 3/8-16 X .75 ZP GR 5 | $1.08/EA |
| 13 | MM711242 | 6 | SCR-HH 3/8-16 X 1.00 ZP TAP | $1.08/EA |
| 14 | MM711373 | 2 | NUT-NYLOC 1/4-20 ZP | $1.10/EA |
| 15 | MM711502 | 4 | WASHER-FLAT #8 ZP | $1.08/EA |
| 16 | MM711505 | 17 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 17 | MM711506 | 20 | WASHER-FLAT 5/16 X .688 ZP | $1.08/EA |
| 18 | MM712301Replaces Minuteman 711515 | 31 | WASHER-FLAT 3/8 X .812 X .0625 ZP | $1.08/EA |
| 19 | MM711519 | 4 | WASHER-FLAT 1/4 X 1.00 X .06 ZP | $1.08/EA |
| 20 | MM711542 | 4 | WASHER-LOCK #8 SPLIT ZP | $2.28/EA |
| 21 | MM711544 | 14 | WASHER-LOCK 1/4 SPLIT ZP | $1.08/EA |
| 22 | MM711545 | 20 | WASHER-LOCK 5/16 SPLIT ZP | $1.08/EA |
| 23 | MM711546 | 20 | WASHER-LOCK 3/8 SPLIT ZP | $1.08/EA |
| 24 | MM712816 | 6 | SCR-THMS 10-24 X .37 ZP | $1.08/EA |
| 25 | MM715960 | 2 | DECAL, E-RIDE 28/32 SPORT | $10.15/EA |
| 26 | MM740539 | 1 | METER-HOUR 10-80 VDC | $50.05/EA |
| 27 | MM281024E | 1 | STEERING COLUMN COVER, BOTTOM, SCV2832 | $74.08/EA |
| 28 | MM281395 | 1 | ASSY, PUMP-SOLUTION,w/EASY ACCESS FILTERAssembly. Parts list on page 36. | $725.31/EA |
| 29 | MM281428 | 1 | EQUALIZING TUBE, SOL. TNK | $4.73/EA |
| 30 | MM281446 | 2 | END CAP-TUBING 2" X 4" | $5.46/EA |
| 31 | MM281458 | 2 | LINK ATTACHMENT SHAFT | $6.67/EA |
| 32 | MM281459 | 1 | CRANK PIVOT SHAFT | $15.59/EA |
| 33 | MM281012MS | 1 | ASSY, SOLUTION TANK, ERIDE 2832 SPORTAssembly. Parts list on page 23. | $2,972.44/EA |
| 34 | MM281991 | 1 | STEERING COVER, TOP, SCV2832 | $44.18/EA |

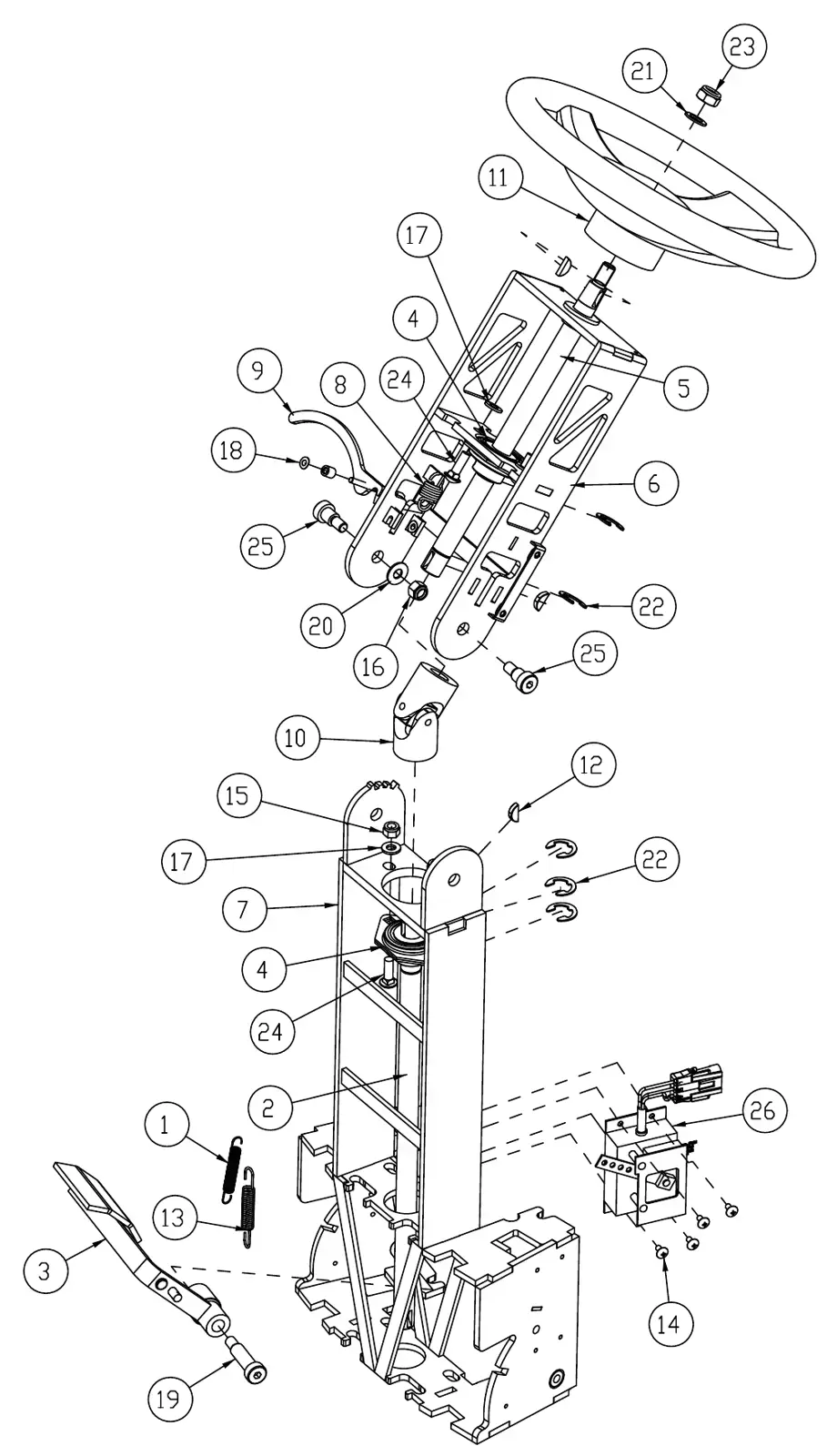

| 35 | MM282301E | 1 | STEERING COLUMN ASSY, SCV2832Assembly. Parts list on page 20 is headed 282301. | $1,969.11/EA |
| 36 | MM281139 | 2 | COVER, HEADLIGHT BLANK 5", SCV2832 | $14.15/EA |
| 37 | MM281001HG | 1 | FRONT BUMPER - E RIDE 2832 | $106.11/EA |

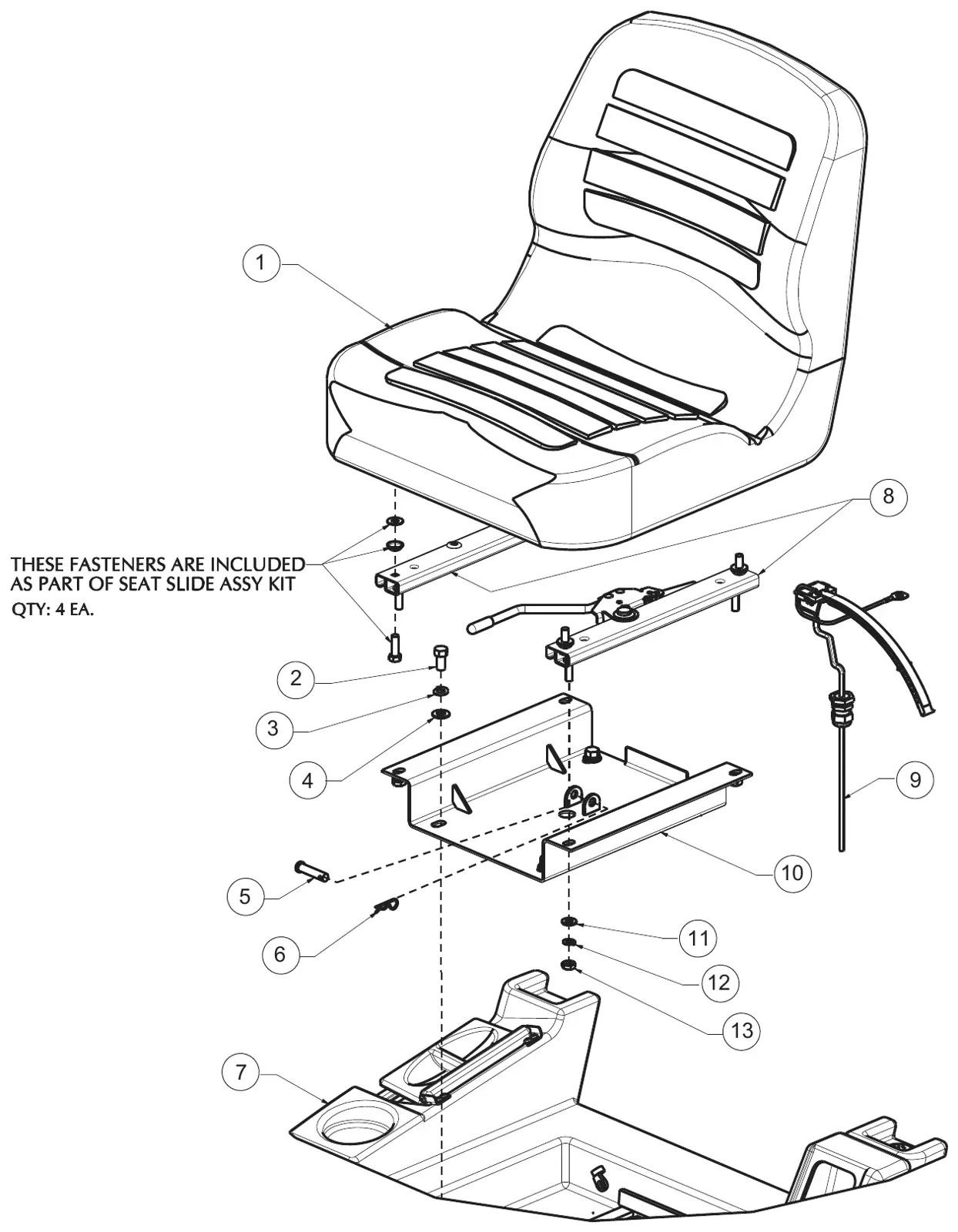

Minuteman E Ride 2832 Sport Main assembly IV parts
The operator seat, seat slide kit, seat switch and seat bracket, with the solution tank and mounting hardware. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281085 | 1 | ASS'Y SEAT, SUPER SUBURBAN | $285.34/EA |
| 2 | MM711241 | 11 | SCR-HH 3/8-16 X .75 ZP GR 5 | $1.08/EA |
| 3 | MM711546 | 8 | WASHER-LOCK 3/8 SPLIT ZP | $1.08/EA |
| 4 | MM712301Replaces Minuteman 711515 | 4 | WASHER-FLAT 3/8 X .812 X .0625 ZP | $1.08/EA |
| 5 | MM831965 | 1 | PIN-CLEVIS 3/8 X 1.63 | $3.38/EA |
| 6 | MM711808 | 2 | PIN-HAIRPIN COTTER #13 | $1.08/EA |
| 7 | MM281012MS | 1 | ASSY, SOLUTION TANK, ERIDE 2832 SPORTAssembly. Parts list on page 23. | $2,972.44/EA |
| 8 | MM281086 | 1 | SLIDE ASS'Y KIT | $121.28/EA |
| 9 | MM281087-1 | 1 | SEAT SWITCH ASSY, SCV2832 | $88.03/EA |
| 10 | MM281376 | 1 | 28 SEAT BRACKET WMT | $125.29/EA |
| 11 | MM711506 | 20 | WASHER-FLAT 5/16 X .688 ZP | $1.08/EA |
| 12 | MM711545 | 20 | WASHER-LOCK 5/16 SPLIT ZP | $1.08/EA |
| 13 | MM711319 | 4 | NUT-HEX 5/16-18 ZP | $1.08/EA |

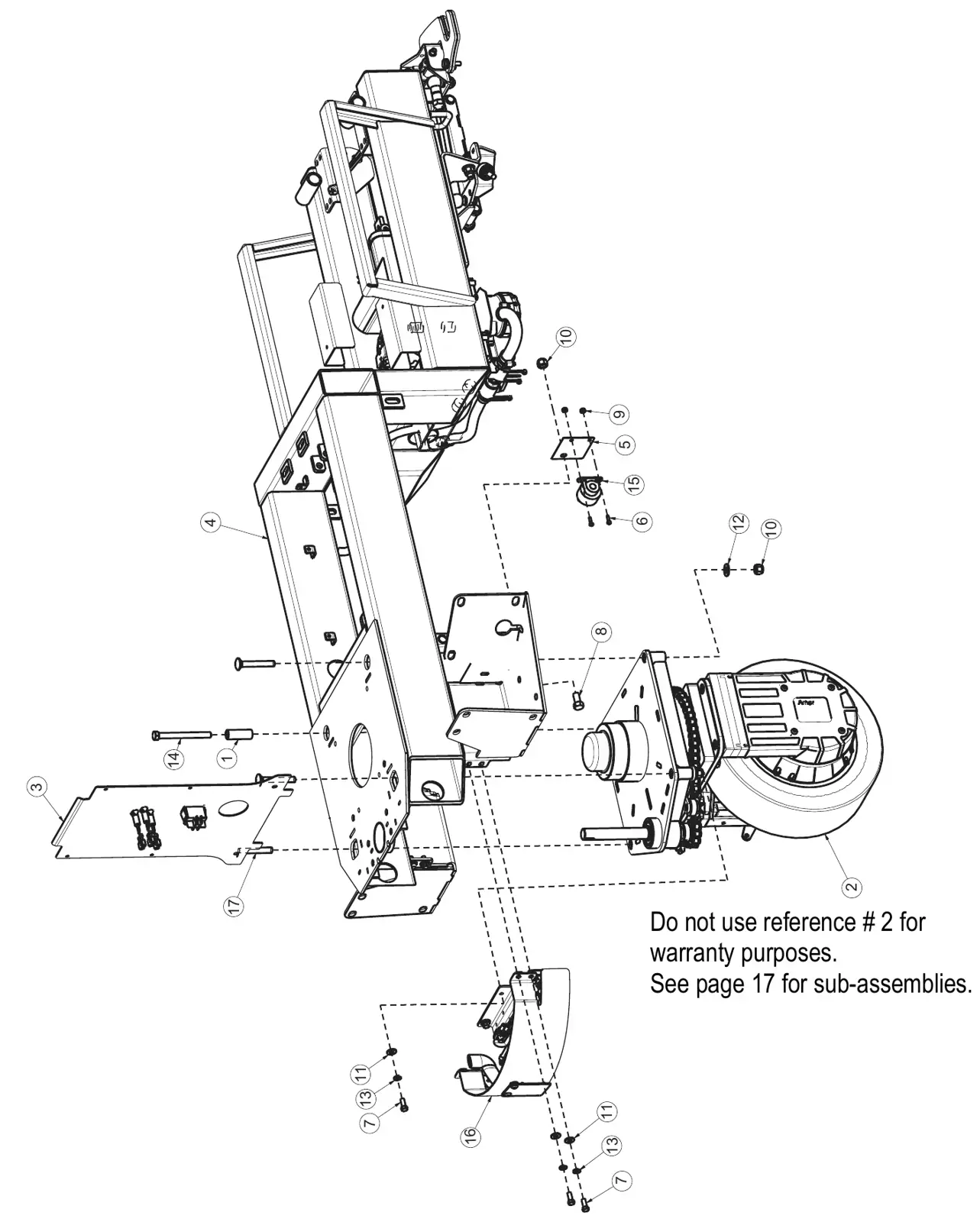

Minuteman E Ride 2832 Sport Main assembly V parts
The main frame, front drive assembly, rear cover, horn and back-up alarm, front motor cable and mounting hardware. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM260125 | 1 | BUSHING-YOKE .407 X 1.687 STL ZINC | $2.69/EA |
| 2 | MM281189 | 1 | FRONT DRIVE ASSY - E RIDE 2832 - SEE PAGE 17Assembly. Drawing on page 17, parts list on page 18. Do not use reference 2 for warranty purposes. See page 17 for sub-assemblies. | $5,176.62/EA |
| 3 | MM281246 | 1 | ASSY, REAR COVER, STEERING COLUMN, SPORT | $120.94/EA |
| 4 | MM281300 | 1 | MAIN FRAME - E RIDE 2832 | $1,334.91/EA |
| 5 | MM281996 | 1 | BKT, MOUNT FOR HORN, SCV2832 | $9.11/EA |
| 6 | MM710204 | 2 | SCR-PHMS 6-32 X .50 ZP | $1.08/EA |
| 7 | MM711203 | 6 | SCR-HH 1/4-20 X .62 ZP TAP | $1.08/EA |
| 8 | MM711241 | 1 | SCR-HH 3/8-16 X .75 ZP GR 5 | $1.08/EA |
| 9 | MM711371 | 2 | NUT-NYLOC 6-32 ZP | $1.08/EA |
| 10 | MM711380 | 7 | NUT-NYLOC 3/8-16 ZP | $1.08/EA |
| 11 | MM711505 | 7 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 12 | MM712301Replaces Minuteman 711515 | 8 | WASHER-FLAT 3/8 X .812 X .0625 ZP | $1.08/EA |
| 13 | MM711544 | 6 | WASHER-LOCK 1/4 SPLIT ZP | $1.08/EA |
| 14 | MM713051 | 1 | SCR-HH 3/8-16 X 3.75 ZP GR 5 | $1.05/EA |
| 15 | MM748200 | 1 | HORN / BACK UP ALARM, 9-48VDC | $63.23/EA |
| 16 | MM748360 | 1 | FRONT MOTOR CABLE ASSY- ER2832Assembly. Parts list on page 16. | $443.52/EA |
| 17 | MM711254-1 | 3 | BLT-CARR 3/8-16 X 2.50 ZP GR 5 | $1.47/EA |

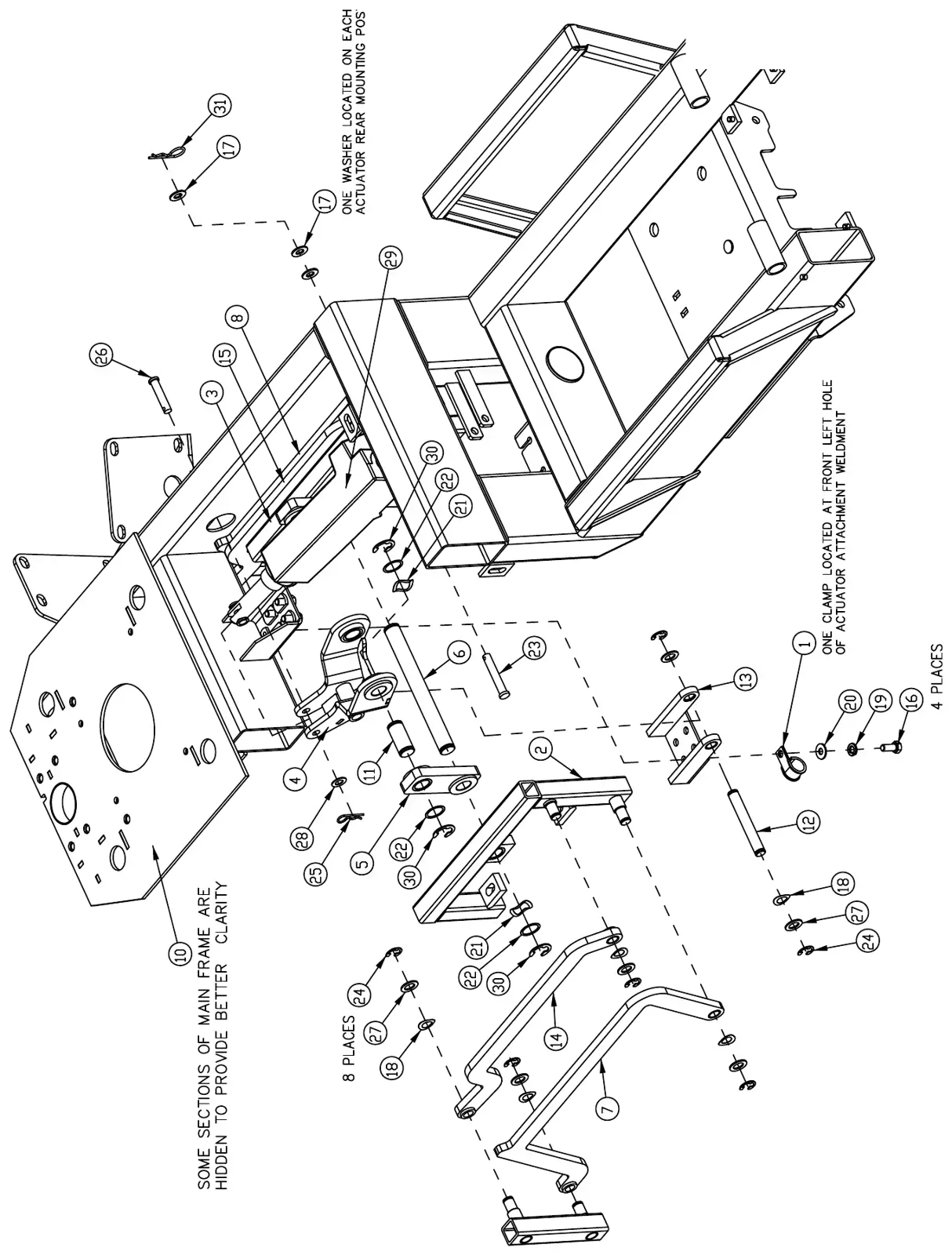

Minuteman E Ride 2832 Sport Main assembly VI - deck lift parts
The scrub deck lift: lift weldments, actuator and crank, link assemblies, pins and washers. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM82-54-A | 1 | CLAMP, MS21333-114 | $5.16/EA |
| 2 | MM241468 | 1 | LEFT LIFT WELDMENT W/BUSHING | $184.14/EA |
| 3 | MM241470 | 1 | RIGHT LIFT WELDMENT W/BUSHING | $173.39/EA |
| 4 | MM281161 | 1 | ACTUATOR CRANK ASSEMBLY | $246.50/EA |
| 5 | MM281171 | 2 | ACTUATOR LIFT LINK ASSEMBLY | $31.17/EA |
| 6 | MM281174 | 1 | LINK ATTACHMENT SHAFT | $15.36/EA |
| 7 | MM281175 | 1 | LOWER LINK ASSY, LEFT | $125.00/EA |
| 8 | MM281176 | 1 | LOWER LINK ASSY, RIGHT | $72.72/EA |
| 9 | MM281211 | 2 | SNUBBING WSR (NOT SHOWN)Not shown. | $7.08/EA |
| 10 | MM281300 | 1 | MAIN FRAME | $1,334.91/EA |
| 11 | MM281458 | 2 | LINK ATTACHMENT SHAFT | $6.67/EA |
| 12 | MM281459 | 1 | CRANK PIVOT SHAFT | $15.59/EA |
| 13 | MM281471 | 1 | ACTUATOR ATM'T WMT W/ BUSHING ASSY | $61.45/EA |
| 14 | MM281477 | 1 | UPPER LINK ASSY, LEFT | $91.56/EA |
| 15 | MM281478 | 1 | UPPER LINK ASSY, RIGHT | $62.53/EA |
| 16 | MM711228 | 4 | BLT-HH 5/16-18 X .75 ST PL | $1.08/EA |
| 17 | MM712301Replaces Minuteman 711515 | 3 | WSR-FLAT .406 X .812 X .0625 | $1.08/EA |
| 18 | MM711524 | 9 | WSR-WAVE .52 X .87 X .01 | $1.10/EA |
| 19 | MM711545 | 4 | WSR-HELICAL 5/16 | $1.08/EA |
| 20 | MM711575 | 4 | WSR-FLT .31x.75x..06ST | $1.08/EA |
| 21 | MM711583 | 4 | WSR-WAVE .78 X 1.00 X .02 | $2.92/EA |
| 22 | MM711588 | 7 | WASHER - FLAT, .76 ID X 1.00 OD X .020 | $1.08/EA |
| 23 | MM711678 | 1 | CLEVIS PIN 3/8 X 2-1/4 | $1.28/EA |
| 24 | MM711713 | 10 | RETAINING RING - "E" TYPE EXT .500 | $1.10/EA |
| 25 | MM711808 | 1 | COTTER PIN-HAIR #13 | $1.08/EA |
| 26 | MM712124 | 1 | CLEVIS PIN, 3/8 X 1-3/4 | $2.21/EA |
| 27 | MM712310 | 10 | WSR- FLAT .52 X .87 X .06 PL | $1.08/EA |
| 28 | MM712767 | 1 | FLAT WASHER .406 ID X .75 OD X . | $1.08/EA |
| 29 | MM740819-2 | 1 | ACTUATOR ASSY, 50mm 4000N 24/36VDC | $741.31/EA |
| 30 | MM809148 | 6 | RETAINING RING - "E" TYPE EXT .75 | $1.08/EA |
| 31 | MM833374 | 1 | PIN, HAIRPIN COTTER 3/8 | $1.08/EA |

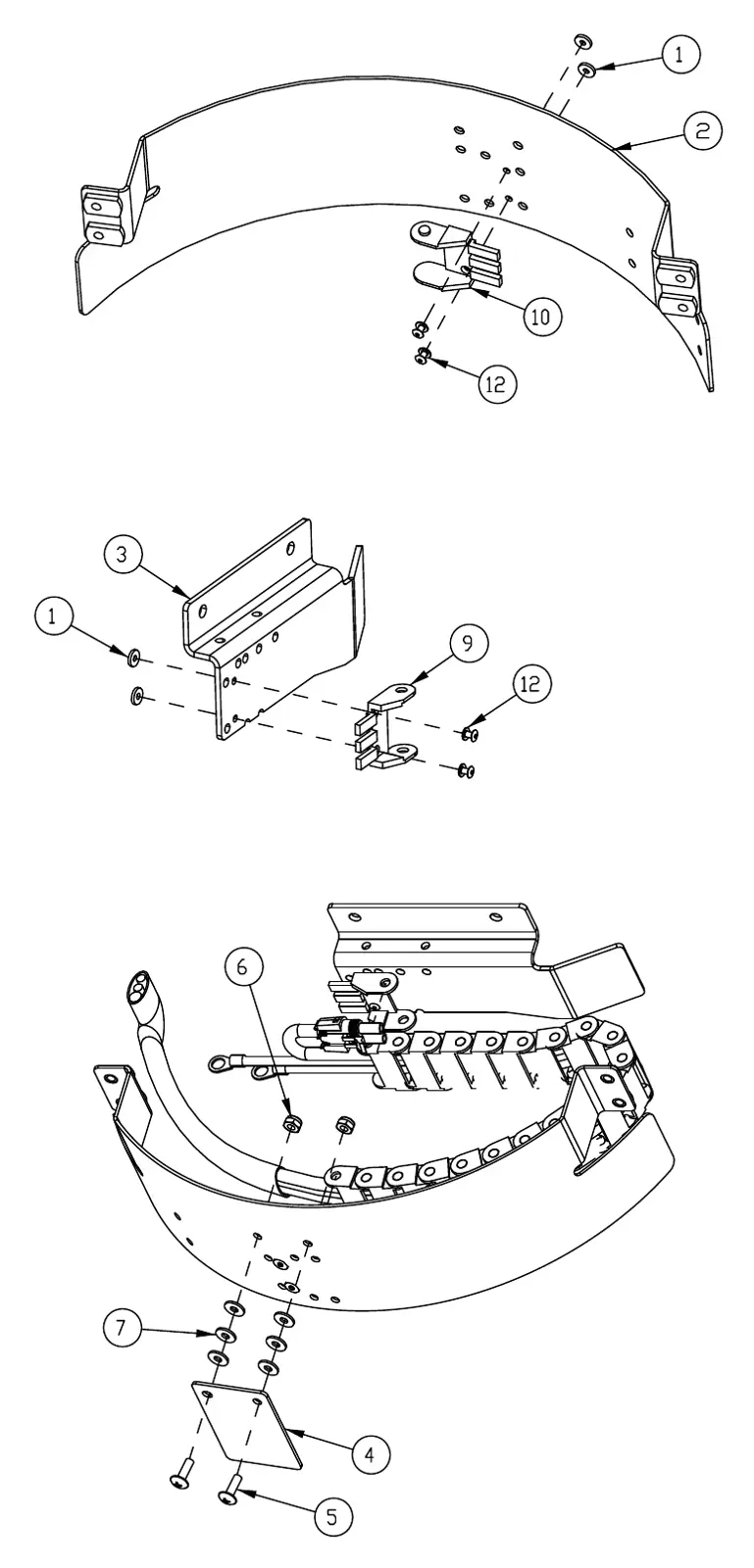

Minuteman E Ride 2832 Sport Drive motor cable assembly parts
The drive motor cable assembly: brackets, cable guides, connector and drive motor wire. Manual page 16.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM950-4-S | 4 | BACKUP PLATE - RIVET | $1.05/EA |
| 2 | MM281188 | 1 | FRONT BRACKET - CABLE GUIDE | $106.94/EA |
| 3 | MM281192 | 1 | BRACKET - DRIVE MOTOR | $46.60/EA |
| 4 | MM281237 | 1 | COVER PLATE | $20.03/EA |
| 5 | MM710154 | 2 | SCR-MC TR HD 10-32 X .625 SS | $1.10/EA |
| 6 | MM711350 | 2 | NUT-NYLOC 10-32 | $1.08/EA |
| 7 | MM712764 | 6 | WSR #10 SS | $1.08/EA |
| 8 | MM748020 | 1 | CNCTR, PACKARD 2 COND MALE | $5.50/EA |
| 9 | MM748219-2 | 1 | CABLE GDE, MNT BRKT- BORE | $12.39/EA |
| 10 | MM748219-3 | 1 | CABLE GUIDE, MOUNT BRACKET- PIN | $13.14/EA |
| 11 | MM748344 | 1 | WIRE ASSY, DRIVE MOTOR | $249.74/EA |
| 12 | MM827666 | 4 | RIVET-POP | $1.08/EA |

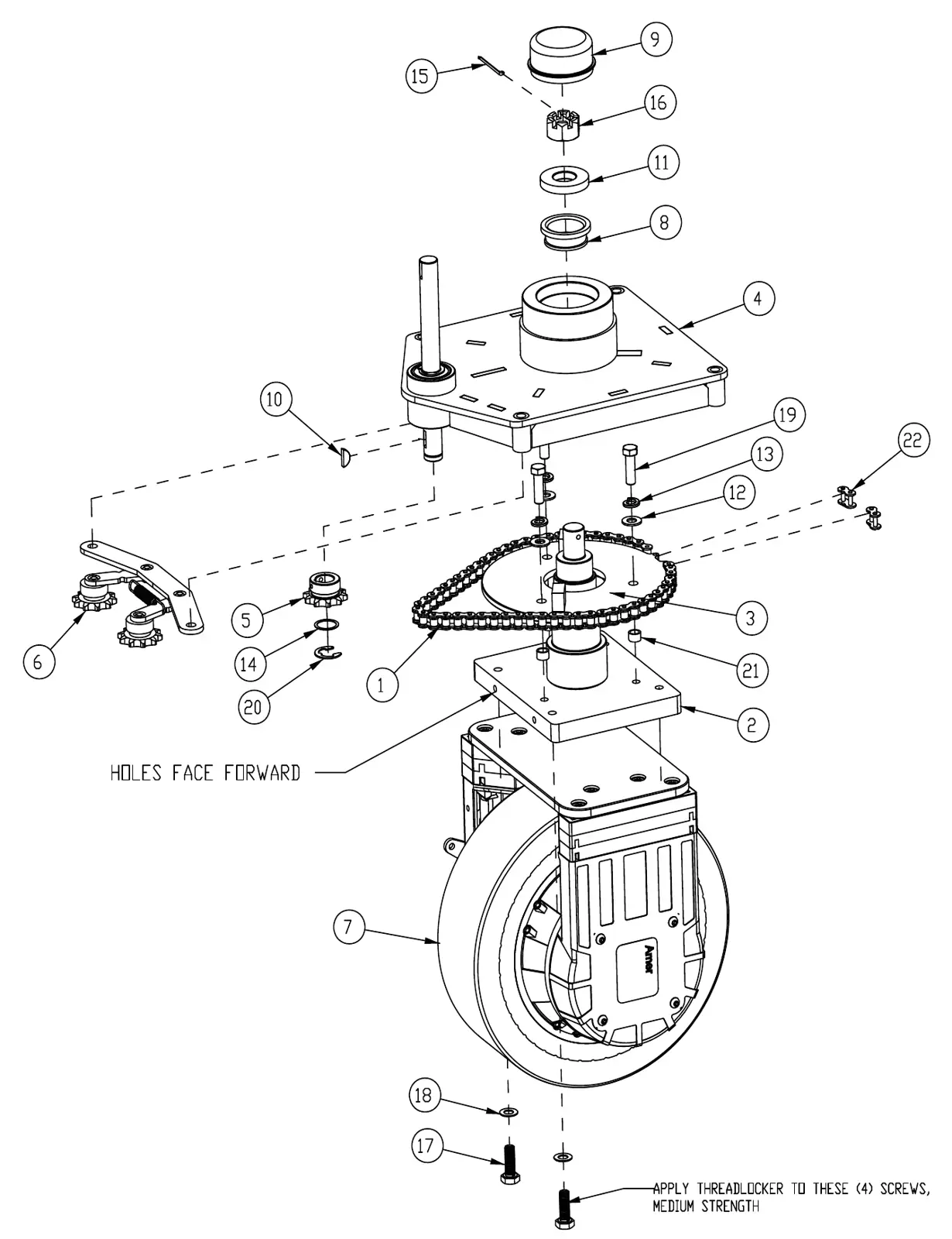

Minuteman E Ride 2832 Sport Front drive assembly parts
The front drive assembly: drive motor, steering chain, sprocket, idler, spindle and bearing. Manual pages 17, list 18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281054 | 1 | CHAIN, STEERING No. 40, 27.5" | $55.94/EA |
| 2 | MM281190 | 1 | SPINDLE WELDMENT | $476.32/EA |
| 3 | MM281254 | 1 | STEERING DISC WMT | $72.75/EA |
| 4 | MM281257 | 1 | FRONT DRIVE W/ BEARING ASSY | $683.11/EA |
| 5 | MM281268 | 1 | SPROCKET-RC #40, 10 TEETH, 3/4" BORE | $39.19/EA |
| 6 | MM281285 | 1 | IDLER ASSY, FRONT DRIVE | $180.25/EA |
| 7 | MM281400 | 1 | DRIVE MOTOR - AMER | $3,301.73/EA |
| 8 | MM383077 | 1 | BEARING CONE (LM104949) | $27.50/EA |
| 9 | MM383250 | 1 | GREASE CAP | $13.36/EA |
| 10 | MM383277 | 1 | KEYWOODRUFF 3/16 X 3/4 | $1.38/EA |
| 11 | MM383364 | 1 | THRUST WASHER | $32.27/EA |
| 12 | MM712301Replaces Minuteman 711515 | 3 | WSR-FLAT .406 X .812 X .0625 | $1.08/EA |
| 13 | MM711546 | 3 | WSR-HELICAL 3/8 | $1.08/EA |
| 14 | MM711588 | 1 | WASHER - FLAT , .76 ID X 1.00 OD X .020 | $1.08/EA |
| 15 | MM711807 | 1 | COTTER PIN .12 X 1.75 | $1.08/EA |
| 16 | MM712113 | 1 | CASTLE NUT | $5.51/EA |
| 17 | MM712330 | 4 | METRIC HEX CAP SCREW M10x1.5x30 | $1.16/EA |
| 18 | MM712767 | 4 | FLAT WASHER .406 ID X .75 OD X . | $1.08/EA |
| 19 | MM713043 | 3 | BLT-HH 3/8-16 X 1 1/4 #5 | $1.08/EA |
| 20 | MM809148 | 1 | RETAINING RING - "E" TYPE EXT .75 | $1.08/EA |
| 21 | MM809247 | 3 | STEERING PLATE SPACER | $10.34/EA |
| 22 | MM833629 | 2 | MASTER LINK ASSY | $10.34/EA |
Minuteman E Ride 2832 Sport Steering assembly parts
The steering assembly: shafts, springs, steering wheel, accelerator pedal, adjustment lever and potentiometer box. Manual pages 19, list 20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281047 | 1 | SPRING, EXTENSION - 2.75" | $5.89/EA |
| 2 | MM281328 | 1 | SHAFT,LOWER STEERING | $55.42/EA |
| 3 | MM281331 | 1 | ACCEL PEDAL WMT | $86.89/EA |
| 4 | MM281392 | 2 | BEARING FLANGE ASSEMBLY 3/4 (MCH) | $34.33/EA |
| 5 | MM281484 | 1 | SHAFT,UPPER STEERING | $58.25/EA |
| 6 | MM281989 | 1 | STEERING ASSY, TOP | $213.60/EA |
| 7 | MM282302 | 1 | STEERING WELDMENT, LOWER | $443.14/EA |
| 8 | MM282303 | 1 | SPRING - EXTENSION 1.375" F.L. | $10.29/EA |
| 9 | MM282309 | 1 | ADJUSTMENT LEVER AND PIVOT PIN ASSY | $125.78/EA |
| 10 | MM383098 | 1 | UNIVERSAL JOINT | $242.53/EA |
| 11 | MM383152 | 1 | STEERING WHEEL | $118.63/EA |
| 12 | MM383277 | 3 | KEYWOODRUFF 3/16 X 3/4 | $1.38/EA |
| 13 | MM430051 | 1 | RETURN SPRING-3.00" | $3.10/EA |
| 14 | MM710353Replaces Minuteman 710153 | 4 | SCR-MC 10-32X.37 | $1.08/EA |
| 15 | MM711374 | 2 | NUT-NYLOC 5/16-18 | $1.10/EA |
| 16 | MM711380 | 2 | NUT-NYLOC 3/8-16 NUT | $1.08/EA |
| 17 | MM711506 | 4 | WSR-FLT .344 X .690 X .062, STEEL | $1.08/EA |
| 18 | MM711521 | 2 | WSR-WAVE .21 X .44 X .02 | $4.15/EA |
| 19 | MM712102 | 1 | BLT- SHLDR 1/2 X 1-1/2 | $7.11/EA |
| 20 | MM712301 | 2 | WSR-FLAT .37 X .87 X .06 | $1.08/EA |
| 21 | MM712310 | 1 | WSR- FLAT .52 X .87 X .06 PL | $1.08/EA |
| 22 | MM809148 | 5 | RETAINING RING - "E" TYPE EXT .75 | $1.08/EA |
| 23 | MM363-816 | 1 | NUT NYLOC 1/2-20 | $1.05/EA |
| 24 | MM70-516-16 | 4 | BLT-CAR 5/16-18 X 1.00 ZP | $1.08/EA |
| 25 | MM712099PLT | 2 | BLT- SHLDR 1/2 X 1/2 ZINC PLT | $4.39/EA |
| 26 | MM748013-2 | 1 | POTENTIOMETER BOX ASSEMBLY | $246.41/EA |

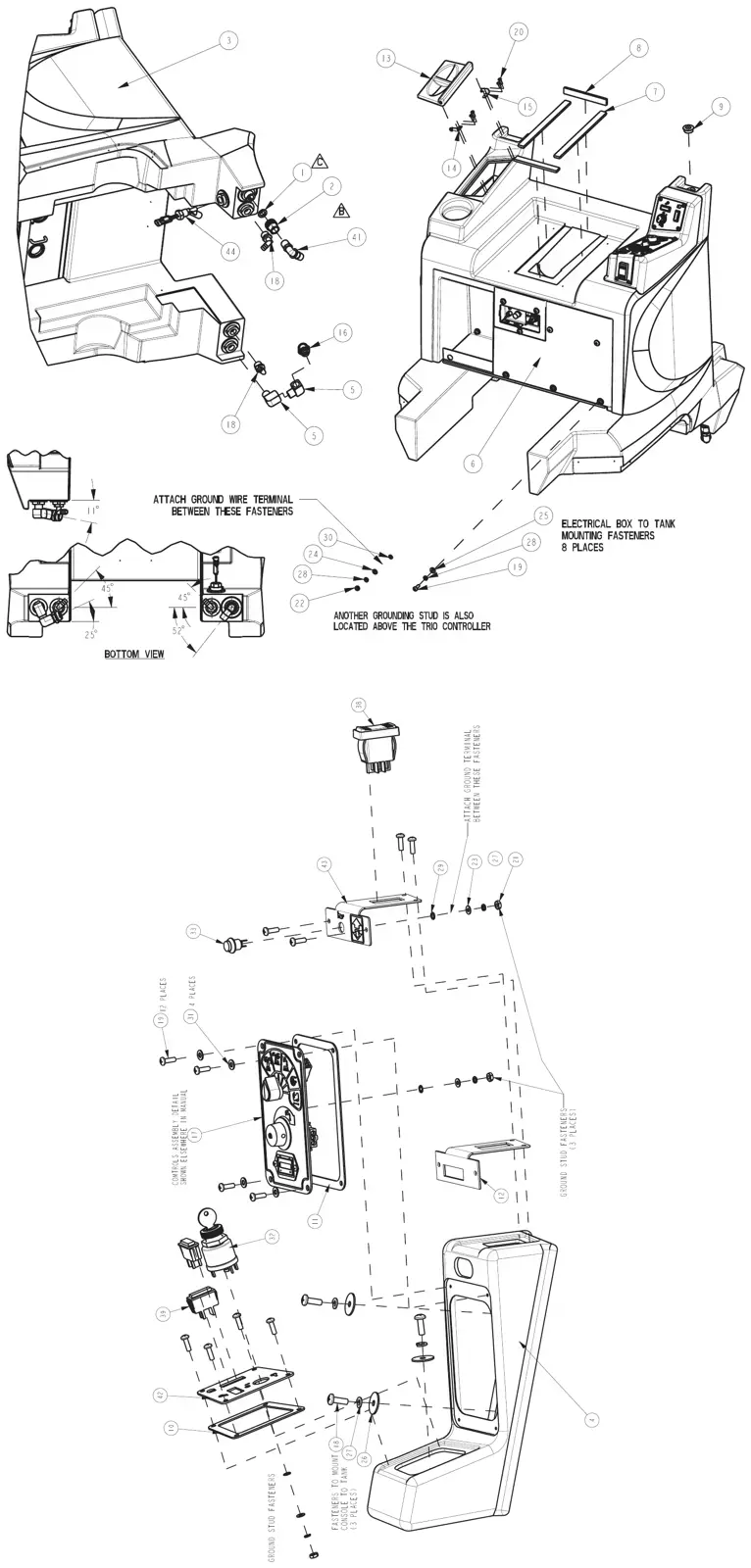

Minuteman E Ride 2832 Sport Solution tank, seat & console assembly parts
The solution tank, console, seat gaskets, electrical box, switches, fittings and front harness. Manual pages 21-22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM200024 | 1 | WSR-GH, BLACK PVC | $1.38/EA |
| 2 | MM241825 | 1 | SWIVEL ADAPTOR - BR, 3/4 FGHT X 1/2 FPT | $15.52/EA |
| 3 | MM281002 | 1 | SOLUTION TANK - 2800 | $811.21/EA |
| 4 | MM281005 | 1 | 2800 CONSOLE | $148.84/EA |
| 5 | MM281093 | 2 | FTG-ELBOW 90 ST 1/2 MPT X 1/2 FPT BRASS | $10.47/EA |
| 6 | MM281224 | 1 | ASSY, ELEC BOX, E-RIDE 2832 SPORTAssembly. Parts list on page 26. | $1,745.67/EA |
| 7 | MM281363 | 2 | SEAT GASKET - LONG | $3.60/EA |
| 8 | MM281364 | 2 | SEAT GASKET - SHORT | $3.13/EA |
| 9 | MM281371 | 1 | PLUG-VENT | $1.38/EA |
| 10 | MM281372 | 1 | GASKET - IGNITION SWITCH PANEL | $4.96/EA |
| 11 | MM281373 | 1 | GASKET - MEMBRANE SWITCH | $5.34/EA |
| 12 | MM281375 | 1 | GASKET - DIRECTION SWITCH | $5.25/EA |
| 13 | MM281380 | 1 | COVER-SOLUTION TANK PLASTIC | $68.22/EA |
| 14 | MM281381 | 1 | SOLN TANK HINGE SUB-ASSY - RIGHT | $13.39/EA |
| 15 | MM281382 | 1 | SOLN TANK HINGE SUB-ASSY -LEFT | $17.78/EA |
| 16 | MM281426 | 1 | COUPLING-3/4" HOSE X 1/2" MPT | $17.02/EA |
| 17 | MM281498 | 1 | SELECTOR SWITCH ASSEMBLY, SCV2832Assembly. Parts list on page 24. | $305.47/EA |
| 18 | MM383449 | 2 | FTG-ELBOW 90 1/2 MPT X 1/2 HB BRASS | $22.62/EA |
| 19 | MM710380 | 11 | SCR-RHMS 1/4-20 X .75 ZP | $1.08/EA |
| 20 | MM711161 | 10 | SCR-HI/LO 10 X .75 BLACK ZINC PAN HD | $2.11/EA |
| 21 | MM711304 | 3 | NUT-HEX 8-32 ZP | $1.08/EA |
| 22 | MM3400071Replaces Minuteman 711316 | 2 | NUT-HEX 1/4-20 ZP | $1.11/EA |
| 23 | MM711502 | 2 | WASHER-FLAT #8 ZP | $1.08/EA |
| 24 | MM711504 | 2 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 25 | MM711505 | 18 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 26 | MM711519 | 4 | WASHER-FLAT 1/4 X 1.00 X .06 ZP | $1.08/EA |
| 27 | MM711542 | 4 | WASHER-LOCK #8 SPLIT ZP | $2.28/EA |
| 28 | MM711544 | 14 | WASHER-LOCK 1/4 SPLIT ZP | $1.08/EA |
| 29 | MM711552 | 3 | WASHER-INT LOCK #8 | $1.08/EA |
| 30 | MM711564 | 2 | WASHER-EXT LOCK 1/4 ZP | $1.08/EA |
| 31 | MM712320 | 4 | WASHER-FLAT 20 X .45 X .048 NYLON | $1.08/EA |
| 32 | MM742927 | 1 | SWITCH, KEY 2 POLE | $95.92/EA |
| 33 | MM748047 | 1 | SWITCH, PUSH BUTTON (HORN SCV 36V) | $37.72/EA |
| 38 | MM748151 | 1 | SWITCH, ON-ON DPDT (FWD/REV) | $35.61/EA |
| 39 | MM748154 | 2 | SWITCH-BLANK .43x1.2 (742716) | $3.70/EA |
| 41 | MM3315536 | 1 | FTG-ELBOW 90 1/2 MPT X 3/4 HB PP | $3.75/EA |
| 42 | MM281378SPMinuteman 281378SP | 1 | KEY SWITCH PLATE SCREEN PRINTED | Call to confirm part: 800-440-6723 |
| 43 | MM281497SP | 1 | DIRECTION CONTROL PANEL SCRN PRNTSCV2832 | $24.27/EA |
| 44 | MM742708-4 | 1 | FLOAT SWITCH, W/WEATHERPACK | $115.96/EA |
| 45 | MM748138E | 1 | WIRE HARNESS, SCV2832E FRONT | $384.48/EA |

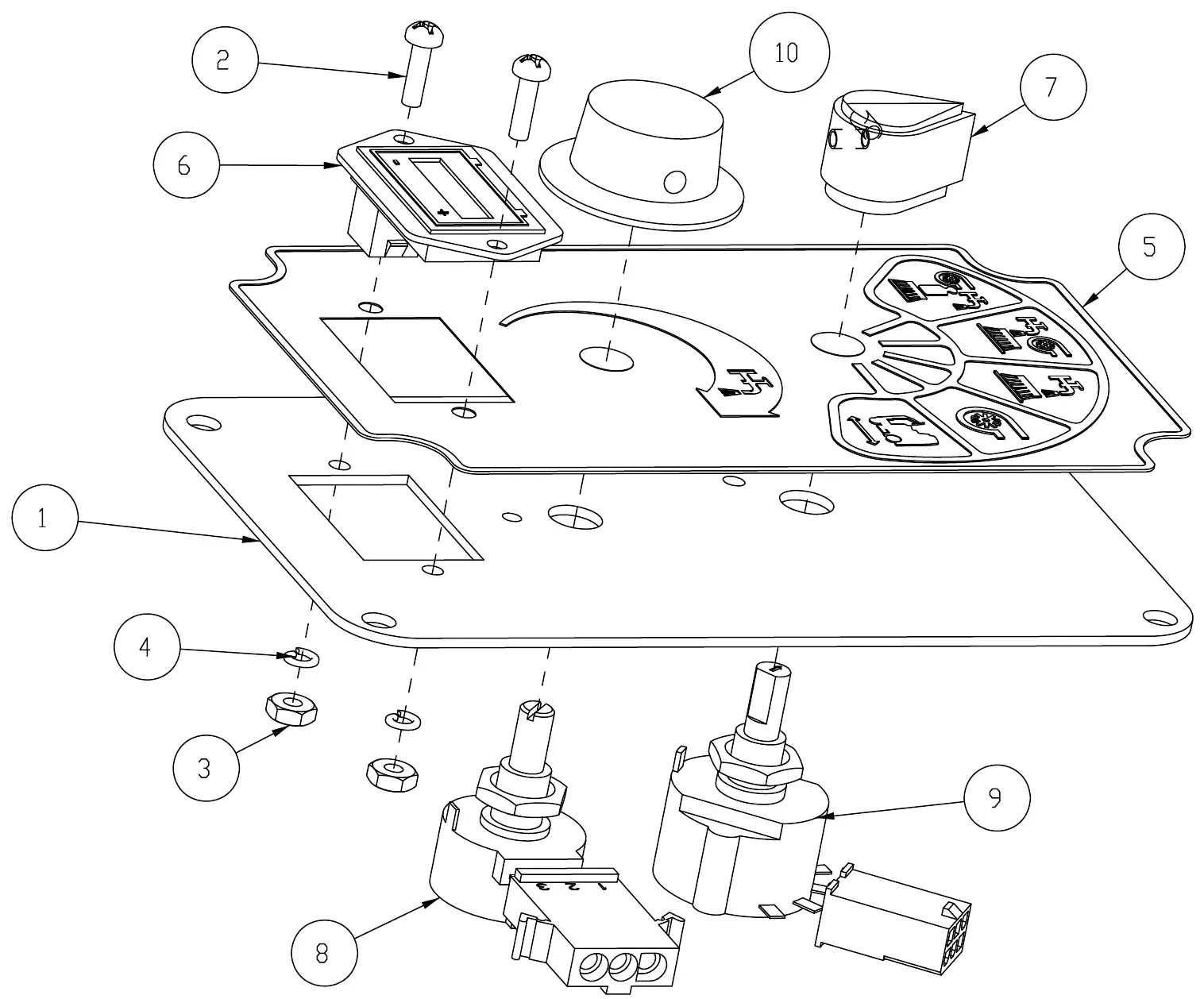

Minuteman E Ride 2832 Sport Controls assembly parts
The controls assembly: bracket, battery gauge, mode selector switch and knob, water flow potentiometer and speed control knob. Manual page 24.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281499 | 1 | BKT, CONTROLS | $19.19/EA |
| 2 | MM710204 | 2 | SCR-MC 6-32 X .50 ST PL PAN HD | $1.08/EA |
| 3 | MM711301 | 2 | NUT-HEX 6-32 ST PL | $1.08/EA |
| 4 | MM711541 | 2 | WSR-HELICAL #6 ST PL | $1.08/EA |
| 5 | MM715455 | 1 | DECAL, CONTROLS | $14.30/EA |
| 6 | MM747011 | 1 | BATTERY GAUGE, TRUCHARGE | $78.15/EA |
| 7 | MM747020 | 1 | KNOB-MODE SELECTOR | $20.39/EA |
| 8 | MM747025 | 1 | POTENTIOMETER ASSY WATERFLOW | $71.44/EA |
| 9 | MM747027 | 1 | SWITCH ASSY, MODE SELECTOR | $131.61/EA |
| 10 | MM809874 | 1 | KNOB, SPEED CONTROL | $8.88/EA |

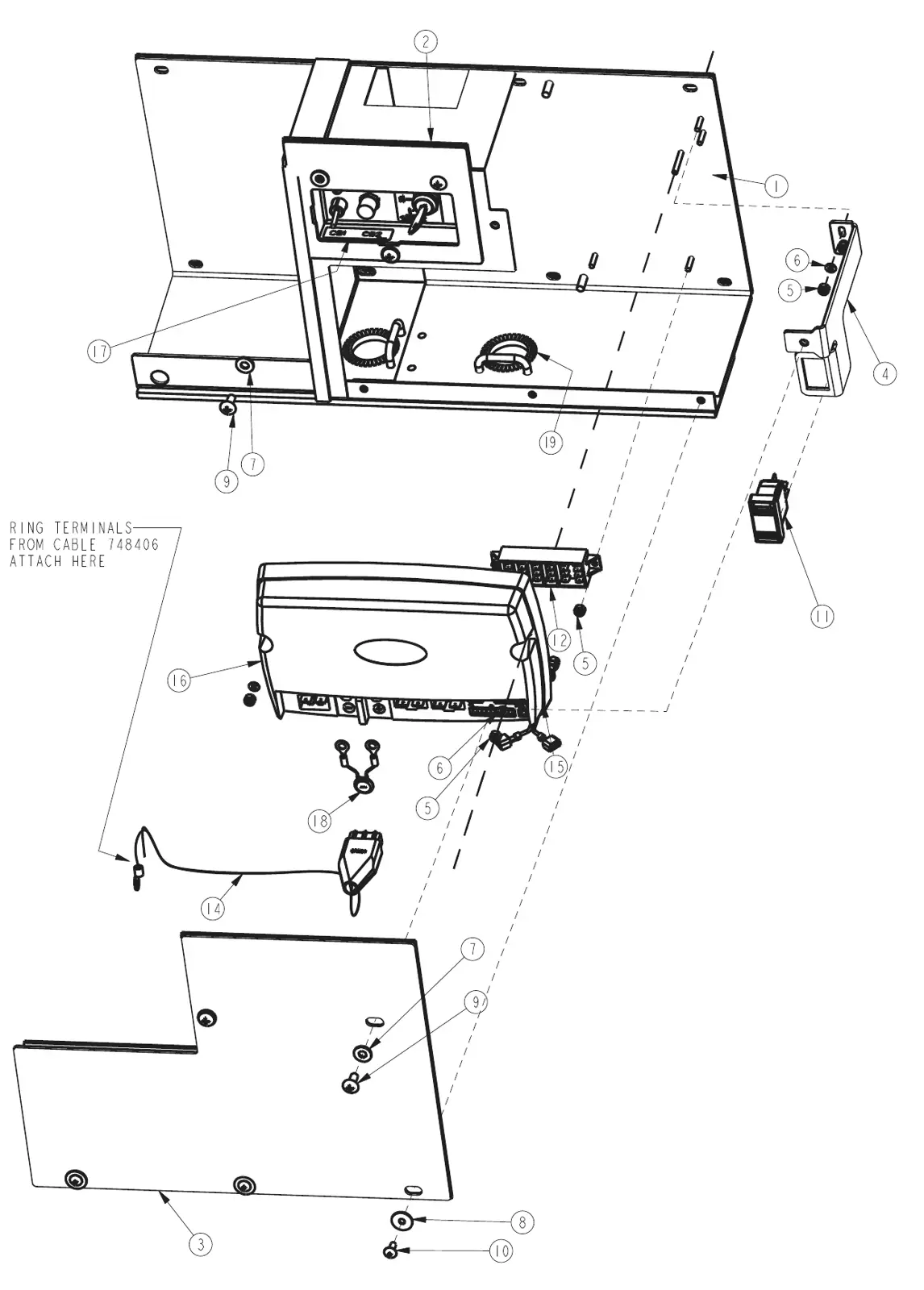

Minuteman E Ride 2832 Sport Electrical panel assembly parts
The electrical panel assembly: box, control panel, TRIO controller, terminal block, wire assemblies and varistor. Manual pages 25, list 26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281229 | 1 | ELECTRICAL BOX WELDMENT - E RIDE 2832 | $264.23/EA |
| 2 | MM281245 | 1 | ASSY, CONTROL PANEL, BRKR & KEY SWITCHAssembly. Parts list on page 27. | $270.03/EA |
| 3 | MM281412 | 1 | ELECTRICAL COVER PANEL | $38.08/EA |
| 4 | MM281982 | 1 | BKT, ELEC BOX, SCV2832 | $24.45/EA |
| 5 | MM711372 | 2 | NUT-NYLOC 8-32 ZP | $1.08/EA |
| 6 | MM711502 | 2 | WASHER-FLAT #8 ZP | $1.08/EA |
| 7 | MM711505 | 18 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 8 | MM711748 | 3 | WASHER-FLAT #10 X .75 SS | $1.05/EA |
| 9 | MM712565 | 2 | SCR-THMS 1/4-20 X .62 SS | $1.13/EA |
| 10 | MM712822 | 3 | SCR-THMS 10-24 X .50 SS | $1.08/EA |
| 11 | MM748152 | 1 | SW DPDT MOMENTARY ON-OFF-ON SCV2832E DE | $42.15/EA |
| 12 | MM748153 | 1 | TERMINAL BLOCK-C=4 P=4/C=1 P=8 | $24.76/EA |
| 13 | MM748318 | 1 | DUAL QC WIRE, ERIDE 28/32 SPORT | $11.97/EA |
| 14 | MM748406 | 1 | WIRE ASY, BRUSH MOTOR ER2832 | $57.08/EA |
| 15 | MM748432 | 1 | WIRE ASY, Y-SPLIT 1/4" QC | $5.33/EA |
| 16 | MM748721 | 1 | CONTROLLER, TRIO + WET (FLOODED) BAT | $983.30/EA |
| 17 | MM715641-2 | 1 | DECAL, CIRCUIT BREAKER ID | $5.36/EA |
| 18 | MM748269-1 | 1 | VARISTOR ASY, RING TERMINALS 1/4" | $6.83/EA |
| 19 | MM281449 | 1 | SERRATED GROMMET STRIP - .187IN | $2.28/EA |

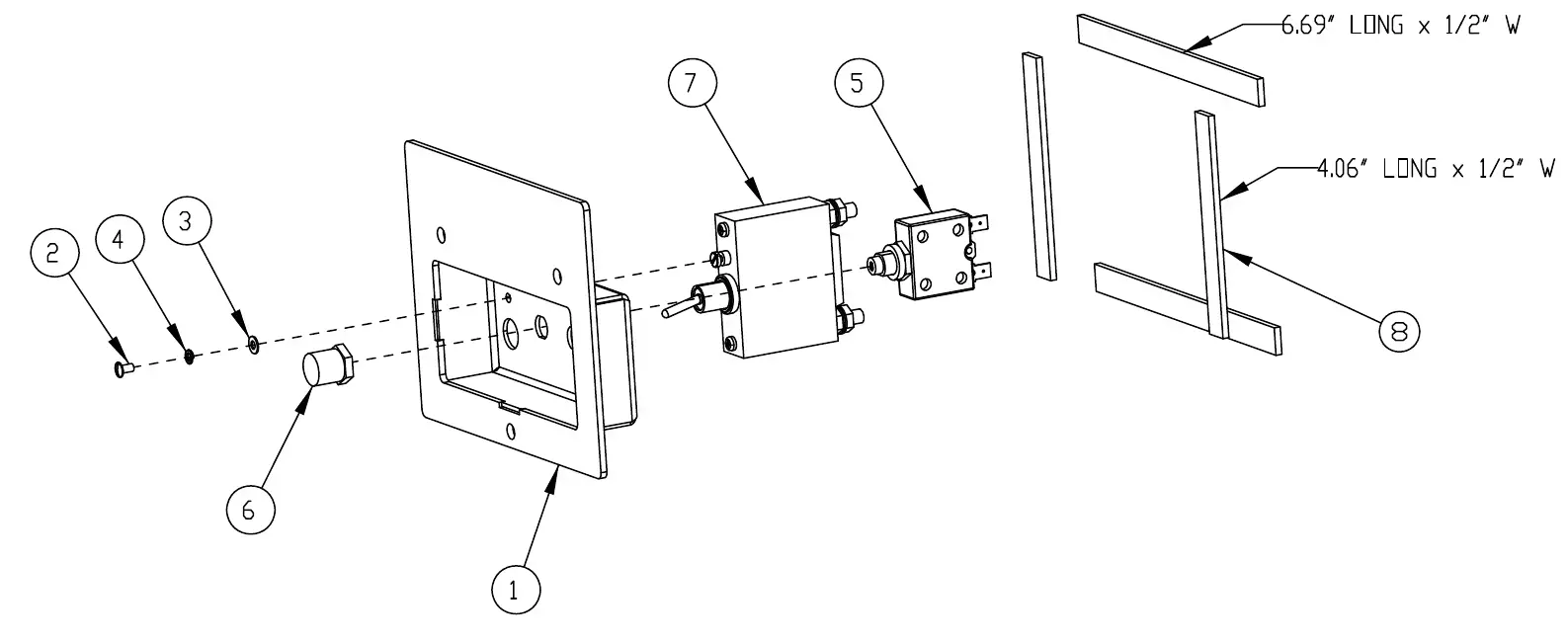

Minuteman E Ride 2832 Sport Circuit breaker assembly parts
The circuit breaker assembly: control panel weldment, the 6 amp and 100 amp breakers and the brush speed key switch harness. Manual page 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281234 | 1 | CONTROL PANEL, WELD, BRKR & KEY SWITCH | $115.46/EA |
| 2 | MM710202 | 1 | SCR-PHMS 6-32 X .25 ZP | $1.08/EA |
| 3 | MM711501 | 1 | WASHER-FLAT #6 X .375 ZP | $1.08/EA |
| 4 | MM711541 | 1 | WASHER-LOCK #6 SPLIT ZP | $1.08/EA |
| 5 | MM715465 | 1 | DECAL, DISK SPEED, KEY-SWITCH | $10.89/EA |
| 6 | MM742350 | 1 | CIRCUIT BREAKER- 6.0AMP PUSH BUTTON | $27.01/EA |
| 7 | MM742748 | 1 | CIRCUIT BREAKER-BOOT | $5.95/EA |
| 8 | MM748012 | 1 | CIRCUIT BREAKER- 100A | $111.95/EA |
| 9 | MM748422 | 1 | HARNESS, WIRE, BRUSH SPEED KEY SWITCH | $89.01/EA |
| 10 | MM830557 | 1.67 | DORTITE 1/2 INCH RM 1 FQuantity printed as 1.67; no unit printed. | $1.38/EA |
Minuteman E Ride 2832 Sport Recovery tank assembly I & II parts
The recovery tank assembly with its lids, vacuum motor, vacuum inlet, dump hose, float and hardware. Manual pages 28-29, list 30-31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM200289 | 1 | DUMP HOSE ASMAssembly. Parts list on page 33. | $37.04/EA |
| 2 | MM241060 | 1 | SCREENED FLOAT | $35.61/EA |
| 3 | MM241433 | 1 | RECOVERY TANK SAFETY STRAP | $6.64/EA |
| 4 | MM241748 | 3 | ISOLATOR PAD - 1" LENGTH USE 830557Use 830557. | $6.58/EA |
| 5 | MM3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |
| 6 | MM260579 | 1 | TOOL CLIP, 1.5: HOSE | $7.25/EA |
| 7 | MM281019 | 1 | DEFLECTOR | $28.05/EA |
| 8 | MM811022 | 3 | BRACKET, TANK SC2832 | $24.02/EA |
| 9 | MM281099 | 1 | WIRE COVER | $68.22/EA |
| 10 | MM281490 | 1 | VAC INLET WMT, SCV2832 | $94.58/EA |
| 11 | MM281358 | 1 | GASKET, MOVABLE LID - SCV | $22.18/EA |
| 12 | MM281951 | 1 | DIVERTER BOTTOM GASKET | $3.70/EA |
| 13 | MM281432 | 1 | CAP 6" CLEANOUT SCV | $25.13/EA |
| 14 | MM281437 | 1 | STRAP HOLDER WMT | $81.18/EA |
| 15 | MM281439 | 1 | SHUTOFF FLANGE TUBE | $54.24/EA |
| 16 | MM281444-1 | 1 | STOPPER PLUG ASSY | $57.93/EA |
| 17 | MM281496 | 1 | VAC INLET ASSY, SCV 2832 | $123.53/EA |
| 18 | MM281950 | 2 | FLOAT CAGE GASKET | $4.24/EA |
| 19 | MM831484Replaces Minuteman 380035 | 1 | MOTOR GASKET | $4.23/EA |
| 20 | MM710178 | 2 | SCR- MC 1/4-20 X .50 TRUSS ST PL | $1.08/EA |
| 21 | MM710180 | 6 | SCR- MC TR HD 1/4-20 X .75 STL ZINC | $1.10/EA |
| 22 | MM710190 | 2 | SCR- MC 1/4-20 X 2.00 TRUSS PL SS | $2.17/EA |
| 23 | MM710197 | 2 | SCREW TRUSS HEAD 5/16-18 X .75 PH ZP | $1.08/EA |
| 24 | MM710530 | 2 | SCR- MC FL HD 8-32 X .50 BRS | $1.10/EA |
| 25 | MM711161 | 4 | SCR- HI/LO 10 X 3/4 STL BLK ZINC | $2.11/EA |
| 26 | MM711227 | 2 | BLT - HH 5/16-18 X .62 ST PL | $1.08/EA |
| 27 | MM711256 | 2 | 5/16-18 X 1.5 CARRIAGE BOLT SS | $2.39/EA |
| 28 | MM711319 | 4 | 5/16-18 HEX NUT | $1.08/EA |
| 29 | MM711420 | 2 | NUT - HEX JAM 5/16-18 ST PL | $1.08/EA |
| 30 | MM711503 | 3 | WSR, FLAT #10 | $1.08/EA |
| 31 | MM711504 | 3 | WSR - FLAT 1/4 ID SS | $1.10/EA |
| 32 | MM711505 | 2 | 1/4 FLAT WASHER, STEEL | $1.08/EA |
| 33 | MM711506 | 2 | WSR - FLT .344 X .690 X .062 STEEL | $1.08/EA |
| 34 | MM711519 | 2 | WSR - FLAT .25 X 1.01 X .06 | $1.08/EA |
| 35 | MM711534 | 3 | WSR - EXTERNAL LOCK #10 | $1.08/EA |
| 36 | MM711543 | 3 | WSR - HELICAL #10 | $1.08/EA |
| 37 | MM711544 | 6 | WSR - HELICAL 1/4 | $1.08/EA |
| 38 | MM711545 | 2 | WSR - HELICAL 5/16 | $1.08/EA |
| 39 | MM712541 | 3 | SCR- MC 1/4-20 X 1.00 TH SS | $1.08/EA |
| 40 | MM712758 | 5 | WSR - HELICAL 1/4 SS | $1.10/EA |
| 41 | MM712767 | 3 | FLAT WASHER .406 ID X .75 OD | $1.08/EA |
| 42 | MM712811 | 3 | SCR- MC RD HD 10-24 X .50 ST PL | $1.08/EA |
| 43 | MM712822 | 5 | SCR- MC TR HD 10-24 X .50 SS | $1.08/EA |
| 44 | MM742771-1 | 1 | VAC MOTOR ASSY, 36VDC 3-STAGE | $300.31/EA |
| 45 | MM450223 | 1 | FTG-ADAPTER 1/8 FPT X 1/8 HB BRASS | $6.53/EA |
| 46 | MM760286 | 1 | HOOK, WIRE FORMED | $27.25/EA |
| 47 | MM760859 | 1 | CLAMP, HOSE | $7.54/EA |
| 48 | MM830082 | 1 | HOSE CLAMP 3/8 | $1.82/EA |
| 49 | MM833191 | 1 | HOSE RUBBER FLEX 2 X 9 | $8.88/EA |
| 50 | MM712301Replaces Minuteman 711515 | 1 | WASHER-FLAT 3/8 X .812 X .0625 ZP | $1.08/EA |
| 51 | MM281007HG | 1 | LID - PIVOTING, E RIDE 2832 | $127.72/EA |
| 52 | MM450221 | 1 | COUPLER-QUICK CONNECT, 1/8MPT | $24.65/EA |

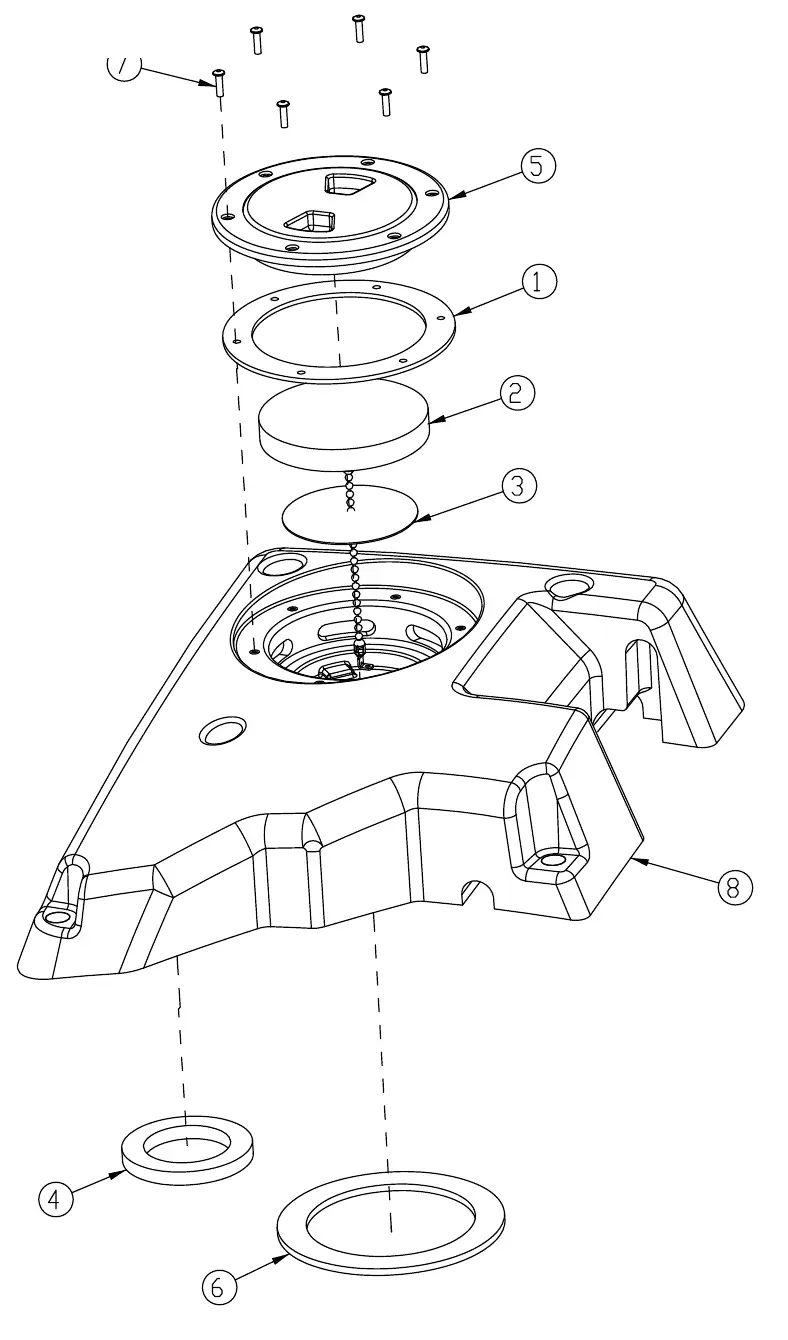

Minuteman E Ride 2832 Sport Fixed lid assembly parts
The fixed lid assembly: lid, vacuum motor filter, inlet screen, gaskets and the fill cap with chain. Manual page 32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281018 | 1 | GASKET , NEO 6.00 X 4.50 X .125 | $6.36/EA |
| 2 | MM281055 | 1 | VAC MOTOR FILTER | $5.34/EA |
| 3 | MM281056 | 1 | VAC MOTOR INLET SCREEN | $6.87/EA |
| 4 | MM281073 | 1 | INLET GASKET | $10.34/EA |
| 5 | MM281423 | 1 | FILL CAP W/CHAIN ASSY 4.00 | $58.25/EA |
| 6 | MM831484Replaces Minuteman 380035 | 1 | MOTOR GASKET | $4.23/EA |
| 7 | MM712516 | 6 | SCR-BHCS #8-32 x .62 SS | $1.08/EA |
| 8 | MM281006HG | 1 | LID - FIXED | $106.38/EA |
Minuteman E Ride 2832 Sport Recovery tank drain (dump) hose assembly parts
The recovery tank drain (dump) hose assembly: hose, clamp, hose tube and drain plug. Manual page 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM200198 | 1 | DUMP HOSE | $41.43/EA |
| 2 | MM3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |
| 3 | MM760343 | 1 | TUBE, HOSE - 24/32B | $20.11/EA |
| 4 | MM833316 | 1 | DRAIN PLUG | $34.36/EA |

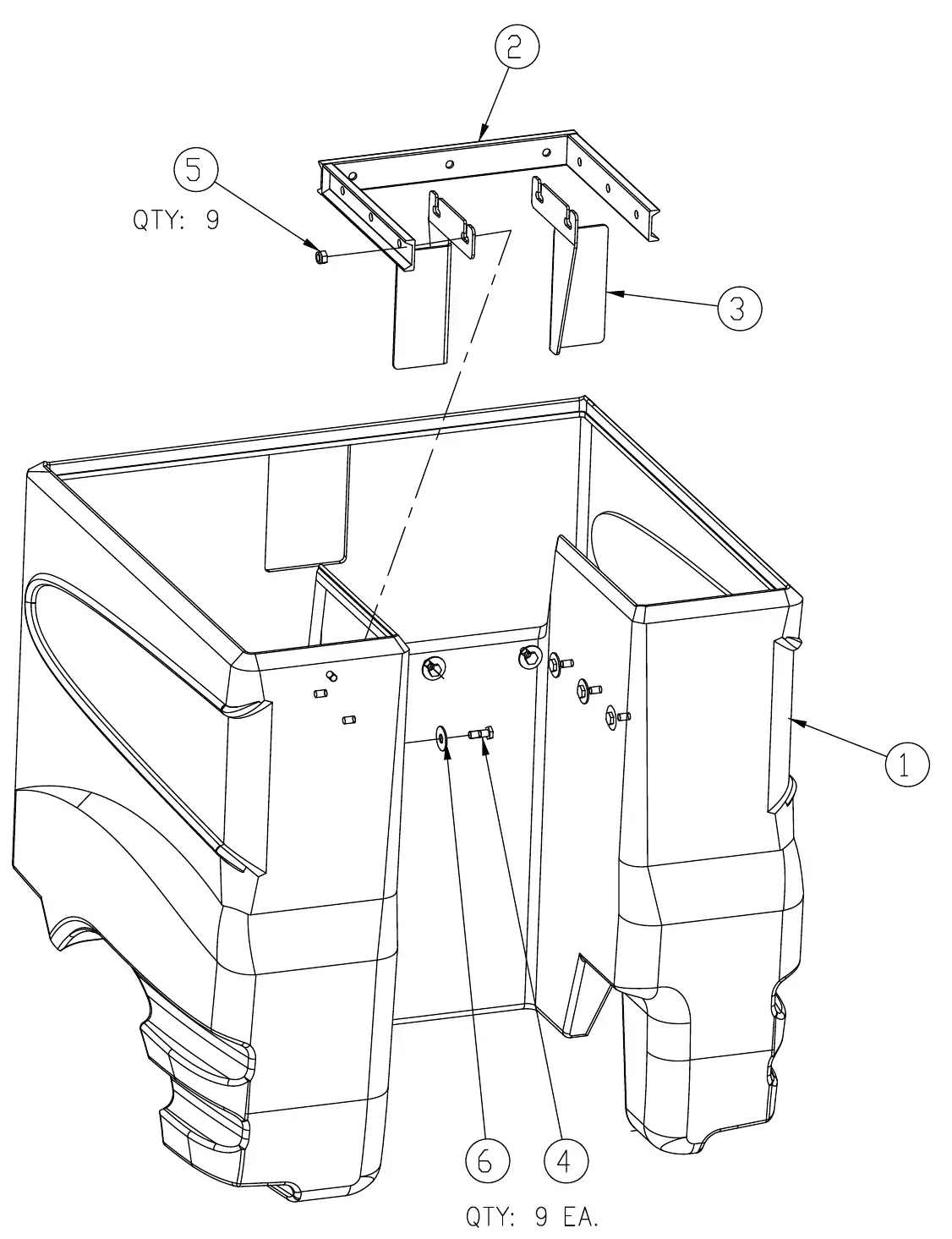

Minuteman E Ride 2832 Sport Battery box assembly parts
The battery box assembly: tray, stiffener, battery stops and hardware. Manual page 34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281004 | 1 | BATTERYTRAY- 2800 | $347.31/EA |
| 2 | MM281059 | 1 | BATTERYBOX STIFFENER WM'T | $80.99/EA |
| 3 | MM281672 | 2 | BKT, BATTERYSTOP | $16.65/EA |
| 4 | MM711229 | 9 | BLT-HH 5/16-18 x .875 | $1.08/EA |
| 5 | MM711374 | 9 | NUT-NYLOC 5/16-18 | $1.10/EA |
| 6 | MM711507 | 9 | WSR-FLAT .37 X 1.12 X .06 | $1.08/EA |
Minuteman E Ride 2832 Sport Pump assembly parts
The solution pump assembly: pump, solenoid, water filter, fittings, hoses and clamps. Manual pages 35, list 36.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM730Minuteman 730 | 1 | SEAL-THREAD HL150 (50ML) | Call to confirm part: 800-440-6723 |
| 2 | MM121072 | 2 | WASHER-FLAT #8 S/S | $1.05/EA |
| 3 | MM173154 | 1 | VALVE, BALL, 3/8 BARB x 3/8 MPT | $16.94/EA |
| 4 | MM210410 | 1 | FTG-ADAPTER 3/8 FPT X 3/8 HB BRASS | $6.25/EA |
| 5 | MM220245 | 2 | FTG-ELBOW 45 3/8 MPT X 3/8 FPT BRASS | $9.90/EA |
| 6 | MM241097 | 1 | HOSE-WIRE REINF 3/8 X 31" | $14.75/EA |
| 7 | MM281090 | 2 | FTG-TEE 3/8 FPT X 3/8 FPT X 3/8 FPT BRAS | $15.95/EA |
| 8 | MM281091 | 1 | FTG-REDUCER 3/8 MPT X 1/8 FPT BRASS | $5.59/EA |
| 9 | MM281368 | 1 | PUMP MOUNT PLATE | $23.88/EA |
| 10 | MM281394 | 1 | BOX, MTG, SOLUTION PUMP WELD | $155.68/EA |
| 11 | MM281425 | 1 | SW-SWIVEL CONNECTOR-3/4 GHT X 3/8 MPT | $28.77/EA |
| 12 | MM281846 | 1 | HOSE, WIRE REINF 3/8 ID, 8.00"LG | $3.64/EA |
| 13 | MM281847 | 1 | HOSE, WIRE REINF 1/2 ID, 5.50"LG | $2.97/EA |
| 14 | MM281848 | 1 | HOSE, WIRE REINF 1/2 ID, 8.50"LG | $2.86/EA |
| 15 | MM320254 | 1 | HOSE-WIRE REINF 3/8 X 9" | $8.88/EA |
| 16 | MM342430 | 1 | FTG-ADAPTER 3/8 MPT X 3/8 HB BRASS | $3.92/EA |
| 17 | MM383327 | 2 | FTG-ELBOW 90 1/2 MPT X 3/8 HB PP | $2.95/EA |
| 18 | MM383332 | 1 | FTG-NIPPLE 3/8 MPT BRASS | $10.44/EA |
| 19 | MM383337 | 1 | FTG-ELBOW 90 3/8 MPT X 1/2 HB PP | $1.08/EA |
| 20 | MM383479 | 1 | FITTING 3/8 PLUG | $3.47/EA |
| 21 | MM450076 | 2 | CLAMP-HOSE 5/8 (.590-.791) SS | $1.38/EA |
| 22 | MM450221 | 1 | COUPLER-QUICK CONNECT, 1/8MPT | $24.65/EA |
| 23 | MM710130 | 2 | SCR-THMS 8-32 X .62 SS | $1.08/EA |
| 24 | MM711503 | 4 | WASHER-FLAT #10 X .50 ZP | $1.08/EA |
| 25 | MM711504 | 2 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 26 | MM711553 | 4 | WASHER-INT LOCK #10 | $1.08/EA |
| 27 | MM712531 | 4 | SCR-FHMS 10-24 X 1.00 FH SS | $1.08/EA |
| 28 | MM712565 | 2 | SCR-THMS 1/4-20 X .62 SS | $1.13/EA |
| 29 | MM712758 | 2 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 30 | MM742709-6 | 1 | PUMP ASY- ER2832 NO CE COMPONENTS | $432.22/EA |
| 31 | MM748390 | 1 | SOLENOID, 36VDC VITON DIN43650 | $158.39/EA |
| 32 | MM827008 | 1 | FTG-ADAPTER 3/8 MPT 1/2 HB BRASS | $8.27/EA |
| 33 | MM828062-B | 5 | CABLE TIE-LARGE (BLACK) | $1.08/EA |
| 34 | MM829129 | 7 | CLAMP-HOSE WORM-DRV8-22MM HOSE DIA. 5/16 | $3.64/EA |
| 35 | MM829552 | 1 | TAPE-TEFLON PIPE 1/2" | $6.78/EA |
| 36 | MM830062 | 1 | FTG-ELBOW 90 3/8 MPT X 3/8 FPT BRASS | $10.64/EA |
| 37 | MM97113377 | 1 | FILTER ASSY, WATER | $55.34/EA |
Minuteman E Ride 2832 Sport Rear axle assembly parts
The rear axle assembly: axle weldment, rear wheels, axle castings, bearings and hardware. Manual page 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281202 | 1 | REAR AXLE WMT | $218.56/EA |
| 2 | MM281210 | 2 | REAR WHEEL ASSY | $797.84/EA |
| 3 | MM281213 | 4 | RING & BUSHING ISOLATOR | $12.50/EA |
| 4 | MM281460Minuteman 281460 | 2 | AXLE CASTING, REAR - SCV 28/32E | Call to confirm part: 800-440-6723 |
| 5 | MM3300471 | 4 | BEARING-TAPERED ROLCONE W/SEAL | $64.62/EA |
| 6 | MM711169 | 8 | SCR-1/2-20 X 1.25 SOCKET FH W/ PATCH | $1.52/EA |
| 7 | MM711450 | 2 | NUT-SLOTTED, 1-14 UNS | $10.08/EA |
| 8 | MM711514 | 2 | WSR-FT 1.0 ID X 2.0 OD | $1.19/EA |
| 9 | MM380-632-20 | 2 | 3/16 COTTER PIN | $1.08/EA |
| 10 | MM383241PTD | 2 | GREASE CAP WHEEL-PAINTED | $6.94/EA |
Minuteman E Ride 2832 Sport Squeegee mechanism assembly parts
The squeegee mechanism: mounting weldments, lift cables, pivot bar, T bars, ball joints, turnbuckles and hardware. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM241283 | 1 | SQUEEGEE MOUNTING PLATE | $35.97/EA |
| 2 | MM241284 | 1 | PIVOT BRACKET | $80.76/EA |
| 3 | MM241291 | 1 | ARM WELDMENT | $72.26/EA |
| 4 | MM241294 | 1 | SQUEEGEE MOUNTING WELDMENT | $86.78/EA |
| 5 | MM241757 | 1 | MOUNTING BRACKET WELDMENT - SQUEEGEE | $153.75/EA |
| 6 | MM281241 | 2 | LIFT CABLE | $11.97/EA |
| 7 | MM711508 | 2 | WSR-FLAT .44X 1.0X.08 | $1.08/EA |
| 8 | MM711727 | 2 | CLEVIS PIN, 7/16 x 2.0" | $1.08/EA |
| 9 | MM809311 | 4 | PIN-COTTER 7/64 DIAX 1 | $1.08/EA |
| 10 | MM11038247 | 2 | BOLT - HH, M8 X 1.25 X 25, STL, ZINC DICH | $1.08/EA |
| 11 | MM11038299 | 1 | SCR-HH M8-1.25 X 45 ZP CLASS 8.8 | $1.76/EA |
| 12 | MM11126653 | 2 | SCR-SHCS, M10 X 110 length, 10.9 STL | $11.17/EA |
| 13 | MM11620564 | 2 | CARRIAGE BOLT - M8, ZINC DICHR | $4.15/EA |
| 14 | MM12022059 | 5 | NUT - HEX, M8 STL, ZINC DICH | $5.51/EA |
| 15 | MM12022067 | 2 | NUT-HEX M10 X 1.5 STL ZINC DICH CL8 DIN 934 | $4.15/EA |
| 16 | MM12022224 | 2 | NUT-HEX M10-10 LH-8 SS A3G DIN 934 | $4.38/EA |
| 17 | MM12040051 | 4 | NUT-HEX M8-6 NYLON LOCK ZINC DICHR DIN 985 A2G | $4.15/EA |
| 18 | MM12040069 | 6 | NUT-HEX NYLOC M10 Z DICH | $6.92/EA |
| 19 | MM12310041 | 7 | WASHER - FLT, 8.4 X 16 X 1.6, STL, ZINC DICH | $2.75/EA |
| 20 | MM12310058 | 6 | WASHER = FLT, M10.5 X 20 X 2.0, STL, ZINC DICH | $4.15/EA |
| 21 | MM12310066 | 4 | WSR-FLT, M13X24X2.5, Z DICH | $4.15/EA |
| 22 | MM730609Replaces Minuteman 12310264 | 2 | WSR-FLT M8.4X16X1.6 SS | $1.08/EA |
| 23 | MM12520053 | 1 | WASHER - SERRATED | $1.08/EA |
| 24 | MM16046039 | 2 | BALL JOINT RH - A2 SS DIN 71802-CS16 | $8.14/EA |
| 25 | MM16046088 | 2 | BALL JOINT LH - A2 SS DIN 71802 CS16 | $10.69/EA |
| 26 | MM90414806 | 2 | TURNBUCKLE - METRIC, STL, ZINC DICH | $26.53/EA |
| 27 | MM90443979 | 2 | BUSHING - STEPPED, STEEL | $18.61/EA |
| 28 | MM90473158 | 2 | BUSHING | $7.22/EA |
| 29 | MM90537697 | 1 | PIVOT BAR - MACHINED | $56.11/EA |
| 30 | MM90538307 | 2 | SPRING - COMPRESSION | $11.01/EA |
| 31 | MM96098330-2 | 2 | T BAR WELDMENT | $74.66/EA |
Minuteman E Ride 2832 Sport Rear squeegee assembly parts
The rear squeegee assembly: blades, tension bands, straps, casters, rollers and hardware. Manual pages 41, list 42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172429 | 2 | SPRING, COMP .4 ID X .5FL SS | $1.58/EA |
| 2 | MM172448 | 1 | STRAP W/ LATCH, FRONT LEFT, 38" SQG | $94.67/EA |
| 3 | MM172539Minuteman 172539 | 1 | NLA- SEE NOTES - 38" SQG BASE ASSY, C.S.Printed as NLA, see notes. The page prints no notes. | Call to confirm part: 800-440-6723 |
| 4 | MM173080 | 6 | WASHER-FLAT .266 X .875 X .07 SS | $1.08/EA |
| 5 | MM281211 | 3 | WSR-SNUBBING | $7.08/EA |
| 6 | MM281242 | 1 | DEFLECTOR BRACKET - REAR SQUEEGEE | $66.14/EA |
| 7 | MM710592 | 1 | SCR-THMS 1/4-20 X 3.00 SS | $3.99/EA |
| 8 | MM711525 | 2 | WASHER-WAVE .65 X .86 X .01 | $1.08/EA |
| 9 | MM712591 | 2 | NUT-ACORN 1/4-20 SS | $1.08/EA |
| 10 | MM712592 | 1 | SCR-BHSCS 1/4-20 X 2.25 SS | $1.19/EA |
| 11 | MM717030 | 2 | SCR-HH M8-1.25 X 20 SS | $1.08/EA |
| 12 | MM730609Replaces Minuteman 12310264 | 2 | WSR-FLT M8.4 X 16 X 1.6 A2 SS 140HV DIN | $1.08/EA |
| 13 | MM12515094 | 2 | WSR-CONICAL SERRATED TOOTH M10.6 X 26 | $3.87/EA |
| 14 | MM17133026 | 2 | STAR HANDLE, M10, BLACK | $2.98/EA |
| 15 | MM90199019 | 3 | BUSHING, 10 X 16 X 10.8MM ZINC | $8.03/EA |
| 16 | MM90493560 | 1 | SQUEEGEE BLADE, FRONT | $47.68/EA |
| 17 | MM90494139 | 1 | SQUEEGEE BLADE, REAR | $38.81/EA |
| 18 | MM90513094 | 2 | FIXED CASTER | $12.43/EA |
| 19 | MM90531112 | 10 | WASHER-FLAT 8.3 x 22 x 1.00mm STAINLESS | $1.54/EA |
| 20 | MM90548397 | 2 | ROLLER - PLASTIC, 100mm DIA. (4") | $4.29/EA |
| 21 | MM96125828 | 1 | FRONT RIGHT TENSION BAND | $12.86/EA |
| 22 | MM96125844 | 1 | REAR LEFT TENSION BAND | $26.80/EA |
| 23 | MM96125851 | 1 | REAR RIGHT TENSION BAND W/ LATCH | $31.74/EA |

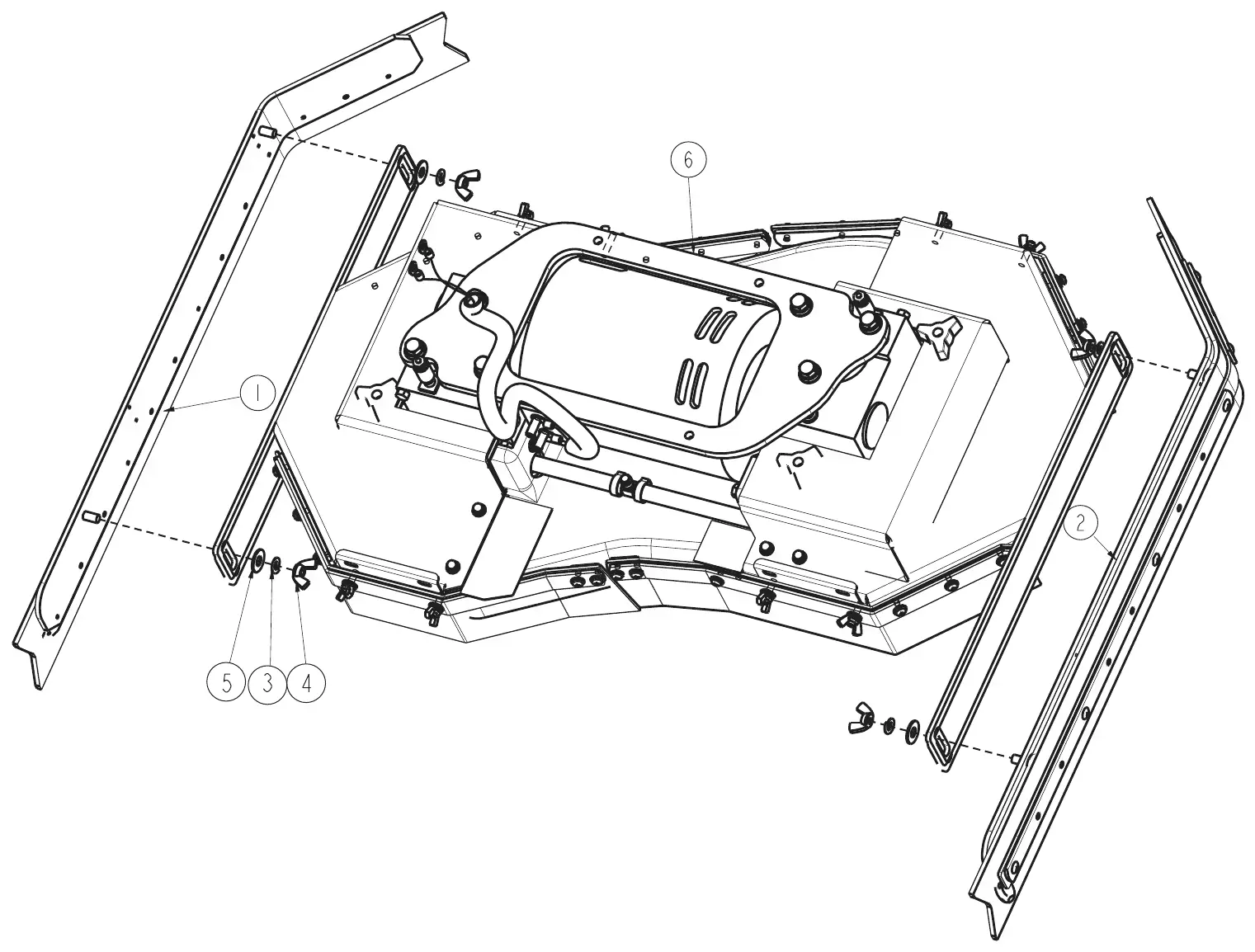

Minuteman E Ride 2832 Sport 28” disc scrub deck assembly parts
The 28 in disc scrub deck assembly with its side squeegee assemblies and mounting hardware. Manual page 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281875 | 1 | SIDE SQUEEGEE WIPE ASSY RH, SCV2832Fits 1 of 2 versionsE Ride 28 in | $207.06/EA |
| 2 | MM281878 | 1 | SIDE SQUEEGEE WIPE ASSY LH, SCV2832Fits 1 of 2 versionsE Ride 28 in | $231.33/EA |
| 3 | MM712140 | 4 | WASHER-LOCK 5/16 SPLIT SSFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 4 | MM712157 | 4 | NUT-WING 5/16-18 SSFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 5 | MM712301 | 4 | WASHER-FLAT 3/8 X .87 X .06 ZPFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 6 | MM281292S-2 | 1 | ASSY, D-SCRUBDECK ER28 SKIRT,NO SQ,SPORTFits 1 of 2 versionsE Ride 28 in | $3,093.75/EA |
Minuteman E Ride 2832 Sport 28” disc scrub deck base parts
The 28 in disc deck base: motor, hubs, covers, mounting plate, solution feed parts and hardware. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM210118 | 4 | KNOB-3 SIDED 5/16 NYLOCFits 1 of 2 versionsE Ride 28 in | $5.51/EA |
| 2 | MM241628 | 1 | DRAG CHAIN ASSY, DISK SCRUBDECK SCV24/26Fits 1 of 2 versionsE Ride 28 in | $26.67/EA |
| 3 | MM241653 | 2 | WATER FEED BRKT, DISK, SCV24/26Fits 1 of 2 versionsE Ride 28 in | $15.26/EA |
| 4 | MM241662 | 2 | COVER MNT BRK'T, SCV 24/26 ASSYFits 1 of 2 versionsE Ride 28 in | $48.32/EA |
| 5 | MM281611 | 2 | HUB-SCRUB SPACER TUBEFits 1 of 2 versionsE Ride 28 in | $8.88/EA |
| 6 | MM281633 | 2 | SPEED NUT - 3/8"Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 7 | MM281634 | 2 | DISK SOLUTION FEED ASSYFits 1 of 2 versionsE Ride 28 in | $40.56/EA |
| 8 | MM281871-1 | 1 | DISK DECK COVER LH, SCV 24/26Fits 1 of 2 versionsE Ride 28 in | $176.16/EA |
| 9 | MM281874-1 | 1 | DISK DECK COVER RH, SCV 24/26Fits 1 of 2 versionsE Ride 28 in | $182.73/EA |
| 10 | MM281881 | 1 | SOL. FEED HOSE SUB-ASS'Y, DISKFits 1 of 2 versionsE Ride 28 in | $27.94/EA |
| 11 | MM281883 | 2 | MOUNTING BRACKET, MOTOR COVERFits 1 of 2 versionsE Ride 28 in | $35.46/EA |
| 12 | MM320928 | 1 | DECK COVER, 28" DISKFits 1 of 2 versionsE Ride 28 in | $150.19/EA |
| 13 | MM320929 | 1 | DISK SCRUBDECK MNTG PLATE, 28'Fits 1 of 2 versionsE Ride 28 in | $130.67/EA |
| 14 | MM450076 | 2 | CLAMP-CRIMP 185R SSFits 1 of 2 versionsE Ride 28 in | $1.38/EA |
| 15 | MM711231 | 2 | BLT-HH 5/16-18X1.25 ST PLFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 16 | MM711242 | 12 | BLT-HH 3/8 -16 X 1.00Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 17 | MM711504 | 9 | WSR-FLAT 1/4 ID SSFits 1 of 2 versionsE Ride 28 in | $1.10/EA |
| 18 | MM711507 | 6 | WSR-FLAT .37 X 1.12 X .06Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 19 | MM711512 | 2 | WSR-FLAT .75X1.37X.08Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 20 | MM712301Replaces Minuteman 711515 | 6 | WSR-FLAT .406 X .812 X .0625Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 21 | MM711516 | 2 | WSR- FLAT .31 X 1.25 X .05Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 22 | MM711539 | 2 | WSR-EXTERNAL LOCK 3/8Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 23 | MM711545 | 2 | WSR-HELICAL 5/16Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 24 | MM711546 | 12 | WSR-HELICAL 3/8Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 25 | MM711554 | 2 | WSR-INTERNAL LOCK 1/4 IDFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 26 | MM712562 | 8 | BOLT-HH 1/4-20X3/4 SSFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 27 | MM712758 | 8 | WSR-HELICAL 1/4 SSFits 1 of 2 versionsE Ride 28 in | $1.10/EA |
| 28 | MM748410 | 1 | WIRE ASY, DISK DECK ER2832Fits 1 of 2 versionsE Ride 28 in | $434.34/EA |
| 29 | MM748424 | 1 | MOTOR, DUAL RT. ANGLE, 28", 500 RPMFits 1 of 2 versionsE Ride 28 in | $1,311.37/EA |
| 30 | MM3312402 | 2 | HUB-SCRUB BRUSH DRIVEFits 1 of 2 versionsE Ride 28 in | $167.02/EA |
Minuteman E Ride 2832 Sport 32” disc scrub deck assembly parts
The 32 in disc scrub deck assembly with its side squeegee assemblies and mounting hardware. Manual page 46.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281875 | 1 | SIDE SQUEEGEE WIPE ASSY RH, SCV2832Fits 1 of 2 versionsE Ride 32 in | $207.06/EA |
| 2 | MM281878 | 1 | SIDE SQUEEGEE WIPE ASSY LH, SCV2832Fits 1 of 2 versionsE Ride 32 in | $231.33/EA |
| 3 | MM712140 | 4 | WASHER-LOCK 5/16 SPLIT SSFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 4 | MM712157 | 4 | NUT-WING 5/16-18 SSFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 5 | MM712301 | 4 | WASHER-FLAT 3/8 X .87 X .06 ZPFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 6 | MM281293S-2 | 1 | ASSY, D-SCRUBDECK ER32 SKIRT,NO SQ,SPORTFits 1 of 2 versionsE Ride 32 in | $4,459.69/EA |

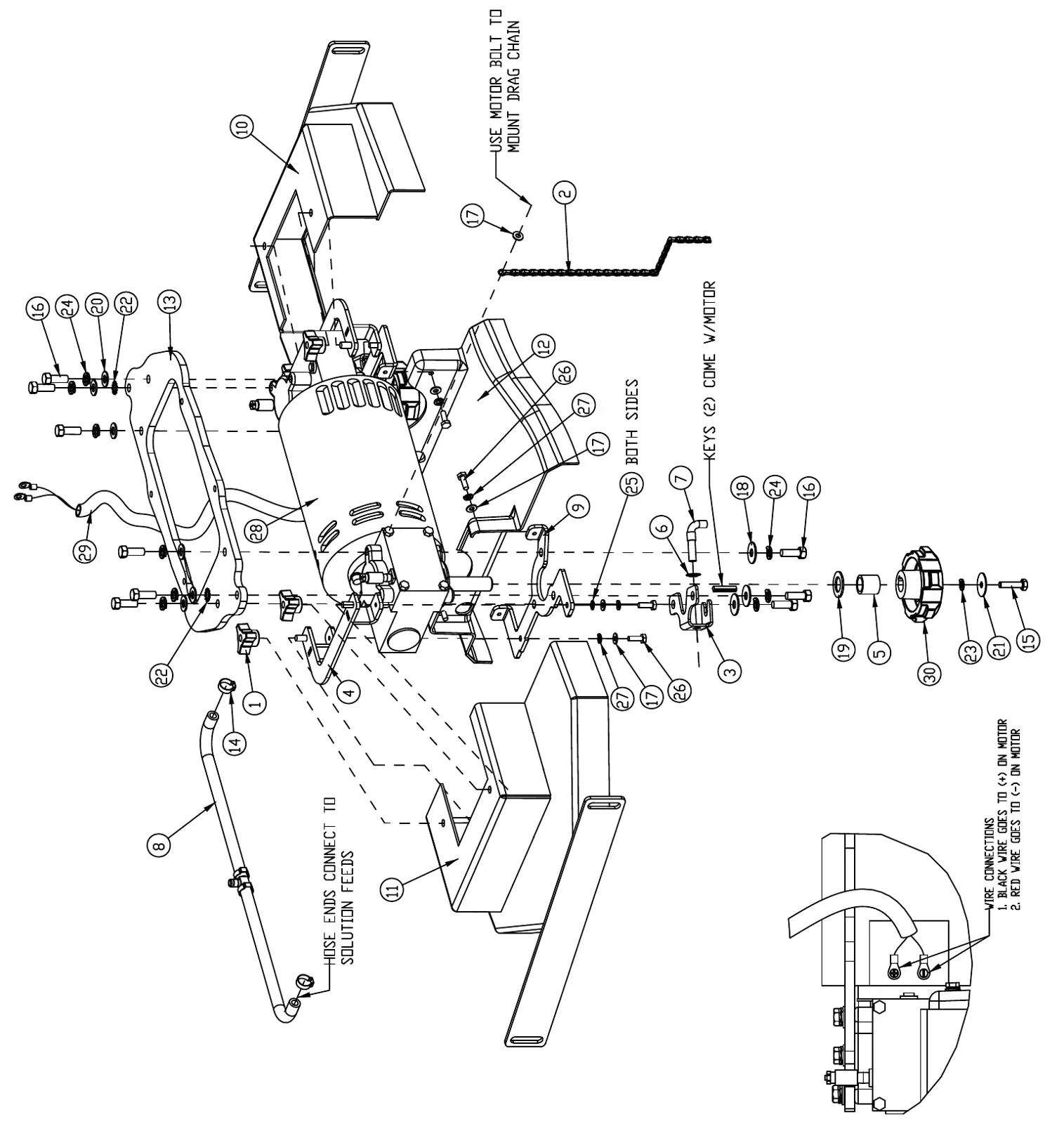

Minuteman E Ride 2832 Sport 32” disc scrub deck base parts
The 32 in disc deck base: motor, hubs, covers, mounting plate, solution feed parts and hardware. Manual pages 47, list 48.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM210118 | 4 | KNOB-3 SIDED 5/16 NYLOCFits 1 of 2 versionsE Ride 32 in | $5.51/EA |
| 2 | MM241628 | 1 | DRAG CHAIN ASSY, DISK SCRUBDECK SCV24/26Fits 1 of 2 versionsE Ride 32 in | $26.67/EA |
| 3 | MM241653 | 2 | WATER FEED BRKT, DISK, SCV24/26Fits 1 of 2 versionsE Ride 32 in | $15.26/EA |
| 4 | MM241662 | 2 | COVER MNT BRK'T, SCV 24/26 ASSYFits 1 of 2 versionsE Ride 32 in | $48.32/EA |
| 5 | MM281611 | 2 | HUB-SCRUB SPACER TUBEFits 1 of 2 versionsE Ride 32 in | $8.88/EA |
| 6 | MM281633 | 2 | SPEED NUT - 3/8"Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 7 | MM281634 | 2 | DISK SOLUTION FEED ASSYFits 1 of 2 versionsE Ride 32 in | $40.56/EA |
| 8 | MM281881 | 1 | SOL. FEED HOSE SUB-ASS'Y, DISKFits 1 of 2 versionsE Ride 32 in | $27.94/EA |
| 9 | MM281883 | 2 | MOUNTING BRACKET, MOTOR COVERFits 1 of 2 versionsE Ride 32 in | $35.46/EA |
| 10 | MM281885-1 | 1 | DISK DECK COVER RH 32", SCV 28/32Fits 1 of 2 versionsE Ride 32 in | $625.00/EA |
| 11 | MM281887-1 | 1 | DISK DECK COVER LH 32", SCV 28/32Fits 1 of 2 versionsE Ride 32 in | $181.46/EA |
| 12 | MM320857 | 1 | DECK COVER, 32" DISKFits 1 of 2 versionsE Ride 32 in | $105.16/EA |
| 13 | MM320859 | 1 | DISK SCRUBDECK MNTG PLATE, 32"Fits 1 of 2 versionsE Ride 32 in | $158.50/EA |
| 14 | MM450076 | 2 | CLAMP-CRIMP 185R SSFits 1 of 2 versionsE Ride 32 in | $1.38/EA |
| 15 | MM711231 | 2 | BLT-HH 5/16-18X1.25 ST PLFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 16 | MM711242 | 12 | BLT-HH 3/8 -16 X 1.00Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 17 | MM711504 | 9 | WSR-FLAT 1/4 ID SSFits 1 of 2 versionsE Ride 32 in | $1.10/EA |
| 18 | MM711507 | 6 | WSR-FLAT .37 X 1.12 X .06Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 19 | MM711512 | 2 | WSR-FLAT .75X1.37X.08Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 20 | MM712301Replaces Minuteman 711515 | 6 | WSR-FLAT .406 X .812 X .0625Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 21 | MM711516 | 2 | WSR- FLAT .31 X 1.25 X .05Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 22 | MM711539 | 2 | WSR-EXTERNAL LOCK 3/8Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 23 | MM711545 | 2 | WSR-HELICAL 5/16Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 24 | MM711546 | 12 | WSR-HELICAL 3/8Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 25 | MM711554 | 2 | WSR-INTERNAL LOCK 1/4 IDFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 26 | MM712562 | 8 | BOLT-HH 1/4-20X3/4 SSFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 27 | MM712758 | 8 | WSR-HELICAL 1/4 SSFits 1 of 2 versionsE Ride 32 in | $1.10/EA |
| 28 | MM748425 | 1 | MOTOR, 32" DUAL RIGHT ANGLEFits 1 of 2 versionsE Ride 32 in | $2,182.89/EA |
| 29 | MM748410 | 1 | WIRE ASY, DISK DECK ER2832Fits 1 of 2 versionsE Ride 32 in | $434.34/EA |
| 30 | MM3312402 | 2 | HUB-SCRUB BRUSH DRIVEFits 1 of 2 versionsE Ride 32 in | $167.02/EA |

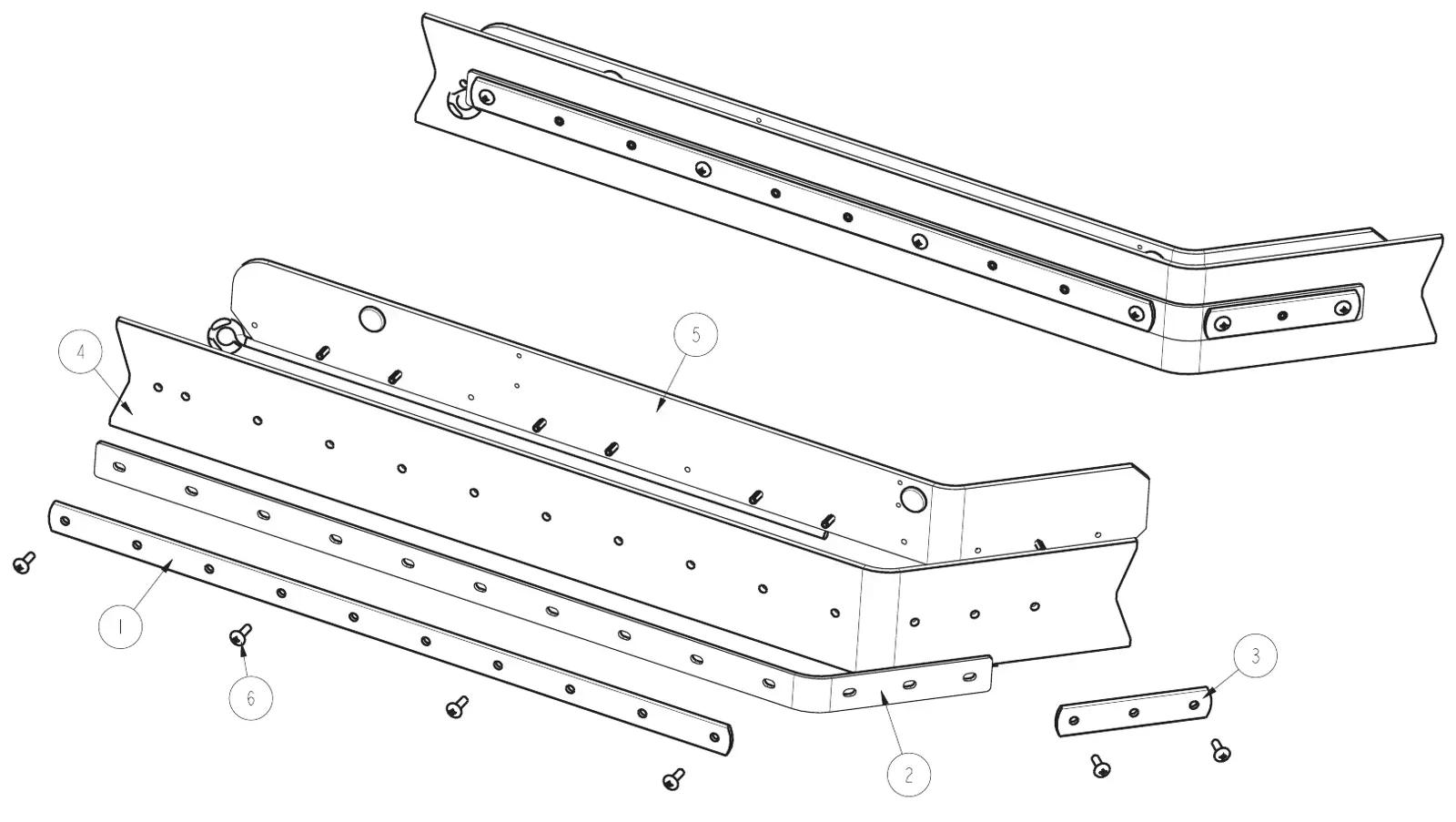

Minuteman E Ride 2832 Sport Disc scrub deck side squeegee (left hand side) parts
The left hand side squeegee: retainers, backer blade and Linatex blade. Manual page 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM241679 | 1 | LONG RETAINER, SIDE SQ SCV2426 | $16.43/EA |
| 2 | MM281855 | 1 | BACKER BLADE, LONG SCV 2832 | $11.78/EA |
| 3 | MM281856 | 1 | SHORT RETAINER, SIDE SQ SCV2426 | $13.72/EA |
| 4 | MM281859 | 1 | SIDE SQUEEGEE BLADE LINATEX, SCV 2832 | $56.54/EA |
| 5 | MM281879 | 1 | DISK SQUEEGEE SUB-ASSY LH, SCV 24/26 | $152.03/EA |
| 6 | MM710154 | 6 | SCR-MC TR HD 10-32 X .625 SS | $1.10/EA |

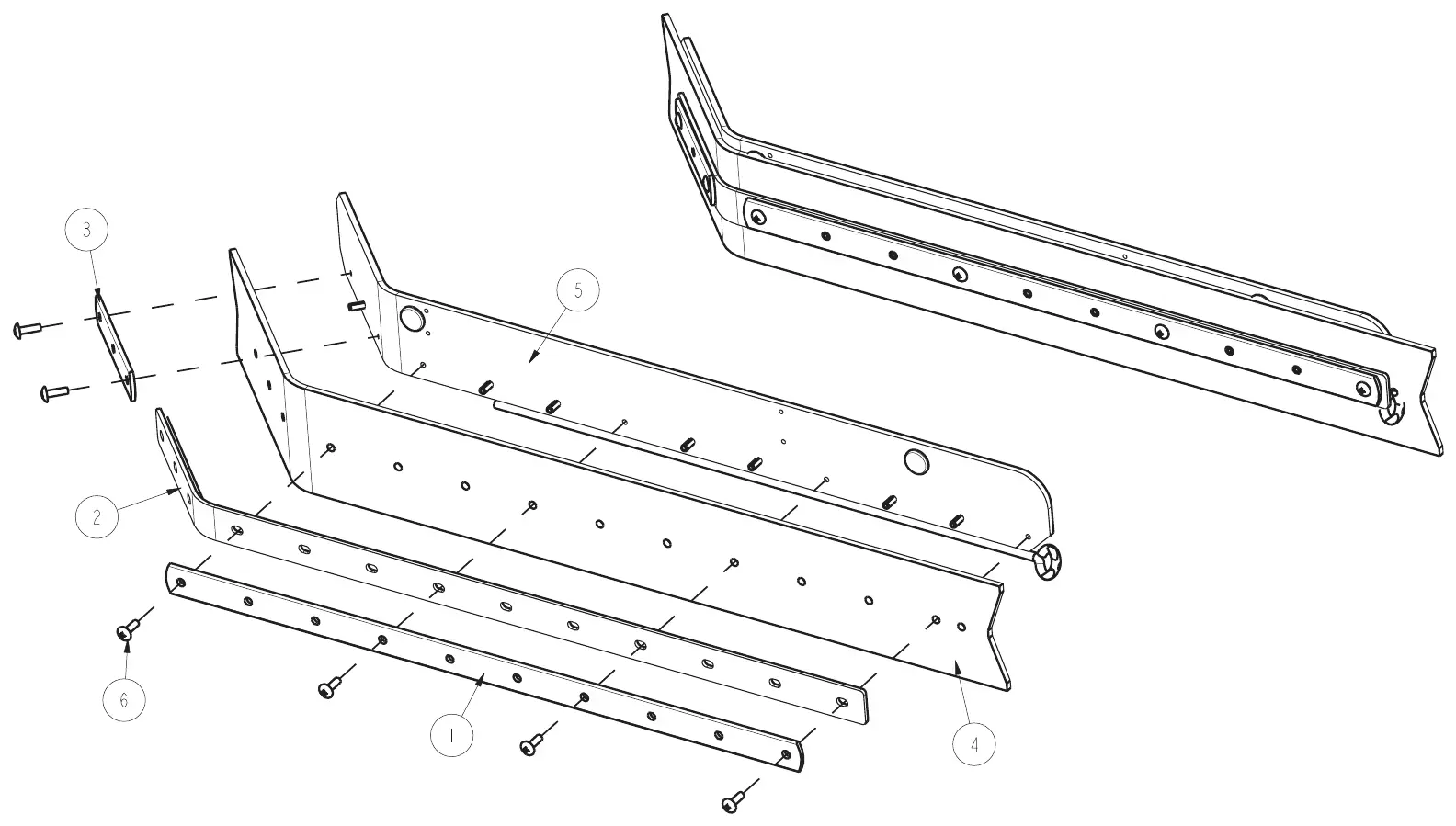

Minuteman E Ride 2832 Sport Disc scrub deck side squeegee (right hand side) parts
The right hand side squeegee: retainers, backer blade and Linatex blade. Manual page 50.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM241679 | 1 | LONG RETAINER, SIDE SQ SCV2426 | $16.43/EA |
| 2 | MM281855 | 1 | BACKER BLADE, LONG SCV 2832 | $11.78/EA |
| 3 | MM281856 | 1 | SHORT RETAINER, SIDE SQ SCV2426 | $13.72/EA |
| 4 | MM281859 | 1 | SIDE SQUEEGEE BLADE LINATEX, SCV 2832 | $56.54/EA |
| 5 | MM281876 | 1 | DISK SQUEEGEE SUB ASSY RH, SCV 24/26 | $102.10/EA |
| 6 | MM710154 | 6 | SCR-MC TR HD 10-32 X .625 SS | $1.10/EA |
Minuteman E Ride 2832 Sport Disc scrub deck and roller bumper mounting, ER28DSQP parts
The 28 in deck with its roller bumper mounting, front rollers and brush options (model ER28DSQP). Manual pages 51, list 52.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM66-436-A | 2 | RUBBER ROLLERFits 1 of 2 versionsE Ride 28 in | $21.25/EA |
| 2 | MM281292S | 1 | DISK SCRUBDECK ASSY-SPORT, 28" NO BRUSHESFits 1 of 2 versionsE Ride 28 in | $4,804.63/EA |
| 3 | MM281955 | 1 | FRONT ROLLER MOUNT BRKT WMTFits 1 of 2 versionsE Ride 28 in | $79.17/EA |
| 4 | MM360017 | 2 | 3/4" X 4.50 CLEVIS PINFits 1 of 2 versionsE Ride 28 in | $5.92/EA |
| 5 | MM711242 | 10 | BLT-HEX 3/8 -16X1.00 ZPFits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 6 | MM712301Replaces Minuteman 711515 | 13 | WSR-FLAT .406 X .812 X .0625Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 7 | MM711546 | 14 | WSR-HELICAL 3/8Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 8 | MM713042 | 4 | BLT-HH 3/8-16 X 1 #5Fits 1 of 2 versionsE Ride 28 in | $1.08/EA |
| 9 | MM3313135 | 2 | BRUSH SCRUB 14" PLASTIC NYLONFits 1 of 2 versionsE Ride 28 in | $234.75/EA |
| 9A | MM3313125 | 2 | POWER DRIVE 14" POWERGRIT 80 S/SFits 1 of 2 versionsE Ride 28 in | $378.33/EA |
| 9B | MM3313127 | 2 | POWER DRIVE 14" POWERGRIT 46 HDSFits 1 of 2 versionsE Ride 28 in | $378.33/EA |
| 9C | MM3313125Replaces Minuteman 3313131 | 2 | BRUSH SCRUB 14" PLAS WIREFits 1 of 2 versionsE Ride 28 in | $378.33/EA |
| 9D | MM3313125Replaces Minuteman 3313133 | 2 | BRUSH SCRUB 14" PLAS BUTCHWIREFits 1 of 2 versionsE Ride 28 in | $378.33/EA |
| 9E | MM3315494 | 2 | BRUSH 14" PWR DRIVE W/PAD HLDR (STANDARD)Fits 1 of 2 versionsE Ride 28 in | $150.67/EA |
| 9F | MM3315386 | 2 | POWER DRIVE 14" POWERGRIT 120 AGSFits 1 of 2 versionsE Ride 28 in | $378.33/EA |
| 10 | MM3400661 | 2 | PIN-COTTER 5/8 RUE-RINGFits 1 of 2 versionsE Ride 28 in | $1.08/EA |

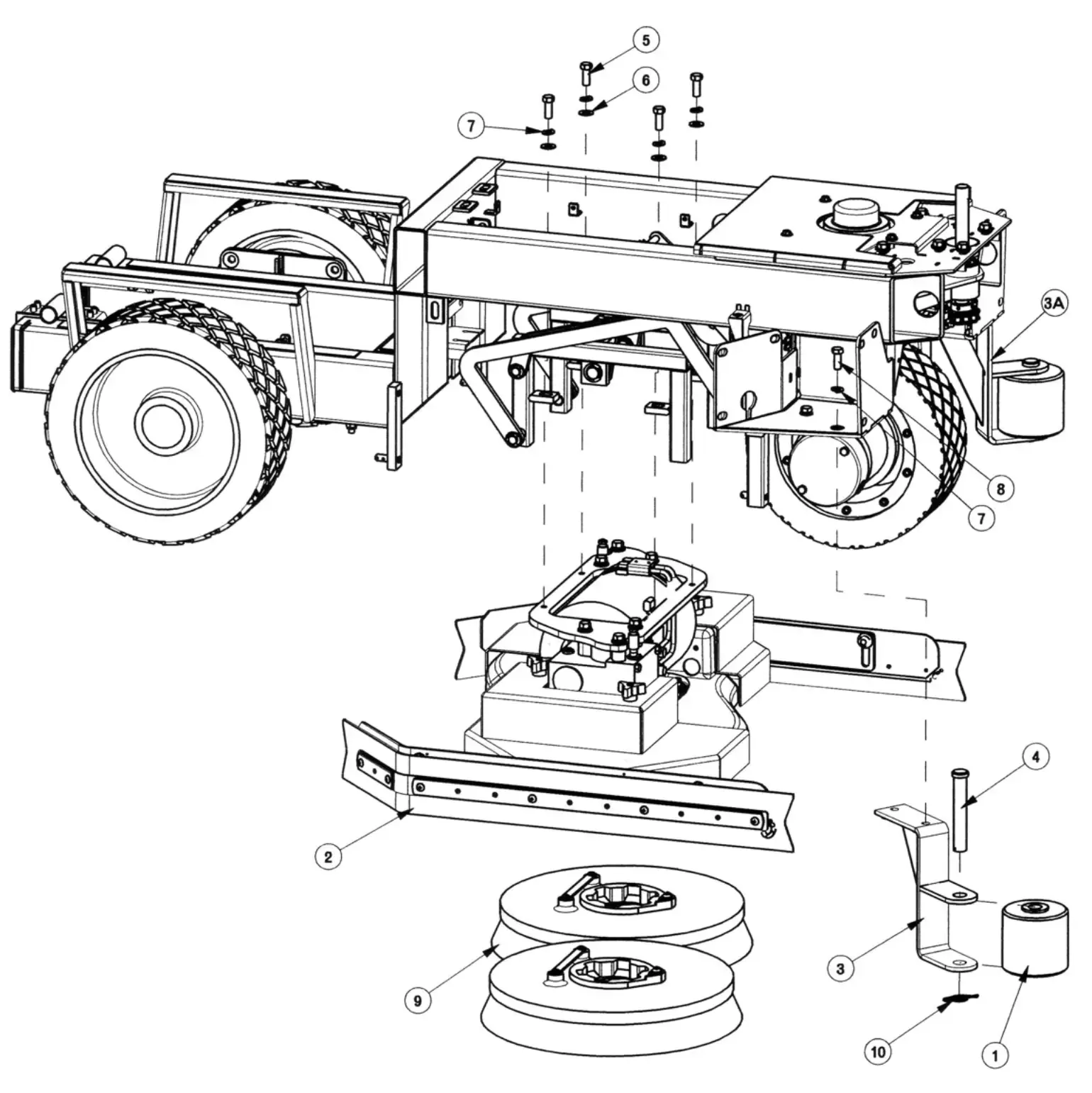

Minuteman E Ride 2832 Sport Disc scrub deck and roller bumper mounting, ER32DSQP parts
The 32 in deck with its roller bumper mounting, front rollers and brush options (model ER32DSQP). Manual pages 51, list 52.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM66-436-A | 2 | RUBBER ROLLERFits 1 of 2 versionsE Ride 32 in | $21.25/EA |
| 2 | MM281293S | 1 | DISK SCRUBDECK ASSY-SPORT, 32"NO BRUSHESFits 1 of 2 versionsE Ride 32 in | $4,874.03/EA |
| 3 | MM281976 | 1 | FRONT ROLLER MOUNT BRKT WMT, RH (32" ONLY)Fits 1 of 2 versionsE Ride 32 in | $85.86/EA |
| 3A | MM281971 | 1 | FRONT ROLLER MOUNT BRKT WMT, LH (32" ONLY)Fits 1 of 2 versionsE Ride 32 in | $104.61/EA |
| 4 | MM360017 | 2 | 3/4" X 4.50 CLEVIS PINFits 1 of 2 versionsE Ride 32 in | $5.92/EA |
| 5 | MM711242 | 10 | BLT-HEX 3/8 -16X1.00 ZPFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 6 | MM712301Replaces Minuteman 711515 | 13 | WSR-FLAT .406 X .812 X .0625Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 7 | MM711546 | 14 | WSR-HELICAL 3/8Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 8 | MM713042 | 4 | BLT-HH 3/8-16 X 1 #5Fits 1 of 2 versionsE Ride 32 in | $1.08/EA |
| 9 | MM3313136 | 2 | BRUSH SCRUB 16" PLASTIC NYLONFits 1 of 2 versionsE Ride 32 in | $272.44/EA |
| 9A | MM3313126 | 2 | POWER DRIVE 16" POWERGRIT 80 S/SFits 1 of 2 versionsE Ride 32 in | $470.31/EA |
| 9B | MM3313128 | 2 | POWER DRIVE 16" POWERGRIT 46 HDSFits 1 of 2 versionsE Ride 32 in | $470.31/EA |
| 9C | MM3313126Replaces Minuteman 3313132 | 2 | BRUSH SCRUB 16" PLAS WIREFits 1 of 2 versionsE Ride 32 in | $470.31/EA |
| 9D | MM3313134Minuteman 3313134 | 2 | BRUSH SCRUB 16" PLAS BUTCHWIREFits 1 of 2 versionsE Ride 32 in | Call to confirm part: 800-440-6723 |
| 9E | MM3315495 | 2 | BRUSH 16" PWR DRIVE W/PAD HLDR (STANDARD)Fits 1 of 2 versionsE Ride 32 in | $163.25/EA |
| 9F | MM3315385 | 2 | POWER DRIVE 16" POWERGRIT 120 AGSFits 1 of 2 versionsE Ride 32 in | $470.31/EA |
| 10 | MM3400661 | 2 | PIN-COTTER 5/8 RUE-RINGFits 1 of 2 versionsE Ride 32 in | $1.08/EA |
Minuteman E Ride 2832 Sport Wiring diagram part reference list
Minuteman's part reference list for wiring schematic 745083-1: motors, switches, breakers, controller, battery and harness numbers. Manual page 58.
No drawing for this list. Minuteman prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| M1 | MM742771-1 | VACUUM MOTORSchematic location 3:D-2. | $300.31/EA | ||
| M2 | MM748003 | BRUSH MOTOR DISKPrinted as "748003 or 748033". Schematic location 1:G-7. | $2,061.39/EA | ||
| M2 | MM748033 | BRUSH MOTOR DISKPrinted as "748003 or 748033". Schematic location 1:G-7. | $2,038.10/EA | ||
| M3 | MM748048 | BRUSH MOTOR CYLINDRICAL- RIGHTSchematic location 1:J-6. | $716.25/EA | ||
| M4 | MM748048 | BRUSH MOTOR CYLINDRICAL- LEFTSchematic location 1:J-7. | $716.25/EA | ||
| M5 | MM748009-1 | SQUEEGEE ACTUATORSchematic location 3:B-4. | $853.91/EA | ||
| M6 | MM740819-2 | BRUSH DECK ACTUATORSchematic location 3:B-11. | $741.31/EA | ||
| M7 | MM742709-3 | WATER PUMP ASSEMBLY(BRUSH DECK)Schematic location 2:H-3. | $455.01/EA | ||
| M8 | MM281400 | DRIVE MOTORSchematic location 1:D-6. | $3,301.73/EA | ||
| A1 | MM748400 | TRIO CONTROL UNIT- ERIDESchematic location 1:C-9. | $1,152.76/EA | ||
| – | MM748400-1Minuteman 748400-1 | TRIO PROGRAMSchematic location N/A. | Call to confirm part: 800-440-6723 | ||
| S2 | MM742927 | KEY SWITCHSchematic location 2:F-10. | $95.92/EA | ||
| S3 | MM748047 | HORN SWITCHSchematic location 2:I-11. | $37.72/EA | ||
| S4 | MM747027 | MODE SELECT SWITCHSchematic location 2:A-6. | $131.61/EA | ||
| S5 | – | Accelerator switch | Included in kitSpeed potentiometer · MM748013-1 › | ||
| S6 | MM748151 | DIRECTION SWITCHSchematic location 2:D-9. | $35.61/EA | ||
| S7 | MM742716 | OFF AISLE WAND SWITCH- OPTION 281900Schematic location 2:B-10. | $24.40/EA | ||
| S8 | MM281087-1 | SEAT SWITCHSchematic location 2:I-2. | $88.03/EA | ||
| S9 | MM748152 | DECK RAISE/LOWER SWITCHSchematic location 2:I-5. | $42.15/EA | ||
| S10 | MM742716 | HEAD LIGHT SWITCH- OPTION 281990Schematic location 2:B-13. | $24.40/EA | ||
| B1 | MM742708-4 | SOLUTION TANK EMPTY FLOAT SWITCHSchematic location 2:A-4. | $115.96/EA | ||
| CB1 | MM748012 | MAIN CIRCUIT BREAKER 100ASchematic location 1:E-5. | $111.95/EA | ||
| CB2 | MM742350 | CIRCUIT BREAKER 6ASchematic location 1:F13. | $27.01/EA | ||
| CB3 | MM740247 | CIRCUIT BREAKER 30A RIGHT CYLINDRICAL BRUSH MOTORSchematic location 1:F12. | $6.71/EA | ||
| CB4 | MM740247 | CIRCUIT BREAKER 30A LEFT CYLINDRICAL BRUSH MOTORSchematic location 1:F11. | $6.71/EA | ||
| H1 | MM748200 | HORN / BACKUP ALARMSchematic location 2:K-7. | $63.23/EA | ||
| H2 | MM748135-1 | WARNING BEACON ASSEMBLY- OPTION 281845Schematic location 2:E-13. | $185.96/EA | ||
| Y1 | MM748390 | WATER SOLENOID (BRUSH DECK)Schematic location 3:J-3. | $158.39/EA | ||
| HM1 | MM740539 | HOUR METERSchematic location 2:J-6. | $50.05/EA | ||
| BDI | MM747011 | BATTERY GAUGE, BDISchematic location 2:I-8. | $78.15/EA | ||
| G1 | MM956751Replaces Minuteman 956740 | BATTERY 6V 235Ah (FLOODED TYPE)Optional. Schematic location 1:G,J-2,3. i | $498.39/EA | ||
| G1 | MM956745 | BATTERY 12V 312Ah (AGM TYPE)Optional. Printed as OPTIONAL:G1. Schematic location 1:G,J-2,3. i | $824.31/EA | ||
| R1 | MM748013-1 | SPEED POTENTIOMETERSchematic location 3:K-3. Includes item S5. | $428.19/EA | ||
| R2 | MM747025 | WATER FLOW POTENTIOMETER ASSEMBLYSchematic location 3:C-14. | $71.44/EA | ||
| R3 | MM748269-1 | VARISTOR ASMSchematic location 1:C-10. | $6.83/EA | ||
| L1 | MM742704Minuteman 742704 | HEADLIGHT, RIGHT- OPTION 281990Schematic location 2:D-13. | Call to confirm part: 800-440-6723 | ||
| L2 | MM742704Minuteman 742704 | HEADLIGHT, LEFT- OPTION 281990Schematic location 2:C-13. | Call to confirm part: 800-440-6723 | ||
| X1 | MM748153 | TERMINAL BLOCKSchematic location 2:G-8. | $24.76/EA | ||
| X2 | MM90286238 | JUNCTION BLOCK- BRUSH MOTORSchematic location 2:G-10. | $24.71/EA | ||
| P2 | MM748190 | WIRE HARNESS TO TRIOSchematic location 3:J-13. | $67.97/EA | ||
| P3 | MM748191 | WIRE HARNESS TO TRIOSchematic location 2:F-4. | $99.59/EA | ||
| – | MM748138E | WIRE HARNESS, MAIN HARNESSSchematic location N/A. | $384.48/EA |
New to your Minuteman E Ride 2832 Sport? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your E Ride 2832 Sport. Everything here comes from Minuteman’s user manual, rewritten in plain steps, with the parts you need linked to the list above.
1Charge the batteries first
- Use the right charger for your battery type. Follow the charger maker’s and the battery maker’s instructions.
- Wear protective clothing and safety glasses, and take off metal jewelry. Do not smoke, and keep open flames and sparks away. Charging gives off explosive gas.
- Charge in a well-ventilated area with the battery cover removed completely. Minuteman recommends 235 Ah batteries (MM956751).
- Check the water level before and after charging. If it is low, add water until the metal plates are covered.
- Turn the charger off before you disconnect it.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 7, 11 and 36. SES ref PF-DGJU-X2HN
2Check it before every run
- Look around and under the machine for leaks. Hoses, lines and tanks must be free of leaks and damage.
- Check the rear squeegee blade (MM90494139) and the side squeegees for wear and damage.
- Check that the steering works properly.
- Empty and clean the recovery tank if it needs it. Fill the solution tank and add a low-foaming cleaning agent made for automatic machines.
- Do not leave cleaning solution in the machine when it is not in use.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 7 and 36. SES ref PF-DGJU-X2HN
3Start up and scrub
- Disconnect the charger and connect the battery connector. Turn the key switch from 0 to 1. The battery gauge shows the charge left.
- Pick one of the five modes with the mode selector knob. Set forward or reverse with the directional switch.
- Press the accelerator pedal. The mode you picked decides which functions run.
- Drive forward in a straight line and overlap each pass by 2 to 3 in (5 to 8 cm). Start moving right after the brush deck switches on, or the brushes leave marks on the floor.
- If you pressed the pedal before the key was on, the machine will not move. Take your foot off, turn the machine off and on, then press the pedal again.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 36 and 37. SES ref PF-DGJU-X2HN
4Finish up and store it
- Select transport mode. All cleaning functions shut off. Move the machine to a suitable site.
- Empty and clean the solution tank and the recovery tank. Follow local rules for disposing of detergents.
- Remove and clean the vac shoes, check the fluid levels and clean the machine. Do not clean the electrical parts with high-pressure cleaning equipment.
- Check the maintenance schedule, do any maintenance that is due, then charge the batteries.
- Store it indoors in a clean, dry place that does not freeze. Leave the tank lids open. Turn the key switch off and remove the key.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), page 38. SES ref PF-DGJU-X2HN
Questions about your E Ride 2832 Sport? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Minuteman E Ride 2832 Sport troubleshooting
Problems, likely causes and fixes from Minuteman's troubleshooting pages. Turn the key switch off and disconnect the battery connector before any work.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Rotate or replace the blades. The rear blade (MM90494139) has four usable edges. | |
| Squeegee out of adjustment | Adjust it so the blades touch the floor evenly across the entire width. | |
| Recovery tank full | Empty the recovery tank. | |
| Poor scrubbing performance | ||
| Worn brushes | Rotate or replace the brushes (MM3315494 / MM3315495). | |
| Low battery charge | Recharge the batteries. | |
| Inadequate solution flow or no solution to the floor | ||
| Solution tank empty | Fill the solution tank. | |
| Solution lines, valves, filter or spray jets clogged | Flush the lines, and clean the solution filter (MM97113377) and the spray jets. | |
| Solution solenoid valve | Clean or replace the solenoid valve (MM748390). Call SES service if you need help. | |
| Machine does not run | ||
| Operator seat safety switch | The operator has to be seated. Check for an open circuit in the seat switch (MM281087-1). Call SES service. | |
| Tripped 100 amp circuit breaker | Check for an electrical short circuit: call SES service. Then reset the breaker (MM748012), turn the key switch off and restart. | |
| Vacuum motor does not turn on | ||
| Excessive foaming in the recovery tank | Empty the recovery tank. Use less chemical or change it, or use a defoaming agent. | |
| Solution tank empty indicator light on | ||
| Faulty float switch | Replace the float switch (MM742708-4). | |
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 30, 48 and 49. SES ref PF-2J72-J6BC
Still stuck? SES services Minuteman machines. Call 800-440-6723 and have your model and serial number ready.
Minuteman E Ride 2832 Sport maintenance schedule
Minuteman's maintenance schedule, in the order the user manual gives it. The 125, 250 and 500-hour jobs are for an authorized Minuteman service center.
| Task | How often | Part |
|---|---|---|
| Check and clean the tanks and hoses. | Daily | |
| Charge the batteries. | Daily | |
| Check, clean and rotate the brushes or pads. | Daily | |
| Check and clean the squeegee, including the rear blade (MM90494139). | Daily | |
| Check and clean the vacuum shut-off float (MM241060) and the vacuum motor filter (MM281055). | Daily | |
| Cylindrical decks only: clean the hopper. | Daily | |
| Check the water level in each battery cell. | Weekly | |
| Inspect the scrub housing skirts. | Weekly | |
| Inspect and clean the solution filter (MM97113377). | Weekly | |
| Check the foot and parking brake for wear and adjustment. | Weekly | |
| Cylindrical decks only: clean the spray jets. | Weekly | |
| Flush the solution system to remove chemical build-up. Flush once with the spray jets removed and once with them installed. Use 1 quart (0.95 L) of white vinegar in 2 gallons (7.6 L) of clean warm water, then rinse with warm water. | Monthly | |
| Grease the fittings until grease seeps out around the bearings. Grease points: rear squeegee caster wheel axle and stem (2 each), side squeegee caster wheel axle and stem (2 each), and the steering wheel chain sprockets and idlers. | Monthly | |
| Oil the rear squeegee and side squeegee pivot points, the scrub deck linkages and the drive wheel assembly seals with lubricant or light machine oil. | Monthly | |
| Do not clean the spray jets with needles or wire. | Monthly | |
| These jobs are for an authorized Minuteman service center. Call SES service: 800-440-6723. | Every 125 hours | |
| Check the battery charger. | Every 125 hours | |
| Check the recovery tank lid seal (lid gasket (MM281358)) and the drain hose (MM200289). Replace them if required. | Every 125 hours | |
| Grease the joints at the brush lift mechanism. | Every 125 hours | |
| Check the wheel fixing screws and tighten them to 24 lb ft (33 N·m) if required. Check the condition of the tires. | Every 125 hours | |
| Test drive and function test. | Every 125 hours | |
| Do everything in the 125-hour service. | Every 250 hours | |
| Check the steering for damage and bearing slackness. Replace parts if required. | Every 250 hours | |
| Check the roller bumper of the brush deck. Replace it if required. | Every 250 hours | |
| Check the suction hose for tight fit and damage. Replace it if required. | Every 250 hours | |
| Safety check by an authorized Minuteman service center, at least once a year. | Every 500 hours | |
| Do the work in the 250-hour service. | Every 500 hours | |
| Clean the traction drive motor and the brush motors of carbon dust. Check their carbon brushes and replace them if required. | Every 500 hours | |
| Have Minuteman check the vacuum motor carbon brushes after 300 operating hours or once a year. | Every 500 hours | |
| Test drive and function test. | Every 500 hours |
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 40, 42, 43, 44 and 45. SES ref PF-7MVO-XKJK
Minuteman E Ride 2832 Sport specifications
From Minuteman's parts manual and user manual.
| Model numbers | 28 in deck: ER28DS, ER28DSQP, ER28DSQPG, ER28DSQPT, ER28DSPLUS. 32 in deck: ER32DS, ER32DSQP, ER32DSQPG, ER32DSQPT, ER32DSPLUS |
|---|---|
| Scrub deck | Disc, 28 in or 32 in |
| Brushes | Two per deck: 14 in (36 cm) on the 28 in deck, 16 in (41 cm) on the 32 in deck |
| Brush speed | SPORT key position I: 200 rpm, II: 300 rpm, III: 400 rpm, nominal |
| Voltage, batteries | 36 volts, six 6-volt batteries |
| Battery capacity | 235 Ah recommended, 395 Ah optional |
| Current | 60 amps |
| Solution flow | Variable up to 1 gpm (3.8 L/min) |
| Sound level | 75 dB |
| Dimensions (L × W × H) | 66 × 31 × 54 in (167.64 × 78.74 × 137 cm) |
| Weight | 1,243 lb (564 kg) with batteries, 847 lb (384 kg) without |
| Working grade, transport | 10% (7°) |
| Wheel to floor pressure | 64 psi front, 69 psi rear |
Sources: Minuteman E Ride 28/32 Scrubber Sport Parts Manual, form 988739S (Rev * 03/16), pages 2, 43, 46 and 52; Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 2, 11, 17 and 33. SES ref PF-RUNV-TATI
Minuteman E Ride 2832 Sport manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the E Ride 2832 Sport manuals in your browser, with clickable part numbers. No sign-in needed.
- E Ride 2832 Sport operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESE Ride 2832 Sport parts manualParts manual with drawings, parts lists and wiring key, 60 pages | E Ride 28 in and 32 in disc deck models | Rev * 03/16 (this page) | 4.2 MB | Sign in to view or downloadSign in to download |
| PDFby SESE Ride 28/32 SPORT user manualOperation, maintenance and troubleshooting, 56 pages | E Ride 28/32 SPORT, disc and cylindrical decks | Rev * 05/14 | 1.6 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Minuteman E Ride 2832 Sport parts questions
How do I change the rear squeegee blade on the Minuteman E Ride 2832 Sport?
Unlatch the rear latch and slide the two rear straps off the assembly. Then flip the blade over to use a new edge. The rear blade has four usable edges. Replace it with a new rear blade when the edges are worn.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 30 and 31. SES ref PF-S6II-A7DY
What do the SPORT key positions on the E Ride 2832 Sport do?
They set the brush speed: position I is 200 rpm, II is 300 rpm and III is 400 rpm, nominal. You need the key in to pick a new position. The setting stays when you remove the key.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), page 33. SES ref PF-S6II-A7DY
How do I stop scrubbing on the E Ride 2832 Sport?
Select transport mode. It stops the solution flow, raises the scrub deck and turns off the vacuum motor after a 20-second delay.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), page 38. SES ref PF-S6II-A7DY
Why won’t my E Ride 2832 Sport move?
The operator must be sitting on the seat, because the pedal is interlocked with the seat switch. If you pressed the pedal before the key was on, take your foot off, turn the machine off and on, then press the pedal.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 21, 37 and 49. SES ref PF-S6II-A7DY
How often does the E Ride 2832 Sport need a Minuteman service center?
Minuteman lists service at 125, 250 and 500 hours. The 500-hour job is a safety check done at least once a year. SES services Minuteman machines: call 800-440-6723.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 40, 44 and 45. SES ref PF-S6II-A7DY
What batteries does the E Ride 2832 Sport use?
Six 6-volt batteries wired for 36 volts. Minuteman recommends 235 Ah batteries. It does not recommend mixing Amp Hour capacities.
Source: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), pages 11 and 22. SES ref PF-S6II-A7DY
Can I use the E Ride 2832 Sport on a ramp?
Minuteman says it is designed for level operation only and not to be used on ramps or inclines. The parts manual lists a working grade for transport of 10% (7°).
Sources: Minuteman E Ride 28/32 SPORT User Manual, form 988739UMS (Rev * 05/14), page 10; Minuteman E Ride 28/32 Scrubber Sport Parts Manual, form 988739S (Rev * 03/16), page 2. SES ref PF-S6II-A7DY
Notes on this parts list
Places where Minuteman's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Battery capacity differs. The parts manual (page 2) prints 275 Ah. The user manual (pages 2, 11 and 22) prints 235 Ah and recommends Minuteman P.N. 956740. The wiring list prints 956740 as a 6V 235Ah flooded battery and 956745 as an optional 12V 312Ah AGM battery.
- The two manuals list different model numbers. The parts manual has ER28DSQPT and no ER28DSQPGT, ER32DSPLUSIW or ER32DSQPIW. The user manual has those three and no ER28DSQPT.
- Page 45 prints the six lines of the 28 in deck assembly (page 43) again above the deck base list, under the heading 28129S-2. This page lists them once, in the deck assembly section.
- The Main Assembly III list (page 9) has an item 32 (281459, crank pivot shaft) with no callout on the drawing (page 8). The solution tank list (page 23) skips item numbers 34 to 37 and 40. The pump list (page 36) has items 1 and 35 with no callout on the drawing (page 35).
- Main Assembly VI item 9 (snubbing washer, 281211) is printed as not shown. Main Assembly V item 2 is printed with a note not to use reference 2 for warranty purposes and to see page 17 for sub-assemblies.
- Rear squeegee list item 3 (172539) is printed as NLA with 'see notes', but the page prints no notes. Isolator pad 241748 is printed 'use 830557'. Circuit breaker list item 10 (830557) is printed with a quantity of 1.67 and no unit.
- The plumbing diagram (page 53) shows a solution tank assembly number that matches no list line, solenoid valve 742718-1 and pump 742709-2. The parts lists show 281012MS, 748390 and 742709-6, and the wiring list shows pump 742709-3. The diagram has no parts list and is not a section on this page.
- The wiring list prints the TRIO control unit as 748400 (A1). The electrical panel list (page 26) prints the controller as 748721. The wiring list prints the disc brush motor as 748003 or 748033 (M2). The deck lists print 748424 (28 in) and 748425 (32 in).
- The wiring list includes cylindrical deck parts (brush motors 748048, breakers 740247) that have no drawing or list in this manual. The accelerator switch (S5) is printed as 'part of 748013-1' with no number of its own.
- The user manual asks for the serial number from the 'nameplate, section 1.7', but its section 1.7 is the steering wheel and it does not say where the nameplate is. It also says (page 7) to avoid sudden stops on ramps and to drive up when cleaning ramps, while page 10 says not to operate on ramps or inclines.
- Descriptions are copied as Minuteman prints them, including its spacing and abbreviations (for example WSR, SCR, BLT and a washer line ending in a period).
