| Vacuum Motor | (2) 1-5/8 hp |
| Power Draw | 13.8 amps |
| Shipping Dimensions & Weight | 24 in head: 12 in x 16.5 in x 44 in, 42 lb |
| 32 in head: 12 in x 16.5 in x 44 in, 56 lb | |
| 40 in head: 12 in x 16.5 in x 44 in, 66 lb | |
| Body | 21.5 in x 31.5 in x 47 in, 84 lb |
| Part Number | 22 in head: 100-100-004 |
| 24 in head: 100-100-001 | |
| 32 in head: 100-100-002 | |
| 37 in head: 100-100-005 | |
| 40 in head: 100-100-003 |
Technical specs may include optional equipment that is not included with all units.

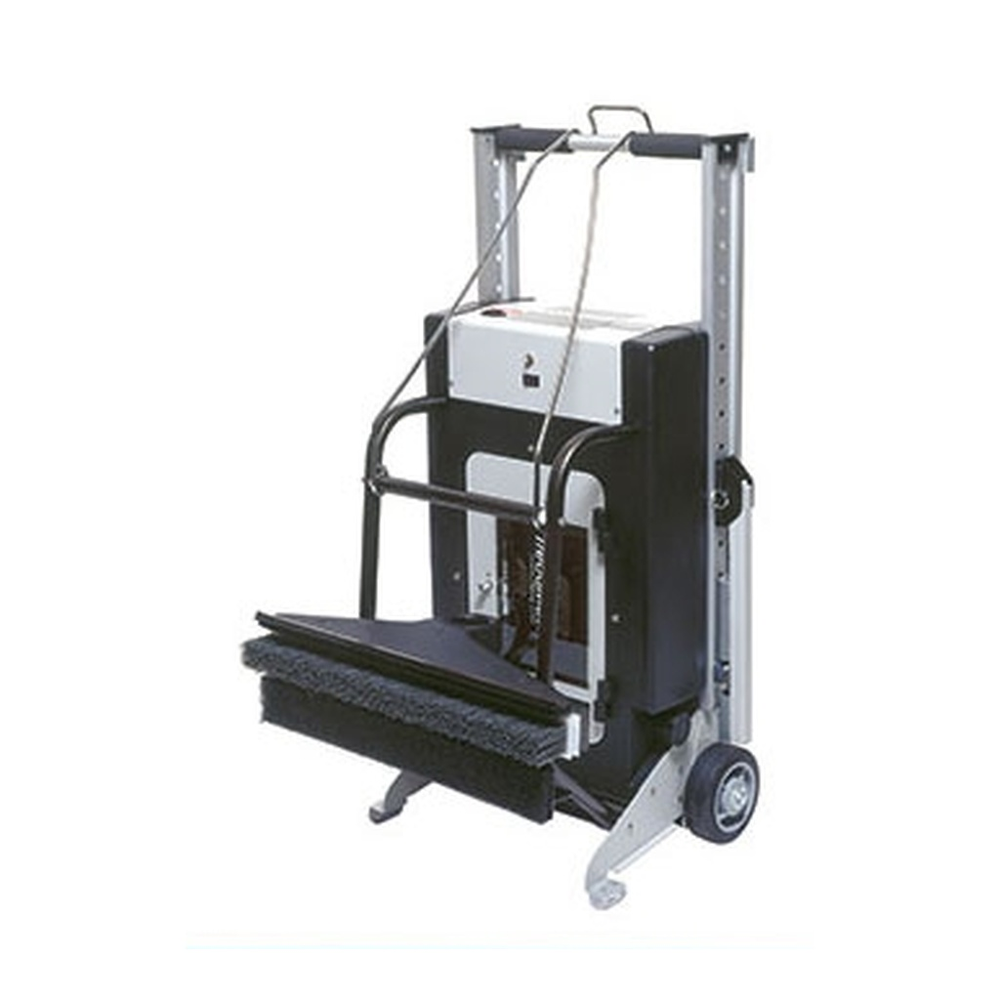

Reconditioned U.S. Products Escalator Cleaner
Our Take (from the SES Sales Team)
“The TreadMaster is a self-contained escalator and moving walkway cleaner that escalator manufacturers have recommended for decades. It cleans and polishes treads in one continuous pass while two powerful vacuum motors collect the residue, which saves a lot of labor compared with hand cleaning. It suits malls, airports, transit stations and office towers. Our technicians recondition each unit before it ships.”
Automatic cleaning for escalators and moving walkways
The U.S. Products TreadMaster is a self-contained, dry escalator and moving walkway cleaner. It sits at the landing with its cleaning head lowered into the treads. A weighted head with a nylon grit brush works down into the tread grooves to loosen soil, a vacuum nozzle pulls the debris into a cloth bag in the housing, and a polishing pad finishes the top of each tread. Once it is set, the escalator does the moving and the machine cleans step after step.
U.S. Products built it for airports, hotels, malls, schools, hospitals, factories, shops and offices. The same housing takes any of the five standard head sizes, from 22 to 40 in, and the clip-on “Escalator Cleaning in Progress” sign keeps riders off while it works.
Condition: Reconditioned. See how we recondition equipment.
What you get
How the TreadMaster cleans
Choosing a head
TreadMaster head sizes
| Head size | Head dimensions (W x L x H) | Head weight |
|---|---|---|
| 22 in | 7 x 22 x 10 in (18 x 56 x 25 cm) | 58 lb (26 kg) |
| 24 in | 7 x 24 x 10 in (18 x 61 x 25 cm) | 58 lb (26 kg) |
| 32 in | 7 x 32 x 10 in (18 x 81 x 25 cm) | 69 lb (31 kg) |
| 37 in | 7 x 37 x 10 in (18 x 94 x 25 cm) | 80 lb (36 kg) |
| 40 in | 7 x 40 x 10 in (18 x 102 x 25 cm) | 80 lb (36 kg) |
The head has to match the width of your escalator steps. U.S. Products notes that the 22 in head fits most escalators, and custom heads can be built for other step widths. Send us your step width and we will confirm the fit.
Features
Set it up, start the escalator, let it work
- ✓Uses 98% less labor than conventional methods
- ✓Cleans and polishes in one continuous motion
- ✓Powerful vacuum collects all residue
- ✓Brings back the original luster
- ✓Cleans escalators and moving walkways effortlessly without needing staff supervision
- ✓Restraining arms brace against the balustrades to hold the unit in place
- ✓Leveling knob and depth knobs set the head for proper tread contact
- ✓Storage compartment for the power cord, vacuum hose and warning sign
- ✓Quiet-ride wheels and crevice tool for hard-to-reach areas
Specifications
U.S. Products TreadMaster at a glance
| Models | U.S. Products TreadMaster |
|---|---|
| Vacuum motors | (2) 1-5/8 hp |
| Power | 120 V AC, 50/60 Hz; 12 A, 1,440 W |
| Housing dimensions (W x L x H) | 21.5 x 31.5 x 47 in (55 x 80 x 119 cm) |
| Housing weight | 84 lb (38 kg) |
| Head sizes | 22, 24, 32, 37 and 40 in |
| Head weight | 58 to 80 lb (26 to 36 kg), by size |
| Cleaning method | Dry: nylon grit brush, vacuum and polishing pad |
| Debris collection | Cloth vacuum bag |
| Housing | Rotomolded polyethylene, UL-94V2 rated |
| Frame | Extruded aluminum |
| Wheels | Two non-marking rubber |
| Part Number | 22 in head: 100-100-004 |
| Model Numbers | TREADMASTER |
Technical specs may include optional equipment that is not included with all units.
Questions
TreadMaster: common questions
How is it set up?
With the escalator stopped, roll the TreadMaster to the landing, center it between the handrails, lower the cleaning head into the tread and lay the unit flat. Lock the restraining arms against the balustrades, level the head, connect the vacuum hose and start the escalator.
Top or bottom of the escalator?
It can run from either end, but U.S. Products prefers the bottom. Always place it so the steps are moving away from the unit.
Does it use water or chemicals?
No. It is a dry system: brush, vacuum and polishing pad. U.S. Products sells an aerosol tread spot cleaner for aluminum steps that can be used while the TreadMaster runs.
Can it clean painted escalators?
Yes. Swap the nylon grit brush for the soft brush made for painted escalators. Soft brushes come in sizes to match each head.
Not sure the TreadMaster fits your escalators?
Tell our team your step width, how many escalators and walkways you have and how often they need cleaning, and we will help you decide if this is the right machine.
