| Spec | T500e 28 in (700 mm) disk |
|---|---|
| Cleaning path | 28 in (700 mm) disk |
| Productivity, theoretical max | 38,503 sq ft/hr (3,577 m²/h) |
| Estimated coverage, conventional | 27,857 sq ft/hr (2,588 m²/h) |
| Estimated coverage, ec-H2O NanoClean™ | 29,601 sq ft/hr (2,750 m²/h) |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Brush / pad speed | 220 rpm |
| Brush down pressure | 70.5 lb (32 kg) / 120 lb (54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 26.9 gal (102 L) |
| Vacuum motor | 24 VDC, 0.46 hp (0.34 kW) |
| Vacuum water lift | 34 in (864 mm) |
| Cleaning technology | Conventional standard; ec-H2O NanoClean™ optional |
| System voltage | 24 V |
| Batteries | 4 required: wet 210 Ah or sealed AGM 180 Ah |
| Run time | Up to 4.3 hr (wet 210 Ah) |
| Smart-Fill™ tank capacity (option) | 0.66 gal (2.5 L) |
| Charger | On-board or off-board |
| Scrubbing / transport speed | 3.1 mph (5.0 km/h) / 3.4 mph (5.5 km/h) |
| Squeegee width | 41.3 in (1,049 mm) |
| Length x width x height | 59.1 x 29.5 x 43.3 in (1,501 x 750 x 1,100 mm) |
| Aisle turnaround width | 59.6 in (1,514 mm) |
| Weight, without / with batteries | 331 lb (150 kg) / 620 lb (281 kg) |
| Gross vehicle weight | 809 lb (367 kg) |
| Sound level at operator’s ear | 67.4 dBA |
| Model numbers | Not listed in sources |
Specifications from Tennant. Technical specs may include optional equipment that is not included with all units.

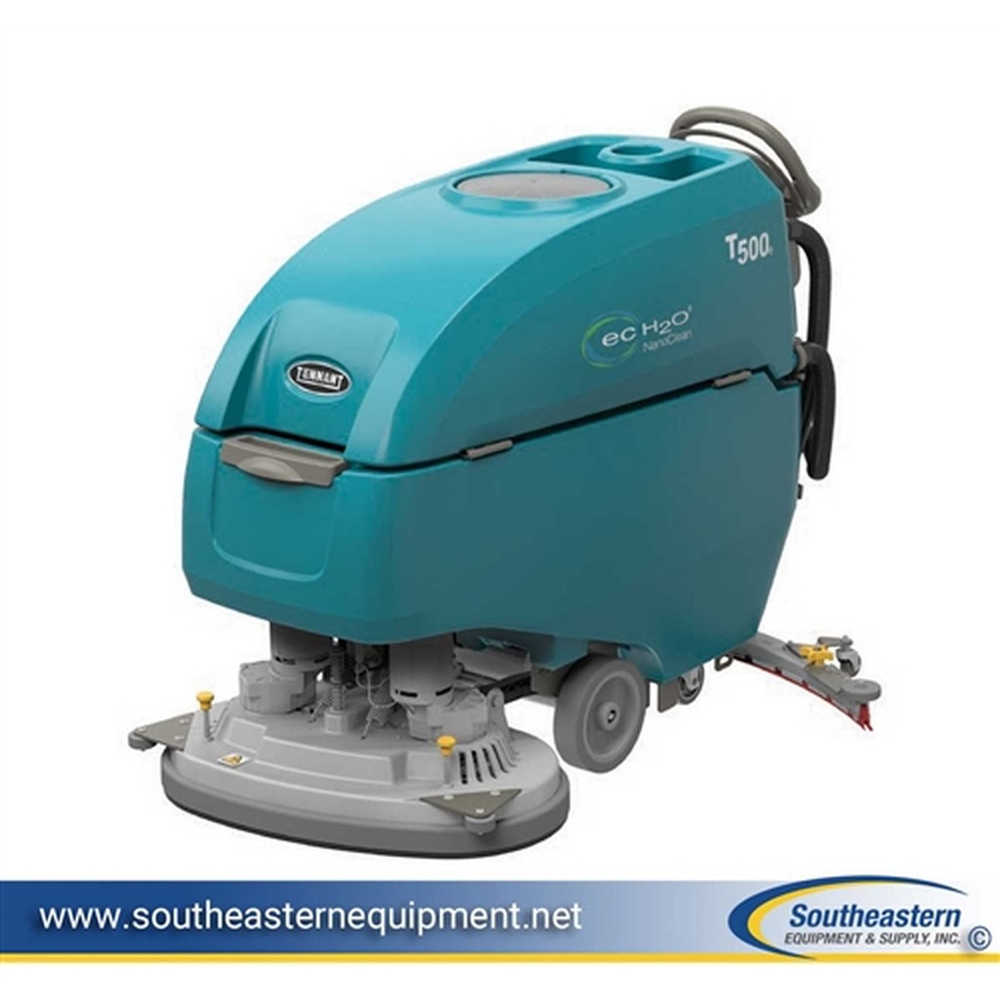

Demo Tennant T500e 28" Disk Traction Drive Floor Scrubber (Lithium Ion)
Our Take (from the SES Sales Team)
The T500e is a solid choice when a building has outgrown a 20-inch scrubber but still has hallways, doorways and aisles that a rider can't handle well. With 22.5 gallons of solution and a 27-gallon recovery tank, an operator can work a long school corridor, a grocery sales floor or a hospital wing without constant trips to the drain. It drives itself, and the controls are simple enough for rotating night crews.
A 28 in disk walk-behind scrubber-dryer for mid-sized hard floors
The Tennant T500e is a mid-sized, battery-powered walk-behind scrubber-dryer for indoor hard floors such as retail aisles, schools and warehouses. This unit has the 28 in (700 mm) disk head. Two 24 VDC scrub motors drive the disk at 220 rpm. It has a 22.5 gal (85 L) solution tank, a 26.9 gal (102 L) recovery tank and a 41.3 in squeegee. Tennant estimates conventional coverage at 27,857 sq ft/hr (2,588 m²/h).
What you get
Configured for everyday scrubbing
Smart-Fill™ automatic battery watering
Features
Built for routine daily cleaning
- ✓Easy-empty recovery tank simplifies maintenance and cleaning
- ✓Integrated P-trap prevents water drips after cleaning
- ✓Yellow touch points mark service points, which simplifies maintenance and operator training
- ✓Works with an on-board or off-board charger
- ✓Conventional cleaning is standard, and ec-H2O NanoClean™ is an option
Questions
Tennant T500e 28 in disk: common questions
How long does the T500e run on a charge?
Tennant rates the 28 in disk T500e at up to 4.3 hours on four wet 210 Ah batteries. Actual run time depends on the batteries installed, the down pressure used and how the machine is operated.
Will it fit through our aisles and doorways?
The machine is 29.5 in (750 mm) wide and 59.1 in (1,501 mm) long. Tennant lists an aisle turnaround width of 59.6 in (1,514 mm). Keep in mind that the squeegee is 41.3 in (1,049 mm) wide.
How much floor can it cover in an hour?
Tennant estimates 27,857 sq ft/hr (2,588 m²/h) with conventional cleaning and 29,601 sq ft/hr (2,750 m²/h) with ec-H2O NanoClean™. The theoretical maximum is 38,503 sq ft/hr (3,577 m²/h). Real coverage depends on the floor layout, overlap and how often tanks are emptied.
Can this unit strip floor finish without chemicals?
Tennant offers chemical-free finish removal through the separate 28 in (700 mm) orbital head option. This unit has the disk head, which is built for routine scrubbing.
What batteries does it use?
The 24 V system takes four batteries, either wet 210 Ah or sealed AGM 180 Ah. Smart-Fill™ automatic watering is available for wet batteries. Check the unit details to see which batteries and charger come with this machine.
Not sure the T500e fits your floors?
Call 800-440-6723 and tell us about the floor, the building and the shift. We will tell you if this is the right machine. Service and warranty help
