| Models | Tennant T500e 26 in Disk, Lithium-Ion (T500E26D-LI) |
| Cleaning Path | 26 in (650 mm), dual disk |
| Productivity, Theoretical Max | 28,600 sq ft/hr |
| Estimated Coverage, Conventional | 20,571 sq ft/hr |
| Scrub Motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Brush Speed | 220 rpm |
| Brush Down Pressure | 65 lb (29.5 kg) low; 120 lb (54.5 kg) high |
| Solution Tank | 22.5 gal (85 L) |
| Recovery Tank | 27 gal (102 L) |
| Vacuum Motor | 24 VDC, 0.46 hp (0.34 kW) |
| Vacuum Water Lift | 34 in (864 mm) |
| System Voltage | 24 V |
| Charger | On-board or off-board |
| Propulsion | Traction drive (self-propelled) |
| Scrubbing Speed | Up to 2.5 mph (4.0 km/h) |
| Transport Speed | Up to 2.7 mph (4.3 km/h) |
| Length | 58.5 in (1,486 mm) |
| Width | 27.5 in (700 mm) |
| Height | 43.3 in (1,100 mm) |
| Squeegee Width | 38.3 in (973 mm) |
| Aisle Turnaround Width | 59 in (1,499 mm) |
| Weight | 320 lb (145 kg) without batteries |
| Sound Level | 67.4 dBA |
| Model Numbers | Tennant T500e, T500E26D-LI (26 in disk, lithium-ion) |
Technical specs may include optional equipment that is not included with all units.

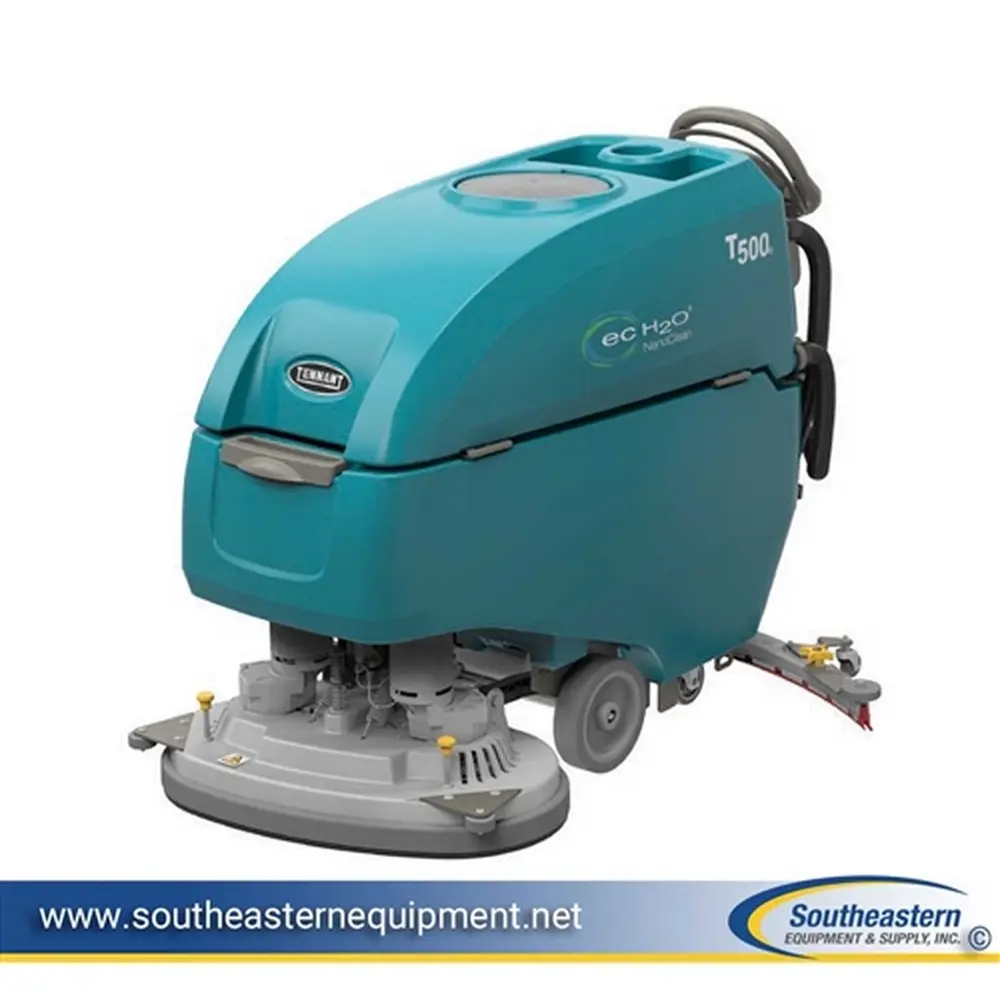

Demo Tennant T500e 26" Disk Traction Drive Floor Scrubber (Lithium Ion)
Our Take (from the SES Sales Team)
“The T500e is the size of walk-behind a lot of buildings end up needing: big enough to work a school hallway, a grocery aisle or a hospital corridor without constant trips to the dump sink, and still easy for one person to handle. This unit has the 26 in dual-disk deck, the narrowest of the T500e disk heads, so at 27.5 in wide it slips through doorways and between fixtures that a 28 in or 32 in machine has to work around. You get 22.5 gal of solution and 27 gal of recovery, and the traction drive does the pushing, so the operator steers instead of shoving the machine down the hall. It is set up with lithium-ion batteries, which means no battery watering and no acid spills to deal with. Tennant also got the little things right: Insta-Fit pad and brush changes, a foot-operated squeegee lift, a front fill port and an integrated p-trap that keeps the machine from dripping after the job. If your floors are smooth tile, VCT or sealed concrete and you clean a mid-sized space every day, this is a strong fit.”
A mid-sized, traction-drive walk-behind with a compact 26 in deck
The Tennant T500e is a battery-powered walk-behind floor scrubber for schools, healthcare, retail, offices and other mid-sized indoor floors. This unit has the 26 in dual-disk scrub head, with 220 rpm brushes and 65 lb or 120 lb of down pressure, plus a 22.5 gal solution tank and a 27 gal recovery tank. Tennant rates the 26 in disk model at up to 28,600 sq ft per hour theoretical productivity.
The traction drive propels the machine at up to 2.5 mph while scrubbing and 2.7 mph in transport, and this configuration runs on a 24 V lithium-ion battery system.
Condition: Demo. Inspected by SES technicians.
What you get
Configured for everyday cleaning
Lithium-ion: less battery upkeep
Features
Built to make daily cleaning easier
- ✓26 in dual-disk scrub head with two down pressure settings, 65 lb and 120 lb
- ✓Insta-Fit and gimbal-mount heads for quick pad and brush installation
- ✓Foot-activated squeegee lift and an integrated p-trap to improve water pick-up and prevent drips
- ✓Propel direction switch and speed settings within easy reach of the operator
- ✓Accessible front fill port and easy-clean tanks
- ✓Yellow touch points mark common daily maintenance areas to simplify training
Choosing a size
26 in, 28 in or 32 in disk?
| 26 in disk (this unit) | 28 in disk | 32 in disk | |
|---|---|---|---|
| Theoretical productivity | 28,600 sq ft/hr | 30,800 sq ft/hr | 35,200 sq ft/hr |
| Machine width | 27.5 in | 29.5 in | 33.5 in |
| Squeegee width | 38.3 in | 41.3 in | 46.6 in |
| Aisle turnaround | 59 in | 59.6 in | 61.6 in |
| Weight without batteries | 320 lb | 330 lb | 355 lb |
The 26 in deck gives up a little coverage for the narrowest body and squeegee in the T500e disk lineup, which helps in doorways, restrooms and stocked aisles.
Specifications
Tennant T500e 26 in disk at a glance
| Spec | T500e 26 in disk, lithium-ion |
|---|---|
| Cleaning path | 26 in (650 mm), dual disk |
| Brush speed | 220 rpm |
| Brush down pressure | 65 lb (29.5 kg) low; 120 lb (54.5 kg) high |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 28,600 sq ft per hour |
| Estimated coverage, conventional | 20,571 sq ft per hour |
| Length x width x height | 58.5 x 27.5 x 43.3 in (1,486 x 700 x 1,100 mm) |
| Sound level | 67.4 dBA |
| Model numbers | Tennant T500e, T500E26D-LI (26 in disk, lithium-ion) |
Specifications from Tennant. Technical specs may include optional equipment that is not included with all units.
