| Integrated Cleaning System | |
| Cleaning path | 40 in |
| With scrubbing side brush | 54 in |
| With sweeping side brush | 56 in |
| Cylindrical main brushes | |
| Brush speed | 480 rpm |
| Brush down pressure (up to) | 390 lb |
| Brush diameter (2) | 12 in |
| Side brush | |
| Brush speed | 150 rpm |
| Scrubbing brush diameter | 16 in |
| Sweeping brush diameter | 21 in |
| Tanks | |
| Solution tank | 56 gal |
| Solution capacity with ES | 74 gal |
| Recovery tank | 73 gal |
| Demisting chamber | 16 gal |
| Debris hopper | |
| Volume capacity | 3.9 ft3 |
| Weight capacity | 390 lb |
| Dump height (variable to) | 60 in |
| Vacuum fans | |
| Scrubbing fan speed | 11,000 rpm |
| Scrubbing fan water lift | 35 in |
| Sweeping fan speed | 6,500 rpm |
| Sweeping fan airflow | 290 cfm |
| Dust Control System | |
| Filter system | Syntetic fiber panel |
| Filter area | 78 ft2 |
| Dust filtration (to) | 3 microns |
| Shaker mechanism (automatic) | Timed, beater bar |
| Propelling System | |
| Propel system forward (variable to) | 8.0 mph |
| Propel speed reverse (variable to) | 3.0 mph |
| Engine-gasoline/LPG (1.6 L) | 55 hp |
| Gradeability | |
| Transport at gross weight | 10.0 deg/18% |
| Working (cleaning) | 8.0 deg/14% |
| Ground clearance (transport) | 3 in |
| Machine Dimensions | |
| Length | 95 in |
| Width | |
| Frame | 50 in |
| Rear squeegee | 51 in |
| With side brush | 58 in |
| Height | 58 in |
| With overhead guard | 83.5 in |
| Weight (empty) | 3,300 lb |
| Minimum aisle turn | 110 in |
Technical specs may include optional equipment that is not included with all units.

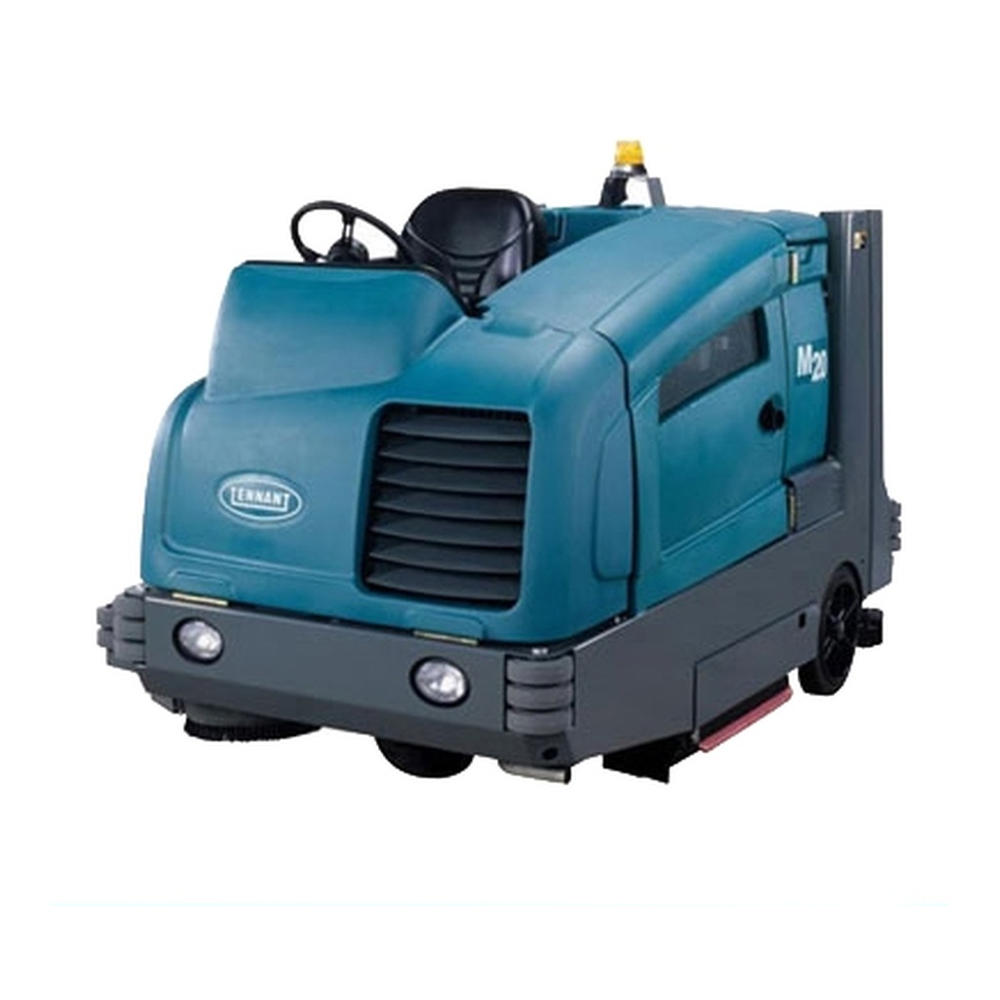

Reconditioned Tennant M20 Gas Sweeper Scrubber
Our Take (from the SES Sales Team)
“The M20 is an industrial rider that sweeps and scrubs in one pass, so a warehouse or plant floor gets cleaned wet or dry without running two machines. It covers a 40 in path (up to 56 in with a side brush), carries 56 gallons of solution and 73 gallons of recovery, and has a high-dump hopper that holds 3.9 ft³ of debris. This is the gasoline version. Our technicians recondition each unit before it ships.”
The M20 improves productivity by sweeping, scrubbing or doing both at once, and provides health and safety benefits. It is easy to operate and maintain, and quickly improves your facility's image by cleaning in a single pass, wet or dry.
Condition: Reconditioned. See how we recondition equipment.
Features
- ✓Hygenic(r) Tanks with Variable Drain Valves-Allow M20 users to quickly and easily access, inspect, and sanitize the recovery and solution tanks.
- ✓Variable Drain Valves - control the flow of both solution and recovered water to empty tanks without the traditional fuss and mess.
- ✓EasyOpen service access reduces maintenance costs and service time
- ✓Touch-N-Go control panel with 1-STEP buttons reduces training time and simplifies operations.
- ✓The Tennant M20 allows for superior cleaning results in just one pass, wet or dry, with FloorSmart.
- ✓The M20 scrubber-sweeper offers a low total cost of ownership from rugged, fully integrated industrial design with fewer moving parts.
- ✓FloorSmart-A patent-pending integrated scrubbing and sweeping system with a high-capacity, high-dump hopper with dry dust control delivers superior cleaning results and reduced component wear on the M20.
- ✓MaxProHydraulic Technology-Provides consistent power to the brush drive motors to deliver superior scrubbing and sweeping results.
- ✓Tennant's Dura-Track Parabolic Squeegee-Designed with high tensile strength steel to maintain its original structure without bending under pressure combined with the patented SmartRelease breakaway system delivers best in class performance.
Tennant M20
Specifications
| Models | Tennant M20 |
| Cleaning path | 40 in |
| Brush speed | 480 rpm |
| Brush down pressure (up to) | 390 lb |
| Solution tank | 56 gal |
| Solution capacity with ES | 74 gal |
| Recovery tank | 73 gal |
| Weight capacity | 390 lb |
| Dump height (variable to) | 60 in |
| Scrubbing fan water lift | 35 in |
| Sweeping fan airflow | 290 cfm |
| Model Numbers | M20G |
Technical specs may include optional equipment that is not included with all units.
Talk it through with us
Not sure this is the right machine for your floors, building and shifts? Our equipment specialists can help you compare options. Call or chat with our team before you order.
