- Machine Dimensions Length 120.0 in 3050 mm Width 70 in 1780 mm
- Turning radius (left) 85 in 2160 mm
- Minimum aisle turn (left) 135 in 3430 mm
- Propelling System Engine Gasoline/LP GMC 3.0 liter 83 hp 61.9 kW Diesel Caterpillar 3.3 liter 63 hp 47 kW 63 hp 47 kW
- Gradeability Full hopper 8.5 deg/15% 8.5 deg/15%
- Ground clearance 6 in 150 mm
- Propel speed Forward (variable to) 10.0 mph 16.1 km/h
- Reverse (variable to) 4.5 mph 7.2 km/h
- Sweeping System Cleaning Path 66 in 1675 mm
- Main brush length 50 in 1270 mm
- Main brush lift Hydraulic
- Hydraulic Side brush diameter 26 in 650 mm
- Hopper volume capacity 30 ft3 850 L
- Hopper dump height 72 in 1830 mm
- Tennant Value-Added Equipment Includes:
- II-Speed? cleaning system
- Timed filter shaker
- Thermo-sentry?
- T-beam frame super-structure
- Steel-channel wraparound bumper
- Industrial radiator/debris screen
- Triple, heavy duty accessory pumps
- Retractable sidebrush
- Power steering
- Servo-assist adjustable foot pedal
- Optional Equipment
- Severe environment version
- Audio-visual backup alarm
- Heavy-duty bumpers
- Stainless steel hopper bottom
- Vacuum wand
- Enclosed cab
- Overhead guard
- Left-hand sidebrush
Technical specs may include optional equipment that is not included with all units.

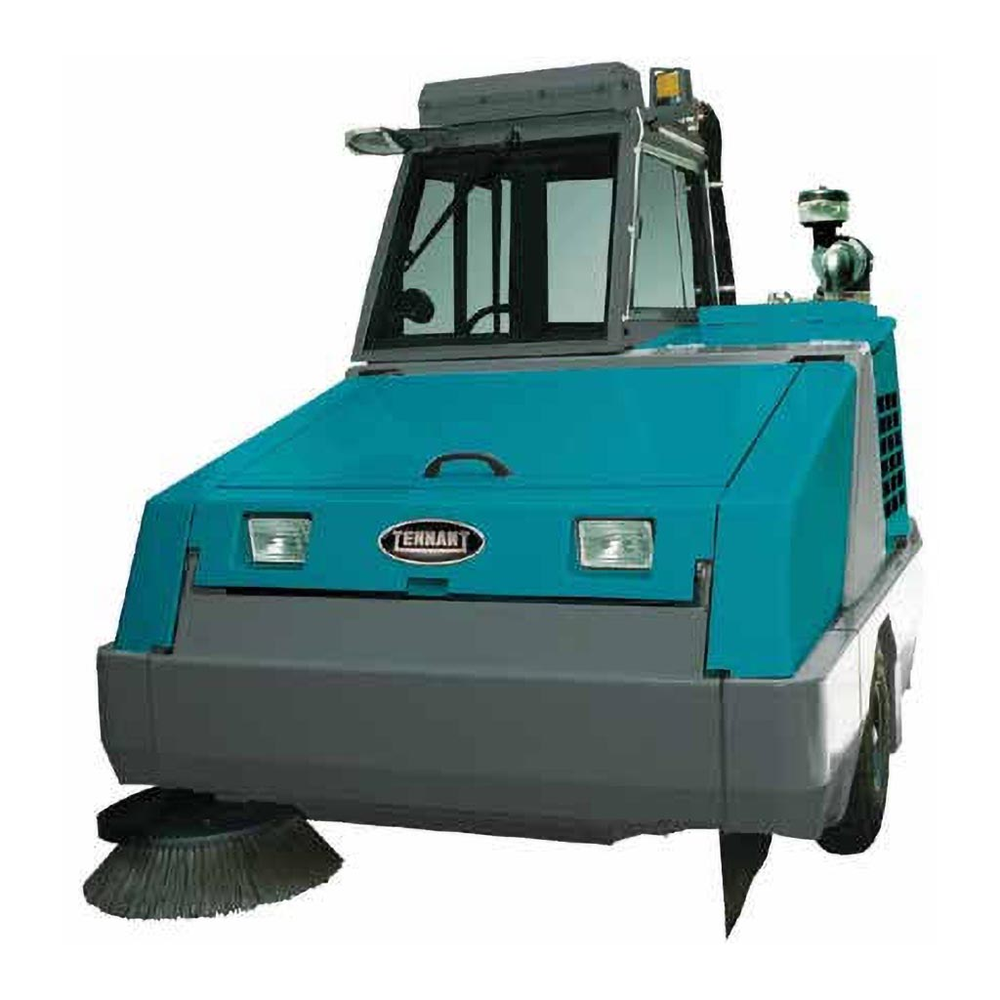

Reconditioned Tennant 800 Diesel Sweeper with Cab
Our Take (from the SES Sales Team)
“The Tennant 800 is a large industrial rider sweeper for steel mills, foundries, paper plants, distribution centers and other sites with heavy debris and big floor areas. Its 66 inch path and 30 cubic foot hopper keep trips to the dump site down, and the multi-level dump empties straight into dumpsters.
The enclosed cab on this unit keeps the operator out of the dust and weather, which matters on long shifts or partly outdoor routes. When comparing sweepers this size, look at hopper capacity, dump height, filtration and fuel type for where it will run. Our technicians recondition each unit before it ships.”
A large industrial diesel rider sweeper with enclosed cab.
The Tennant Model 800 is a large industrial diesel rider sweeper with a 66 in sweeping path and a 50 in main brush. This unit is fitted with an enclosed cab; Tennant offered air conditioning and heat as cab options.
Its 30 ft³ hopper holds up to 2,000 lb of debris and dumps from ground level up to 72 in. It is built on a steel frame with a T-beam superstructure and wraparound steel bumpers.
Condition: Reconditioned. See how we recondition equipment.
Features
- ✓Steel frame with T-beam superstructure and wraparound steel bumpers
- ✓30 ft³ multi-level dump hopper holds up to 2,000 lb and dumps up to 72 in high
- ✓Quad filter system for dust control
- ✓Thermo-Sentry senses heat in the hopper and stops airflow
- ✓Retractable side brush; main brush changes without tools
- ✓Enclosed cab protects the operator
- ✓Power steering, tilt wheel and adjustable drive pedal
Tennant 800
Specifications
| Models | Tennant 800 |
| Cleaning path | 66 in (1,680 mm) single side brush; 82 in (2,100 mm) dual side brushes |
| Hopper volume | 30 ft³ (850 L) |
| Dump height | Ground to 72 in (1,830 mm), multi-level |
| Productivity | Up to 200,000 ft²/hr (18,580 m²/hr) |
| Model Numbers | 800 (diesel, with cab) |
Technical specs may include optional equipment that is not included with all units.
