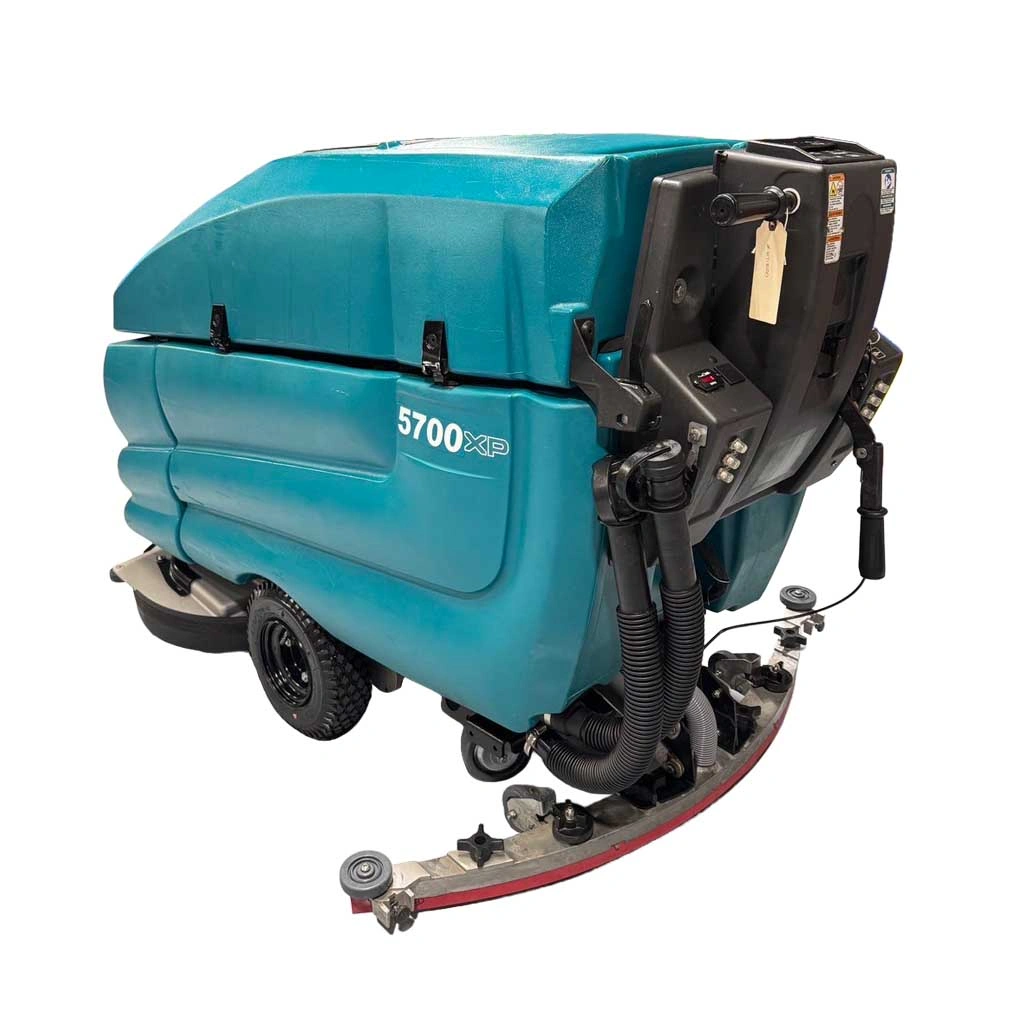

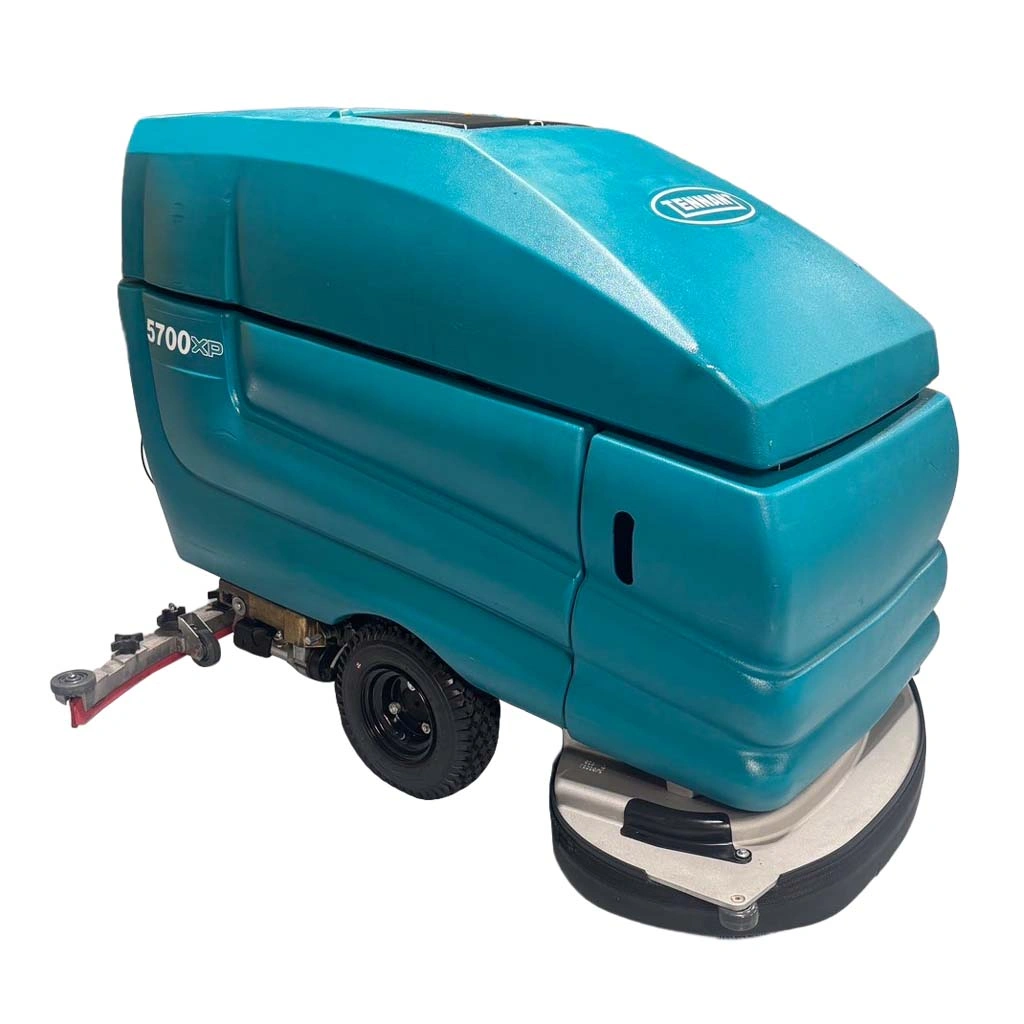

Reconditioned Tennant 5700XP Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
“The Tennant 5700XP is a heavy walk-behind scrubber built for warehouses, manufacturing floors and large retail back rooms where a smaller 24 V machine would run out of tank or down pressure. The main decisions are deck type and width. Disk decks handle general scrubbing and pad work, while a cylindrical deck sweeps light debris as it scrubs, which helps on grout lines and dirty industrial floors.
Path width is a tradeoff between coverage and how tight your aisles and doorways are, so measure before you choose. With a 30 gallon solution tank and 36 V power, it is meant for long runs between dump and fill. Our technicians recondition each unit before it ships.”
A heavy-duty 36 V walk-behind scrubber for large industrial floors.
The Tennant 5700XP is Tennant's industrial-grade 36 V battery walk-behind scrubber. It was built in 28, 32 and 36 in cleaning paths with either disk or cylindrical scrub heads, and the heads change without tools.
It carries a 30 gal (114 L) solution tank and a recovery tank that holds 30 gal to the full sensor (40 gal to the top). Deck type, width and battery options are chosen on this page and can change.
Condition: Reconditioned. See how we recondition equipment.
Configured to order
Features
- ✓Disk or cylindrical scrub head, changed without tools
- ✓28, 32 or 36 in cleaning path
- ✓30 gal solution tank and up to 40 gal recovery tank
- ✓Up to 300 lb down pressure on the 32 in heavy-duty disk deck
- ✓Optional FaST foam scrubbing, ec-H2O or ES solution recycling
- ✓Height-adjustable console and breakaway squeegee
Tennant 5700XP
Specifications
| Models | Tennant 5700XP |
| Cleaning path | 28, 32 or 36 in (700, 800 or 900 mm) |
| Scrub head | Disk (2 brushes) or cylindrical (6 in / 150 mm diameter) |
| Brush speed | Disk 320 rpm (300 rpm heavy duty); cylindrical 750 rpm |
| Brush/pad pressure | Disk up to 200 lb (91 kg), up to 300 lb (136 kg) on 32 in heavy-duty disk; cylindrical up to 90 lb (41 kg) |
| Solution tank | 30 gal (114 L) |
| Recovery tank | 30 gal (114 L) to full sensor; 40 gal (152 L) to top of tank |
| Productivity, theoretical max | 33,320 / 38,080 / 42,840 ft²/hr (3,095 / 3,540 / 3,980 m²/hr) for 28 / 32 / 36 in |
| Estimated coverage | 20,800 / 24,000 / 27,200 ft²/hr (1,930 / 2,230 / 2,530 m²/hr) for 28 / 32 / 36 in |
| Vacuum | 0.85 hp (0.63 kW) fan; 73 in (1,854 mm) sealed water lift |
| Propel motor | 0.50 hp (0.37 kW) |
| System voltage | 36 V |
| Width with squeegee | 37.5 / 42 / 45.5 in (950 / 1,070 / 1,160 mm) for 28 / 32 / 36 in |
| Height | 43 in (1,090 mm) |
| Max climb angle | 8° empty tanks; 6° full tanks |
| Sound level | 75 dBA at operator position |
| Model Numbers | 5700XP |
Technical specs may include optional equipment that is not included with all units.
Talk it through with us
Not sure this is the right machine for your floors, building and shifts? Our equipment specialists can help you compare options. Call or chat with our team before you order.
