| Models | XR 46" Cylindrical |
| Cleaning Path | 46 in |
| Brushes | (2) cylindrical, 44 x 7 in |
| Brush Speed | 750 rpm |
| Brush Motors | (2) 1.5 hp |
| Brush Down Pressure | 0-350 lb; 5 settings with auto adjust |
| Solution Tank | 68 gal |
| Recovery Tank | 68 gal |
| Solution Flow | 0-1.5 gpm, inline stainless filter |
| Vacuum | 1.6 hp, twin vacuum motors; 68 in water lift, 140 cfm |
| Demisting Chamber | 2.5 gal |
| Battery System | 36 V; six 325 Ah batteries standard |
| Run Time | Up to 6 hr |
| Charger | 36 V / 36 A automatic, 110 V / 60 Hz |
| Drive | 3.0 hp, all gear, sealed |
| Productivity | Up to 49,680 sq ft/hr |
| U-Turn | 76 in |
| Sound Level | 71 dBA |
| Size (L x W x H) | 69 x 36 x 56 in |
| Weight | 1,230 lb without batteries; 1,950 lb with batteries |
| Wheels | Drive wheel 12 x 4 in; rear 14 x 5 in |
| Model Numbers | 370-46C |
Technical specs may include optional equipment that is not included with all units.

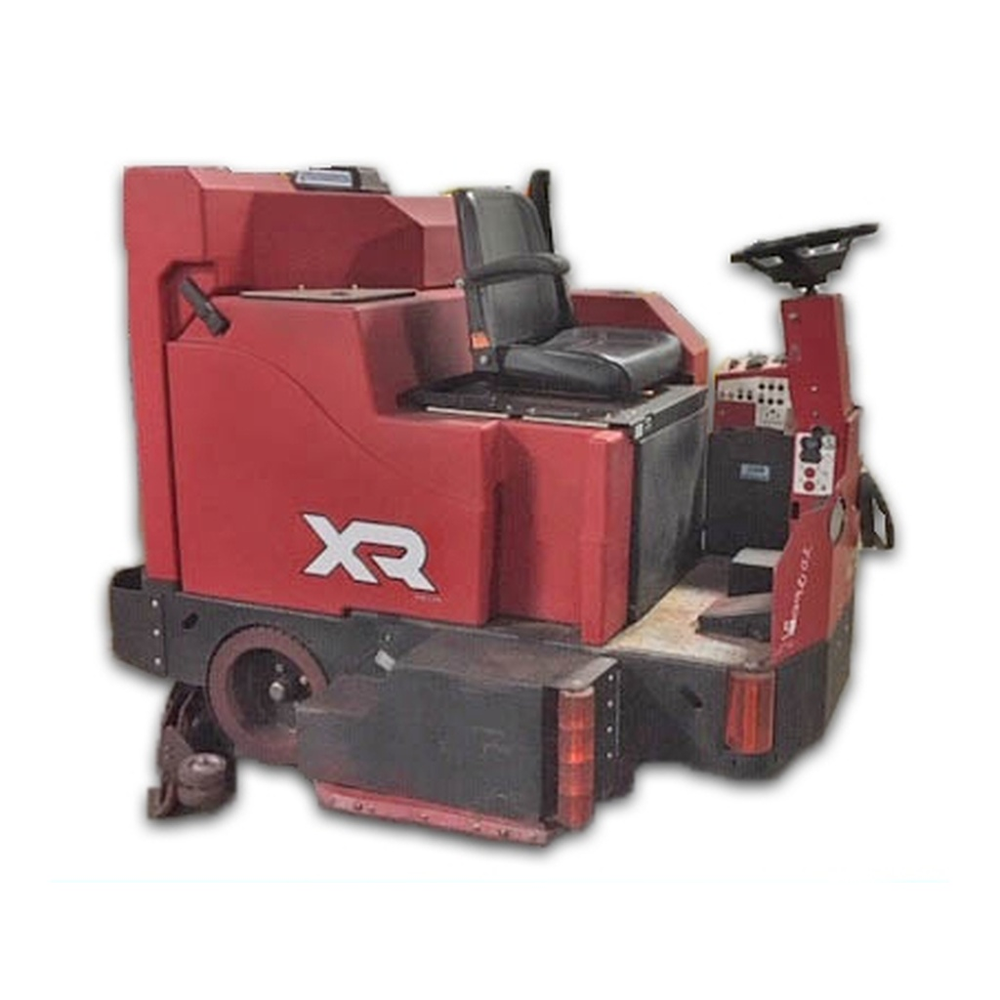

Reconditioned Factory Cat XR 46" Cylindrical Rider Floor Scrubber
Our Take (from the SES Sales Team)
“The XR is the large rider in the Factory Cat lineup, sized for distribution centers, sports arenas and aviation facilities. This one has the 46-inch cylindrical deck: two 44-inch brushes on 1.5 hp motors at 750 rpm that scrub and sweep light debris in a single pass, with up to 350 lb of down pressure behind them.
What stands out is capacity. The tanks hold 68 gallons each, the 36-volt system runs six 325 Ah batteries for up to 6 hours, and twin vacuum motors pull 140 cfm. The frame is 7-gauge steel, powder painted, with tall polyurethane rollers and stainless fasteners, and the tanks tip for access to the vacuum motors, filters, pump and valves.
The trade-off is size: it is 69 inches long, 36 wide and 1,950 lb with batteries, and needs 76 inches to U-turn, so it belongs on open floors rather than narrow aisles. For tighter spaces, look at the Factory Cat GTX-HD 29. This listing is a reconditioned unit.”
A 46-inch cylindrical rider scrubber with 68-gallon tanks.
The Factory Cat XR 46C is a 36-volt ride-on scrubber with a 46-inch cylindrical scrub deck, and this listing is a reconditioned unit. Two 44 x 7 in brushes, each on a 1.5 hp motor, turn at 750 rpm with up to 350 lb of down pressure and five automatic pressure settings, scrubbing and sweeping light debris in one pass. A 1.6 hp twin-motor vacuum rated at 68 in of water lift and 140 cfm recovers the water.
The XR holds 68 gal of solution and 68 gal of recovery, with a 2.5 gal demisting chamber and solution flow up to 1.5 gpm. Six 325 Ah batteries give up to 6 hours of run time and charge from a 36 V, 36 A automatic charger. A 3.0 hp all-gear drive moves the machine, which measures 69 x 36 x 56 in and weighs 1,950 lb with batteries.
Features:
- 46 in cylindrical deck scrubs and sweeps light debris in one pass
- 68 gal solution and 68 gal recovery tanks
- Up to 6 hours of run time on six 325 Ah batteries
- Up to 350 lb down pressure with five automatic settings
- Tanks tip for access to vacuum motors, filters, pump and valves
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
