| Models | Timberline S20 Disk Pad Assist |
| Cleaning path | 20 in (51 cm) disk |
| Brush/pad diameter | 20 in (51 cm) |
| Brush drive system | Pad assist |
| Scrub motor | 0.75 hp (559 W) |
| Brush speed | 180 rpm |
| Downpressure | 60 lb |
| Squeegee width | 33 in (84 cm) |
| Solution tank | 12 gal (45 L) |
| Recovery tank | 15 gal (57 L) |
| Solution flow | 0-0.5 gpm (0-1.9 L/min) |
| Solution filter | Stainless inline |
| Vacuum motor | 0.8 hp (640 W), 3-stage |
| Vacuum water lift | 50 in (127 cm) |
| Vacuum airflow | 45 cfm |
| Productivity, theoretical | 15,748 sq ft/hr |
| Productivity, practical | 7,308 sq ft/hr |
| Recommended area | Under 25,000 sq ft |
| Sound level | 71 dBA |
| Voltage | 24 VDC |
| Charger | 120 VAC, 60 Hz input; 24 VDC, 8 A output |
| Front wheels | (2) 8 x 2 in, non-marking gray |
| Rear casters | (2) 2.5 x 1.38 in, non-marking gray |
| Chassis | 3/16 in (4.8 mm) powder-coated steel |
| Tank material | 5/16 in (7.9 mm) poly |
| Dimensions (L x W x H) | 49.5 x 22.5 x 38 in* |
| Model Numbers | Timberline S20 Disk Pad Assist, model number TS20PA |
*S-Series dimensions per Timberline, measured with the largest deck fitted and the squeegee removed.
Technical specs may include optional equipment that is not included with all units.

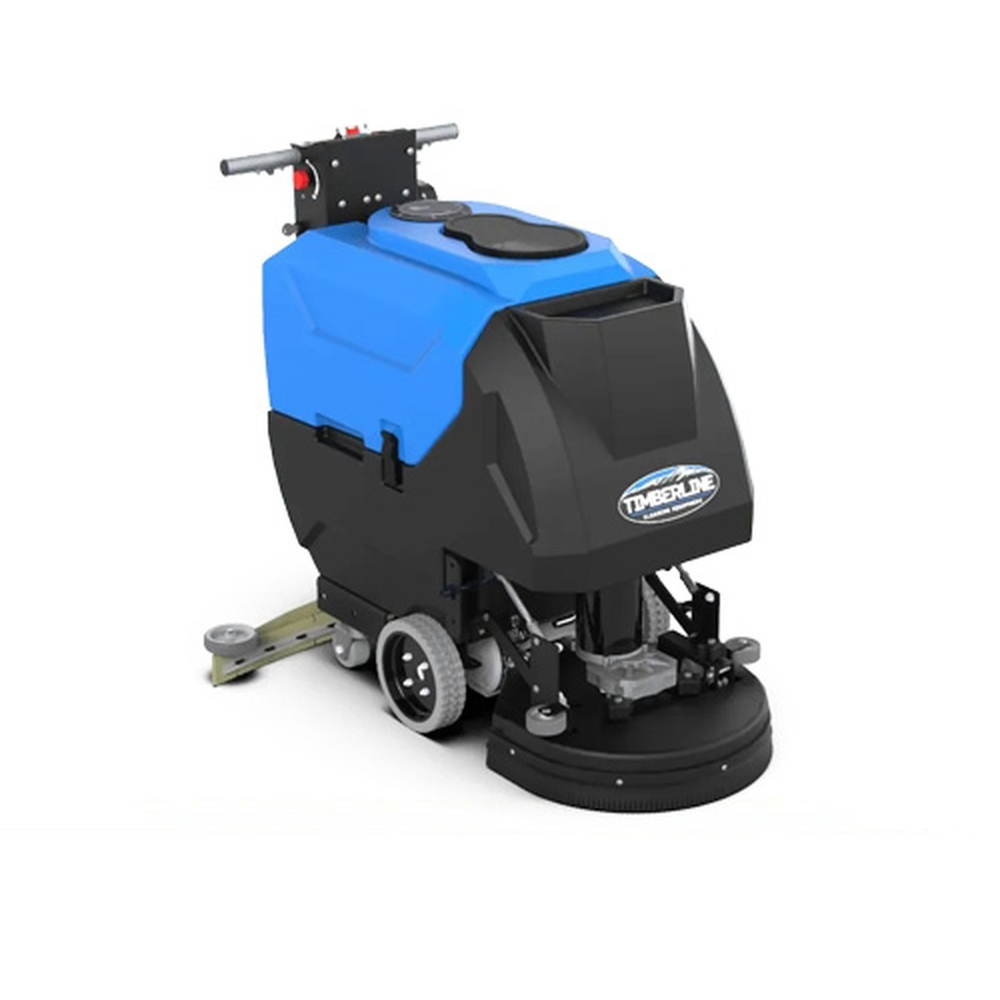

Demo Timberline S20 Disk Pad Assist Floor Scrubber
Our Take (from the SES Sales Team)
“If you want an affordable cleaning machine that you can rely on, we recommend the Timberline S series of floor scrubbers. Clean in hard-to-reach areas with this small-footprint walk behind machine. Applications like convenience stores, auto and truck dealers and fitness centers love machines that are easy to maneuver around valuable merchandise, vehicles and equipment. And you can tailor the scrubber to your exact needs with your choice of a disk, grout, or orbital scrub decks. A wide variety of battery/charger options and brush options further enhance the ability to clean more productively. All Timberline products are proudly assembled in Racine, Wisconsin by hand with over 95% of American sourced suppliers.”
A compact 20 in disk scrubber for tight floor plans
The Timberline S20 Disk Pad Assist is a small-footprint, battery-powered walk-behind floor scrubber for spaces where a bigger machine gets in the way: auto shops and showrooms, school locker rooms and convenience stores. Timberline sizes it for areas under 25,000 sq ft and rates it at 15,748 sq ft per hour theoretical productivity.
A single 20 in disk brush scrubs while a 33 in squeegee and a 0.8 hp, 3-stage vacuum motor with 50 in of water lift pick up the water. The 12 gal solution and 15 gal recovery tanks are 5/16 in poly on a 3/16 in powder-coated steel chassis, and it works on concrete, epoxy, grout and VCT.
Condition: Demo. Inspected by SES technicians.
What you get
Built simple, sized for small spaces
Pad assist: the brush does part of the work
Features
Easy to run, easy to keep running
- ✓Small footprint for cleaning hard-to-reach and congested areas
- ✓Suitable for concrete, epoxy, grout and VCT floors
- ✓20 in disk-style brush installs and removes without tools
- ✓Squeegee blades rotate or flip without tools for more use per blade
- ✓24 V system with a 120 V charger (24 VDC, 8 A output)
- ✓Non-marking gray front wheels and rear casters
Choosing a drive
Pad assist or traction drive?
| Pad assist (this unit) | Traction drive S20 Disk | |
|---|---|---|
| Drive | Brush drive helps move the machine; operator guides it | 0.5 hp sealed, all-gear traction motor |
| Deck | 20 in disk, 0.75 hp, 180 rpm | 20 in disk, 0.75 hp, 180 rpm |
| Squeegee and tanks | 33 in squeegee, 12 / 15 gal | 33 in squeegee, 12 / 15 gal |
| Fewer parts to service | Yes, no traction motor | Adds a traction motor |
Specifications
Timberline S20 Disk Pad Assist at a glance
| Spec | S20 Disk Pad Assist |
|---|---|
| Cleaning path | 20 in (51 cm) disk |
| Scrub motor | 0.75 hp (559 W) |
| Brush speed | 180 rpm |
| Downpressure | 60 lb |
| Squeegee width | 33 in (84 cm) |
| Solution / recovery tanks | 12 gal (45 L) / 15 gal (57 L) |
| Vacuum motor | 0.8 hp (640 W), 3-stage |
| Vacuum water lift | 50 in (127 cm), 45 cfm |
| Sound level | 71 dBA |
| Model numbers | Timberline TS20PA (S20 Disk Pad Assist) |
Specifications from Timberline (RPS Corporation). Technical specs may include optional equipment that is not included with all units.
Demo unit details
Not sure the S20 fits your floors?
Call 800-440-6723 and tell us about the floor, the space and how often you clean. We will tell you if this is the right machine. Service and warranty help
