| Construction | |
| Frame | 1/8" in Steel |
| Front wheels | (1) 10 x 3 in |
| Rear wheels | (2) 14 x 5 in |
| Dimensions (LxWxH) | 64 x 37 x 55 |
| Weight without batteries | 850 lbs |
| Weight with batteries | 1350 lbs |
| Sweeping System | |
| Sweeping method | Direct throw |
| Broom (length x diameter) | 32 x 10 in |
| Broom power/speed | 1.0 hp/440 rpm |
| Side broom size | (1) 17" in |
| Side broom power | (1) 0.3 hp |
| Side broom speed | 100 rpm |
| Hopper capacity | 4.2 cubic ft |
| Battery System | |
| Battery run time | 4 to 7 hours |
| Charger (110v/60 Hz, auto) | 25-40 amp |
| Filtering System | |
| Filtering material | Polymer Felt |
| Filter rating | 1 micron |
| Size | 5,182 sq. inches |
| Vacuum rating | 270 cfm |
| Drive System | |
| Drive power | 1.0 or 1.5 hp |
| Speed control | 0 to 4 mph |
| Productivity | |
| Cleaning width | 46 in |
| Cleaning rate | 60,568 ft2/hr |
| General | |
| Sound level | 68 dBA |
| Standard equipment | Headlight, horn, auto parking brake |
| Optional equipment | Strobe, back-up alarm, overhead guard, battery packs, non-marking tires |
Technical specs may include optional equipment that is not included with all units.

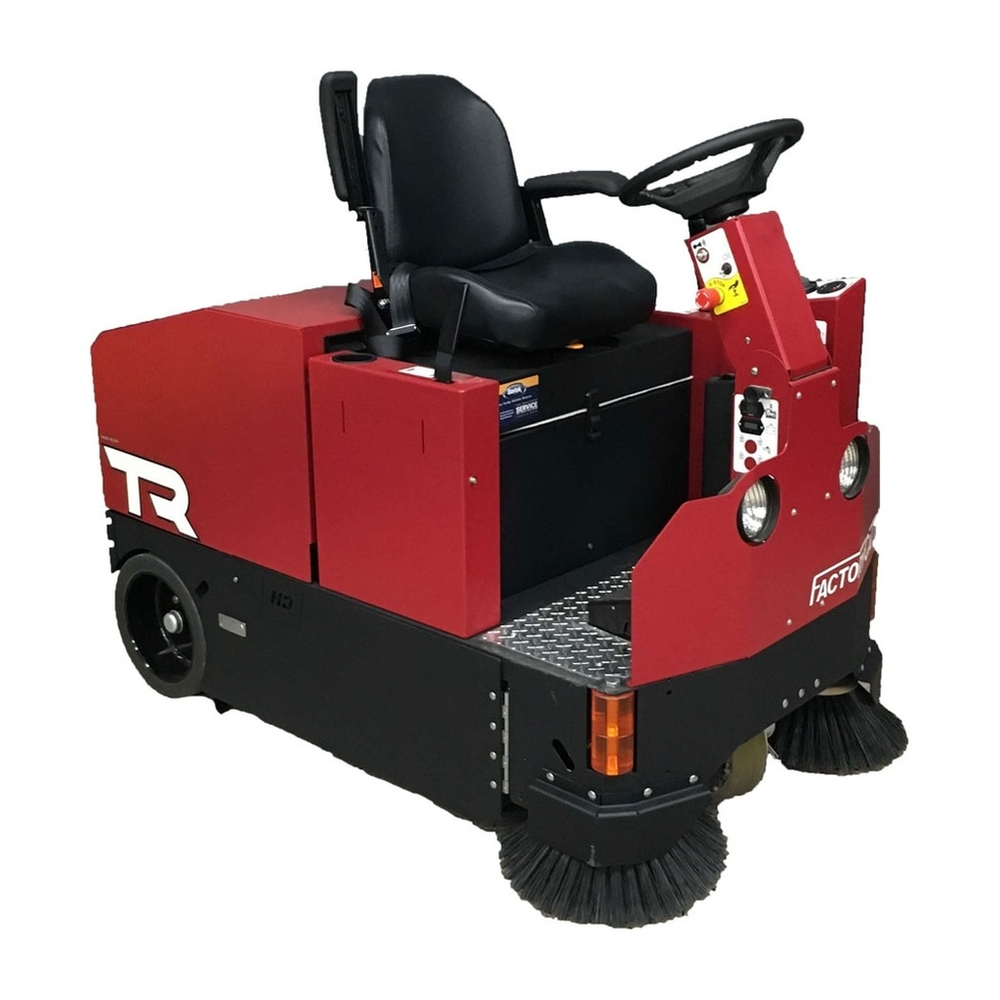

Reconditioned Factory Cat TR 46C Rider Floor Sweeper
Our Take (from the SES Sales Team)
“Factory Cat TR 46C is a battery rider sweeper for dusty industrial floors: saw mills, foundries, machine shops, powder packaging and distribution centers. A 32 inch main broom and a 17 inch side broom give a 46 inch cleaning width, and the debris goes into a 4.2 cubic ft steel hopper. A 270 cfm vacuum with a 1 micron felt filter keeps fine dust out of the air.
Expect 4 to 7 hours of run time on a charge, with speed up to 4 mph. The 1/8 inch steel frame is built for rough environments. Choose this over a walk-behind when you have large areas to sweep every shift. Our technicians recondition each unit before it ships.”
The Factory Cat TR sweeper's design was built from the success of the walk behind Factory Cat 34 sweeper. The TR's side brooms sweep up dirt in the corners while a huge tubular sweeping broom under the machine sweeps up the dirt and debris from the floor and packs it into the steel hopper. Meanwhile, the second stage vacuums up the dust and traps it in a polypropylene felt "baghouse" filter.
Condition: Reconditioned. See how we recondition equipment.
Features
- ✓Saw mills
- ✓Foundries
- ✓Fertilizer/powder packaging
- ✓Distribution centers
- ✓Machine shops
Factory Cat TR 46C Rider Floor Sweeper
Specifications
| Models | Factory Cat TR 46C Rider Floor Sweeper |
| Dimensions (LxWxH) | 64 x 37 x 55 |
| Weight without batteries | 850 lb |
| Hopper capacity | 4.2 cubic ft |
| Cleaning width | 46 in |
| Sound level | 68 dBA |
| Model Numbers | TR46C |
Technical specs may include optional equipment that is not included with all units.
Talk it through with us
Not sure this is the right machine for your floors, building and shifts? Our equipment specialists can help you compare options. Call or chat with our team before you order.
