| Models | PRO-HD 26" Disk |
| Cleaning Path | 26 in (66 cm) |
| Disks | (2) 13 in (33 cm) |
| Disk Motors | (2) 0.75 hp (559 W) |
| Brush Speed | 300 rpm |
| Brush Pressure | 5 settings with auto adjust; up to 150 lb (68 kg); 500 lb (227 kg) actuator rating |
| Squeegee | 36 in (91.4 cm), curved, 4-sided rear blade, quick-change latch |
| Solution Tank | 22 gal (83.3 L), graduated sight tube |
| Recovery Tank | 23 gal (87.1 L) |
| Solution Flow | 0-0.7 gpm (0-2.6 L/min), stainless inline filter |
| Demisting Chamber | 1.25 gal (4.7 L) |
| Drain Saver | 30 cu in (492 cm³) |
| Vacuum | 1.0 hp (740 W), 2-stage; 68 in (172.7 cm) water lift, 72 cfm |
| Battery System | 36 V; 175 Ah wet standard; 225 Ah wet or 215 Ah AGM optional |
| Run Time | Up to 4 hr (continuous scrubbing) |
| Charger | 36 V / 25 A output, 120 V AC / 60 Hz input |
| Drive | 0.75 hp (559 W), all gear, sealed; HD 10 in front-wheel drive |
| Speed | Forward 0-290 ft/min (0-3.3 mph); scrubbing 0-229 ft/min (0-2.6 mph); reverse 0-202 ft/min (0-2.3 mph) |
| Size (L x W x H) | 48 x 24 x 55 in (121.9 x 60.9 x 139.7 cm) |
| Weight | 525-575 lb (238-261 kg) without batteries; 825-875 lb (374-397 kg) with 175 Ah batteries |
| Sound Level | 67 dB |
| Model Numbers | 505-26TD |
Technical specs may include optional equipment that is not included with all units.

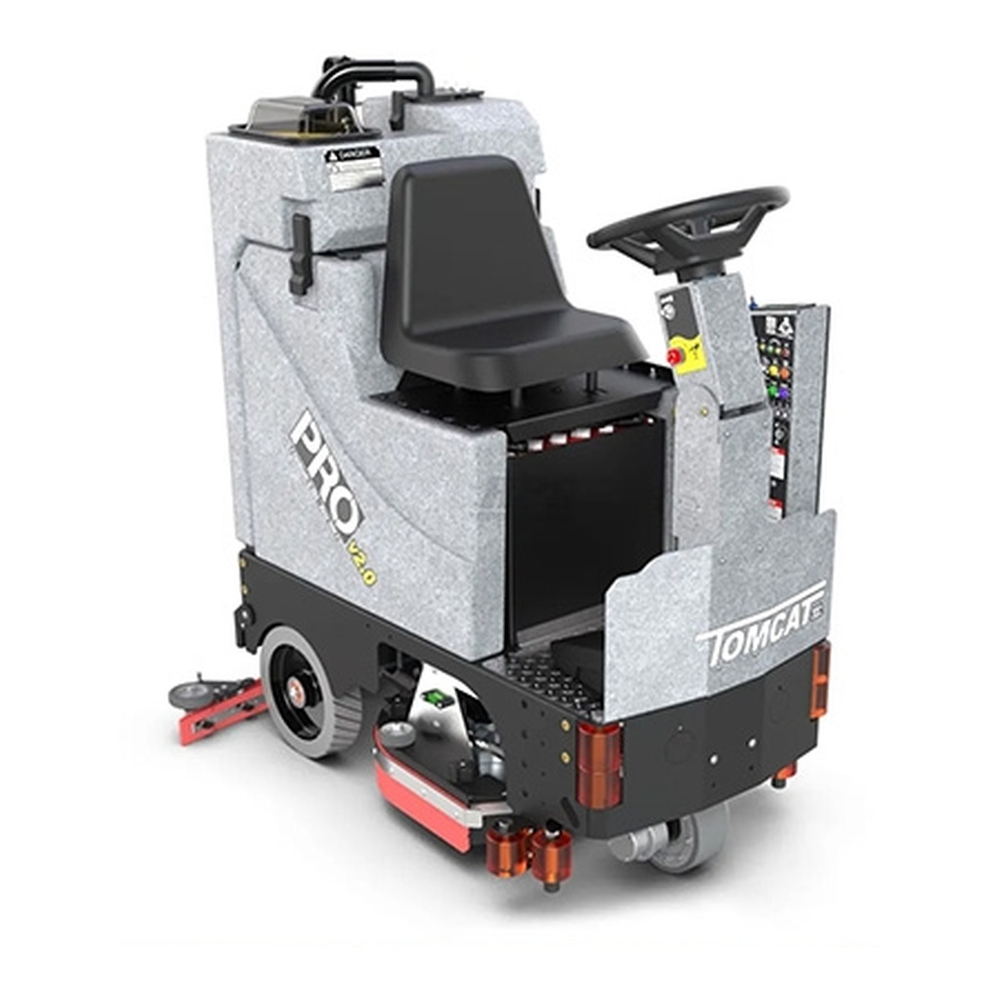

Reconditioned Tomcat PRO-HD 26" Disk Rider Floor Scrubber
Our Take (from the SES Sales Team)

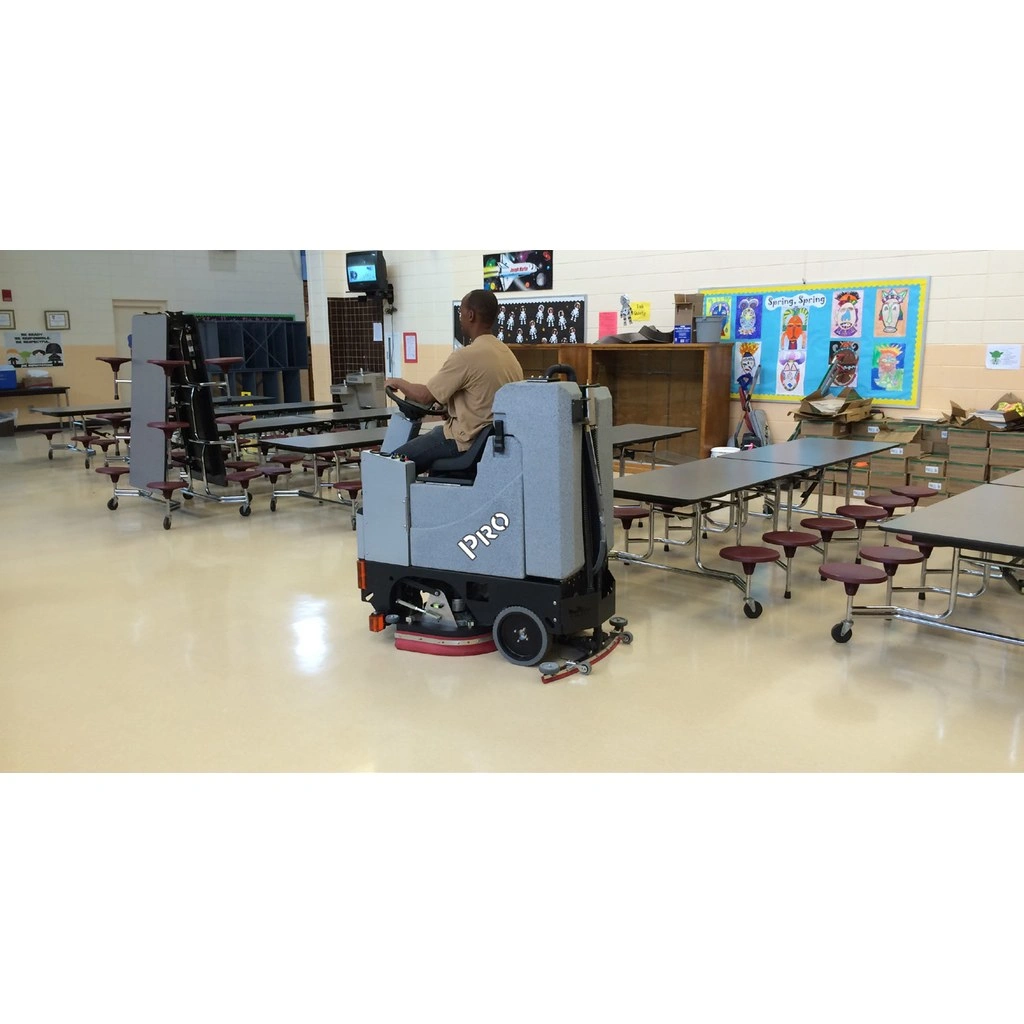

“The PRO is Tomcat's micro rider: at 48 inches long and 24 inches wide it takes up about the floor space of a large walk-behind, but the operator rides. This one has the 26-inch disk deck, with two 13-inch disks on 0.75 hp motors at 300 rpm, and the HD 10-inch front-wheel drive. Tomcat aims it at schools, healthcare, retail, grocery and sports arenas.

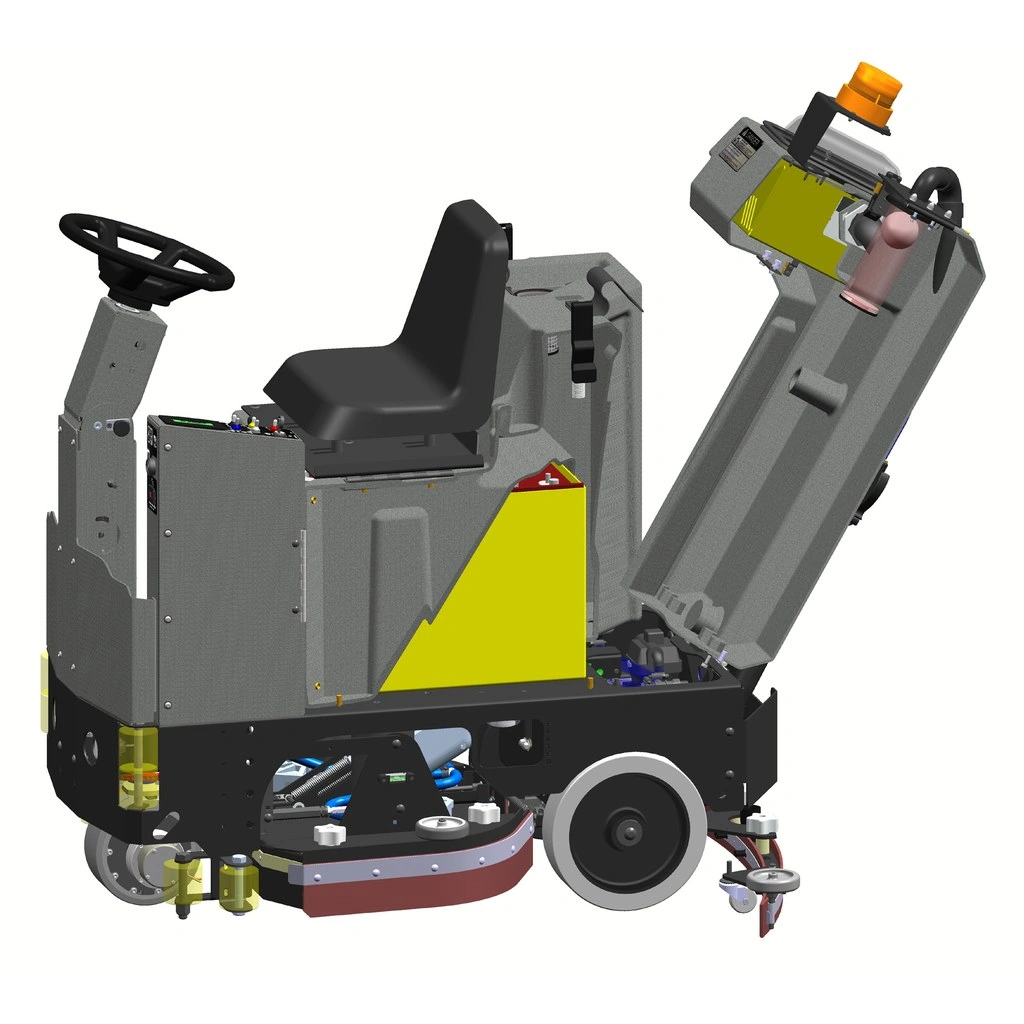

What stands out is the layout. Separate 22-gallon solution and 23-gallon recovery tanks sit on a powder-coated steel frame, and the tank tips back for access to the vacuum screen, batteries and filter. A muffled vacuum keeps it around 67 dB, brush pressure holds at one of five settings automatically, and the squeegee latch changes blades without tools.
The trade-off is run time: Tomcat rates it at up to 4 hours of continuous scrubbing on the standard 175 Ah batteries, so longer shifts need a charge break. For grout or loose debris, a cylindrical rider such as the Tomcat RS 24 fits better. This listing is a reconditioned unit.”
A 26-inch disk micro rider scrubber, 48 inches long and 24 inches wide.
The Tomcat PRO-HD 26D is a battery-powered micro ride-on scrubber with a 26-inch (66 cm) disk deck and Tomcat's HD 10-inch front-wheel drive, and this listing is a reconditioned unit. Two 13-inch disks on 0.75 hp motors turn at 300 rpm with up to 150 lb of down pressure. A 1.0 hp, 2-stage vacuum and a 36-inch curved squeegee with a 4-sided rear blade pick up the water.
The PRO uses separate tanks: 22 gal (83.3 L) of solution with a graduated sight tube and 23 gal (87.1 L) of recovery, plus a 1.25 gal demisting chamber and a drain saver basket. A 36 V system with 175 Ah wet batteries gives up to 4 hours of continuous scrubbing. The machine measures 48 x 24 x 55 in, and Tomcat rates it at 67 dB.
Condition: Refurbished (Reconditioned). See how we recondition equipment.
Features
- ✓26 in dual-disk deck with two 0.75 hp, 300 rpm motors
- ✓48 x 24 in footprint for tight aisles
- ✓Separate 22 gal solution and 23 gal recovery tanks
- ✓Automatic brush pressure with five settings
- ✓Tank tips back for access to the vacuum screen, batteries and filter
Tomcat PRO-HD 26" Disk Rider Floor Scrubber
Specifications
| Models | PRO-HD 26" Disk |
| Cleaning Path | 26 in (66 cm) |
| Brush Speed | 300 rpm |
| Brush Pressure | 5 settings with auto adjust; up to 150 lb (68 kg); 500 lb (227 kg) actuator rating |
| Solution Tank | 22 gal (83.3 L), graduated sight tube |
| Recovery Tank | 23 gal (87.1 L) |
| Solution Flow | 0-0.7 gpm (0-2.6 L/min), stainless inline filter |
| Weight | 525-575 lb (238-261 kg) without batteries; 825-875 lb (374-397 kg) with batteries |
| Sound Level | 67 dB |
| Model Numbers | 505-26TD |
Technical specs may include optional equipment that is not included with all units.
