| Models | MiniMag 20" Disk |
| Cleaning Path | 20 in (51 cm) |
| Scrub Deck | Single disk, (1) 20 in (51 cm) |
| Disk Motor | 0.75 hp (559 W) |
| Solution Tank | 17 gal (64 L) |
| Recovery Tank | 17 gal (64 L) |
| Solution Flow | 0-1.0 gpm (0-4 L/min) |
| Solution Filter | Stainless, inline |
| Vacuum Motor | 0.75 hp (559 W) |
| Vacuum Lift / Airflow | 70 in (178 cm) / 70 cfm |
| Demisting Chamber | 1.25 gal (5 L) |
| Drain Saver | 30 cu in |
| Drain Hose | 1.5 in (4 cm) diameter |
| System Voltage | 24 V |
| Charger | Dual-mode console, 110 V / 60 Hz |
| Sound Level | 67 dBA |
| Size (L x W x H) | 45 x 18 x 40 in (114 x 46 x 102 cm) |
| Construction | 3/16 in coated steel chassis; 3/8 in poly tanks |
| Model Numbers | MiniMag 20-D |
Technical specs may include optional equipment that is not included with all units.

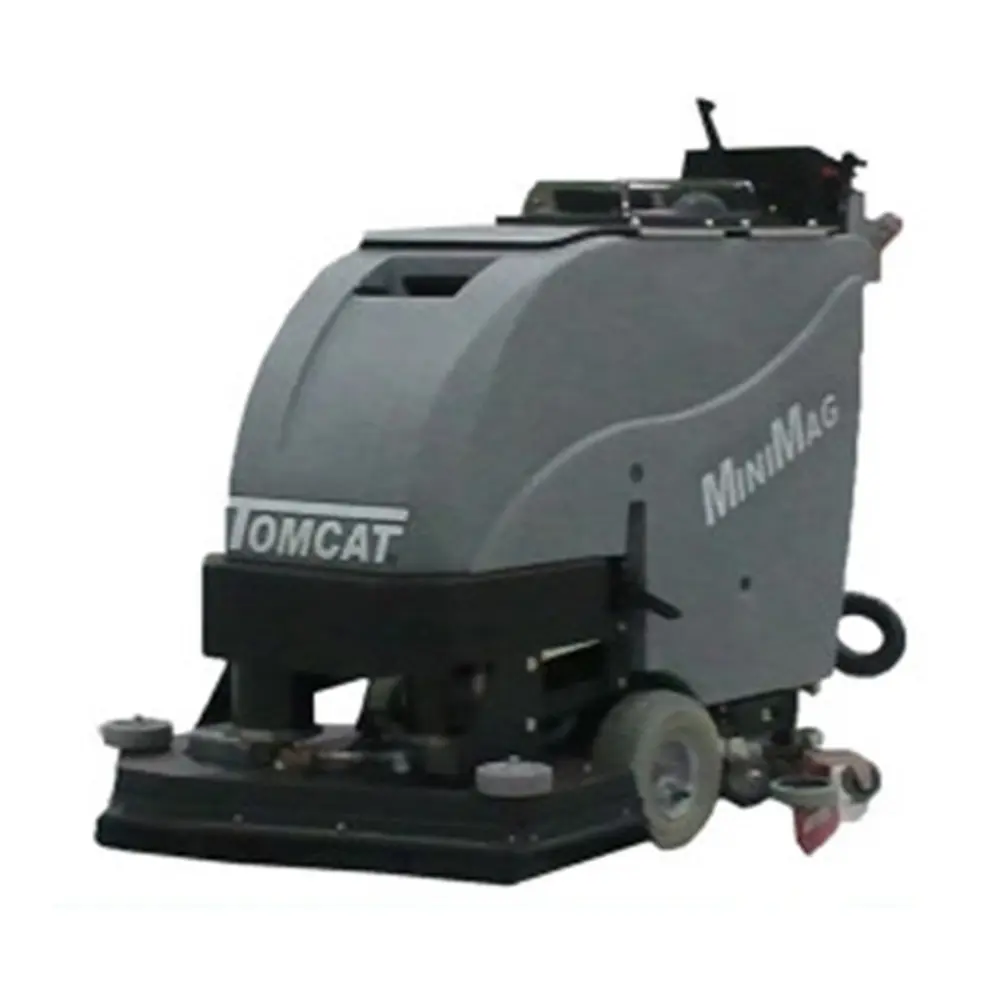

Reconditioned Tomcat MiniMag 20" Disk Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
“The MiniMag is Tomcat's mid-size walk-behind scrubber, and this one runs a single 20-inch disk. It pairs that path with 17-gallon solution and recovery tanks on a 24-volt battery system, so it suits classrooms, retail aisles, offices and light warehouse floors where the operator wants to finish a room on one tank.
What stands out is the construction: a 3/16-inch coated steel chassis, 3/8-inch thick poly tanks, stainless fasteners and polyurethane rollers to keep it off the walls. The recovery tank opens fully for cleaning, a drain saver basket keeps debris out of floor drains, and the 0.75 hp vacuum is rated at 70 inches of water lift. At 18 inches wide, the body fits into janitor's closets and small elevators.
The trade-off: a disk deck doesn't sweep, so gritty floors need a dust mop first. If grout lines are the main job, look at a scrubber with a cylindrical deck instead. This listing is a reconditioned unit.”
A 20-inch disk walk-behind scrubber with 17-gallon tanks.
The Tomcat MiniMag 20D is a battery-powered walk-behind floor scrubber with a single 20-inch (51 cm) disk, and this listing is a reconditioned unit. The disk is driven by a 0.75 hp motor. A 0.75 hp vacuum motor rated at 70 in of water lift and 70 cfm recovers the water, with a 1.25 gal demisting chamber, and a drain saver basket keeps debris out of floor drains.
The MiniMag carries 17 gal (64 L) of solution and 17 gal (64 L) of recovery, with solution flow adjustable up to 1.0 gpm through a stainless inline filter. It runs on a 24 V battery system and charges from a dual-mode console charger. The machine measures 45 x 18 x 40 in, its recovery tank is fully cleanable, and the body opens for service access.
Condition: Refurbished (Reconditioned). See how we recondition equipment.
Features
- ✓20 in disk scrub deck
- ✓17 gal solution and 17 gal recovery tanks
- ✓Fully cleanable recovery tank with drain saver basket
- ✓Body opens for service access
- ✓3/16 in steel chassis with 3/8 in poly tanks
Tomcat MiniMag 20" Disk Walk-Behind Floor Scrubber
Specifications
| Models | MiniMag 20" Disk |
| Cleaning Path | 20 in (51 cm) |
| Disk Motor | 0.75 hp (559 W) |
| Solution Tank | 17 gal (64 L) |
| Recovery Tank | 17 gal (64 L) |
| Solution Flow | 0-1.0 gpm (0-4 L/min) |
| Vacuum Lift / Airflow | 70 in (178 cm) / 70 cfm |
| System Voltage | 24 V |
| Sound Level | 67 dBA |
| Model Numbers | MiniMag 20-D |
Technical specs may include optional equipment that is not included with all units.
Talk it through with us
Not sure this is the right machine for your floors, building and shifts? Our equipment specialists can help you compare options. Call or chat with our team before you order.
