| Models | Pacific AM-15 |
| Power type | Electric, 120 VAC air compressor |
| Power requirements | 120 VAC, 60 Hz, 8.5 A (GFCI protected outlet) |
| Power cable | 9 ft |
| Capacity | 15 gal (56.8 L) |
| Chemical pickup type | Draws from premixed solution |
| Number of products unit can draw from | One product |
| Suction line diameter | 3/8 in (9.5 mm) inside diameter |
| Discharge line length/diameter | 25 ft (7.6 m) coiled twin-line tubing, 1/4 in (6.4 mm) outside diameter |
| Discharge wand/tip type | Polypropylene trigger handle with misting nozzle |
| Nozzle type | Pneumatic fog nozzle |
| Number of nozzles | 1 |
| Droplet size | 15 micron at 50 psi (3.4 bar) |
| Output distance | 3-4.5 ft (0.9-1.4 m) |
| Output volume | 8.9 oz/min (263.2 mL/min) at 50 psi (3.4 bar) |
| Flow rate* | 8.9 oz/min (263.2 mL/min) at 50 psi (3.4 bar) |
| Operating pressure | 50 psi (3.4 bar), factory set |
| Pump seals | Santoprene |
| Liquid temperature range | 40-100°F (4.4-37°C) |
| Noise level (dBA) | 60 |
| Wheel type | Two 10 in (25.4 cm) non-marking wheels, two 5 in (12.7 cm) casters with lock |
| Machine weight | 90 lb |
| Model Numbers | AM-15, part number 685401 |
*Flow rate is based on a chemical with the viscosity of water at factory air pressure settings.
Technical specs may include optional equipment that is not included with all units.
Demo Pacific AM-15 15-Gallon Air Assisted Misting Machine
Our Take (from the SES Sales Team)
“The AM-15 is an air-assisted mister for disinfecting large areas without walking every surface with a spray bottle. It puts out a fine 15-micron mist from a 15-gallon tank, so one fill can cover hallways, classrooms, locker rooms, patient rooms, gyms and transit vehicles. Two 10-inch wheels and locking casters let one person roll it room to room, and it plugs in on a 9-foot cord.
Output is about 8.9 ounces a minute at 50 psi, reaching 3 to 4.5 feet from the wand, and it runs at 60 dBA. It draws from one premixed solution.
Two cautions: operators need eye, skin and respiratory protection when misting disinfectant, and it is not for alcohol-based or flammable products. Check your chemical’s label and SDS before you start.”
A 15-Gallon Air-Assisted Mister for Large-Area Disinfection

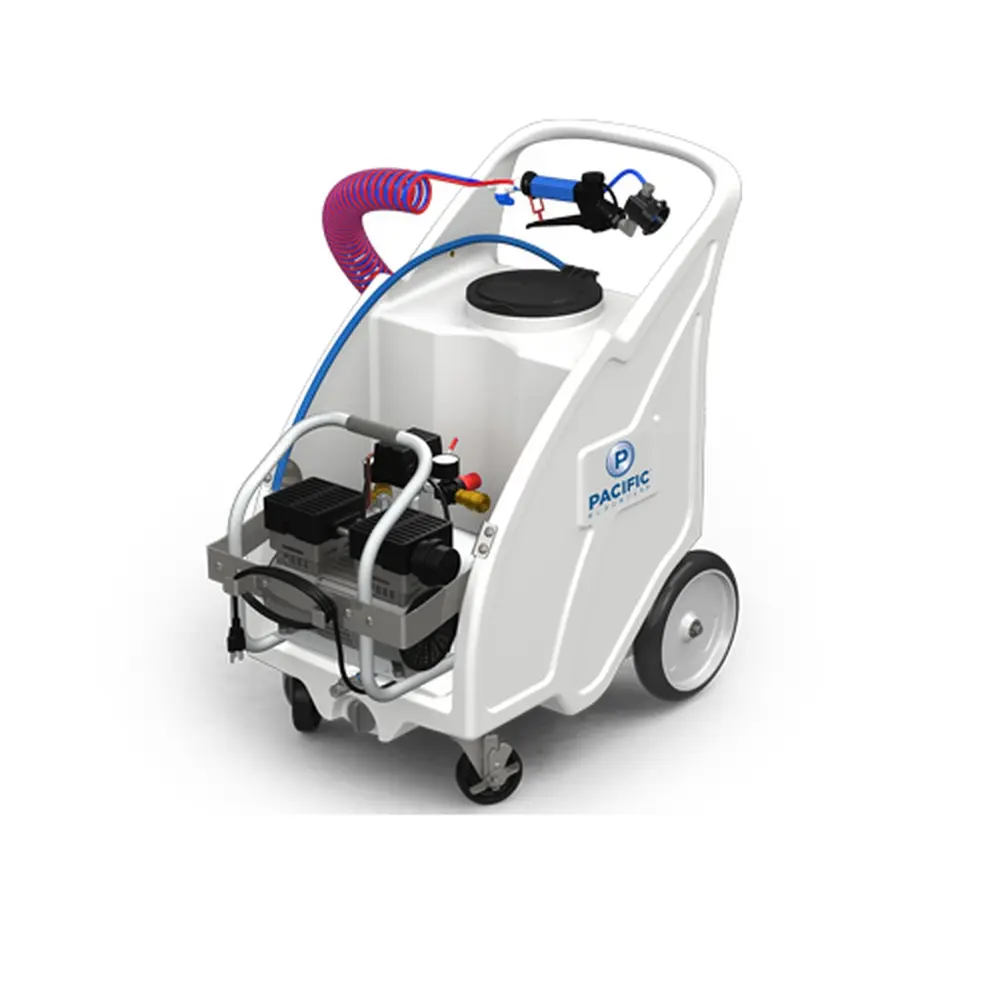

The Pacific AM-15 is a rolling, air-assisted misting machine built for disinfecting large areas: floors, walls, ceilings and more. An onboard 120 V air compressor drives a pneumatic fog nozzle that puts out 15-micron droplets at 8.9 oz per minute, and the 15 gallon translucent tank means one fill of ready-to-use solution covers a lot of building. Pacific designed it to out-perform the handheld sprayers most facilities use today.
Everything rides on one cart: tank, compressor, air regulator and gauge, and 25 ft of coiled twin-line tubing to the wand. Two 10 in non-marking wheels and two 5 in locking casters make it easy for one operator to move between rooms and park it while misting.
Condition: Demo. Inspected by SES technicians.
What you get
Everything on One Cart
Safety first: PPE and chemical compatibility
Features
Built for Large-Area Disinfection
- ✓Air-assisted misting puts out 15-micron droplets at 8.9 oz/min at 50 psi
- ✓Draws from one ready-to-use or premixed solution, straight from the tank
- ✓Santoprene pump seals and an in-line strainer protect the pump
- ✓Quick-disconnect air fitting with check valve on the hinged back panel
- ✓Drain plug for emptying and rinsing the tank
- ✓Rated noise level of 60 dBA
- ✓Plugs into a standard 120 V outlet on a 9 ft power cord
Applications
Where the AM-15 Works
- ✓Hallways, banquet areas and rooms
- ✓Patient rooms
- ✓Classrooms, weight rooms, locker rooms and restrooms
- ✓Health clubs
- ✓Transportation
- ✓Class A office buildings
- ✓Supermarkets and carts
- ✓Municipalities
- ✓Sports and recreational complexes
Power requirements
Accessories
Available Hoses and Wand
| Part number | Accessory |
|---|---|
| 688801 | AM-15 handheld wand assembly with one nozzle |
| 689001 | 100 ft red and blue discharge hose |
| 689003 | 150 ft red and blue discharge hose |
Specifications
Pacific AM-15 at a Glance
| Spec | Pacific AM-15 |
|---|---|
| Tank capacity | 15 gal (56.8 L) |
| Output volume / flow rate | 8.9 oz/min (263.2 mL/min) at 50 psi (3.4 bar) |
| Droplet size | 15 micron at 50 psi (3.4 bar) |
| Output distance | 3-4.5 ft (0.9-1.4 m) |
| Power | 120 VAC, 60 Hz, 8.5 A air compressor |
| Power cable | 9 ft |
| Noise level | 60 dBA |
| Machine weight | 90 lb |
| Model numbers | Pacific AM-15, part number 685401 |
Specifications from Pacific Floorcare. Flow rate is based on a chemical with the viscosity of water at factory air pressure settings. Technical specs may include optional equipment that is not included with all units.
Demo unit details
Not sure the AM-15 fits your facility?
Call 800-440-6723 and tell us about the spaces you need to disinfect and how often. We will tell you if this is the right machine. Financing options | Service and warranty help
