| Models | Chariot 2 iScrub 20X with ORB (Kärcher Chariot 2 iScrub 20 Deluxe with ORB) |
| Cleaning Path | 20 in (508 mm) |
| Scrub Action | Orbital: 3/8 in orbits at 1,725 rpm within an 80 rpm rotation |
| Brush Motor | 0.5 hp (373 W) |
| Pad Pressure | 50 lb (222 N) |
| Productivity (practical) | 18,000 sq ft/hr |
| Solution Tank | 10 gal (38 L) |
| Recovery Tank | 10 gal (38 L) |
| Vacuum Motor | 0.63 hp (470 W) |
| Water Lift | 47.3 in (11.7 kPa) |
| Airflow | 72 cfm (34 L/s) |
| System Voltage | 36 V DC (3 x 12 V, 130 Ah wet or 114 Ah AGM) |
| Max. Speed | 2.4 mph (3.7 km/h) |
| Max. Climb | 10% (6 degrees) |
| Min. Aisle U-Turn Width | 51 in (1,295 mm) |
| Sound Pressure Level | 67 dBA |
| Tires | 8 in (203 mm) drive, 6 in (156 mm) rear, polyurethane |
| Weight Without Batteries | 271 lb (123 kg) |
| Dimensions (L x W x H) | 44.0 x 27.2 x 51.8 in (1,118 x 691 x 1,316 mm) |
| Model Numbers | Kärcher 1.008-136.0 to 1.008-140.0; Windsor 9.841-315.0 to 9.841-320.0 |
Technical specs may include optional equipment that is not included with all units.

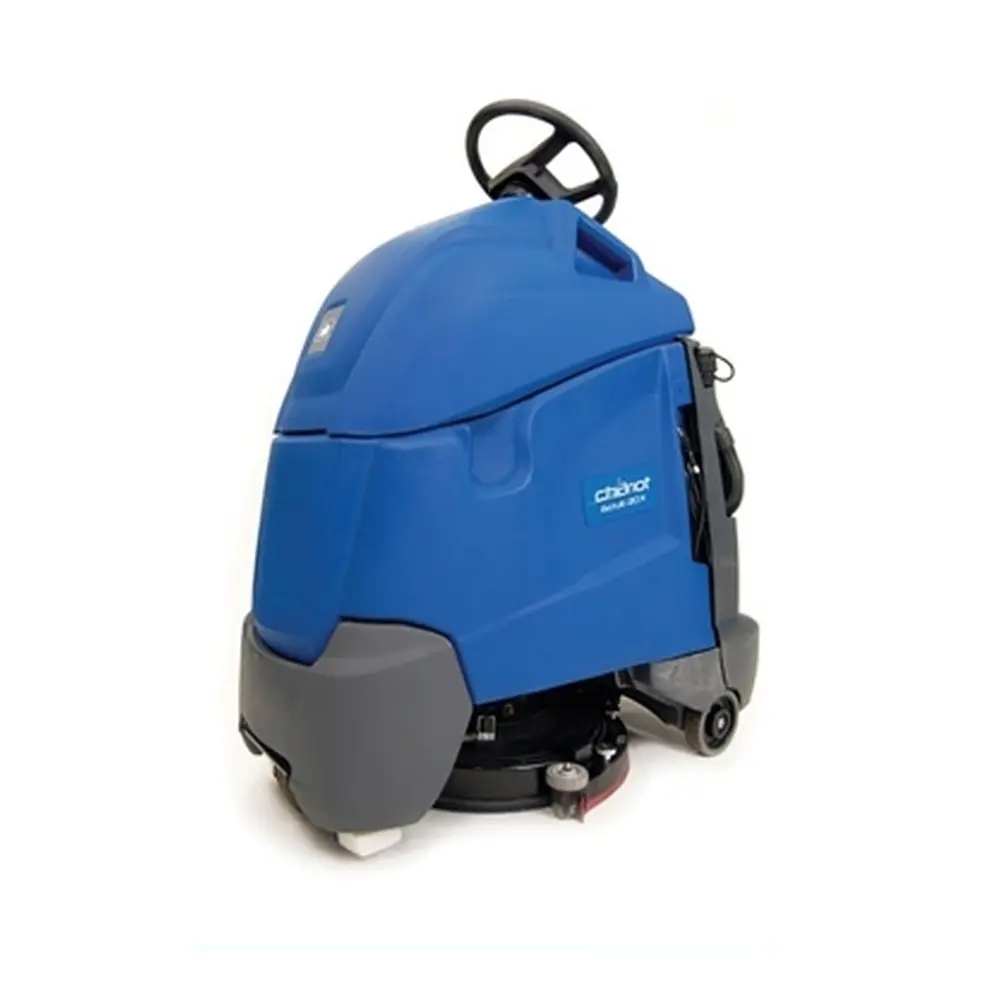

Reconditioned Windsor Chariot 2 iScrub 20X 20" Orbital Stand-On Floor Scrubber with ORB
Our Take (from the SES Sales Team)
“The Chariot 2 iScrub 20X with ORB is a stand-on scrubber aimed at floor-care work more than daily washing: top-scrubbing before a recoat, and taking finish off VCT, concrete and soft stone without stripper. The pad moves in 3/8-inch orbits at 1,725 rpm while the whole driver turns at 80 rpm, a scrub pattern Kärcher built for exactly that job.
Two things stand out. On units without chemical metering, the EASY dial has a pre-programmed top-scrub setting, so a new operator gets consistent results without adjusting anything, and the finish removal mode pairs a red pad with a chemical-free stripping pad. The stand-on platform makes a U-turn in a 51-inch aisle, which suits corridors, classrooms and store aisles.
The trade-off is focus. Kärcher designed the orbital machine for finished floors, so for greasy kitchens, grout or heavy daily soil, a disk or cylindrical Chariot is the better fit. This is a reconditioned unit; ask us about its battery pack and charger, and whether it has the chemical metering option.”
Orbital top-scrubbing and chemical-free finish removal, stand-on.
The Windsor Chariot 2 iScrub 20X with ORB Technology is a battery-powered stand-on scrubber that Kärcher now sells as the Chariot 2 iScrub 20 Deluxe with ORB Technology; this listing is a reconditioned unit. Its 20-inch orbital deck moves the pad through thousands of 3/8-inch orbits at 1,725 rpm while rotating at 80 rpm, driven by a 0.5 hp motor with 50 lb of pad pressure.
Kärcher designed the orbital machine for finished floors: top-scrubbing before a recoat and chemical-free finish removal on VCT, concrete and soft stone. On models without chemical metering, the EASY dial includes a pre-programmed top-scrub mode, and a float shut-off ball keeps water out of the vacuum motor. It carries 10 gallons of solution and 10 of recovery, runs on a 36-volt system at up to 2.4 mph, and is rated at 67 dBA.
Not included: Scrub and stripping pads, sold separately
Features:
- Orbital pad moves at 1,725 rpm within an 80 rpm rotation
- Chemical-free finish removal mode
- Preset top-scrub mode on the EASY dial (non-metering models)
- Float shut-off ball protects the vacuum motor
- Makes a U-turn in a 51-in aisle
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
