| Models | Windsor Treadway (Kärcher BR 47/35 ESC) |
| Cleaning Path | 18.5 in (470 mm) |
| Solution Tank | 9.2 gal (35 L) |
| Recovery Tank | 9.2 gal (35 L) |
| Power | Corded electric, 120 V, 60 Hz |
| Rated Power | 1,360 W |
| Suction Motor | 800 W |
| Brushes | 2 counter-rotating roller brushes plus 2 intake brushes |
| Roller Brush Speed | 870 rpm |
| Intake Brush Speed | 1,090 rpm |
| Max. Water Flow | 15.8 gal/hr (1 L/min) |
| Productivity | 2-3 escalators or walkways per hour (maintenance), 0.5-1 per hour (deep cleaning) |
| Sound Pressure Level | 75 dB(A) |
| Transport Weight | Approx. 198 lb (90 kg) |
| Dimensions (L x W x H) | 44.4 x 18.9 x 40.6 in (1,129 x 480 x 1,031 mm) |
| Model Numbers | 1.310-109.0 |
Technical specs may include optional equipment that is not included with all units.

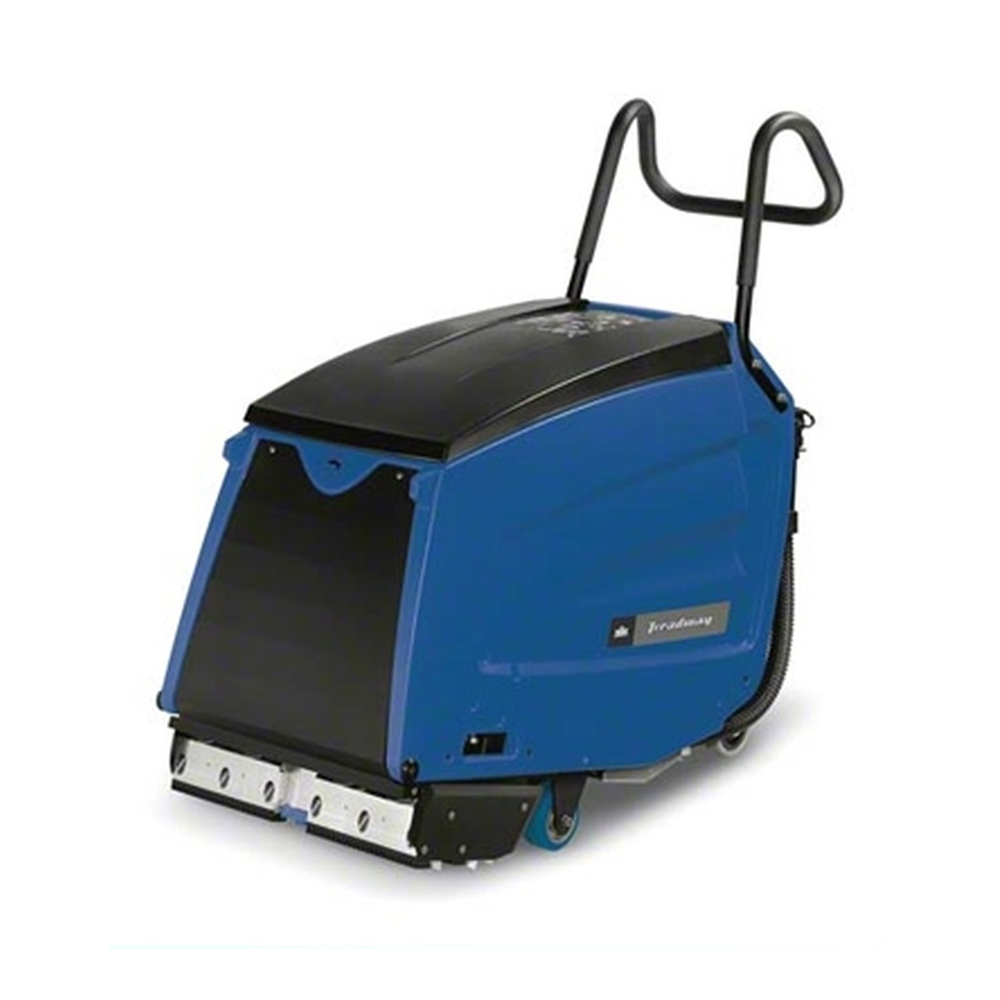

Reconditioned Windsor Treadway 18.5" Escalator Cleaner
Our Take (from the SES Sales Team)
“The Windsor Treadway is a dedicated escalator and moving-walkway cleaner for malls, airports, transit stations and office towers where tread grooves can't be kept clean by hand. It is the Windsor-badged version of Kärcher's BR 47/35 ESC, and it cleans the steps while the escalator keeps running: two counter-rotating roller brushes scrub the treads, and combs that ride in the grooves feed four suction hoses, so the dirty water comes back into the tank instead of dripping into the escalator pit.
What stands out is how simple it is to run. A foot pedal lowers the brush head, one button starts it, and the tank-in-tank design rinses out easily. Kärcher rates it at two to three escalators an hour for maintenance cleaning, or up to one an hour for a deep clean.
The catch is fit. The combs have to match your escalator make, so tell us whether you have Otis, Kone, Schindler, Thyssen-Krupp or another brand, and plan to train whoever runs it. This is a reconditioned unit.”
Cleans escalator treads and moving walkways while they run.
The Windsor Treadway is the Windsor-badged version of Kärcher's BR 47/35 ESC escalator cleaner. It cleans escalators and moving walkways while they are running: two counter-rotating roller brushes with a centering skid scrub the treads, and outboard deflectors reach the outermost grooves. The short brush head suits fast-moving escalators, and Kärcher rates the machine at two to three escalators or walkways per hour for maintenance cleaning.
Two suction turbines and four straight suction hoses with matching combs pull the water back into the 9.2-gallon tank-in-tank system so it does not drip into the escalator shaft, and comb sets are available for different escalator makes. A foot pedal lowers the brush head, operation is one button, the handle folds for transport, and brushes and combs change without tools. Kärcher notes the machine requires operator instruction.
Includes:
- 2 roller (cleaning) brushes
- 2 intake (pick-up) brushes
Features:
- Two counter-rotating roller brushes with centering skid
- Four suction hoses with combs that ride in the tread grooves
- Foot-pedal brush head and one-button operation
- Tank-in-tank design with 9.2 gal fresh and dirty water
- Folding handle, parking brake and tool-free brush and comb changes
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
