| Models | BD 50/70 R Bp |
| Cleaning Path | 20 in (51 cm) |
| Brush/Pad | One 20 in disc brush, or 19 in pad driver with 20 in pad |
| Squeegee Width | 33.5 in (85 cm) |
| Solution / Recovery Tanks | 18 / 20 gal (68 / 76 L) |
| Brush Speed | 155 rpm loaded (180 rpm unloaded) |
| Down Pressure | 56 lb (25 kg) |
| Battery System | 24 V |
| Battery Run Time | Up to 2.5 hours |
| Motors | Brush 500 W, vacuum 600 W, drive 300 W |
| Productivity (Practical / Theoretical) | 18,830 / 26,900 sq ft/hr (1,750 / 2,500 m²/hr) |
| Max. Speed | 3.4 mph (5.5 km/h) |
| Climbing Ability | 10% |
| Operating Noise Level | 66 dBA |
| Weight with Batteries | 428 lb (194 kg) |
| Dimensions (L x W x H) | 52 x 23 x 42 in (1,310 x 590 x 1,066 mm) |
| Model Numbers | 1.161-077.0 |
Technical specs may include optional equipment that is not included with all units.

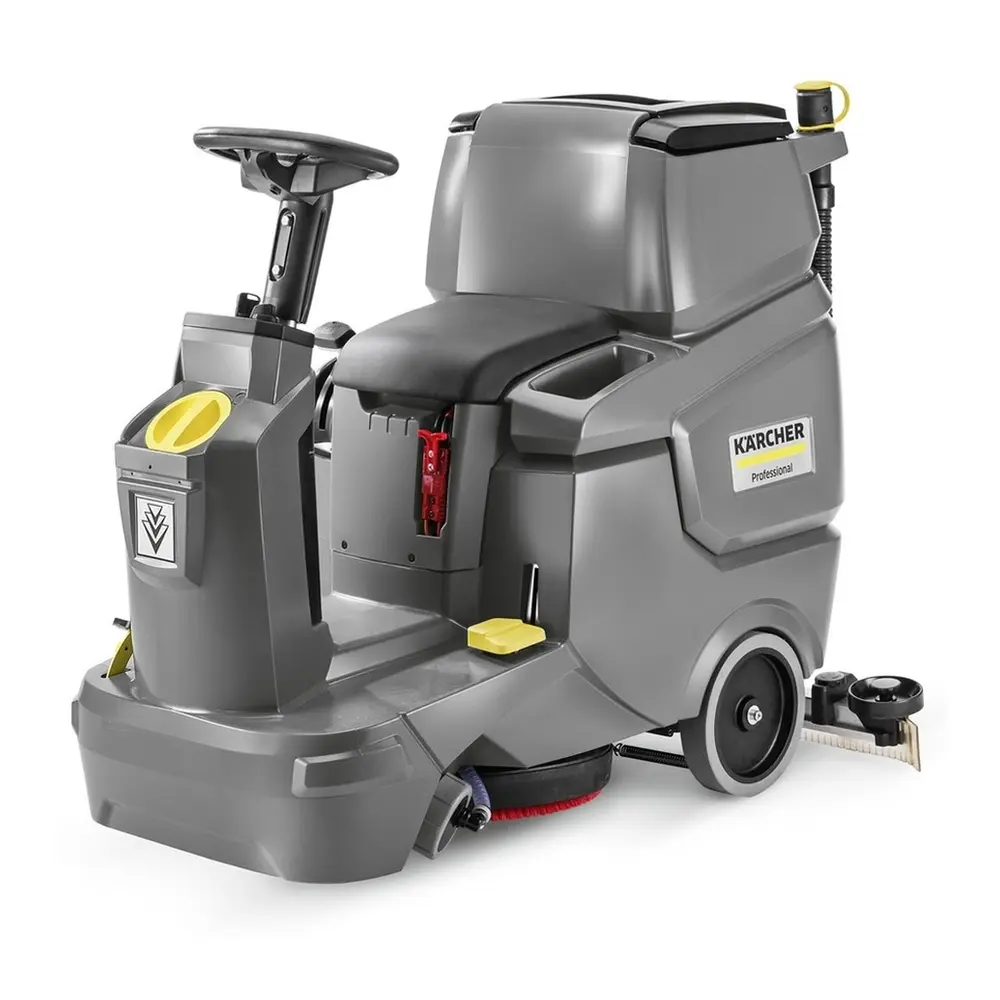

Demo Karcher BD 50/70 R Bp 20" Disc Ride-On Floor Scrubber
Our Take (from the SES Sales Team)

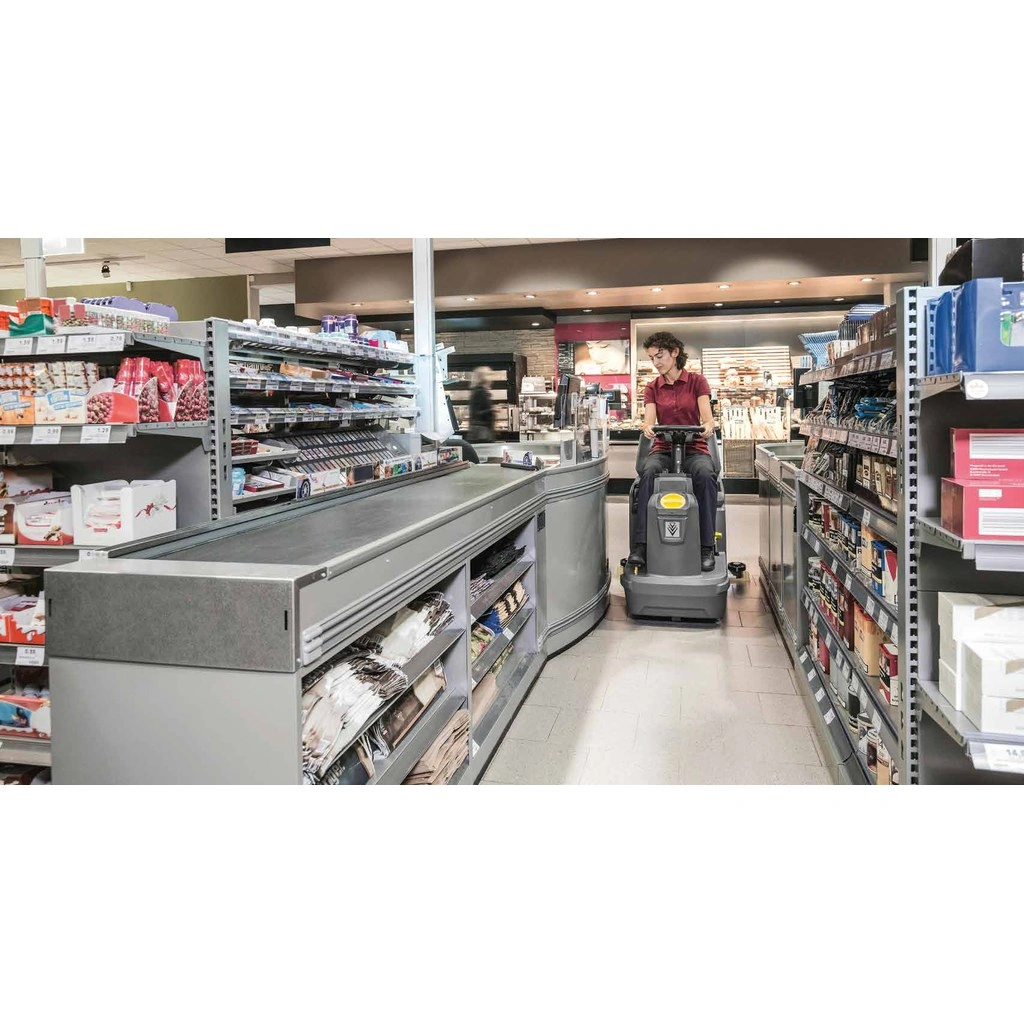

“The BD 50/70 R Bp is a compact ride-on scrubber for facilities that want to ride but have walk-behind sized spaces: retail aisles, school corridors, healthcare and office buildings. At 52 inches long and 23 inches wide, it turns easily and gives the operator a clear view of the floor ahead.
A single 20-inch disc brush or pad cleans at 155 rpm with 56 pounds of down pressure, and the 33.5-inch squeegee picks up behind it. The 18-gallon solution and 20-gallon recovery tanks run on a 24-volt battery system with up to 2.5 hours of run time, and Kärcher rates practical productivity at 18,830 square feet per hour. The seat is built for full shifts, the controls are simple to learn, and the Homebase system keeps common tools on the machine.
The trade-off is capacity. For long runs in big-box stores or warehouses, a larger rider with a wider path and bigger tanks will finish sooner. This is a demo unit.”
A compact 20-inch ride-on scrubber that fits walk-behind spaces.

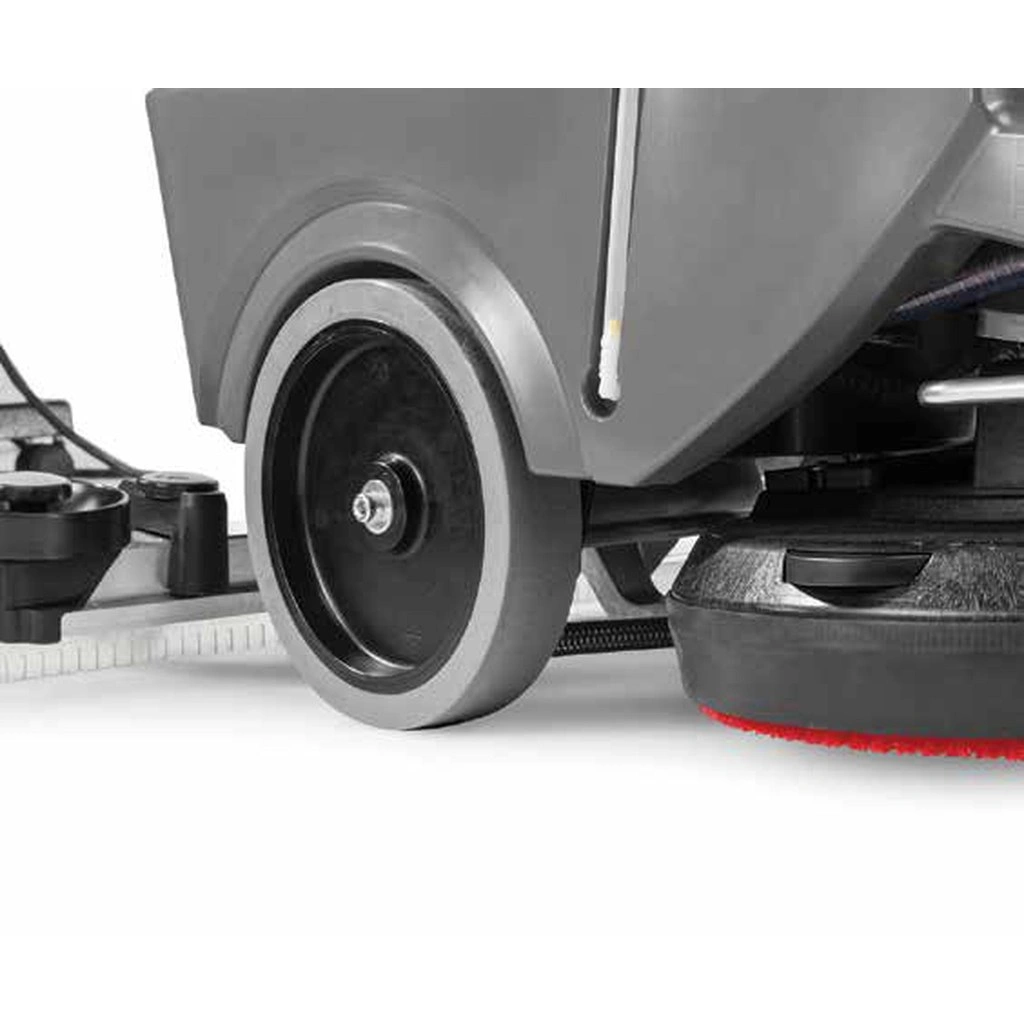

The Kärcher BD 50/70 R Bp is a compact battery ride-on scrubber, 52 inches long, built for congested areas that need ride-on productivity in a small footprint. A single 20-inch disc brush or pad driver cleans at 155 rpm with 56 lb of down pressure, and the 33.5-inch squeegee recovers the water. Kärcher rates productivity at 18,830 square feet per hour practical and 26,900 theoretical.

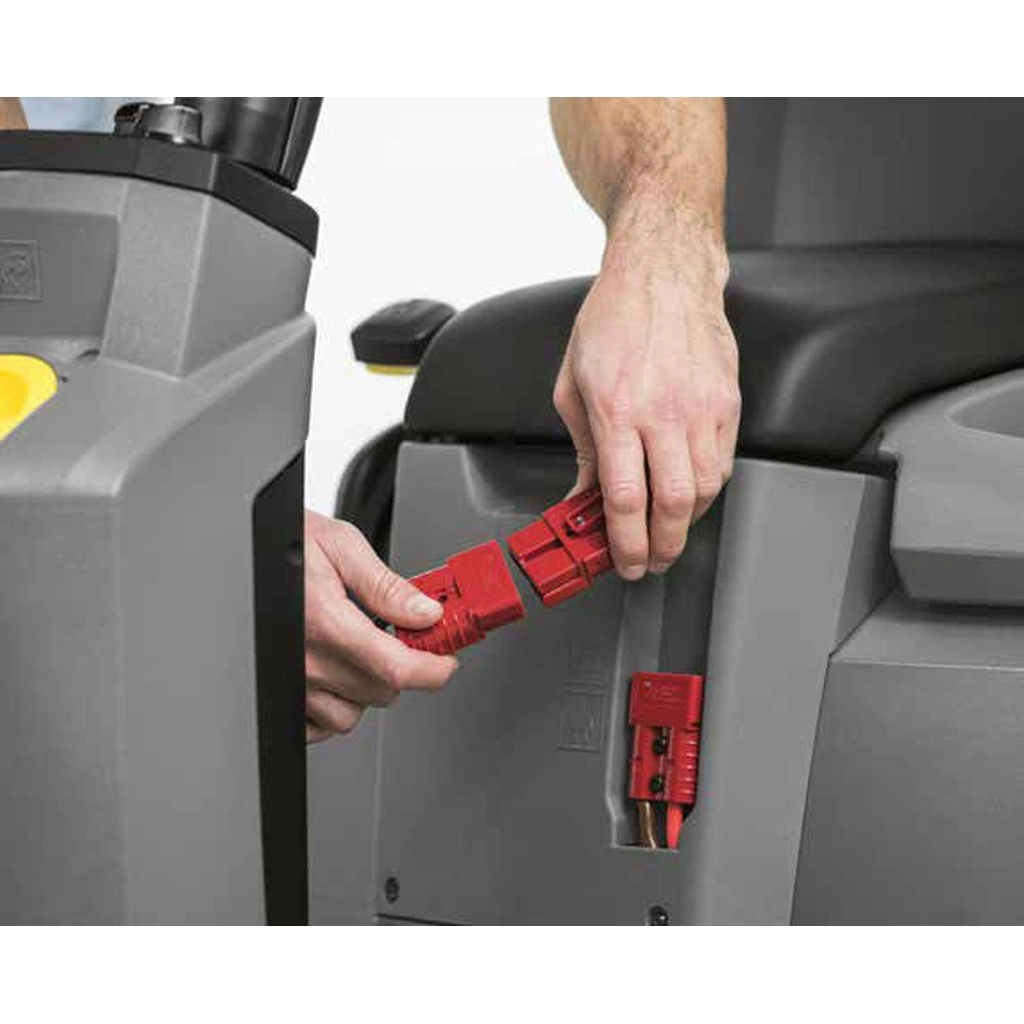

The 18-gallon solution and 20-gallon recovery tanks are paired with a 24-volt battery system rated for up to 2.5 hours of run time. The seat material is designed for full shifts, the operator interface is quick to learn, and the standard Homebase system secures commonly used tools on the machine. The BD 50/70 R Bp reaches 3.4 mph, climbs 10% grades and runs at 66 dBA.
Features:
- 20-in disc brush or pad at 155 rpm
- 18-gal solution and 20-gal recovery tanks
- 52 in long for tight, congested areas
- Up to 2.5 hours of run time on 24 V
- Homebase system holds tools on the machine
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
