| Models | Bolt 20 |
| Cleaning Path | 20 in (508 mm) |
| Pad Speed | 175 rpm |
| Motor | 1.5 hp, single speed, separate start and run capacitors |
| Pad Driver | 20 in with clutch plate, included |
| Practical Productivity | 2,222 sq ft/hr (206 m²/hr) |
| Electrical | 115 V, 60 Hz |
| Power Cord | 50 ft (15 m), with cord strain relief |
| Sound Level | 63 dBA |
| Wheels | 5 in non-marking |
| Handle | Fully adjustable height |
| Safety | Mechanical safety interlock, built-in circuit breaker |
| Approvals | UL listed to U.S. and Canadian safety standards |
| Dimensions (L x W x H) | 24.5 x 21 x 47 in (622 x 533 x 1,194 mm) |
| Model Numbers | BP20X (1.009-087.0) |
Technical specs may include optional equipment that is not included with all units.

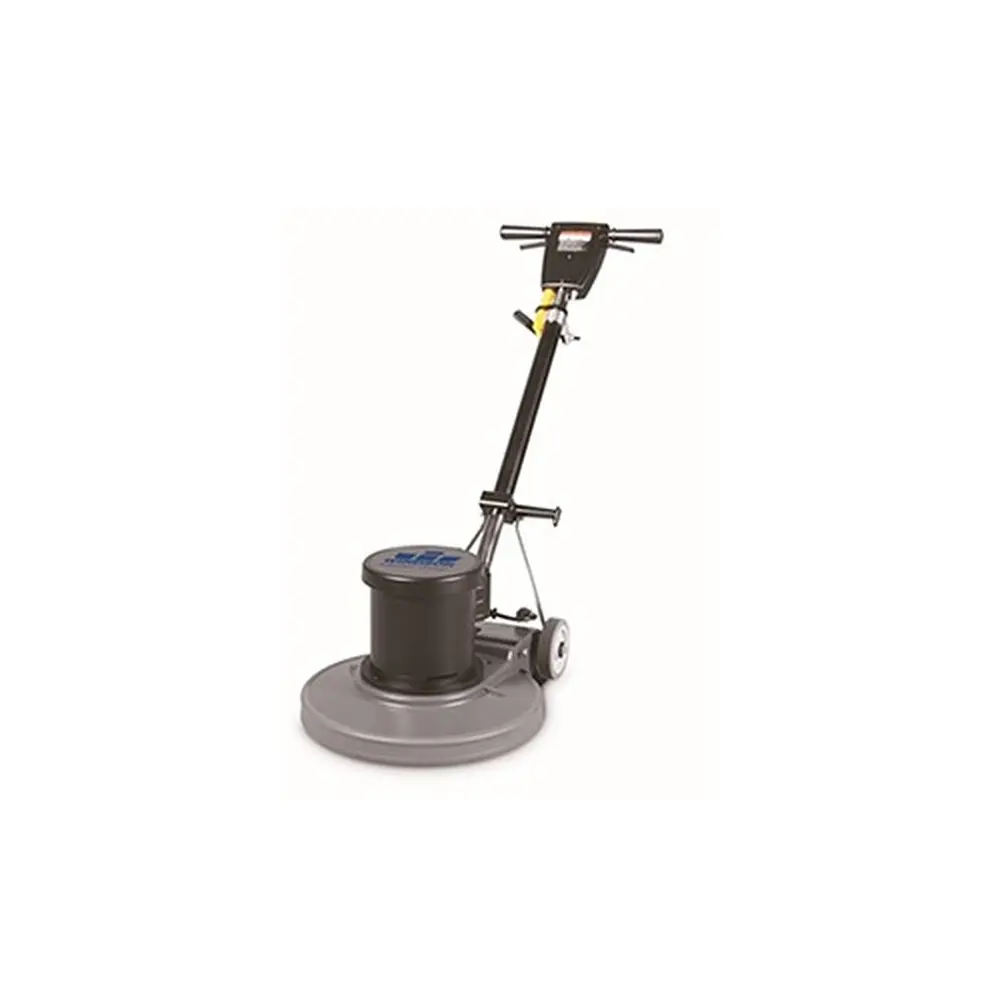

Reconditioned Windsor Bolt 20" Floor Machine
Our Take (from the SES Sales Team)
“The Bolt 20 is a 20-inch, 175 rpm low-speed floor machine for scrubbing and stripping, the restorative work that comes before new finish goes down. It suits janitorial crews and contract cleaners who maintain hard floors in schools, offices and retail space, and it runs a 20-inch pad on the included pad driver or an optional brush.
Windsor built the Bolt with a 1.5 hp motor, separate start and run capacitors, a cord strain relief and a stronger handle housing, plus a mechanical safety interlock and a built-in circuit breaker. The handle height adjusts for different operators, the 50-foot cord gives good reach, and 5-inch non-marking wheels make it easy to roll between jobs. Windsor rates practical productivity at 2,222 square feet per hour.
The trade-off is speed. At 175 rpm it is a scrub and strip machine, not a burnisher, so pair it with a high-speed burnisher if you need a gloss. An optional 4-gallon solution tank is available for wet scrubbing. This is a reconditioned unit.”
A 20-inch, 175 rpm floor machine for scrubbing and stripping.
The Windsor Bolt 20 is a 20-inch, single-speed floor machine that turns the pad at 175 rpm with a 1.5 hp motor. Windsor built it for scrubbing and stripping, with separate start and run capacitors, a cord strain relief system and a strong handle housing. It comes with a 20-inch pad driver with clutch plate, and Windsor rates practical productivity at 2,222 square feet per hour.
A mechanical safety interlock prevents accidental startups, a built-in circuit breaker protects the motor, and the machine is UL listed to U.S. and Canadian safety standards. The handle height adjusts to fit different operators, five-inch non-marking wheels make transport easy, and it runs on 115 V with a 50-foot cord. Windsor offers 20-inch brushes, a sanding disc and a 4-gallon solution tank as options.
Includes:
- 20 in pad driver with clutch plate
Not included: Brushes and 4-gal solution tank, sold separately
Features:
- 20-in pad driver with clutch plate included
- 1.5 hp motor at 175 rpm
- Separate start and run capacitors and cord strain relief
- Mechanical safety interlock and built-in circuit breaker
- Adjustable handle and 5-in non-marking wheels
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
