| Models | Compass 2 |
| Pump Pressure | 2-stage adjustable: low 100-200 psi (7-14 bar), high 700-900 psi (48-62 bar) |
| Solution Flow | Adjustable, 0.66-1.25 gpm (2.5-4.7 L/min) |
| Solution Tank | 29 gal (110 L) |
| Recovery Tank | 19 gal (70 L) |
| Vacuum Motor | 900 W, 2-stage |
| Pump Motor | 1/3 hp (249 W) AC with circuit breaker protection |
| Electrical | 120 V, 14.3 A |
| Vacuum Hose | 30 ft (9.1 m) |
| Power Cord | 50 ft (15.2 m) |
| Front Wheels | Two 6 in (15.2 cm) non-marking rubber locking casters |
| Rear Wheels | Two 12 in (30.5 cm) non-marking rubber |
| Weight (Empty) | 210 lb (95 kg) |
| Dimensions (L x W x H) | 36 x 24.75 x 43 in (91.4 x 62.7 x 109.2 cm) |
| Model Numbers | 1.007-056.0 |
Technical specs may include optional equipment that is not included with all units.
Reconditioned Windsor Compass 2 Touchless Multi-Surface Cleaner
Our Take (from the SES Sales Team)

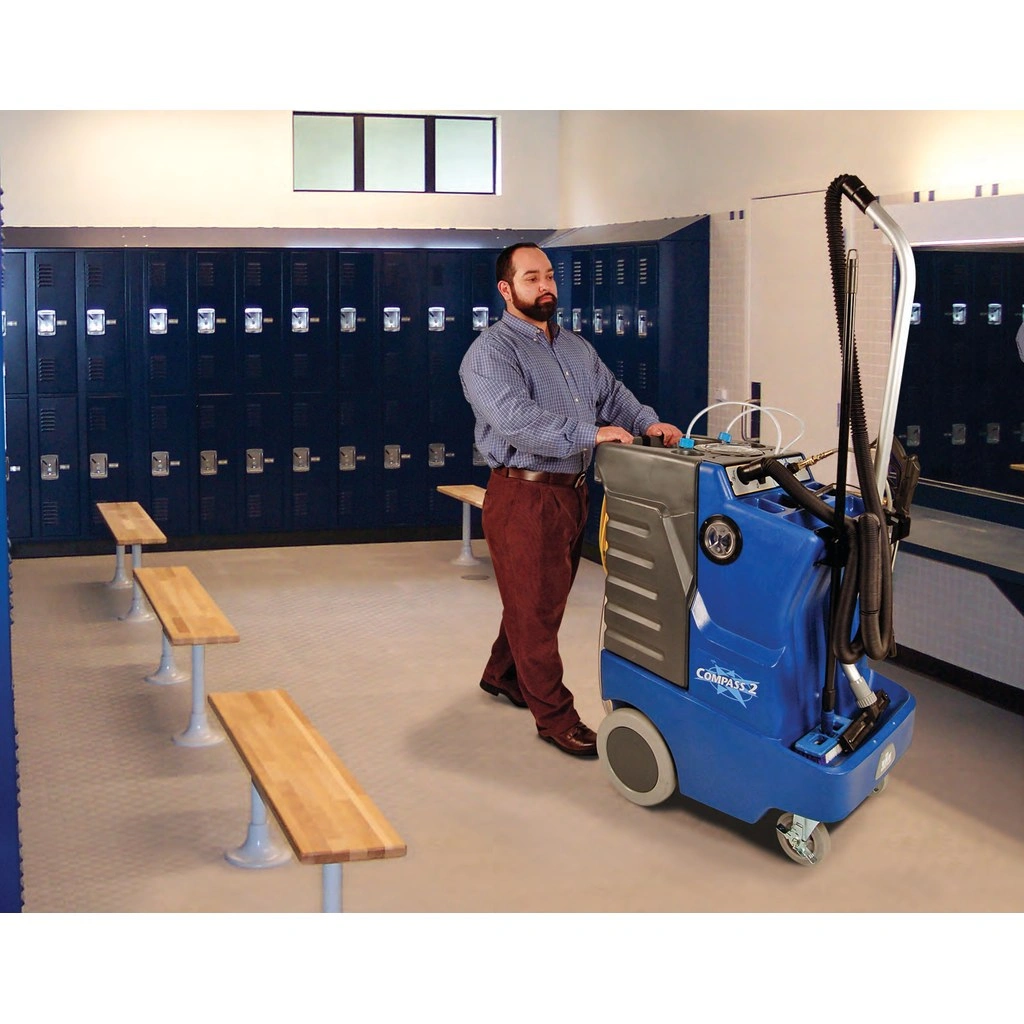

“The Compass 2 is a touchless cleaning cart for restrooms, locker rooms, showers, kitchens and other wet areas where a mop and bucket tends to push soil around. The operator applies cleaning solution, rinses at low or high pressure and then vacuums floors and fixtures dry, all from one machine.
Capacity is what stands out. The 29-gallon solution tank and 19-gallon recovery tank mean fewer trips to fill and dump, the pump runs 100 to 200 psi on low and 700 to 900 psi on high, and the 2-stage vacuum pulls water back through a 30-foot hose. A chemical selection valve meters product, and the cart has tool storage, a drip tray and a hook for wet floor signs. Windsor says it dries surfaces in a third less time than conventional cleaning.
This is a reconditioned unit, and it is a big cart at 210 pounds and 43 inches tall, so check doorways and storage space. For one or two small restrooms, a wet/dry vacuum and a mop routine may be enough.”
Spray, rinse and vacuum dry from one touchless cart.

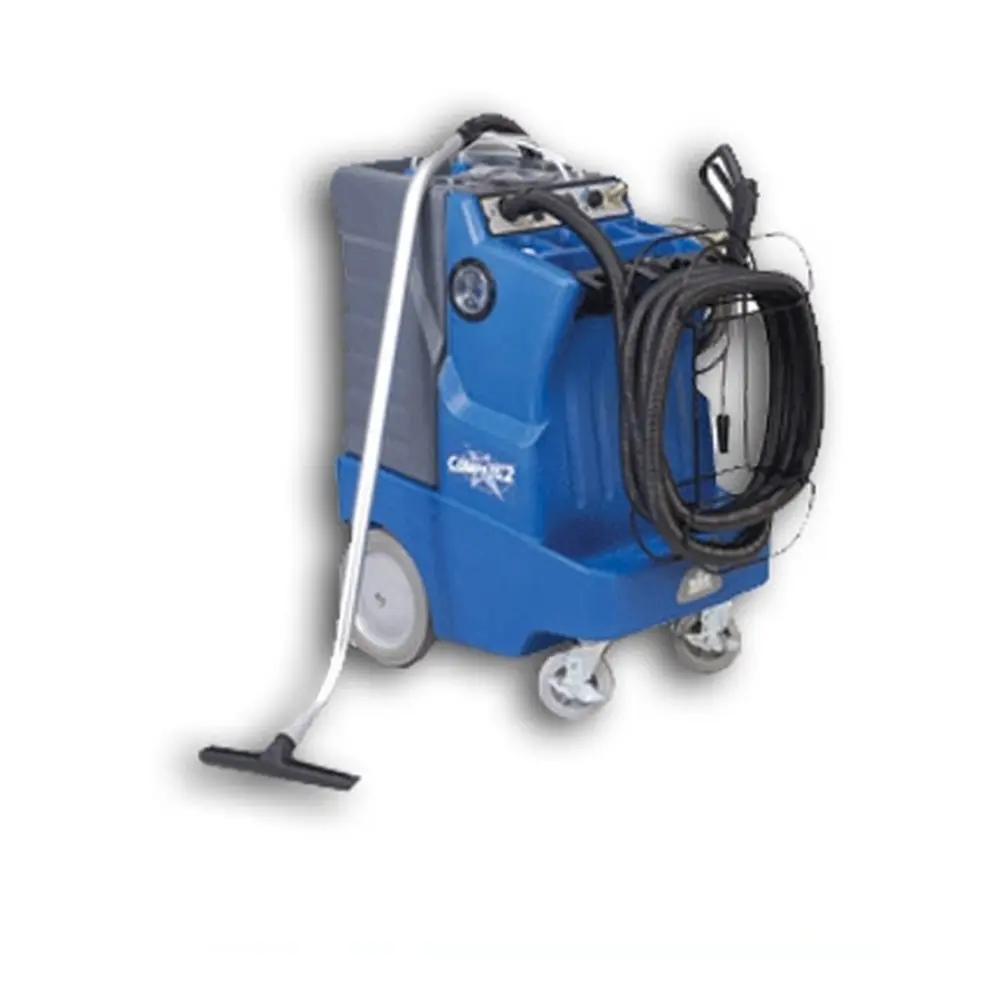

The Windsor Compass 2 is a touchless multi-surface cleaning machine that combines a pressure sprayer and a wet/dry vacuum on one cart. It dispenses cleaning solution at a safe pressure, rinses at low (100-200 psi) or high (700-900 psi) pressure and vacuums the surfaces dry through a 30-foot hose. Windsor aimed it at restrooms, locker rooms, patient rooms and cafeterias in hospitals, schools, offices and sports centers.
The cart carries a 29-gallon solution tank and a 19-gallon recovery tank, with solution flow adjustable from 0.66 to 1.25 gpm, a 1/3 hp pump motor and a 900-watt, 2-stage vacuum motor on a 120 V, 50-foot cord. A chemical selection valve meters product, and the cart adds a front control panel, tool storage, a safety drip tray, a rear wet floor sign hook and 12-inch rear wheels with 6-inch locking casters.
Not included: Cleaning chemicals and the optional Four-in-One tool kit, sold separately
Features:
- Applies solution, rinses at low or high pressure, then vacuums dry
- 29-gal solution and 19-gal recovery tanks
- Two-stage pump, 100-200 psi low or 700-900 psi high
- Chemical selection valve with metering
- 30-ft vacuum hose and 50-ft power cord
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
