| Model | 7765 with Variable Dump | |
| Scrubbing Path | 54 in (137 cm) | |
| Scrub Brush Pressure | 600 lb (272 kg) | |
| Sweeping Path | 60 in (152 cm) | |
| Solution/Recoverv Tanks | 100 gal (380.1 L each | |
| Hopper Capacity | 16 ft3(454 L) | |
| Vacuum Fan | Hydraulically driven, high volume | |
| U-Turn Aisle Width | 120 in (305 cm | |
| Turning Radius (left or right) | 82 in (208 cm) | |
| Dust Filter | 107 ft2(10 m2) | |
| Main Broom | 50 in (106.7 cm) | |
| Side Broom | 24 in (61 cm) | |
| Brushes (3) | 18in (45 cm) | |
| Engines | 86 hp GM3.0L MPFI gas | |
| Dimensions | 107 x 59 x 61.5 in(271 x 150 x 156 cm) | |
| Height with Overhead Guard | 85.5 in (217 cm) | |
| Weight | 4,350 lb (1,973 kg) |

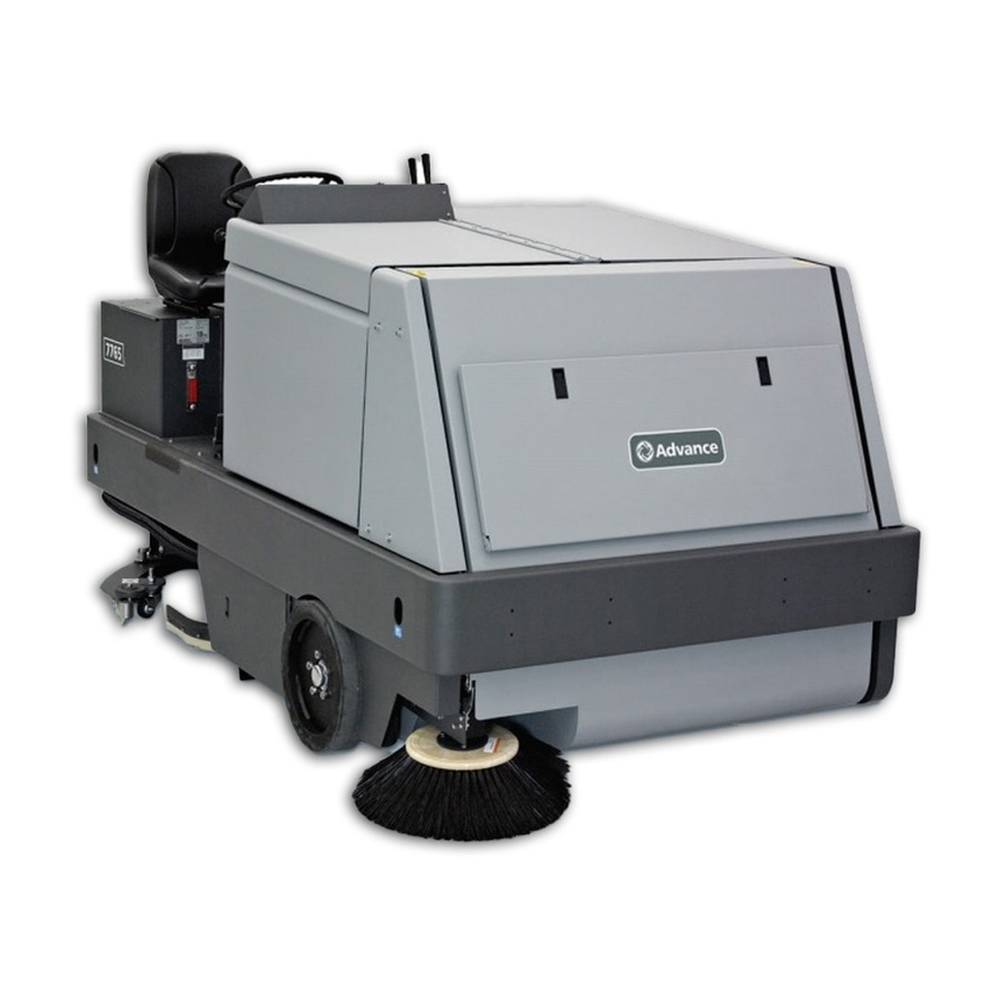

Demo Advance 7765 LP Rider Sweeper Scrubber
Our Take (from the SES Sales Team)
“The 7765 is built for floors that would wear out a lighter machine: manufacturing plants, distribution centers, warehouses and other industrial spaces with heavy soil and loose debris. It sweeps a 60 in path and scrubs a 54 in path in one pass. The main broom and side broom pull debris into a 16 cu ft hopper, then three 18 in disc brushes scrub with up to 600 lb of down pressure. The 100 gal stainless steel solution and recovery tanks keep it working on big floors, and Advance rates it at up to 70,000 sq ft per hour of scrubbing. This unit runs on LP with a GM 3.0 L engine, so there are no batteries to charge and refueling is a tank swap. The variable dump hopper lifts to empty into a dumpster or bin, the recovery tank tilts out for clean-up, and the Accu-Track squeegee breaks away on impact and keeps the floor dry through tight turns. If your floors need both sweeping and scrubbing, one combination machine like this can take the place of two machines and two operators.”
An industrial rider that sweeps and scrubs in one pass
The Advance 7765 is a ride-on sweeper-scrubber for manufacturing plants, warehouses, distribution centers and other large industrial floors. A main broom and side broom sweep a 60 in path into a 16 cu ft hopper, and three 18 in disc brushes scrub a 54 in path behind them, so one operator sweeps and scrubs in a single pass.
This unit is the LP model with the GM 3.0 L engine and the variable dump hopper, which lifts to empty debris directly into a dumpster or bin. The 100 gal stainless steel solution and recovery tanks hold up in harsh environments, and the recovery tank tilts out for clean-up.
Condition: Demo. Light use from demonstrations. Ask us about hours and condition.
What you get
Two machines in one
Sweep and scrub without a second machine
Features
Built for severe environments
- ✓Sweeps a 60 in path and scrubs a 54 in path in a single pass
- ✓Variable high dump hopper with a hopper safety arm
- ✓Stainless steel 100 gal solution and recovery tanks, with a tip-out recovery tank for clean-up
- ✓Patented Accu-Track break-away squeegee dries the floor even on tight turns
- ✓Power steering and a clear line of sight from the operator seat
At home in the warehouse
With a 120 in U-turn aisle width and an 82 in turning radius, the 7765 is sized for main aisles, docks and open production floors.
Specifications
Advance 7765 at a glance
| Models | 7765 LP, variable dump |
|---|---|
| Sweeping path | 60 in (152 cm) |
| Side broom | 24 in (61 cm) |
| Scrub path | 54 in (137 cm) |
| Scrub brushes | 3 x 18 in (45 cm) disc |
| Scrub pressure | 600 lb (272 kg) |
| Max scrubbing coverage | 70,000 sq ft/hr |
| Solution / recovery tanks | 100 gal (380 L) each, stainless steel |
| Debris hopper | 16 cu ft (454 L), variable dump |
| Dust filter | 107 sq ft (10 sq m) |
| Vacuum fan | Hydraulically driven, high volume |
| Engine | 74 hp GM 3.0 L MPFI, LP |
| Gradeability | Transport 14.1% (8 degrees); cleaning 10.5% (6 degrees) |
| Dimensions (L x W x H) | 107 x 59 x 61.5 in (271 x 150 x 156 cm) |
| Height with overhead guard | 85.5 in (217 cm) |
| Turning radius | 82 in (208 cm), left or right |
| U-turn aisle width | 120 in (305 cm) |
| Weight | 4,350 lb (1,973 kg) |
| Sound pressure level | 87 dBA |
| Model Numbers | Advance 56514935 (7765 LPG variable dump package) |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
Advance 7765: common questions
Does the 7765 sweep and scrub at the same time?
Yes. The main broom and side broom sweep a 60 in path into the hopper while the three-brush disc deck scrubs a 54 in path, all in one pass.
What fuel does this unit run on?
This is the LP model, powered by a 74 hp GM 3.0 L engine. It runs on liquid propane, so there are no batteries to charge.
How is the hopper emptied?
This unit has the variable dump hopper, which lifts from the operator seat to dump the 16 cu ft hopper into a dumpster or bin. A safety arm locks the hopper when it is raised for service.
How much floor can it scrub in an hour?
Advance rates the 7765 at up to 70,000 sq ft per hour with its 54 in scrub path.
How much room does it need?
The 7765 is 107 in long, 59 in wide and 61.5 in high (85.5 in with the overhead guard), with an 82 in turning radius and a 120 in U-turn aisle width. It weighs 4,350 lb, so check your floor and dock plate ratings too.
