| Models | CS7010 LP Hybrid |
| Sweeping Path | 61 in (154 cm) with dual side brooms |
| Main Broom | 36 x 12.2 in (90 x 31 cm) |
| Scrub Path | 48 in (122 cm), (3) 17 in (43 cm) discs |
| Scrub Pressure | Three settings, up to 400 lb (182 kg) |
| Solution / Recovery Tanks | 75 gal (285 L) each |
| Recovery Vacuum | Dual vac fan motors, 65 in (165 cm) waterlift |
| Hopper Capacity | 7 cu ft (198 L), 300 lb (136 kg) |
| Hopper Dump Height | Up to 60 in (152 cm) |
| Dust Control | 115 sq ft (10.7 m²) Donaldson PowerCore UltraWeb filter, variable-frequency shaker |
| Engine | Kubota WG972 LPG, 3 cyl., 0.96 L, 30 hp (22 kW), hybrid electric drive |
| Run Time | About 5.5 hr per 32 lb (14.5 kg) LPG tank |
| Propulsion | Variable-speed brushless AC drive |
| Max Transport Speed | 5.5 mph (8.9 km/h) |
| Max Sweeping / Scrubbing Speed | 3.5 mph (5.6 km/h), with override |
| Sweeping Coverage | 146,400 sq ft/hr (13,600 m²/hr) |
| Scrubbing Coverage | 118,600 sq ft/hr (11,000 m²/hr) |
| Dimensions (L x W x H) | 103 x 48 x 59 in (262 x 122 x 150 cm); 82 in (208 cm) with standard overhead guard |
| Minimum Aisle Turn | 104 in (264 cm) |
| Weight | 3,636 lb (1,649 kg) empty; 4,676 lb (2,121 kg) GVW |
| Sound Level | 82 dBA (IEC 60335-2-72) |
| Model Numbers | 56511710 |
Technical specs may include optional equipment that is not included with all units.
Reconditioned Advance CS7010 LP Hybrid 48" Disc Rider Sweeper Scrubber
Our Take (from the SES Sales Team)

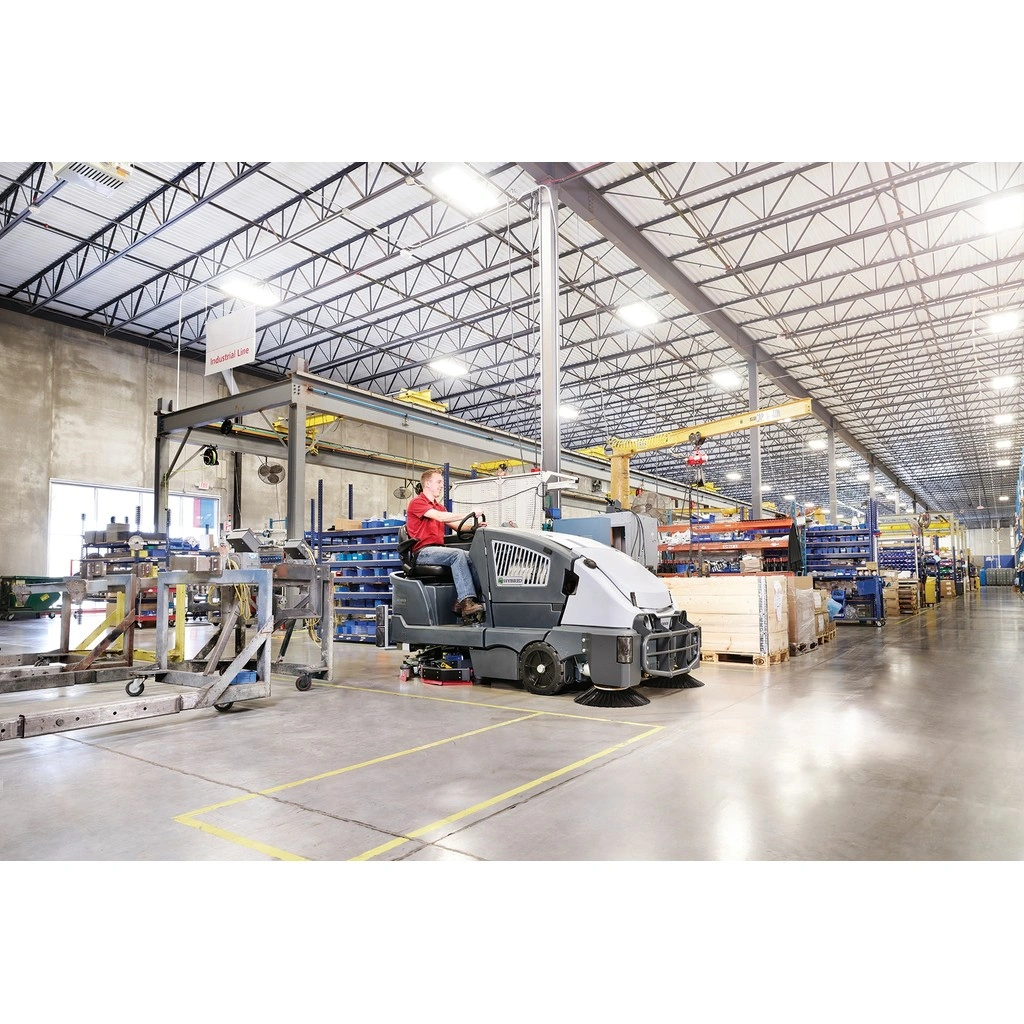

“The CS7010 handles sweeping and scrubbing with two separate systems: a front cylindrical sweeper with dual side brooms and its own 7 cubic foot hopper, then a 48-inch disc scrub deck and squeegee behind it. In warehouses, plants and distribution centers that means loose debris goes into the hopper instead of the recovery tank, and the floor is swept and scrubbed in one pass.
This is the LP hybrid. A Kubota 30 hp LPG engine powers electric drives instead of the hydraulic systems on older combination machines, and Advance rates about 5.5 hours of sweeping and scrubbing per 32-pound tank. A backup battery lets the operator drive to the refueling station if the tank runs out, and the 75-gallon tanks and 400-pound top scrub setting handle heavy industrial soil.
The trade-offs are noise and size. It is rated at 82 dBA, so it is not a daytime machine for occupied spaces, and it needs about 104 inches to turn around. For indoor work where noise and exhaust matter, the battery version is worth a look. This is a reconditioned unit.”
LP hybrid combination sweeper-scrubber for industrial floors.

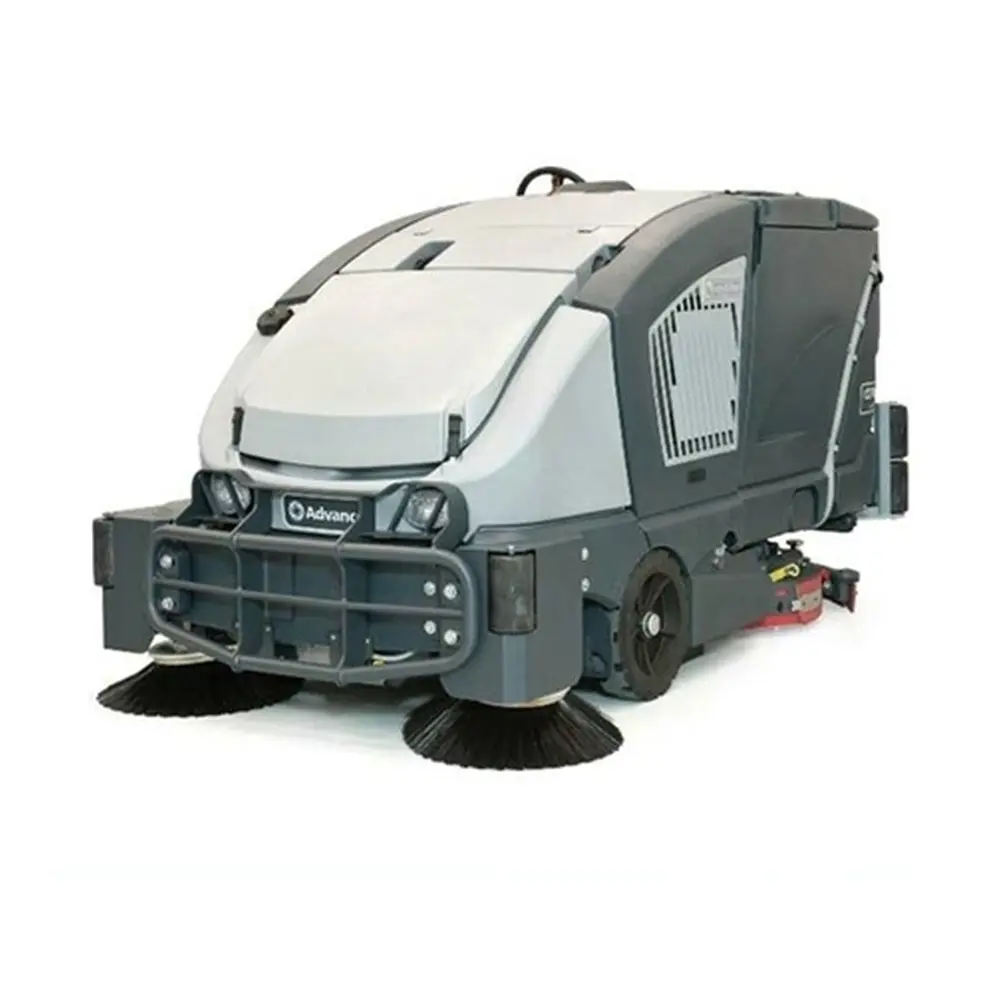

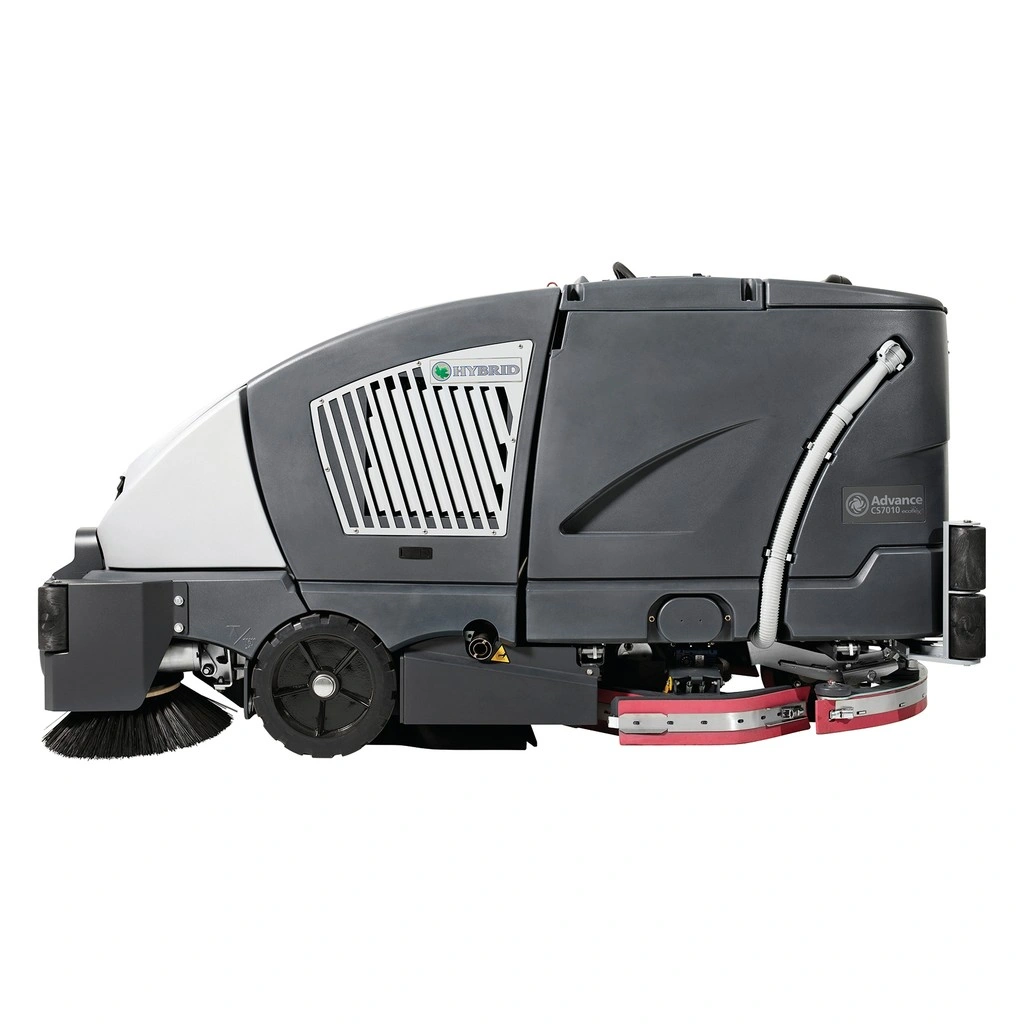

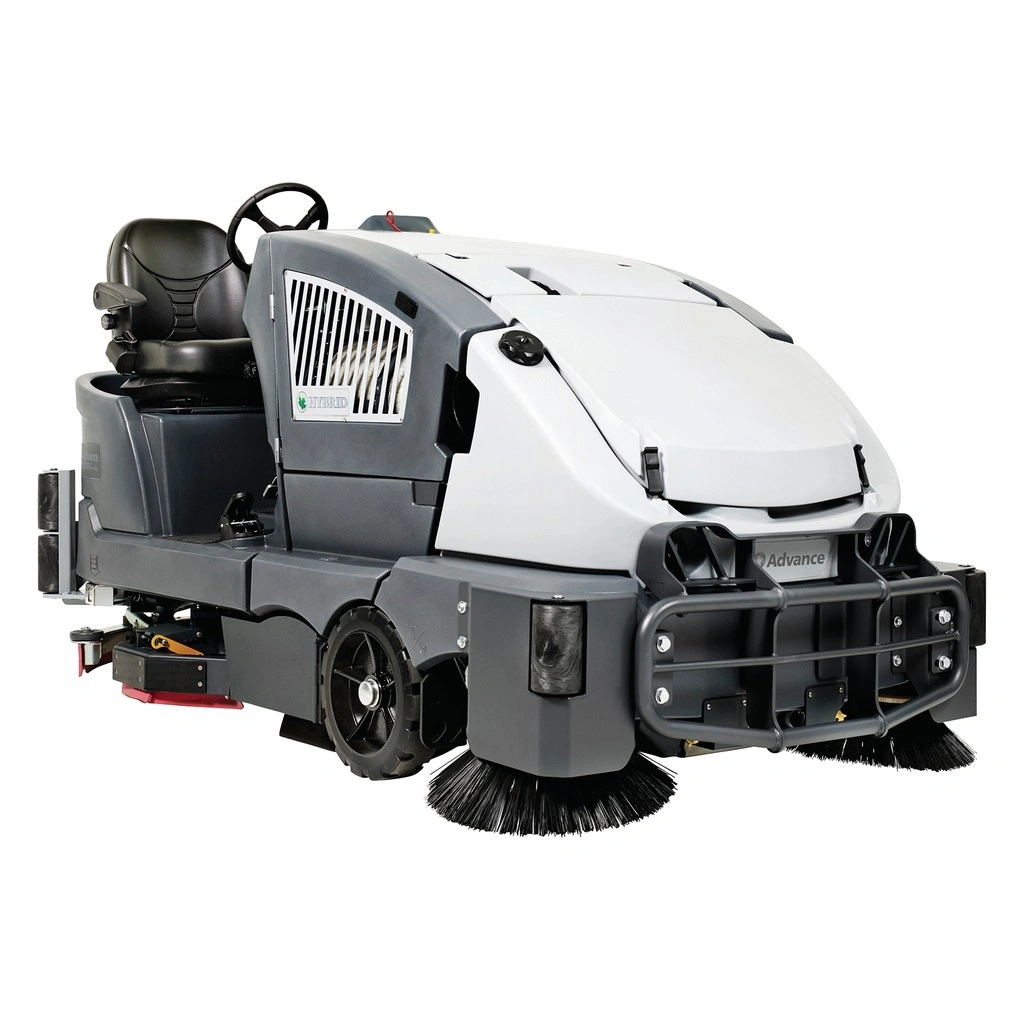

The Advance CS7010 LP Hybrid is an industrial rider sweeper-scrubber with independent front dry sweeping and rear scrubbing. It sweeps a 61-inch (154 cm) path with dual side brooms and a 36 x 12.2-inch (90 x 31 cm) main broom, scrubs a 48-inch (122 cm) path with three 17-inch (43 cm) discs, and carries 75 gallons (285 L) each of solution and recovery.
A Kubota WG972 LPG engine (30 hp, 22 kW) runs the hybrid electric drive system, rated for about 5.5 hours per 32 lb (14.5 kg) LPG tank. Debris goes to a 7 cu ft (198 L), 300 lb (136 kg) hopper with a 60-inch (152 cm) high dump, and a 115 sq ft (10.7 m²) Donaldson PowerCore filter with a variable-frequency shaker controls dust.
Condition: Refurbished (Reconditioned). See how we recondition equipment.
Features
- ✓Independent front sweeping and rear disc scrubbing in one pass
- ✓LP hybrid with a Kubota 30 hp engine and electric drive systems
- ✓75-gal solution and recovery tanks
- ✓7 cu ft high-dump hopper with Donaldson PowerCore filter
- ✓Pivoting offset scrub deck and break-away squeegee
Advance CS7010 LP Hybrid 48" Disc Rider Sweeper Scrubber
Specifications
| Models | CS7010 LP Hybrid |
| Sweeping Path | 61 in (154 cm) with dual side brooms |
| Solution / Recovery Tanks | 75 gal (285 L) each |
| Recovery Vacuum | Dual vac fan motors, 65 in (165 cm) waterlift |
| Hopper Capacity | 7 cu ft (198 L), 300 lb (136 kg) |
| Hopper Dump Height | Up to 60 in (152 cm) |
| Sweeping Coverage | 146,400 sq ft/hr (13,600 m²/hr) |
| Weight | 3,636 lb (1,649 kg) empty; 4,676 lb (2,121 kg) GVW |
| Sound Level | 82 dBA (IEC 60335-2-72) |
| Model Numbers | 56511710 |
Technical specs may include optional equipment that is not included with all units.
