| Models | Viper AS530R |
| Cleaning path | 20 in disk |
| Brush/pad diameter | 20 in |
| Brush pressure | 51 lb (23 kg) |
| Brush speed | 160 rpm |
| Squeegee width | 30 in |
| Solution tank | 19 gal (72 L) |
| Recovery tank | 19.2 gal (73 L) |
| Solution flow | 0.22-0.53 gpm |
| Max speed | 3.4 mph (5.5 km/h) |
| Max climbing rate | 10% |
| Minimum aisle turn | 68.5 in (174 cm) |
| Brush motor | 0.6 hp (450 W) |
| Vacuum motor | 0.5 hp (400 W) |
| Drive motor | 0.4 hp |
| Vacuum water lift | 48 in |
| Sound level | 69 dBA |
| Voltage | 24 V |
| Charger | Onboard |
| Battery compartment (L x W x H) | 13.8 x 15 x 11.8 in |
| Front wheel | 6.8 in |
| Rear wheel | 9 in |
| Dimensions (L x W x H), squeegee removed | 53.5 x 23 x 44 in |
| Net weight | 308 lb |
| Shipping weight | 540 lb |
| Packaging dimensions | 58 x 28 x 51 in |
| Model Numbers | Viper AS530R-US Rider, part number 56385072 |
Technical specs may include optional equipment that is not included with all units.

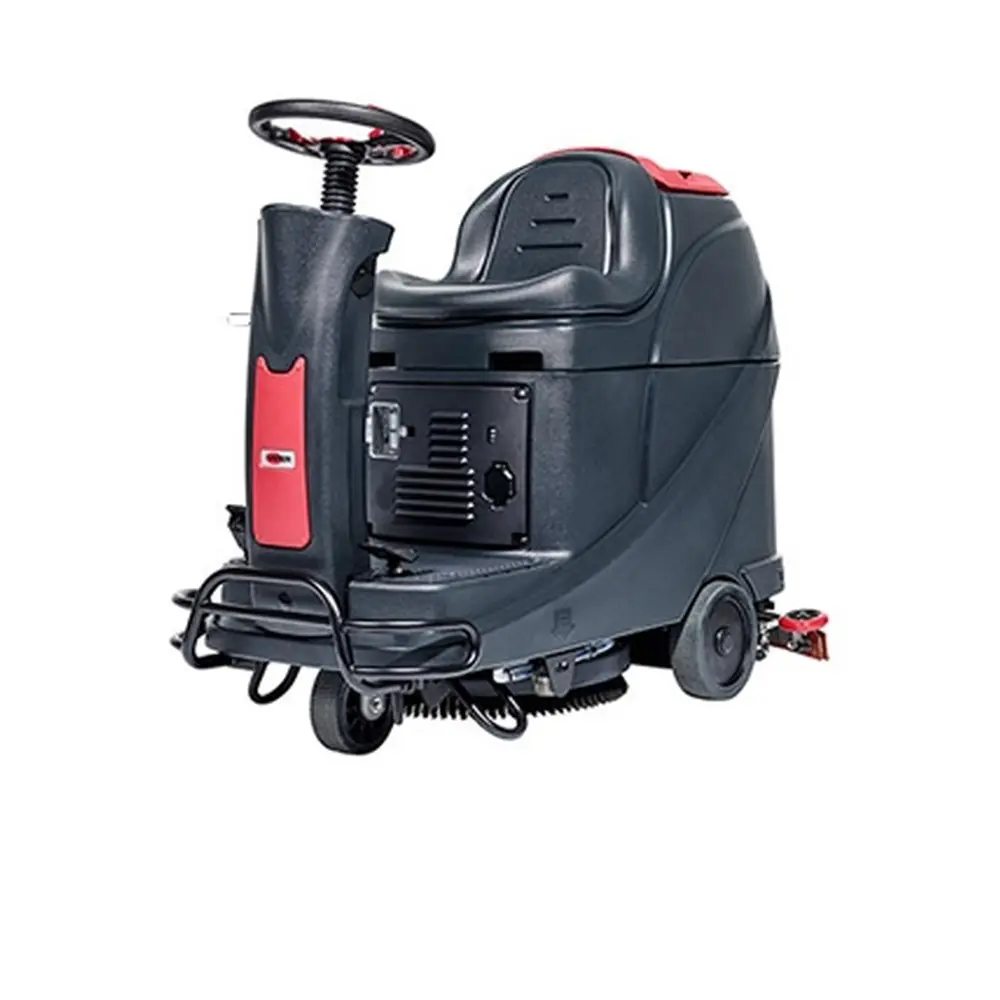

Demo Viper AS530R 20" Battery Rider Scrubber
Our Take (from the SES Sales Team)
“The AS530R makes sense when walk-behind scrubbing is wearing out your crew but a full-size rider is more machine than the building needs. It is a compact micro-rider, 23 in wide and 53.5 in long with the squeegee removed, and the squeegee hangs on the recovery tank when you need to move it through narrow areas. The 20 in disk deck scrubs and the 30 in squeegee picks up behind it at up to 3.4 mph, and the 19 gal solution and 19.2 gal recovery tanks mean fewer trips to the sink. At 69 dBA it is quiet enough for daytime cleaning, which matters in hotels, schools, grocery stores and lobbies where you cannot wait for the building to empty. The controls are simple, the water level is visible on the tank, and the onboard charger plugs in at any outlet, so there is no separate charging station to keep track of. If you clean tile, vinyl, sealed concrete or similar smooth floors in a building with tight access, this is a good one to look at. For big, open warehouse floors, a larger rider will cover ground faster.”
A compact micro-rider for busy public spaces
The Viper AS530R is a mini ride-on scrubber dryer for hotels, bus and train stations, supermarkets, exhibition centers, shopping malls, schools and other institutions. A 20 in disk deck scrubs while a 30 in squeegee picks up behind it, and the operator rides instead of walking, at speeds up to 3.4 mph.
It cleans tile, vinyl, sealed wood, marble, concrete and other hard floors. This is the US AS530R rider package (Nilfisk part number 56385072), with batteries and an onboard 24 V charger.
Condition: Demo. Inspected by SES technicians.
What you get
Small footprint, rider productivity
Why a micro-rider instead of a walk-behind?
Features
Simple to run, built to last
- ✓Integrated onboard charger plugs in at any outlet
- ✓Intuitive display and large buttons for the main functions
- ✓Water solution level indicator with the volume visible on the tank
- ✓Large recovery tank opening for easy cleaning
- ✓Squeegee hangs on the recovery tank for moving through narrow areas
- ✓Front bumper, strong main frame and heavy-duty aluminum squeegee
- ✓Solution flow adjusts from 0.22 to 0.53 gpm
- ✓Cleans tile, vinyl, sealed wood, marble, concrete and other hard floors
Specifications
Viper AS530R at a glance
| Spec | AS530R-US rider, 56385072 |
|---|---|
| Cleaning path | 20 in disk |
| Squeegee width | 30 in |
| Solution / recovery tanks | 19 gal (72 L) / 19.2 gal (73 L) |
| Brush speed / pressure | 160 rpm / 51 lb (23 kg) |
| Max speed | 3.4 mph (5.5 km/h) |
| Length x width x height | 53.5 x 23 x 44 in, squeegee removed |
| Minimum aisle turn | 68.5 in (174 cm) |
| Sound level | 69 dBA |
| Voltage / charger | 24 V / onboard |
| Model numbers | Viper AS530R, Nilfisk 56385072 (AS530R-US Rider) |
Specifications from Nilfisk and Viper. Technical specs may include optional equipment that is not included with all units.
Demo Unit Details
Not Sure the AS530R Fits Your Building?
Call 800-440-6723 and tell us about the floor, the building and the shift. We will tell you if this is the right machine. Service and warranty help
