ModelsViper AS5160
Cleaning path20 in (51 cm) disk
Brush/pad diameter20 in
Pad pressure60 lb (27 kg)
Brush speed150 rpm
Squeegee width31 in (79 cm)
Solution tank16 gal (61 L)
Recovery tank16 gal (61 L)
Solution flow0-0.63 gpm (0-2.4 L/min)
PropulsionPad assist (no traction motor)
Max climbing rate2%
Brush motor0.6 hp (450 W)
Vacuum motor0.47 hp (350 W)
Vacuum water lift47 in (1,200 mm)
Sound level69 dBA
Voltage24 V
ChargerOnboard
Dimensions (L x W x H)52 x 22 x 39 in
Net weight187 lb (85 kg)
Gross vehicle weight474 lb (215 kg)
Shipping weight254 lb (115 kg)
Model NumbersViper AS5160 OBC PH, part number 56384812

Technical specs may include optional equipment that is not included with all units.

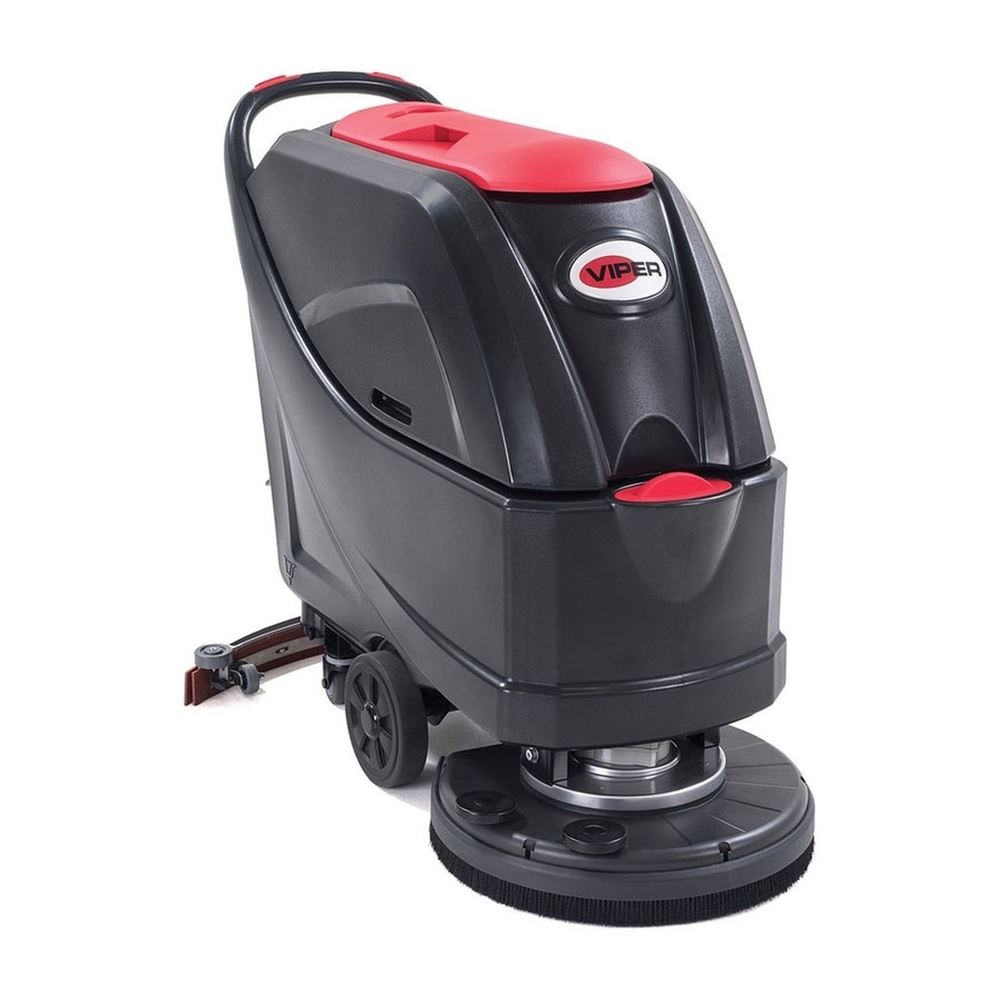

Demo Viper AS5160 20" Pad Assist Floor Scrubber

Part Number:
ERAD56384812-99
OEM Number:
ERAD56384812-99
Availability:
Quick Ship
Battery Type:
AGM
Brush Speed (RPM):
150
Charger Type:
On-board Available
Cleaning Path (inches):
20
Condition:
Demo
Deck Type:
Disk
Equipment Type:
Walk-Behind Scrubbers
List Price:
6,519.00
Machine Type:
Equipment
Manufacturer:
Viper
Our Price:
4,990.00
Power Source:
Battery
Propulsion:
Pad-assist/Manual
Recovery Tank Size (gal):
16
Shipping Designation:
Qualifies for Free/Flat Rate Shipping
Solution Tank Size (gal):
16
Sound Level (dBA):
69
Warranty Information:
90 Day Parts, 30 Days Labor
Price:
$6,519.00
$4,990.00/EA
23% discount
In Stock

Our Take (from the SES Sales Team)

“The Viper AS5160, manufactured under the Nilfisk Advance brand of companies, is a smaller-sized 20" walk-behind battery floor scrubber that delivers excellent productivity and durability at a competitive price. For facilities that need to cover large indoor areas (warehouses, schools, hospitals, supermarkets), it has much to offer, next to the performance of more expensive brands, while benefiting from Nilfisk's service and parts support network. In comparison to lower-cost no-name machines, the AS5160 stands out for its robust buildup (rotationally molded tanks, solid chassis), large tank capacity, and proven motors. Compared to premium scrubbers, it may lack some "bells and whistles", but it offers good performance, especially in environments where uptime, ease of maintenance, and simplicity matter. One of its strongest selling points is the backing of Nilfisk, with reliable parts, widespread service, and a proven track record in commercial cleaning equipment. For end users, that lowers risk compared to buying cheaper machines without proven service histories. Key Features Strong warranty and parts availability via Nilfisk, reducing lifecycle cost and downtime. Larger than average solution & recovery tank capacity for its class (16 gal / 61 L), meaning less frequent refills/dumping compared to smaller machines. Good productivity (area cleaned per hour) thanks to its 20-inch cleaning path, solid brush/pad power, and full-sized vacuum/squeegee assemblies. Flexibility: available in pad-assist or traction-drive variants; choice of wet batteries or maintenance-free AGM; options like orbital deck for special cleaning or stripping. The Viper AS5160 is an excellent floor scrubber and gives strong value for what it delivers. It sits well between budget and premium in the scrubber market. It has high enough quality to satisfy demanding users, yet remains affordable compared to top-tier names. Backed by Nilfisk's support, it reduces risk, which is often as important as raw specifications. If you need a reliable scrubber with good warranty and service, the AS5160 is well worth considering.”

20 in
Disk cleaning path
16 / 16 gal
Solution / recovery tanks
31 in
Squeegee width
60 lb
Pad pressure
69 dBA
Sound level
Onboard
24 V charger

A 20 in pad-assist walk-behind with 16 gal tanks

The Viper AS5160 is a mid-size, battery-powered walk-behind floor scrubber for schools, offices, healthcare facilities, retail stores, warehouses and other indoor hard floors. A single 20 in disk scrubs while a 31 in parabolic squeegee picks up behind it, and 16 gal solution and recovery tanks keep the operator cleaning instead of walking back to the sink.

This is the pad-assist version: the rotation of the pad helps move the machine forward, so there is no traction drive motor to maintain. It runs on a 24 V battery system with an onboard charger, and the rotationally molded housing is built to take daily use.

Condition: Demo. Inspected by SES technicians.

Viper AS5160 walk-behind scrubber cleaning an open hall floor

What you get

Simple, Rugged and Easy to Run

20 in

Disk scrub deck

A single 20 in pad holder or brush turns at 150 rpm with 60 lb of pad pressure on hard floors.

16 / 16 gal

Solution and recovery tanks

Large tanks for a 20 in machine mean fewer dump and refill trips. The water level is visible on the tank.

Pad assist

No traction motor

The pad rotation helps pull the machine forward while the operator steers, keeping the drive system simple.

Onboard

24 V charger

The charger rides on the machine, so batteries can be charged wherever the machine is parked.

31 in

Parabolic squeegee

A curved squeegee with front and rear blades follows the scrub path to leave the floor dry.

Safety

Switches in the handle

Two safety switches are built into the handle for safe, simple operation.

Pad assist or traction?

The AS5160 (this unit) uses the pad to help move the machine, which works well on level floors and keeps maintenance simple. The AS5160T adds a 150 W traction drive motor that powers the wheels, for operators who want powered travel. Both versions share the same 20 in deck, 31 in squeegee and 16 gal tanks.

Features

Built for Daily Cleaning

  • ✓Rotationally molded housing for durability, with a design that makes service and maintenance simpler
  • ✓Control panel with an intuitive display and buttons, plus an hour meter
  • ✓Ergonomic handle with two built-in safety switches to reduce operator fatigue on long shifts
  • ✓Water level indicator with volume markings visible on the tank
  • ✓Recovery tank emptying hose for draining at the sink or floor drain
  • ✓Big wheels and strong casters keep the machine balanced and easy to move
  • ✓Adjustable solution flow from 0 to 0.63 gpm to match the soil level
Viper AS5160 control panel and handle with safety switches

Pad assist vs. traction

AS5160 or AS5160T?

AS5160 (this unit) AS5160T
Drive Pad assist, no traction motor 150 W traction drive motor
Cleaning path 20 in disk 20 in disk
Solution / recovery tanks 16 / 16 gal 16 / 16 gal
Net weight 187 lb 205 lb (93 kg)
Best fit Level floors, simple daily scrubbing Operators who want powered travel

Specifications

Viper AS5160 at a Glance

Spec AS5160 OBC PH (56384812)
Cleaning path 20 in (51 cm) disk
Squeegee width 31 in (79 cm)
Solution / recovery tanks 16 gal (61 L) / 16 gal (61 L)
Pad pressure 60 lb (27 kg)
Brush / pad speed 150 rpm
Propulsion Pad assist
Voltage / charger 24 V, onboard charger
Sound level 69 dBA
Model numbers Viper AS5160 OBC PH, part number 56384812
More SpecificationsTap to view ▾
Spec AS5160 OBC PH (56384812)
Brush motor 0.6 hp (450 W)
Vacuum motor 0.47 hp (350 W)
Vacuum water lift 47 in (1,200 mm)
Solution flow 0-0.63 gpm (0-2.4 L/min)
Max climbing rate 2%
Dimensions (L x W x H) 52 x 22 x 39 in
Net weight 187 lb (85 kg)
Gross vehicle weight 474 lb (215 kg)
Shipping weight 254 lb (115 kg)

Specifications from Nilfisk and Viper. Technical specs may include optional equipment that is not included with all units.

Demo Unit Details

This is a demo unit, inspected by SES technicians before it ships. It is Nilfisk configuration 56384812 (AS5160 OBC PH): the pad-assist AS5160 with batteries, an onboard charger and a 20 in pad holder. Nilfisk delivers the AS5160 with a pad driver, parabolic squeegee assembly with blades, brush deck skirts and an onboard charger. SES warranty on this demo: 90 days parts, 365 days labor. See service and warranty for coverage details.
QuestionsViper AS5160: Common QuestionsTap to view ▾

Is the AS5160 self-propelled?

No. This is the pad-assist version: the rotating pad helps pull the machine forward and the operator steers it. If you want powered travel, the AS5160T adds a 150 W traction drive motor.

How big are the tanks?

The solution and recovery tanks each hold 16 gal (61 L), which is large for a 20 in walk-behind and means fewer trips to refill and dump.

Will it fit through my doorways?

Nilfisk lists the AS5160 at 52 in long, 22 in wide and 39 in high, with a 31 in squeegee. Measure your narrowest doorway and allow for the squeegee when you plan the route.

Does it come with a charger?

Yes. Configuration 56384812 includes an onboard 24 V charger, so the batteries can be charged wherever the machine is parked.

Can I use a brush instead of a pad?

Yes. This configuration comes with a 20 in pad holder, and Nilfisk offers a 20 in disk brush for the AS5160 for floors that need more agitation, such as textured tile and grout.

Can it handle ramps?

Nilfisk rates the AS5160 at a 2% maximum climbing rate, so it is best suited to level floors. For financing options on this or another machine, see financing.
