| Models | Advance SC500 X20R EcoFlex |
| Scrub Path | 20 in (50.8 cm) |
| Scrub Deck | REV orbital |
| Pad Size | 20 in (508 mm) |
| Brush Speed | 2,250 rpm orbital / 30 rpm pad |
| Brush Pressure | 49 / 66 lb (22.2 / 30 kg) |
| Brush Motor | 560 W |
| Squeegee Width | 26.5 in (67.3 cm) |
| Solution Tank | 12 gal (45 L) |
| Recovery Tank | 12 gal (45 L) |
| Vacuum Motor | 280 W |
| Waterlift | 29.9 in (76 cm) H2O |
| Airflow | 100 CFM |
| Sound Level | 61 dBA silent / 65 dBA normal |
| Drive Motor | 200 W |
| Propulsion | Traction drive, self-propelled |
| Voltage | 24 V |
| Charger | Onboard |
| Onboard Detergent | EcoFlex system, standard |
| Variable Solution Flow | SmartFlow, standard |
| Smart Key | Standard |
| Multifunction Display | Standard |
| Quiet Mode | Standard |
| Length | 48.3 in |
| Width | 20.9 in |
| Height | 41.9 in (106.3 cm) |
| Weight Without Batteries | 194 lb |
| Productivity (Theoretical Max) | 24,552 sq ft (2,280 sq m) |
| Model Numbers | Advance SC500 20R EcoFlex OBC PH, part number 56383556 |
Technical specs may include optional equipment that is not included with all units.

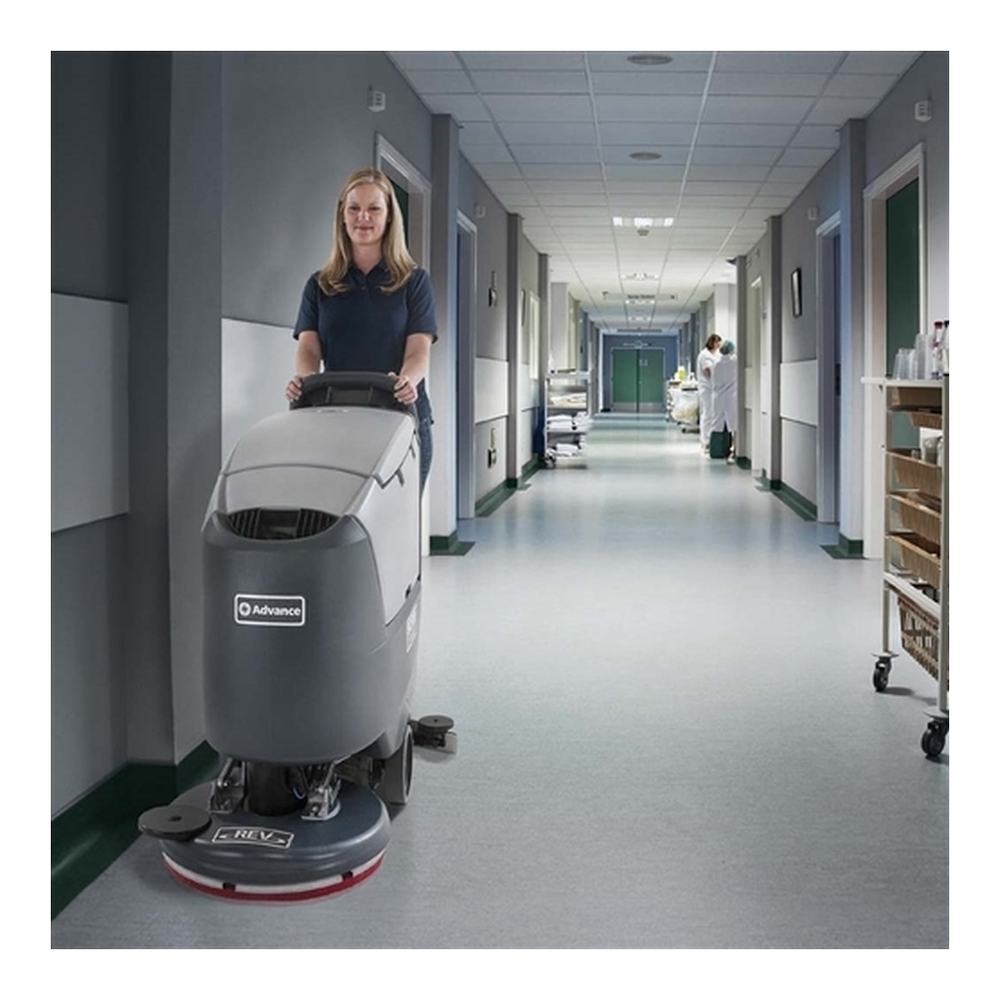

Demo Advance SC500 X20R EcoFlex A150 OBC PH
Our Take (from the SES Sales Team)
“The Advance SC500 has been a staple in the Nilfisk/Advance fleet for some time. This affordable, reliable, efficient, and versatile machine is one of the best on the market. It cleans approximately 25,000 square feet of flooring day in and day out. Use a brush on concrete or a pad holder and pad for VCT and other sensitive materials. With a 12 gallon solution and recovery tank, you can go a long way without filling or dumping the scrubber. Nilfisk is an international company and parts/service are available in most areas. New or reconditioned, you cannot go wrong with this machine.”
A 20 in orbital walk-behind that scrubs daily and strips finish without chemicals
The Advance SC500 X20R is a compact, quiet walk-behind floor scrubber for hospitals, schools, offices, grocery and retail stores, athletic facilities, restaurants and hotels. Its REV orbital deck spins a 20 in pad at 2,250 rpm orbital while the pad turns at 30 rpm, and Advance says REV technology allows chemical-free removal of floor finish. 12 gal solution and recovery tanks and a 26.5 in squeegee round out a machine sized for daily scrubbing in occupied buildings.
This configuration (Advance 56383556) includes the EcoFlex detergent system, a 24 V battery system with an onboard charger, and a pad holder.
Condition: Demo. Inspected by SES technicians.
What you get
Configured for Quiet, Low-Chemical Cleaning
SmartFlow: less solution on the floor when you slow down
Features
Built for Easy Daily Use
- ✓Multifunction display gives managers access to adjustable cleaning parameters, so operators can start cleaning without changing settings
- ✓Smart Key, Quiet Mode and variable solution flow are standard
- ✓Raise, lower or double the brush pressure right from the dashboard
- ✓Ergonomic paddle controls run speed and solution flow on the self-propelled traction drive
- ✓Mechanical foot pedals raise and lower the squeegee
- ✓Recovery tank tilts back for full access to the batteries and EcoFlex detergent bottle
- ✓Pinch-to-control tank drain hose and three ways to fill the solution tank
Choosing a deck
REV Orbital or Disc?
| REV orbital (this unit) | SC500 disc | |
|---|---|---|
| Scrub path | 20 in | 20 in |
| Brush / pad speed | 2,250 rpm orbital / 30 rpm pad | 155 rpm |
| Brush pressure | 49 / 66 lb | 33 / 66 lb |
| Brush motor | 560 W | 450 W |
| Sound level, silent / normal | 61 / 65 dBA | 60 / 63 dBA |
| EcoFlex | Standard | Optional |
| Best fit | Daily scrubbing plus chemical-free finish removal | Daily scrubbing with a disc brush or pad |
Specifications
Advance SC500 X20R at a Glance
| Spec | SC500 X20R EcoFlex, onboard charger |
|---|---|
| Scrub path | 20 in (50.8 cm) |
| Brush / pad speed | 2,250 rpm orbital / 30 rpm pad |
| Brush pressure | 49 / 66 lb (22.2 / 30 kg) |
| Solution / recovery tanks | 12 gal / 12 gal (45 L / 45 L) |
| Squeegee width | 26.5 in (67.3 cm) |
| Productivity (theoretical max) | 24,552 sq ft (2,280 sq m) |
| Sound level | 61 dBA silent / 65 dBA normal |
| Length x width x height | 48.3 x 20.9 x 41.9 in |
| Weight without batteries | 194 lb |
| Model numbers | Advance 56383556 (SC500 20R EcoFlex OBC PH) |
Specifications from Nilfisk and Advance. Technical specs may include optional equipment that is not included with all units.
Demo unit details
Not Sure the SC500 X20R Fits Your Floors?
Call 800-440-6723 and tell us about the floor, the building and the shift. We will tell you if this is the right machine. Service and warranty help
