| Models | CS7000 Fuel Cell |
| Power System | Plug Power Model 2300 GenDrive hybrid fuel cell (not included; machine is fuel-cell ready) |
| Sweeping Path | 61 in (154 cm) with dual side brooms; squeegee path fully swept |
| Main Broom | 36 x 12.2 in (90 x 31 cm) |
| Sweeping Coverage | 146,400 ft²/hr (13,600 m²/hr) |
| Dust Control | 115 ft² (10.7 m²) Donaldson PowerCore UltraWeb filter, synthetic media, variable-frequency automatic shaker |
| Hopper Capacity | 7 ft³ (198 L); 300 lb (136 kg) |
| Hopper Dump Height (max) | 60 in (152 cm) |
| Scrubbing Path | 48 in (122 cm), three 17 in (43 cm) discs |
| Scrubbing Coverage | 118,600 ft²/hr (11,000 m²/hr) |
| Scrub Pressure | Three settings, up to 400 lb (182 kg) |
| Solution / Recovery Tanks | 75 gal (285 L) each |
| Recovery Vacuum | Dual vac fan motors, 48 in (122 cm) water lift |
| Propulsion | Variable-speed brushless AC drive |
| Speed | Transport 5.5 mph (8.9 km/h); sweeping/scrubbing 3.5 mph (5.6 km/h) with override |
| Gradeability | Transport at gross weight 21% (12°); sweeping/scrubbing 15% (9°) |
| Dimensions (L x W x H) | 103 x 48 x 59 in (262 x 122 x 150 cm) |
| Height with Overhead Guard | 82 in (208 cm) standard; 79 in (201 cm) low clearance |
| Minimum Aisle Turn | 104 in (264 cm) |
| Weight | GVW 6,186 lb (2,812 kg); empty 5,152 lb (2,342 kg) |
| Sound Level | 82 dB A (IEC 60335-2-72), machine only, excludes fuel cell fan noise |
| Water Ingression | Electric drive motors and actuators rated IP55 |
| Model Numbers | 56383115 |
Technical specs may include optional equipment that is not included with all units.

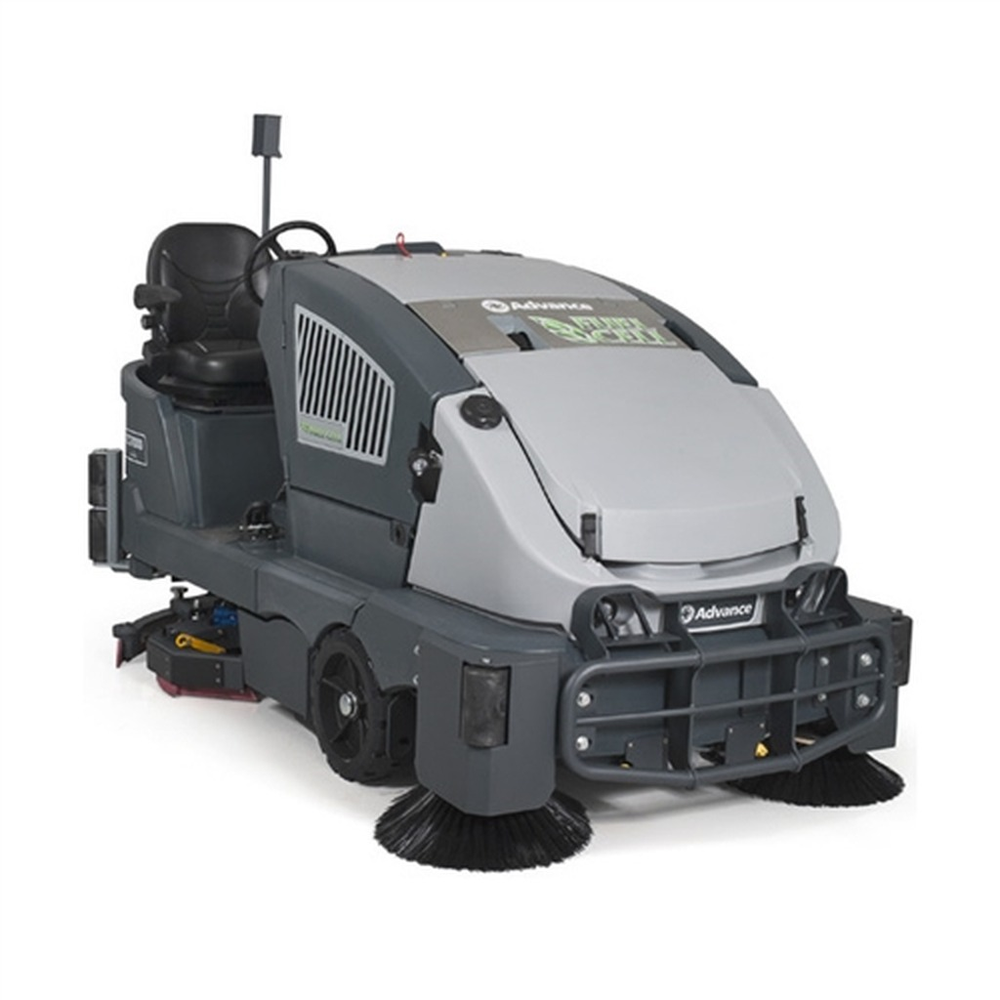

Reconditioned Advance CS7000 Fuel Cell 48" Disc Rider Sweeper Scrubber
Our Take (from the SES Sales Team)
“The CS7000 Fuel Cell is a full-size rider sweeper-scrubber built for warehouses, distribution centers and plants that already fuel their forklifts with hydrogen. Instead of an LP engine or a large battery pack, it is designed around a Plug Power GenDrive 2300 hybrid fuel cell, which Advance describes as emission-free indoors.
What stands out is that sweeping and scrubbing are independent systems. Dual side brooms and a 36-inch main broom sweep a 61-inch path into a 7 cubic foot hopper that dumps as high as 60 inches, while three 17-inch discs scrub a 48-inch path behind them. The 75-gallon solution and recovery tanks and up to 400 pounds of scrub pressure suit long runs on heavily soiled concrete.
The honest trade-off is the fuel. Without hydrogen fueling and a GenDrive fuel cell on site, this machine does not fit, and a battery or LP sweeper-scrubber is the simpler choice. It is also big: 103 inches long with a 104-inch aisle turn. This is a reconditioned unit.”
Fuel cell powered sweeping and scrubbing in one pass.
The Advance CS7000 Fuel Cell is a rider combination sweeper-scrubber that runs on a Plug Power GenDrive 2300 hybrid fuel cell. Advance built it fuel-cell ready for operations that already use hydrogen fuel cells. All sweeping and scrubbing functions use electronically controlled electric drives, with an electrically driven hydraulic unit only for raising and lowering the hopper, and the drive motors and actuators are rated IP55.
Up front, dual side brooms and a 36 x 12.2-inch main broom sweep a 61-inch (154 cm) path into a 7 cu ft (198 L) hopper that dumps at up to 60 inches. Behind them, three 17-inch discs scrub a 48-inch (122 cm) path with up to 400 lb of down pressure, fed by 75-gallon (285 L) solution and recovery tanks. A Donaldson filter with an automatic shaker controls dust.
Not included: Plug Power GenDrive 2300 fuel cell, not included (Advance supplied this model fuel-cell ready).
Features:
- Plug Power GenDrive 2300 hybrid fuel cell power system
- Independent front sweeping and rear disc scrubbing
- 61-in sweep path and 48-in scrub path
- 75-gal solution and recovery tanks
- 7 cu ft hopper with up to 60-in dump height
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
