| Models | Viper AS7690T |
| Cleaning Path | 30 in (760 mm) |
| Brush/Pad Size | 2 x 15 in (2 x 380 mm) discs |
| Solution / Recovery Tanks | 22 / 24 gal (85 / 90 L) |
| Brush/Pad Pressure | 77 / 95 / 112 lb (35 / 43 / 51 kg) |
| Brush Speed (normal / Eco) | 200 / 160 rpm |
| Brush Motors | 2 x 500 W (2 x 0.66 HP) |
| Drive Motor | 250 W (0.33 HP) |
| Machine Speed | 0-2.5 mph (0-4.0 km/h) |
| Vacuum Motor | 500 W (0.66 HP) |
| Water Lift | 60 in (1,500 mm) |
| Max Productivity | 32,700 sq ft/hr (3,040 m²/hr) |
| Run Time | Up to 4 hours |
| Voltage | 24 V |
| Sound Level (normal / Silent) | 69 ± 3 dB(A) / 65 ± 3 dB(A) |
| Squeegee Blades | 37 in (940 mm) |
| Minimum Aisle Turn | 65 in (165 cm) |
| Dimensions (L x W x H) | 61 x 33 x 40 in (155 x 83 x 102 cm); 38 in (950 mm) wide with squeegee |
| Shipping Weight (without batteries) | 451 lb (205 kg) |
| Gross Vehicle Weight | 772 lb (350 kg) |
| Model Numbers | AS7690T |
Technical specs may include optional equipment that is not included with all units.
Reconditioned Viper AS7690T 30" Disc Traction Drive Walk-Behind Scrubber
Our Take (from the SES Sales Team)
“The AS7690T is Viper's 30-inch walk-behind scrubber for medium to large open floors: warehouses, gyms, school corridors, store aisles and service areas where a 20-inch machine takes too many passes. Two 15-inch discs cover the path, and the traction drive moves it at up to 2.5 mph, so the operator steers a machine that weighs 772 pounds full instead of pushing it.
The 22-gallon solution tank and 24-gallon recovery tank let a crew cover a lot of floor per fill, and Viper rates run time at up to 4 hours. Eco mode drops brush speed from 200 to 160 rpm to stretch the batteries, and Silent mode brings the sound level down to 65 dB(A) for daytime work. Daily maintenance is tool-free, and the recovery tank has a wide opening and a debris tray.
The trade-off is size. It is 61 inches long and 38 inches wide with the squeegee and needs a 65-inch aisle to turn, so it is not the choice for tight restrooms or cluttered back rooms; the 26-inch AS6690T is narrower. This is a reconditioned unit, so ask which batteries and charger come with it.”
“Refurbished Scrubber works flawlessly. Highly recommend Southeastern.” — Keith B., Google review
30-inch dual-disc scrubbing with traction drive.

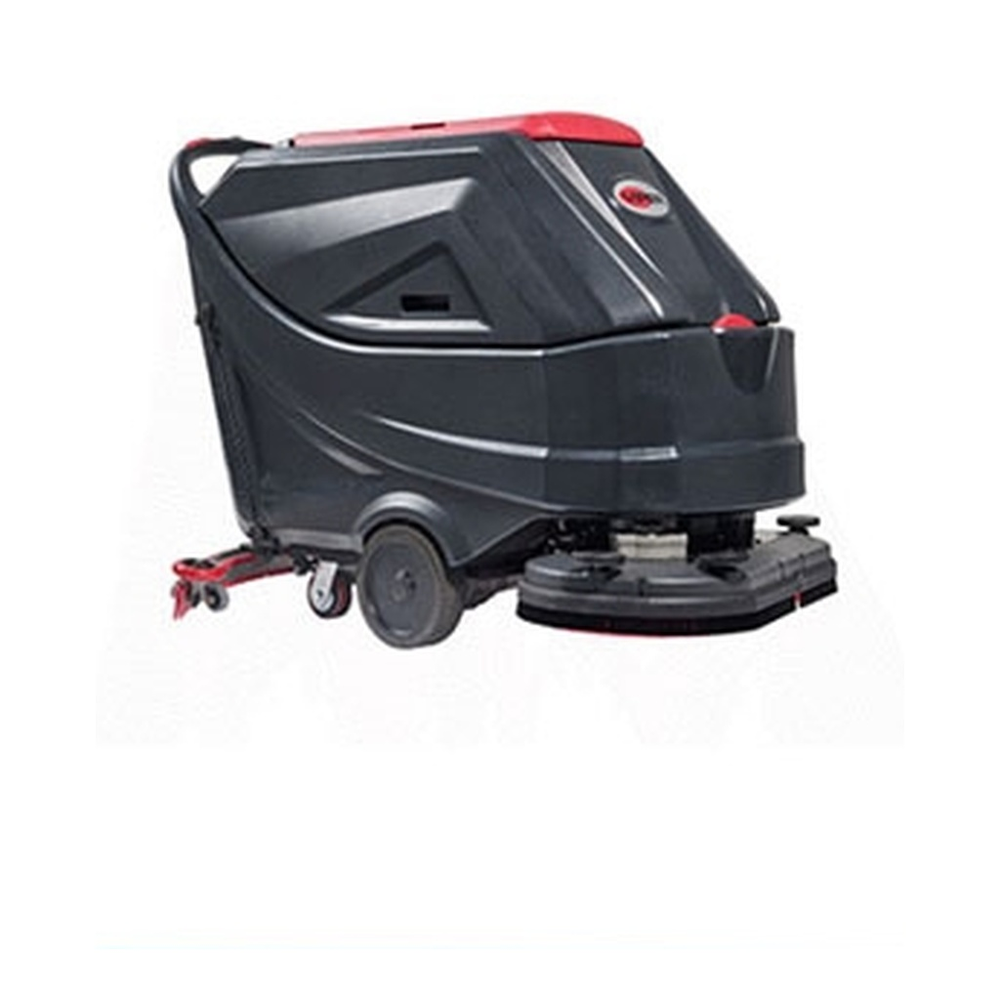

The Viper AS7690T is a 30-inch walk-behind floor scrubber with two 15-inch disc brushes or pad drivers and a traction drive that travels at up to 2.5 mph. It carries 22 gallons (85 L) of solution and has a 24-gallon (90 L) recovery tank, with three pad-pressure settings of 77, 95 and 112 lb. Viper rates maximum productivity at 32,700 sq ft per hour.
Eco mode lowers brush speed from 200 to 160 rpm to extend battery run time, and Silent mode lowers the sound level from 69 to 65 dB(A) for daytime cleaning. A 500 W vacuum motor with 60 inches of water lift feeds a 37-inch squeegee. The control panel has an LCD screen, daily maintenance is tool-free, and the large-opening recovery tank has a debris tray.
Features:
- Dual 15-in disc deck with three pad-pressure settings
- 22-gal solution and 24-gal recovery tanks
- Traction drive, up to 2.5 mph
- Eco and Silent modes
- Tool-free daily maintenance and recovery tank debris tray
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
