| Models | Viper AS510B |
| Cleaning path | 20 in (51 cm) |
| Deck type | Single disc, brush or pad |
| Brush speed | 150 rpm |
| Brush pressure | Up to 77 lb (35 kg) |
| Brush motor | 0.75 hp (560 W) |
| Propulsion | Pad/brush assist |
| Solution tank | 10.5 gal (40 L) |
| Recovery tank | 10.5 gal (40 L) |
| Squeegee width | 31 in (790 mm) |
| Vacuum motor | 0.47 hp (350 W) |
| Vacuum waterlift | 47.2 in H2O (1,200 mm H2O) |
| Productivity rate | Up to 22,604 sq ft/hr |
| Voltage | 24 V (2 x 12 V) |
| Charger | Onboard |
| Battery compartment (L x W x H) | 13.4 x 13 x 10.2 in (340 x 330 x 260 mm) |
| Sound level | 70 dBA |
| Transport wheels | 8 in (200 mm) |
| Max working gradient | 2% |
| Machine length x height | 43.3 x 38.6 in (1,100 x 980 mm) |
| Width without squeegee | 21.3 in (540 mm) |
| Shipping dimensions (L x W x H) | 47 x 24 x 46 in (1,200 x 610 x 1,170 mm) |
| Weight with batteries, empty tanks | 282 lb (128 kg) |
| Gross weight, ready to use | 370 lb (168 kg) |
| Model Numbers | Viper AS510B-US 20INCH SCRUBBER, Nilfisk part number 50000243 |
Technical specs may include optional equipment that is not included with all units.

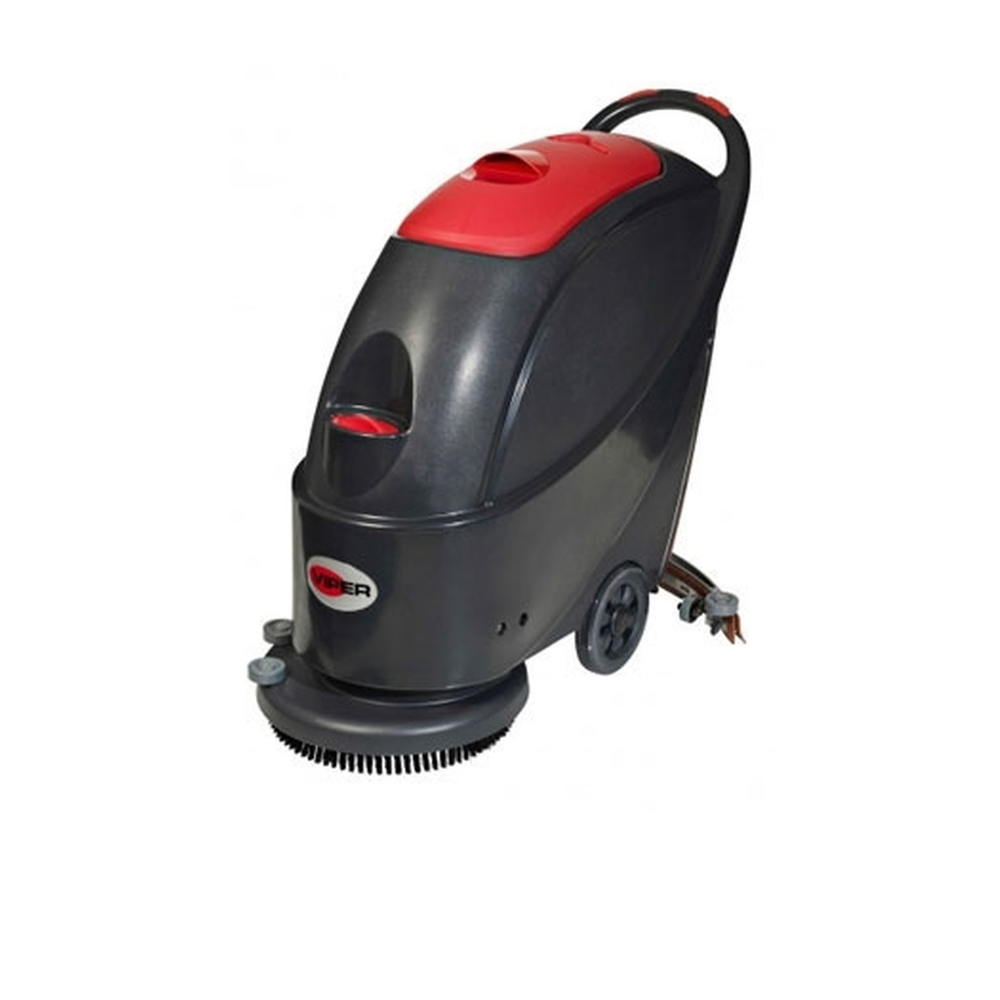

Demo Viper AS510B 20" Battery Compact Scrubber
Our Take (from the SES Sales Team)
“The AS510B is the machine we point people to when a mop and bucket can’t keep up anymore but a ride-on would be overkill. It’s a 20 in disc scrubber with 10.5 gal solution and recovery tanks, which suits classrooms, hallways, break rooms, restrooms and retail aisles without constant trips back to the sink. The pad assist drive lets the brush do a lot of the pulling, so it is easier to guide than its 282 lb weight suggests, and the controls are three rocker switches plus a safety switch on the handle, so getting a new operator going is quick. It runs on 24 V maintenance-free AGM batteries with an onboard charger, so there’s no watering and no separate charger to keep track of. One thing to know: Nilfisk rates it for slopes up to 2%, so it is a flat-floor machine, not a ramp machine. If you want a simple, rugged scrubber for everyday hard-floor cleaning, the AS510B is a strong value.”
A compact 20 in battery scrubber for everyday hard floors
The Viper AS510B is a walk-behind disc scrubber from Viper, part of the Nilfisk Group, built for the mid-sized, heavy-traffic areas of schools, offices, hotels, restaurants, retail stores and healthcare buildings. A single 20 in brush or pad scrubs while a 31 in curved squeegee picks up behind it, so the floor is scrubbed and dried in one pass. 10.5 gal solution and recovery tanks keep it working between fills, and Nilfisk rates it at up to 22,604 sq ft per hour.
It runs on 24 V maintenance-free AGM batteries with an onboard charger, and a pad/brush assist drive helps move the machine forward so the operator guides it instead of pushing it.
Condition: Demo. Inspected by SES technicians before it ships.
What you get
Simple, rugged and easy to run
Why pad assist matters
Features
Built for daily commercial use
- ✓Easy-to-use fingertip controls: power, vacuum and solution switches, plus a safety switch on the handle
- ✓Compact design that is simple to maneuver in tight areas
- ✓Maintenance-free AGM batteries and onboard charger
- ✓Disc and vacuum motors protected from water splash from the solution and recovery tanks
- ✓Heavy-duty cast aluminum squeegee assembly with a rounded shape for complete pickup in one pass
- ✓Adjustable solution flow valve to match water to the job
- ✓Float shut-off stops the vacuum from pulling water into the motor when the recovery tank is full
- ✓Hour meter, battery charge indicator and solution level sight tube
- ✓Up to 5 times faster than traditional mop and bucket cleaning, per Viper
Choosing a model
Battery or cord?
| AS510B (this unit) | AS430C | |
|---|---|---|
| Power | 24 V battery with onboard charger | 120 V cord-electric, 66 ft (20 m) cord |
| Cleaning path | 20 in | 17 in |
| Solution / recovery tanks | 10.5 gal / 10.5 gal | 13 gal / 13 gal |
| Best fit | Areas where a cord is in the way: busy hallways, retail aisles, rooms with people in them | Smaller areas with outlets close by and no need to charge |
Specifications
Viper AS510B at a glance
| Spec | Viper AS510B (50000243) |
|---|---|
| Cleaning path | 20 in (51 cm) |
| Brush speed | 150 rpm |
| Brush pressure | Up to 77 lb (35 kg) |
| Brush motor | 0.75 hp (560 W) |
| Solution / recovery tanks | 10.5 gal / 10.5 gal (40 L) |
| Max productivity rate | 22,604 sq ft per hour |
| Squeegee width | 31 in (790 mm) |
| Voltage | 24 V (2 x 12 V) |
| Sound level | 70 dBA |
| Model numbers | Viper AS510B-US 20INCH SCRUBBER, Nilfisk 50000243 |
Specifications from Nilfisk and Viper. Technical specs may include optional equipment that is not included with all units.
Demo unit details
Not sure the AS510B fits your floors?
Call 800-440-6723 and tell us about the floor, the building and the shift. We will tell you if this is the right machine. Financing options · Service and warranty help
