| Models | U.S. Products Pegasus Platinum 1350 |
| Pump | Cat ceramic plunger pump |
| Pump Pressure | 400-1350 PSI, adjustable |
| Pump Motor | Leeson 2 HP AC |
| Pump Rebuild Interval | Up to 6,000 hours (U.S. Products rating) |
| Heater | None (non-heated) |
| Vacuum Motors | Two 5.7 in 3-stage, top-mounted in parallel |
| Airflow | 200 CFM |
| Water Lift | 100 in |
| Maximum Hose Length | Up to 150 ft |
| Solution Tank | 12 gal with 5 GPM stainless auto fill |
| Recovery Tank | 12.5 gal with 15 GPM auto dump |
| Vacuum Shut-Off | Dual ball float |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A (cord 1), 20 A (cord 2) |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Weight | 150 lb |
| Dimensions (L x W x H) | 32 x 24 x 46 in |
| Model Numbers | 05-10040 (machine only) |
Technical specs may include optional equipment that is not included with all units.

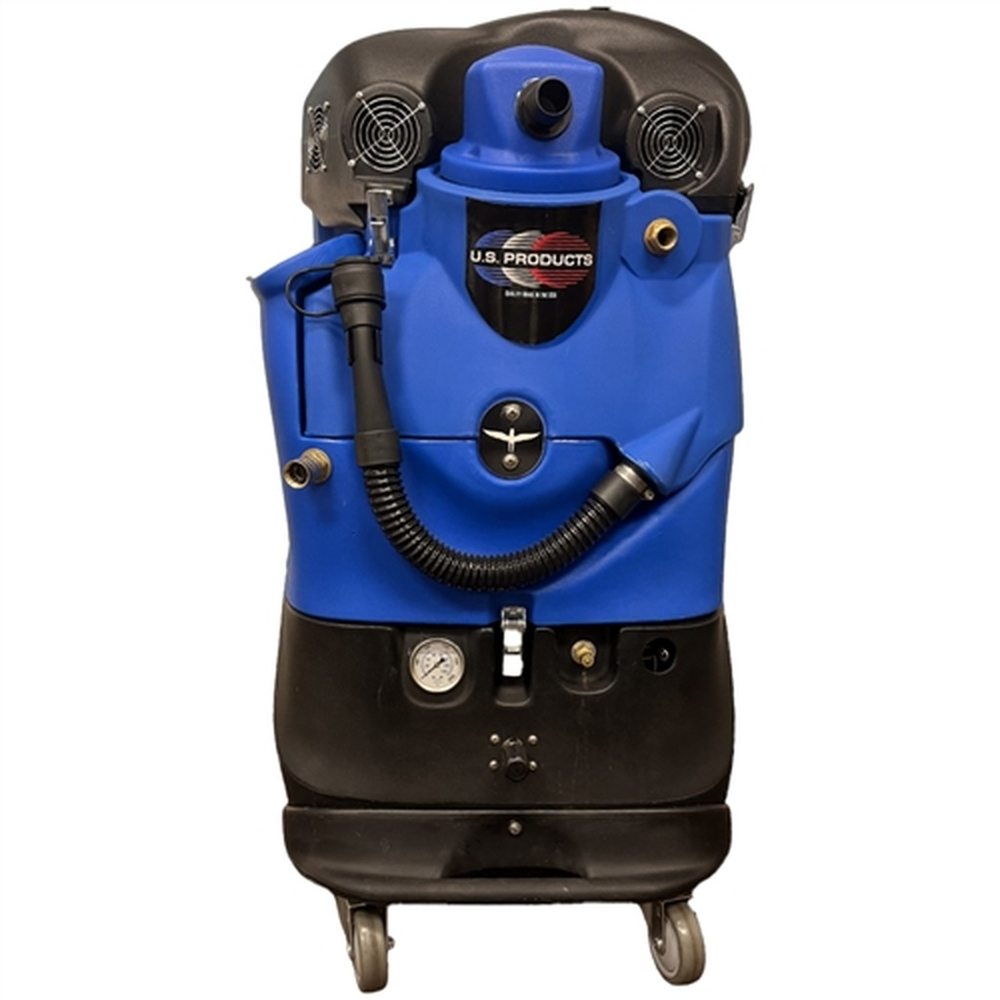

New U.S. Products Pegasus Platinum 1350 Hard Surface Extractor
Our Take (from the SES Sales Team)
“The Pegasus Platinum 1350 is U.S. Products' answer for contractors who want truck-mount style hard-surface cleaning from a portable. It's built for stone, concrete, tile and grout in high-traffic commercial and industrial buildings, with a Leeson 2 HP AC motor driving a Cat ceramic plunger pump that adjusts from 400 to 1350 PSI.
That motor and pump are what separate it from the Pegasus 1200: U.S. Products rates the pump for up to 6,000 hours of run time before a rebuild. Two 3-stage vacuum motors deliver 200 CFM and 100 inches of lift, enough for up to 150 feet of hose, and a 5 GPM auto fill with a 15 GPM auto dump keeps it running without stops to fill or drain.
The trade-offs are weight and power. It weighs 150 pounds, has no heater, and its second cord draws 20 amps, so you need a 20-amp circuit. This listing is the machine only, so plan on a hard-surface tool and hose. For carpet work, a Pro 500 is the closer fit.”
Truck-mount style pump and motor in a portable hard-surface extractor.

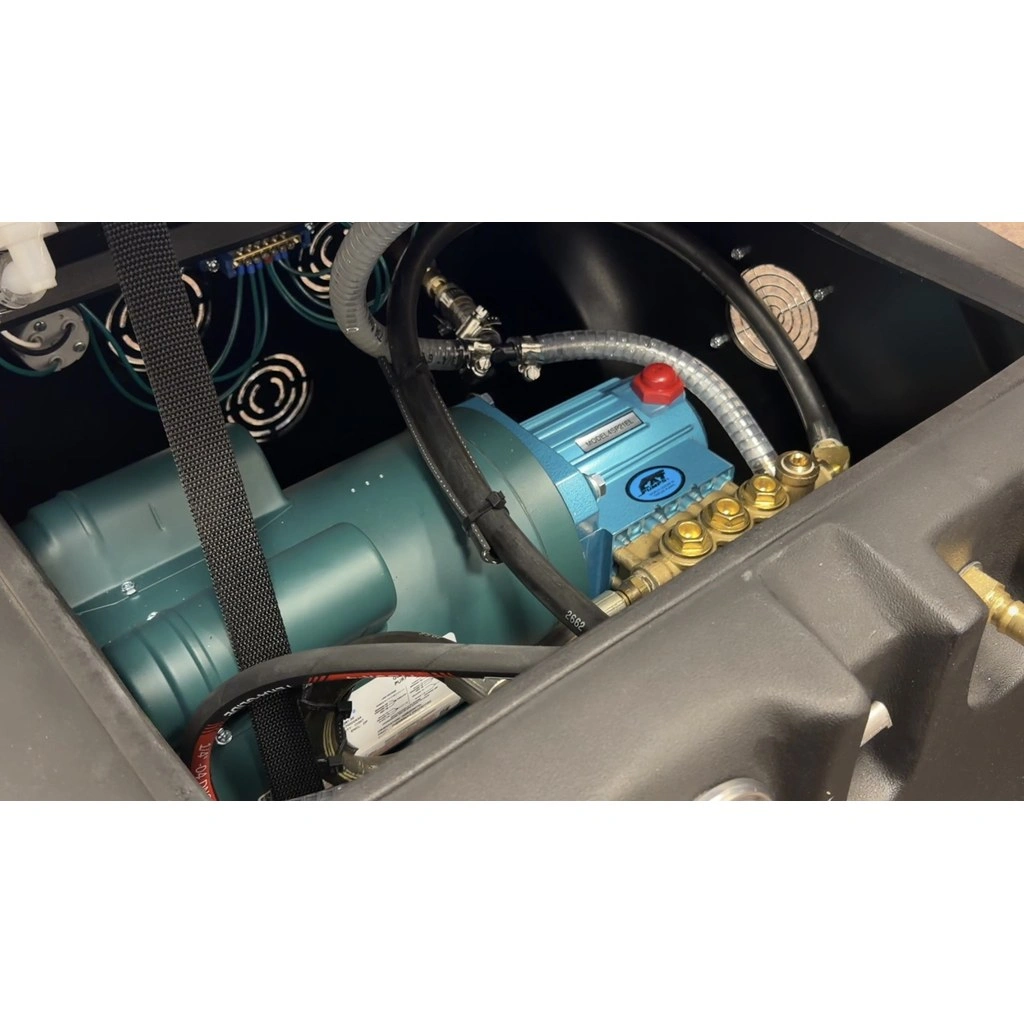

The U.S. Products Pegasus Platinum 1350 is a non-heated, dual-cord hard-surface extractor for stone, concrete, tile and grout in high-traffic commercial and industrial buildings. A Leeson 2 HP AC motor, the type used in truck mounts, drives a Cat ceramic plunger pump with adjustable pressure from 400 to 1350 PSI, rated by U.S. Products for 6,000 hours before a rebuild.
Two top-mounted 3-stage vacuum motors in parallel produce 200 CFM and 100 in of lift and support hose runs up to 150 ft. A 5 GPM stainless auto fill feeds the 12 gal solution tank and a 15 GPM auto dump empties the 12.5 gal recovery tank. The machine weighs 150 lb, measures 32 x 24 x 46 in and uses two 25 ft 12/3 cords.
Includes:
- Pegasus Platinum 1350 extractor
- Two 25 ft power cords
Not included: Hard-surface tool and hose, sold separately
Features:
- Leeson 2 HP AC motor with a Cat ceramic plunger pump
- Adjustable 400-1350 PSI
- Pump rated for up to 6,000 hours before rebuild
- 5 GPM auto fill and 15 GPM auto dump
- Two 3-stage vacuum motors, 200 CFM and 100 in of lift
