| Models | U.S. Products Pegasus Pro 500C SV/SC |
| Heater | None (non-heated) |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motor | One 5.7 in 3-stage, top-mounted |
| Airflow | 107 CFM |
| Water Lift | 137 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | Ball float |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cord | One 25 ft, 12/3 |
| Amp Draw | 15 A |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Model Numbers | 05-10039 (machine only) |
Technical specs may include optional equipment that is not included with all units.

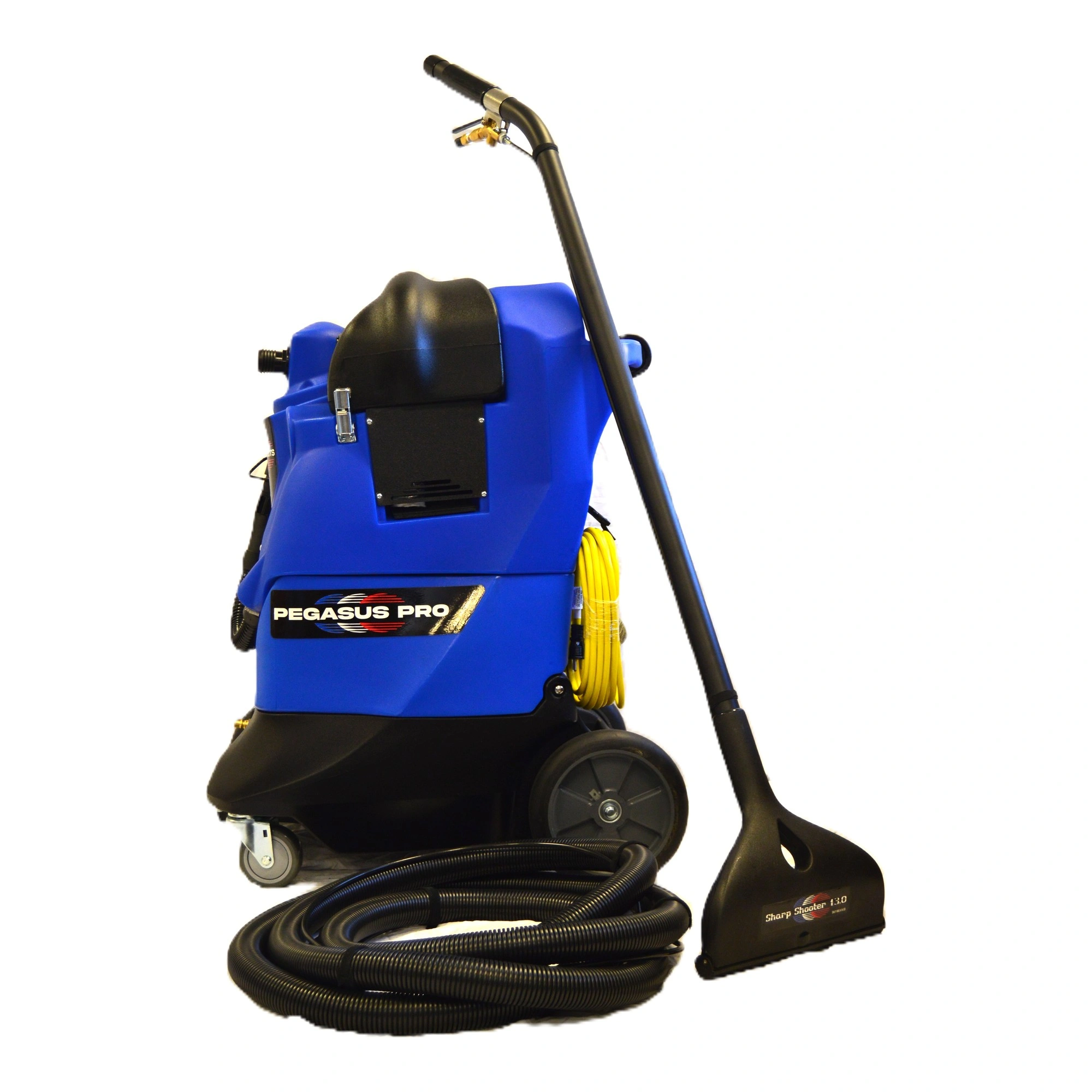

New U.S. Products Pegasus Pro 500C SV/SC Carpet Extractor
Our Take (from the SES Sales Team)
“The Pegasus Pro 500C SV/SC is the single-cord member of the Pro 500 family. It's built for crews who often find only one free circuit on a job, since everything runs from one 25-foot, 15-amp cord. The non-heated pump still adjusts from 50 to 500 PSI, so it can move between commercial carpet and upholstery without changing machines.
Recovery comes from a single top-mounted 3-stage vacuum motor rated at 137 inches of lift and 107 CFM. That is more lift but about half the airflow of the dual-vac models. The tanks are the same 12 gallons of solution and 12.5 gallons of recovery, in the same 32 by 24 by 38.5-inch body, and U.S. Products offers a 1.5-inch or 2-inch vacuum inlet. This listing is the machine only.
The trade-off is airflow. For long hose runs or quicker drying on large carpeted areas, the Pro 500C DV/DC with two vacuum motors is the stronger choice, as long as you have two circuits to plug into.”
Single-cord, non-heated portable extractor for jobs with one outlet.
The Pegasus Pro 500C SV/SC is U.S. Products' single-vac, single-cord, non-heated Pro 500 model. One 25 ft 12/3 cord drawing 15 A runs the machine, and the piston pump with pressure unloader adjusts from 50 to 500 PSI for carpet and upholstery. It is available with a 1.5 in or 2.0 in vacuum inlet.
A single top-mounted 5.7 in, 3-stage vacuum motor is rated at 137 in of lift and 107 CFM, with a ball float shut-off that stops suction when the recovery tank is full. The 12 gal solution and 12.5 gal recovery tanks fit in a 32 x 24 x 38.5 in body that rolls on 12 in non-marking rear wheels and 4 in front casters.
Ready to work out of the box
What's included
- ✓Pegasus Pro 500C SV/SC extractor
- ✓25 ft power cord
- ✓Priming hose
Not included: Wand and hose set, sold separately
Features
- ✓Single 25 ft 12/3 cord at 15 A
- ✓50-500 PSI piston pump with pressure unloader
- ✓Single 3-stage vacuum motor, 137 in of lift and 107 CFM
- ✓12 gal solution and 12.5 gal recovery tanks
- ✓Available with a 1.5 in or 2.0 in vacuum inlet
U.S. Products Pegasus Pro 500C SV/SC Carpet Extractor
Specifications
| Models | U.S. Products Pegasus Pro 500C SV/SC |
| Heater | None (non-heated) |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motor | One 5.7 in 3-stage, top-mounted |
| Airflow | 107 cfm |
| Water Lift | 137 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | Ball float |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cord | One 25 ft, 12/3 |
| Amp Draw | 15 A |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Model Numbers | 05-10039 (machine only) |
Technical specs may include optional equipment that is not included with all units.
