| Models | U.S. Products Pegasus Pro 500C DV/DC Package |
| Heater | None (non-heated) |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motors | Two 5.7 in 3-stage, top-mounted in parallel |
| Airflow | 200 CFM |
| Water Lift | 100 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | Dual ball float |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A per cord |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Included Wand | 13 in Sharp Shooter (05-10030), 13 in cleaning path, 6.5 lb |
| Wand Construction | Rotationally molded head, powder-coated 1.5 in 6061-T6 aluminum tube, stainless steel 2-jet manifold |
| Wand Jets | #1 jets installed (300-500 PSI); two #1.5 jets included (100-300 PSI) |
| Included Hose | 25 ft hose set |
| Model Numbers | 05-10038-P (machine 05-10038, 13 in Sharp Shooter wand 05-10030, 25 ft hose set) |
Technical specs may include optional equipment that is not included with all units.
New U.S. Products Pegasus Pro 500C DV/DC Carpet Extractor with 13" Sharp Shooter Wand & 25' Hose
Our Take (from the SES Sales Team)
“This package pairs the non-heated Pegasus Pro 500C DV/DC with U.S. Products' 13-inch Sharp Shooter wand and a 25-foot hose set, so a crew has everything matched for commercial carpet from day one. It suits in-house facility teams and contractors who clean with pre-spray chemistry and want dual-vac recovery without a heater.
Two top-mounted 3-stage vacuum motors in parallel are rated at 200 CFM and 100 inches of lift, and the pump adjusts from 50 to 500 PSI. The Sharp Shooter arrives with #1 jets installed for 300 to 500 PSI and spare #1.5 jets for 100 to 300 PSI, plus an inline filter at the spray valve and a check valve at the manifold to keep the spray clean and steady.
Keep in mind that solution water should stay under 120°F, since there's no heater to lean on, and the two 15-amp cords each need their own circuit. If hot-water cleaning matters to you, the same kit is built around the heated Pro 500H.”

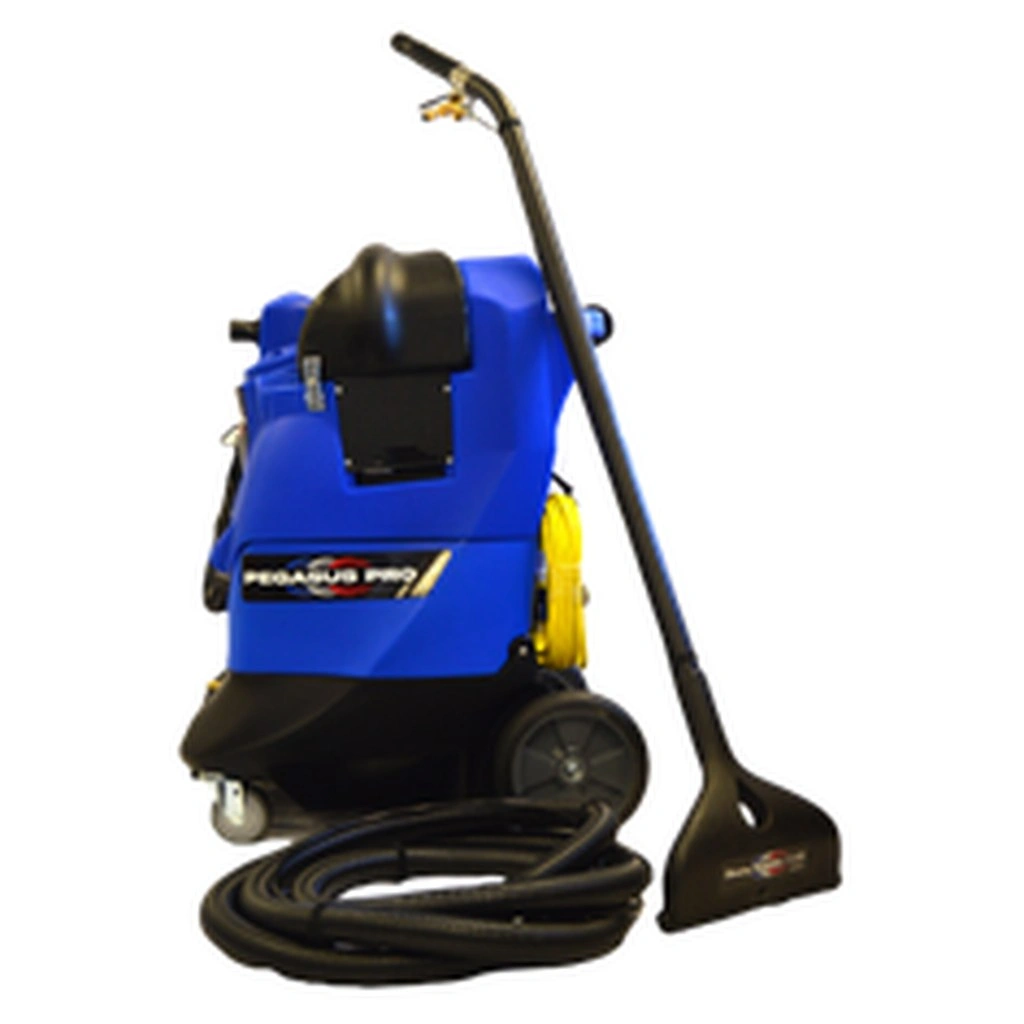

Non-heated Pegasus Pro 500C DV/DC with a 13 in Sharp Shooter wand and hose set.
This U.S. Products package (05-10038-P) pairs the non-heated Pegasus Pro 500C DV/DC extractor with a 13 in Sharp Shooter carpet wand and a 25 ft hose set. The extractor's piston pump adjusts from 50 to 500 PSI, and two top-mounted 3-stage vacuum motors in parallel deliver 200 CFM and 100 in of lift. It runs on two 25 ft cords drawing 15 A each.

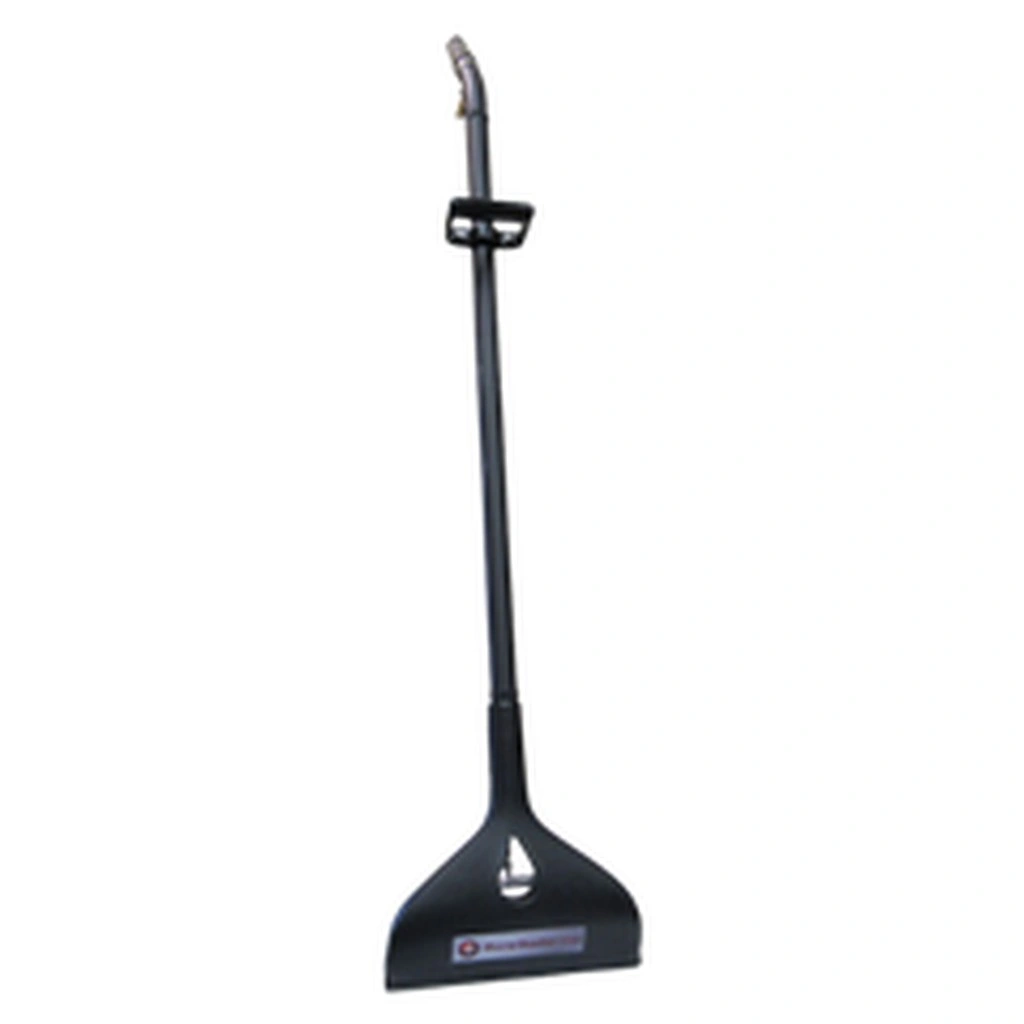

The 13 in Sharp Shooter wand has a rotationally molded head, a powder-coated 1.5 in 6061-T6 aluminum tube and a stainless steel two-jet manifold. Its #1 jets come installed for 300-500 PSI cleaning, and two #1.5 jets are supplied for 100-300 PSI work. The machine holds 12 gal of solution and 12.5 gal of recovery in a 32 x 24 x 38.5 in body.
Ready to work out of the box
What's included
- ✓Pegasus Pro 500C DV/DC extractor
- ✓Two 25 ft power cords
- ✓Priming hose
- ✓13 in Sharp Shooter wand with spare #1.5 jets
- ✓25 ft hose set
Features
- ✓Includes 13 in Sharp Shooter wand and 25 ft hose set
- ✓50-500 PSI piston pump with pressure unloader
- ✓Two 3-stage vacuum motors, 200 CFM and 100 in of lift
- ✓12 gal solution and 12.5 gal recovery tanks
- ✓Two 25 ft 12/3 cords at 15 A each
U.S. Products Pegasus Pro 500C DV/DC Carpet Extractor with 13" Sharp Shooter Wand & 25' Hose
Specifications
| Models | U.S. Products Pegasus Pro 500C DV/DC Package |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motors | Two 5.7 in 3-stage, top-mounted in parallel |
| Airflow | 200 cfm |
| Water Lift | 100 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A per cord |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Model Numbers | 05-10038-P (machine 05-10038, 13 in Sharp Shooter wand 05-10030, 25 ft hose set) |
Technical specs may include optional equipment that is not included with all units.
