Cobra MAX 500 Heated, Dual Vac, Dual Cord - Includes 13" Sharp Shooter & 25' Hose Set
Our Take (from the SES Sales Team)
“The Cobra Max 500H package is the heated, high-pressure option in the Cobra line, and it comes ready to work with a 13 in Sharp Shooter wand and a 25 ft hose set. Heat is the reason to choose it. A 1,750 W heater warms the solution as it flows to the wand, and warm solution helps break down soil in carpet and upholstery. The pump adjusts from 50 to 500 PSI, so the operator can match the pressure to the job. Dual 5.7 in 3-stage vacuum motors deliver 180 in of water lift and 107 CFM, per U.S. Products, to pull moisture out for faster drying. Plan for power. The 500H uses two 25 ft cords at 15 amps each, and U.S. Products says not to plug both into the same outlet. The machine carries 10 gallons of solution and 10 of recovery and weighs 95 lb. The Sharp Shooter wand ships with jets for high-pressure cleaning at 300 to 500 PSI and low-pressure cleaning at 100 to 300 PSI. If you only clean with cold water, the single-cord Cobra Max 500C is the simpler choice.”
Heat and adjustable pressure, packaged with wand and hoses

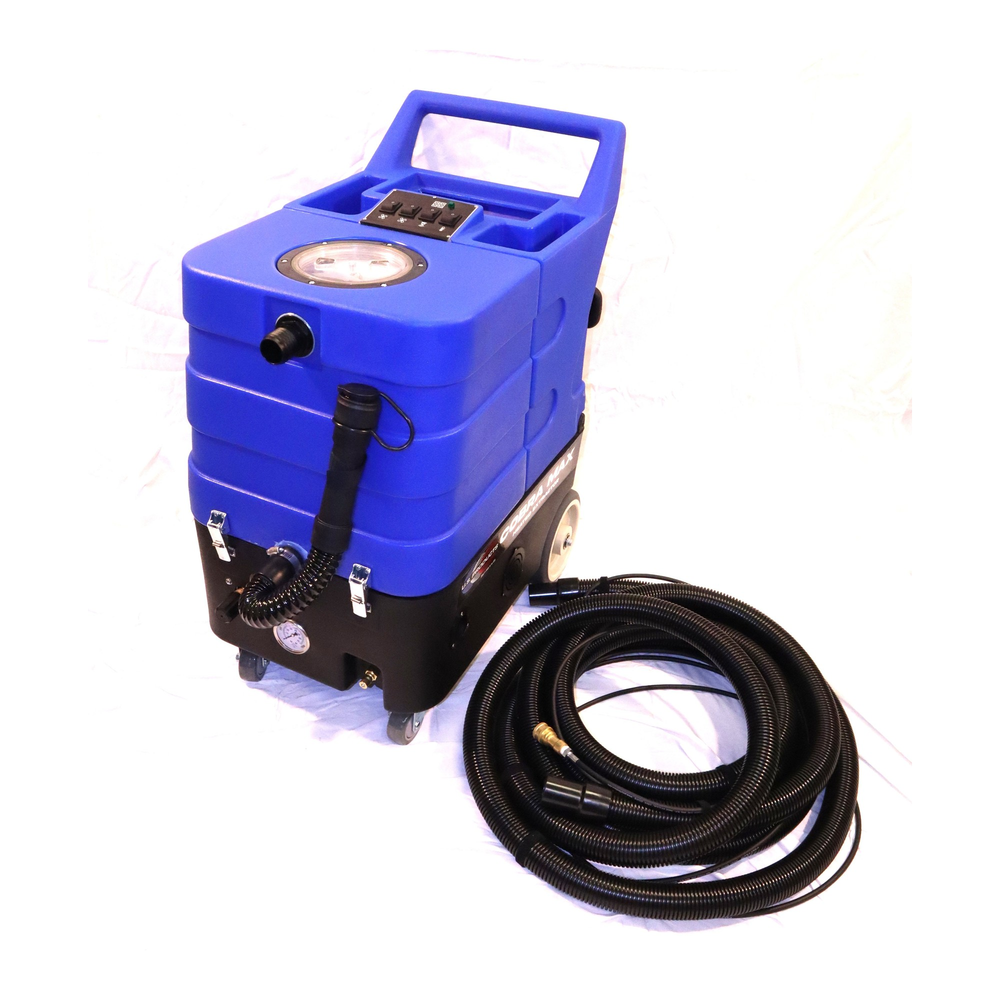

The U.S. Products Cobra Max 500H is a heated portable carpet extractor. A 1,750 W heater warms the solution, a piston pump adjusts from 50 to 500 PSI, and dual 5.7 in 3-stage vacuum motors deliver 180 in of water lift and 107 CFM. The solution and recovery tanks each hold 10 gallons.
This package adds the 13 in Sharp Shooter wand and a 25 ft hose set, so the machine is ready to clean when it arrives. It runs on two 25 ft cords at 15 amps each.
Condition: New.

What you get
Machine, wand and hoses in one package

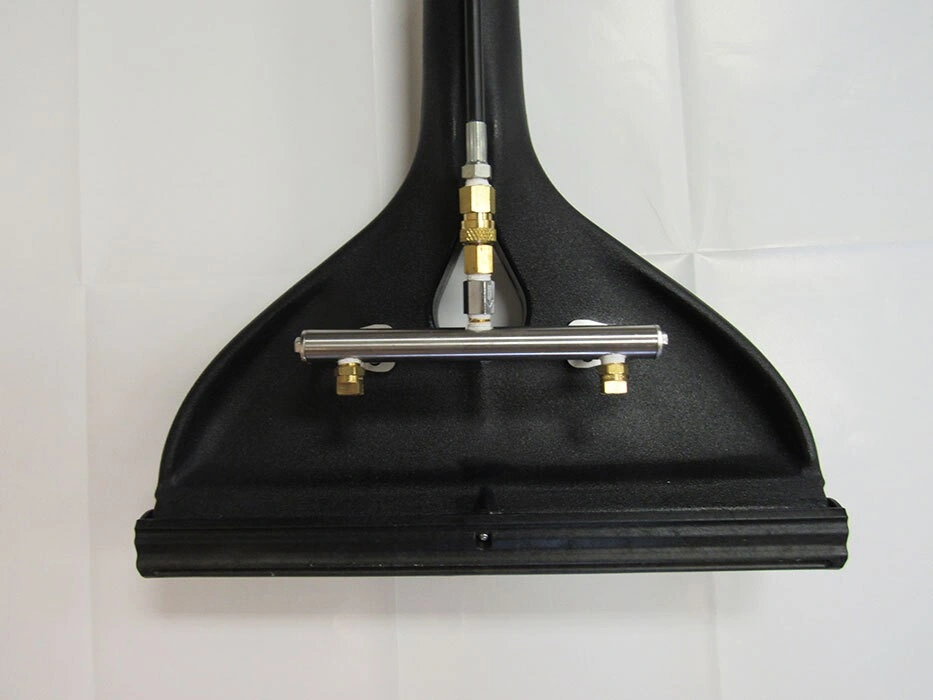

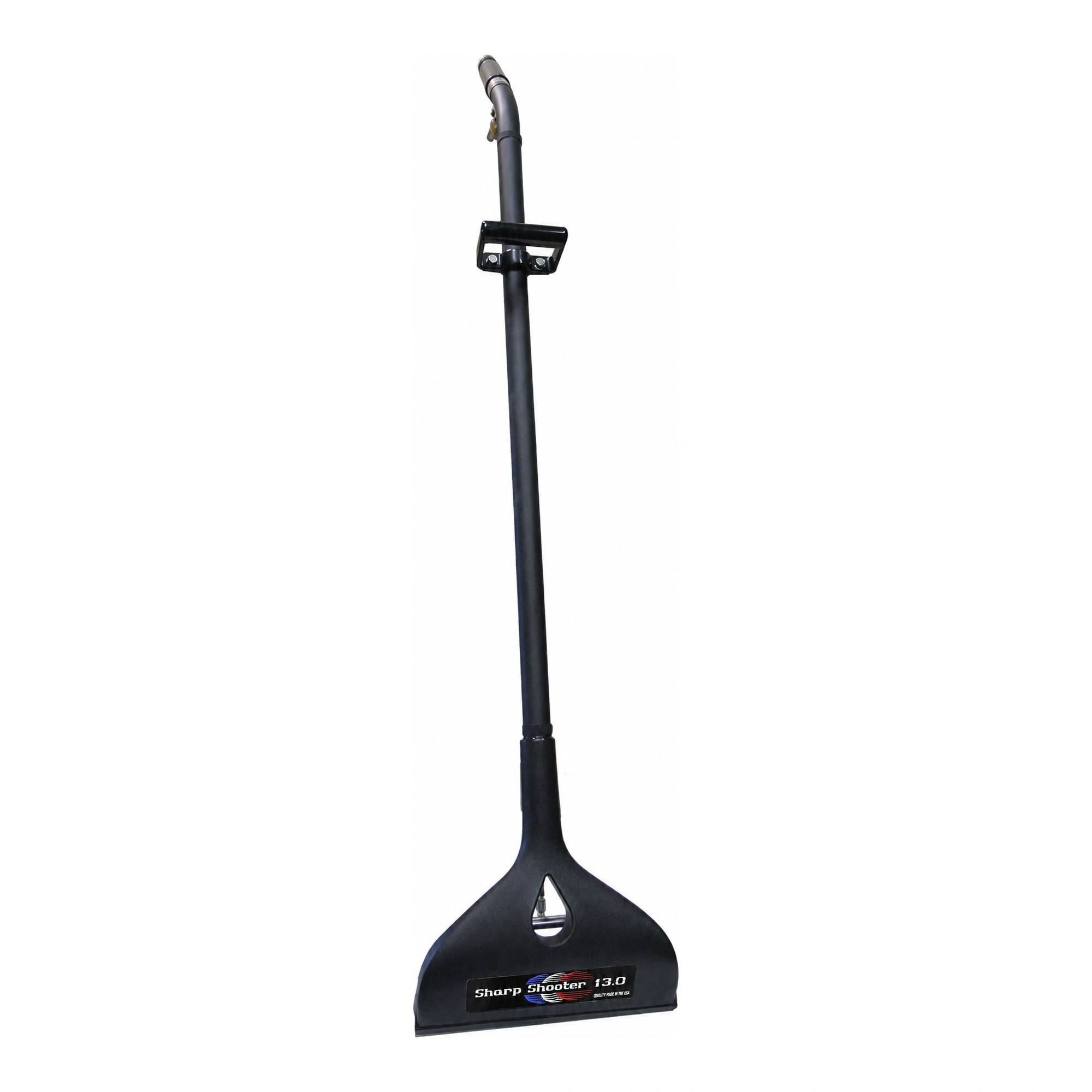

Sharp Shooter 13 in wand, included

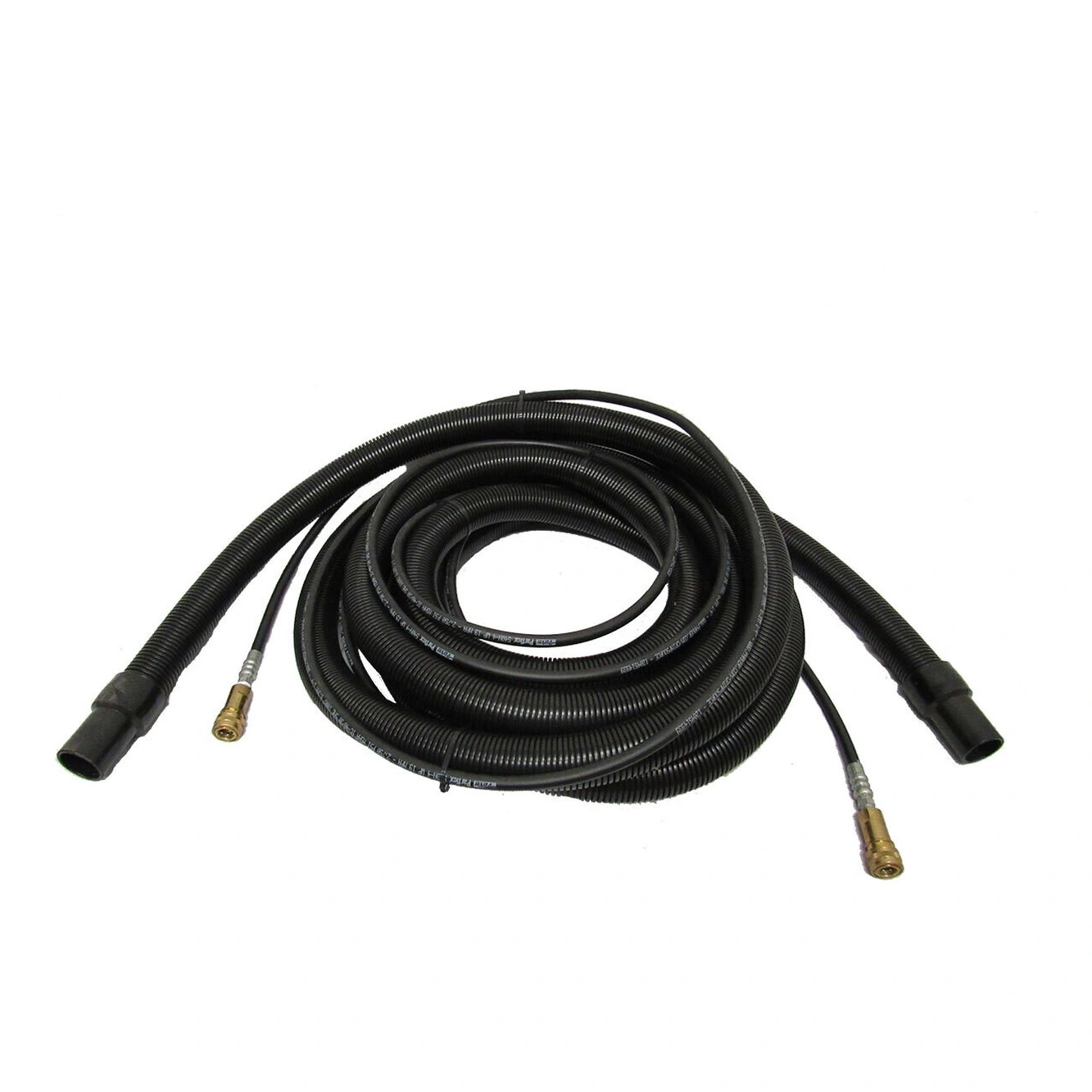

25 ft hose set, included
Getting the most from the heater
Features
Built for heated commercial carpet work
- ✓1,750 W heater warms the solution on its way to the tool
- ✓Adjustable 50 to 500 PSI piston pump with pressure unloader
- ✓Dual 5.7 in 3-stage vacuum motors, 180 in of lift and 107 CFM
- ✓10 gal solution and recovery tanks with ball float shut-off
- ✓Compact 32 x 18 in footprint with 8 in non-marking rear wheels
Specifications
U.S. Products Cobra Max 500H at a glance
| Models | Cobra Max 500H with Sharp Shooter 13 in wand and 25 ft hose set |
|---|---|
| Type | Portable carpet extractor, heated |
| Heater | 1,750 W |
| Pump | Piston pump with pressure unloader, adjustable 50 to 500 PSI (3.4 to 34.5 bar) |
| Vacuum | Dual 5.7 in 3-stage motors, 180 in (457 cm) water lift, 107 CFM (3.0 m³/min) |
| Solution / recovery tanks | 10 gal (37.9 L) / 10 gal (37.9 L) |
| Vacuum shut-off | Ball float |
| Drain | Drain hose |
| Wheels | 3 in (7.6 cm) front casters, 8 in (20 cm) non-marking rear wheels |
| Power | 120 V, dual 25 ft (7.6 m) 12/3 cords, 15 A per cord |
| Dimensions (L x W x H) | 32 x 18 x 35 in (81 x 46 x 89 cm) |
| Weight | 95 lb (43 kg) |
| Wand | Sharp Shooter 13 in, 6.5 lb (2.9 kg); #1 jets installed, #1.5 jets included |
| Hose set | 25 ft (7.6 m) pressure and vacuum hoses |
| Model Numbers | 05-10009-5P (Cobra Max 500H, Sharp Shooter 13 in wand, 25 ft hose set) |
Technical specs may include optional equipment that is not included with all units.
Questions
Cobra Max 500H: common questions
What comes in this package?
The Cobra Max 500H extractor, a 13 in Sharp Shooter wand and a 25 ft hose set with pressure and vacuum hoses.
Why does it need two outlets?
The 500H runs on two 25 ft cords at 15 amps each. U.S. Products says not to plug both cords into the same outlet.
How do I keep the solution hot?
The heater holds a small amount of water. U.S. Products recommends spraying for short periods and pausing during recovery strokes so the water has time to heat. Never add water above 120°F (49°C) to the solution tank.
How much pressure does it have?
The piston pump adjusts from 50 to 500 PSI with the pressure regulator knob, so you can set it for the carpet and the soil level.
Not sure which Cobra Max fits your work?
Tell our team what you clean, how big the jobs are and what power you have on site, and we will help you decide if this is the right machine.
