| Machine Type | Walk-behind automatic carpet extractor |
|---|---|
| Power Source | Cord-electric (120V AC) |
| Cleaning Path Width | 12 in (305 mm) |
| Solution Tank Capacity | 4.5 gal (17 L) |
| Recovery Tank Capacity | 4.5 gal (17 L) |
| Brush Type | Dual counter-rotating brushes |
| Sound Level | 72 dB(A) |

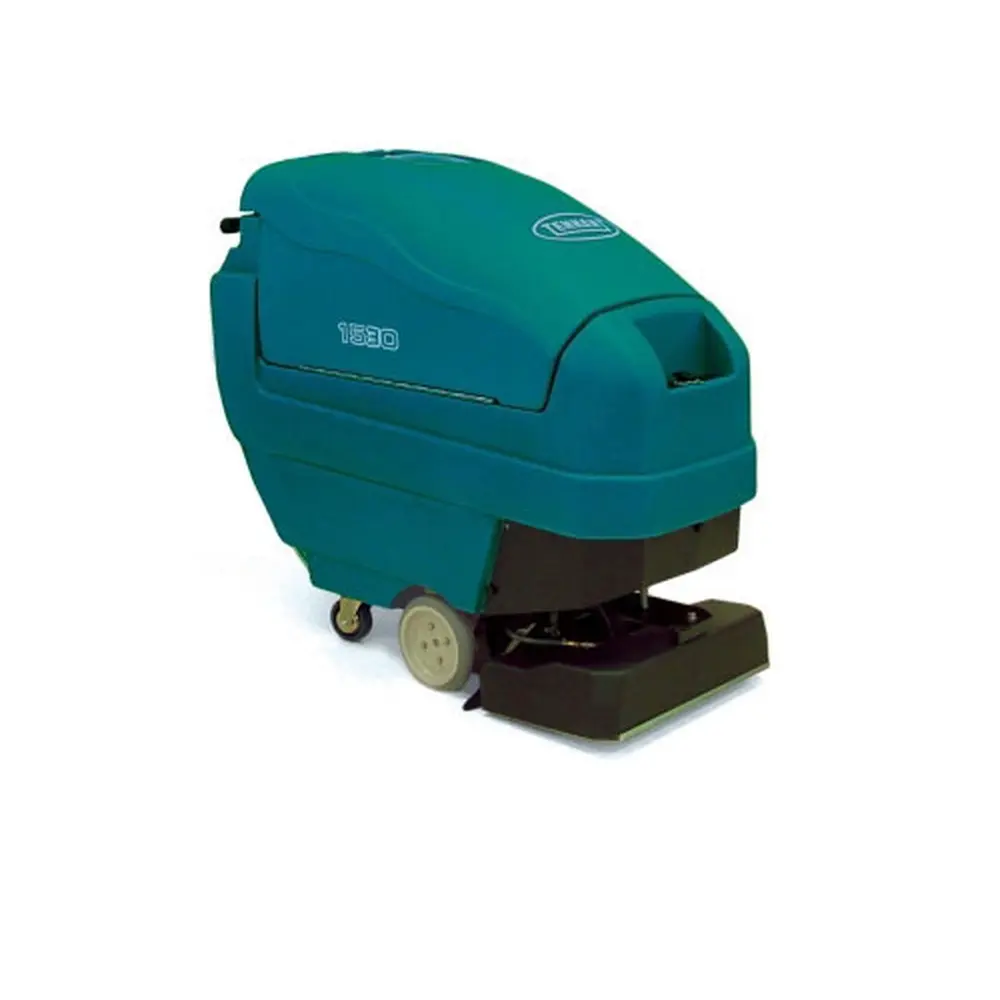

New Tennant 1530 Cord-Electric Automatic Extractor
Our Take (from the SES Sales Team)
“The 1530 is the corded version of Tennant's 1510/1530 dual-mode extractor, and it suits buildings where an outlet is never far away: hotels, office floors, schools, churches and retail. With no batteries to charge or replace, it can clean as long as the shift runs, and the 75 ft, 14-gauge safety yellow cord gives a lot of reach between outlets. The 30 gal solution tank is the biggest difference from the battery 1510 and means fewer refills. A single 1.63 hp, 3-stage vacuum motor delivers 99 cfm and 117 in of water lift to pull solution back out of the carpet. You get two modes: interim surface cleaning at 100 ft per minute for routine maintenance and shorter dry times, and deep cleaning at 50 ft per minute for maximum soil removal. Top speed is locked in for each mode, so operators clean at the right pace, and starting is one button. Tennant rates it at up to 5,500 sq ft per hour, and at 395 lb it is the lighter of the two.”
A corded walk-behind carpet extractor with a 30 gal solution tank
The Tennant 1530 is a cord-electric, self-contained walk-behind carpet extractor for hotels, offices, schools and retail spaces. Deep cleaning mode removes the most soil and interim surface cleaning mode gives shorter dry times, with one-button start and locked-in cleaning speeds.
This Tennant 1530 has a 30 gal solution tank, a 21 gal recovery tank, a 100 psi solution pump, a 3-stage vacuum motor and a 75 ft power cord, and it is ETL listed for the US and Canada.
Condition: New.
What you get
Cleans as long as the shift runs
Accessory tools
Features
Simple for any operator
- ✓One-button start for less operator training
- ✓Locked-in top cleaning speeds keep operators at the proper pace
- ✓Interim mode at 100 ft/min, deep mode at 50 ft/min
- ✓Dual nylon brushes agitate the carpet
- ✓ETL listed for the US and Canada
Cord or battery?
Tennant 1530 or 1510?
| 1530 cord electric (this unit) | 1510 battery | |
|---|---|---|
| Power | 75 ft (22.9 m) power cord | 4 x 6 V, 240 Ah batteries |
| Solution tank | 30 gal (114 L) | 21 gal (79 L) |
| Vacuum motors | 1 x 3-stage, 1.63 hp; 117 in water lift | 2 x 3-stage, 0.89 hp; 68 in water lift |
| Productivity | Up to 5,500 sq ft/hr | Up to 4,500 sq ft/hr |
| Weight | 395 lb (180 kg) | 656 lb with batteries (298 kg) |
Both share the 19 in cleaning path, 21 gal recovery tank, 100 psi pump and two cleaning modes.
Specifications
Tennant 1530 at a glance
| Models | 1530 Cord Electric Extractor |
|---|---|
| Cleaning path | 19 in (482 mm) |
| Productivity | Up to 5,500 sq ft/hr (511 m²) |
| Brush motors | 2 x 0.25 hp (0.19 kW) |
| Brush type | Nylon |
| Solution / recovery tanks | 30 gal (114 L) / 21 gal (79 L) |
| Solution pump | 100 psi max (6.9 bar) |
| Solution flow rate | 1 gpm (3.8 L/min) |
| Vacuum motor | 3-stage, 1.63 hp (1.22 kW) |
| Vacuum airflow | 99 cfm (2.8 m³/min) |
| Water lift | 117 in |
| Cleaning speed | 100 ft/min interim (30 m/min); 50 ft/min deep (15 m/min) |
| Power cord | 75 ft (22.9 m), 14 gauge, safety yellow |
| Sound level | 72 dBA |
| Width x height | 22 x 42 in (559 x 1,067 mm) |
| Weight | 395 lb (180 kg) |
| Approvals | ETL listed (US and Canada) |
| Model Numbers | 2206343 (Tennant 1530 cord electric extractor) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant 1530: common questions
Why choose a corded extractor?
With no batteries, the 1530 can run as long as you have work for it, and there are no batteries to charge, water or replace. The trade-off is managing the 75 ft cord.
What is the difference between the two cleaning modes?
Deep cleaning runs at 50 ft per minute for maximum soil removal. Interim surface cleaning runs at 100 ft per minute for routine maintenance and shorter dry times.
How much carpet can it clean in an hour?
Tennant rates the 1530 at up to 5,500 sq ft per hour.
Will it fit through my doorways?
The 1530 is 22 in wide and 42 in high. Check your narrowest doorway and any elevator before you order.
Not sure the 1530 fits your carpet?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
