| Brush Drive System | |
| Brush bristle length | 0.9 in / 22 mm |
| Brush bristle type | Nylon construction, Reverse chevron |
| Brush diameter | 3.5 in / 89 mm |
| Brush length | 15 in / 380 mm |
| Brush motor power | 0.4 hp / 0.3 kW |
| Brush motor voltage | 120 V / 230 V |
| Brush RPM | 1,200 rpm |
| Motor RPM | 2,400 rpm |
| Chassis / Body Construction | |
| Chassis construction | Cast aluminum frame, rotational molded tanks and injection molded plastic cover |
| Wheel descriptions | 8 in / 200mm |
| Vacuum System | |
| Airflow at orifice | 99 cfm / 2.8 m³/min |
| Vacuum motor amps | 7.1 amps/ 3.6 amps |
| Vacuum motor power | 1.2 hp / .89 kW |
| Vacuum motor stages | 2 stage |
| Sealed waterlift | 86 in / 2,180mm |
| Dimensions (Handle folded flat for storage) | |
| Length | 27 in / 690 mm |
| Machine Width | 19 in / 480 mm |
| Height | 28 in / 710 mm |
| Net weight | 102 lb / 46 kg |
| Solution & Recovery System | |
| Solution tank capacity | 5 gal / 19 L |
| Recovery tank wet capacity | 5 gal / 19 L |
| Spray jet count | 2-quick connect |
| Power Consumption | |
| Amps | 10.8 amps / 5.4 amps |
| Voltage | 120 V / 230 V |
| Watts | 1300 watts |
| Cord | 50 ft / 15 m |
| Electrical Safety Approvals | ETL Tested for UL & CSA Standards |
| Pump System | |
| Solution pump pressure | 65 psi / 4.48 bar |
| Solution pump amps | .7 amp / .35 amp |
| Solution pump flow rate | .7 gpm / 2.6 L/min |
| Sound Level | |
| Decibel ration @ operators ear | 69 dBA |
* Sound levels per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA
Technical specs may include optional equipment that is not included with all units.
New Nobles Speed Ex 5-gal. Cord-Electric Extractor
Our Take (from the SES Sales Team)
“If you have wall-to-wall carpeting in an area such as a school office, an apartment complex, or a doctor's office and need to keep it clean, I recommend the Nobles Speed Ex extractor. With dual overlapping spray jets and 5-gallon solution and recovery tanks. Speed Ex has more than enough capacity to clean any area effectively. Its float-adjust brush allows it to adapt to any carpet, whether shag or carpet squares. Its compact design allows it to clean under desks and reach other hard-to-reach areas, but do not let the compact design fool you. This unit is heavier than many of its counterparts because it is a heavy-duty machine capable of handling harsh conditions as well as day-to-day operations. Its 1.2 hp vacuum allows it to pick up almost everything it puts down, which reduces drying time. Its simple and straightforward controls allow even the most novice user to get up to speed in no time. This simplicity also helps maintain the Speed Ex, as the unit's design makes everything user-friendly for any service needed. All of these things combined make the Speed Ex one of the more popular units for its size. If you are looking for a small compact carpet extractor but need big results, I would recommend the Nobles Speed Ex.”

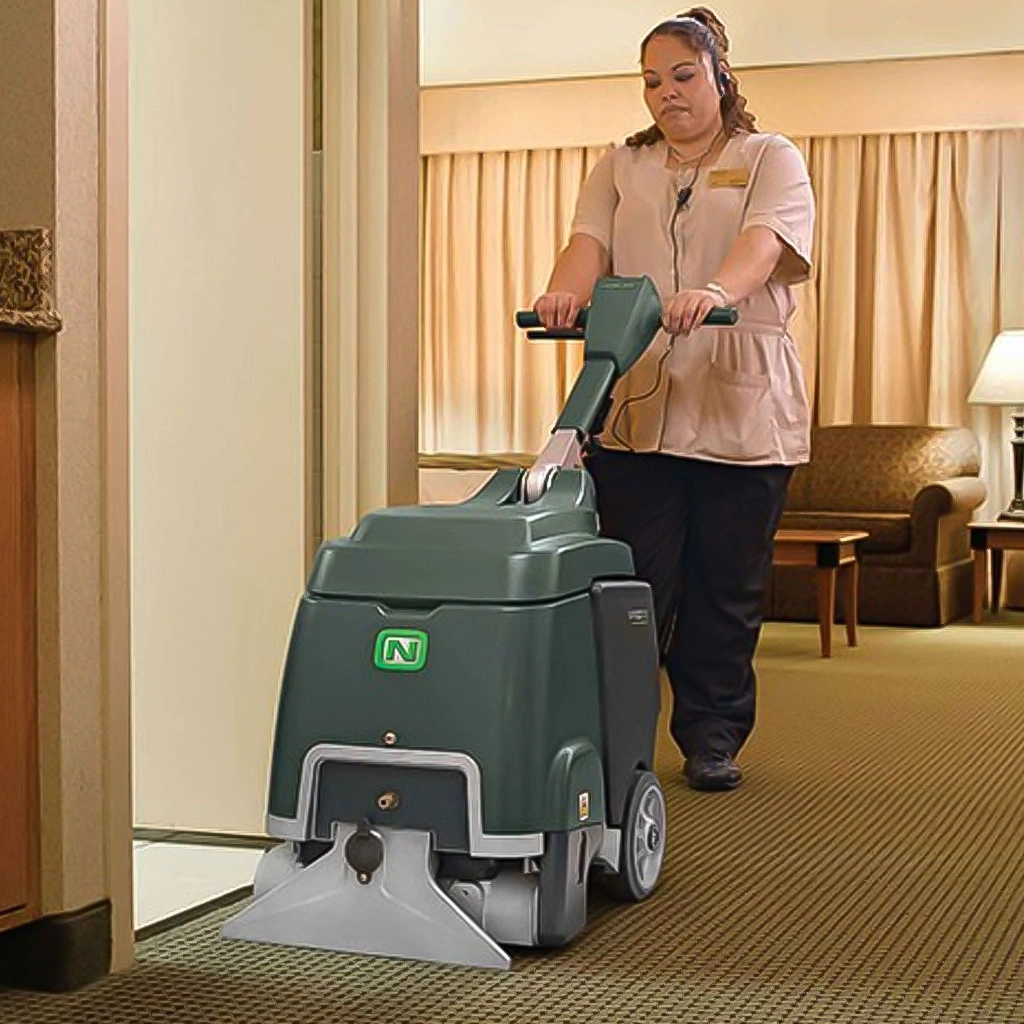

Small-area, ultra low-profile carpet extractor.
The Nobles Speed Ex Carpet Extractor delivers powerful, professional-grade carpet cleaning for commercial facilities including offices, hotels, and retail environments. Designed for efficiency and ease of use, the Speed Ex combines strong suction with effective solution delivery to extract deep-set dirt and restore carpet appearance. Its ergonomic design and straightforward operation make it a reliable choice for daily or periodic carpet maintenance in demanding commercial settings.
Features:
- Dual Float Shutoff Protects the Motor and Prevents Overflow
- Adjustable Multi-Jet Spray Bar Delivers Even Solution Distribution
- Large Vacuum Port and High-Lift Motor Speed up Drying
- Ergonomic Upright Handle Reduces Fatigue During Long Sessions
- Rotomolded Polyethylene Tanks Resist Corrosion and Chemical Damage
