| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |
New Tornado BD 28/27 Ride-On Automatic Scrubber
Our Take (from the SES Sales Team)
“The BD 28/27 is the compact rider we suggest when a facility has been scrubbing big areas with walk-behinds and wants to get the job done faster without buying a large machine. It is under 30 in wide, so it goes places bigger riders cannot, and the operator sits the whole shift. The disk deck covers a 27.5 in path with up to 132 lb of pressure, and the 27 gal solution and 27 gal recovery tanks keep it moving. Tornado rates it at 35,508 sq ft per hour. Automatic mode starts everything with one switch, and the squeegee pulls up on its own when the operator backs up, which saves blades. The parabolic squeegee changes in 10 seconds or less, and the Silent Supervisor panel shows run time and battery charge. At 69 dB it is quiet enough for daytime work in schools, stores and hospitals. This package comes with lead acid batteries, which you reach by lifting the seat. If you have textured floors like quarry tile, look at the BR 28/27 cylindrical version too.”
A compact disk rider for supermarkets, schools and warehouses

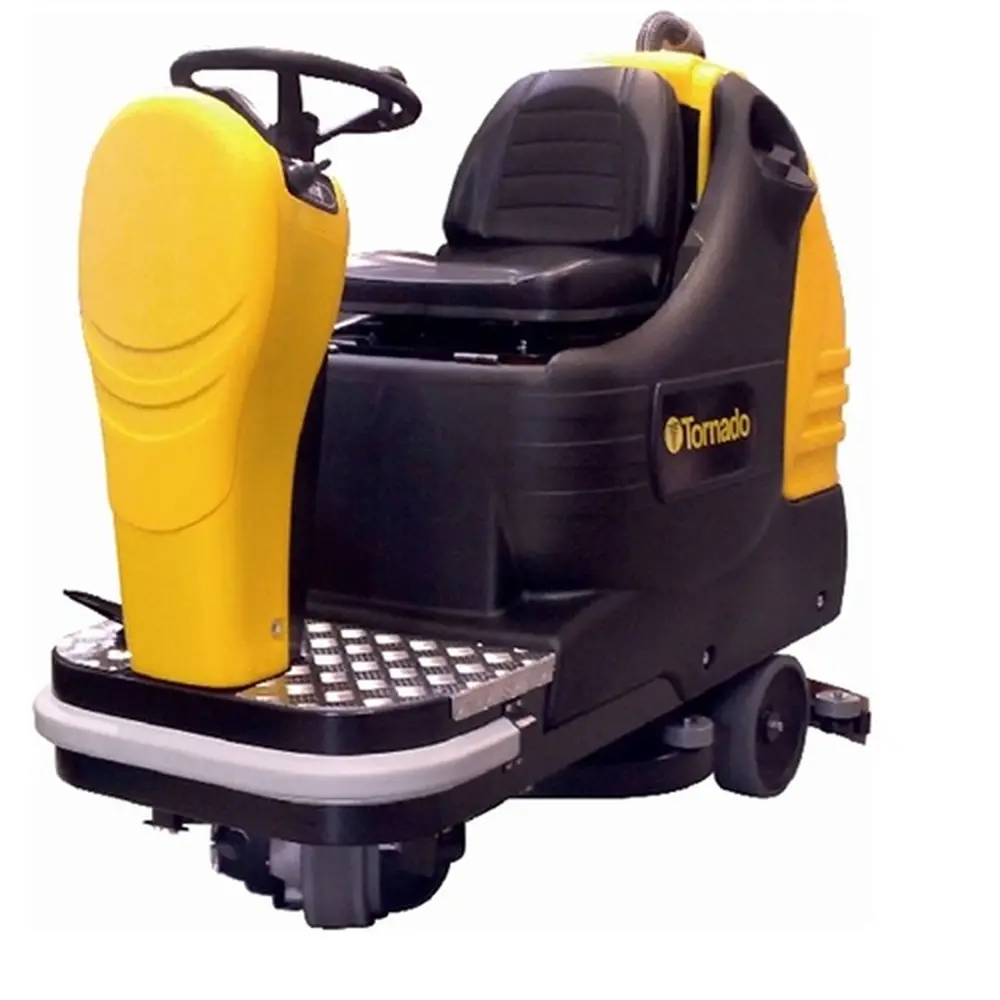

The Tornado BD 28/27 (Tornado number TS560-W28-U) is a ride-on automatic scrubber with a compact, low-profile body. Tornado built it for areas where walk-behind scrubbers were used before: supermarkets, schools, health care, retail, warehouses and more.
A disk deck scrubs a 27.5 in path at 160 rpm with up to 132 lb of pressure. It carries 27 gal of solution, recovers into a 27 gal tank through a 33.8 in parabolic squeegee, and runs at 69 dB. This package (TS560-W28-UC) includes lead acid batteries.
Condition: New.
What you get
Lead acid battery package
Charger
Features
Rider productivity in a compact body
- ✓Automatic mode starts all scrubbing functions when the machine is turned on
- ✓Squeegee retracts automatically when you back up
- ✓Parabolic squeegee with a four-sided rear blade changes in 10 seconds or less
- ✓Silent Supervisor control panel shows run time and battery charge
- ✓Lift the seat to reach the batteries; polyethylene tanks
Tornado 28/27 riders
Disk or cylindrical?
| Specification | BD 28/27 (TS560-W28) | BR 28/27 (99775) |
|---|---|---|
| Brush type | Disk, with pad holders | Cylindrical, with brushes |
| Cleaning path | 27.5 in | 28 in |
| Brush speed | 160 rpm | 785 rpm |
| Max brush pressure | 132 lb | 320 lb |
| Productivity | 35,508 sq ft/hr | 37,673 sq ft/hr |
| Solution / recovery tanks | 27 / 27 gal | 27 / 28 gal |
| Squeegee width | 33.8 in | 38.5 in |
Tornado BD 28/27 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| TS560-W28-UC (this unit) | BD 28/27 with lead acid batteries |
| TS560-W28-UG | Same machine with AGM batteries |
| TS560-W28-U | Same machine, no batteries |
Specifications
Tornado BD 28/27 at a glance
| Models | BD 28/27, lead acid |
|---|---|
| Cleaning path | 27.5 in (699 mm) |
| Brush type | Disk |
| Brush speed | 160 rpm |
| Brush pressure | Up to 132 lb (60 kg) |
| Productivity | 35,508 sq ft/hr (3,299 m²/hr) |
| Solution / recovery tanks | 27 gal (102 L) / 27 gal (102 L) |
| Tank construction | Polyethylene |
| Squeegee width | 33.8 in (859 mm) |
| Brush motors | Two 0.47 hp (350 W) |
| Vacuum motor | 0.78 hp (580 W) |
| Battery system | 24 V |
| Sound level | 69 dB |
| Dimensions (L x W x H) | 59.5 x 29.5 x 52 in (151 x 75 x 132 cm) |
| Net weight | 507 lb (230 kg) without batteries |
| Model Numbers | TS560-W28-UC (BD 28/27 with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 28/27: common questions
Where does the BD 28/27 fit best?
Tornado built it for areas that used to be cleaned with walk-behinds, such as supermarkets, schools, hospitals, retail stores, malls and offices. It is 29.5 in wide and 59.5 in long.
What comes on the scrub deck?
The BD comes standard with pad holders. Optional scrub brushes are available for smooth floors.
Does it protect the squeegee?
Yes. The squeegee retracts automatically when the machine goes into reverse.
Should I choose the BD or the BR 28/27?
The BD uses disk pads and suits smooth floors for daily cleaning. The BR uses cylindrical brushes at 785 rpm, which handle textured floors such as quarry tile and paver brick.
Not sure the BD 28/27 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
