New Tornado BD 30/20 30" Traction Drive Disk Scrubber
Our Take (from the SES Sales Team)
“If you are scrubbing a lot of open floor with a walk-behind, the BD 30/20 gives you a wider 30 in path from two 15 in disks, which Tornado rates at up to 33,798 sq ft per hour in theory. The traction drive moves the machine for the operator, including up ramps to a 10% grade, so a big gym, a warehouse aisle or a long school corridor is not a workout. You can set the down pressure up to 110 lb to match the job. The 20 gal solution tank and 22 gal recovery tank keep it scrubbing longer between fills, and the 39 in squeegee with a 64 in water lift vacuum pulls the floor dry behind you. Operators pick up the fingertip controls fast, and the squeegee raises, lowers and changes in seconds with no tools. This package comes with lead acid batteries and an onboard charger, so charging is as easy as finding an outlet. If your space has tighter aisles, the 26 in BD 26/20 is the same machine with a narrower deck.”
A 30 in traction drive scrubber for mid-size floors

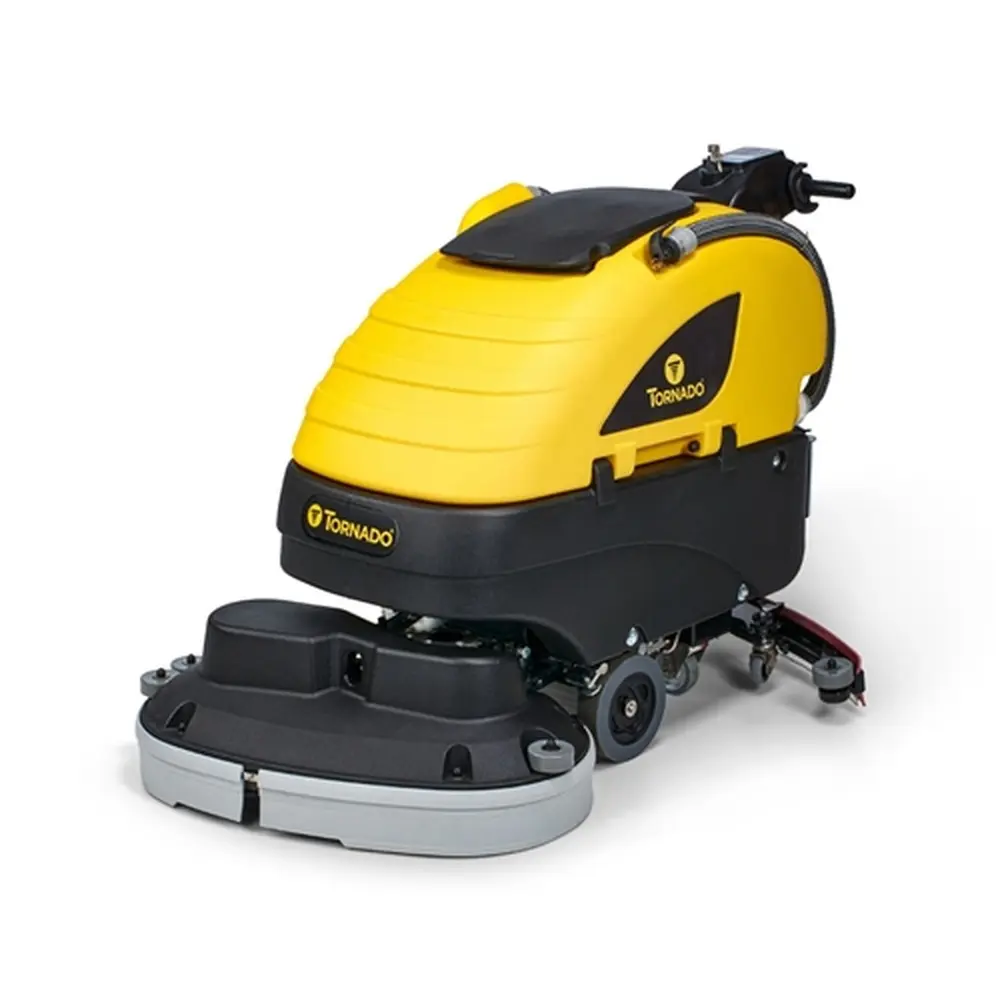

The Tornado BD 30/20 (Tornado number TS530-W30-U) is a walk-behind disk scrubber with traction drive. Two 15 in disks spin at 160 rpm with adjustable down pressure up to 110 lb, and a 0.4 hp drive motor moves the machine, even up ramps to a 10% grade.
It carries a 20 gal solution tank and a 22 gal recovery tank in polyethylene, picks up with a 39 in squeegee, and Tornado rates it at up to 33,798 sq ft per hour in theory. This package (TS530-W30-UC) includes lead acid batteries and the onboard charger.
Condition: New.
What you get
Lead acid battery package
Pads and brushes
Features
Simple to run, built for daily scrubbing
- ✓Traction drive climbs ramps up to a 10% grade
- ✓Easy-to-use fingertip controls at the operator position
- ✓Squeegee changes, and raises and lowers, in seconds with no tools
- ✓Inline solution filter prevents clogs and keeps solution flow steady
- ✓Solution level sight tube and a recovery tank drain hose for quick fills and dumps
A closer look
Controls and service points
Fingertip controls with a display at the operator position.
The 30 in deck holds two 15 in disks.
Tornado BD 26/20 and BD 30/20
Which deck size fits?
| Specification | BD 26/20 (TS530-W26) | BD 30/20 (TS530-W30) |
|---|---|---|
| Cleaning path | 26 in, two 13 in disks | 30 in, two 15 in disks |
| Squeegee width | 33.8 in | 39 in |
| Productivity (theoretical max) | 29,493 sq ft/hr | 33,798 sq ft/hr |
| Vacuum water lift | 48 in | 64 in |
| Solution / recovery tanks | 20 / 22 gal | 20 / 22 gal |
| Brush pressure / speed | Up to 110 lb / 160 rpm | Up to 110 lb / 160 rpm |
Tornado BD 30/20 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| TS530-W30-UC (this unit) | BD 30/20 with lead acid batteries |
| TS530-W30-UG | Same machine with AGM batteries |
| TS530-W30-U | Same machine, no batteries |
Specifications
Tornado BD 30/20 at a glance
| Models | BD 30/20, lead acid |
|---|---|
| Cleaning path | 30 in (762 mm), two 15 in (381 mm) disks |
| Brush speed | 160 rpm |
| Brush pressure | Up to 110 lb (50 kg) |
| Productivity (theoretical max) | 33,798 sq ft/hr (3,140 m²/hr) |
| Solution / recovery tanks | 20 gal (76 L) / 22 gal (83 L) |
| Tank construction | Polyethylene |
| Squeegee width | 39 in (991 mm) |
| Brush motor | 0.94 hp (700 W) |
| Vacuum motor | 0.76 hp (570 W), 64 in water lift |
| Drive | Traction drive, 0.4 hp (300 W) |
| Battery system | 24 V |
| Run time | 3 to 4 hours |
| Charger | Onboard |
| Sound level | Under 70 dB(A) |
| Dimensions (L x W x H) | 58.5 x 30 x 41 in (149 x 76 x 104 cm) |
| Weight | 225 lb (102 kg) without batteries |
| Model Numbers | TS530-W30-UC (BD 30/20 with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 30/20: common questions
How long does it run on a charge?
Tornado rates run time at 3 to 4 hours. Actual run time depends on the floor, the down pressure and how the machine is driven.
Can it handle ramps?
Yes. Tornado says the 300 W traction drive motor moves the machine up ramps to a 10% grade.
What is the difference between the BD 30/20 and the BD 26/20?
The BD 26/20 uses two 13 in disks for a 26 in path, with a 33.8 in squeegee. The tanks, down pressure and battery system are the same, so pick by the width of your aisles and open areas.
How do I charge it?
The charger is onboard. Plug the machine into an outlet at the end of the shift.
