| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

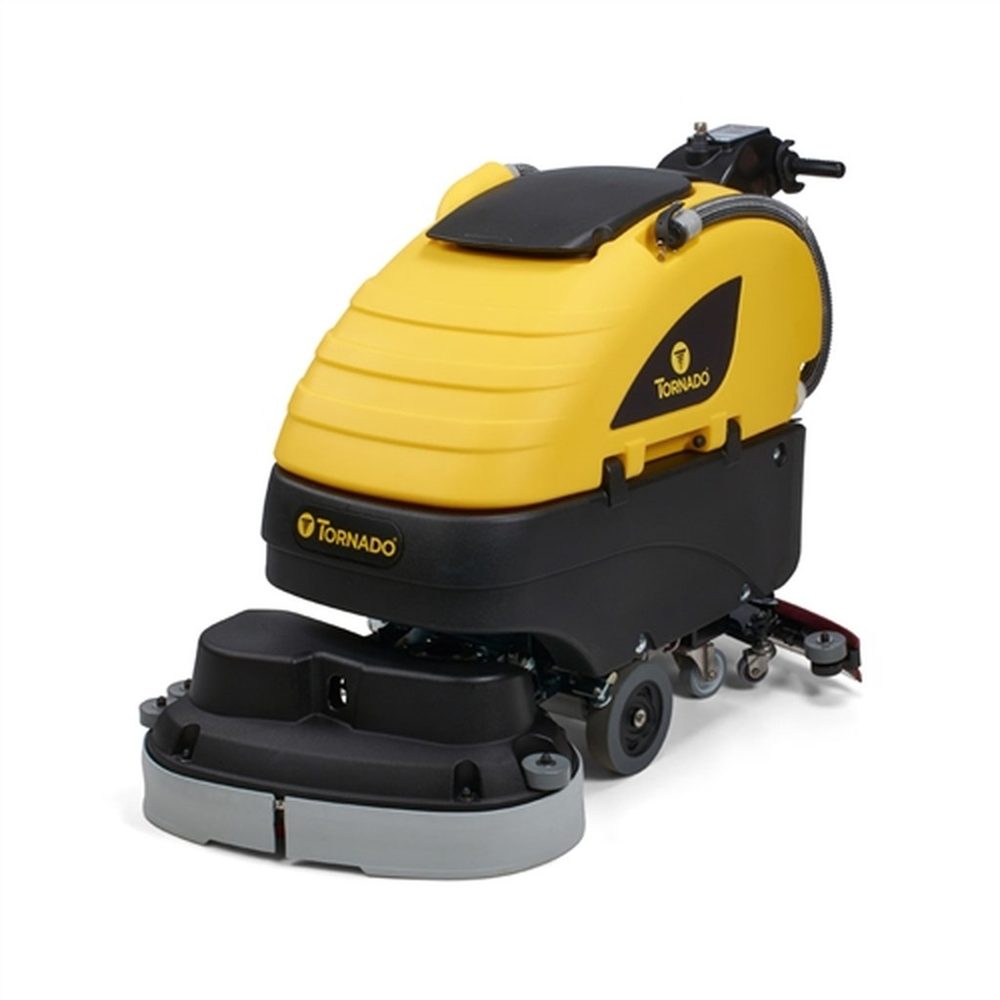

New Tornado BD 26/20 26" Traction Drive Disk Scrubber
Our Take (from the SES Sales Team)
“The BD 26/20 is a nice step up for customers who have outgrown a 20 in scrubber but are not ready for a rider. Two 13 in disks give you a 26 in path, and the traction drive does the work of moving the machine, so it handles long corridors and even ramps up to a 10% grade without wearing out the operator. Down pressure adjusts up to 110 lb, which lets you go light for daily scrubbing and heavier when the floor needs it. The 20 gal solution tank and 22 gal recovery tank mean fewer trips to the dump sink, and Tornado rates it at up to 29,493 sq ft per hour in theory. The controls sit right at the operator's fingertips and take very little training to learn, and the squeegee comes off and goes back on in seconds with no tools. This package includes lead acid batteries and an onboard charger, so it charges anywhere you have an outlet. If you have wider open areas, take a look at the 30 in BD 30/20 too.”
A 26 in traction drive scrubber for mid-size floors
The Tornado BD 26/20 (Tornado number TS530-W26-U) is a walk-behind disk scrubber with traction drive. Two 13 in disks spin at 160 rpm with adjustable down pressure up to 110 lb, and a 0.4 hp drive motor moves the machine, even up ramps to a 10% grade.
It carries a 20 gal solution tank and a 22 gal recovery tank in polyethylene, picks up with a 33.8 in squeegee, and Tornado rates it at up to 29,493 sq ft per hour in theory. This package (TS530-W26-UC) includes lead acid batteries and the onboard charger.
Condition: New.
What you get
Lead acid battery package
Pads and brushes
Features
Simple to run, built for daily scrubbing
- ✓Traction drive climbs ramps up to a 10% grade
- ✓Easy-to-use fingertip controls at the operator position
- ✓Squeegee changes, and raises and lowers, in seconds with no tools
- ✓Inline solution filter prevents clogs and keeps solution flow steady
- ✓Solution level sight tube and a recovery tank drain hose for quick fills and dumps
A closer look
Controls and service points
Fingertip controls with a display at the operator position.
The squeegee comes off without tools.
Tornado BD 26/20 and BD 30/20
Which deck size fits?
| Specification | BD 26/20 (TS530-W26) | BD 30/20 (TS530-W30) |
|---|---|---|
| Cleaning path | 26 in, two 13 in disks | 30 in, two 15 in disks |
| Squeegee width | 33.8 in | 39 in |
| Productivity (theoretical max) | 29,493 sq ft/hr | 33,798 sq ft/hr |
| Vacuum water lift | 48 in | 64 in |
| Solution / recovery tanks | 20 / 22 gal | 20 / 22 gal |
| Brush pressure / speed | Up to 110 lb / 160 rpm | Up to 110 lb / 160 rpm |
Tornado BD 26/20 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| TS530-W26-UC (this unit) | BD 26/20 with lead acid batteries |
| TS530-W26-UG | Same machine with AGM batteries |
| TS530-W26-U | Same machine, no batteries |
Specifications
Tornado BD 26/20 at a glance
| Models | BD 26/20, lead acid |
|---|---|
| Cleaning path | 26 in (660 mm), two 13 in (330 mm) disks |
| Brush speed | 160 rpm |
| Brush pressure | Up to 110 lb (50 kg) |
| Productivity (theoretical max) | 29,493 sq ft/hr (2,740 m²/hr) |
| Solution / recovery tanks | 20 gal (76 L) / 22 gal (83 L) |
| Tank construction | Polyethylene |
| Squeegee width | 33.8 in (859 mm) |
| Brush motor | Two 0.47 hp (350 W) motors |
| Vacuum motor | 0.76 hp (570 W), 48 in water lift |
| Drive | Traction drive, 0.4 hp (300 W) |
| Battery system | 24 V |
| Run time | 3 to 4 hours |
| Charger | Onboard |
| Sound level | Under 70 dB(A) |
| Dimensions (L x W x H) | 58.5 x 30 x 41 in (149 x 76 x 104 cm) |
| Weight | 225 lb (102 kg) without batteries |
| Model Numbers | TS530-W26-UC (BD 26/20 with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 26/20: common questions
How long does it run on a charge?
Tornado rates run time at 3 to 4 hours. Actual run time depends on the floor, the down pressure and how the machine is driven.
Can it handle ramps?
Yes. Tornado says the 300 W traction drive motor moves the machine up ramps to a 10% grade.
What is the difference between the BD 26/20 and the BD 30/20?
The BD 30/20 uses two 15 in disks for a 30 in path, a 39 in squeegee and a stronger 64 in water lift. The tanks, down pressure and battery system are the same.
How do I charge it?
The charger is onboard. Plug the machine into an outlet at the end of the shift.
