| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |
New Tornado BD 20/11LT 20" Traction Drive Walk Behind Scrubber
Our Take (from the SES Sales Team)
“The BD 20/11LT is the 20 in walk-behind we point people to when they want a real automatic scrubber without stepping up to a big machine. It is the self-propelled version of Tornado's compact 20 in disk scrubber, so the operator guides it and the drive does the pushing, which makes a long hallway or a full shift a lot easier on the person behind the handle. It fits through standard doorways, carries an 11 gal solution tank and a 12 gal recovery tank, and puts 48.5 lb of down pressure on a 155 rpm disk. Tornado rates it at up to 18,837 sq ft per hour in theory. The controls are simple, the squeegee raises and lowers with a lever so double scrubbing is easy, and squeegees and brushes change without tools. It runs quietly, under 70 dB, so daytime cleaning in schools, offices and stores is realistic. This package comes with lead acid batteries and the onboard charger, so you plug it in at the end of the shift and it is ready the next day.”
A self-propelled 20 in scrubber for tight, busy spaces

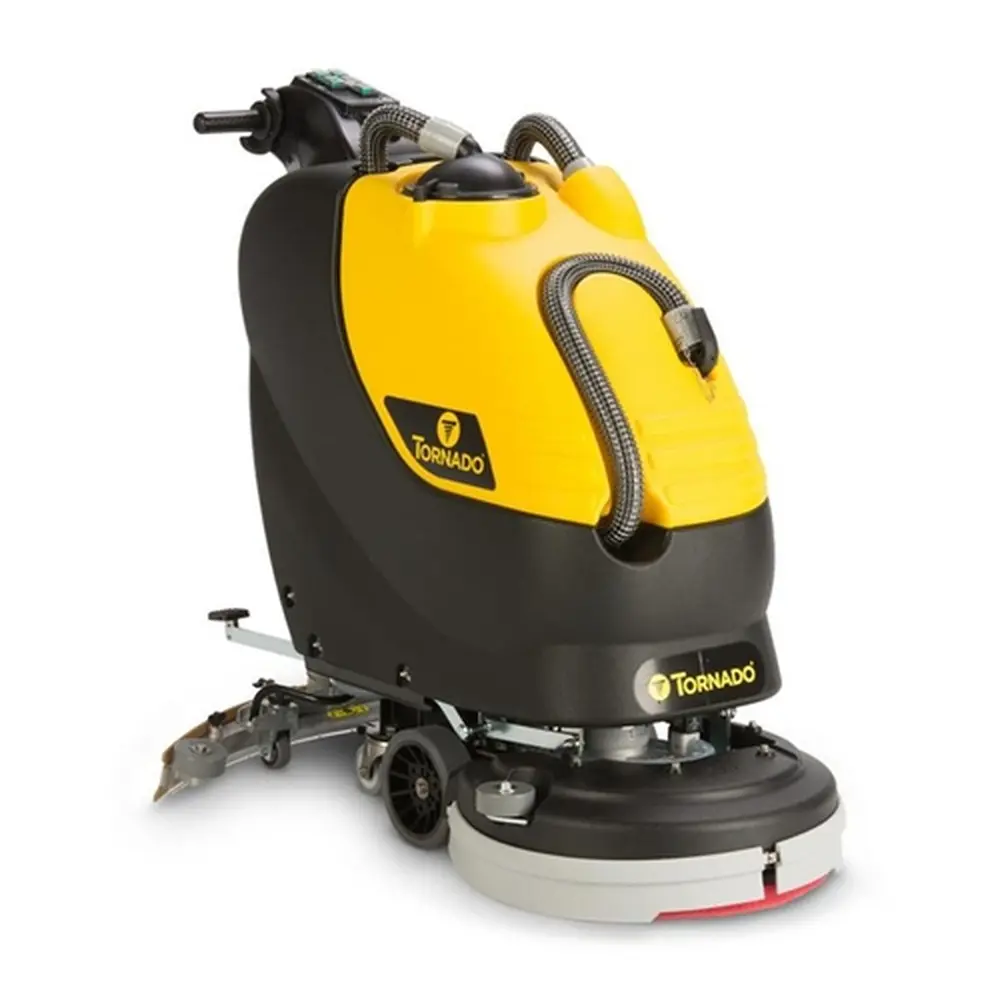

The Tornado BD 20/11LT (Tornado number TS120-S53-U) is a compact walk-behind automatic scrubber built to clean and dry small, congested areas in one pass. It fits standard doorways, and its low-profile body gives the operator a clear view ahead.
A single 20 in disk turns at 155 rpm with 48.5 lb of down pressure, an 11 gal solution tank feeds the brush, and a 31 in squeegee pulls the water into a 12 gal recovery tank. This package (TS120-S53-UC) includes lead acid batteries and the onboard charger.
Condition: New.
What you get
Lead acid battery package
Scrub deck accessories
Features
Easy to learn, easy to keep running
- ✓Self-propelled drive does the pushing, so long runs are easier on the operator
- ✓A few simple controls cut training time and re-work
- ✓Squeegee lever raises and lowers the squeegee for easy double scrubbing
- ✓Squeegees and brushes change in seconds with no tools
- ✓Inline solution filter and a recovery tank drain hose for quick end-of-shift cleanup
A closer look
Controls and squeegee
Simple rocker-switch controls on the handle.
The curved rear squeegee changes without tools.
Tornado BD 20/11LT packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| TS120-S53-UC (this unit) | 20 in self-propelled scrubber with lead acid batteries |
| TS120-S53-UG | Same machine with AGM batteries |
| TS120-S53-UE | Same machine with TPPL batteries |
| TS120-S53-U | Same machine, no batteries |
Specifications
Tornado BD 20/11LT at a glance
| Models | BD 20/11LT, lead acid |
|---|---|
| Cleaning path | 20 in (508 mm) |
| Brush type | Single disk |
| Brush speed | 155 rpm |
| Brush pressure | 48.5 lb (22 kg) |
| Productivity (theoretical max) | 18,837 sq ft/hr (1,750 m²/hr) |
| Solution / recovery tanks | 11 gal (42 L) / 12 gal (45 L) |
| Tank construction | Polyethylene |
| Squeegee width | 31 in (787 mm) |
| Brush motor | 0.46 hp (343 W) |
| Vacuum motor | 0.6 hp (447 W), 50 in water lift |
| Drive | Self-propelled, 0.16 hp (119 W) |
| Battery system | 24 V |
| Run time | 3 to 4 hours |
| Charger | Onboard |
| Sound level | Under 70 dB |
| Dimensions (L x W x H) | 43 x 21 x 41 in (109 x 53 x 104 cm), without squeegee |
| Weight | 187 lb (85 kg) without batteries; 350 lb (159 kg) with batteries |
| Model Numbers | TS120-S53-UC (BD 20/11LT with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 20/11LT: common questions
Is the BD 20/11LT self-propelled?
Yes. This is the self-propelled version of the Tornado 20 in walk-behind, with a 0.16 hp drive motor. Tornado also builds a brush assist version (TS120-S45) and a 20 in stand-on model (TS120-S59).
How long does it run on a charge?
Tornado rates run time at 3 to 4 hours. Actual run time depends on the floor, the brush pressure and how the machine is driven.
Will it fit through my doorways?
Tornado designed it to fit standard-size doorways. The machine is 21 in wide without the squeegee, and the squeegee is 31 in wide, so measure your tightest opening before you order.
How do I charge it?
The charger is onboard. Plug the machine into a standard outlet at the end of the shift.
Not sure the BD 20/11LT fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
