| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

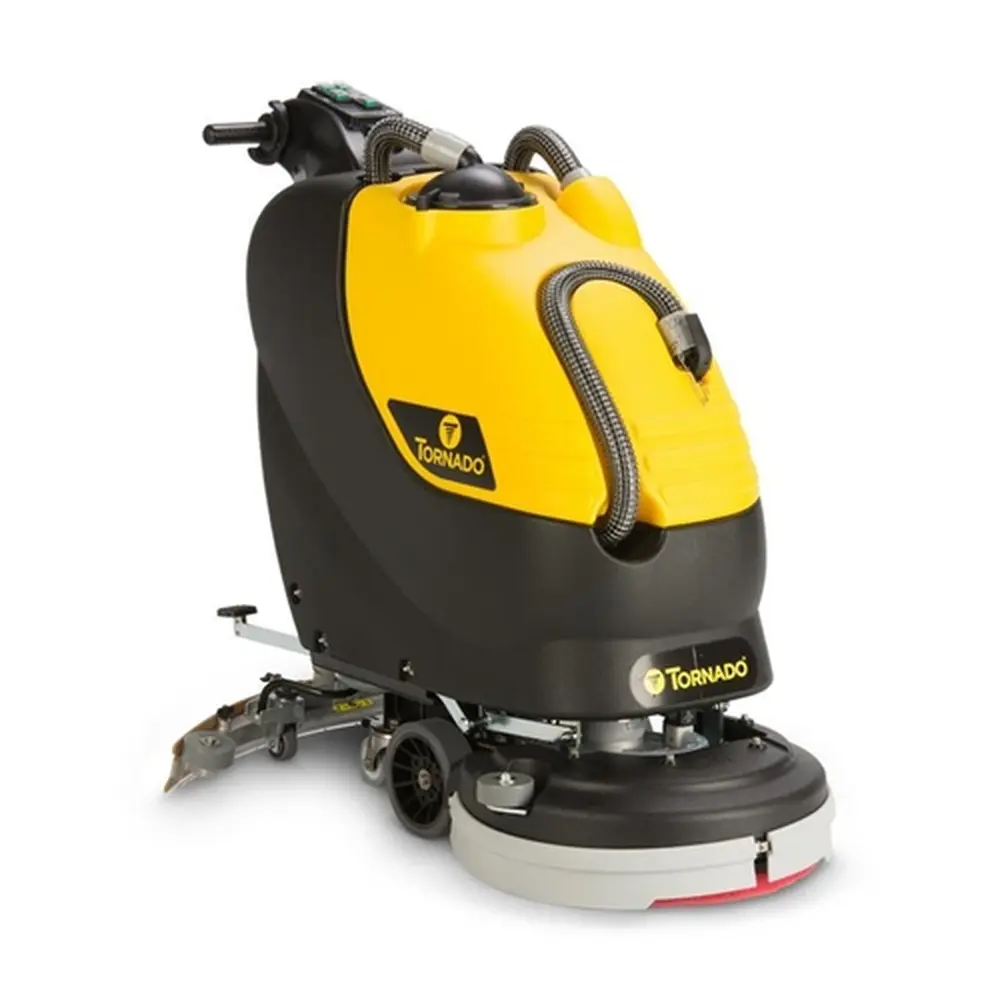

New Tornado BD 20/11L 20" Brush Assist Scrubber
Our Take (from the SES Sales Team)
“The Tornado BD 20/11 brush assist is a 20 in walk-behind scrubber for the places a mop and bucket is costing you too much labor: convenience stores, restaurants, school hallways, clinics, retail aisles and small warehouses. It fits through standard doorways and scrubs and dries in one pass, with 48.5 lb of down pressure at 155 rpm and an 11 gal solution tank feeding a 12 gal recovery tank. Tornado rates it at 17,969 sq ft per hour. Brush assist means the pad does some of the pulling, so it is easier to push than a plain walk-behind without the cost of a full traction drive. The controls are few and simple, which helps with new operators, and brushes and squeegees change in seconds without tools. A squeegee lever lets you lift the squeegee for a double scrub on heavy soil. This package comes with lead acid batteries and the onboard charger, and Tornado rates run time at 3 to 4 hours. At under 70 dB, it is quiet enough for daytime cleaning.”
A 20 in brush assist walk-behind scrubber
The Tornado BD 20/11 is a compact 20 in disk scrubber with brush assist drive. It fits through standard doorways and cleans and dries small, congested areas in one pass, with 48.5 lb of down pressure and 155 rpm of agitation.
The 11 gal solution and 12 gal recovery tanks are polyethylene, with an inline solution filter and a recovery tank drain hose. This package includes lead acid batteries, and the charger is on board.
Condition: New.
What you get
Ready to scrub
Brush assist drive
Features
Simple to run, quick to service
- ✓Brush assist drive with 48.5 lb of down pressure at 155 rpm
- ✓Intuitive controls that simplify training
- ✓No-tools design for changing squeegees and brushes in seconds
- ✓Squeegee lever for easy double scrubbing
- ✓Low-profile design for better sightlines
Compare
Brush assist or self-propelled?
| Models | BD 20/11 brush assist | BD 20/11 self-propelled |
|---|---|---|
| Drive | Brush assist | Self-propelled |
| Productivity | 17,969 sq ft/hr | 18,837 sq ft/hr |
| Weight with battery | 320 lb (145 kg) | 350 lb (159 kg) |
| Cleaning path and tanks | 20 in, 11 / 12 gal | 20 in, 11 / 12 gal |
| Model Numbers | TS120-S45-U series | TS120-S53-U series |
Specifications
Tornado BD 20/11 brush assist at a glance
| Models | BD 20/11 brush assist |
|---|---|
| Cleaning path | 20 in (508 mm) |
| Productivity (theoretical max) | 17,969 sq ft/hr (1,669 m²/hr) |
| Solution tank | 11 gal (42 L) |
| Recovery tank | 12 gal (45 L) |
| Tank construction | Polyethylene |
| Inline solution filter | Yes |
| Squeegee width | 31 in (787 mm) |
| Brush pressure | 48.5 lb (22 kg) |
| Brush motor | 0.46 hp |
| Brush speed | 155 rpm |
| Vacuum motor | 0.6 hp |
| Water lift | 50 in (1,270 mm) |
| Drive | Brush assist, 0.16 hp |
| System voltage | 24 V |
| Batteries | Lead acid |
| Charger | On board |
| Run time | 3 to 4 hr |
| Sound level | Under 70 dB |
| Dimensions (L x W x H) | 43 x 21 x 41 in (109 x 53 x 104 cm), without squeegee |
| Weight | 157 lb (71 kg) without batteries; 320 lb (145 kg) with batteries |
| Model Numbers | TS120-S45-UC (BD 20/11 brush assist, with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 20/11 brush assist: common questions
Are batteries included?
Yes. This package (TS120-S45-UC) includes lead acid batteries, and the charger is on board.
Will it fit through doorways?
Yes. It is 21 in wide without the squeegee and is designed to fit through standard-size doorways.
How long does it run?
Tornado rates run time at 3 to 4 hours.
Can I double scrub?
Yes. Use the squeegee lever to raise the squeegee for a scrub pass, then lower it to pick up.
