| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

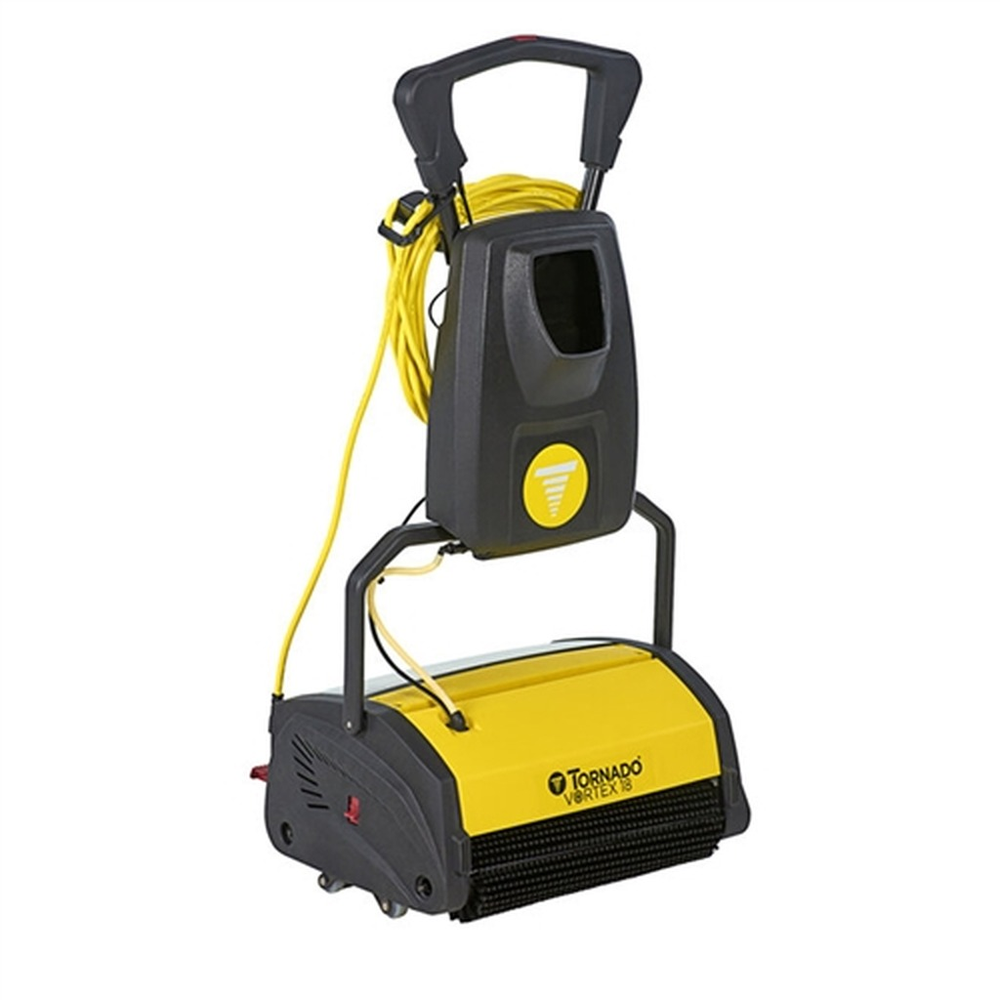

New Tornado Vortex 18 Multi-Surface Scrubber
Our Take (from the SES Sales Team)
“The Vortex 18 is the wider of Tornado's two Vortex cylindrical scrubbers, and it makes sense when you have more floor to cover but still want a compact, corded machine that rolls into a kitchen or restroom. It cleans an 18 in path at a rated 4,844 sq ft per hour, with a 1,150 W brush motor turning two counter-rotating brushes at 650 rpm. That speed is why it does well on grout, quarry tile, textured rubber sports flooring, entrance mats and escalator treads. The brushes flick dirt and water onto a rotating recovery drum, so it scrubs and picks up in one pass and leaves the floor dry. Tornado says it uses about 30 percent less water than a disk scrubber. It runs on a 40 ft cord, so there are no batteries to manage, and the 1 gal solution and recovery tanks lift out for filling and dumping at the sink. Optional soft, hard and escalator brushes let you set it up for the surface. For tighter rooms, the Vortex 13 is smaller and lighter.”
A 18 in cylindrical scrubber for hard floors, carpet and escalators
The Tornado Vortex 18 is a corded multi-surface scrubber with two counter-rotating cylindrical brushes that clean a 18 in path. It cleans hard, uneven floors such as tile, VCT and concrete, and soft surfaces such as rubber sports mats, entrance mats, commercial carpet and escalators.
The brushes scrub and lift dirt and water onto a rotating recovery drum in one pass, leaving the floor clean and dry. Tornado rates it at 4,844 sq ft per hour with a 1,150 W brush motor and a 40 ft cord.
Condition: New.

What you get
Plug in and scrub
Why cylindrical brushes
Features
Deep cleaning with low moisture
- ✓Brushes spin at 650 rpm, up to four times faster than comparable disk scrubbers, per Tornado
- ✓Uses about 30 percent less water than disk scrubbers, so floors dry faster
- ✓Solution and recovery tanks lift out for filling, emptying and cleaning
- ✓Wide handle with a push button for dispensing cleaning solution
- ✓Optional soft, hard and escalator brushes, side brush and transport cart
Compare
Vortex 13 vs. Vortex 18
| Model | Cleaning path | Brush motor | Solution / recovery | Productivity | Sound | Weight |
|---|---|---|---|---|---|---|
| Vortex 13 (TS050-W13-U) | 13 in (33 cm) | 950 W | 1 gal / 0.75 gal | 3,775 sq ft/hr | 69 dBA | 58 lb (26 kg) |
| Vortex 18 (TS050-W18-U) (this unit) | 18 in (46 cm) | 1,150 W | 1 gal / 1 gal | 4,844 sq ft/hr | 71 dBA | 68 lb (31 kg) |
Specifications
Tornado Vortex 18 at a glance
| Models | Vortex 18 |
|---|---|
| Cleaning path | 18 in (46 cm) |
| Brushes | 2 counter-rotating cylindrical, 650 rpm |
| Brush pressure | 170 g/cm² (2.4 psi) |
| Brush motor | 1,150 W |
| Pump motor | 26 W |
| Solution tank | 1 gal (3.8 L), polyethylene |
| Recovery tank | 1 gal (3.8 L), polyethylene |
| Productivity | 4,844 sq ft/hr |
| Power cord | 40 ft (12 m) |
| Sound level | 71 dBA |
| Dimensions (L x W x H) | 15 x 22 x 43 in (38 x 56 x 109 cm) |
| Weight | 68 lb (31 kg) |
| Model Numbers | TS050-W18-U (Vortex 18) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado Vortex 18: common questions
What surfaces can it clean?
Tornado lists tile, VCT and concrete, plus soft surfaces such as rubber sports mats, entrance mats, commercial carpet and escalators.
Does it need batteries?
No. The Vortex 18 is corded, with a 40 ft power cord.
How dry is the floor after a pass?
The brushes lift dirt and water onto a rotating recovery drum in one pass, and Tornado says it uses about 30 percent less water than disk scrubbers, so floors are left clean and dry.
How is it different from the Vortex 13?
The Vortex 18 cleans an 18 in path instead of 13 in, has a larger 1,150 W brush motor and a 1 gal recovery tank, and Tornado rates it at 4,844 sq ft per hour versus 3,775.
Not sure the Vortex 18 fits your floors?
Tell our team about the floors, the size of the area and the soil, and we will help you decide if this is the right machine.
