| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

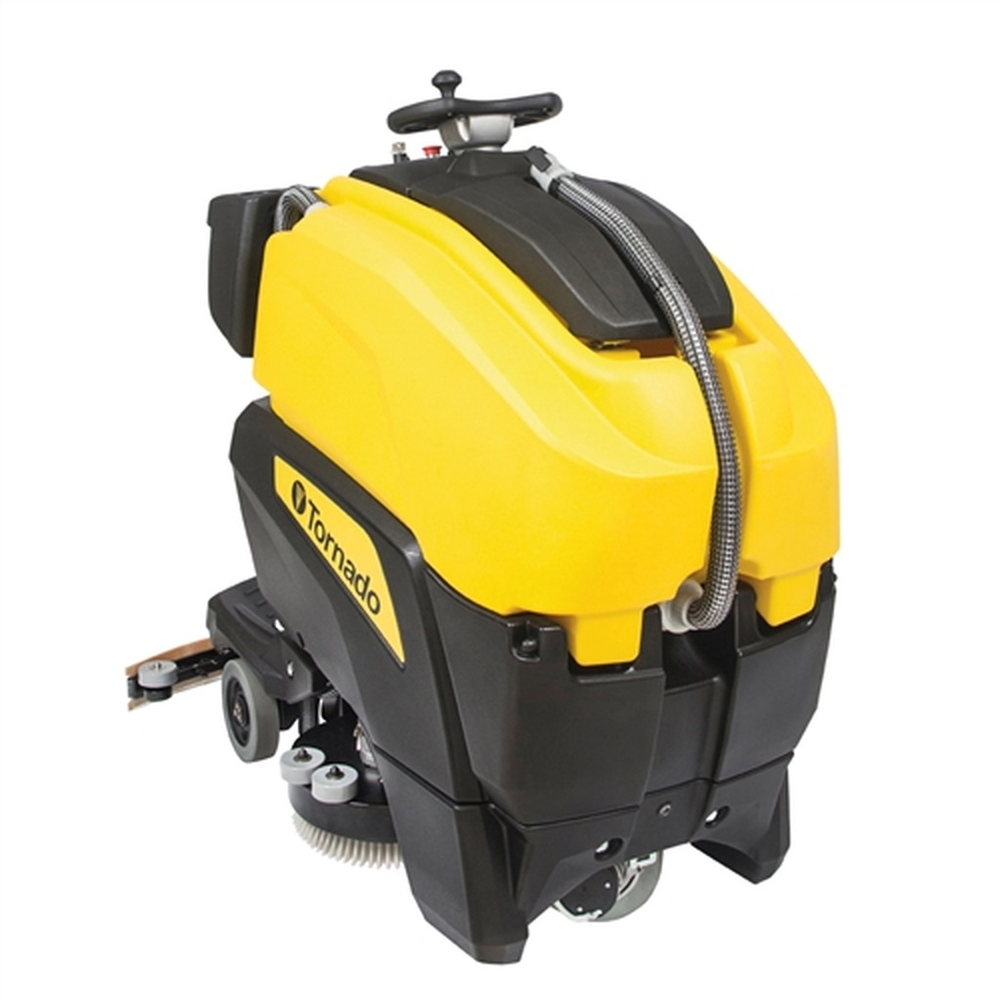

New Tornado BD 27/28 27" Stand On Rider Scrubber
Our Take (from the SES Sales Team)
“The BD 27/28 sits in a sweet spot between a walk-behind and a full rider. The operator stands on the platform, so they cover a lot of ground without taking a step, but the machine is compact enough to work around shelving, displays and other obstacles that slow a bigger rider down. Standing up also gives a clear view of the floor ahead. Two 14 in offset disks give it a 27 in path with 126 lb of brush pressure, and the 26.4 gal solution and 28 gal recovery tanks keep it working through big areas between fills. Tornado rates it at 50,698 sq ft per hour. The 0.7 hp drive motor moves the machine with ease, and the controls for speed, solution and pads are laid out so operators pick them up quickly. It runs under 68 dBA, which helps in occupied buildings. This package comes with Trojan batteries and the onboard charger, so the machine is ready to plug in and go. Tornado's spec sheet calls this machine the BDSO 27/28.”
A stand-on scrubber that covers rider-size areas
The Tornado BD 27/28 (Tornado's BDSO 27/28, number 99786) is a stand-on automatic scrubber. It combines the comfort and coverage of a ride-on with the cost and maneuverability that make walk-behinds popular, and the standing position gives the operator good visibility.
Two 14 in offset disks scrub a 27 in path with 126 lb of brush pressure, fed by a 26.4 gal solution tank, and a 34 in squeegee recovers into a 28 gal tank. This package (99786C) includes Trojan batteries and the onboard charger.
Condition: New.
What you get
Trojan battery package
Pads and brushes
Features
Rider coverage, walk-behind footprint
- ✓Standing operator position gives maximum visibility
- ✓0.7 hp drive motor moves the machine with ease
- ✓Speed, solution and pads are controlled from one comfortable platform
- ✓Durable frame with polyethylene tanks
- ✓Easy access to the solution and recovery tanks
A closer look
On the platform
The operator rides on the platform and steers with the wheel.
Speed, solution and pad controls in one panel.
Tornado BD 27/28 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| 99786C (this unit) | BD 27/28 with Trojan batteries |
| 99786CG | Same machine with AGM batteries |
| 99786E | Same machine with TPPL batteries |
| 99786 | Same machine, no batteries |
Specifications
Tornado BD 27/28 at a glance
| Models | BD 27/28 (BDSO 27/28), Trojan batteries |
|---|---|
| Cleaning path | 26.97 in (685 mm), two 14 in (356 mm) offset disks |
| Brush speed | 160 rpm |
| Brush pressure | 126 lb (57 kg) |
| Productivity | 50,698 sq ft/hr (4,710 m²/hr) |
| Solution / recovery tanks | 26.4 gal (100 L) / 28 gal (106 L) |
| Tank construction | Polyethylene |
| Squeegee width | 34 in (864 mm) |
| Brush motors | Two 0.5 hp (373 W) |
| Vacuum motor | 0.75 hp (560 W) |
| Drive motor | 0.7 hp (522 W) |
| Battery system | 24 V (four 6 V batteries) |
| Charger | Onboard |
| Sound level | Under 68 dBA |
| Dimensions (L x W x H) | 61 x 30 x 55 in (155 x 76 x 140 cm) |
| Net weight | 470 lb (213 kg) |
| Model Numbers | 99786C (BD 27/28 with Trojan batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 27/28: common questions
Is this a ride-on or a walk-behind?
Neither, exactly. It is a stand-on: the operator rides standing on a platform, which gives rider coverage in a compact machine.
Is this the same machine as the BDSO 27/28?
Yes. Tornado number 99786 is called the BDSO 27/28 on Tornado's spec sheet. This listing is package 99786C, with Trojan batteries.
How is it charged?
The BD 27/28 has an onboard charger, so you plug the machine into an outlet.
How big an area can it clean?
Tornado rates it at 50,698 sq ft per hour. Real-world coverage depends on the floor, obstacles and how often you dump and refill.
Not sure the BD 27/28 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
