| PRODUCT SPECIFICATIONS | ||
|---|---|---|
| BD 33/30 | BR 33/30 | |
| Model | BD 33/30 | BR 33/30 |
| Catalog Number | 99780 | 99785 |
| MACHINE DIMENSIONS | ||
| Dimensions (L x W x H) | 65" x 35" x 67" | 65" x 36" x 51" |
| Net Weight | 690 lbs. | 739 lbs. |
| Solution / Recovery Tank | 30 / 32 gal. | 30 / 32 gal. |
| Squeegee Width | 45" | 45" |
| DESIGN CHARACTERISTICS | ||
| Tank Construction | Polyethylene | Polyethylene |
| CLEANING SYSTEM | ||
| Brush Type | Twin Disk | Cylindrical |
| Brush Width | 33" | 33" |
| Brush RPM | 162 | 785 |
| Brush Pressure | 187 lbs. (max) | 176 lbs. (max) |
| Cleaning Path | 33" | 33" |
| PRODUCTIVITY | ||
| Cleaning Rate (sq. ft. per hour) | 55,952 | 55,952 |
| MOTORS | ||
| Vacuum Motor | .7 hp | .8 hp |
| Brush Motor | 1.5 hp | .9 hp |
| Sound Level | 70 dB | 70 dB |
| BATTERY | ||
| Voltage | 36 V | 36 V |
| REPLACEMENT AND OPTIONAL ITEMS | ||
| Standard Rear Squeegee | 48406100 | 48406100 |
| Poly / Oil Resistant Front Squeegee | 48403110 | 48403110 |
| Oil Resistant Rear Squeegee | 48406030 | 48406030 |
| 13" Pad Holder (2 req.) | N/A | N/A |
| 13" Medium Scrub Brush (2 req.) | N/A | N/A |
| 13" Grit Scrub Brush (2 req.) | N/A | N/A |
| Poly Scrub Brush | N/A | 48906010 |
| Medium Scrub Brush | N/A | 48906050 |
| Hi-Low Grout Brush | N/A | 48906030 |
| Grit Scrub Brush | N/A | 48906070 |
| 16.5" Pad Holder (2 req.) | 48803050 | N/A |
| 16.5" Medium Scrub Brush (2 req.) | 48903120 | N/A |
| 16.5" Grit Scrub Brush (2 req.) | 48906030 | N/A |

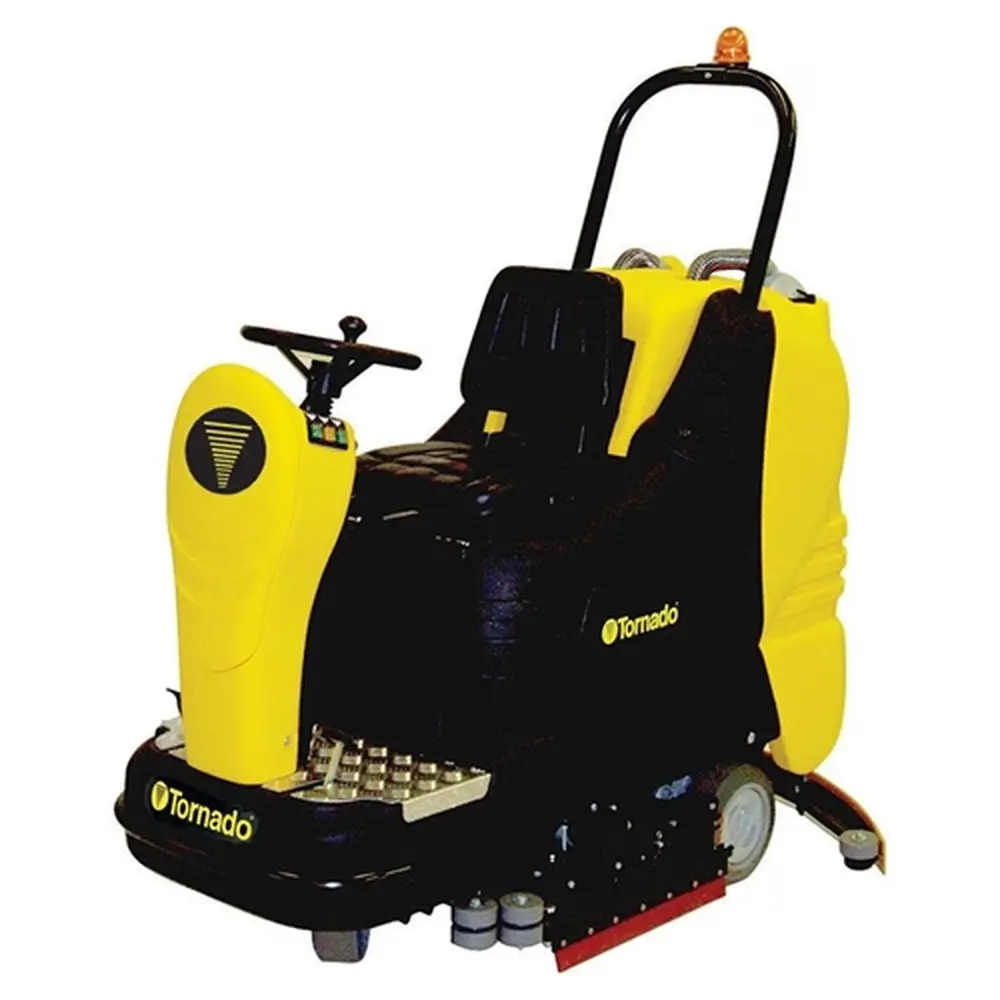

New Tornado BR 33/30 33" Cylindrical Rider Scrubber
Our Take (from the SES Sales Team)
“The BR 33/30 makes sense for facilities that scrub a lot of open floor and want the scrubbing action of cylindrical brushes on a ride-on: supermarkets, plants, warehouses, airports and exhibit halls. The 33 in cylindrical brush spins at 785 rpm, so it digs into textured surfaces like quarry tile and paver brick, and it picks up light debris into a collection box as it scrubs, so you sweep less before you scrub. The 30 gal solution and 32 gal recovery tanks keep it working between fills, and the tanks are polyethylene, so they will not rust. Operators like that automatic mode turns on the brushes, solution and vacuum with one selector, and the squeegee lifts on its own when the machine backs up, which protects the blades. Brush pressure has three preset levels, shown on the display, so you can go lighter on smooth floors and heavier on grout. This package includes a 36 V lead acid battery pack, so ask us which charger you need.”
A 33 in cylindrical rider for large floors
The Tornado BR 33/30 is a ride-on automatic floor scrubber for supermarkets, manufacturing plants, airports, exhibit halls, warehouses and other large hard floors. A 33 in cylindrical brush turns at 785 rpm with up to 176 lb of brush pressure, and a collection box catches solid debris while the machine scrubs.
It carries a 30 gal solution tank and a 32 gal recovery tank in polyethylene, picks up with a 45 in squeegee, and Tornado rates its cleaning rate at 14,851 sq ft per hour. This package (99785C) includes a 36 V lead acid battery pack.
Condition: New.
What you get
Lead acid battery package
Charger
Features
Simple for the operator
- ✓Automatic mode turns on brushes, solution and vacuum together, with a manual mode for full control
- ✓Squeegee lifts automatically in reverse to protect the blades
- ✓Three preset brush pressure levels, with the setting shown on the display
- ✓Collection box for solid debris, plus an overflow float that shuts off suction when the recovery tank is full
- ✓Electronic protection that stops a faulty component and shows an alarm code on the display
Tornado BR 33/30 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| 99785C (this unit) | BR 33/30 with lead acid batteries |
| 99785 | BR 33/30, no batteries |
Specifications
Tornado BR 33/30 at a glance
| Models | BR 33/30, lead acid |
|---|---|
| Cleaning path | 33 in (838 mm) |
| Brush type | Cylindrical, 33 in (838 mm) |
| Brush speed | 785 rpm |
| Brush pressure | Up to 176 lb (80 kg) |
| Cleaning rate | 14,851 sq ft/hr (1,380 m²/hr) |
| Solution / recovery tanks | 30 gal (114 L) / 32 gal (121 L) |
| Tank construction | Polyethylene |
| Squeegee width | 45 in (1,143 mm) |
| Brush motor | 0.9 hp (670 W) |
| Vacuum motor | 0.8 hp (600 W) |
| Battery system | 36 V, 240 Ah |
| Sound level | 70 dBA |
| Dimensions (L x W x H) | 65 x 36 x 51 in (165 x 91 x 130 cm) |
| Net weight | 739 lb (335 kg) |
| Model Numbers | 99785C (BR 33/30 with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BR 33/30: common questions
What floors is the BR 33/30 best for?
Cylindrical brushes handle flat floors and structured surfaces such as quarry tile, paver brick and raised rubber disc flooring. The brushes also send solid debris into a collection box as they scrub.
How do I empty the debris?
The machine has a collection box for solid dirt. Tornado says to empty it and rinse it out with water at the end of each cleaning job.
What happens if the recovery tank fills up?
A float closes off the suction when the recovery tank is full, which protects the vacuum motor. Empty the recovery tank and keep cleaning.
Can the operator switch between automatic and manual?
Yes. In automatic mode the machine handles the brushes, solution and vacuum together. In manual mode each function is turned on and off by the operator, and a transport setting runs only the drive for moving between areas.
Not sure the BR 33/30 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
