| PRODUCT SPECIFICATIONS | ||
|---|---|---|
| BD 33/30 | BR 33/30 | |
| Model | BD 33/30 | BR 33/30 |
| Catalog Number | 99780 | 99785 |
| MACHINE DIMENSIONS | ||
| Dimensions (L x W x H) | 65" x 35" x 67" | 65" x 36" x 51" |
| Net Weight | 690 lbs. | 739 lbs. |
| Solution / Recovery Tank | 30 / 32 gal. | 30 / 32 gal. |
| Squeegee Width | 45" | 45" |
| DESIGN CHARACTERISTICS | ||
| Tank Construction | Polyethylene | Polyethylene |
| CLEANING SYSTEM | ||
| Brush Type | Twin Disk | Cylindrical |
| Brush Width | 33" | 33" |
| Brush RPM | 162 | 785 |
| Brush Pressure | 187 lbs. (max) | 176 lbs. (max) |
| Cleaning Path | 33" | 33" |
| PRODUCTIVITY | ||
| Cleaning Rate (sq. ft. per hour) | 55,952 | 55,952 |
| MOTORS | ||
| Vacuum Motor | .7 hp | .8 hp |
| Brush Motor | 1.5 hp | .9 hp |
| Sound Level | 70 dB | 70 dB |
| BATTERY | ||
| Voltage | 36 V | 36 V |
| REPLACEMENT AND OPTIONAL ITEMS | ||
| Standard Rear Squeegee | 48406100 | 48406100 |
| Poly / Oil Resistant Front Squeegee | 48403110 | 48403110 |
| Oil Resistant Rear Squeegee | 48406030 | 48406030 |
| 13" Pad Holder (2 req.) | N/A | N/A |
| 13" Medium Scrub Brush (2 req.) | N/A | N/A |
| 13" Grit Scrub Brush (2 req.) | N/A | N/A |
| Poly Scrub Brush | N/A | 48906010 |
| Medium Scrub Brush | N/A | 48906050 |
| Hi-Low Grout Brush | N/A | 48906030 |
| Grit Scrub Brush | N/A | 48906070 |
| 16.5" Pad Holder (2 req.) | 48803050 | N/A |
| 16.5" Medium Scrub Brush (2 req.) | 48903120 | N/A |
| 16.5" Grit Scrub Brush (2 req.) | 48906030 | N/A |

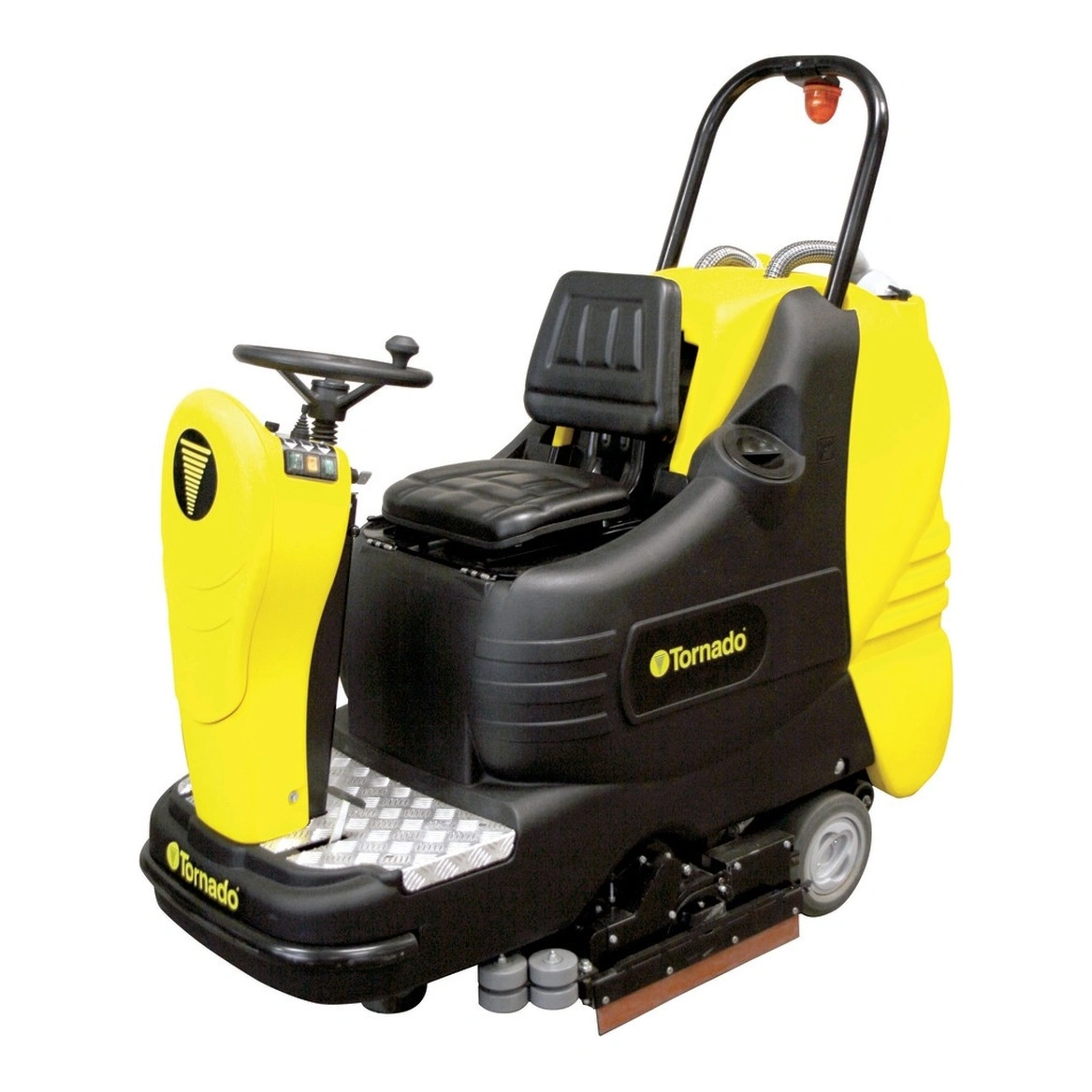

New Tornado BD 33/30 33" Disk Rider Scrubber
Our Take (from the SES Sales Team)
“The BD 33/30 is built for big, open floors: supermarkets, manufacturing plants, airports and exhibit halls, where a walk-behind just cannot keep up. A twin disk deck scrubs a 33 in path with a 1.5 hp brush motor and up to 187 lb of pressure, and you choose from three pressure settings, so you can go light for daily cleaning and heavier when the floor needs it. The 30 gal solution and 32 gal recovery tanks keep the operator on the seat instead of at the dump sink, and Tornado rates it at 55,952 sq ft per hour. Even with that capacity it turns in a 6 ft steering radius, which helps around end caps and corners. Automatic mode starts every function when the machine is turned on and brings the motors up gradually, and the squeegee retracts when the machine backs up. The parabolic squeegee changes in 10 seconds or less, and a roll bar adds operator protection. Ask our team about the battery and charger setup for your shift.”
A 33 in disk rider for large, open floors
The Tornado BD 33/30 (Tornado number 99780) is a ride-on automatic scrubber for large, unobstructed spaces such as supermarkets, manufacturing plants, airports and exhibit halls. Its twin disk deck comes standard with pad holders.
It scrubs a 33 in path at 162 rpm with up to 187 lb of pressure, carries 30 gal of solution, and recovers into a 32 gal tank through a 45 in parabolic squeegee. The 36 V machine turns in a 6 ft steering radius.
Condition: New.
What you get
Twin disk rider
Batteries and charger
Features
Easy on the operator
- ✓Automatic mode starts all scrubbing functions and brings the motors up gradually
- ✓Squeegee retracts automatically when you back up
- ✓6 ft steering radius for maneuvering tight corners
- ✓Silent Supervisor panel shows run time and battery charge
- ✓Deck shroud peels back for easy pad and brush changes
Tornado 33/30 riders
Disk or cylindrical?
| Specification | BD 33/30 (99780) | BR 33/30 (99785) |
|---|---|---|
| Brush type | Twin disk, with pad holders | Cylindrical, with brushes |
| Cleaning path | 33 in | 33 in |
| Brush speed | 162 rpm | 785 rpm |
| Max brush pressure | 187 lb | 176 lb |
| Brush motor | 1.5 hp | 0.9 hp |
| Solution / recovery tanks | 30 / 32 gal | 30 / 32 gal |
| Squeegee width | 45 in | 45 in |
Specifications
Tornado BD 33/30 at a glance
| Models | BD 33/30 |
|---|---|
| Cleaning path | 33 in (838 mm) |
| Brush type | Twin disk |
| Brush speed | 162 rpm |
| Brush pressure | Up to 187 lb (85 kg), 3 settings |
| Productivity | 55,952 sq ft/hr (5,198 m²/hr) |
| Solution / recovery tanks | 30 gal (114 L) / 32 gal (121 L) |
| Tank construction | Rotomolded polyethylene |
| Squeegee width | 45 in (1,143 mm) |
| Brush motor | 1.5 hp (1,119 W) |
| Vacuum motor | 0.7 hp (522 W) |
| Steering radius | 6 ft (1.8 m) |
| Battery system | 36 V |
| Sound level | 70 dB |
| Dimensions (L x W x H) | 65 x 35 x 67 in (165 x 89 x 170 cm) |
| Net weight | 690 lb (313 kg) |
| Model Numbers | 99780 (BD 33/30) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BD 33/30: common questions
What kind of facility is the BD 33/30 for?
Tornado designed it for large, unobstructed spaces such as supermarkets, manufacturing plants, airports and exhibit halls.
How tight can it turn?
Tornado lists a steering radius of 6 ft for maneuvering tight corners.
Can I change the scrubbing pressure?
Yes. There are three brush pressure settings, up to 187 lb.
Should I choose the BD or the BR 33/30?
The BD uses twin disk pads and suits smooth floors for daily cleaning. The BR uses a cylindrical brush at 785 rpm, which works well on textured floors such as quarry tile and paver brick.
