| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

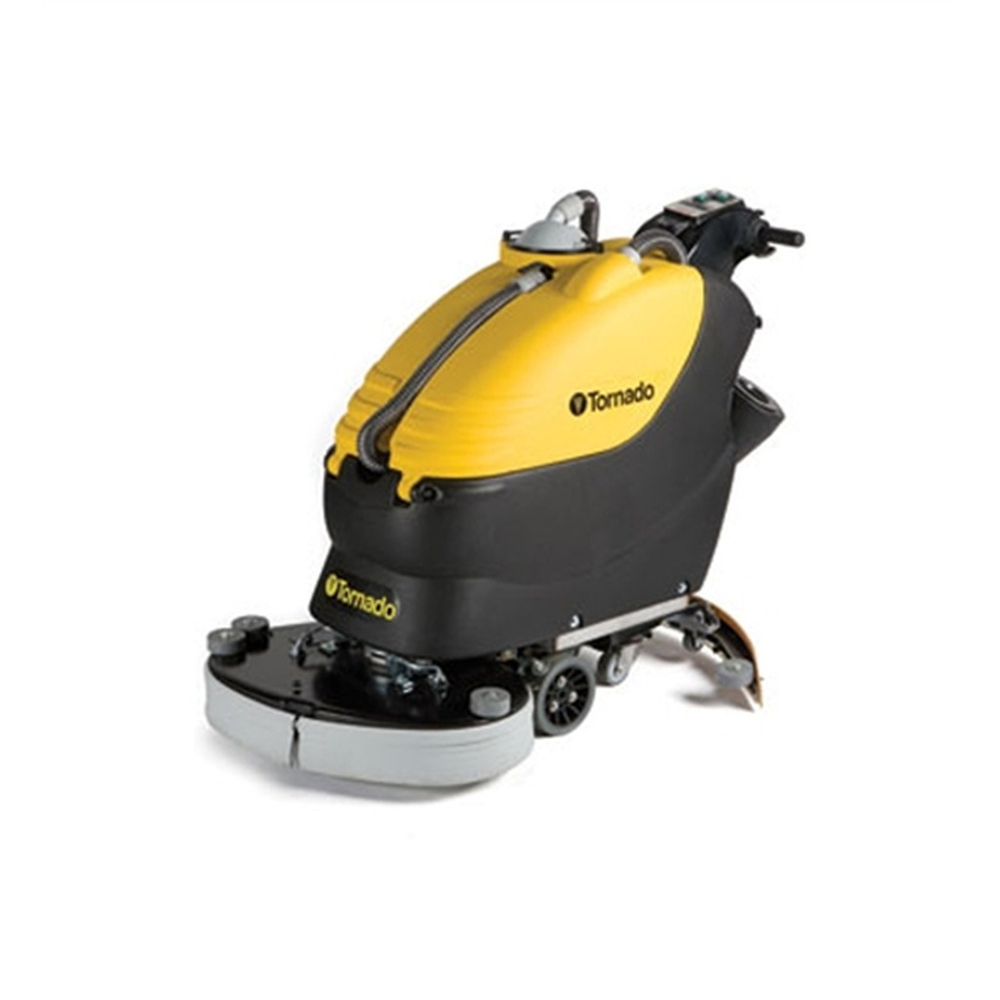

New Tornado BR 22/14T 22" Cylindrical Self-Propelled Scrubber
Our Take (from the SES Sales Team)
“The BR 22/14T is a mid-size cylindrical walk-behind with traction drive, and it makes a lot of sense for schools, hotels, retail, restaurants and hospitals with a mix of smooth floors and textured tile. The 22 in cylindrical brush turns at 1,300 rpm, so it scrubs down into grout and quarry tile rather than gliding over it, and it uses little water doing it. Brush pressure adjusts by hand up to 79 lb. The traction drive moves the machine for the operator, which matters on a 223 lb scrubber over a long shift. You get a 14 gal solution tank and a 15 gal recovery tank, and Tornado rates it at 22,000 sq ft per hour. Maintenance is straightforward: a hood strut holds the lid open for access to batteries, vacuum motor and hoses, the deck shroud peels back for brush changes, and the batteries sit on a stainless steel tray. It runs at 67 dB for daytime work. This package includes lead acid batteries and the onboard charger.”
A 22 in cylindrical walk-behind with traction drive
The Tornado BR 22/14T (Tornado number 99695T) is a medium walk-behind automatic scrubber for moderately sized interiors such as schools, hotels, retail shops, restaurants and hospitals. Its cylindrical brush spins at 1,300 rpm for low-moisture deep scrubbing on flat floors and structured surfaces like quarry tile, paver brick and raised rubber disc flooring.
It carries a 14 gal solution tank and a 15 gal recovery tank, picks up with a heavy-duty 33 in parabolic squeegee, and Tornado rates it at 22,000 sq ft per hour. This package (99695T-C) includes lead acid batteries and the onboard charger.
Condition: New.
What you get
Lead acid battery package
Built for easy service
Features
Deep scrubbing with less effort
- ✓Traction drive moves the machine for the operator
- ✓Cylindrical brush at 1,300 rpm handles flat and structured floors
- ✓Manual brush pressure adjustment, and all-manual levers raise and lower the deck
- ✓Heavy-duty, four-sided parabolic squeegee
- ✓Rotomolded polyethylene body with an ergonomic handle
Tornado cylindrical walk-behinds
BR 22/14T or BR 18/11?
| Specification | BR 18/11 | BR 22/14T |
|---|---|---|
| Cleaning path | 18 in | 22 in |
| Brush speed | 1,300 rpm | 1,300 rpm |
| Brush pressure | 50 lb | 79 lb |
| Solution / recovery tanks | 11 / 12 gal | 14 / 15 gal |
| Cleaning rate | 17,969 sq ft/hr | 22,000 sq ft/hr |
| Net weight | 157 lb | 223 lb |
Tornado BR 22/14T packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| 99695T-C (this unit) | BR 22/14T with lead acid batteries |
| 99695TE | Same machine with TPPL batteries |
Specifications
Tornado BR 22/14T at a glance
| Models | BR 22/14T, lead acid |
|---|---|
| Cleaning path | 22 in (559 mm) |
| Brush type | Cylindrical, 22 in (559 mm) |
| Brush speed | 1,300 rpm |
| Brush pressure | 79 lb (36 kg), manually adjustable |
| Cleaning rate | 22,000 sq ft/hr (2,044 m²/hr) |
| Solution / recovery tanks | 14 gal (53 L) / 15 gal (57 L) |
| Tank construction | Rotomolded polyethylene |
| Squeegee width | 33 in (838 mm) |
| Brush motor | 0.6 hp (447 W) |
| Vacuum motor | 0.6 hp (447 W) |
| Drive | Traction drive |
| Battery system | 24 V |
| Charger | Onboard |
| Sound level | 67 dB |
| Dimensions (L x W x H) | 50 x 24 x 42 in (127 x 61 x 107 cm) |
| Net weight | 223 lb (101 kg) |
| Model Numbers | 99695T-C (BR 22/14T with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BR 22/14T: common questions
Is the BR 22/14T self-propelled?
Yes. Tornado lists traction drive for the BR 22/14T, so the machine moves itself and the operator steers.
What floors is it good for?
Tornado says the cylindrical brush handles any flat floor as well as structured surfaces such as quarry tile, paver brick and raised rubber disc flooring.
How do I change the brush?
The deck shroud peels back for easy access to change brushes.
Can I adjust the scrubbing pressure?
Yes. Brush pressure adjusts manually, up to 79 lb.
Not sure the BR 22/14T fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
