| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

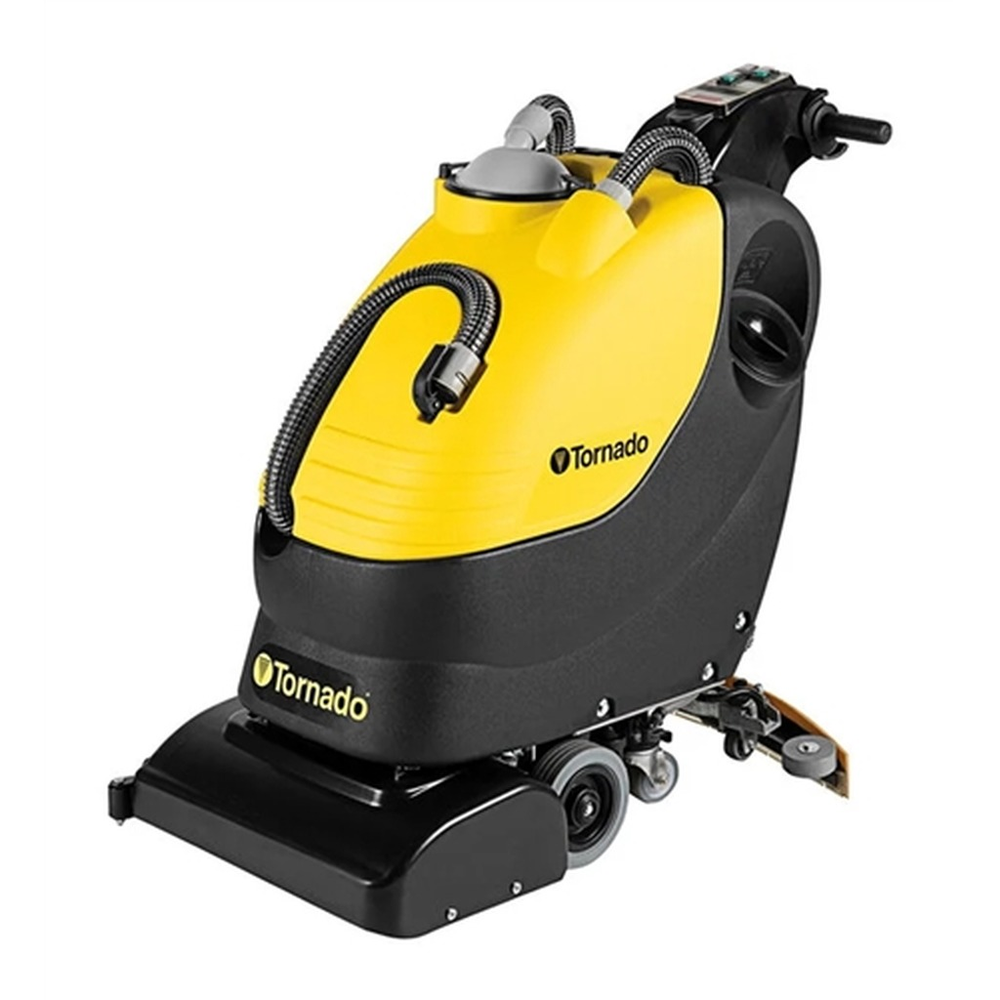

New Tornado BR 18/11 18" Cylindrical Pad Drive Floor Scrubber
Our Take (from the SES Sales Team)
“The BR 18/11 is a small walk-behind that cleans more like a bigger machine, because it uses cylindrical brushes instead of a flat pad. The brushes spin at 1,300 rpm, which gets into grout lines, quarry tile, paver brick and raised rubber flooring that a disk scrubber tends to skip over. It still does a great job on smooth floors, too. The 18 in path, 11 gal solution tank and 12 gal recovery tank make it a good size for restaurants, restrooms, schools and clinics, and Tornado rates it at 17,969 sq ft per hour. At 66 dB it is quiet enough to run while people are around. The parabolic squeegee picks up even on tight 180 degree turns, changes in 10 seconds or less, and a float shuts off the vacuum when the recovery tank is full, which protects the motor. This package includes lead acid batteries and the built-in onboard charger, so it is ready to work out of the box.”
An 18 in cylindrical scrubber for grout, tile and tight spaces
The Tornado BR 18/11 (Tornado number 99685) is a small walk-behind automatic scrubber with cylindrical brush technology. The brushes spin at 1,300 rpm for low-moisture deep scrubbing, and Tornado says they deliver four to six times more contact pressure than rotary brush scrubbing.
It carries an 11 gal solution tank and a 12 gal recovery tank in a roto-molded polyethylene body, and the parabolic squeegee is 31 in wide. This package (99685C) includes lead acid batteries and the onboard charger.
Condition: New.
What you get
Lead acid battery package
Brush options
Features
Deep scrubbing, quiet operation
- ✓Cylindrical brushes at 1,300 rpm clean flat and structured floors
- ✓Quick-change parabolic squeegee recovers solution even on 180° turns
- ✓Automatic float shutoff keeps foam and water out of the vacuum motor
- ✓Control panel shows battery run time and charge level
- ✓Tough roto-molded polyethylene body with an ergonomic handle
A closer look
Brushes and service points
Optional brushes are available for different floors.
A removable filter keeps debris out of the vacuum system.
Tornado BR 18/11 packages
Choosing a battery package
| Tornado number | Package |
|---|---|
| 99685 | BR 18/11, no batteries |
| 99685C (this unit) | BR 18/11 with lead acid batteries |
| 99685CG | BR 18/11 with AGM batteries |
| 99685E | BR 18/11 with TPPL batteries |
Tornado cylindrical walk-behinds
BR 18/11 or BR 22/14T?
| Specification | BR 18/11 | BR 22/14T |
|---|---|---|
| Cleaning path | 18 in | 22 in |
| Brush speed | 1,300 rpm | 1,300 rpm |
| Brush pressure | 50 lb | 79 lb |
| Solution / recovery tanks | 11 / 12 gal | 14 / 15 gal |
| Cleaning rate | 17,969 sq ft/hr | 22,000 sq ft/hr |
| Net weight | 157 lb | 223 lb |
Specifications
Tornado BR 18/11 at a glance
| Models | BR 18/11, lead acid |
|---|---|
| Cleaning path | 18 in (457 mm) |
| Brush type | Cylindrical, 18 in (457 mm) |
| Brush speed | 1,300 rpm |
| Brush pressure | 50 lb (23 kg) |
| Cleaning rate | 17,969 sq ft/hr (1,669 m²/hr) |
| Solution / recovery tanks | 11 gal (42 L) / 12 gal (45 L) |
| Tank construction | Polyethylene |
| Squeegee width | 31 in (787 mm) |
| Brush motor | 0.8 hp (597 W) |
| Vacuum motor | 0.6 hp (447 W) |
| Battery system | 24 V |
| Charger | Onboard |
| Sound level | 66 dB |
| Dimensions (L x W x H) | 43 x 21 x 41 in (109 x 53 x 104 cm) |
| Net weight | 157 lb (71 kg) |
| Model Numbers | 99685C (BR 18/11 with lead acid batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado BR 18/11: common questions
What floors is the BR 18/11 good for?
Tornado says it handles any flat floor as well as structured surfaces such as quarry tile, paver brick and raised rubber disc flooring.
Is it quiet enough for daytime cleaning?
Tornado rates it at 66 dB and describes it as suited to noise-sensitive places such as hospitals, schools, libraries and restaurants.
What brushes come with it?
The BR 18/11 comes standard with white brushes for daily cleaning. Medium, grit and hi-low grout brushes are available.
How is it charged?
The BR 18/11 has a built-in onboard charger.
