| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

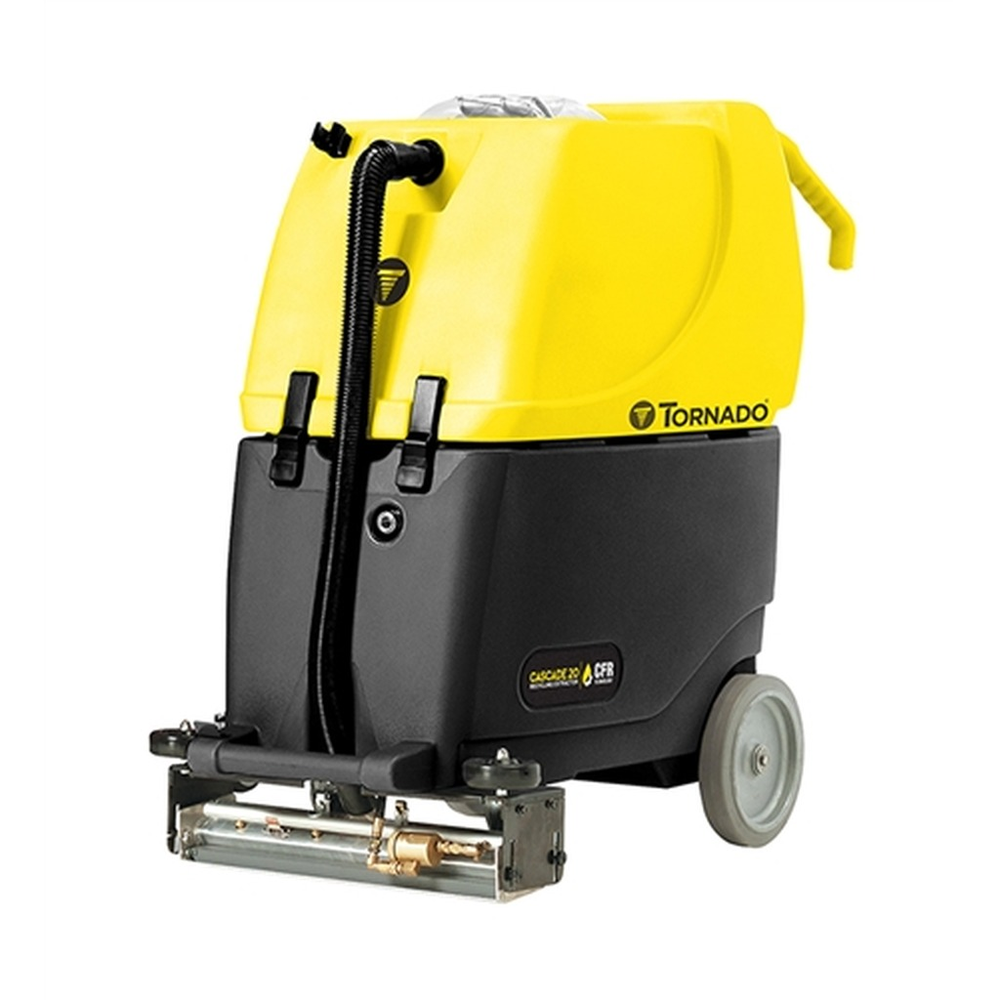

New Tornado Cascade 20 Recycling Carpet Extractor
Our Take (from the SES Sales Team)
“The Cascade 20 is a different kind of carpet extractor, and it is worth understanding before you compare it to a standard self-contained unit. Tornado built it around a patented vacuum shoe and a rapid recovery process that atomizes the cleaning solution and controls how much moisture goes into the carpet. The result Tornado describes is deep-cleaned carpet that dries much faster than with traditional extraction, while using less water and chemical. Faster drying also means less chance of mold, fungus and lingering odors, which matters in hotels, healthcare buildings and offices that need the space back quickly. It is self-propelled in forward, has 25 gal solution and recovery tanks, a 20 in cleaning width and up to 400 psi of solution pressure. With optional hand and floor tools it also cleans upholstery, fabric partitions, and even grouted tile and walls. It weighs 124 lb, so plan on a ramp or lift gate for moving it between sites. For large carpet programs where dry time is the real constraint, this is the machine to look at.”
A recycling carpet extractor built for fast drying
The Tornado Cascade 20 is a self-propelled recycling carpet extractor with a 20 in cleaning width, 25 gal solution and recovery tanks and up to 400 psi of solution pressure. A patented vacuum shoe and a rapid recovery process atomize the carpet solution and control moisture.
Tornado says the system reduces organic material in the carpet, minimizes odors and delivers deep-cleaned carpets with shorter drying times than traditional extractors, while using less water and chemical.
Condition: New.
What you get
The machine and its filtration
Less moisture, faster dry times
Features
Healthier, faster carpet care
- ✓Self-propelled, forward operation
- ✓Uses less water and chemical than conventional extraction
- ✓Helps minimize mold, fungus and allergens in carpet
- ✓Faster drying times so spaces are ready sooner
- ✓Cleans upholstery, fabric walls, partitions and grouted tile with optional hand and floor tools
Tools and parts
Set it up for the job
| Accessory or part | Tornado part number |
|---|---|
| 11 in forward rapid recovery wand | 77004 |
| 11 in reverse rapid recovery wand | 77003 |
| 11 in Wonder Wand without trigger | 77000 |
| 5 in combination hand tool | 77019 |
| 3 in combo hand tool | 77001 |
| 7-1/2 in special purpose fabric hand tool | 77008 |
| 16 ft flex hose assembly | 77009 |
| 33 ft crush-proof hose assembly | 77017 |
| Main filter, 55 micron | 72224C |
| Pump protection filter / inlet filter | 71495A / 72326A |
| Filter cleaning nozzle assembly | 60567A |
A wand is not included with this unit. Tornado offers the wands, hand tools and hoses above for upholstery, stairs, walls and other above-floor work.
Specifications
Tornado Cascade 20 at a glance
| Models | Cascade 20 |
|---|---|
| Cleaning width | 20 in (508 mm) |
| Solution / recovery tanks | 25 gal (95 L) / 25 gal (95 L) |
| Solution pressure | Up to 400 psi (27.6 bar) |
| Airflow / water lift | 101 cfm (2.9 m³/min) / 150 in (3,810 mm) |
| Drive | Self-propelled, forward |
| Motor | Brushed AC |
| Power cord | (1) 75 ft (23 m), 12 gauge, 3-wire SJTW, safety yellow |
| Wand included | No |
| Wheels | 10 in (25 cm) rear wheels |
| Weight | 124 lb (56 kg) |
| Model Numbers | 98856 (Cascade 20) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado Cascade 20: common questions
How is it different from a regular carpet extractor?
It uses a patented vacuum shoe and a rapid recovery process that atomizes the solution and controls moisture. Tornado says that means less water and chemical, faster drying and fewer odors than traditional extraction.
Is it self-propelled?
Yes. The Cascade 20 is self-propelled in forward operation.
Does it come with a wand?
No. Wands, hand tools and hoses are available separately, including 11 in rapid recovery wands and a 33 ft crush-proof hose.
Can it clean more than carpet?
With additional hand and floor tools it can clean congested carpeted areas, upholstery, fabric-covered walls and partitions, and hard surfaces such as grouted tile, walls and floors.
What are the tank sizes?
Both the solution and recovery tanks hold 25 gal.
Not sure the Cascade 20 fits your carpet program?
Tell our team about the carpet, the square footage and how fast you need the space back, and we will help you decide if this is the right extractor.
