| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

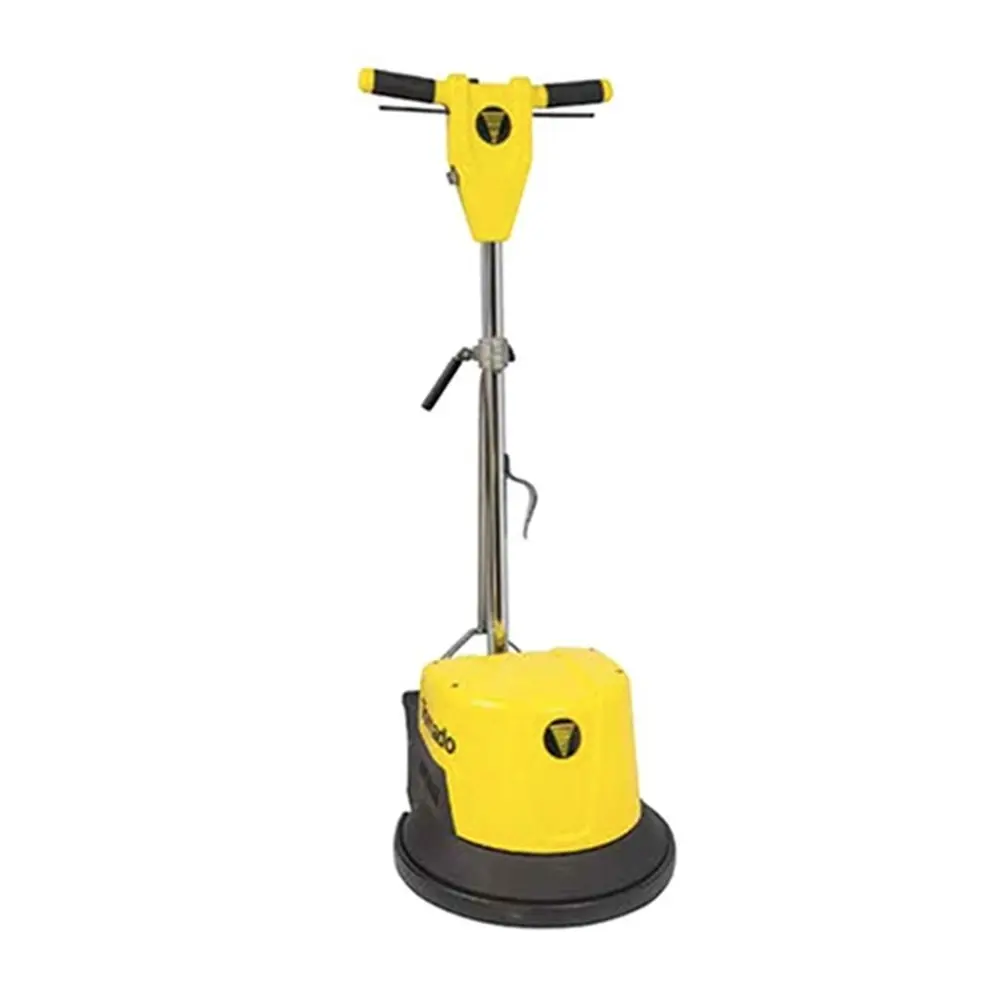

New Tornado Brute Force 17" Heavy Duty Floor Machine
Our Take (from the SES Sales Team)
“The Brute Force 17 in is the kind of floor machine we like to see in a janitor's closet that gets used hard every day. It is a 175 rpm machine with a 1.5 hp motor turning a triple planetary gear set with all steel gears, so it has the torque for scrubbing and stripping as well as daily polishing. The body is Tornado's patented one-piece rotomolded design, which soaks up vibration and torque and keeps the wiring and capacitors fully enclosed. It is also non-conductive, and Tornado says these machines outweigh most metal machines. The 17 in size is handy for smaller rooms, restrooms, hallways and around fixtures where a 20 in machine feels big. The handle is all metal with a positive lock, the machine tilts back for easy pad changes, and the 5 in wheels are non-marking. Add the optional 3 gal solution tank if your crew scrubs or strips. If you are covering bigger rooms, the 20 in version is the same machine with a larger pad.”
A 17 in heavy-duty floor machine for scrubbing, stripping and polishing
The Tornado Brute Force 17 in (Tornado number 97562B) is a 175 rpm rotary floor machine for daily polishing, heavy scrubbing and stripping. A 1.5 hp motor drives the pad through a triple planetary gear system with all steel gears.
Its patented one-piece, non-conductive body is rotationally molded to absorb torque and vibration, and it fully encloses the wires and capacitors. A sturdy all-metal handle locks in position for safety.
Condition: New.
What you get
Built for heavy-duty floor care
Pad holder and solution tank
Features
Rugged design, smooth operation
- ✓Patented one-piece rotomolded body absorbs torque and vibration
- ✓Wires and capacitors are fully enclosed for durability and safety
- ✓Triple planetary all steel gears for smooth power
- ✓Patented design keeps the motor running cool for a longer life
- ✓5 in non-marking, self-lubricating wheels
Tornado Brute Force series
17 in or 20 in?
| Specification | Brute Force 17 in (97562B) | Brute Force 20 in (97564B) |
|---|---|---|
| Cleaning path | 17 in | 20 in |
| Pad holder part | TL16 | TL19 |
| Disc speed | 175 rpm | 175 rpm |
| Motor | 1.5 hp | 1.5 hp |
| Net weight | 103.5 lb | 104.5 lb |
Specifications
Tornado Brute Force 17 in at a glance
| Models | Brute Force 17 in floor machine |
|---|---|
| Cleaning path | 17 in (432 mm) |
| Brush type | Rotary disc |
| Disc speed | 175 rpm |
| Motor | 1.5 hp (1,119 W) |
| Power | 115 V |
| Gear system | Triple planetary, all steel |
| Housing | High-density polyethylene, one piece |
| Handle | All metal, positive lock |
| Wheels | 5 in (127 mm) non-marking, self-lubricating |
| Solution tank | 3 gal (11 L), optional |
| Motor height | 19.5 in (495 mm) |
| Dimensions (L x W x H) | 31 x 20.5 x 44.5 in (79 x 52 x 113 cm) |
| Net weight | 103.5 lb (47 kg) |
| Model Numbers | 97562B (Brute Force 17 in floor machine) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado Brute Force 17 in: common questions
What jobs can the Brute Force handle?
Tornado built the Brute Force series for everything from daily polishing to heavy scrubbing and stripping.
Does it come with a solution tank?
The 3 gal solution tank is an optional accessory. It attaches to the machine for solution dispensing.
Why a plastic body?
The non-conductive, one-piece rotomolded body absorbs torque and vibration and encloses the wiring. Tornado says these machines outweigh most metal machines.
What is the difference between the 17 in and 20 in?
Only the pad size. Both run at 175 rpm with a 1.5 hp motor and weigh about the same. The 20 in model is also available.
Not sure the Brute Force 17 in fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
